1-1 (E) CBK-HD02
Section 1
Installation
Purpose of this manual
This manual is the installation manual of the SDI/COMPOSITE INPUT AND 50 PIN
IF CBK-HD02.
This manual is intended for use by trained system and service engineers, and describes
the information on installing the CBK-HD02.
Related manuals
Besides this installation manual, the following manual is prepared for CBK-HD02.
.PMW-500 Operating Instructions (Supplied with PMW-500).
This manual describes the application and operation of PMW-500.
.PMW-500 Maintenance Manual (Available upon request).
This manual describes the detailed maintenance information and repair information
of the PMW-500 that are required for parts-level service.
For obtaining, contact your local Sony Sales Office/Service Center.

1-2 (E)
CBK-HD02
1-1. General Information for Installation
Parts configuration
The SDI/COMPOSITE INPUT AND 50 PIN IF CBK-HD02 consists of the following
parts.
.RX-119 board assembly
.Radiation sheets (two)
.50P CN assembly
.50P cover assembly
.Tapes (two)
.Attaching screws
B2 x5 (four)
PSW2 x5 (four)
.Installation Manual
.Installation Guide
On installation
Install the CBK-HD02 and check that the CBK-HD02 is properly installed according
to the installation and check procedure described in section 1-2 and 1-3.
Standard Torque for Screws
When tightening a screw, be sure to use the specified torque driver and tightening
torque.
Fixtures
.Bit for torque driver (for M2)
M2 (+) screw: 19 x10_2?0.01 N.m (1.9 ?0.1 kgf.cm)
.Bit for torque driver (for M3)
M3 (+) screw: 80 x10_2?0.01 N.m (8.0 ?0.1 kgf.cm)

1-3 (E) CBK-HD02
1-2. Installation Procedure

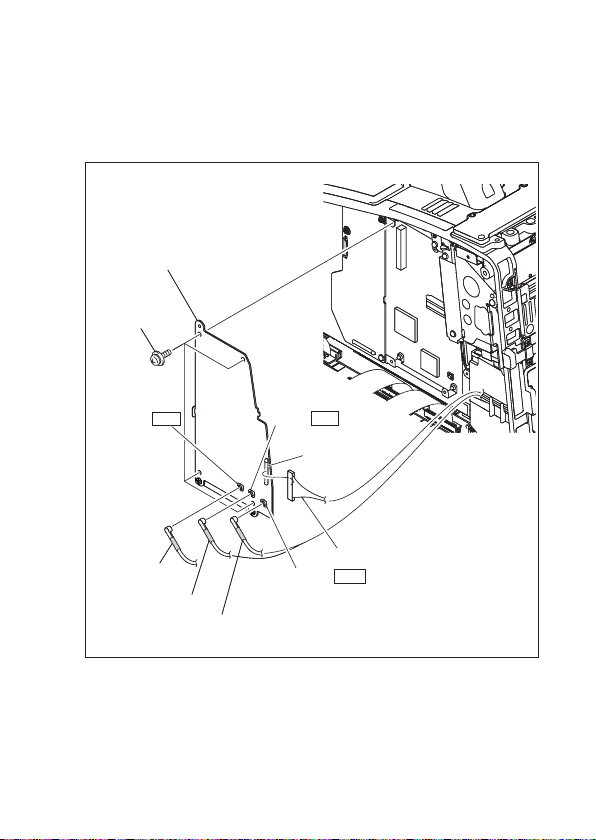

1. Remove the four screws to detach the 50P cover assembly.
2. Loosen the four screws with stopper to detach the inside panel assembly.
3. Install the 50P CN assembly with the supplied four screws (B2 x5).
50P cover assembly
M2
50P cover assembly
M2
Screws with stopper
Screws with stopper
Inside panel assembly
Screws with stopper
Screws with stopper
Inside panel assembly
50P CN assembly
B2 x5
50P CN assembly
B2 x5

1-4 (E)
CBK-HD02

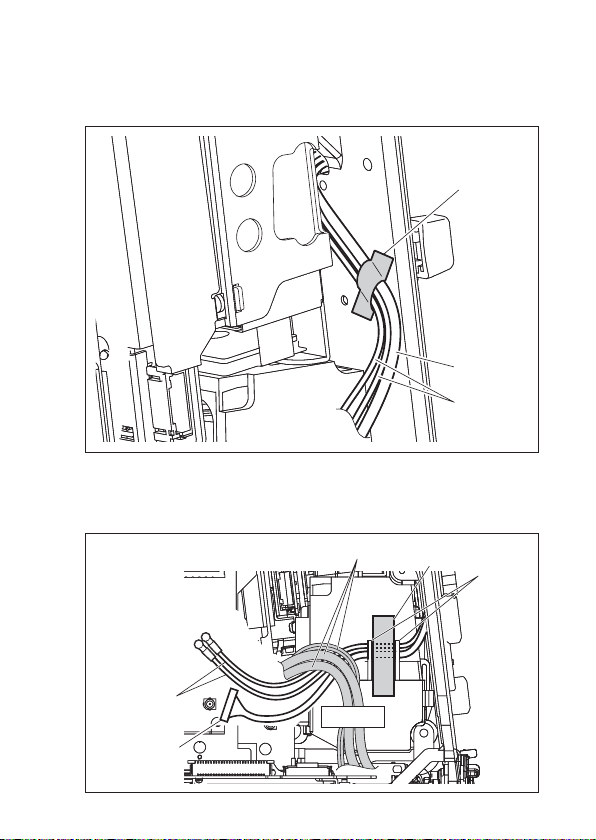

4. Clamp the two coaxial cables and the harness of the 50P CN assembly to the frame
of the main unit with tape.
5. Pass the two coaxial cables and the harness of the 50P CN assembly under the
harness (gray) and then through the space under the claws and clamp them with
tape.
Tap e
Coaxial
cables
Harness
Tap e
Coaxial
cables
Harness
Tap e
Claws
Coaxial cables
Harness
Harness (gray) Tap e
Claws
Coaxial cables
Harness
Harness (gray)

1-5 (E) CBK-HD02
6. Disconnect the coaxial cable (green), remove the protection sheets on both sides of
the radiation sheets, and stick them on IC1505 and IC2902 on the DCP-50 board.
OK NG
Disconnect the coaxial cable (green)
perpendicularly
Radiation sheets
DCP-50 board
IC1505
IC2902
Hold the plug to remove. Do not attempt to remove by
pulling the cable.
OK NG
Disconnect the coaxial cable (green)
perpendicularly
Radiation sheets
DCP-50 board
IC1505
IC2902
Hold the plug to remove. Do not attempt to remove by
pulling the cable.

1-6 (E)
CBK-HD02
7. Install the RX-119 board with four screws (PSW2 x5) and connect the coaxial
cable (green), coaxial cable (black), coaxial cable (white), and harness to the
connectors CN500 [GRN], CN501 [BLK], CN502 [WHT], and CN103
respectively on the RX-119 board.
8. Install the inside panel assembly by reversing the steps of removal.
PSW2 x5
Coaxial cable
(green)
Coaxial cable
(black) Coaxial cable (white)
RX-119 board
CN103
CN502 WHT
CN500 GRN CN501 BLK
Harness
PSW2 x5
Coaxial cable
(green)
Coaxial cable
(black) Coaxial cable (white)
RX-119 board
CN103
CN502 WHT
CN500 GRN CN501 BLK
Harness

1-7 (E) CBK-HD02

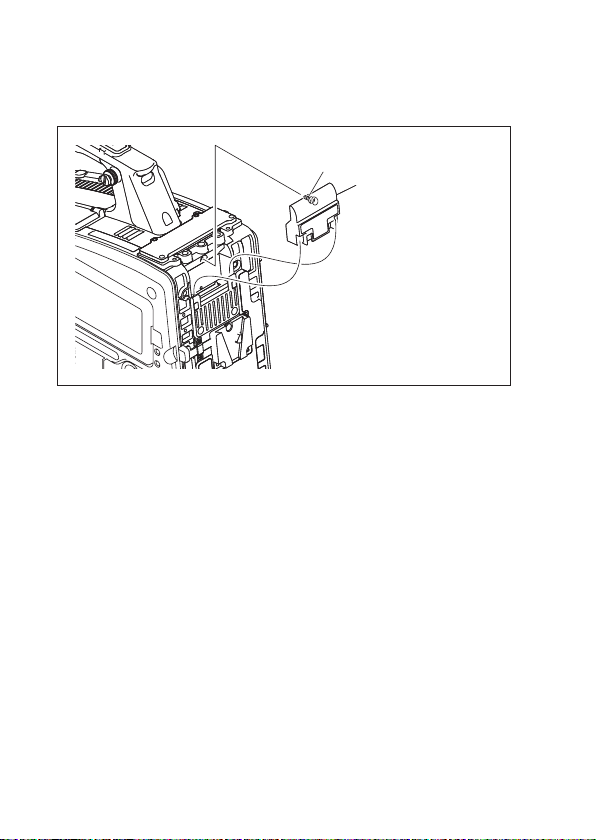

9. Install the 50P cover assembly supplied with the CBK-HD02 with the screw with
stopper.
Screw with stopper
50P cover assembly
(Supplied with the
CBK-HD02)
Screw with stopper
50P cover assembly
(Supplied with the
CBK-HD02)

1-8 (E)
CBK-HD02
1-3. Check after Installation
Check procedure
1. Turn on the power of PMW-500.
2. Display the “MAINTENANCE” menu on the viewfinder referring the operating
instructions supplied with PMW-500.
3. Confirm that “CBK-HD02:Vx.xxx” is displayed on the “Version” window.

Sony Corporation
CBK-HD02 (SY) J,E
4-207-595-02
Printed in Japan
2011. 3 08
