Sony CD Walkman D-NE500 User manual

1
Model Name Using Similar Mechanism D-NE509
CD Mechanism Type CDM-3325ER2
Optical Pick-up Name DAX-25E
SERVICE MANUAL
US Model
Canadian Model
D-NE500/NE506CK
E Model
D-NE500
D-NE500/NE506CK
PORTABLE CD PLAYER
CD player
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ= 770 - 800 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
D-A conversion
1-bit quartz time-axis control
Frequency response
20 - 20 000 Hz dB (measured by JEITA)
Output (at 3 V input level)
Headphones (stereo minijack)
Approx. 5 mW + Approx. 5 mW at 16 Ω
SPECIFICATIONS
General
Power requirements
•LR6 (size AA) battery: 1.5V DC ×1
•AC power adaptor (DC IN 3V jack):
120 V, 60 Hz
Battery life*1 (approx. hours)
When you use the CD player on a flat and stable
surface.
When LIGHT mode and SOUND mode are set to
“OFF.”
Playing time varies depending on how the CD
player is used.
US, CND model:
When using one Sony alkaline battery LR6
(SG) (produced in Japan)
G-PROTECTION
“G-PRO 1” “G-PRO 2”
Audio CD 33 28
ATRAC CD*260 60
MP3 CD*345 45
*1 Measured value by the standard of JEITA
(Japan Electronics and InformationTechnology
Industries Association)
*2 Recorded at 48 kbps
*3 Recorded at 128 kbps
Operating temperature
5°C - 35°C (41°F - 95°F)
Dimensions (w/h/d) (excluding projecting
parts and controls)
Approx. 129 ×27.5 ×140.1 mm
(5 1 ⁄8 ×1 1 ⁄8 ×5 5 ⁄8 in.)
Mass (excluding accessories)
Approx. 188 g (6.7 oz.)
Supplied accessories
AC power adaptor (1) (for except D-NE500:
US, except D-NE506CK: CND)
Remote control (1)
Rotary commander (1) (for D-NE506CK)
Car battery cord (1) (for D-NE506CK)
Car connecting pack (1) (for D-NE506CK)
Carrying case (1)
CD-ROM (SonicStage Ver. 2.0) (1)
User’s guide for SonicStageVer. 2.0 (1)
Headphones (1) (for US model)
Earphones (1) (for other models)
US and foreign patents licensed from Dolby
Laboratories.
Design and specifications are subject to change
without notice.
•Abbreviation
CND : Canadian model
E92 : AC 120V area in E model
MX : Mexican model
Ver 1.1 2004. 10
9-877-555-02
2004J04-1
© 2004.10
Sony Corporation
Personal Audio Company
Published by Sony Engineering Corporation
+1
–2
Photo: D-NE500

2
Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270°C during
repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
Notes on Chip Component Replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
D-NE500/NE506CK
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
zUNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
Notes on the power source
Disconnect all power sources when the CD player is not used for a
long time.
On AC power adaptor
•Use only the AC power adaptor supplied.
If your CD player is not supplied with the one, use theAC-E30HG
AC power adaptor. Do not use any other AC power adaptor. It
may cause a malfunction.
Polarity of the plug
•Do not touch the AC power adaptor with wet hands.
•Connect theAC power adaptor to an easily accessibleAC outlet.
Should you notice an abnormality in the AC power adaptor,
disconnect it from the AC outlet immediately.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES
SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT.
NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES
SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL
OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.

3
TABLE OF CONTENTS
1. SERVICE NOTE................................................................. 4
2. GENERAL
Locating the controls ............................................................... 5
3. DISASSEMBLY
3-1. Upper Lid Assy ................................................................... 7
3-2. Cabinet (Middle) Assy ........................................................ 7
3-3. Main Board, MD Assy ........................................................ 8
3-4. Sled MotorAssy (M602), Optical Pick-up (DAX-25E),
Turntable Motor Assy (M601)............................................. 8
4. ELECTRICAL ADJUSTMENTS
CD Section .............................................................................. 9
5. DIAGRAMS
5-1. IC Pin Descriptions ........................................................... 10
5-2. Note for Printed Wiring Boards
and Schematic Diagrams .................................................. 15
5-3. Waveforms......................................................................... 15
5-4. Block Diagram –CD Section–........................................... 16
5-5. Block Diagram –Power Supply Section–.......................... 17
5-6. Printed Wiring Board –Main Section– .............................. 18
5-7. Schematic Diagram –Main Section (1/2)– ......................... 20
5-8. Schematic Diagram –Main Section (2/2)– ......................... 21
5-9. Printed Wiring Board –Switch Section– ........................... 22
5-10. Schematic Diagram –Switch Section–............................... 23
5-11. IC Block Diagrams............................................................ 24
6. EXPLODEDVIEWS
6-1. Upper Lid Section ............................................................. 25
6-2. Cabinet (Lower) Section ................................................... 26
6-3. CD Mechanism Deck Section (CDM-3325ER2) ..............27
7. ELECTRICAL PARTS LIST......................................... 28
D-NE500/NE506CK

4
D-NE500/NE506CK SECTION 1
SERVICE NOTE
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electro-
static breakdown because of the potential difference generated by
thechargedelectrostatic load, etc.on clothing andthe human body.
During repair, pay attention to electrostatic breakdown and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
Precautions for Checking Emission of Laser Diode
Laser light of the equipment is focused by the object lens in the
optical pick-up so that the light focuses on the reflection surface
of the disc. Therefore, be sure to keep your eyes more then 30 cm
apart from the object lens when you check the emission of laser
diode.
Before Replacing the Optical Pick-Up Block
Please be sure to check throughly the parameters as par the “Opti-
cal Pick-Up Block Checking Procedures” (Part No.: 9-960-027-
11) issued separately before replacing the optical pick-up block.
Note and specifications required to check are given below.
•FOK output : IC601 yg pin (or TP624 (FOK))
When checking FOK, remove the lead wire to disc motor.
•RF signal P-to-P value : 0.45 ± 0.1Vp-p
•The repairing grating holder is impossible.
Laser Diode Checking Methods
During normal operation of the equipment, emission of the laser
diode is prohibited unless the upper lid is closed while turning ON
the S803. (push switch type)
The following two checking methods for the laser diode are
operable.
•Method:
Emission of the laser diode is visually checked.
1. Open the upper lid.
2. With a disc not set, turn on the S803 with a screwdriver having a
thin tip.
Note: Do not push the detection lever strongly, or it may be bent
or damaged.
3. Press the NXbutton.
4. Observing the objective lens, check that the laser diode emits
light.
When the laser diode does not emit light, automatic power
control circuit or optical pick-up is faulty.
In this operation, the objective lens will move up and down 5
times along with inward motion for the focus search.
TP644
RP642
TP640
TP639
TP636TP635 TP633TP632
TP631
TP610
TP701
R641
C608
C603
R608
R611
C616
C604
R620
R610
C615
R606
R618
C614
R605
R616
C613
R631 TP648 TP646
FB603
FB602
FB301
C610
C623
FB606
C609
VDR603
C625
R613
R103
TP627TP623TP621
TP622TP626TP630
R203
R315
R630
R314
C311
R625
R614
R603 R602
R609
C611
R615
R612
C605
R604
R624R623
C621
R628
61
90
91
30
120
IC601
1
60
31
TP301
TP629
TP625
TP302
TP102
IC601 65 pin
– MAIN BOARD (SIDE B) –
C617
FB101
TP628
TP624
FB303
FB201
VDR602 VDR609
X601
C612
D306
D101
D305
J301
J301
i
TP624
– MAIN BOARD (SIDE A) –
S80
3
TP823
TP822
TP833
TP842
TP835
TP846 TP806
TP829 TP825
TP831 TP827 TP824
R834 R832
25
24
26
R827
R828
R829 R303 TP834
TP832
TP830 TP828 TP826
R842
R847
VDR802
VDR804
SL806
CN802
R840
C812
S803
(OPEN/CLOSE)
S803
– MAIN BOARD (SIDE B) –

5
D-NE500/NE506CK
SECTION 2
GENERAL This section is extracted
from instruction manual.
11
1
5
6
7
8
9
q;
qa
2
3
4

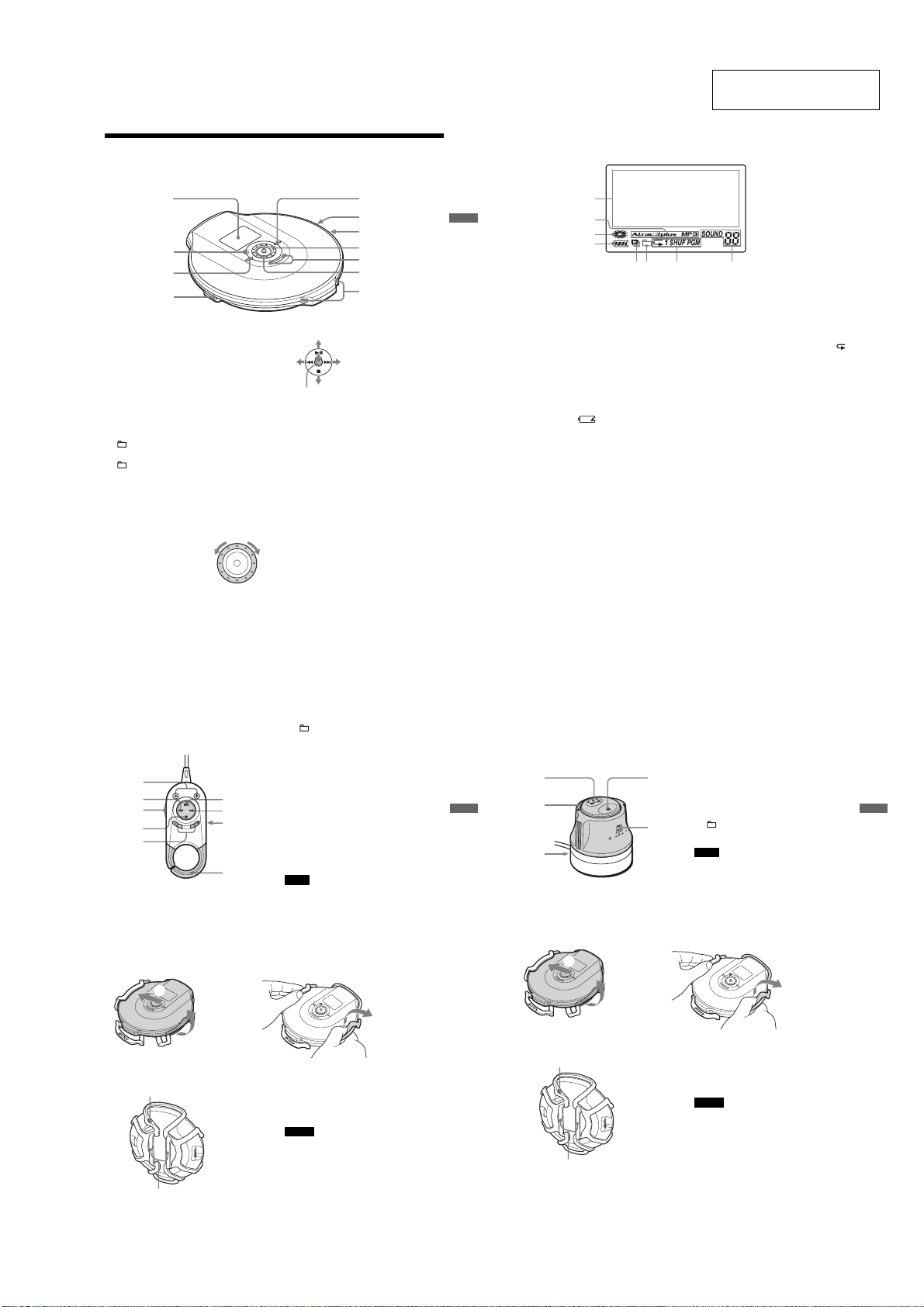

Locating the controls
CD player
For details, see the pages in parentheses.
Getting started
(Continued)
1Display (12, 16, 18, 19, 21 - 23, 33, 34)
2OPR (operation) lamp (25, 26)
Color of the lamp changes according to
the type of music source being played.
Red: Audio CD, Green: ATRAC3plus/
ATRAC3 file, Orange: MP3 file
For some time after the CD is inserted,
the lamp lights up in red, orange and
green in turn.
This lamp also functions as the HOLD
lamp.
3(group) – button (15, 21 - 23, 25, 33)
4i(headphones) jack (14)
5(group) + button (15, 21, 22)
6HOLD switch (rear) (25)
Slide the switch in the direction of the
arrow to disable the buttons on the CD
player.
7DC IN 3 V (external power input) jack
(14)
8Jog dial (18 - 27, 33)
Use to select a file, play
mode, etc. The search
direction changes
according to the direction
in which the jog dial is turned.
9VOL (volume) +
*1
/– buttons (15)
q; 5-way control key
(15, 16, 18 - 27, 33)
u: play/pause
.:AMS
*2
/rewind
>:AMS/fast forward
x: stop
DISPLAY/MENU: Use to
select menu items and enter
the selection.
Push the control key toward u, .,
>or xwith your finger on
DISPLAY/MENU.
qa OPEN switch (14, 31)
Squeeze the switch from both sides.
*1 The button has a tactile dot.
*2 Automatic Music Sensor
DISPLAY/
MENU
12
Display
For details, see the pages in parentheses.
1
2
3
4
56 7 8
1Character information display (16)
While playing an audio CD, disc name,
track name, etc. appear in 4 lines, if
recorded on the CD.
While playing an ATRAC CD/MP3 CD,
group name, file name, etc. appear in 4
lines, if recorded on the CD.
Menu items also appear in this display.
2Atrac3plus/MP3 indication
3Disc indication
Lights up while the CD player is playing.
4Battery indication (31)
Roughly shows the remaining power of
the battery. If “ ” flashes, the battery
is depleted.
5Play list indication
For MP3 CD only
6Group indication
For ATRAC CD/MP3 CD only
7Play mode indication
Shows various play modes such as single
play, shuffle play and program play. “ ”
shows repeat play.
8SOUND indication
Shows the SOUND setting which has
been selected on the menu.
13
3
2
1
4
5
7
8
6
9
Remote control
For details, see the pages in parentheses.
Getting started
1( group) –/+ buttons (15)
2.(AMS/rewind) button (15)
3HOLD switch (25)
Slide the switch in the direction of the
arrow to disable the buttons on the
remote control.
4x(stop) button (15)
5VOL (volume) +/– buttons (15)
6u(play/pause) button (15)
7>(AMS/fast forward) button (15)
8Headphone jack (rear)
9Hook
Use to hang the remote control on a
knapsack, etc.
Note
Use only the supplied remote control. You cannot
operate this CD player with the remote control
supplied with other CD players.
Using the carrying case
To attach the case To remove the case
2
1
You can pass your strap or belt through the case.
Strap hole
Belt loop
Notes
•The carrying case is not designed to protect the
CD player.
•When attaching and removing the case,
disconnect theAC power adaptor and the remote
control first.
13
Getting started
Using the carrying case
To attach the case To remove the case
2
1
You can pass your strap or belt through the case.
Strap hole
Belt loop
Notes
•The carrying case is not designed to protect the
CD player.
•When attaching and removing the case,
disconnect theAC power adaptor and the remote
control first.
Rotary commander
For details, see the pages in parentheses.
1u(play/pause) button (15)
2.(AMS/search)•>(AMS/search)
control (15)
3Jack for connecting a car connecting pack
(28)
4x(stop) button (15)
5( group) +/– control (15)
Push down and turn.
Note
The supplied rotary commander should be used
with this player only.
1
2
3
4
5
• D-NE506CK

6
D-NE500/NE506CK SECTION 3
DISASSEMBLY
• The equipment can be removed using the following procedure.
3-1. UPPER LID ASSY
(Page 7)
3-2. CABINET (MIDDLE) ASSY
(Page 7)
SET
3-3. MAIN BOARD,
MD ASSY
(Page 8)
3-4. SLED MOTOR ASSY (M602),
OPTICAL PICK-UP (DAX-25E),
TURNTABLE MOTOR ASSY (M601)
(Page 8)

7
D-NE500/NE506CK
Note : Follow the disassembly procedure in the numerical order given.
3-1. UPPER LID ASSY
3-2. CABINET (MIDDLE) ASSY
1 screw
2 bracket (hinge R)
upper lid assy
spring (upper lid)
5
7
6
4
bracket (hinge L)
3 screw
1 three screw
s
4
2
three screws
5 cabinet (middle) assy
3 screw
two claws

8
D-NE500/NE506CK
3-3. MAIN BOARD, MD ASSY
3-4. SLED MOTOR ASSY (M602), OPTICAL PICK-UP (DAX-25E),TURNTABLE MOTOR ASSY (M601)
Note: When installing, fit the knob (HOLD) and S802.
7 MAIN board
claw
knob (hold)
S802
cabinet (lower) assy
5 MD ASSY
2 CN603
1 CN602
3 CN602
8 CN802
4
6
3
5
4
sled motor assy
(M901)
1 three screws
(B1.7x4)
Chassis
8 three screws
(B1.7x4)
9 turntable motor assy
(M902)
6 optical pick-u
p
(DAX-25E)
7 standard shaft
2 gear cover

9
D-NE500/NE506CK
TP644
RP642
TP640
TP639
TP636TP635 TP633TP632
TP631
TP610
TP701
R641
C608
C603
R608
R611
C616
C604
R620
R610
C615
R606
R618
C614
R605
R616
C613
R631 TP648 TP646
FB603
FB602
FB301
C610
C623
FB606
C609
VDR603
C625
R613
R103
TP627TP623TP621
TP622TP626TP630
R203
R315
R630
R314
C311
R625
R614
R603 R602
R609
C611
R615
R612
C605
R604
R624R623
C621
R628
61
90
91
30
120
IC601
1
60
31
TP301
TP629
TP625
TP302
TP102
TP610
– MAIN BOARD (SIDE B) –
CD SECTION
CD section adjustments are done automatically in this set.
In case of operation check, confirm that focus bias.
FOCUS BIAS CHECK
1. Connect the oscilloscope between TP610 (RF) and GND on
main board.
2. Insert the disc (YEDS-18). (Part No. : 3-702-101-01)
3. Press the NXbutton.
4. Confirm that the oscilloscope waveform is as shown in the
figure below. (eye pattern)
A good eye pattern means that the diamond shape ( ) in the
center of the waveform can be clearly distinguished.
• RF signal reference waveform (eye pattern)
Test Point:
When observing the eye pattern, set the oscilloscope forAC range
and raise vertical sensitivity.
RF level :
0.45
± 0.1 Vp-p
VOLT/DIV : 20 mV (10 : 1 probe in use)
TIME/DIV : 500 nS
SECTION 4
ELECTRICAL ADJUSTMENTS

10
D-NE500/NE506CK
5-1. IC PIN DESCRIPTIONS
• IC601 CXD3039AR (RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER)
(MAIN BOARD (1/2))
Pin No. Pin Name I/O Pin Description
1XRAS O Row address strobe signal output to the D-RAM
2XWE O Data input enable signal output to the D-RAM
3 to 6 D1, D0, D3, D2 I/O Two-way data bus with the D-RAM
7DCLK O Not used
8DCKE O Not used
9XCAS O Column address strobe signal output to the D-RAM
10 WFCK/DQM O WFCK signal output terminal Not used
11 to 13 A9 to A7 O Address signal output to the D-RAM
14 DVSS — Ground terminal (for D-RAM interface)
15 to 17 A6 to A4 O Address signal output to the D-RAM
18 XRDE I D-RAM read enable signal input terminal
19 VDD0 — Power supply terminal (digital system)
20 CLOK I Serial data transfer clock input from the system controller
21 SDTO I Serial data input from the system controller
22 SENS O Serial data output to the system controller
23 XLAT I Serial data latch pulse signal input from the system controller
24 XSOE I Serial data output enable signal input from the system controller
25 SYSM I Analog muting on/off control signal input “H”: muting on
26 WDCK O GRSCOR signal output to the system controller Not used
27 SCOR O Subcode sync (S0+S1) detection signal output to the system controller
28 XRST I Reset signal input from the system controller “L”: reset
29 PWMI I Spindle motor external control signal input terminal Not used
30 XQOK I Subcode Q OK signal input terminal Not used
31 XWRE I D-RAM write enable signal input terminal Not used
32 R8M O System clock output to the system controller
33 VSS0 — Ground terminal (digital system)
34 SQCK I SQSO readout clock input terminal Not used
35 SCLK I SENS serial data read clock input terminal Not used
36 SQSO O CD text data output terminal Not used
37 XEMP O D-RAM read prohibition signal output terminal Not used
38 XWIH O D-RAM write prohibition signal output terminal Not used
39 SBSO O Subcode P to W serial data output terminal Not used
40 EXCK O SQSO readout clock output terminal Not used
41 XTSL I Input terminal for the system clock frequency setting Not used
42 HVSS — Ground terminal (for headphone)
43 HPL O PDM signal output for L-ch headphone to the headphone amplifier Not used
44 HPR O PDM signal output for R-ch headphone to the headphone amplifier Not used
45 HPVDD — Power supply terminal (for headphone)
46 XVDD — Power supply terminal (for master clock)
47 XTAI I System clock input terminal (16.9344 MHz)
48 XTAO O System clock output terminal (16.9344 MHz)
49 XVSS — Ground terminal (for master clock)
50 AVDD1 — Power supply terminal (analog system)
51 AOUT1 O L-ch analog audio signal output
52 VREFL O L-ch reference voltage output terminal
53, 54 AVSS1, AVSS2 — Ground terminal (analog system)
55 VREFR O R-ch reference voltage output terminal
56 AOUT2 O R-ch analog audio signal output
SECTION 5
DIAGRAMS

11
D-NE500/NE506CK
Pin No. Pin Name I/O Pin Description
57 AVDD2 — Power supply terminal (analog system)
58 TES1 I Input terminal for the test (normally: fixed at “L”)
59 TEST I Input terminal for the test (normally: fixed at “L”)
60 VSS1 — Ground terminal (digital system)
61 LRMU O Muting on/off control signal output to the audio line and the headphone amplifier
“H”: muting on
62 DOUT O Digital audio signal output Not used
63 ATSK I/O Input/output terminal for anti-shock Not used
64 DFCT I/O Defect signal input/output terminal Not used
65 FOK O Focus OK signal output to the system controller “L”: NG, “H”: OK
66 MIRR I/O Defect signal input/output terminal Not used
67 COUT I/O Numbers of track counted signal input/output terminal Not used
68 C2PO O C2PO signal output terminal Not used
69 GFS O GFS signal output terminal
70 XUGF O XUGF signal output terminal Not used
71 XPCK O XPCK signal output terminal Not used
72 VDD1 — Power supply terminal (digital system)
73 PCO O Charge pump output for master PLL
74 FILI I Filter input for master PLL
75 FILO O Filter output for master PLL
76 CLTV I VCO1 control voltage input terminal for multiplier
77 VCTL I VCO2 control voltage input terminal for broad-band EFM PLL
78 VPCO O Charge pump output terminal for broad-band EFM PLL
79 AVSS3 — Ground terminal (analog system)
80 ASY_O O EFM full-swing output terminal
81 ASY_I I Asymmetry comparator voltage input terminal
82 BIAS I Asymmetry circuit constant current input terminal
83 AVDD3 — Power supply terminal (analog system)
84 RFAC I EFM signal input from the optical pick-up
85 AVDD0 — Power supply terminal (analog system)
86 IGEN I Stabilized current input for operational amplifiers
87 AVSS0 — Ground terminal (analog system)
88 RFDC I RF signal input from the optical pick-up
89 E I E signal input from the optical pick-up
90 F I F signal input from the optical pick-up
91 B I B signal input from the optical pick-up
92 A I A signal input from the optical pick-up
93 VC I Middle point voltage input terminal Not used
94 VSS2 — Ground terminal (digital system)
95 FRDR O Focus servo drive signal (–) output to the IC401
96 FFDR O Focus servo drive signal (+) output to the IC401
97 TRDR O Tracking servo drive signal (–) output to the IC401
98 TFDR O Tracking servo drive signal (+) output to the IC401
99 SRDR O Sled servo drive signal (–) output to the IC401
100 SFDR O Sled servo drive signal (+) output to the IC401
101 SSTP I Disc inner position detection signal input terminal Not used
102 MDS O Spindle motor drive signal output to the spindle motor driver
103 MDP O Spindle motor servo control signal output to the spindle motor driver
104 C176 O 176.4 kHz clock output to the power control and spindle motor driver
105 VDD2 — Power supply terminal (digital system)
106 LRCK_O O L/R sampling clock (44.1 kHz) output terminal

12
D-NE500/NE506CK
Pin No. Pin Name I/O Pin Description
107 LRCK_I I L/R sampling clock (44.1 kHz) input terminal
108 PCMD_O O Serial data output terminal
109 PCMD_I I Serial data input terminal
110 BCK_O O Bit clock (2.8224 MHz) output terminal
111 BCK_I I Bit clock (2.8224 MHz) input terminal
112 DVDD — Power supply terminal (for D-RAM interface)
113 to 117 A3 to A0, A10 O Address signal output to the D-RAM
118 to 120 A11 toA13 O Address signal output terminal to the D-RAM Not used

13
D-NE500/NE506CK
• IC801 TMP91CY28FG-5G09 (SYSTEM CONTROLLER) (MAIN BOARD (2/2))
Pin No. Pin Name I/O Pin Description
1GND — Reference voltage terminal (A/D converter)
2GND — Ground terminal (A/D converter)
3VCPU — Power supply terminal (A/D converter)
4XRST_O O Reset signal output to the DSP (IC601)
5PWM_O O Not used (open)
6BEEP_O O BEEP signal output
7AMUTE_O O Muting signal output to the headphone amplifier (IC301)
8LINEOUT_I I Not used (open)
9OPTOUT_I I Not used (open)
10 FG_I I FG (3 phase drive) signal input from the power control (IC401)
11 REQ_I I Request signal input from the MP3 decoder (IC702)
12 HG-XSTB_O O HG sleep mode signal output to the optical-pickup
13 HG-GUP_O O HG gain up signal output to the optical-pickup
14 RE1_I I Encoded signal input from the rotary encoder (S2001)
15 RE2_I I Encoded signal input from the rotary encoder (S2001)
16 LCD_REQ_O O Not used (open)
17 SDXLAT_O O Serial data latch signal output to the MP3 decoder (IC702)
18 SDCLK_O O Clock output to the MP3 decoder (IC702)
19 SDOUT_O O Serial data output to the MP3 decoder (IC702)
20 SDIN_I I Serial data input from the MP3 decoder (IC702)
21 DTS_SDTO O Serial data output to the DTS controller
22 DTS_SDTI I Serial data input from the DTS controller
23 DTS_SCK O Clock output to the DTS controller
24 AM0_I I Not used (fixed at “H”)
25 VCPU — Power supply terminal
26 XOUT O Clock output (not used)
27 GND — Ground terminal
28 XIN I Clock input
29 AM1_I I Not used (fixed at “H”)
30 XRESET_I I Reset signal input (“L” : reset)
31 TSB I/O Data input/output from/to the remote control
32 XWAKE_O O Wake signal output to the power control (IC401) (“L” : running)
33 EMU0_O O Not used (open)
34 EMU1_O O Not used (open)
35 ACKCD_I I CD acknowledgment signal input
36 JOGKEY_I/FAVKEY_I I Key signal input from the jog key or the remote control key
37 LID-SW_I I Lid open/close detection signal input (“H” : lid open)
38 EXTBAT_I I External battery in detection signal input (“H” : external battery in)
39 HP_TYPE_I I Not used (open)
40 HOLD_I I HOLD switch detection signal input (“H” : HOLD on)
41 AVSL I Not used (open)
42 TEST_I I Test mode setting terminal (“L” : test mode)
43 NC — Not used (open)
44 to 51 AD0 to AD7 I/O Data input/output from/to the liquid crystal display
52 FOK_I I FOK signal input from the DSP (IC601)
53 GFS_I I GFS signal input from the DSP (IC601)
54 TUPWRON_O O Not used (open)
55 CDON_O O Not used (open)
56 AUD_SEL_O O Not used (open)
57 VDSEL O Power supply voltage selection signal output
58 MDP_SW O Spindle motor control switch signal output
59 DTS_RST_O O Not used (open)
Ver 1.1

14
D-NE500/NE506CK
Pin No. Pin Name I/O Pin Description
60 AT3_MP3_V_O O Reset signal output to the MP3 decoder (IC702)
61 P/S_O O Not used (open)
62 GND — Ground terminal
63 XNMI_I I Not used (fixed at “H”)
64 VCPU — Power supply terminal
65 HP_LIN_SEL_O O Headphone or line out selection control signal output
66 WAKEUP_K_O O Wakeup signal output to the MP3 decoder (IC702)
67 EEP_CS_O O Chip select signal output to the EEPROM (IC802)
68 TUON_I I Not used (fixed at “H”)
69 LCD_A0 O A0 signal output to the liquid crystal display
70 OPTPWRCTL_O O Not used
71 XRD_O O Read signal output to the liquid crystal display
72 XWR_O O Write signal output to the liquid crystal display
73 LCD-XRST_O O Reset signal output to the liquid crystal display
74 XLCD-BL_O O Not used (open)
75 XLED1_O O LED control signal output
76 XLED2_O O LED control signal output
77 HP_PWRSW O Headphone amplifier power supply on/off signal output
78 BOOT I BOOT signal input
79 XBAT1CELL I I Not used (fixed at “L”)
80 NC — Not used (open)
81 XCEX_I I Not used (open)
82 DISPLAY_TYPE_I I Not used (fixed at “L”)
83 MSCK0_O O Clock signal output to the DSP (IC601) and the power control (IC401)
84 MSDTO0_O O Serial data output to the DSP (IC601) and the power control (IC401)
85 MSDTI0_I I SENS signal input from the DSP (IC601)
86 SCOR_I I SCOR signal input from the DSP (IC601)
87 XLAT0_O O Latch signal output to the DSP (IC601)
88 XSOE_O O Serial data output enable signal output to the DSP (IC601)
89 VCPU — Power supply terminal
90 PWRLAT_O O Data latch signal output to the power control (IC401)
91 GND — Ground terminal
92 AD-BATMNT I Battery monitoring signal input
93 AD-CHGMNT I Charge monitoring signal input
94 AD-CHGSTMNT I Charge stand monitoring signal input Not used
95 AD-DCINMNT I DC in monitoring signal input
96 AD-KEY1 I Key 1 signal A/D input
97 AD-KEY2 I Key 2 signal A/D input
98 AD-KEY3 I Key 3 signal A/D input Not used
99 AD-RMKEY I Remote control key signalA/D input
100 VCPU — Reference voltage terminal (A/D converter)

D-NE500/NE506CK
15 15
5-2. NOTE FOR PRINTEDWIRING BOARDS AND SCHEMATIC DIAGRAMS
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this,the necessary note is printed in each
block.)
For schematic diagrams.
Note:
•All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•%: indicates tolerance.
•f: internal component.
•C: panel designation.
For printed wiring boards.
Note:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•a: Through hole.
•f: internal component.
•: Pattern from the side which enables seeing.
•A: B+ Line.
•Total current is measured with CD installed.
•Powervoltageisdc 4.5V and fed withregulateddc power
supply from external power voltage jack.
•Voltages and waveforms are dc with respect to ground in
playback mode.
no mark : FM
():AM
<>:CD
∗: Impossible to measure
•Voltages aretakenwith aVOM(Inputimpedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
•Circled numbers refer to waveforms.
•Signal path.
F: FM
f: AM
J: CD
•Abbreviation
CND : Canadian model.
E92 : AC 120V area in E model.
MX : Mexican model.
•Abbreviation
CND : Canadian model.
E92 : AC 120V area in E model.
MX : Mexican model.
Q
C
These are omitted
EB
EThese are omitted CB
CThese are omitted BE
Caution:
Pattern face side: Partsonthe patternfaceside seenfrom the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
Note:
The components identi-
fied by mark 0or dotted
linewith mark 0arecriti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposants identifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
piéce portant le numéro
spécifié.
5-3.WAVEFORMS
1
IC601if (RFAC)
200mV/DIV, 400ns/DIV 2
IC601rk (XTAO)
1V/DIV, 40ns/DIV 3
IC601<z/v (C176)
1V/DIV, 2µs/DIV
450mVp-p
59ns 57µs
2.6Vp-p 2Vp-p

D-NE500/NE506CK
1616
OPTICAL PICK-UP
BLOCK
(DAX-25E)
RF
A
B
E
F
PD
S+
S-
PD
LD
LD
DETECTOR
VCC
OPSTB
OPGSW
FOCUS
COIL
TRACKING
COIL
FO1
VCC3 IC401 (1/2)
COIL/MOTOR DRIVER
F+
F–
T+
IC801 (1/2)
SYSTEM CONTROL
M602
SLED
MOTOR
M601
SPINDLE
MOTOR
M
M
T-
46 FI1 48
SFDR
100
SRDR
99
RO1
44
FO2
42
RO2
40
VLGO4
78
PAPC
97
FO3
38
RO3
36
U
30
V
32
W
34
COM
26
UI
25
VI
24
WI
23
RI1 49
FI2 50
RI2 51
XTAI 47
XTAO 48
109
107
111
18
PCMD_O 108
LRCK_O 106
BCK_O
PCMD_I
LRCK_I
BCK_I
XRDE
110
PIO
15 PI2
14 PI3
13 PF4
D0-D3
A0-A10
XRAS
XWE
XCAS
LRMU
CD-L
R-CH
X601
16.934MHz
12
PCMD
4LRCH
1BCK
2
LRMU 61
NRST
33
XRAS 1
XWE 2
XCAS 9
5
4
23
AOUT1 51
A0-A10
D0-D3
4
11
3-6
11-13 15-17
113-117
2,3
24,25
8-12
15-19,21
AOUT2 56
FI3 52
RI3 53
APWM 27
FG 22
XBRK 21
SYNC 5
CLOCK 7
DATA 8
MDP
IC403
103
C176
104
MDS
102
SDTO
21 CLOCK
20 SENS
22
10 13 12 52
XLAT
FG-I
HG-GUP_O
HG-XSTB_O
FOK_I
58
MDP_SW
84
MSDTOO_O
83
MSCKO_O
85
MSDTIO_I
23
XSOE
24
SCOR
27
R8M
32
GFS XRST SYSM
69 28 25
87
XLATO_O
88
XSOE_O
86
SCOR_I
28
XIN
53
GFS_I
4
XRST_O
7
AMUTE_O
30
XRESET_I
VCPU
DO
DI
XSK
XCS
RESET
TESET
CONNECTOR
CN801
IC802
EEPROM
78
BOOT
22 2321
DTS_SDTO
DTS_SDTI
DTS_SCK
20
SDIN_I
17
SDXLAT_O
19
SDOUT_O
18
SDCLK_O
67
EEP_CS_O
11
REQ_I
66
WAKEUP_K_O
60
AT3_MP3_V_O
8M28
RST30
BOOT
TXD21
RXD22
TCK23
2
3
4
1
RF3/T3 37
SCS0 42
SIO 41
SO0 40
SCK0
RF0
8
EXTAL
X701
22MHz
XTAL
38
34
30
29
RFDC
88
A
92
B
91
E
89
F
90
FOK
65
FFDR
96
FRDR
95
TFDR
98
TRDR
97
RFAC
84
SERVO
BLOCK
LPF
IC602
DRAM
8BIT TIMER(CH6) 8BIT TIMER(CH7)
CD-ROM
INTERFACE
DAC
INTERFACE
RAM
512K BYTES
RAM
160K BYTES
MAGIC GATE
CORE
DMAC(CH3) DMAC(CH1)
INTERRUPT CONTROLLER
SIGNAL
PROCESSOR
BLOCK
MEMORY
CONTROL,
BUS BOOST
BLOCK
SELECT
IC601
DIGITAL SIGNAL PROCESSOR,
DIGITAL SERVO PROCESSOR IC702
SOUND PROCESSOR
2
8BIT TIMER(CH4) 8BIT TIMER(CH5) 8BIT TIMER/COUNTER(CH2) 8BIT TIME 8BIT TIMER/COUNTER(CH0) 8BIT TIMER(CH1)
SERIAL INTERFACE (CH0)
RAM
DMAC(CH0)
CLOCK GENERATOR/
SYSTEM CONTROLLER
HUFFMAN HW
VIRTUAL ENGINE
CORE
DMAC(CH2)
WATCHDOG TIMER
PRESCALLER/
TIME BASE TIMER
A
B
• Signal path
: CD PLAY
•R-ch is omitted due to same
as L-ch.
5-4. BLOCK DIAGRAM — CD SECTION —
(Page 17)
(Page 17)

D-NE500/NE506CK
17 17
5-5. BLOCK DIAGRAM — POWER SUPPLY SECTION —
RFI
58
WAKE
VCC2
VCPU
VCPU
VR401
Q401
6
RSTB 10
LATCH 9
INP7
VCC1
VCC2
VCC3
VCC4
VDRAM
15
VD3 37
VLGO7 14
UPCK7 11
UPCKB7 13
BATHMI
74
DC IN
65
VCPU
60
INP2
70
VCC1
61
VCC2
90
VCC3
91
VCC4
76
VDRAM
59
VD1
45
VD2
41
VDSW20
ON/OFF
DRIVE
BA+
Q404
Q405
AVDPLL
(IC702)
ON/OFF
DRIVE
BAT+
IC403
Q403
RESET
20
LID-SW_I
D0-7
37
VD SEL
57
XWAKE_O
32
AD-BATMNT
95
AD-DCINMNT
92
PWRLAT_O
HP_PWRSW
AD-RMKEY
JOGKEY_I/
FAVKEY_I
AD-KEY1
AD-KEY2
RE1_I
RE2_I
XLED1_O
XLED2_O
XRD_O
XWR_O
LCD-XRST_O
LCD_AO
AD0-AD7
90
HOLD_I
40
VDSW19
19
J401
DC IN 3V
BATTERY
3V
Q801
Q801
PW
IC301
HEADPHONE AMP
IC801 (2/2)
SYSTEM CONTROL
IC401 (2/2)
POWER SUPPLY
IN L OUT L
CD-L
LRMU BEEP
I-L
13 4
BEEP
O-L
PW SW
3
16
99
77
36
96
97
14
15
75
76
71
72
73
69
18
MUTE SW
17
BEEP_O
6
44-51
POWER
SWITCH
IC701
POWER
SWITCH
RMKEY
J301
i
R-CH
VCPU
D2001
OPR
S802
HOLD .
OFF ON
BEEP
S2002-2006
KEY-IN
MATRIX
S2001
JOG
LCD1
LIQUID
CRYSTAL
DISPLAY
PANEL
Q803
LED
DRIVE
S803
(OPEN/CLOSE)
A
B
• Signal path
: CD PLAY
•R-ch is omitted due to same
as L-ch.
(Page 16)
(Page 16)

D-NE500/NE506CK
1818
1
A
B
C
D
E
F
G
H
I
J
2345678910
11
RV401
C601
C606
C459
C717
C421
C449
C404
C420
C450
C416
C423
C424
C302
C309
C307
C617
R629
C305
R308
FB101
TP628
TP624
L412
L411
L408
CN603
TP603
TP604
TP602
TP605
TP606
TP601
FB302
FB303
FB201
C457
R423
VDR602 VDR609 FB605
FB601
X601
FB604
C612
C304 C301
C415
C427
C419
L405
L409
L404
R456
R450
R701
R424
R422
R447
R448
C446
R425
R426
C455
C456
D306
D308
D101
D305
J301
J301
i
C633
15
1
Q403
Q404
G S G
D S D
G S G D S D
Q405
E C B
VDR302
VDR604
VDR608
VDR601
C602
CN604
C607
C627
R419 R427
C422
C451
R304
C306
L302
L604
OPTICAL
PICK-UP
BLOCK
(DAX-25E)
1-861-077-
11
(11)
BLK
M602
SLED
MOTOR
M601
SPINDLE
MOTOR
RED
CN602
RED
GRY
PNK
BLK
5-6. PRINTED WIRING BOARD — MAIN SECTION — : Uses unleaded solder.
•Semiconductor
Location (Side A)
D101 G-10
D305 G-10
D308 F-11
Q403 I-4
Q404 I-5
Q405 I-4
Ref. No. Location

D-NE500/NE506CK
19 19
1
A
B
C
D
E
F
G
H
I
J
234567891011
E C B
C715
C418
TP841
TP843
TP823
TP840
TP839
TP822
TP833
TP842
TP835
TP805
TP837
TP836
TP838
TP818 TP819 TP846 TP806
TP845
TP829 TP825
TP831
TP803
TP813
TP827 TP824
J401
DC IN 3V
!
S802
HOLD
OFF ON
L406
L413
L407
L403
L402
L401
L702
L703
L605
L410
IC701
D405
C B E E B C
C B E E B C
R841
Q801
R858
R824
R835
D801
Q803
R839
R836
R831
R826 R834 R832
R809
R819
R816
R815
R814
C816
C803
R818
TP801
TP820
TP821
TP802
TP815
TP816
TP817
TP804
TP808 TP809
TP807
TP810
17
IC702
3249
64
33
75
51
1
10
1
25
76 100
50
124
26
48
161
15
34
TP652
TP638
TP641
TP643
TP644
RP642
TP640
TP639
TP637 TP634
TP636TP635 TP633TP632
TP631
TP607
TP612
TP611
TP619
TP811
TP812
TP613
TP614
TP610
TP701
TP620
TP608 TP609
TP411
TP709
TP713
TP711
TP618
TP615
TP617
TP653
TP616
TP412
TP410
TP413
TP403
TP415
TP401
TP414
TP402
TP409
TP
TP703 TP704
TP705 TP706
TP702
TP707
TP708
TP710
TP712 TP714
R857 R845
R812
R808
R801
C410
R406
R101
R102
R202
R201
R641
C608
C603
R608
R611
C616
C604
R620
R610
C615
R606
R618
C614
R605
R616
C613
R454
R444
R446
C434
C436
R445
C431
R639
R632
R633
R634
R635
R636
R637
R640
R645
R631
R449
R451
C435
TP416
TP417
D403
TP407
TP418
TP419
R415
C413
C458
R411
Q401
R433
C438 D404
C443
DRY BATTERY SIZE"AA"
(IEC DESIGNATION LR6)
1PCS,1.5V
TP657
TP658
TP651
TP650
TP656
TP648 TP646
TP647 TP645
TP420
TP404
C808
C801 C802
C703
R708
C716 C718
C405
R725
VDR610
TP406
TP405
FB603
FB602
FB301
C104 C204
C428
R420
D401
C432
C433
C445
FB403
C454
C440
C448
R409 R457
VDR401
VDR402
C401
VDR606
R441 D406
R644
C814
C610
C623
FB606
C609
VDR603
C625
FB402
FB401
R408
C704
C702
R717
X701
C712
C714
IC801
CN801
C811
R837
R827
R828
R829 R303 TP834
TP832
TP830 TP828 TP826
R713
R705
C708
C711C713
R404
R407
C414
R418
R405
C720 C719
R401
C409
R416 R410
C412
R462
C408
R412
R413
C411
C452
R429
C417
C402
R432
C426
R431 R428
R434
C425
R430
R438 R437
C430 C429
R442 R440 R439 R436
C442
R452
C444 R453
R638
R613
R103
TP627TP623TP621
TP622TP626TP630
R203
R315
R630
R314
C311
R625
R614
R603 R602
R609
C611
R615
R612
C605
R604
R624R623
C628
R104
C105
R204
C205
D202
R305 R311
C621
R628
C815
C810
C809
R704
R703
R806
R810
61
85
IC403
14
1
4
8
5
IC802
12 1
13 1
IC301
90
91
30
120
1
13
26
14
IC601
IC602
1
60
31
26
50
76
100
IC401
25
1
51
75
R710
R702
R833
C804 C805
R802
C806
R803 R805
C807
R707
R718
C709
C710
FB701
R848
R706
R842
R847
VDR802
VDR804
SL806
SL805
SL812
SL601
SL602
CN802
R840
C812
C619
C629 C106C206
C447 C439
C406
C706
D402
C407
C453
TP844
TP408
TP201
TP101
TP301
TP629
TP625
TP302
TP102
TP202
TP303
SWITCH
BOARD
CN2002
A
S803
(OPEN/CLOSE)
1-861-077-
11
(11)
(Page 22)
•Semiconductor
Location (Side B)
D202 H-11
D306 G-11
D401 H-3
D402 F-5
D403 H-3
D404 I-4
D405 I-6
D406 H-6
D801 B-5
IC301 I-10
IC401 H-5
IC403 H-6
IC601 G-9
IC602 G-7
IC701 E-6
IC702 E-5
IC801 C-6
IC802 D-9
Q401 F-4
Q801 B-5
Q803 B-5
Ref. No. Location

D-NE500/NE506CK
2020
• Refer to page 15 for Waveforms.
5-7. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 24 for IC Block Diagrams.
IC B/D
IC B/D
TP916
FB701
C716
X601
CN604
C601
TP650
TP651
TP652
C628
TP658
TP653
TP656
TP657
R638
R639
R641
VDR604
R645
L604
C612
C623
R629
FB601
R630 FB602
C619
VDR602
TP624
TP628
R613
R608
C603
R623
C608
C609
R614 R624
C610 R625
C611
R615
R609C604
R620
C607
VDR601
C605R604R603R602
SL601 R605
R606
R616 R618R612 C613 C614
SL602
R610
R611
VDR603
C625
R628
L605
TP631
TP638
C629
VDR606
FB402
IC403
R449
R451 D406
R453
C444
C440
D405
C720
C719
R717
R718
L702
L703
C712
X701
C704
R705
R702
R713
C702
R703
R704
R710
C703
R708
TP703
TP704
TP705
TP706
R707
CN603
CN602
TP605
TP606
R706
R701
C711
IC301
C204
C104
R202
R204 C205
R102
R104
C105
C206
C106
C301
C304
R308 C309 C305
C307
R305
C302
R311
C306
R304
R103
R203
L302
TP201
TP101
R631
C633
C602
M602
M601
C617
FB606
VDR608
FB605 C627
R640
C615C616
C621
TP701
R452 C452
IC701
C706 C708
TP714
C713
C718
TP713
TP711
TP709
C715
C714
C710
C709
TP702
R725
FB604
FB603
IC601
R201
R101
FB201
FB101
FB303
R644
C606
FB401
IC602
IC702
C717
VDR609
VDR610
TP620
TP613
TP614
TP615
TP616
TP617
TP618
TP607
TP611
TP608
TP609
TP610
TP612
TP619
TP707
TP708
TP710
TP712
TP639
TP640
TP641
TP642
TP643
TP644
TP632
TP633
TP634
TP635
TP636
TP637
R633
R634
R635
R636
R637
R632
TP645
TP646
TP647
TP648
TP621
TP622
TP625
TP626
TP627
TP629
TP630
TP623
TP601
TP602
TP603
TP604
(Page 21)
