Sony Cyber-shot DSC-W50 User manual

SERVICE MANUAL
LEVEL 2
Link
DISASSEMBLY
SERVICE NOTE
SPECIFICATIONS
SCHEMATIC DIAGRAMS
FRAME SCHEMATIC DIAGRAM
BLOCK DIAGRAMS
REPAIR PARTS LIST
PRINTED WIRING BOARDS
Link
Revision History
Revision History
How to use
Acrobat Reader
How to use
Acrobat Reader
Sony EMCS Co.
DSC-W50_L2
Internal memory
ON BOARD
Internal memory
ON BOARD
Ver 1.0 2006.01
DIGITAL STILL CAMERA
2006A0500-1
© 2006.1
Published by DITechnical Support Department9-876-936-31
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Tourist Model
The components identified by
mark 0or dotted line with
mark 0are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
•Precaution on Replacing the SY-144 Board
DSC-W50
Photo: Silver

— 2 —
DSC-W50_L2
SPECIFICATIONS
Camera
[System]
Image device 7.18 mm (1/2.5 type) color
CCD, Primary color filter
Total pixel number of camera
Approx. 6 183 000 pixels
Effective pixel number of camera
Approx. 6 003 000 pixels
Lens Carl Zeiss Vario-Tessar
3×zoom lens
f = 6.3 – 18.9 mm (38 –
114 mm when converted to a
35 mm still camera)
F2.8 – 5.2
Exposure control Automatic exposure, Scene
Selection (7 modes)
White balance Automatic, Daylight, Cloudy,
Fluorescent, Incandescent,
Flash
File format (DCF compliant)
Still images: Exif Ver. 2.21
JPEG compliant, DPOF
compatible
Movies: MPEG1 compliant
(Monaural)
Recording media Internal Memory (32 MB)
“Memory Stick Duo”
FlashRecommended distance (ISO
set to Auto): approx. 0.2 m to
4.2 m (7 7/8 inches to 13 feet
93/8inches) (W)/approx.
0.3 m to 2.2 m (11 7/8 inches to
7 feet 2 5/8 inches) (T)
[Input and Output connectors]
Multi connector
[LCD screen]
LCD panel 6.2 cm (2.5 type) TFT drive
Total number of dots
115 200 (480×240) dots
[Power, general]
Power Rechargeable battery pack NP-
BG1, 3.6 V
AC-LS5K AC Adaptor (not
supplied), 4.2 V
Power consumption (during shooting with the
LCD screen on)
0.9 W
Operating temperature
0 to 40°C (32 to 104°F)
Storage temperature
–20 to +60°C (–4 to +140°F)
Dimensions 88.9×57.1×22.9 mm
(3 1/2 inches ×2 1/4 inches ×
29/32 inches) (W/H/D,
excluding protrusions)
Mass Approx. 157 g (5.5 oz)
(including NP-BG1 battery
pack and wrist strap, etc.)
Microphone Electret condenser microphone
Speaker Dynamic speaker
Exif Print Compatible
PRINT Image Matching III
Compatible
PictBridge Compatible
BC-CSG battery charger
Power requirements
AC 100 to 240 V, 50/60 Hz,
2 W
Output voltage DC 4.2 V, 0.25 A
Operating temperature
0 to 40°C (32 to 104°F)
Storage temperature
–20 to +60°C (–4 to +140°F)
Dimensions Approx. 62 ×24 ×91 mm
(2 1/2 ×31/32 ×35/8 inches)
(W/H/D)
Mass Approx. 75 g (2.7 oz)
Rechargeable battery pack NP-BG1
Used battery Lithium-ion battery
Maximum voltageDC 4.2 V
Nominal voltage DC 3.6 V
Capacity 3.6 Wh (960 mAh)
Design and specifications are subject to change
without notice.

— 3 —
DSC-W50_L2
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
1. Checktheareaofyour repair forunsoldered or poorly-soldered
connections. Checkthe entire boardsurface forsoldersplashes
and bridges.
2. Check the interboard wiring to ensure that no wires are
"pinched" or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly
transistors, that were installed during a previous repair. Point
them out to the customer and recommend their replacement.
4. Lookforparts which, throughfunctioning, showobvious signs
of deterioration. Point them out to the customer and
recommend their replacement.
5. Check the B+ voltage to see it is at the values specified.
6. FLEXIBLE Circuit Board Repairing
•Keep the temperature of the soldering iron around 270°C
during repairing.
•Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering
or unsoldering.
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
CAUTION
Dangerofexplosionifbatteryisincorrectlyreplaced.
Replace only with the same or equivalent type.

— 4 —
DSC-W50_L2
TABLE OF CONTENTS
1. SERVICE NOTE
1-1. Description on Self-diagnosis Display ····························1-1
1-2. Process After Fixing Flash Error ·····································1-1
1-3. Method for Copying or Erasing the Data in Internal
Memory ···········································································1-2
1-4. Precaution on Replacing the SY-144 Board ····················1-3
2. DISASSEMBLY
2-1. Disassembly·····································································2-2
2-2. Exchange Method of BarrierAssy ··································2-6
2-3. Exchange Method of Zoom Motor Unit··························2-9
3. BLOCK DIAGRAMS
3-1. Overall Block Diagram (1/2)···········································3-1
3-2. Overall Block Diagram (2/2)···········································3-2
3-3. Power Block Diagram ·····················································3-3
4. PRINTEDWIRING BOARDS AND
SCHEMATIC DIAGRAMS
4-1. Frame Schematic Diagram ··············································4-1
4-2. Schematic Diagrams························································4-3
4-3. Printed Wiring Boards ···················································4-17
4-4. Mounted Parts Location ················································4-26
5. REPAIR PARTS LIST
5-1. Exploded Views ·······························································5-2
5-2. Electrical Parts List ·························································5-6
Section Title Page

1-1
DSC-W50_L2
1. SERVICE NOTE
Self-diagnosis display
•C: ss: ss
You can reverse the camera
malfunction yourself. (However,
contact your Sony dealer or local
authorized Sony service facility
whenyoucannot recoverfrom the
camera malfunction.)
•E: ss: ss
Contact your Sony dealer or local
authorized Sony service facility.
Display Code
C:32:ss
C:13:ss
Countermeasure
Turn the power off and on again.
Format the “Memory Stick” or internal
memory.
Cause
Trouble with hardware.
“Memory Stick” or internal memory is
unformatted.
Caution Display During Error
SYSTEM ERROR
FORMAT ERROR
MEMORY STICK ERROR
E:61:ss
E:91:ss
1-1. DESCRIPTION ON SELF-DIAGNOSIS DISPLAY
Insert a new “Memory Stick”. “Memory Stick” is broken.
Turn the power off and on again. Trouble with internal memory. INTERNAL MEMORY ERROR
Checking of lens drive circuit. When failed in the focus and zoom
initialization. —
Checking of flash unit or replacement
of flash unit. (Note) Abnormality when flash is being
charged.
Note: After repair, be sure to perfom “1-2. PROCESS AFTER FIXING FLASH ERROR”.
1-2. PROCESS AFTER FIXING FLASH ERROR
When “FLASH error” (Self-diagnosis Code E : 91 : ** ) occurs, to prevent any abnormal situation caused by high voltage, setting of the
flash is changed automatically to disabling charge and flash setting.
After fixing, this setting needs to be deactivated. Flash error code can be initialized by the operations on the Setup screen.
Method for Initializing the Flash Error Code
Initializes the setting to the default setting.
1Select [OK] with von the control button, then press z.
The message “Initialize all settings Ready?” appears.
2Select [OK] with v, then press z.
The settings are reset to the default setting.
•Make sure that the power is not disconnected during resetting.
Initialize
OK See the following procedure.
Cancel Cancels the resetting.

1-2
DSC-W50_L2
1-3. METHOD FOR COPYING OR ERASINGTHE DATA IN INTERNAL MEMORY
The data can be copied/erased by the operations on the Setup screen. (When erasing the data, execute formatting the internal memory.)
Note 1: When replacing the SY-144 board, erase the data in internal memory of the board before replacement.
Note 2: When replacing the SY-144 board or the IC202 on the SY-144 board, execute formatting and initialize the internal memory after
replacement.
Method for Copying the Data in Internal Memory
Method for Formatting the Internal Memory
Copies all images in the internal memory to a “Memory Stick Duo”.
1Insert a “Memory Stick Duo” having 32 MB or larger capacity.
2Select [OK] with von the control button, then press z.
The message “All data in internal memory will be copied Ready?” appears.
3Select [OK] with v, then press z.
Copying starts.
•Use a fully charged battery pack or the AC Adaptor (not supplied). If you attempt to copy image files
using a battery pack with little remaining charge, the battery pack may run out, causing copying to fail or
possibly corrupting the data.
•You cannot copy individual images.
•The original images in the internal memory are retained even after copying. To delete the contents of the
internal memory, remove the “Memory Stick Duo” after copying, then execute the [Format] command in
(Internal Memory Tool).
•You cannot select a folder copied on a “Memory Stick Duo”.
•Even if you copy data, a (Print order) mark is not copied.
Copy
OK See the following procedure.
Cancel Cancels the copying.
Copying
102_COPY
This item does not appear when a “Memory Stick Duo” is inserted in the camera.
The default settings are marked with .
Formats the internal memory.
•Note that formatting irrevocably erases all data in the internal memory, including even protected images.
1Select [OK] with von the control button, then press z.
The message “All data in internal memory will be erased Ready?” appears.
2Select [OK] with v, then press z.
The format is complete.
Format
OK See the following procedure.
Cancel Cancels the formatting.

1-3E
DSC-W50_L2
1-4. PRECAUTION ON REPLACINGTHE SY-144 BOARD
VIDEO OUT Default Data Check
When you replace to the repairing board, the written data of repairing board also might be changed to original setting because of broadcast
system (NTSC/PAL).
When the data has changed because of board replacing etc., check the default data ofVIDEO OUT if destination code is right. If not, rewrite
to the right value.
VIDEO OUT Default Data
Writing Method:
1) Select page: 00, address: 01, and set data: 01.
2) Select page: 4F, address: 8D, and set data: 00 (NTSC) or data: 01 (PAL).
3) Select page: 40, address: 38, and set data: 00.
4) Click [Save] on the SEUS screen.
5) Select page: 80, address: 34, and check that the data is “00”.
6) Select page: 80, address: 30, and check that the data is “00”.
7) Select page: 00, address: 01, and set data: 00.
Initial Language Data Check
If the SY-144 board was replaced, initial language setting may be changed. Accordingly, change the following data so as to set same initial
language as that of the set distributing in each region.
Initial language: Language displayed at the next starting if the setting of Setup menu was reset.
It is different from the language setting selectable with the menu.
Initial Language Data
Page Address Data Language GP2 GP3 GP4
00 English zzz
04 Spanish zz
4F 8C 08 Simplified Chinese z
0B Russian z
0D Korean z
Note: GP2 is fixed to English.
GP3 is either English, Spanish, or Russian.
GP4 is either English, Spanish, Simplified Chinese, or Korean.
Writing Method:
1) Select page: 00, address: 01 and set data: 01.
2) Select page: 4F, address: 8C, and set the Initial Language Data.
3) Select page: 40, address: 38, and set data: 00.
4) Click [Save] on the SEUS screen.
5) Select page: 80, address: 34, and check that the data is “00”.
6) Select page: 80, address: 30, and check that the data is “00”.
7) Select page: 00, address: 01, and set data: 00.
8) Turn off the camera.
9) Turn on the camera. Execute “Initialize” of Setup screen.
10) Check the language displayed when the camera starts.
Address
00 018D4F
Page Data
NTSC PAL

2-1
2. DISASSEMBLY
DSC-W50_L2
NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, dont’ pull at wire of connector.It is possible that a wire is snapped.
•When installing a connector, dont’ press down at wire of connector.
It is possible that a wire is snapped.
•Do not apply excessive load to the gilded flexible board.
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)
DISCHARGING OF THE ST-133 BOARD’S CHARGING CAPACITOR (C901)
The charging capacitor (C901) of the ST-133 board is charged
up to the maximum 300 V potential.
There is a danger of electric shock by this high voltage when the
capacitor is handled by hand. The electric shock is caused by
the charged voltage which is kept without discharging when the
main power of the unit is simply turned off. Therefore, the
remaining voltage must be discharged as described below.
Preparing the Short Jig
To preparing the short jig, a small clip is attached to each end of
a resistor of 1 kΩ/1 W (1-215-869-11).
Wrap insulating tape fully around the leads of the resistor to
prevent electrical shock.
1 kΩ/1 W
Wrap insulating tape.
Note: High-voltage cautions
Discharging the Capacitor
Short-circuit between the two points
with the short jig about 10 seconds.
R:1 kΩ/1 W
(Part code: 1-215-869-11)

2-2
DSC-W50_L2
2-1. DISASSEMBLY
2-1-1. CABINET BLOCK
HELP
HELP
2-6
2Cabinet (Rear) Block Assy
1Cabinet (Front) Block Assy
1-1 (#18)
1-2 (Claw)
1-5 (#18)
1-3 (Claw)
1-9 (Claw)1-8 (Claw)
1-4
2-1 (#18)
2-2 (#18)
2-3 (Claw)
2-5 (Claw)
2-4 (Claw)
1-7 (#18)
1-6
Refer to page 2-1
" Discharging of the ST-133 board's charging capacitor (C901) ",
when discharging the capacitor.
EXPLODED VIEW
HARDWARE LIST

2-3
DSC-W50_L2
2-1-2. LCD BLOCK
3-1 (#5)
3-2
3Cabinet (Upper) Block Assy
1LCD Block
1-3 (Claw)
1-4 (Claw)
1-5
(Claw)
1-1
1-2
2-1 (Boss)
2-4 (#5)
2-2
2-3 2-6
2-5 (Claw)
2SW-464 Board
SW-464
EXPLODED VIEW
HARDWARE LIST

2-4
DSC-W50_L2
2-1-3. LENS BLOCK
1ST-133 Board
1-2 (Claw)
1-1
1-4
1-7
1-5
1-3
2-4 (#19)
2-1
2-2
2-5
2-3
2Lens Unit
1-6 (Claw)
ST-133
ST-134
CD-604
Note 1:When you exchange barrier block
assembly and ornamental ring (A),
be sure to follow the procedure
carried on "2-2. Exchange Method
of Barrier Assembly" (2-6 page).
Note 2:When you exchange zoom motor
unit, be sure to follow the procedure
carried on "2-3. Exchange Method
of Zoom Motor Unit" (2-9 page).
EXPLODED VIEW
HARDWARE LIST

2-5
DSC-W50_L2
2-1-4. BT HOLDER BLOCK
SY-144
JK-303
DC-104
3-1 (Claw)
3-3
3-2
(Claw)
3-4
(Claw)
3DC-104 Flexible Board
1SW-144 Board
1-1 (#5)
1-3
(Claw)
1-2
1-4
1-5
2-1 (#18)
2-3 (#18)
2-2
3-5 (Claw)
2JK-303 Flexible Board
3-6
HELP
2-4
EXPLODED VIEW
HARDWARE LIST

2-6
DSC-W50_L2
2-2. EXCHANGE METHOD OF BARRIER ASSY
Service parts
Part Number Part Name Quantity
12-673-650-01 Ring (A), Ornamental 1
22-673-652-01 Barrier Assy 1
32-673-651-01 Tapping screw (B1.2×4) 2
Tools used
Torque driver
Soldering iron
Weight about 60g
Adhesive tape (ornamental ring fixed) (2-677-885-01)
2-2-1. PEEL OFF OLD ORNAMENTAL RING A
The Ornamental Ring A has adhered to the Barrier Assy strongly and accordingly, use a soldering iron to weaken the adhesive force.
Heat four circled portions with the soldering iron.
Heating temperature is about 300ºC.
Beware of a burn since the entire Ornamental Ring becomes hot.
*As the adhesive force of Ornamental Ring A is considerably large, the forced peeling will damage the group-1 frame.
Insert the tip of tweezers, etc. into a notch of the group-1 frame and prize the ring.
*Take extreme care so as not to damage the coated surface of the group-1 frame.
In case of difficult peeling, heat the ring again with the soldering iron.
If this re-heating failed, it may be advisable that the ring be peeled while heating the portions 1→2in the under figure one by one
sequentially.
*Discard the removed Ornamental Ring A.
1
2
3
Tip
1
2

2-7
DSC-W50_L2
2-2-2. REMOVE OLD BARRIER ASSY
1Remove two screws.
*Discard the removed screws.
2Remove the Barrier Assy.
*Discard the removed Barrier Assy.
*After removing the Barrier Assy, if the “G1 Dust-Proof Ring” was removed, it must be returned to the home position.
In returning the ring, adjust the location of a projection to the lens direction.
This is an important part to prevent the dust and light from coming in.
*After removing the Barrier Assy, take extreme care not to drop dust or foreign substances in the lens barrel.
2-2-3. INSTALL NEW BARRIER ASSY
1Install new BarrierAssy.
2Tighten two screws.
*Tightening torque = 0.5 kgf
1
1
2
2
2
1

2-8
DSC-W50_L2
2-2-4. ADHERE THE ORNAMENTAL RING A
Apply an adhesive tape to two recesses on the top surface of the Barrier Assy.
Meeting a “notch” of the Ornamental RingA with a “projection” of the group-1 frame, push the Ornamental Ring A into the group-1 frame.
*The projection of the spring for preventing static electricity must be tilted.
Put the 60g weight on the Ornamental Ring A so that the Ornamental Ring A does not float up until the adhesive hardens.
Note: Be careful not to give a shock.
*After the weight was put, no gap must be present in full circumference between Ornamental Ring A and group-1 frame.
A gap, if present, causes the crackle sound NG.
*The weight must push in the Ornamental Ring A only.
If the weight is put on the mold part of the Barrier Assy, the Ornamental Ring A will float up.
Completion after 30 minutes.
Adhesive
tape Adhesive
tape
Do not put the weight on a black mold part.
Not gap in full circumference.

2-9E
DSC-W50_L2
2-3. EXCHANGE METHOD OF ZOOM MOTOR UNIT
Service parts
Part Number Part Name Quantity
12-673-648-01 Zoom Motor Unit 1
22-673-649-01 BT2 P1.4×3 B3C 2
Tools used
Torque driver
2-3-1. REMOVE OLD ZOOM MOTOR UNIT
1Remove two screws.
*Discard the removed screws.
2Remove the Zoom Motor Unit.
3Remove the Lens Flexible Board.
*Discard the removed Zoom Motor Unit.
2-3-2. INSTALL NEW ZOOM MOTOR UNIT
1Install the Lens Flexible Board in new Zoom Motor Unit.
2Install new Zoom Motor Unit in the Lens Block.
3Tighten two screws.
*Tightening torque = 0.7 kgf
1
2
3
3
1
1
1
2
1
1
3
3
3
2

HELP
DSC-W50_L2
HELP
Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
Lens cushion (130)
CD radiation cushion
LCD frame (130)

DSC-W50_L2
Link
Link
3. BLOCK DIAGRAMS
OVERALL BLOCK DIAGRAM (2/2)
OVERALL BLOCK DIAGRAM (1/2) POWER BLOCK DIAGRAM

DSC-W50_L2 3-1
3. BLOCK DIAGRAMS

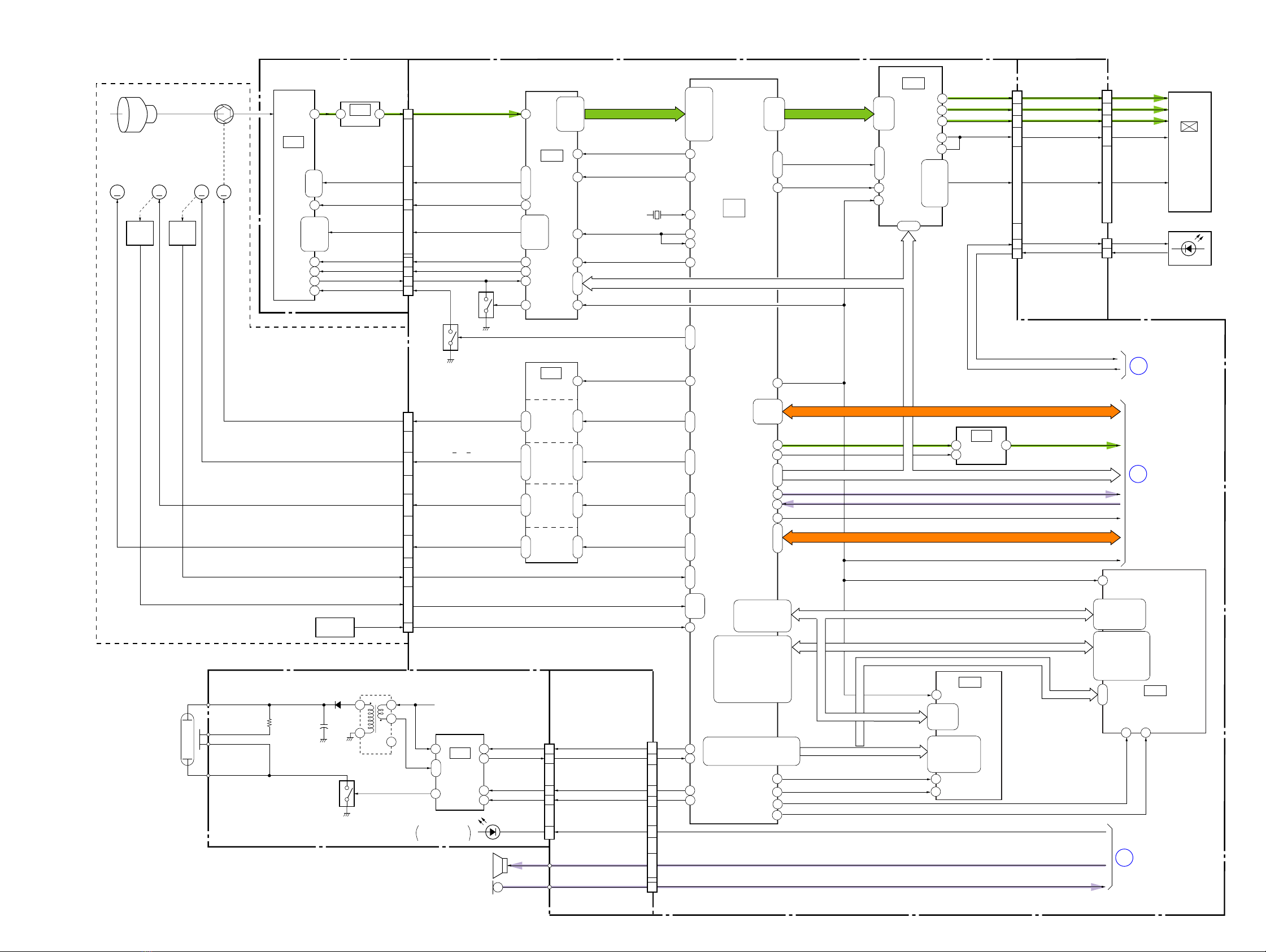

3-1. OVERALL BLOCK DIAGRAM (1/2) ( ) :Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
A: VIDEO SIGNAL
A: AUDIO SIGNAL
A: VIDEO/AUDIO SIGNAL
SY-144 BOARD (1/2) JK-303 FLEXIBLE
BOARD(1/2)
XCS_FE
VSUB_CONT_PRE,
VSUB_CONT_POST
F2
U22
E1
CLKTGO CAMERA DSP, CPU,
LENS CONTROL,
MODE CONTROL
(2/7)
J5
CA_FD
H5
CA_HD
CA_AD00 – CA_AD13
LENS
CCD
IMAGER
IC002
IC001
CD-604 FLEXIBLE BOARD
17 31 H10
K4
LENS BLOCK
CN301
ZOOM
MOTOR
M
FOCUS
MOTOR
M
FOCUS
RESET
SENSOR
ZOOM
SENSOR
1, 2
23 - 29, 31 - 35
K6, K5, J6, J5
16
LENS TEMP
SENSOR
BUFFER
11
19
7
22
30
D5
D6
8
1 - 3, 5, 6
14 - 16
8 - 10, 12 21, 22,
31, 32
2 - 4, 6
CCD_OUT
V1A,V1B,V2,V3A,V3B,V4
V5A,V5B,V6,V7A,V7B,V8
H1A, H2A, H1B, H2B
VHLD
VST
39
38
RG
27
Q302
CCD SIGNAL
PROCESS,
TIMING
GENERATOR
(1/7)
IC301
LCD DRIVE
(5/7)
IC901
26 C4
E7
VSUB
VSUB_CONT
Q301
A4
C2
XIC_101_RST_OUT
C1
XCAM_DR_PS
P21 D4
A3
A2
B3, C3
T4, R23
J25
LENS_TEMP
IRIS
(METER)
IRIS
MOTOR
M
SHUTTER
MOTOR
M
IC401
20, 21
12 - 158 - 1116 - 19
24, 26
2, 3, 5, 6, 27. 29
FOCUS
MOTOR
DRIVER
IRIS_M_IN, IRIS_M_EN
FC_DIR_A,
FC_DIR_B,
FC_BRK_A
MSHUT_DIR,
MSHUT_EN
FC_SENS, XFC_RST_LED
ZM_DC_FG_1A, ZM_DC_FG_1B,
XZM_FG_LED, ZM_SENS_1ST,XZM_RST_LED
ZOOM
MOTOR
DRIVER
SHUTTER
MOTOR
DRIVER
IRIS MOTOR
DRIVER
F_MOTOR_A, A(–), B, B(–)
Z_DC_MOTOR (+), (–) ZOOM_DC_+, DC_–
SHUTTER_(+), (–)
F_PI_SENS_OUT,
XFC_RST_LED
Z_BOX2_PI_SENS_COL, Z_BOX1_PI_SENS_COL,
Z_PI_SENS_OUT
XZM_RST_LED, Z_BOX1, BOX2,
SHUTTER_+, –
IRIS_ M_+, M_–
IRIS_ (+), (–)
CN401
FOCUS_A, A, B, B
D2, B1
D6, E6, B7, C6
B4, B5F4, F3
G1, E4
LENS DRIVE
(3/7)
30
ST-133 BOARD ST-134 FLEXIBLE BOARD
R4
05
V23
R22
STRB_CHG
XAF_LED
MIC_SIG
XSTRB_FULL
ST_UNREG
Q001
FLASH
DRIVE
SP901
SPEAKER
MIC901
FLASH
UNIT
FLASH
CONTROL,
CHARGE
CONTROL
6
9
10
7
IC001
XE_H
TRIGGER
TRIGGER_GND
XE_L
+
C901
CHARGING
CAPACITOR
D002
3
5 4
1
2
15
T001
STRB_CHG_CONT
4STRB_ON
CN704
CN001
12 17
22, 23
21
914
11 16
14 19
10 15
D003
SELF-TIMER/
AF ILLUMINATOR
SP+, SP-
XAF_LED
MIC_SIG
SP+, SP-
IC_101_AUOUT
XIC_101_RST_OUT
XIC_101_RST_OUT
XIC_101_RST_OUT
XIC_101_RST_OUT
XIC_101_RST_OUT
XIC_101_RST_OUT
2
OVERALL (2/2)
(PAGE 3-2)
USB_DP, USB_DM
AF4
W25
AE6
AF9
AB22
D901
BACKLIGHT
2.5 INCH
COLOR
LCD
MONITOR
CN901 CN102
LCD901
IC101
(1/2)
IC_101_AUIN
K26
L26
Y26
H26
U23
XCS_AUDIO
BL_L
BL_L
BL_H
BL_H
OVERALL (2/2)
(PAGE 3-2)
1
OVERALL (2/2)
(PAGE 3-2)
3
B10
K1
J6
K6
K3
K2
LCD_HD, LCD_VD,LCD_CK
CS, COM CS, COM
RGT, PSIG,
HCK1, HCK2, REF,
HST, PCG, XSTBY,
DWN, EN, VCK, VST
RGT, PSIG,
HCK1, HCK2, REF,
HST, PCG, XSTBY,
DWN, EN, VCK, VST
BB
GG
RR
LCD_D0 - LCD_D7
IC202
IC201
128M SDRAM,
32M SUPER AND
(4/7)
BURST
FLASH
(4/7)
M7
B4
B4
E7
B5
DSP_QCLKE DSP_QCLKE
DSP_QCLK DSP_QCLK
IC_101_27M_CLKO
XCPU_CS0
N7
A18
A17
DSP_AQ0 – DSP_AQ11, DSP_DQ0 – DSP_DQ31, DSP_DQM0 – DSP_DQM3, DSP_QBA0, DSP_QBA1
CPU_A20, CPU_A21
CPU_D00 – CPU_D15
CPU_D00- CPU_ D15
CPU_D00- CPU_ D15
CPU_A01- CPU_A21
C5 - C8, D5 - D8, E4, E5,
E8, E9, F3 - F9, G2 - G5,
G9, G10, H2, H3, H4, H8,
H9, H10, J3 - J9, K3, K4,
K8, K9, L4, L5, L9, L10,
M4, M5, M9, M10
D21, D22, D20, B22, A22, A23,
B23, E20, E21, B24, A24, A25,
B25, C25, C26, B26, E10, A10,
D10, E11, B10, A11, B11, E12,
D11, D12, F12, B12, A12, E13,
D13, D14, F13, B15, F14, E14,
D17, D18, D16, B18, A19, B19,
E16, D19, E19, E17, B20, A20,
B21, A21
AB13, AA13, AE13, AF13,
AF12, AE12, AA12, AC12,
AC11, AB12, AE11, AF11,
AE10, AB11, AC10, AB10
E2 - E6, D5,
F2 - F7, G1,
G3, G5, G7
A1, A2, A6, A7, A8, B1,
B2, B3, B6, B7, B8, C1,
C2, C6, C7, C8, D1, D2,
D4, D8, E8
C9, C10, D9, D10, D11,
D12,E10, E11, J10, J11,
J12, K10,K11, K12, L11,
L12
AF21, AF20, AE20, AB18, AB19, AC19,AB16,
AE19, AF19, AF18, AE18, AA15, AC18, AC17,
AB15, AE17, AF17, AE16, AB14, AC16, AC15
C10
XCS_ PANEL
IC_101_1_SO, XIC_101_1_SCK
IC_101_1_SO, XIC_101_1_SCK
IC_101_1_SO, XIC_101_1_SCK
IC_101_1_SO, XIC_101_1_SCK
V_LINE_OUT
VIDEO_AMP_ON
IC_101_VOUT
VIDEO AMP
(6/7)
53
4
IC602
MS_BS, MS_D0 – MS_D3, MS_CLK
G7, H6, G6, G5,
H5, H4, G4, F4,
E4, D7, H7, D4
D1, E1 - E3,
F1 - F3, G1 - G3,
H1 - H3, J1
K5, G4, H4, L5, H1,
H2, J1, J2, M5, J4,
K4,M6,K1, K2
D3, E3
D5, A6, B6, C5
R5, R25U4, E5
AC1, AD1
R6, U2 B8, D9, E9
A2, A9, C9
A10, B9
A3, A5, A7
B3 - B7
B1, K4, C2, D2,
J4, D1, E2, F2,
F1, G2, G1, H2
AB6, AC4,
AE4, AE5,
AC5,AF6 B4, D5 - D8,
E6 - E8
N5, L2, L4 P4, N4
B3, D4, V4,
V5, W4
1, 2
8
7
9
3
1
27, 286, 10 - 12, 15 - 18, 23 - 26
CN101
6
1
21
20
22
1, 23 - 6, 11 - 14, 17 - 19, 23
M3, E3
X102
33.75MHz
C1
ZM_DIR_A,
ZM_BRK_A,
ZM_BRK_B
P5, N2, N6
B2, C4, A2

DSC-W50_L2 3-2
3-2. OVERALL BLOCK DIAGRAM (2/2) ( ) :Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
A: VIDEO SIGNAL
A: AUDIO SIGNAL
A: VIDEO/AUDIO SIGNAL
SY-144 BOARD (2/2)
V_OUT
A_OUT_L
XAV_JACK_IN
XAV_JACK_IN
USB_VBUS
V_LINE_OUT
AU_LINE_OUT
AU_LINE_OUT
USB_VBUS
USB_DP, USB_DM
USB_DP, USB_DM
6
20
16
26
CN001
MULTI
CONNECTOR
JK-303 FLEXIBLE BOARD (2/2)
DC-104 FLEXIBLE BOARD
AUDIO AMP
(6/7)
IC603
E6 D1
B6
05
V_LINE_OUT
IC_101_AUOUT
SP+, SP-
MIC_SIG
IC_101_AUIN
XCS_AUDIO
XIC_101_RST_OUT
E5
E4
2
OVERALL (1/2)
(PAGE 3-1)
S003
(SHUTTER)
TW
(ZOOM)
BATTERY
CHARGE
DETECT
Q102
34
61
XPOWER_ON
KEY_AD2
XPOWER_ON
XPLAY_SW
XPLAY_SW
6 - 8
XPWR_LED
XAE_LOCK_SW
XAE_LOCK_LED
XAE_LOCK_LED
MODE_DIAL0,1
MODE_DIAL0, 1
KEY_AD0, AD1
D002
(POWER)
D001
(AE/AF LOCK/SELF-TIMER)
USB_DP, USB_DM
DC/DC
CONVERTER
(7/7)
IC001
IC102 (2/2)
D_3.2V
PANEL_8.5V
ST_UNREG
MS_VCC
A_3.2V
D_1.8V
CAM_2.9V
CAM_–7.5V
CAM_12V
D_1.2V
M_5V
IC101_1_SO, XIC_101_1_SCK
F3, E3
A5, A2
XAV_JACK_IN
USB_VBUS
XMS_IN
IC_101_0_SI, IC_101_0_SO, XIC_101_0_SCK
A9
A8
X001
32.768kHz
D003
D004
D001
CN002
CN705
CN001
2
3
1
XSTRB_LED
XSTRB_LED
XSHUTTER_SW
POWER
S002
S001-S009
S005
S006
+
–
BH001
BATTERY
TERMINAL
VL_3V
EVER_SRAM
S
X101
12MHz
D23
E4
AA23
W23
H25
U25
AB25
AA26
V25
F22
E22
F9
OVERALL (1/2)
(PAGE 3-1)
3
OVERALL (1/2)
(PAGE 3-1) 1
BL_L
C7
D7
XPWR_OFF
XCS_DD A6
T25
K25
MS_PWR_ON D3
B10
C9
E9
A4
V1
A6
BL_H
N21
P23
FUNCTION
KEY
MODE
DIAL
D702
(ACCESS)
D002
(FLASH CHARGING/RECORD)
B7
BATT_SENS D4
R26
Y4
XDD_RST_OUT A7
B8
H1
XAF_LED
XAF_LED
SW-464 BOARD RL-065 FLEXIBLE BOARD
CONTOROL SW
BLOCK
(SW110T/SW120TB)
IC101
(2/2)
FRONT CONTROL
(2/7)
(2/7)
IC102 (1/2)
(2/7)
IC103
BATTERY
AUTHENTICATE
(2/7)
C6, C5, B6
AA5, AB5, Y5
K23, L23
L22, L25
MS_BS, MS_D0 – MS_D3, MS_CLKMS_BS, MS_D0 – MS_D3, MS_CLK
CN703
CN702
CN701
MEMORY
STICK
DUO
2 - 5, 7, 8
6
DC IN
J001
XMS_IN
BATT_XEXT
BATT/XEXTXACV_IN
IC_101_RXD4
EXTAL
IC_101_TXD4
BATT_SIG
ACV_UNREG ACV_UNREG
ACV_UNREG ACV_UNREG
BATT/XEXT BATT/XEXT
23, 25
CHARGE_V CHARGE_V
BATT_SIG BATT_SIG
19
1
10
BT001
LITHIUM
BATTERY
11 - 142 - 5
13
10, 12
6, 8
11
4
14
31
1
32 - 39
Q001, Q002
4, 5, 6
2, 3, 4
11, 12
1, 5
14, 15
17
18
97
6
1
16
3
8
KEY_AD0, AD1, PLAY_SW
