Sony SLV-D910AZ User manual

3-084-918-12 (1) GB
DVD Player/
Video Cassette
Recorder
Operating Instructions
SLV-D910AZ
© 2003 Sony Corporation
PAL NTSC4.43

2WARNING
WARNING
To prevent fire or shock
hazard, do not expose
the unit to rain or
moisture.
To avoid electrical shock,
do not open the cabinet.
Refer servicing to
qualified personnel only.
Mains lead must only be
changed at a qualified
service shop.
CAUTION
The use of optical instruments
with this product will increase
eye hazard. As thelaserbeam
used in this DVD player/
Video Cassette Recorder is
harmful to eyes, do not
attempt to disassemble the
cabinet.
Refer servicing to qualified
personnel only.
Precautions
Safety
• This unit operates on 220 –
240 V AC, 50 Hz. Check
that the unit’s operating
voltage is identical with
your local power supply.
• To prevent fire or shock
hazard, do not place objects
filled with liquids, such as
vases, on the apparatus.
• The unit is not
disconnected from the AC
power source (mains) as
long as it is connected to
the wall outlet, even if the
unit itself has been turned
off.
Installing
• Do not install the unit in a
confined space such as a
book or similar unit.
• Do not install the unit in an
inclined position. It is
designed to be operated in a
horizontal position only.
• Keep the unit and discs
away from equipment with
strong magnets, such as
microwave ovens, or large
loudspeakers.
• Do not place heavy objects
on the unit.
• Do not place the unit on
surfaces (rugs, blankets,
etc.) or near materials
(curtains, draperies) that
may block the ventilation
slots.
Compatible colour
systems
This VCR is designed to
record using the PAL (B/G or
B/B) colour system and play
back using the PAL (B/G or
B/B) and NTSC 4.43 colour
systems. Recording of video
sources based on other colour
systems cannot be guaranteed.
Welcome!
Thank you for purchasing this
Sony DVD Player/Video
Cassette Recorder. Before
operating this player, please
read this manual thoroughly
and retain it for future
reference.

3
Caution
Caution
For use of the VCR
Televisionprogrammes,films,
video tapes and other
materials may be copyrighted.
Unauthorized recording of
such material may be contrary
to the provisions of the
copyright laws. Also, use of
this recorder with cable
television transmission may
require authorization from the
cable television transmitter
and/or programme owner.
For use of the DVD
player
This product incorporates
copyright protection
technology that isprotectedby
method claims of certain U.S.
patents, other intellectual
property rights owned by
Macrovision Corporation, and
other rights owners. Use of
this copyright protection
technology mustbe authorized
by Macrovision Corporation,
and is intended for home and
other limited viewing uses
only unless otherwise
authorized by Macrovision
Corporation. Reverse
engineering or disassembly is
prohibited.

4Table of contents
Table of contents
2WARNING
2Welcome!
3Caution
6About this manual
6This player can play the following discs
7Notes about discs
Getting Started
8Step 1 : Unpacking
9Step 2 : Setting up the remote commander
11 Step 3 : Connecting the DVD-VCR
13 Step 4 : Setting up the DVD-VCR with the Auto Set Up function
15 Step 5 : Setting the clock
17 Step 6 : Selecting the TV system
19 Step 7 : Presetting channels
Basic Operations
27 Playing discs
30 Guide to the on-screen display
32 Playing a tape
35 Recording TV programmes
39 Recording TV programmes using the
timer
42 Recording TV programmes using
EASY TIMER
46 Checking/changing/cancelling timer
settings
Advanced Hookups
48 A/V Receiver hookup
50 S-Video/Component Video hookup
DVD Settings and
Adjustments
52 Audio Setup
55 Screen Setup
57 Setting the display or sound track
language
59 Parental Control (limiting playback
by children)

5
Table of contents
DVD Additional Operations
62 Using the DVD’s menu
64 Zooming into a scene
65 Changing the angles
66 Displaying the subtitle
67 Various play mode functions
(Programme play, Shuffle play,
Repeat play)
71 Changing the sound
72 Virtual surround setting
74 Playing an MP3 audio track
78 Playing JPEG image files
82 Playing VIDEO CDs with “MENU
ON/OFF” functions
VCR Additional Operations
84 Playing a tape with SQPB function
85 Quick Timer Recording
87 Recording stereo and bilingual
programmes
90 Searching using index function
92 Adjusting the picture (tracking)
94 Changing menu options
96 Editing
Additional Information
98 General setup information
100 Troubleshooting
105 Glossary
107 Specifications
108 Index to parts and controls
113 DVD Audio/Subtitle Language
114 Index

6
About this manual
• The meaning of the icons used in this manual is
described below:
* MP3 (MPEG 1 Audio Layer 3) is a standard format
defined by ISO/MPEG which compresses audio data.
This player can play the
following discs
The “DVD VIDEO” logo is a trademark.
Region code
Your player has a region code printed on the
back of the unit and only will play DVD VIDEO
discs (playback only) labelled with identical
region codes. This system is used to protect
copyrights.
DVDs labelled will also play on this
player.
If you try to play any other DVD, the message
“Playback prohibited by area limitations.” will
appear on the TV screen. Depending on the
DVD, noregion code indication may be labelled
even though playing the DVD is prohibited by
area restrictions.
Example of discs that the player
cannot play
The player cannot play the following discs:
• All CD-ROMs (including PHOTO CDs)/
CD-Rs/CD-RWs other than those recorded in
the following formats:
– music CD format
– video CD format
– MP3 or JPEG format that conforms to
ISO9660* Level 1/Level 2, or its extended
format, Joliet
• Data part of CD-Extras
• DVD-RWs in VR mode
• DVD-ROMs
• DVD Audio discs
• HD layer on Super Audio CDs
* A logical format of files and folders on CD-ROMs,
defined by ISO (International Standard
Organization).
Also, the player cannot play the following discs:
• A DVD with a different region code.
• A disc that has a non-standard shape (e.g.,
card, heart).
• A disc with paper or stickers on it.
• A disc that has the adhesive of cellophane tape
or a sticker still left on it.
Icon Meaning
Functions available for DVD
VIDEOs and DVD-RWs/
DVD-Rs in video mode or
DVD+RWs/DVD+Rs
FunctionsavailableforVIDEO
CDs, Super VCDs or CD-Rs/
CD-RWs in video CD format
or Super VCD format
Functions available for DATA
CDs (CD-ROMs/CD-Rs/CD-
RWs containing MP3* audio
tracks or JPEG files)
Functions available for music
CDs or CD-Rs/CD-RWs in
music CD format
Functions available for VHS
VIDEOs
Format of discs
DVD VIDEO
VIDEO CD
Music CD
ALL
SLV–DXXXX
00V 00Hz
00W NO.
0-000-000-00
XRegion code

7
Note
Some DVD-RWs/DVD-Rs, DVD+RWs/DVD+Rs or
CD-Rs/CD-RWs cannot be played on this player due to
the recording quality or physical condition of the disc,
or the characteristics of the recording device.
Furthermore, the disc will not play if it has not been
correctly finalized. For more information, see the
operating instructions for the recording device.
Note that discs created in the Packet Write format
cannot be played.
Note on playback operations of
DVDs and VIDEO CDs
SomeplaybackoperationsofDVDsandVIDEO
CDs may be intentionally set by software
producers. Since this player plays DVDs and
VIDEO CDs according to the disc contents the
software producers designed, some playback
features may not be available. Also, refer to the
instructions supplied with the DVDs or VIDEO
CDs.
Music discs encoded with
copyright protection technologies
This product is designed to playback discs that
conform to the Compact Disc (CD) standard.
Recently, various music discs encoded with
copyright protection technologies are marketed
by some record companies. Please be aware that
among those discs, there are some that do not
conform to the CD standard and may not be
playable by this product.
Notes about discs

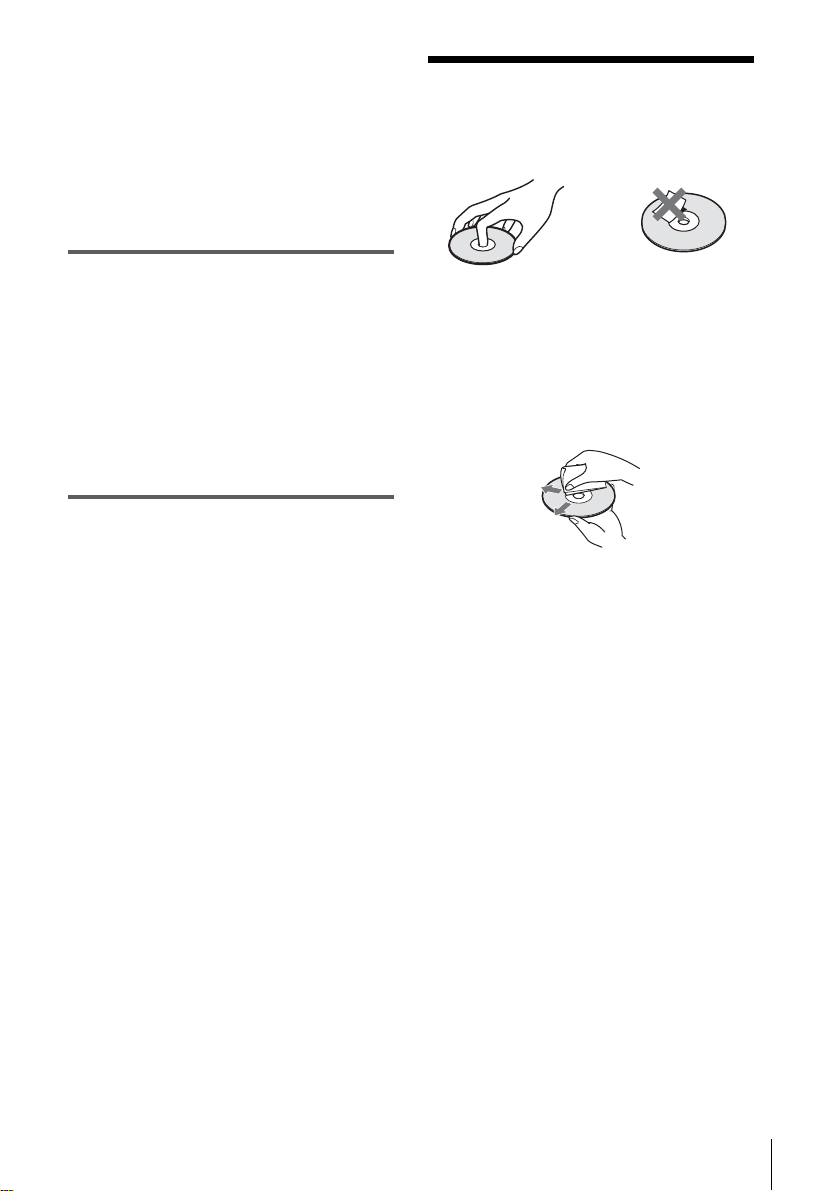

• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave it in
a car parked in direct sunlight as the
temperature may rise considerably inside the
car.
• After playing, store the disc in its case.
• Clean the disc with a cleaning cloth.
Wipe the disc from the center out.
• Do not use solvents such as benzine, thinner,
commercially available cleaners, or anti-static
spray intended for vinyl LPs.

8Unpacking
Getting Started
Step 1 : Unpacking
Check that you have received the following items with the DVD-VCR:
• Remote commander
• R6 (size AA) batteries
• Aerial cable
•Audiocord
(pinplug ×2 ypinplug ×2)
•Videocord
(pinplug ×1 ypinplug ×1)

Getting Started
9
Setting up the remote commander
Step 2 : Setting up the remote commander
Notes
• With normal use, the batteries should last about three to six months.
• If you do not use the remote commander for an extended period of time, remove the batteries
to avoid possible damage from battery leakage.
• Do not use a new battery with an old one.
• Do not use different types of batteries.
• Do not leave the remote commander in an extremely hot or humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so
may cause a malfunction.
Inserting the batteries
Insert two size AA (R6) batteries
by matching the + and – on the
batteries to the diagram inside the
battery compartment.
Insert the negative (–) end first,
then push in and down until the
positive (+) end clicks into
position.
Using the remote
commander
You can use this remote
commander to operate this DVD-
VCR and a Sony TV. Buttons on
the remote commander marked
with a dot (•) can be used to
operate your Sony TV.
If the TV does not have the
symbol near the remote sensor, this
remote commander will not
operate the TV.
To operate Set TV / DVD·VIDEO to
the DVD player DVD·VIDEO, then press SELECT DVD and point at the remote sensor at
the DVD-VCR
the VCR DVD·VIDEO, then press SELECT VIDEO and point at the remote sensor
at the DVD-VCR
your TV TV and point at the remote sensor at your TV
TV / DVD·VIDEO
Remote sensor
SELECT VIDEO
SELECT DVD
continued

10 Setting up the remote commander
Controlling other TVs with the remote commander
The remote commander is preprogrammed to control non-Sony TVs. If your TV is
listed in the following table, set the appropriate manufacturer’s code number.
Now you can use the ?/1, VOL +/–, PROG +/–, MUTING*, TV/VIDEO, 0-9 and
-/--* buttons to control your TV. You can also use the buttons marked with a dot (•) to
control a Sony TV. To control the DVD-VCR, reset TV / DVD·VIDEO to
DVD·VIDEO.
* for Sony TV only
Code numbers of controllable TVs
If more than one code number is listed, try entering them one at a time until you find
the one that works with your TV.
Notes
• If you enter a new code number, the code number previously entered will be erased.
• If the TV uses a different remote control system from the one programmed to work with the
DVD-VCR, you cannot control your TV with the remote commander.
• When you replace the batteries of the remote commander, the code number may change. Set
the appropriate code number every time you replace the batteries.
1Set TV / DVD·VIDEO at the top of the remote commander to TV.
2Hold down ?/1, and enter your TV’s code number using the number buttons.
Then release ?/1.
Manufacturer Code number
Sony 01, 02
Akai 68
Ferguson 52
Grundig 10, 11
Hitachi 24
JVC 33
Loewe 45
Mivar 09, 70
NEC 66
Nokia 15, 16, 69
Panasonic 17, 49
Philips 06, 07, 08
Saba 12, 13
Samsung 22, 23
Sanyo 25
Sharp 29
Telefunken 36
Thomson 43
Toshiba 38
Manufacturer Code number

Getting Started
11
Connecting the DVD-VCR
Step 3 : Connecting the DVD-VCR
Note that “Advanced Hookups” (page 48) explains additional hookup methods that
will optimize the picture and sound for a true “hometheatre” experience.
Note
• When you connect the DVD-VCR and your TV only with an aerial cable, you have
to tune your TV to the DVD-VCR (see page 13).
1Disconnect the aerial cable from your TV
and connect it to on the rear panel of the
DVD-VCR.
2Connect of the DVD-VCR and the
aerial input of your TV using the supplied
aerial cable.
3Connect the mains lead to the mains.
Mains lead
AERIAL IN to mains
Aerial cable (supplied)
: Signal flow
continued

12 Connecting the DVD-VCR
Additional connection
To a TV that has audio/
video input jacks
This additional connection
improve picture and sound
quality. Connect the TV as
shown on the right.
LINE OUT LINE IN
Audio/video cable (not supplied)

Getting Started
13
Setting up the DVD-VCR with the Auto Set Up function
Step 4 : Setting up the DVD-VCR with the
Auto Set Up function
Before using the DVD-VCR for the first
time, set up the DVD-VCR using the Auto
Set Up function. With this function, you can
set TV channels automatically.
1Turn on your TV and set it to the video channel.
Tune the TV to channel 68 (in Australia) or 63 (in New Zealand) (the initial
RF channel for this DVD-VCR). Refer to your TV manual for TV tuning
instructions. If the picture does not appear clearly, see “To change the RF
channel” on page 14.
2Connect the mains lead to the mains.
The DVD-VCR automatically turns on and the
“SYSTEM SELECTION” menu appears.
V/v/B/b
ENTER
SET UP
RETURN
SYSTEM SELECTION
SET UP
ENTER
v
V
SYSTEM - B/G (NEW ZEALAND)
SYSTEM - D/K
SYSTEM - I
SYSTEM - B/B (AUSTRALIA)
continued

14 Setting up the DVD-VCR with the Auto Set Up function
To cancel the Auto Set Up function
Press SET UP.
To change the RF channel
If the picture does not appear clearly on the TV, change the RF channel on the DVD-
VCR and TV. Select “Install” in the “OPTION” menu, then press V/v to select
“Video Output CH”. Select the RF channel by pressing the B/b buttons and press
ENTER. Then, tune the TV to the new RF channel so that a clear picture appears.
Notes
• Whenever you operate the Auto Set Up function, some of the settings (timer, etc.) will be
reset. If this happens, you have to set them again.
• Auto preset starts automatically only when you plug in the mains lead for the first time after
you purchase the DVD-VCR.
• If you want to use the Auto Set Up function again, select “Install” in the “OPTION” menu,
then press V/v to select “Auto Setup”, then repeat step 3.
• Auto preset can be performed by pressing xon the unit continuously for 5 seconds or more
during power off with no tape inserted.
3Press V/v to select the appropriate TV system,
then press ENTER.
The DVD-VCR starts searching for all of the
receivable channels and presets them (in the
appropriate order for your local area).
If you want to change the order of the channels
or disable unwanted programme positions, see
“Changing/disabling programme positions” on page 21.
After the search is complete, the clock setting menu appears. See “Setting
the clock” on page 15.
ENTER
Please wait
RETURN
AUTO SETUP
SET UP
10%

Getting Started
15
Setting the clock
Step 5 : Setting the clock
You must set the time and date on the DVD-
VCR to use the timer features properly.
Before you start…
• Turn on the DVD-VCR and your TV.
• To control the DVD-VCR, set TV /
DVD·VIDEO to DVD·VIDEO on the
remote (page 9).
• Set your TV to the video channel so that
the signal from the player appears on the
TV screen.
• If the DVD player is in play mode, you
cannot display the setup menu. Stop the
DVD playback.
1Press SET UP, then press V/v to select
(OPTION) and press ENTER.
2Press V/v to select “Clock”, then press
ENTER.
The “CLOCK SET” menu appears.
V/v/B/b
ENTER
SET UP
SET UP
ENTER
Install
Auto Power Off
Screen Messages
User Set
Clock
[Off]
[On]
RETURN
OPTION
SET UP
ENTER
v
V
ENTER
12:00 1/JAN /2003 WED
Time Date Year
RETURN
CLOCK SET
SET UP
ENTER
v
Vb B
continued

16 Setting the clock
Tip
• To change the digits while setting, press Bto return to the item to be changed, and select the
digits by pressing V/v.
Note
• The clock display appears when VIDEO mode is selected with no tape inserted or when the
DVD-VCR is turned off.
3Press V/v to set the hour.
4Press b to select the minutes and set the
minutes by pressing V/v.
5Set the day, month, and year in sequence by
pressing bto select the item to be set, and
press V/v to select the digits, then press b.
The day of the week is set automatically.
6Press ENTER to confirm the setting.
7Press SET UP to exit the menu.
ENTER
18:00 1/JAN /2003 WED
Year
RETURN
CLOCK SET
SET UP
ENTER
v
Vb B
Time Date
ENTER
Year
RETURN
CLOCK SET
SET UP
ENTER
v
Vb B
18:30 1/JAN /2003 WED
Time Date
ENTER
18:30 28/SEP /2003 SUN
Year
RETURN
CLOCK SET
SET UP
ENTER
v
Vb B
Time Date
ENTER
SET UP

Getting Started
17
Selecting the TV system
Step 6 : Selecting the TV system
You must select the appropriate TV system
for your area.
Before you start…
• Turn on the DVD-VCR and your TV.
• To control the DVD-VCR, set TV /
DVD·VIDEO to DVD·VIDEO on the
remote (page 9).
• Set your TV to the video channel so that
the signal from the player appears on the
TV screen.
• If the DVD player is in play mode, you
cannot display the setup menu. Stop the
DVD playback.
1Press SET UP, then press V/v to select
(OPTION), then press ENTER.
2Press V/v to select “Install”, then press
ENTER.
The “INSTALL” menu appears.
3Press V/v to select “TV System”, then press B/b to select the appropriate
TV system.
Select “G” in New Zealand, or “B” in Australia.
V/v/B/b
ENTER
SET UP
SET UP
ENTER
Install
Auto Power Off
Screen Messages
User Set
Clock
[Off]
[On]
RETURN
OPTION
SET UP
ENTER
v
V
ENTER
Manual Setup
Auto Setup
TV System [G]
RETURN
INSTALL
SET UP
ENTER
v
V
Video Output CH [CH68]
ENTER
continued

18 Selecting the TV system
4Press SET UP to exit the menu.
SET UP

Getting Started
19
Presetting channels
Step 7 : Presetting channels
If some channels could not be preset using
the Auto Set Up function, you can preset
them manually.
Before you start…
• Turn on the DVD-VCR and your TV.
• To control the DVD-VCR, set TV /
DVD·VIDEO to DVD·VIDEO on the
remote (page 9).
• Set your TV to the video channel so that
the signal from the player appears on the
TV screen.
• If the DVD player is in play mode, you
cannot display the setup menu. Stop the
DVD playback.

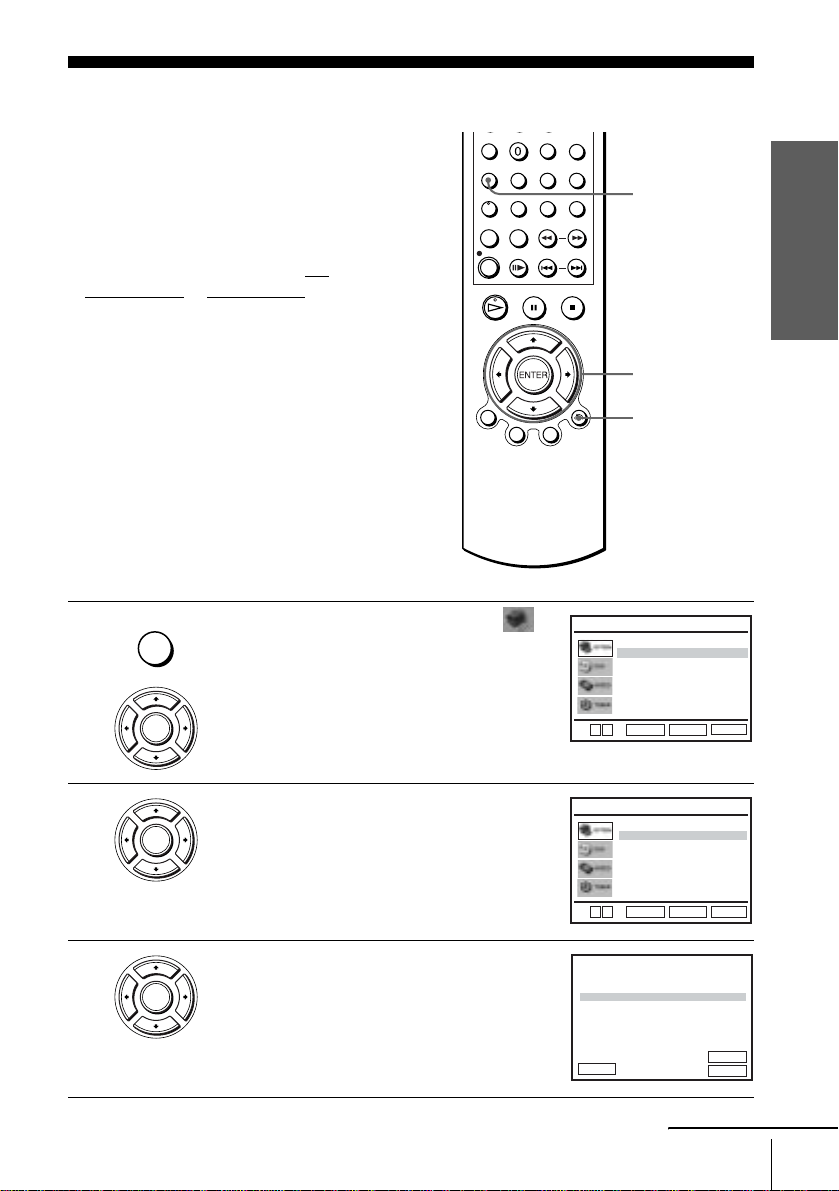

1Press SET UP, then press V/v to select
(OPTION).
2Press V/v to select “Install”, then press
ENTER.
The “INSTALL” menu appears.
3Press V/v to select “Manual Setup”, then
press ENTER.
V/v/B/b
ENTER
SET UP
ORETURN
SET UP
ENTER
Install
Auto Power Off
Screen Messages
User Set
Clock
[Off]
[On]
RETURN
OPTION
SET UP
ENTER
v
V
ENTER
Manual Setup
Auto Setup
Video Output CH [CH68]
RETURN
INSTALL
SET UP
ENTER
v
V
TV System [G]
ENTER
PR
2
1
3
4
5
CH
029
027
030
032
NAME
LMN –
AAB –
CDE –
I J K –
SYSTEM
B/G/D/K
B/G/D/K
B/G/D/K
B/G/D/K
RETURN
TV STATION TABLE
ENTER
CLEAR
SWAPPING :
DELETE :
VvB
continued

20 Presetting channels
4Press V/v to select the row which you want to
preset, then press b.
To display other pages for programme
positions 6 to 80, press V/v repeatedly.
5Press B/b repeatedly until the channel you
want is displayed.
Select the appropriate TV system, if necessary.
6Press V/v to select “NAME”, then press b.
7Enter the station name.
1Press V/v to select a character.
Each time you press V, the character
changes as shown below.
AtBt…tZt0t1t…t9
tA
2Press bto set the next character.
The next space flashes.
To correct a character, press B/b until the character you want to correct
flashes, then reset it.
You can set up to 4 characters for the station name.
8Press ENTER to confirm the station name.
9Press ORETURN, then press SET UP to exit the menu.
ENTER
SYSTEM
CH
PR
MFT
NAME
: –––
RETURN
MANUAL TUNING
ENTERMEMORY :
V
vB b
: B/G/D/K
: –
: ––––
: 5
ENTER
SYSTEM
CH
PR
MFT
NAME
RETURN
MANUAL TUNING
ENTERMEMORY :
: 033
: B/G/D/K
: –
: ––––
: 5
V
vB b
ENTER
SYSTEM
CH
PR
MFT
NAME
RETURN
MANUAL TUNING
ENTERMEMORY :
: 033
: B/G/D/K
: –
: 5
: ––––
V
vB b
ENTER
SYSTEM
CH
PR
MFT
NAME
RETURN
MANUAL TUNING
ENTERMEMORY :
: 033
: B/G/D/K
: –
: 5
: O–––
V
vB b
ENTER
SET UP
RETURN
