2Connecting with a TV

HDMI cable (not supplied)*

Optical digital cable

(supplied)

HDMI cable (not supplied)*

YES NO

Is the HDMI input jack on your TV labeled “ARC” ?

* To enjoy images in 4K/60p, usage of the Premium High Speed HDMI cable(s) with Ethernet is recommended. For details, refer to “Supported Input Video Formats” in the Operating Instructions of HT-CT790 (separate

document).

Note

•Make sure that the HDMI cable is firmly inserted.

3Connecting with other devices



Disconnect the HDMI cable from the HDMI IN jack of the TV, then reconnect it to any of the HDMI IN jacks (HDMI IN 1/2/3) on the Bar Speaker.

To enjoy the high quality surround sound of Dolby TrueHD, DTS HD, etc., switch the connection of the Blu-ray Disc™ player, cable box, satellite box, etc. to the system.

HDMI cable (not supplied)*

Blu-ray Disc™ player, cable

box or satellite box, etc.

document).

Tip

•The Standby Through function allows you to output HDMI signals to the TV even when the system is in standby mode.

Set the settings as follows; Press HOME - [Setup] - [System Settings] - [HDMI Settings] - [Standby Through], then select [Auto] or [On].

•To enjoy copy right-protected 4K content, refer to “Connection for Viewing Copyright-protected 4K Content” in the Operating Instructions of HT-CT790 (separate document).

Note

•Make sure that the HDMI cable is firmly inserted.

1Locating the installation position

HT-CT790

Bar Speaker

SRS-ZR5

Rear

speaker

Rear

speaker

Subwoofer

To mount the Bar Speaker on a wall

Refer to “Mounting the Unit on a Wall” in the Operating Instructions of

HT-CT790 (separate document).

Note

•Do not place magnetic cards on the system or near the system.

•Do not place metal objects other than a TV around the system. Wireless functions may become unstable.

HT-RTZ7

4-684-822-11(1) About the operation method of the system

Connect the Bar Speaker and the TV with the HDMI cable (not supplied) to display the operation

screen of the system on the TV. Prepare the HDMI cable.

Setting up the remote control of HT-CT790

Each of the three boxes contains the following products.

ˎHT-CT790 Sound Bar

ˎSRS-ZR5 Personal Audio System

HT-CT790

SRS-ZR5

This document describes the setup for use with the two products.

For more information, refer to the manuals included in the box of each product.

Continued on back page

Setting Guide

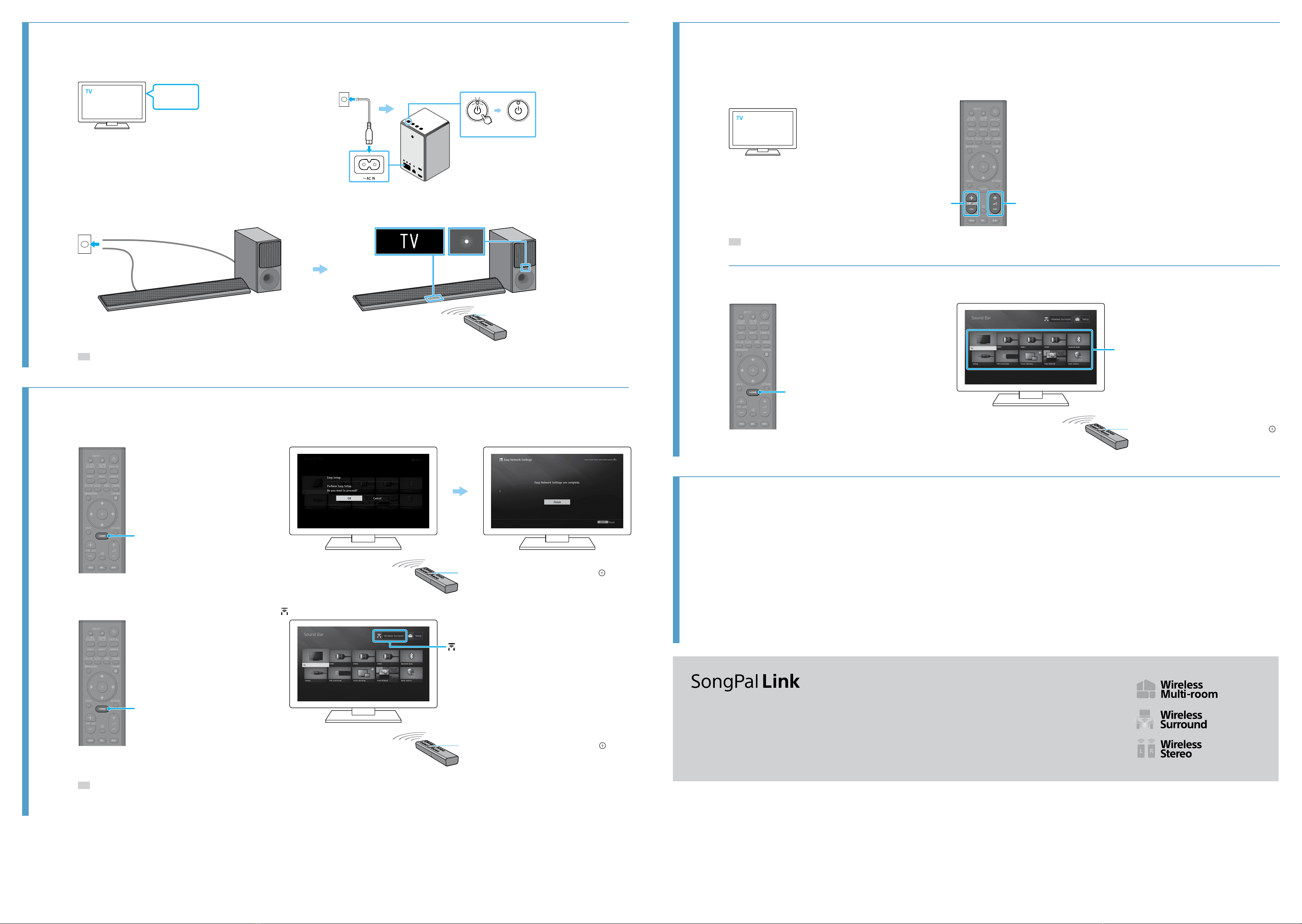

4Turning on the system



Turn on the TV.

Power



Turn on the speaker.

LightingFlashing

AC power cord (mains lead)

Press (power).

To an AC outlet (mains)



Turn on the Bar Speaker and subwoofer.

The front panel display

lights up.To an AC outlet (mains)

The power indicator

is lit in green.

Press (power).

Tip

•For details on the settings of the control for HDMI on the TV, refer to the Operating Instructions supplied with the TV.

5Performing Easy Setup and wireless surround setting



Press HOME to display the Easy Setup screen.

HOME



Perform the Easy Setup by following the on-screen instruction.

Press ///to select an item, and then press .

Easy Setup



Press HOME to display the home menu.

HOME



Select [Wireless Surround]. Perform the setting by following the on-screen instruction.

[Wireless Surround]

Press ///to select an item, and then press .

Home menu

Tip

•On-screen instructions are displayed in the language you selected in this step.

•When SRS-ZR5 is used as wireless surround speakers, the wireless LAN function, the Screen mirroring function, audio output to BLUETOOTH-compatible headphones or speaker, and playback in high-quality sound with

LDAC are unavailable.

•For details on the network connection, refer to“Enjoying with the Network Function” in the Operating Instructions of HT-CT790 (separate document).

6Listening to the sound

Listening to the audio of the TV



Select the desired program using the remote

control of the TV.



Adjust the volume.

+/–SW +/–

Tip

•If the sound of the TV does not output from the system, press INPUT +/− of the supplied remote control until “TV” appears in the front panel.

•For details on the sound quality adjustment, refer to “Selecting the Sound Effect” in the Operating Instructions of HT-CT790 (separate document).

To enjoy an input device other than the TV



Press HOME.

HOME



Press ///to select the desired input on the home menu.

Press ///to select an item, and then press .

Input list

Home menu

Troubleshooting

No TV sound is output from the system, or no picture is displayed on the TV

•Press INPUT +/− on the remote control of the system repeatedly until “TV” appears in the front panel display on the system.

•Make sure that the input and output of the HDMI jack of the system are correct.

•Disconnect the cables connecting the TV and the system, and then connect them again. Make sure that the cables are firmly inserted.

•Depending on the order you turn on the TV and the system, the system may enter muting mode and “Muting” may appear in the front panel display. In this case, turn on the TV first, then the system.

No picture or sound of the device connected to the system is output

•Press INPUT +/− on the remote control of the system repeatedly until the input connecting the desired device appears on the front panel display of the system.

•Make sure that the input and output of the HDMI jack of the system are correct.

•Disconnect the cables connected to the system, and then connect them again. Make sure that the cables are firmly inserted.

No sound or only a very low-level sound is heard from the subwoofer

•Press SW +/− on the remote control of the system to increase the volume of the subwoofer.

•Refer to “Troubleshooting” in the Operating Instructions of HT-CT790 (separate document).

No sound or only very low-level sound is heard from the wireless speaker

•Depending on the input signal, a surround effect with presence may not be obtained. Depending on the program or disc, audio signals for the surround channels are output at a very low level.
