Sony Bravia KDL-19M4000 User manual

Operating Instructions
KDL-19M4000
IMod~:
KDL-19M4000/B U2
Serial:
BRAVIA
©2008 Sony Corporation

Model Name
CAUTION
Safety
oOperate the TV only on 120-240 VAC.
oUse the AC powercord specified by Sony
and suitable for the voltage where you use
it.
oThe plug is designed, for safety purposes,
to fit into the wall outlet only one way.
If
you are unable to insert the plug fully into
the outlet, contact your dealer.
o If any liquid or solid object should fall
inside the cabinet, unplug the TV
immediately and have it checked by
qualified service personnel before
operating it further.
o If you will not be using the TV for several
days, disconnect the power by pulling the
plug itself. Never pull on the cord.
oFordetails concerning safety precautions,
see "Important Safety Instructions" on
page 3.
Installing
oThe TV should be installed near an easily
accessible power outlet.
oTo prevent internal heat buildup, do not
block the ventilation openings.
oDo not install the TV in ahot or humid
place,
or in aplace subject to excessive
dust or mechanical vibration.
oAvoid operating the TV at temperatures
below 41°F (5°C).
o If the TV is transported directly from a
cold to awarm location,
or if the room
temperaturechangessuddenly, the picture
may be blurred or show poor color due to
moisture condensation.
In this case,
please wait afew hours to let the moisture
evaporate before turning on the TV.
oTo obtain the best picture, do not expose
the screen to direct illumination or direct
sunlight. It is recommended to use spot
lighting directed down from the ceiling or
to cover the windows that face the screen
with opaque drapery. It is desirable
to
install the TV in aroom where the floor
and walls are not
of areflective material.
Use the following Sony TVs only with the
following WALL-MOUNT BRACKET.
Use with other WALL-MOUNT BRACKET
may cause instability and possibly result
in
injury.
Sony Appliance Model No.
KDl-19M4000
I~ny Wall-Mount
SU-Wl100
Bracket Model No.
To Customers
Sufficient expertise is required for installing the
specified TV. Be sure to subcontract the
installation
to Sony dealer or licensed
contractors and pay adequate attention to safety
during the installation.
NOTIFICATION
Pursuant to FCC regulations, you are
cautioned that any changes or modifications
not expressly approved
in this manual could
void your authority to operate this
equipment.
Declaration of Conformity
Trade Name: SONY
Model: KDL-19M4000
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego. CA 92127 U.S.A.
Telephone Number: 858-942-2230
CAUTION
To prevent electric shock, do not use this
polarized AC plug with
an extension cord.
receptacle or other outlet unless the blades can
be fully inserted to prevent blade exposure.
This device complies with part 15 of the FCC
rules. Operation
is subject to the following
two conditions:
(I) This device may not
cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause
undesired operation.
oReorient or relocate the receiving
antenna.
oIncrease the separation between the
equipment and receiver.
oConnect the equipment into an outlet on a
circuit different from that
to which the
receiver is connected.
oConsult the dealer or an experienced
radiolTV technician for help.
This equipment has been tested and found to
comply with the limits for aClass Bdigital
device, pursuant to Part
15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio frequency
energy and,
if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in aparticular installation.
If this
equipment does cause harmful interference to
radio or television reception, which can be
determined
by turning the equipment offand on,
the user is encouraged to try
to correct the
interference by one or more
of the following
measures:
The shielded interface cable recommended
in
this manual must be used with this equipment in
order to comply with the limits for adigital
device pursuant to Subpart B
of Part 15 of FCC
Rules.
For Customers in Canada
This Class Bdigital apparatus complies with
Canadian ICES-003.
___ Antenna lead-in
wire
Electric service
equipment
Antenna discharge
unit (NEC Section
810-20)
Grounding conductors
(NEC Section 810-21)
Ground clamps
---- Power service grounding
electrode system
NEC: National Electrical Code (NEC Art 250 Part H)
PRECAUCION
ATTENTION
To reduce the risk of fire or electric shock, do
not expose this TV
to rain or moisture.
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
WARNING

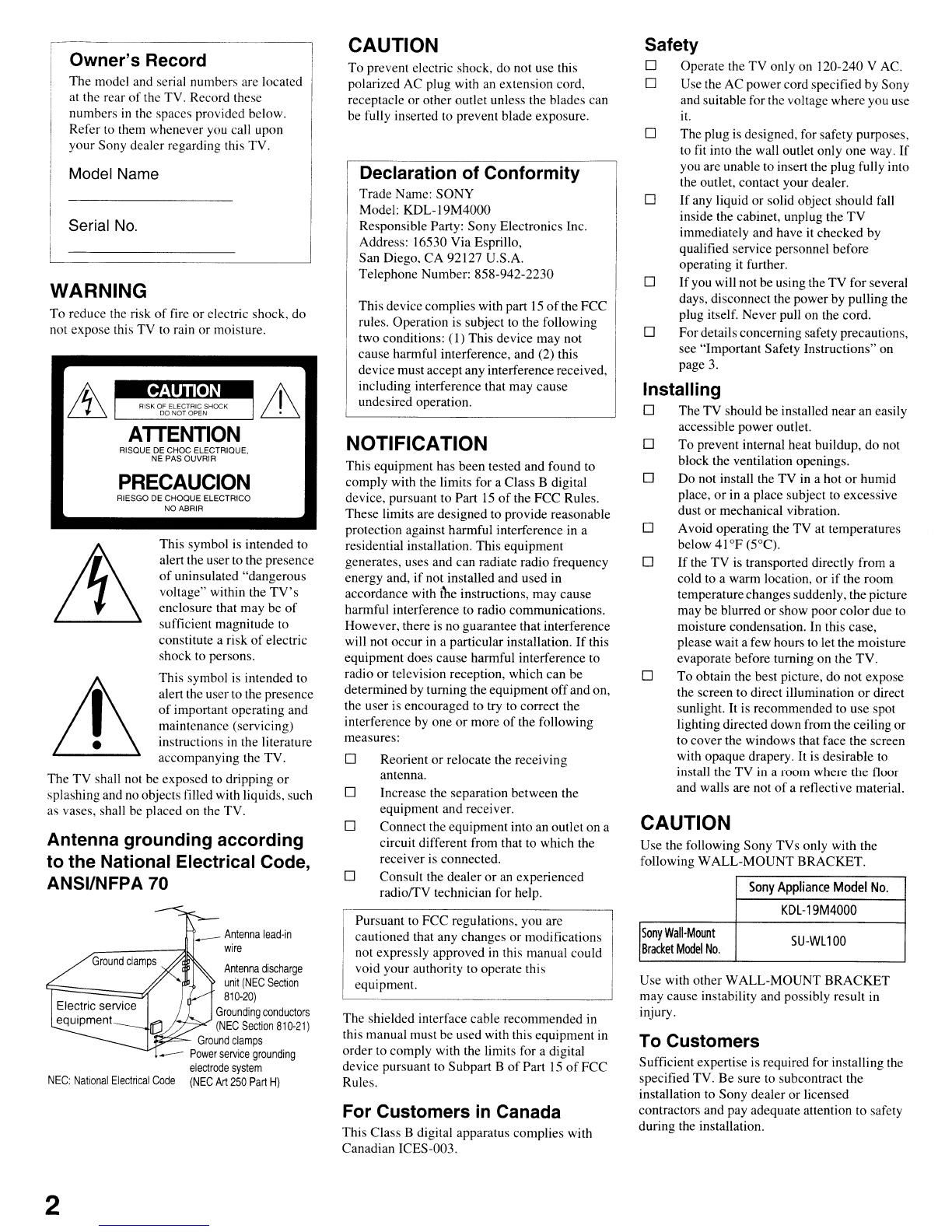

Owner's Record
Serial No.
The model and serial numbers are located
at the rear
of the TV. Record these
numbers
in the spaces provided below.
Refer
to them whenever you call upon
your Sony dealer regarding this TV.
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
Antenna grounding according
to the National Electrical Code,
ANSI/NFPA 70
This symbol is intended to
alert the user to the presence
of uninsulated "dangerous
voltage" within the
TV's
enclosure that may be of
sufficient magnitude to
constitute arisk of electric
shock to persons.
~
This symbol is intended to
Ialert the user
to the presence
of important operating and
maintenance (servicing)
•instructions
in the literature
accompanying the TV.
The TV shall not be exposed
to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the TV.
2

Note
This television includes aQAM demodulator which should allow you to
receive unscrambled digital cable television programming via subscription
service to acable service provider. Availability
of digital cable television
programming
in yourarea depends on the type of programming and signal
provided by your cable service provider.
Trademark Information
Macintosh is atrademark of Apple Inc., registered in the U.S. and other
countries.
HOMI, the HOMIlogo and High-Definition Multimedia Interface are
trademarks or registered trademarks
of HOMILicensing LLC.
Manufactured under license from Dolby Laboratories. "Dolby" and the
double-O symbol are trademarks
of Dolby Laboratories.
Blu-ray Disc
is atrademark.
"BRAVIA",
BRAVIA and I!iI are trademarks orregistered trademarks of
Sony Corporation.
III
,.,11;l
91 1t
.,;.
DDIDOLBvl
DIGITAL
Important
Safety
Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8) Du nul inslaH near any heal sources such
~ ,t\~~/~
as radiators, heat registers, stoves, orother ;?~D ~~
apparatus (including amplifiers) that -;:; b""
produce heat. m
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. Apolarized plug has two blades
with one wider than the other. Agrounding type plug
has two blades and athird grounding prong. The wide
blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet,
consult an electrician for replacement
of the obsolete
outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
specified
by the manufacturer, or sold with the
apparatus. When acart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
Q\)
13) Unplug this apparatus during lightning storms or
when unused for long periods
of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such
as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
(Continued)
3

Leave some space around the TV set as shown below.
Otherwise, air-circulation may be inadequate and cause
overheating, which may cause afire or damage to the TV set.
: 4 inches
, ._-
, (10cm)
11 7/8 inches
C~~~.~~! ....
Installed on the wall
4inches
----
(10cm)
Allow adequate space around the TV set to ensure proper air circulation.
oNever place the TV in aconfined space, such as a
bookcase
or built-in cabinet, unless proper
ventilation is provided.
To reduce the risk
of fire or electric shock, do not expose this TV to rain or
moisture.
oThe TV must never be exposed to dripping, splashing, or spilling
liquids of any kind.
o Do not place liquid filled objects such as avase or potted plant on the
TV.
oDo not use apower line operated TV set near
water; for example, near abathtub. washbowl,
kitchen sink, laundry tub, wet basement or near a
swimming pool, etc.
111L~kllt~~~5\
MOISTURE
CLEANING
When cleaning, be sure to unplug the power cord to avoid any chance of
electric shock.
oClean the cabinet of the TV with adry soft
cloth.
Leave at least
-....-- this space
: .t4. i.1]<;:tI~~. 09. ~f!1}: around the set.
VENTILATION
Air circulation is blocked.
: 4 inches
:(10 cm)
11 7/
8inches
(30cm)
._._----------_ .. ,
Leave at least this space around the set.
Never install the TV set as follows:
Air circulation
is blocked.
4inches
(10 cm) "
Installed with stand
oNever place the TV on abed, sofa, rug or other
similar surface where ventilation openings may
be blocked.
The ventilation openings
in the TV are necessary to ensure reliable
operation of the TV and to protect it from overheating.
o Do not block or cover the ventilation openings'i')') r ..
with <loth 01 oth" m""i,I,. ~eY
.. ~
oWipe the LCD screen gently with a soft cloth.
oStubborn stains may be removed with acloth slightly moistened with
asolution
of mild soap and warm water.
o If using achemically pretreated cloth, please follow the instruction
provided on the package.
oNever use strong solvents such as athinner, alcohol or benzine for
cleaning.
oPeriodic vacuuming of the ventilation openings is recommended to
ensure to proper ventilation.
oUnless proper ventilation is provided, the TV may accumulate dust and
cause damage.
oNever allow liquid or solid objects to fall into the
ventilation openings.
o If any liquid or solid object falls inside the TV unplug the TV
immediately and have it checked
by qualified service personnel before
operating it further.
oNever push objects of any kind into the TV through the ventilation
openings as they may come in contact with dangerous voltage points
or short out parts that could result in afire or an electric shock.
4

Medical institutions
Do not place this TV in aplace where medical
equipment
is in use. It may cause amedical
equipment malfunction.
Magnetic influence
DThis TV contains astrong magnet in the speaker unit that generates a
magnetic field. Keep any items susceptible to magnetic fields away
from the speaker.
DElectro-magnetic radiation emitted from optional equipment installed
too closed to the TV may cause picture distortion and/or noisy sound.
DExposing the TV to seawater may cause afire,
electric shock or damage to your TV.
Outdoor use
Do not install this TV outdoors. The TV should not be exposed to rain or
direct sunlight
in order to avoid damage and possible fire orelectric shock.
Do not install this TV in avehicle, ship or other
vessel
DExcessive bumping motion of amoving vehicle
or continuous swaying motion on aboat may
cause the TV to fall down and cause injury.
Wall-mount use
oWall-mount installation requires the use of
aWall-Mount Bracket. When installing or
removing the TV and the Wall-Mount
Bracket, be sure
to use qualified
contractors.
If not properly secured during
installation or removal from the
Wall-Mount Bracket, the TV may fall and
cause serious injury.
DBe sure to follow the installation guide supplied with the Wall-Mount
Bracket when installing the TV.
oBe sure to attach the brackets with the specified parts supplied with the
Wall-Mount Bracket.
DDo not hang the TV from the ceiling. It may fall and cause serious
injury.
DDo not hang anything on the TV.
DDo not allow children
to climb on the TV.
AC POWER CORD
DDo not touch the AC power cord and its plug
with wet hand,
it may cause electric shock.
DWhen disconnecting the AC powercord, grasp
the plug and disconnect from the wall outlet
first. Do not pull by the cord.
INSTALLATION
CARRYING THE TV
Carry the TV in the specified manner
To avoid dropping the TV and causing serious injury, be sure to follow
these guidelines:
DBefore carrying the TV, disconnect all cables.
DWhen you carry the TV without handle, place your hand as
illustrated and hold it securely. Do not put stress on the LCD panel.
DWhen carrying
the TV, do not
subject it to
shocks or
vibration, or
excessive force.
DSecure the TV to awall and/or stand.
DNever install the TV on unstable and/or uneven surfaces.
DDo not allow children to climb on or play with furniture and TV sets.
DDo not install the TV on furniture that can easily be used as steps, such
as achest
of drawers.
DCare should be taken to install the TV where it cannot be pushed,
pulled over, or knocked down.
DCare should be taken to route all AC power cords and connecting
cables so that they cannot be pulled or grabbed by curious children.
Without handle
DDo not install the
TV in aplace exposed to ~
direct air conditioning; moisture m~y condense ~( ,.:,:L: .... · .. ~~
,",,,,, ",d m,y ~"" TV m,"",ct,"o. >[g'W)J
With handle
The TV should be installed near an easily accessible
AC power outlet.
DDo not install the TV face up or down, upside down or on its side.
DDo not install the TV in hot, oily, humid, or excessively dusty places.
DDo not install the
TV in places subject to ,.\I!~
"',,m, "m",,"". ,,,Ii ~ to d;,~' ,""Ii,he m[!J. - ::;P,I \'~[,j- Ii
near aradiator or aheating vent. The TV may
overheat in such conditions and can cause
deformation
of the enclosure and/or cause TV
malfunction.',,~ , :':. " .
;QDI.'\I'I/~
~ ",,,>
~ -'>
r' b
ffi
oDo not install the TV where it may be exposed to mechanical vibration,
DDo not install the TV where insects may enter.
DDo not install the TV in alocation where
it may protrude, such as on
or behind apillar,
or any place you might bump your head or receive
bodily injury,
DTo prevent fire keep flammable objects
or open flame (e,g. candles)
away from the TV.
DDo not place optional equipment on top
of the TV.
Prevent the TV from toppling over
Take measures to prevent the TV from toppling over
and causing injury, damage to the TV and property.
(Continued)
5

oKeep the power cord away from heat sources.
ATV set with athree-wire grounding type
AC power cord plug must be
connected Ivan AC power outlet with aprotective earthing connection.
oDo not convert or damage the AC power cord.
oConsult your electrician to have the outlet changed to suit your TV.
Clean the AC power plug
Unplug the AC power plug and clean it ~==--
occasionally to avoid dust from accumulating. (,] _ .. 0
While cleaning, look for signs of damage. A l'
damaged AC power cord should never be used.
ACCESSORIES
Keep small accessories out of children's reach.
Use only the specified accessories with this TV.
Volume Adjustment
oWhen using headphones, adjust the volume to
avoid excessive audio levels from causing
possible hearing loss.
BATTERIES
Your remote control batteries are consumables.
oTo preserve our environment, dispose of used batteries according to
your local laws or regulations.
oDo not dispose of batteries in afire.
oDo not short-circuit, disassemble or overheat the batteries.
oReplace only with the same or equivalent type of batteries. Using
incorrect replacement batteries can lead to an explosion.
LCD SCREEN
oAlthough the LCD screen is made with high-precision technology and
has effective pixels of 99.99% or more, black dots or bright points of
light (red, blue, or green) may appear constantly on the LCD screen.
This is astructural property of the LCD panel and is not amalfunction.
oThe LCD screen is made with high-precision technology and to
achieve ahigh level of performance and picture quality, this TV's
backlight setting is set to maximize the brightness of the TV. However,
uneven brightness may be observed when the LCD TV is viewed in a
dark ambient without an input source or blank screen. This condition
is normal and not amalfunction of theTV. Changing the Picture mode,
Backlight setting, enabling the Light Sensor, or turning on the Power
Management will improve this condition.
oTo avoid damaging the LCD panel, do not expose the LCD screen to
direct sunlight.
oDo not push or scratch the LCD screen, or place objects on top of the
TV. The images may be uneven or the LCD panel may be damaged.
o If the TV is used in acold place, smear may occur in the picture or the
picture may become dark. This does not indicate afailure. These
phenomena improve as the temperature rises.
oGhosting may occur when still pictures are displayed continuously. It
should disappear after afew moments.
oThe LCD screen and enclosure get warm when the TV is in use. This
is not amalfunction.
oAvoid spraying insect repellent with volatile material on the LCD
screen.
oAvoid prolonged contact with rubber or plastic material to the LCD
screen.
Broken screen panel
Do not throw anything at the TV as the impact can
cause the LCD screen glass to crack, break
or
scatter.
)) ~
oDo not overload the same AC power outlet.
~ \.\:
o Do not allow anything to rest on or roll over the cord.
oBefore connecting cables, be sure to unplug the AC power cord for
your safety.
oDo not move the TV with the AC power cord (or other cables such as
audio and video) connected.
oUse only an original Sony AC power cord with your TV; no brand
substitution
is allowed.
oDo not use AC power cord supplied with the TV with any other
equipment.
oNever use adamaged AC power cord. A
damaged AC power cord can cause a
short-circuit, which may result
in afire or
electric shock.
Unplugging the AC power cord from the wall outlet will completely
remove power from the TV.
oDuring lightning storms or when
the TV is left unattended and
unused for extended periods of
time, the AC power cord should
be unplugged from the wall
outlet. This will avoid possible
damage to your TV. Also unplug
the antenna to prevent damage to
the TV.
Do not use adamaged or poorly fitting AC power
outlet as your
TV's power source.
oInsert the plug fully into the outlet. If it is loose, it
may cause arcing and result in afire.
Subjecting the AC power cord to wear and/or abuse can damage the
AC
power cord and your TV.
oDo not place the TV where the powercord can be easily pinched, bent,
twisted, or catch your feet.
oFor energy conservation and safety reasons, practice unplugging the
AC power cord from the AC power outlet. o
If damage occurs to the LCD panel, small traces of liquid crystal
sandwiched between the glass may be found on scattered broken glass.
6

DDo not touch the broken glass with bare hands. As with any broken
glass pieces, avoid skin contact and exposure to your eyes
or mouth.
Avoid direct contact with liquid or damp surfaces
of the glass as these
may have an adverse effect on some people. The contacted area should
be rinsed thoroughly with water.
If conditions persist, see your doctor.
DIf the surface
of the TV cracks, do not touch the TV until you have
unplugged the AC power cord. Otherwise electric shock may result.
SERVICING
DDo not attempt to service the TV yourself
since opening the cabinet may expose you
to dangerous voltage levels or other
hazards. Refer all servicing to qualified
service personnel.
D
If replacement parts are required, acquire a
written certification from the service
technician which states that adequate
replacement parts with the same or similar
characteristics as the original parts have been
used. Unauthorized substitutions may result in
afire, an electric shock or other hazards.
Do not use the TV if you suspect the TV is
damaged or
if the TV is damaged.
Safety check
DUpon completion of any TV servicing or
repair, ask the service technician to perform
routine safety checks as specified
by Sony
and
to certify that the TV is safe to operate.
Have aqualified service technician dispose
of the TV if it is not safe to operate.
For customers in the United States
Lamp in this product contains mercury. Disposal of
these materials may be regulated due to
environmental considerations. For disposal or
recycling information, please contact your local
authorities or the Electronics Industries Alliance
(www.eiae.org).
7

Welcome to the World of BRAVIA® 10
Connecting the
TV 10
Cable System or VHF/UHF Antenna System 10
Cable Box/Digital Cable Box
11
Cable System and VHF/UHF Antenna System 11
Satellite Receiver and Cable/Antenna 12
VCR, Cable and Antenna 13
When Connecting to Optional Equipment 14
Securing the TV 16
Prevent the TV from Toppling 16
Recommended Measures to Secure the TV 16
Bundling the Connecting Cables 18
Adjusting the Viewing Angle of the TV 18
Setting Up the Channel List -Initial Setup 19
Remote Control 20
TV Controls 23
Overview of MENU 25
Using the Picture Settings 25
Using the Sound Settings 26
Using the Screen Settings 27
Using the PC Settings 28
Using the Channel Settings 29
Using the Parental Lock Settings 30
Using the Setup Settings 33
Troubleshooting 35
Preparation for Wall Mounting 37
PC Input Signal Reference Chart 38
Specifications 39
Index 40
9

Welcome to the World of BRA V IA ®
Thank you for purchasing this Sony LCD Digital Color Television. This
manual is for model KDL-19M4000.
Be sure to check the supplied
accessories against the list on page 39.
Connecting the TV
To display clear crisp pictures, you must connect your TV correctly and select
the correct Wide Mode to display the picture
in the correct aspect ratio (see
"Changing the Wide Screen Mode"
on page 21). It is strongly recommended to
connect the antenna/cable input using the 75-ohm coaxial cable (not supplied)
to receive optimum picture quality signal. A300-ohm twin lead cable can be
easily affected by radio noise and the like, resulting
in signal deterioration. If
you use a300-ohm twin lead cable, keep it as far away from the TV as
possible.
You can also connect avariety of optional equipment to your TV (see page 14).
For multiple equipment connections, please refer
to the Quick Setup Guide.
75-ohm coaxial cable
(not supplied)
Cable System or
VHF/UHF Antenna
System
10
Cable or VHF/UHF (or VHF only) Antenna
I ~-4 Rear of TV
CABLE/ANTENNA input
From Cable settings in Channel settings, select Cable On or Cable Off for
your type
of input signal.

Getting Started •
Cable Box/Digital
Cable Box Use this hookup
if
D You subscribe to acable TV system that uses scrambled or encoded
signals requiring acable box to view all channels, and
D You do not intend to hook up any other audio or video equipment to
your
TV.
175-ohm coaxial cable
(not supplied)
~~ -4 §~~L~/I~TENNA
II /Input
e
--
Cable
IN ~ ~OUT
jack ~ ~ Jack
Also, set Cable to On in the Cable settings in Channel settings (see page
29).
0Q" To change channels using
the cable box, set your TV
to channel 3or 4
depending on the cable
box channel output.
Auto Program will fix the
channel automatically.
Cable System and
VHF/UHFAntenna
System
If you want to watch both antenna (over-the-air) and cable broadcast signals,
you'll need to use an optional A-B
RF switch (not supplied), as shown
below.
AlB Rear of TV
RF Switch CABLE/ANTENNA
~I' input
~ MI c@tIT'--------'--dQ]} ~
==oQ]f m
Antenna
Use the A-B selector to switch between the
over-the-air signals and the cable signals. Then
set the
Cable setting in the Channel settings to
On or Off, as described on page 29.
11

Getting Started
Satellite Receiver
and Cable/Antenna
Rear of TV
Left side of TV
Satellite
antenna
cable
AN cable
SATELLITE IN
",.".".,"'" ""'0 ~l I
'---_L_INE_OU_T ~_~_,_,_jy f:o~~~~~~~)a cable ctlf'--~f~CABLfJANTENNA~
J~'~
. ,....--- SVIDEO =:\.. .0
VIDEO -----. c!C3-r~~ I
SVIDEO cable (yellow) ,~ ....... ~ ~~
'------...------~:~ -J.~ I~
AUDIO-L II II
(white) -.7~~-~.O~
AUDIO-R
(red)
Satellite Receiver
(l:n VIDEO 1IN is also available for aVIDEO cable connection.
(l:n If your satellite receiver is not equipped with SVIDEO, use aVIDEO
cable (yellow) instead of the SVIDEO cable.
(l:n Run the Initial Setup program, as described in "Setting Up the Channel
List" on page 19 after completing your connections.
12

Getting Started •
Rear of TV
Left side of TV
\.-------,
AN cable
VCR, Cable and
Antenna
v:",~, ~,,-EO_I_N_~_;~--'I roJ CATVcabl;~:~~;~~~) qjI---!o!I~}A~~~
J ~____ SVIDEO ~ .~ 0
I----vi-DE-O ~_r~!1
SVIDEO cable (yellow~ ....... ~ ~~
~-1~~i
AUDIO-L (white) ~-1~ ~ I
AUDIO-R (red) -.7 iii
©
tlJJ If your VCR is not equipped with SVIDEO, use aVIDEO cable (yellow)
instead of the SVIDEO cable.
tlJJ Run the Initial Setup program, as described in "Setting Up the Channel
List"
on page 19 after completing your connections.
13

Getting Started
When Connecting to Optional Equipment
Left side Rear
6
COMPONENT IN
(1080V72Op148Op/48Of)
RGB
[ml.~IT::· ~,
o AU~IO @OPJ....,....,,...,....,,,.,::-i
IN ~ AUDlOOUT
AUDIO <0 (@)- (@): (@)- @ ~
DIGITAL' 0 0 0 OAUDIC
:m [Q] --- ~
___ l(MONO) AUDIO __
Item Description
[j]
VIDEO 21N
SVIDEO
[2]
VIDEO 2 IN
VIDEO/
AUDIO-R-
L(MONO)
~Headphones
jack
@]
PCIN
(RGB/AUDIO)
Connects to the SVIDEO output jack on your camcorder or other video equipment that has
SVIDEO. Provides better picture quality than composite video
([2]).
Connect to the composite video and audio output jacks on your camcorder or other video
equipment such
as video game equipment.
bIf you have mono equipment, connect its audio output jack to the TV's L(MONO)
audio input jack.
Connects to your headphones. If your headphones do not match the jack, use asuitable plug
adapter (not supplied).
Connect to apersonal computer's video output connector using HD15-HDI5 cable (analog
RGB, not supplied). Can also
be connected to other Analog RGB devices.
See "PC Input Signal Reference Chart" on page 38 for the signals that can be displayed.
bFor some Apple Macintosh computers, it may be necessary to use an adapter
(not supplied). If this is the case, connect the adapter to the computer before
connecting the HD15-HD15 cable.
bIf the picture is noisy, flickering or not clear, adjust the Phase and Pitch of the PC
Settings on page 28.
14

Getting Started •
Item Description
[§J HDMIIN
HDMI/
AUDIO
IN
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital
audio/video interface between this TV and any HDMI-equipped audio/video equipment, such
as aset-top box, DVD player, and
AN receiver. HDMI supports enhanced, or high-definition
video, plus digital audio.
If the equipment has aDVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN
(with HDMI-to-DVI cable or adapter) jack, and connect the audio
jack to the AUDIO IN(L/R)
jacks
of HDMI IN. (DVI connector is for video signals only.)
iIOOJ'I'[]-------tI I :
HDMI-to-DVI cable
~-----_ ... ~
W--.. liillll..)II
HDMI adapter
,L\udio cable
lID SERVICE ONLY
[l] DIGITAL
AUDIO OUT
(OPTICAL)
[ID VIDEO 1 IN
VIDEO/
L(MONO)-
AUDIO-R
rnJ COMPONENT
IN (1 080i/720p/
480p/480i)/
L-AUDIO-R
[QI AUDIO OUT
L-AUDIO-R
[j] AC IN
I12J CABLE/
ANTENNA
tln Do not connect aPC to the TV's HDMI input. Use the PC IN (RGB IN) input
instead when connecting a
PC.
This USB port is for service only.
Connects to the optical audio input
of adigital audio equipment that is PCMlDolby Digital
compatible.
Connect to the composite video and audio outputjacks on your
AN equipment such as aVCR
or other video equipment. Asecond composite video and audio (VIDEO 2)
is located on the
left side panel
of the TV.
Connect to your DVD player's or digital set-top box's component video (YPBPR) and audio
(L/R) jacks. Component video provides better picture quality than the SVIDEO
([1]) or the
composite video
([gJ/[ID) connections.
Connect to the left and right audio input jacks
of your audio or video equipment. You can use
these outputs to listen to your
TV's audio through your stereo system.
Connects the supplied
AC power cord.
RF input that connects to your Cable or VHFIUHF antenna.
*Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
tln VIDEO 2 IN is equipped with SVIDEO. SVIDEO is selected primarily when both
composite video jack and SVIDEO jack are connected.
tln Component video (YPSPR) connection is necessary to view 480i, 480p, 720p,
and 1080i formats. Note that this TV displays all format types of picture
in a
resolution of 1,440 dots x900 lines.
tln HDMI connection is necessary to view 480i, 480p, 720p, 1080i and 1080p
formats. Note that this TV displays all format types of picture
in aresolution of
1,440 dots x900 lines.
15

Getting Started
Securing the TV
Prevent the TV from
Toppling
Recommended
Measures
to Secure
the TV
16
Sony strongly recommends taking measures to prevent the TV from toppling
over; as unsecured TVsmay topple and result in property damage, serious
bodily injury or even death.
DSecure the TV to awall and/or stand.
DDo not allow children to play or climb on furniture and TV sets.
DAvoid placing or hanging items on the TV
DNever install the TV on:
•slippery, unstable and/or uneven surfaces.
•furniture that can easily be used as steps, such as achest
of drawers.
DInstall the TV where it cannot be pulled, pushed, or knocked over.
DRoute all AC power cords and connecting cables so that they are not
accessible to curious children.
1Secure the Stand for the TV
Make sure the TV stand can adequately support the weight of the TV
Use two angle braces (not supplied) to secure the stand.
For each angle brace use the appropriate hardware to:
•attach one side
of the angle brace to the wall stud.
•attach the other side to the TV stand.
Angle brace
-.+--- TV stand

2
Getting Started
Secure the TV to the Stand.
Use the optional hardware listed below (not supplied):
•M6 x12-18mm anchor bolt (screwed into the
TV's stand).
• A screw or similar (attach it to the TV stand).
•Rope or chain (strong enough to support the weight
of the TV). Make
sure that there
is no excess slack in the rope or chain.
An alternative way to secure the TV is with an optional Sony Support
Belt Kit.
•
r 1111
<J.......
Screw hole on the TV's stand ~ Screw
1
$JJ Contact Sony Customer Support to obtain the optional Support Belt Kit
by providing your TV model name.
-For United States call: 1(800)488-7669
or visit: www.sony.com/accessories
-For Canada call: 1-877-899-7669
3Anchor the TV to the Wall.
Use the hardware listed below (not supplied).
•Two M4 x12-l8mm anchor bolts (screw into the top-most wall-
mount holes located on the rear
of the TV).
•Rope or chain (attach to one M4 anchor bolt).
•Wall-anchor (attach to the wall stud) strong enough to support the
weight
of the TV (pass the rope through the wall-anchor, then attach
to the other M4 anchor bolt).
Wall-
anchor
Wall-mount
_~ ........... =:1!-'-- holes
Rope or
chain
Anchor
-H-++-----f-
bolts
$JJ Measure 2provides minimal protection against the TV toppling over.
For further protection, follow all three measures recommended above.
$JJ If an electric screwdriver is used, set the torque to tighten at
approximately 1.5 N·m {15 kgf·cm}.
17

Getting Started
Bundling the
Connecting Cables
Adjusting the
Viewing Angle
of the
TV
You can bundle the connecting cables as illustrated below.
tlJJ Do not bundle the AC power cord with other connecting cables.
This TV can be adjusted within the angles shown below.
Adjust the angle up and down (tilt)
18
tlJJ When adjusting the angle, hold the lower left corner
with one hand and the upper right side frame with the
other to avoid slipping or tipping the
TV. Avoid holding
the upper right corner or pressing buttons on the top of
the
TV.

Getting Started
Setting Up the Channel List -Initial Setup
After you finish connecting your TV, you need to run Initial Setup, which
automatically sets up available channels. The Initial Setup screen appears
when you turn on your TV for the first time.
If you do not want to set up the
channels at this time, you can do it later by selecting the Auto Program
option in the Channel settings (see page 29).
POWER
1Press 0to turn on the TV.
The Initial Setup screen appears.
2Press +/+ to highlight the desired
language.
3The message "First please connect
cable or antenna. Allow 50+ minutes
for completion." and "Start auto
program now?" appears, make sure
you already connected Cable or
Antenna, then select OK to start Auto
Program.
If you want to start Auto
Program later, select Cancel.
!tJJ If you have Cable and Antenna available, please connect Cable first.
4The scanning of channels will start. If
you want to stop and run Auto
Program later, press Cancel.
5When Auto Program is complete,
press 0to continue.
6 If the Initial Setup programming
found cable channels, you will be able
to scan antenna channels as well.
Connect the antenna using an A-B RF
switch (not supplied) and change the
switch to antenna then start Auto
Program to search antenna channels.
If the Initial Setup programming found antenna channels, the Auto
Program process will finish.
If you want to scan cable channels, you
can do it later using the Channel settings.
To run Auto Program again at alater time
oUse the Auto Program feature as described on page 29.
To display the Picture in your Preferred Aspect Ratio
oSelect the proper Wide Mode as described on pages 21 and 27.
19
•

Remote Control
Button Description
Press once to display the current channel number, channel
label, and program remaining time. The on screen display
(OSD) will
tum off after afew seconds.
Press repeatedly until the
TV displays the time in minutes
(Off, 15,30,45,60,90 or 120) that you want the TV to remain
on before shutting off. To cancel Sleep Timer, press SLEEP
repeatedly until Off appears.
Press once to display the stored favorite channel list. You can
store up to 8channels and/or external inputs in your Favorites
list.
How to Add to Favorites
While tuned to the channel you want to add to the list, press
FAVORITES and highlight "Add to Favorites", then press
O·
.rl:n Your Favorites list of TV inputs will be cleared each
time you run Auto Program (see pages 19 and 29 for
Auto Program).
Press repeatedly to cycle through the available picture modes:
Vivid, Standard, Custom. The picture modes can be also
accessed in the Picture settings. For details, see "Using the
Picture Settings" on page 25.
Press to go back to the previous screen when displaying
MENU items and settings.
Press to display the MENU with
TV functions and settings.
See "Overview
of MENU" on page 25.
Press to turn on and off Closed Captions (CC).
To change or
customize
CC Display, see page 34.
Use with
0-9 and ENT buttons to select digital channels. For
example, to enter
2. I, press ®, 0, CD and ENT.
Press to adjust the volume.
Press
to mute the sound. Press again or press VOL +to restore
the sound.
I]] MENU
@] PICTURE
[§] RETURN
[l] CC
[IDo
[ill VOL +/-
[Q] MUTING
TOOLS
o
JUMP
CH
D
MENU
cc
e
SONY
CD®®
0®®
0®®
®e
[I] DISPLAY
DISPLAY
SLEEP POWER
0
[g] SLEEP
INPUT
00
~ FAVORITES
MUTING
VOL
9 I--t+--f~+n
'Q' The 5button and CH +
have atactile dot. Use
them as areference when
operating the
TV.
20
