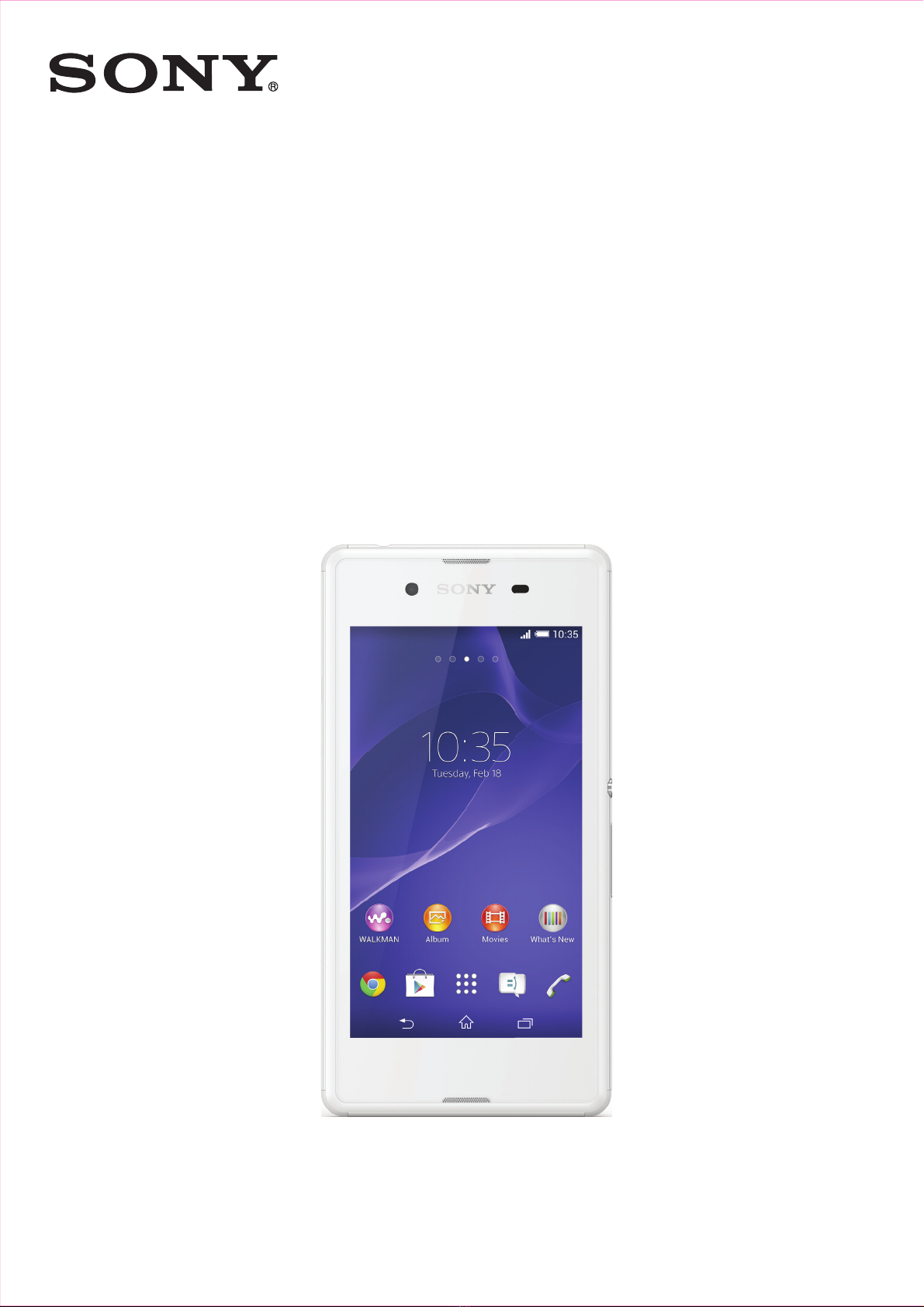

XperiaTM E3
D2202/D2203/D2206/D2243
Note: Screen images are simulated.

White paper | Xperia™ E3
2 September 2014
This document is published by Sony Mobile
Communications Inc., without any warranty*.
Improvements and changes to this text
necessitated by typographical errors,
inaccuracies of current information or
improvements to programs and/or equipment
may be made by Sony Mobile Communications
Inc. at any time and without notice. Such
changes will, however, be incorporated into new
editions of this document. Printed versions are to
be regarded as temporary reference copies only.
*All implied warranties, including without
limitation the implied warranties of
merchantability or fitness for a particular
purpose, are excluded. In no event shall Sony or
its licensors be liable for incidental or
consequential damages of any nature, including
but not limited to lost profits or commercial loss,
arising out of the use of the information in this
document.
This White paper is published by:
Sony Mobile Communications Inc.,
1-8-15 Konan, Minato-ku, Tokyo108-0075, Japan
www.sonymobile.com
© Sony Mobile Communications Inc., 2009-2014.
All rights reserved. You are hereby granted a
license to download and/or print a copy of this
document.
Any rights not expressly granted herein are
reserved.
First released version (2014)
Publication number: 1291-3857
Purpose of this document
Sony Mobile Communications product White papers are intended to give an overview of a product and
provide details in relevant areas of technology.
Document history
Sony Mobile Developer World
For the latest technical documentation and development tools, go to www.sonymobile.com/developer.
Version
September 2014 First released version Version 1
January 2015 Second released version Version 2
June 2015 Third released version Version 3

White paper | Xperia™ E3
1 September 2014
Table of contents
Product overview ..........................................................................................................2
Highlights ...............................................................................................................2
Facts – dimensions, weight, performance and networks ......................................3
Categorised feature list ..........................................................................................6
Technologies in detail ...................................................................................................8
Accessibility and Usability ....................................................................................8
Device-to-device communications (local) .............................................................9
Bluetooth® wireless technology .........................................................................9
Wi-Fi® ...............................................................................................................10
ANT+™ wireless technology.............................................................................10
Messaging ...........................................................................................................11
MMS (Multimedia Messaging Service)..............................................................11
Email .................................................................................................................11
Positioning – location based services .................................................................12
Provisioning (OMA CP) ........................................................................................12
Multimedia (audio, image and video) ...................................................................13
Synchronisation (OMA DS, EAS, Google Sync™) ...............................................14
Web browser .......................................................................................................14
Memory in Android™ devices .............................................................................15
Trademarks and acknowledgements ..................................................................19

White paper | Xperia™ E3
2 September 2014
Product overview
Highlights
• Slim and light design
• Corners and screen designed to prevent everyday wear
• Smart social camera
• Faster entertainment with 4G and a long-lasting battery
Looks that never get old
The Xperia™ E3 makes a style statement right out of the box. Sharing the same design as Sony’s new
flagship phones, the Xperia™ E3 is a smartphone you can be happy to hold. Slim and light, it’s designed
to be easy to use with just one hand. Choose bright white, sharp black or the new bold lime. Now fast
forward a few months. Where your friends’ phones are showing wear, yours is still showing off. The
corners on the Xperia™ E3 are designed to prevent nicks and colour chipping in case of an unexpected
bump. Thanks to a scratch-resistant screen made of durable tempered glass, your smartphone keeps
looking smarter for longer.
Attention-grabbing features
Forget ‘standard’. Every detail of the Xperia™ E3 is there to set you apart. Sony’s uniquely creative
camera apps add more fun and interaction to your photo taking. Download AR Fun to mix reality with 3D
effects that change as you move the camera. Capture even the fastest moves with Timeshift burst. Or use
“Social live” to send videos live to Facebook. Got your friends’ attention? Now wow them with a sleight of
hand. With a simple flick of the wrist, you can launch the camera or open Facebook. Gesture control gives
you the power to control your phone – and impress your friends – in all new ways.
Entertainment in full gear
A car chase in your pocket. The latest dance song in your hand. Sony’s exclusive media apps give you
access to some of the world’s best entertainment. And the Xperia™ E3 gives you a VIP pass, with the kind
of out-of-the-box entertainment package that only Sony can deliver. 4G networks and a Quad-core
processor mean your movies, songs and games load in an instant and run without irritating interruptions.
Think the party may go all night? The Xperia™ E3 has a powerful, long-lasting battery and also Battery
STAMINA Mode, so you can keep the fun streaming in.

White paper | Xperia™ E3
3 September 2014
Facts – dimensions, weight, performance and
networks
Operating system Google™ Android™ 4.4 (KitKat)
Processor 1.2 GHz Qualcomm MSM8926-2 Quad-core (D2203, D2206,
D2243)
1.2 GHz Qualcomm MSM8226-2 Quad-core (D2202)
GPU Adreno 305
Size 137.1 x 69.4 x 8.5 mm
Weight 143.8 grams
Available colours Black, White, Lime, Copper* (D2203)
Black, White, Lime (D2206, D2202)
Black, White (D2243)
Main screen
Colours 16,777,216 colour TFT
Resolution 854x480 pixels
Size (diagonal) 4.5 inches
Scratch-resistant Yes -Durable tempered glass
Input mechanisms
Text input On-screen QWERTY keyboard, 12-key input
Touch screen Capacitive
Touch gesture Yes – multi-touch, up to 2 fingers supported
Handwriting recognition Yes
Memory
RAM 1 GB
Flash memory Up to 4 GB**
Expansion slot microSD™ card, up to 32 GB
Camera
Camera resolution 5 MP
Smooth zoom 4x
Video recording Yes – HD 1080p
Front Camera Yes – VGA
Sensors
Accelerometer Yes

White paper | Xperia™ E3
4 September 2014
* Color depends on variants and markets.
Ambient light sensor Yes
Proximity sensor Yes
Magnetometer Yes
Networks
D2203 UMTS HSPA+ 900 (Band VIII), 850 (Band V), 2100 (Band I) MHz
GSM GPRS/EDGE 850, 900, 1800, 1900 MHz
LTE Bands 1, 3, 5, 7, 8, 20
D2206 UMTS HSPA+ 850 (Band V), 1700 (Band IV), 1900 (Band II),
2100 (Band I) MHz
GSM GPRS/EDGE 850, 900, 1800, 1900 MHz
LTE Bands 2, 4, 7,17
D2243 UMTS HSPA+ 850 (Band V), 1700 (Band IV), 1900 (Band II),
2100 (Band I) MHz
GSM GPRS/EDGE 850, 900, 1800, 1900 MHz
LTE Bands 4, 7,17
D2202 UMTS HSPA+ 900 (Band VIII), 850 (Band V), 1900 (Band II),
2100 (Band I) MHz
GSM GPRS/EDGE 850, 900, 1800, 1900 MHz
Data transfer speeds
GSM GPRS
(upload and download)
Up to 85.6 kbps
GSM EDGE
(upload and download)
Up to 237 kbps
UMTS HSUPA (upload) Cat. 6, up to 5.76 Mbps
UMTS HSDPA (download) Cat. 24, up to 42.2 Mbps
LTE (upload) Cat. 4, up to 50 Mbps
LTE (download) Cat. 4, up to 150 Mbps
Talk time (GSM) Up to 12 hours 20 min.***
Standby time (GSM) Up to 706 hours***
Talk time (UMTS) Up to 8 hours 41 min.***
Standby time (UMTS) Up to 661 hours***
Standby time (LTE) Up to 579 hours***
Music listening time Up to 49 hours 4 min.***
Video playback time Up to 7 hours 27 min.***
Battery (Embedded) 2330 mAh, minimum

White paper | Xperia™ E3
5 September 2014
**Memory comprises approximately 2.3 GB of firmware, plus 1.7 GB of “Internal Storage” for music, pic-
tures and movies, and downloaded applications and their data. For more details about memory, see
“Memory in Android™ devices” on page 15.
***Values are according to the GSM Association Battery Life Measurement Technique as performed in
controlled laboratory conditions. Actual time may vary.
NOTE: Battery performance may vary depending on network conditions and configurations, and device
usage.
NOTE: Performance metrics are measured under laboratory conditions.

White paper | Xperia™ E3
6 September 2014
Categorised feature list
* This service is not available in all markets.
Camera
5 megapixel camera
4x smooth zoom
Auto scene recognition
Face detection
Geotagging
HDR for pictures
Image stabiliser
Quick Launch
Scene recognition
Self-timer
Send to web
Smile Shutter™
Sweep Panorama
Touch capture
Video recording (HD 1080p)
White balance
Music
3D Surround Sound (VPT)
Album art
Bluetooth® stereo (A2DP)
ClearAudio+
Clear Bass™
Clear Phase™
Clear stereo
Dynamic normaliser
Manual equaliser
SensMe™
TrackID™ music recognition*
“WALKMAN” application
xLoud™ Experience
Internet
Bookmarks
Google Chrome™*
Google Play™
Google™ search*
Google Voice™ Search*
Google Maps™ for Mobile with
Street view*
Web browser (WebKit™)*
Communication
Call list
Conference calls
Facebook™ application*
Friends application
Hangouts™*
HD voice support
Loud Speaker
Multiple IM
Noise suppression
Speakerphone
Xperia™ with Facebook™
Messaging
Conversations
Email
Google mail™*
Handwriting recognition
Instant messaging
Multimedia messaging (MMS)
Predictive text input
Text messaging (SMS)
Design
Battery STAMINA mode
Gesture input
Illumination effect
On-screen 12-key keyboard
On-screen QWERTY keyboard
Picture wallpaper
Screen capturing
Shake control
Touch screen
Voice input
Wallpaper animation

White paper | Xperia™ E3
7 September 2014
* This service is not available in all markets.
** Sony Entertainment Network with Music Unlimited is not available in every market. Separate
subscription required. Additional terms and conditions apply.
*** DTV is only supported by D2243.
Entertainment
DTV (Digital Television)***
Media browser
Motion gaming
PlayMemories*
Radio (FM radio with RDS)
Sony Entertainment Network**
Video streaming
YouTube™*
Organiser
Airplane mode
Alarm clock
Calculator
Calendar
Contacts
eCompass™
Setup guide
Stopwatch
Timer
World clock
Connectivity
3.5 mm audio jack (CTIA)
ANT+™ sport, fitness, health sup-
port
aGPS*
Bluetooth® 4.0 wireless
technology
GLONASS
Media Transfer Protocol support
Micro USB support
Native USB tethering
NFC
Media Go™*
PC Companion
Smart Connect
Synchronisation via Facebook™
Synchronisation via SyncML™
Synchronisation via Google™
Synchronisation with computer
Synchronisation via Microsoft®
Exchange ActiveSync®
USB High speed 2.0 support
USB mass storage
Wi-Fi®
Wi-Fi® Hotspot functionality

White paper | Xperia™ E3
8 September 2014
Technologies in detail
NOTE: The information outlined below is general and levels of compliance to standards and specifications
may vary between products and markets. For more information, contact Sony Developer World or your
Sony contact person where applicable.
Accessibility and Usability
* Android Lollipop feature. Subject to possible change in future releases of Google™ Android™.
Accessibility and Usability
Talkback* Yes
Captions* Yes
Magnifications gestures* Yes
Large Text* Yes
High Contrast Text* No
Power button ends call* Yes
Auto-rotation* Yes
Speak Passwords* Yes
Accessibility Shortcuts* Yes
Text – to – Speech* Yes
Touch and hold delay* Yes
Color Inversion* No
Color correction* No
