VPL-FX500L
Versatile Installation Projector

2

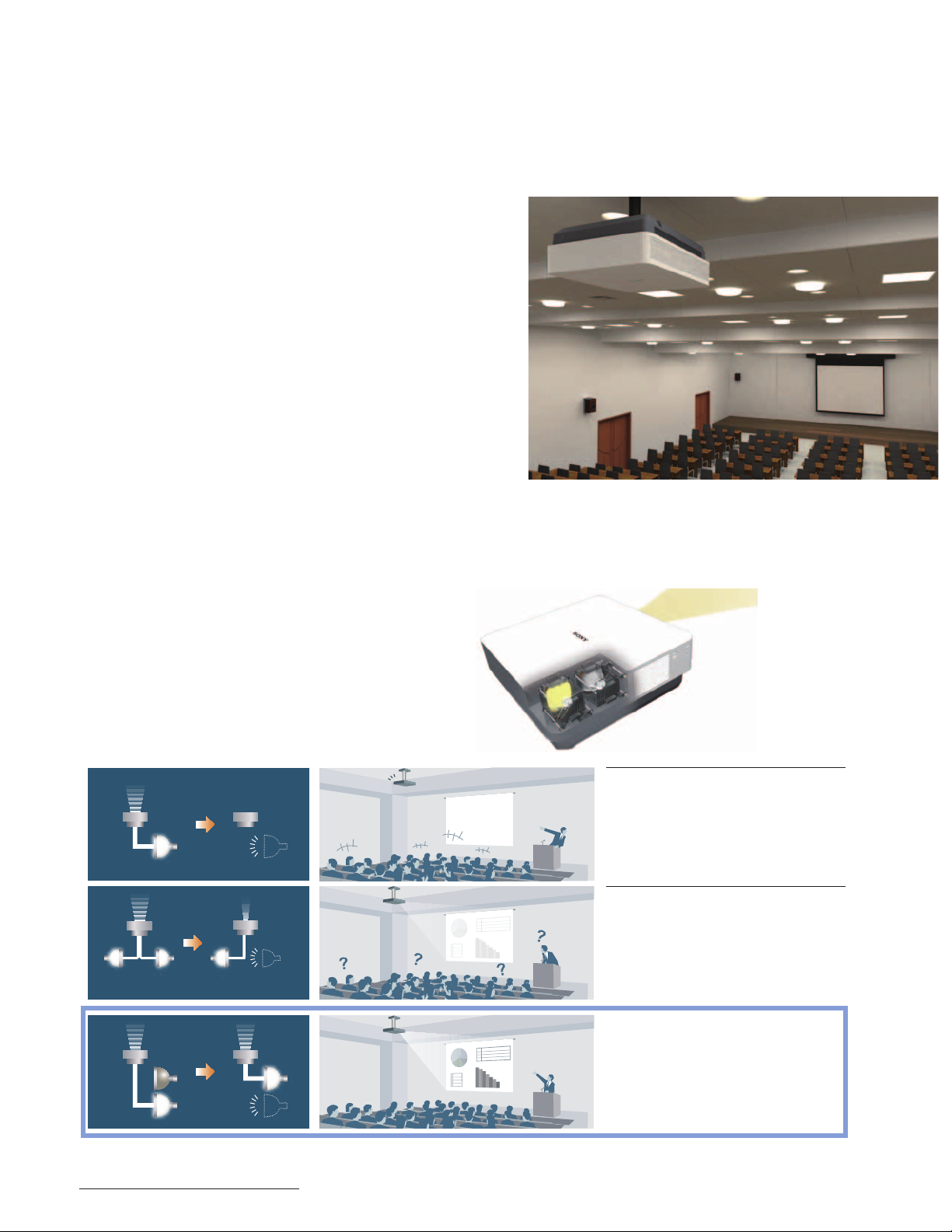

Single-lamp system:
When there’s a problem with the lamp,
the presentation has to stop.
Dual-lamp system:
When there’s a problem with
one lamp, brightness is halved and
the presentation's impact is diminished.
Twin-lamp system:
Even when a lamp has a problem,
there is no need to worry and the
presentation continues.
Peace of Mind Operation, Installation Flexibility,
and Hassle-free Maintenance
with a Stylish Unobtrusive Design
FEATURES
Twin-lamp System for Peace of Mind Operation
The VPL-FX500L's twin-lamp system provides both peace of
mind and economical operation. One lamp can output a
total of 7,000 lumens but a second lamp is built-in to provide
automatic backup should the primary lamp fail. The two
lamps are alternately used, achieving a recommended lamp
replacement time of up to 8,000 hours, saving maintenance
time and cost.
What happens if one lamp suddenly fails during an important presentation?
The VPL-FX500L offers peace of mind operation with its twin-
lamp system, redundant lamp and economical operation.
It also delivers amazing installation flexibility and hassle-free
maintenance in a stylish design that blends into any decor.
This projector has a wide lens shift range, enabling excellent
flexibility when installing the unit and adjusting the image.
Lamp and air filter maintenance cycles are synchronized and
exceptionally long compared to single-lamp and dual-lamp
systems cutting maintenance time and cost. In addition, the
VPL-FX500L is designed to deliver a low total cost of ownership,
and includes eco-friendly features such as long-lasting lamps
and low power consumption.
Packing the most advanced projector technologies into a low-profile design, the VPL-FX500L is an excellent
choice, delivering a dramatic brightness of 7,000 lumens and high-quality images with XGA resolution.
Twin-lamp system image

3
“Blend-in” Design
The VPL-FX500L showcases a newly designed low-profile
chassis, so the projector appears to blend into the ceiling or
wall on which it is mounted. The connector panel is located
on the front of the unit so its cables cannot be seen by the
audience.
High Picture Quality
Brilliant Color Performance
By combining a new-generation optical system that uses
Sony's BrightEra™ with Long Lasting Optics technology* and
a 3LCD projection system, the VPL-FX500L offers high picture
quality in XGA (1024 x 768) resolution and a high brightness
of 7,000 lumens.
* BrightEra with Long Lasting Optics is the Sony bland name for a new
generation of optical system, which uses a more advanced version of
Sony's original BrightEra technology. In addition to adopting LCD panels
that have pixels with large aperture ratios and inorganic alignment layers,
BrightEra with Long Lasting Optics technology also uses an inorganic layer
for polarization plates to greatly enhance reliability.
3LCD Projection Offers Brilliant Color Performance
The VPL-FX500L adopts a 3LCD projection system
incorporating three LCD panels. This system enables the
projector to present bright and natural images.
12-bit 3D Gamma Correction
The VPL-FX500L incorporates 12-bit 3D Gamma Correction
circuitry to perform highly accurate gamma correction,
achieving smoother gradations and a richer gray scale.
I/P Conversion and Film Mode
The video signal processing technology that Sony has
incorporated in the VPL-FX500L offers I/P conversion and 2-3
pull-down to generate high-quality images with outstanding
clarity.
Optional High-resolution Lenses
The optional VPLL-4008,VPLL-Z4015,VPLL-Z4019,VPLL-Z4025,
and VPLL-Z4045 are known as All Range Crisp Focus (ARC-F)
lenses. Each with a large diameter and fine pitch, they ensure
crisp pictures.
Good TCO and ECO-friendly Design
Long-lasting Lamp
By incorporating newly developed high-performance lamps
and advanced lamp-control technology, the VPL-FX500L
delivers a recommended lamp replacement time of
approximately 8,000 hours.*
* In Standard mode (with two lamps).
VPL-FX500L
Conventional
model
8000 hours*1
Recommended lamp replacement time*2
2500 hours
VPL-FX52
*1 In Standard mode
(with two lamps)
*2 The values are approximate
Low Power Consumption
The VPL-FX500L offers remarkably low power consumption,
allowing users to make significant savings on their electricity
expenses.
ECO MODE Key
With a single push of the ECO MODE key on either the
projector or the supplied Remote Commander™ unit, users
can select an energy-saving setting from the ECO Mode menu.
ECO MODE key
ARC-F lens Normal lens
simulated image
simulated image

4
Installation Advantages
Lens Shift Function
The VPL-FX500L has a Lens Shift function which is controlled
from the projector control panel or the supplied Remote
Commander unit. Using this function, the position of the
projected image can be moved vertically by -96% to +96%
and horizontally by -64% to +64%. Images can be easily
adjusted to the desired settings during installation. With this
exceptional shift range, the VPL-FX500L can be installed in
a way to maximize performance even in the most difficult
environments.
Variety of Optional Lenses of Sony Legacy Lenses
Various optional zoom lenses are available for the VPL-FX500L
which can be used for many different applications.
Centered Lens Design
The centered lens provides symmetry for a balanced
installation, and makes setup very simple.
Two Feet Functional Size
The VPL-FX500L matches well with the
typical ceiling tile size and blends into the
ceiling.
Sufficient V shift to ensure broad visibility
V shift 96% V shift 50%
Hassle-free Maintenance
Lamp and Filter Synchronized Maintenance
When the lamps and air filter are due for replacement, a
timely message is displayed on screen. The lamps and air
filter are accessible from both sides, so their replacement
can be performed without uninstalling the projector. Like the
lamps, the replacement filter has an approximate 8,000-hour
replacement cycle in Standard mode. This synchronized
replacement is achieved even in tough environments by a
Quad Filter System Plus*, saving maintenance time and cost.
* The Quad Filter System Plus is composed of four pleated electrostatic
filters. This substantial unit is designed to maintain high performance for
a long period of time, requiring air filter replacement only when lamp
replacement is required. The unit is included with the replacement lamps.
Benefits of the Quad Filter System Plus
To keep all internal parts clean, the projector design unifies air
intake through just one hole which is equipped with a high-
reliability filter system.
Lamp replacement Air filter replacement
Balanced and symmetrical installation
Maintenance cycle comparison image
2 feet
2 feet
Conventional
Non Synchronized
Lamp Filter
VPL-FX500L
Maintenance
too often
Short life lter
Time
One time
Synchronized lamp and lter
1
2
4
3
Vertical range
Approx. 3 screens
Horizontal range
Over 2 screens
Screen center 1
100%
100%
Screen center 2
Max. 96%
Max. 64%
One-way intake with the Quad Filter System Plus

5

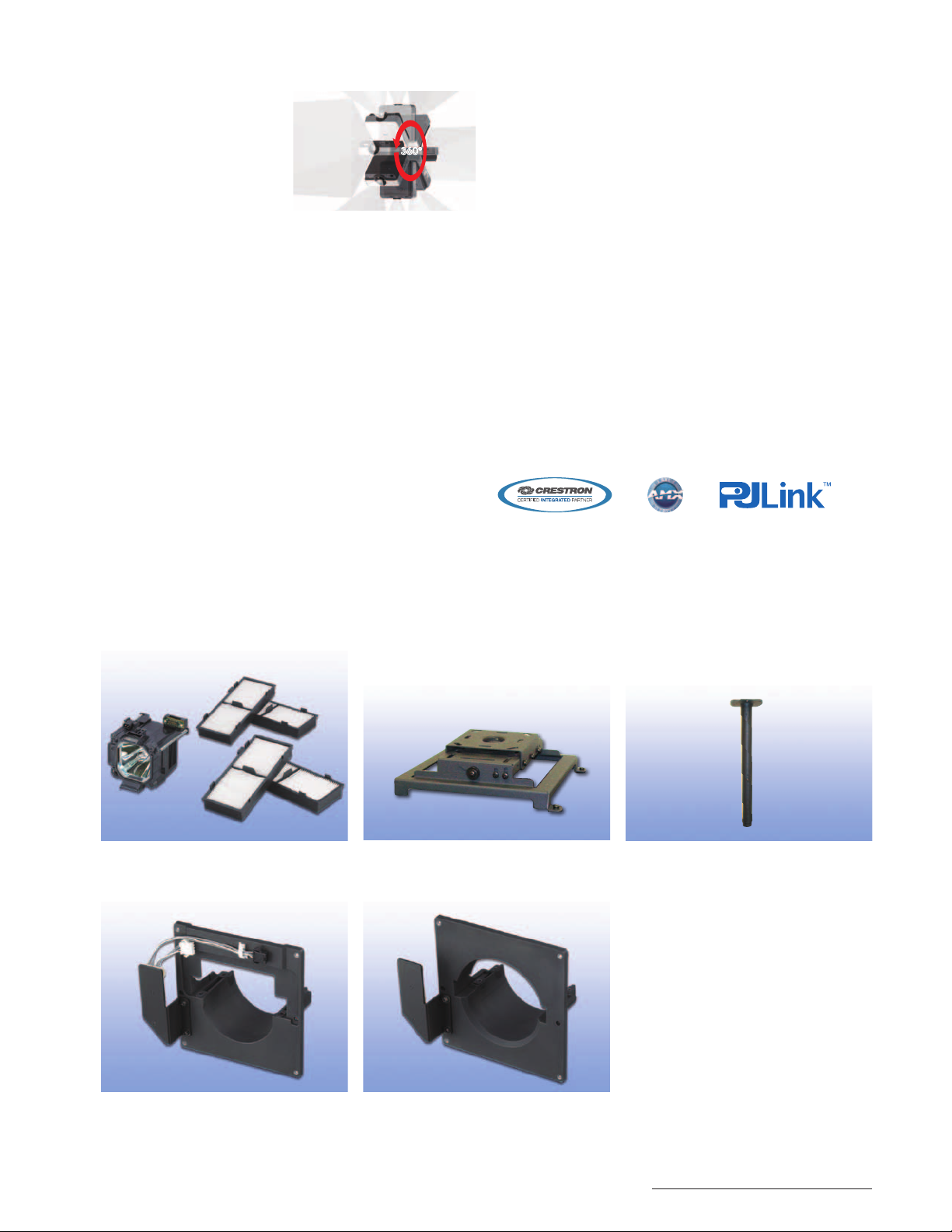

OPTIONAL ACCESSORIES
LMP-F330
Projector Lamp (Replacement filters included)
PK-F500LA1
Projection Lens Adapter
PK-F500LA2
Projection Lens Adapter
Other Features
360-degree Orientation
The VPL-FX500L can
be turned vertically for
installation. This flexibility
allows the projector to be
used in several different ways.
Picture Muting Function via Built-in Mechanical Shutter
The VPL-FX500L can mute the projection of images on screen
via a built-in mechanical shutter. This function can be easily
operated with just the touch of a button on the supplied
Remote Commander unit.
Quiet Noise Operation
Low noise fans designed to produce lower frequency sounds
to be less obtrusive
Closed Captioning
Official teletext broadcasting, developed by the NCI, USA
Security Pack
Security lock (password and mechanical), security bar, panel
key lock, and security label
Test Pattern Key
For easy screen adjustment
ID Mode
For individual control of multiple projectors
Freeze Function
Freezes the projected image
Smart APA
Auto pixel alignment
Direct Power On/Off
Direct power control using the circuit breaker on the switch
board
High Altitude Mode
For projector operation at high altitude
Network and Control
Controls and monitors projector status
Compatible with various control systems
360º360º
PAM-400
Projector Suspension Support
PAM-400EXP
Extension Pole for PAM400

6

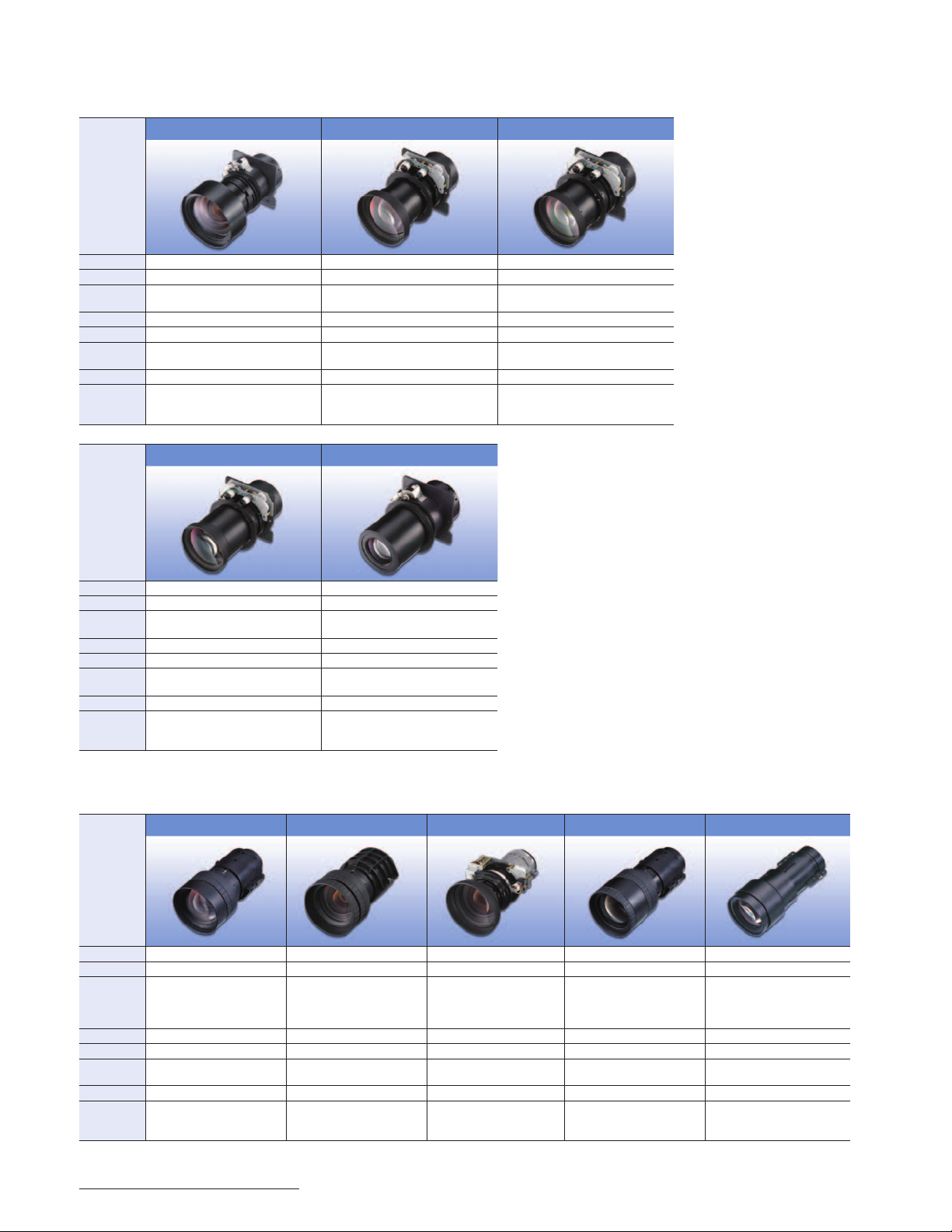

OPTIONAL LENSES
<Premium Series>
<Value Series>
Projection lens VPLL-Z4011 VPLL-Z4015 VPLL-Z4019
Throw ratio 1.40:1 to 2.10:1 2.06:1 to 2.72:1 2.67:1 to 3.42:1
Zoom / Focus Powered / Powered Powered / Powered Powered / Powered
Lens shift Vertical: Upward 86% to Downword 86%
Horizontal: Right 57% to Left 57%
Vertical: Upward 86% to Downward 86%
Horizontal: Right 57% to Left 57%
Vertical: Upward 96% to Downward 96%
Horizontal: Right 64% to Left 64%
Aperture f/1.75 to 2.40 f/2.20 to 2.60 f/1.70 to 2.10
Screen size* 60” to 600” 40” to 600” 40” to 600”
Dimensions W 6 3/16 x H 5 29/32 x D 10 7/16 in
(W 157 x H 150 x D 265 mm)
W 5 13/16 x H 5 1/4 x D 9 3/32 in
(W 148 x H 133 x D 231 mm)
W 5 13/16 x H 5 1/4 x D 8 11/32 in
(W 148 x H 133 x D 212 mm)
Weight 8 lb / 3.7 kg 6 lb 10 oz / 3.00 kg 6 lb 12 oz / 3.06 kg
Required
projection lens
adapter
———
Projection lens VPLL-Z4025 VPLL-Z4045
Throw ratio 3.36:1 to 6.23:1 6.19:1 to 10.72:1
Zoom / Focus Powered / Powered Powered / Powered
Lens shift Vertical: Upward 96% to Downward 96%
Horizontal: Right 64% to Left 64%
Vertical: Upward 96% to Downward 96%
Horizontal: Right 64% to Left 64%
Aperture f/2.20 to 3.10 f/2.20 to 3.60
Screen size* 40” to 600” 60” to 600”
Dimensions W 5 13/16 x H 5 1/4 x D 9 9/16 in
(W 148 x H 133 x D 243 mm)
W 5 13/16 x H 5 1/4 x D 9 1/4 in
(W 148 x H 133 x D 235 mm)
Weight 6 lb 3 oz / 2.80 kg 6 lb 10 oz / 3.00 kg
Required
projection lens
adapter
— —
Projection lens VPLL-FM22 VPLL-ZM42 VPLL-ZP41 VPLL-ZM102 VPLL-ZM101
Throw ratio 0.89:1 1.87:1 to 2.30:1 2.53:1 to 3.08:1 3.35:1 to 4.92:1 4.47:1 to 6.58:1
Zoom / Focus — / Manual Manual / Manual Powered / Powered Manual / Manual Manual / Manual
Lens shift
—
Vertical: Upward 50% to
Downward 50%
Horizontal: Right 32% to Left 32%
Vertical: Upward 96% to
Downward 96%
Horizontal: Right 64% to Left
64%
Vertical: Upward 50% to
Downward 50%
Horizontal: Right 32% to Left 32%
Vertical: Upward 96% to Downward
96%
Horizontal: Right 64% to Left 64%
Aperture f/2.00 f/1.74 to 2.28 f/1.70 to 2.00 f/2.04 to 2.57 f/2.00 to 2.60
Screen size* 40” to 300” 40” to 300” 40”to 300” 40” to 300” 40”to 300”
Dimensions W 3 15/32 x H 3 15/32 x D 6 21/32 in
(W 88 x H 88 x D 169 mm)
W 3 15/32 x H 3 15/32 x D 6 1/4 in
(W 88 x H 88 x D 159 mm)
W 4 19/32 x H 4 11/32 x D 7 25/32 in
(W 117 x H 110 x D 198 mm)
W 3 15/32 x H 3 15/32 x D 7 25/32 in
(W 88 x H 88 x D 198 mm)
W 3 15/16 x H 3 15/16 x D 8 3/4 in
(W 100 x H 100 x D 222 mm)
Weight 2 lb 2 oz / .095 kg 1 lb 7 oz / 0.65 kg 3 lb 3 oz / 1.46 kg 3 lb 5 oz / 1.50 kg 3 lb 16 oz / 1.81 kg
Required
projection lens
adapter
PK-F500LA2 PK-F500LA2 PK-F500LA1 PK-F500LA2 PK-F500LA1

7

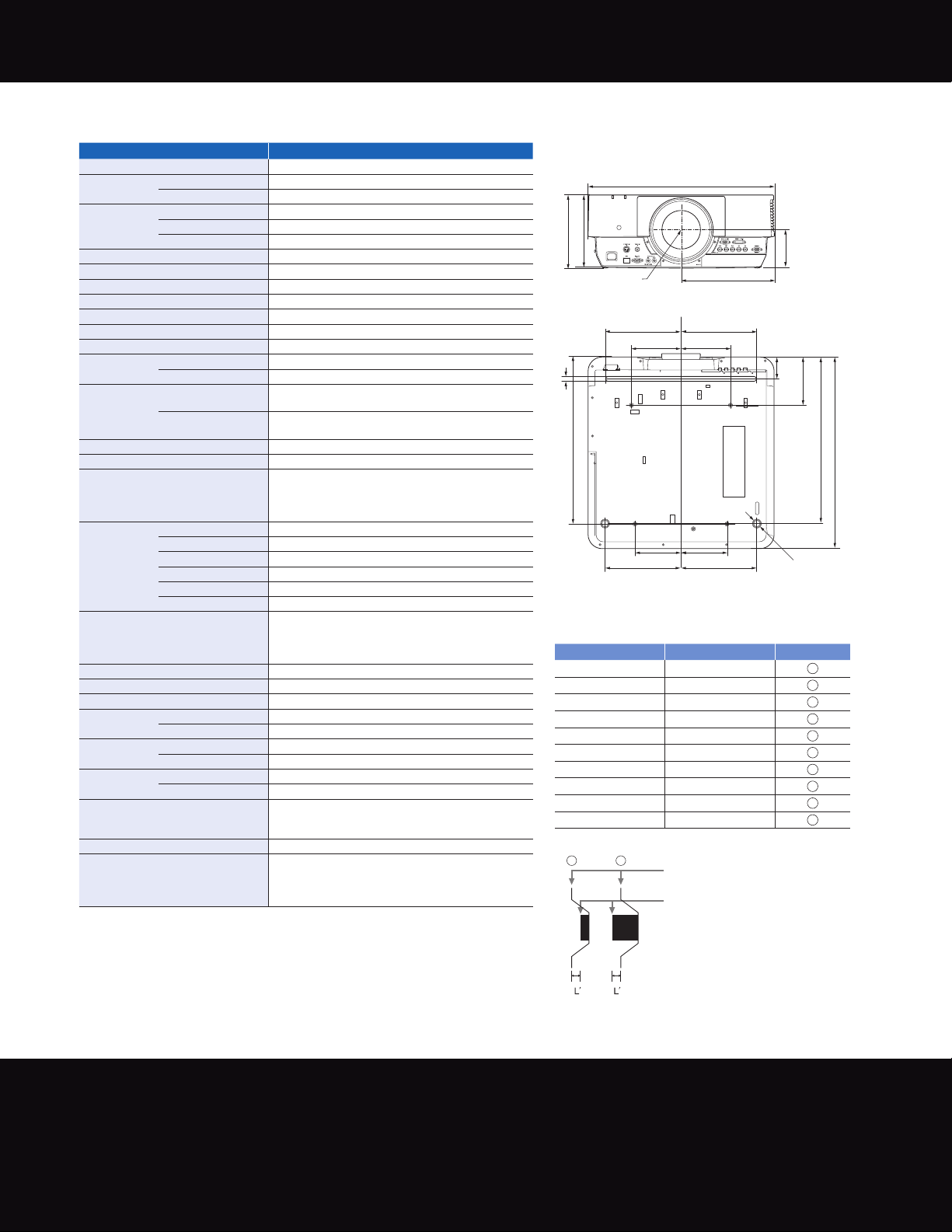

Projection image size Projection distance L
Diagonal Width x Height VPLL-FM22 VPLL-ZM42 VPLL-ZP41 VPLL-ZM102 VPLL-ZM101
80-inch
(2.03 m)
64 x 48
(1.63 x 1.22)
56
(1.42)
120 – 150
(3.05 – 3.82)
162 – 197
(4.11 – 5.01)
213 – 315
(5.40 – 8.01)
287 – 421
(7.29 – 10.71)
100-inch
(2.54 m)
80 x 60
(2.03 x 1.52)
71
(1.79)
151 – 188
(3.82 – 4.79)
203 – 247
(5.16 – 6.29)
268 – 395
(6.79 – 10.05)
361 – 529
(9.16 – 13.44)
120-inch
(3.05 m)
96 x 72
(2.44 x 1.83)
85
(2.16)
181 – 227
(4.60 – 5.76)
245 – 298
(6.20 – 7.57)
323 – 476
(8.18 – 12.09)
435 – 636
(11.03 – 16.17)
150-inch
(3.81 m)
120 x 90
(3.05 x 2.29)
107
(2.72)
227 – 284
(5.76 – 7.22)
306 – 373
(7.77 – 9.49)
405 – 597
(10.27 – 15.16)
545 – 797
(13.84 – 20.26)
200-inch
(5.08 m)
160 x 120
(4.06 x 3.05)
143
(3.64)
303 – 379
(7.70 – 9.64)
409 – 499
(10.39 – 12.69)
542 – 798
(13.75 – 20.27)
730 – 1,066
(18.53 – 27.09)
Projection image size Projection distance L
Diagonal Width x Height VPLL-Z4011 VPLL-Z4015 VPLL-Z4019 VPLL-Z4025 VPLL-Z4045
80-inch
(2.03 m)
64 x 48
(1.63 x 1.22)
89 – 134
(2.26 – 3.42)
127 – 167
(3.22 – 4.24)
165 – 210
(4.19 – 5.35)
207 – 383
(5.26 – 9.74)
382 – 660
(9.96 – 16.78)
100-inch
(2.54 m)
80 x 60
(2.03 x 1.52)
112 – 169
(2.85 – 4.29)
160 – 210
(4.05 – 5.33)
208 – 264
(5.27 – 6.72)
261 – 481
(6.61 – 12.21)
479 – 828
(12.17 – 21.03)
120-inch
(3.05 m)
96 x 72
(2.44 x 1.83)
135 – 203
(3.43 – 5.17)
193 – 252
(4.89 – 6.42)
250 – 318
(6.35 – 8.08)
314 – 578
(7.97 – 14.69)
577 – 995
(14.64 – 25.28)
150-inch
(3.81 m)
120 x 90
(3.05 x 2.29)
170 – 255
(4.31 – 6.48)
242 – 317
(6.13 – 8.05)
314 – 399
(7.96 – 10.14)
394 – 724
(10.00 – 18.40)
723 – 1,246
(18.35 – 31.66)
200-inch
(5.08 m)
160 x 120
(4.06 x 3.05)
227 – 341
(5.76 – 8.66)
324 – 424
(8.21 – 10.77)
420 – 533
(10.66 – 13.56)
527 – 968
(13.38 – 24.58)
967 – 1,665
(24.54 – 42.29)
INSTALLATION DIAGRAM
Computer Signal
Resolution fH [kHz]/
fV [Hz]
Input connector
RGB*1DVI-D*2
640 x 350 31.5/70
37.9/85
640 x 400 31.5/70
37.9/85
640 x 480
31.5/60
35.0/67
37.9/73
37.5/75
43.3/85
800 x 600
35.2/56
37.9/60
48.1/72
46.9/75
53.7/85
832 x 624 49.7/75
1024 x 768
48.4/60
56.5/70
60.0/75
68.7/85
1152 × 864
64.0/70
67.5/75
77.5/85
1152 x 900 61.8/66
1280 x 960 60.0/60
75.0/75
1280 x 1024
64.0/60
80.0/75
91.1/85
1400 x 1050 65.3/60
1600 x 1200 75.0/60
1280 x 768 47.8/60
1280 x 720 45.0/60
1920 x 1080 67.5/60
1360 x 768 47.7/60
1440 x 900 55.9/60
1680 x 1050 65.3/60
1280 x 800 49.7/60
1920 x 1200 74.0/60 *4*4
PRESET SIGNAL CHART
Digital TV Signal
Signal fV [Hz] Input connector
RGB/YPBPR*3DVI-D*2
480i 60
576i 50
480p 60
576p 50
1080i 60
1080i 50
720p 60 *5
720p 50
1080p 60 *5
1080p 50
Analog TV Signal
Signal fV [Hz] Input connector
VIDEO/S VIDEO
NTSC 60
PAL/SECAM 50
*1: INPUT A, INPUT B
*2: INPUT C
*3: INPUT A
*4: Available for VESA Reduced Blanking signals only.
*5: Determine as a computer signal.
• When a signal other than the signals listed in table is input, the picture
may not be displayed properly.
• An input signal meant for a screen resolution different from that of the
panel will not be displayed in its original resolution. Text and lines may be
uneven.
• Some actual value may differ slightly from the design values given in the
table.
Front of
the lens
Projection distance L
Projected image
Unit: inches (m)

Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/professional
DI-0304-A (MK10694V4) Issued USA (1/14)
©2014 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice.
The values for mass and dimension are approximate.
“SONY” and “make.believe”,“BrightEra” and “Remote Commander” are trademarks of Sony Corporation.
Trademark PJLink is a trademark applied for trademark rights in Japan,
the United States of America and other countries and areas.
All other trademarks are the property of their respective owners.
SPECIFICATIONS DIMENSIONS
VPL-FX500L
Display system 3 LCD system
Display device Size of effective display area 0.99” (25.0 mm) x 3, BrightEra,Aspect ratio: 4:3
Number of pixels 2,359,296 (1024 x 768 x 3) pixels
Projection lens Zoom Powered / Manual (Depends on lens)
Focus Powered / Manual (Depends on lens)
Lens shift Powered
Light source High-pressure mercury lamp 330 W type (Twin lamp system)
Recommended lamp replacement time*16000 H (Lamp mode : High), 8000 H (Lamp mode : Standard)*2
Filter replacement cycle Same time as the lamp replacement
Screen size 40” to 600” (1.02 m to 15.24 m) (Depends on lens)
Light output 7000 lm (Lamp mode: High)*3, 5600 lm (Lamp mode: Standard)*3
Color light output 7000 lm (Lamp mode: High)*3, 5600 lm (Lamp mode: Standard)*3
Contrast ratio (full white / full black)*42500:1
Displayable
scanning frequency
Horizontal 14 kHz to 93 kHz
Vertical 47 Hz to 93 Hz
Display resolution Computer signal input Maximum display resolution:1920 x 1200 dots*5
Panel display resolution: 1024 x 768 dots
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p,
720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction Vertical: Max.+/- 30 degrees*6
OSD language 20-languages (English, Dutch, French, Italian, German, Spanish,
Portuguese,Turkish, Polish, Russian, Swedish, Norwegian,
Japanese, Simplified Chinese,Traditional Chinese, Korean,Thai,
Vietnamese,Arabic, Farsi)
Computer and
video signal
input/output
INPUT A RGB / Y PBPRinput connector: 5BNC (female)
INPUT B RGB input connector: Mini D-sub 15-pin (female)
INPUT C DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
S VIDEO IN S video input connector: Mini DIN 4-pin
VIDEO IN Video input connector: BNC
OUTPUT Monitor output connector*7: Mini D-sub 15-pin (female)
Control signal input/output RS-232C connector: D-sub 9-pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Control S input connector:Stereo mini jack,Plug in power DC5V
Control S output connector:Stereo mini jack
Operating temperature (Operating humidity) 32°F to 104°F / 0°C to 40°C (35% to 85%; no condensation)
Storage temperature (Storage humidity) -4°F to +140°F / -20°C to +60°C (10% to 90%)
Power requirements AC 100 V to 240 V, 4.8 A to 2.0 A, 50/60 Hz
Power
consumption
AC 100 V to 120 V 480 W
AC 220 V to 240 V 460 W
Standby mode
power consumption
AC 100 V to 120 V 13 W (Standby mode:Standard) / 0.1 W (Standby mode:Low)
AC 220 V to 240 V 12 W (Standby mode:Standard) / 0.2 W (Standby mode:Low)
Heat dissipation AC 100 V to 120 V 1638 BTU
AC 220 V to 240 V 1569 BTU
Outside dimensions W 20 7/8 x H 8 3/8 x D 21 15/32 in (W530 x H 213 x D 545 mm)
W 20 7/8 x H 8 1/32 x D 21 15/32 in (W 530 x H 204 x D 545 mm)
(without protrusions)
Weight 44 lb 1 oz / 20 kg
Supplied accessories RM-PJ19 Remote Commander (1), Size AA (R6) batteries (2), AC
power cord (1),Cable ties (2), Lens installation screws (4),Lens
gap cover (1),Quick Reference Manual (1), Security Label (1),
Operating Instructions (1)
*1 The figures are the expected maintenance time and not guaranteed. They will depend
on the environment or how the projector is used. *2 With two lamp sequential use. *3 When
attaching the VPLL-ZP41. *4 The value is average. *5 Available for VESA Reduced Blanking
signal. *6 Depends on resolution. *7 From INPUT A and INPUT B.
Unit: inches (mm)
Lens L’ Type
VPLL-FM22 1 7/32 (30.9) 1
VPLL-ZM42 1 19/32 (40.1) 1
VPLL-ZP41 11/32 (9.1) 2
VPLL-ZM102 1/8 (3.0) 1
VPLL-ZM101 1 5/8 (41.3) 2
VPLL-Z4011 3 (75.5) 2
VPLL-Z4015 1 7/8 (47.8) 2
VPLL-Z4019 1 1/16 (26.7) 2
VPLL-Z4025 2 3/16 (55.4) 2
VPLL-Z4045 2 3/32 (53.0) 2
The distance L’ is between the front of the lens
(center) and the front of the cabinet
8 15/32 (215)
9/16 (14)
5 9/16 (141)
Center of the lens
8 15/32 (215)
5 9/16 (141)
2 15/32
(62.5)
5 13/32 (137.2)
18 23/32 (475.2)
8 21/32 (1474)
21 15/32 (545)
Ø24
5 5/32 (131)
5 5/32 (131)
8 1/2(216)8 1/2(216)
Bottom
Center of the lens
20 7/8(530)
8
3
/
8
(213)
4 1/8(105)
8 1/32 (204)
10 7/16 (256)
Front Unit: inches (mm)
1 2 Front of the cabinet
Front of the lens
