SRX-T420
Ultra-high Resolution and High-brightness 4K SXRD®Projector
The latest 4K SXRD projector from Sony, the SRX-T420, is designed to meet the evolving needs of professional
applications and provide the ultimate picture quality. Equipped with three Silicon X-tal (crystal) Reflective
Display (SXRD®) devices, it delivers an amazing resolution of 4096 x 2160 pixels (H x V) – more than four
times the resolution of consumer HDTV (1920 x 1080). The SRX-T420 also provides a high brightness of
21,000 lumens and a contrast ratio of 3000:1.
Expanding the World Beyond HD
The SRX-T420 Projector Offers Ultra-high 4K Resolution and 21,000 Lumens Brightness
®

SRX-T420
Optical
Projection system 3-panel prism color integration system
Imaging device SXRD, 1.55-inch (diagonal)
8,847,360 pixels
4096(H) x 2160(V) pixels on each chip
Lamp Single lamp system, 4.2 kW Xenon lamp x 1
Light output 21,000 lumens
Contrast 3000:1
System
Lamp power control 53% to 100%
Gamma control Preset: 2.2, 2.6
User defined (0.01 steps, 1.8 ~ 2.59)
General
Dimensions (W x H x D) Approx. 27.6 x 25.2 x 49.2 inches
(700 x 640 x 1250 mm)
Weight Approx. 399 lb (181 kg)
(excluding the optional lamps and lens)
Power requirements 200 V to 240 V AC, 50/60 Hz (single-phase)
Current consumption 27 A to 22.5 A (single-phase)
Operating temperature 41 °F to 95 °F (5 °C to 35 °C)
Operating humidity 35% to 85% (no condensation)
Storage temperature -4 °F to +140 °F (-20 °C to +60 °C)
Storage humidity 10% to 90%
Tilt Angle ±30°
Inputs / Outputs
Input A LKRI-005 (DVI / HDCP) pre-installed
Input B Open for optional signal interface board
Input C Open for optional signal interface board
Input D Open for optional signal interface board
Remote interface RS-232C : D-sub 9-pin (female) x 1
10BASE-T/100BASE-TX Ethernet : RJ-45 x 1
Safety Regulations
UL: UL60950-1, FCC: Class A Digital Device,
c-UL: No. 60950. 1, CE: EN60950-1, EN50371,
EN55022 Class A, AS/NZS CISPR22 (EN55022) Class A,
CB: IEC60950-1,VCCI class A, JIS C 61000-3-2
Supplied Accessories
SRX Controller Software (CD-ROM) (1),
Ethernet cable (cross cable: 1-830-803-12 (Sony)) (1),
Lens cover (1 set), M8 screws for lens mounting (4),
Attachment board for the LKRI-003 (4),
Attachment board for the LKRI-005 (3), Keys (4),
Operating Instructions (1)
Optional Accessories
Lens LKRL-90 Throw ratio: 0.9: 1, Fixed Focus
LKRL-Z115 Throw ratio: 1.48: 1 to 1.81: 1, Zoom ratio: 1.2
LKRL-Z117 Throw ratio: 1.72: 1 to 2.39: 1, Zoom ratio: 1.4
LKRL-Z119 Throw ratio: 1.81: 1 to 2.94: 1, Zoom ratio: 1.6
LKRL-Z122 Throw ratio: 2.23: 1 to 4.03: 1, Zoom ratio: 1.8
LKRL-Z140 Throw ratio: 3.81: 1 to 7.12: 1, Zoom ratio: 1.9
LKRL-Z111C Throw ratio: 1.07: 1 to 1.71: 1, Zoom ratio: 1.6
LKRL-Z114C Throw ratio: 1.35: 1 to 1.98: 1, Zoom ratio: 1.46
LKRL-Z116C Throw ratio: 1.50: 1 to 2.29: 1, Zoom ratio: 1.52
Board LKRI-003 HD-SDI
LKRI-005 HDCP DVI
Projector Lamp LKRX-2042A

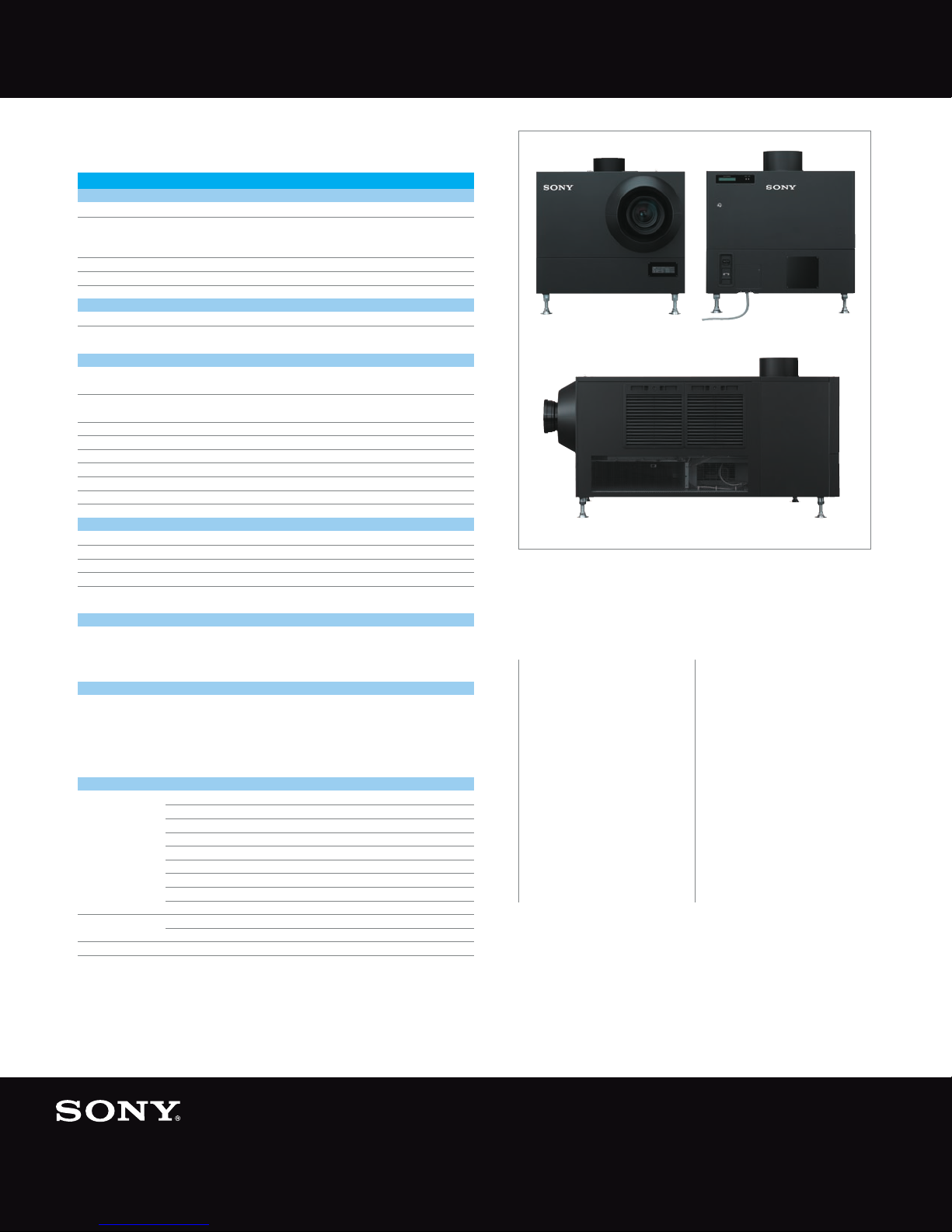

SPECIFICATIONS
Entertainment
•Amusementparks
•Planetariums
•Museums
Product design
•Digitalmock-ups
•Automotivedesign
Auditorium
•Housesofworship
•Dometheaters
APPLICATIONS
Visual simulation
•Simulators
•Scientificvisualization
Other
•3Dapplications
Sony Electronics Inc.
1 Sony Drive
Park Ridge, NJ 07656
sony.com/sxrd
DI-0190 (MK10625V1)
©2009 Sony Electronics Inc. All rights reserved.
Reproduction in whole or in part without permission is prohibited.
Features and specifications are subject to change without notice.
All non-metric weights and measurements are approximate.
Sony, SXRD and their respective logos are trademarks of Sony.
All other trademarks are the property of their respective owners.
Printed in USA (9/09)
