FM Stereo/SW/MW/LW/ PLL Synthesized Receiver
ICF-SW1005
ICF-SW100E
Operating lnstrudions page 2
Before operating the unit, please read this manual thoroughly and
retain it for future reference.
Mode d'emploi page 40
Avant la mise en service de cetappareil, veuillez lireattentivement ce
mode d'emploi et le conserver pour toute reference.
Manual de instrucciones pagina 78
Antes de utilizarla unidad, lea este manual detenidamente, y
conservelo para futuras referencias.
Bruksanvisning sid. 11&
Uis noga igenom bruksanvisningen for att Iara kanna till
kameraspelaren och dessanvandning.
Spara bruksanvisningen.
. Manual de instru~6es pagina 154
Antes de utilizar o aparelho, leia atentamente este manual eguarde-o
para futuras consultas.

WARNING Dmliml
OWNER'S RECORD
The model number is located on the bottom and serial number also on
the bottom. Record theserial number in thespace providebelow.
Refer to these numbers wheneveryou call
upon your Sony dealer
regarding this product.
Model No.
ICF-SWlOOS Serial No.
WARNING
To rrevent fire or shock hazard, do not expose the
uni to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
You are cautioned that any changes or modifications not expressly
approved in this manual could void yourauthority to operate this
equipment.
This device complies with Part
15 the FCC Rules. Operation is subject
to thecondition that this device does not cause harmful interferense.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc·
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installa·
tion. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on. the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Table of Contents
Features ..........................................................................................................4
Precautions.....................................................................................................5
Location
and Function of Controls............................................................ 6
PowerSources .............................................................................................10
Installing Batteries ....................................................................................10
HouseCurrent........................................................................................... 11
12V Car Battery ......................................................................................... 11
Setting theClock .........................................................................................12
Setting theLocal
Current Time...............................................................12
Finding
out theCurrent Time inSome Place in theWorld ................15
Tuningin
by Selectinga Preset Station Name ........................................16
To Improve Reception ..............................................................................17
DirectTuning...............................................................................................18
Manual Tuning............................................................................................20
ScanTuning ................................................................................................ 22
Presettinga Station .....................................................................................24
Editing Labels..............................................................................................26
Using theStandbyFunction ......................................................................28
Using theSleepTimer ............................................................................... 30
For betterSW /MW /LW Reception ......................................................... 31
Using the Active Antenna AN-100........................................................ 31
Using theSW CompactAntenna AN-71 ...............................................32
Using theWide Range Antenna ............................................................ 33
Recording Radio Programs ...................................................................... 34
Specifications ...............................................................................................35
Troubleshooting
Guide ..............................................................................36
Summary of theOperations ......................................................................38
•

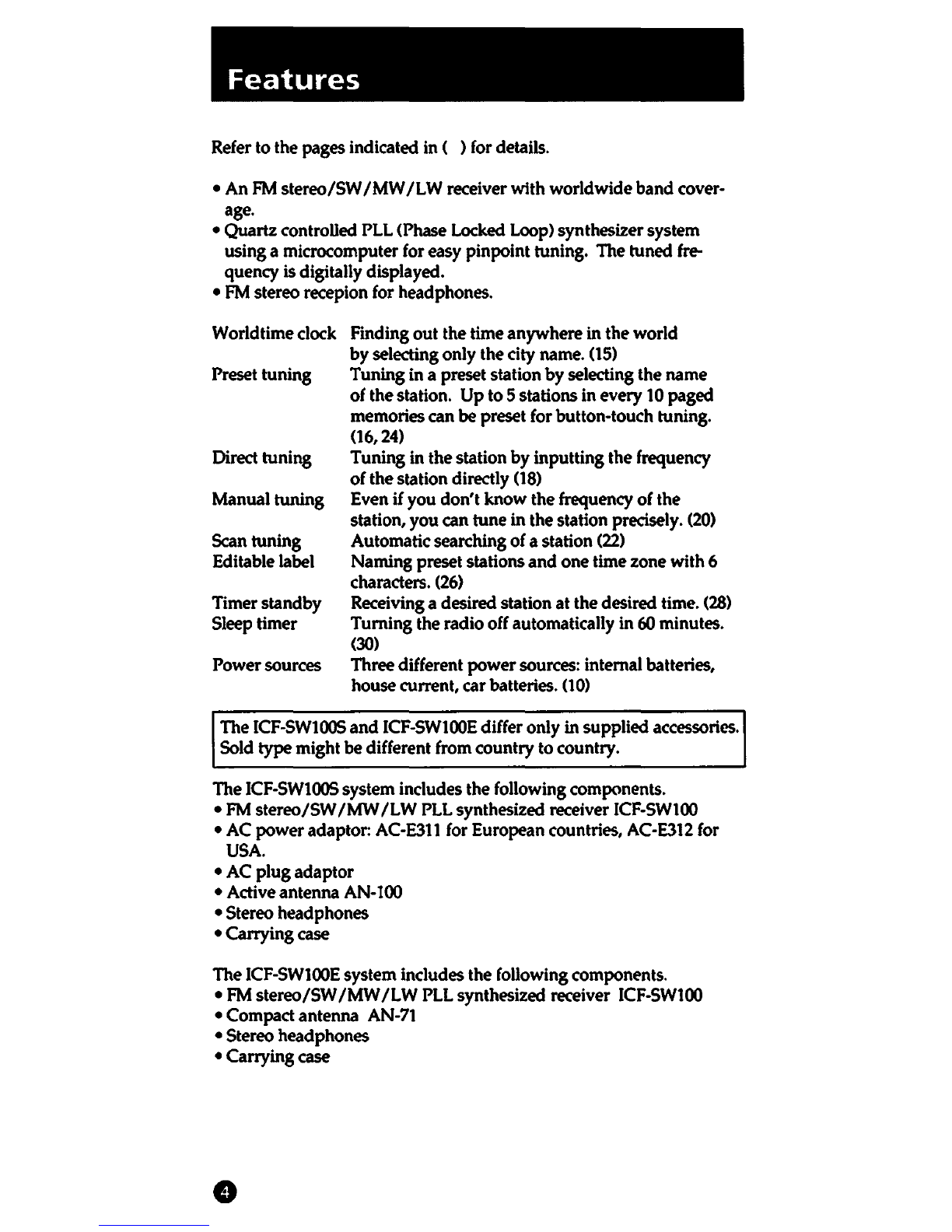

Features
Refer to the pages indicated in ( ) for details.
•An FM stereo/SW/MW/LW receiver with worldwide band cover-
age.
•Quartz controlled PLL (Phase Locked Loop) synthesizer system
using a microcomputer
for easy pinpoint tuning. The tuned fre-
quency is digitally displayed.
• FM stereo recepion for headphones.
Worldtimeclock
Preset tuning
Direct tuning
Manual tuning
Scan tuning
Editable label
Timer standby
Sleep timer
Powersources
Finding out the time anywhere in the world
by selecting only the city name.
(15)
Tuning in a preset station by selecting the name
of thestation. Up to 5stations in every
10 paged
memories can be preset for button-touch tuning.
(16, 24)
Tuning in the station by inputting the frequency
ofthe station directly (18)
Even ifyou don't know the frequency of the
station, you can tune in the station precisely.
(20)
Automaticsearching ofa station (22)
Naming preset stations and one time zone with 6
characters.
(26)
Receiving a desired station at thedesired time. (28)
Turning the radio off automatically in 60 minutes.
(30)
Three different powersources: internal batteries,
house current, carbatteries. (10)
The ICF-SWlOOS and ICF-SWIOOE differ only in supplied accessories.
Sold type might be different from country to country.
The
ICF-SWlOOS system includes the following components.
•FM stereo/SW/MW/LW PLL synthesized receiver ICF-SWIOO
•AC poweradaptor: AC-E311 for European countries, AC-E312 for
USA.
• AC plug adaptor
• Active antenna AN-100
• Stereo headphones
• Carrying case
The
ICF-SWIOOE system includes the following components.
• FM stereo/SW/MW/LW PLL synthesized receiver ICF-SWIOO
• Compact antenna AN-71
• Stereo headphones
• Carrying case
•

Precautions
• Operate the unit only on 3 V DC with two R6 (size AA) batteries.
ForAC operation, use the AC-E311 IAC-E312 AC power adaptor•.
Do not use any othertype.
For
car batteryoperation, use thecarbatterycord recommended for
this unit;
do not use any othertype.
• The unitis not disconnected from the AC power source (mains) as
longas it isconnected to the wall outlet,even if theunit itself has
been turned off.
• Disconnect theAC power adaptor from thewalloutlet when the unit
is not to beused for a long period
of time.
• The name plate indicating operating voltage,etc., is located on the
bottom
of the unit.
•Use the unitwithin a temperature range of O"C to 40"C (32r to
104"F). If it is used in temperatures outsidethis range, an irregular
display mayappear
on thedisplay window. If it is used in tempera-
tures lowerthan this range, the display may changevery slowly.
These irregularities will disappear
and there will be no damage to
the unit when theunit is used
in its recommended temperature
range.
• Do not leave the unit nearheat sources, such as radiators or air ducts,
or ina place subject to direct sunlight,excessive dust, moisture, rain,
mechanical vibration
or shock.
• Should any solid object or liquid fall into the unit, remove the
batteries,
and havethe unit checked byqualified personnel before
operating it
any further.
• Sincea strong magnet is used for thespeaker, keep personal credit
cardsusing magneticcoding
or spring-wound watches away from
the unit to prevent themfrom possible damagecaused by the
magnet.
• When the casing becomes soiled, clean it witha soft dry cloth
dampened with mild detergentsolution. Neveruseabrasivecleans-
ers or chemicalsolvents, as they may mar the casing.
• When there is lightning and you are using an external antenna,
immediatelydisconnect the AC power adaptor (if connected) from
the wall outlet. Nevertouch the antenna wire
when thereis a
lightningstorm.
• Neverconnect a ground wireto a gas pipe.
• Reception of 3.0 MHz may be difficult because of internal spurious
signalsgenerated by the built-in oscilators.
• In vehicles or buildings, radio reception maybe difficult or noisy.
Trylistening neara window.
•The AC power adaptor is supplied only for the ICF-SWlOOS.
If you haveany question or problem concerning your unit that is not
covered in this manual, pleaseconsult the nearest Sonydealer.
•

Location and Function of
Controls
Refer to the pages indicated ( ) in for details.
IH.!.11
21----1~1---

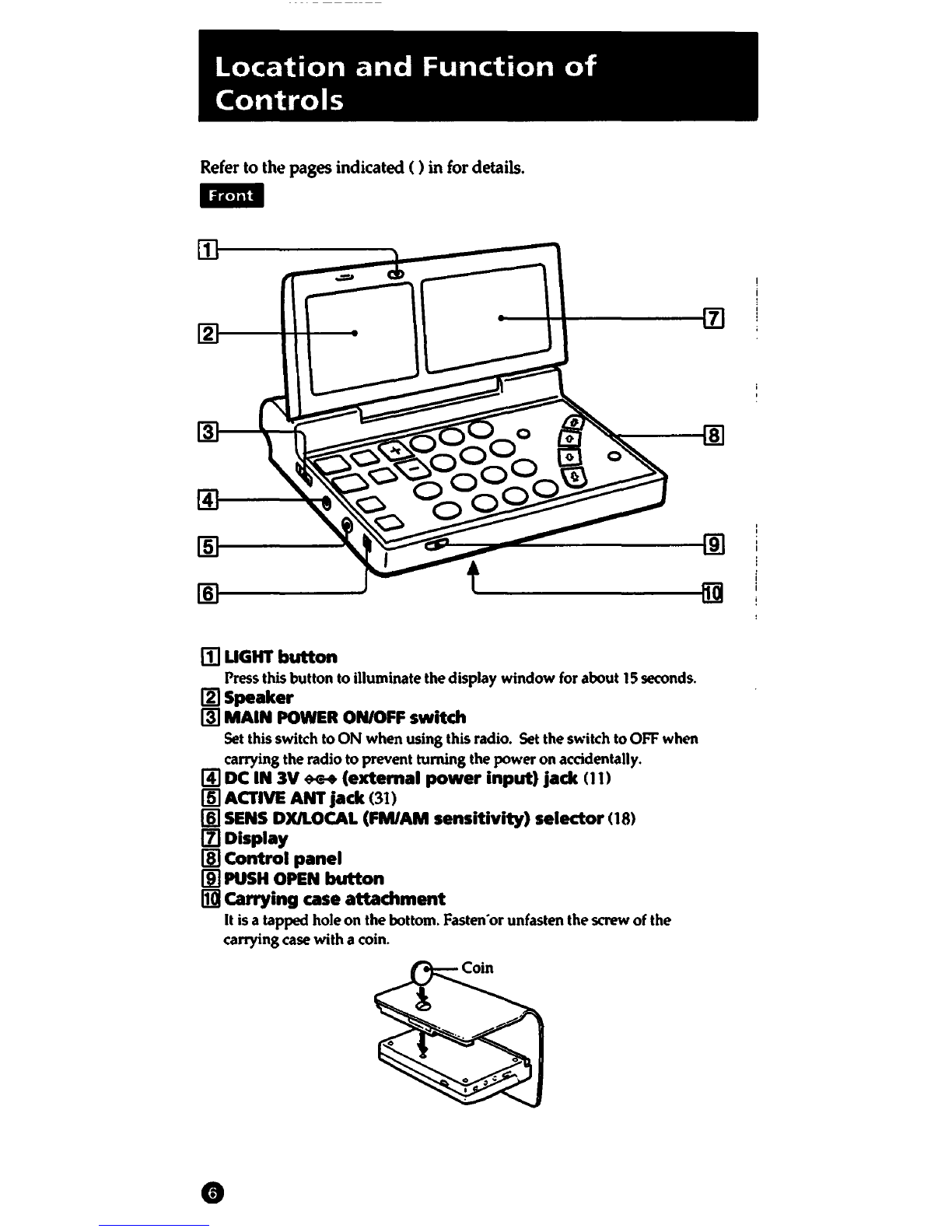

[II LIGHT button
Press this button to illuminate thedisplay window for about 15 seconds.
IZJSpeaker
(ID MAIN POWER ON/OFF switch
Set this switch to ON when using this radio. Set the switch to OFF when
carrying the radio to prevent turning the poweron accidentally.
[!) DC IN 3V *-+ (extemal power input) jack 01)
(m ACTIVE ANT jack (31)
[§I SENS DXJLOCAL (FM/AM sensitivity) selector 08)
[fl Display
!ID Control panel
(ID PUSH OPEN button
IIl1 carrying case attachment
It is a tapped holeon the bottom. Fasten• or unfasten the screw of the
carryingcase with a coin.

i;(@ii
IIll VOL (volume) control

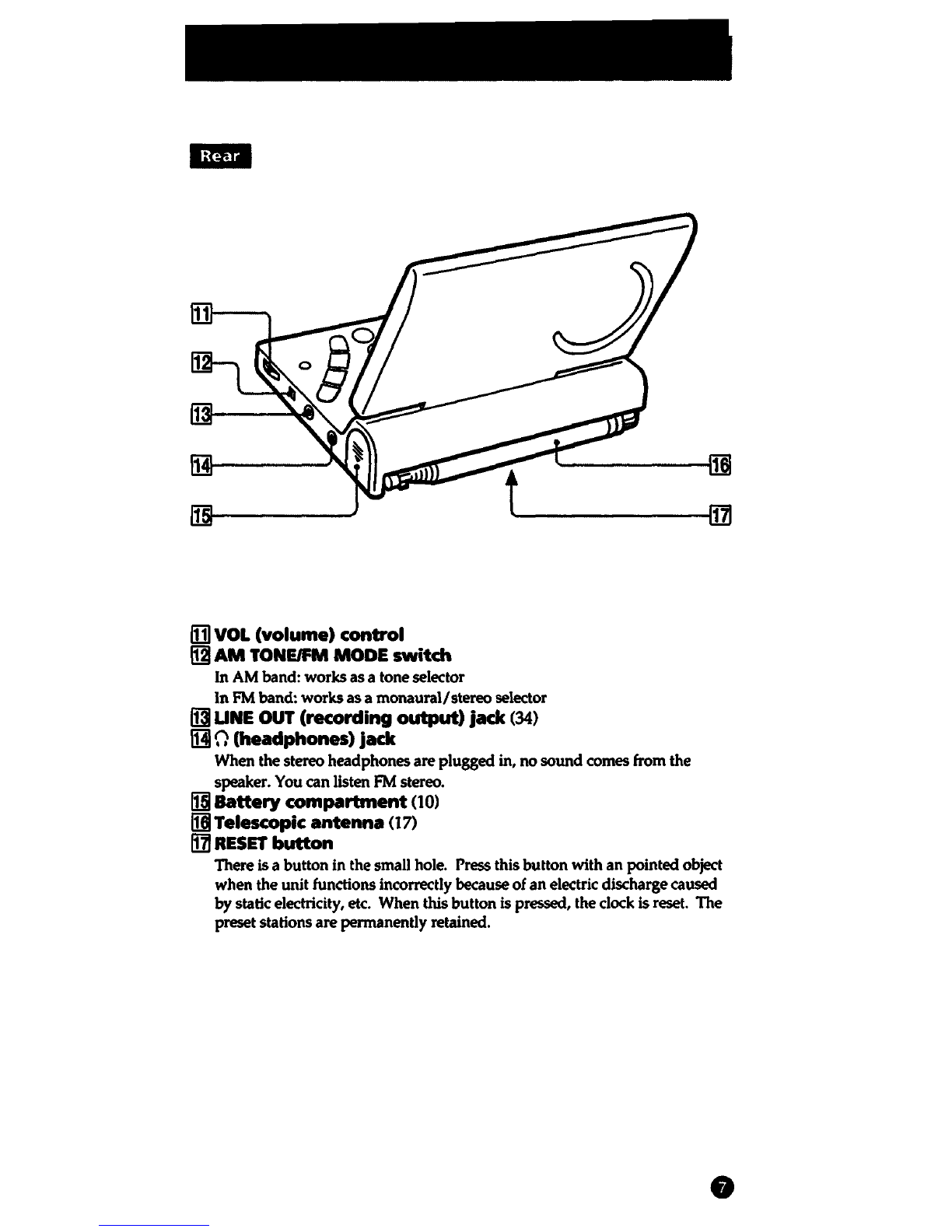

~AM TONE/FM MODE switch
In AM band: works as a toneselector
In FM band: works as a monaural/ stereo selector
~ UNE OUT (recording output) jack (34)
IHI n(headphones> Jack
When thestereo headphones are plugged in, no sound comes from the
speaker. You
can listen FM stereo.
~ Battery compartment(10)
11§1 Telescopic antenna (17)
Ill! RESET button
Thereisa button in thesmall hole. Press this button with an pointed object
when the unit functions incorrectly because of an electric dischargecaused
by staticelectricity, etc. When this button is pressed, theclock is reset. The
preset stations are permanently retained.
•

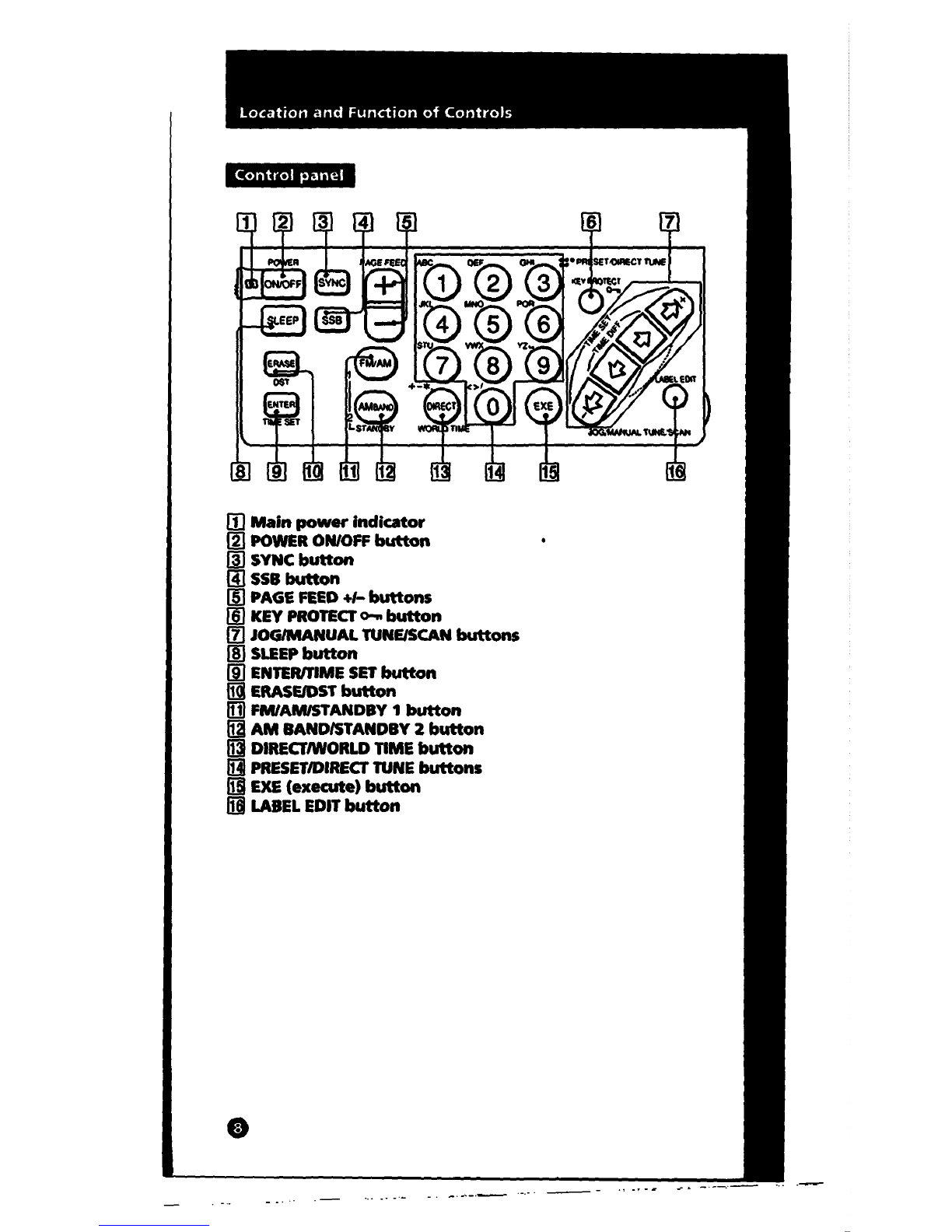

Control panel
[I] Main power indicator
[g} POWER ON/OFF button
lj] SYNC button
(!! 558 button
(ID PAGE FEED +I- buttons
[§) KEY PROTECT o-.. button
IZJ JOG/MANUALTUNE/SCAN buttons
(ii SLEEP button
II) ENTEMIME SET button
fili ERASE/DST button
IIlJ FM/AM/STANDBY 1 button
HJ AM BAND/STANDBY 2 button
~ DIRECTIWORLD TIME button
IHI PRESET/DIRECT TUNE buttons
IiiEXE (execute) button
li§J LABEL EDIT button
•
.. -- -·- -. -·-·-·-
- ., -~ --
·-.-·--
_ .. -·--.·-

'"MU41
IIITuning indicator
Appears whena stationis tunedin.
~STEREO indicator
Appears when a stereo program is tuned in.

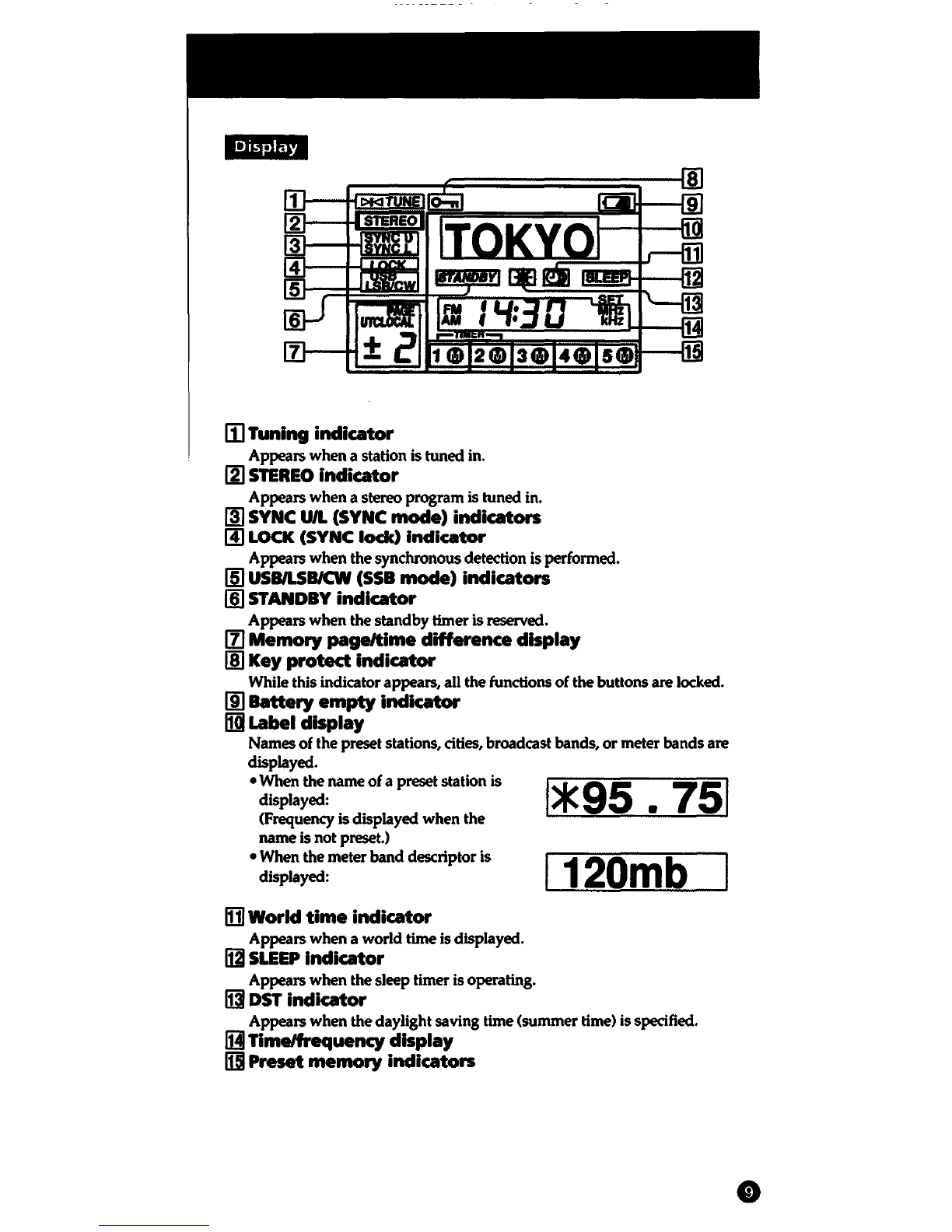

I!J SYNC U/L (SYNC mode) indicaton
[!) LOCK (SYNC lock) indicator
Appears whenthesynchronousdetection is performed.
~ USBILSB/CW (SSB mode) indlcaton
11] STANDBY indicator
Appears when thestandbytimer is reserved.
11] Memorypage/time difference display
IllKey protect indicator
While this indicatorappears, all the functions ofthe buttonsare locked.
[ID Battery empty indicator
fill Label display
Names of thepreset stations, cities, broadcast bands, or meter bandsare
displayed.
•Whenthenameofapresetstationis '*
95 • 751
displayed: . .
(Frequency is displayed when the
nameis not preset.)
• When the meter band descriptor is I120 mb
displayed: _
Ill! World time indicator
Appears when a world time is displayed.
~SLEEP Indicator
Appears when thesleep timer is operating.
~ DST indicator
Appears when thedaylightsaving time (summer time) is specified.
IHI Time/frequency display
~Preset memory indicators
•

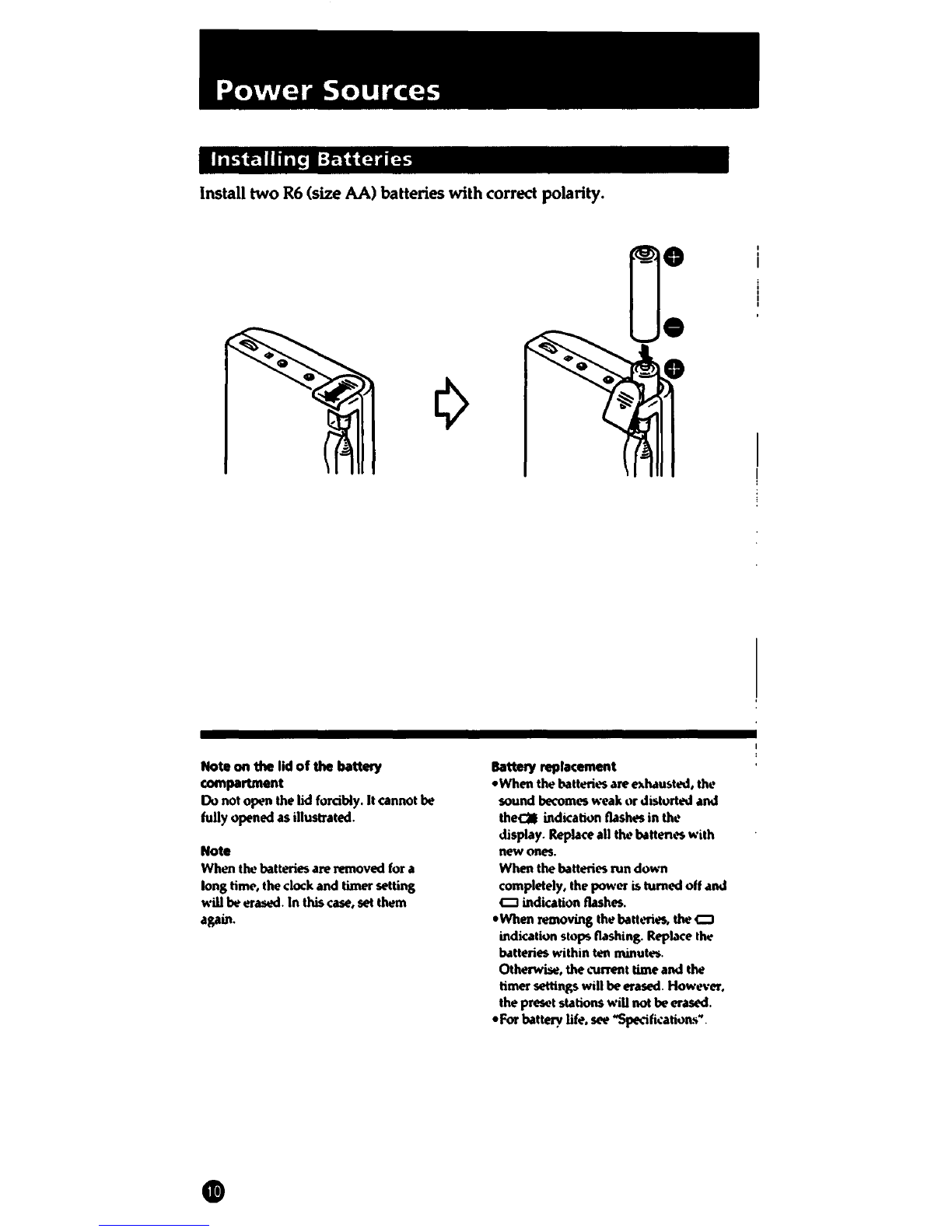

Power Sources
Installing Batteries
Install two R6 (size AA) batterieswith correct polarity.
Noteon the lid of the battery
compartment
Do not open the lid forcibly. It cannot be
fully opened as illustrated.
Note
When tho! batteries areremoved for a
long
timt>, the clock and timersetting
will beerased. In this case, set t"'1m
again.
Battery replacement
•When thebattml.'S are ei.h.lu!ttt!d, thl!
sound becomes weak ordist"rtt!d and
theQt indicati"n flashes in thl!
display. Replace all tho! battent'S with
new ones.
When thebattmesrun down
completely, the power i$ tumed off and
CJ indication flashes.
•When removing the batt~>ries, the CJ
indicati"n stops flashing. Replace the
b.ttteries within ten minutes.
Otherwise, the ~"Urrent time and the
timer settings will beerased. However.
the preset stations will not beerased.
•Forbattery life, SC!e ~;fi.:ation.-;•.

House Current
Use theAC-E311IAC-E312 AC power adaptor (supplied only for the
ICF-SWlOOS).
2 to a wall outlet
1 to DC IN 3V jack
12V Car Battery
For use on 12 V car battery,connect the Sony DCC-E130L car battery
cord (optional) to the DC IN 3V jack.
Notes
•If the AC cord plug cannotbe inserted
to the wall outlet, use thesupplied AC
plug adaptor.
•Theinternalbatteriesare automatically
disconnected when the AC power
adaptororthecar battery cordis
connected to the DC IN 3V jac:k.
•After using the AC poweradaptor or
thecarbattery c:ord, disconnect the DC
IN 3V jack fust. When the cord is
connected to the DC IN 3V jac:k, the
radiodoes not operate by the internal
batteries.
•Keep the batteries installed for the
built-in computerback-upeven
if you
use the external power sources.
However,replace the batteries
onc:e a
yearbecause they aredischarged
gradually.
•Useonly the recommended AC power
adaptoror
c:ar battery c:ord
manufactured bySony. The polarity of
the plugs ofother manufacturersmay
bedifferent.
Polarity of the plug
•

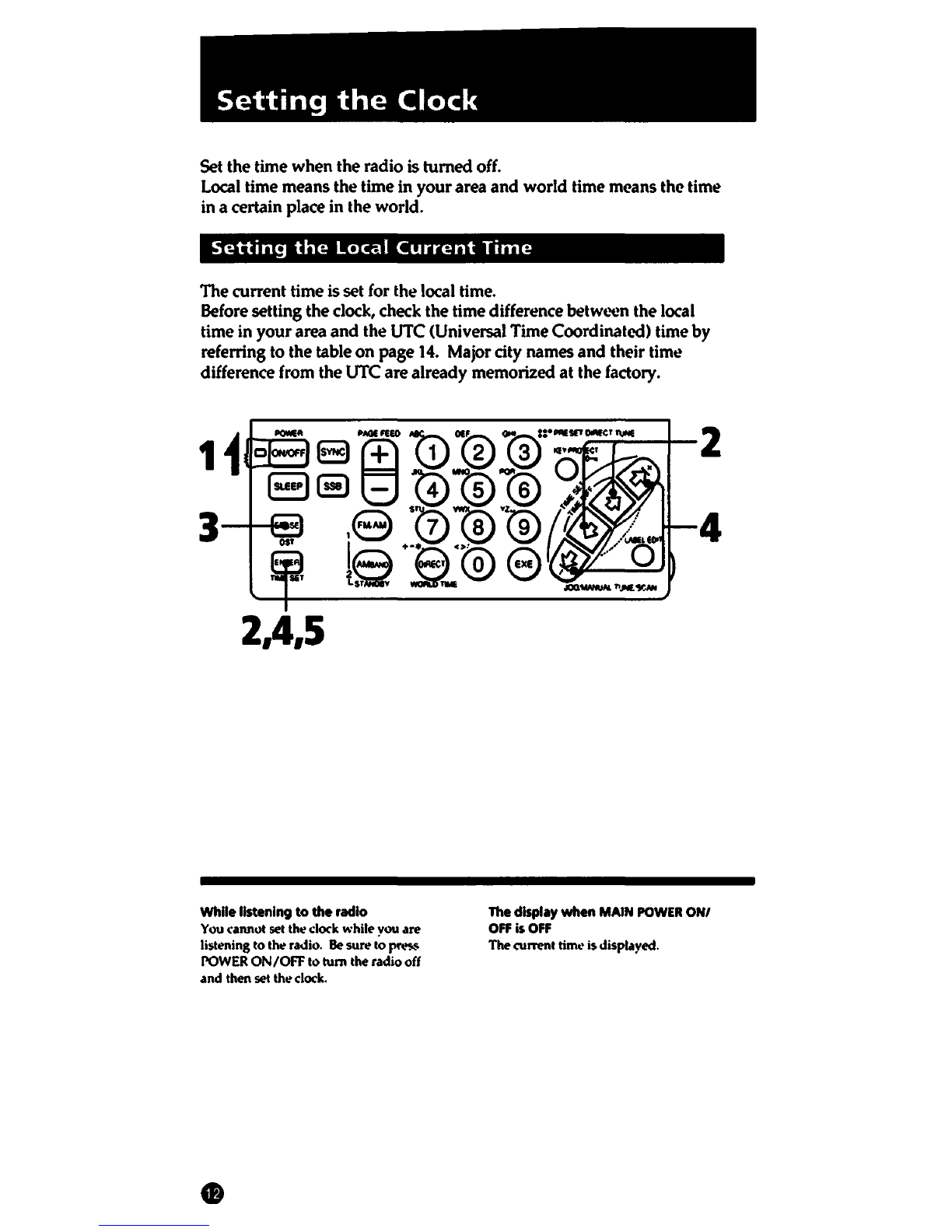

Setting the Clock
Set the time when the radio is turned off.
Local time means the time in
your area and world time means thetime
in a certain place in theworld.
Setting the Local Current Time
Thecurrent time is set for the local time.
Before setting thedock, check the time difference
betwt.>en thelocal
time in
your area and the UTC (Universal TimeCoordinated) timeby
referring to the table
on page 14. Major city names and their time
difference from theUTC are already memorized at thefactory.
2,4,5
While listening to the radio
You cannot set th01 c:lock while you are
listening to th'1 radio. Be sure to~
POWER ON/OFF to tum theradio off
and then set
th01 clock .
•
The display when MAIN POWER ON/
Off is Off
Thecurrent time isdisplayed.

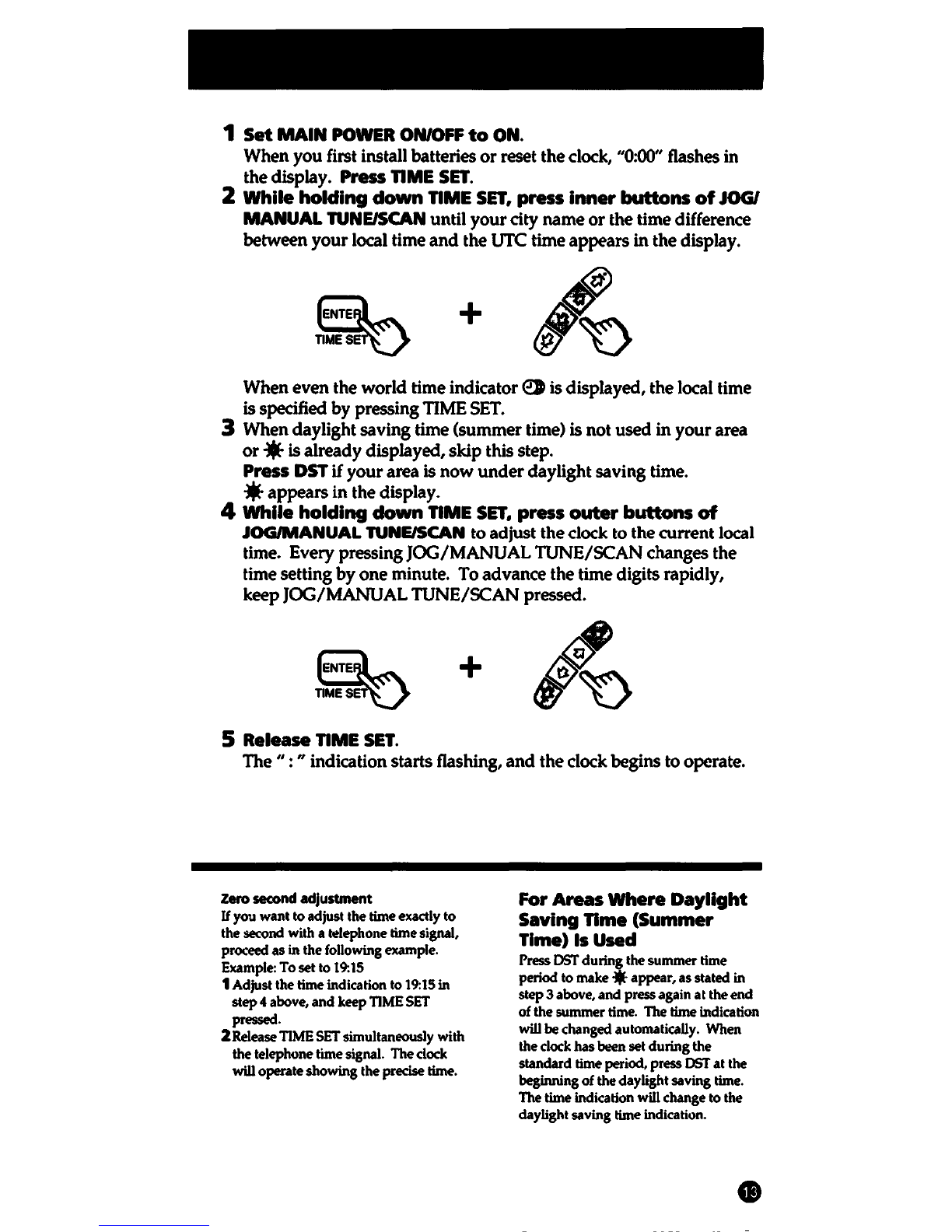

1 Set MAIN POWER ON/OFF to ON.
When you first install batteries or reset theclock, "0:00" flashes in
the display.
Press TIME SET.
2 While holding down TIME SET, press inner buttons of JOG/
MANUALTUNE/SCAN until yourcity name or the time difference
between
your local time and the UTC time appears in thedisplay.
+
When even theworld time indicator e> is displayed, thelocal time
isspecified by pressingTIME
SET.
3 Whendaylight saving time (summer time) is not used in yourarea
or * is alreadydisplayed, skip this step.
Press DST if your area is now under daylight saving time.
*appears in the display.
4 While holding down TIME SET, press outer buttons of
JOG/MANUAL TUNE/SCAN to adjust the dock to the current local
time. Every pressingJOG/MANUAL TUNE/SCAN changes the
time setting
by one minute. To advance thetime digits rapidly,
keepJOG/MANUALTUNE/SCAN pressed.
+
5 Release TIME SET.
The " :" indication starts flashing, and theclock begins to operate.
Zero second adjustment
If you want toadjust the time exactly to
the second with a telephone timesignal,
proc:eed as in thefollowing example.
Example: To set to 19:15
1Adjust the timeindication to 19:15 in
step 4 above, and keep TIMESET
pressed.
2Release TIMESETsimultaneously with
the telephonetimesignal. The clock
will operate showing theprecise time.
For Areas Where Daylight
Saving Time (Summer
Time) Is Used
PressDST durin~ the summer time
period
to make* appear, as stated in
step 3 above, and pressagain at the end
of the summer time. The timeindication
willbe changed automatically. When
theclock has been set during the
standard time period, press DST at the
beginning of the daylightsaving time.
The time indication will change to the
daylight saving time indication
• •

Setting the Clock

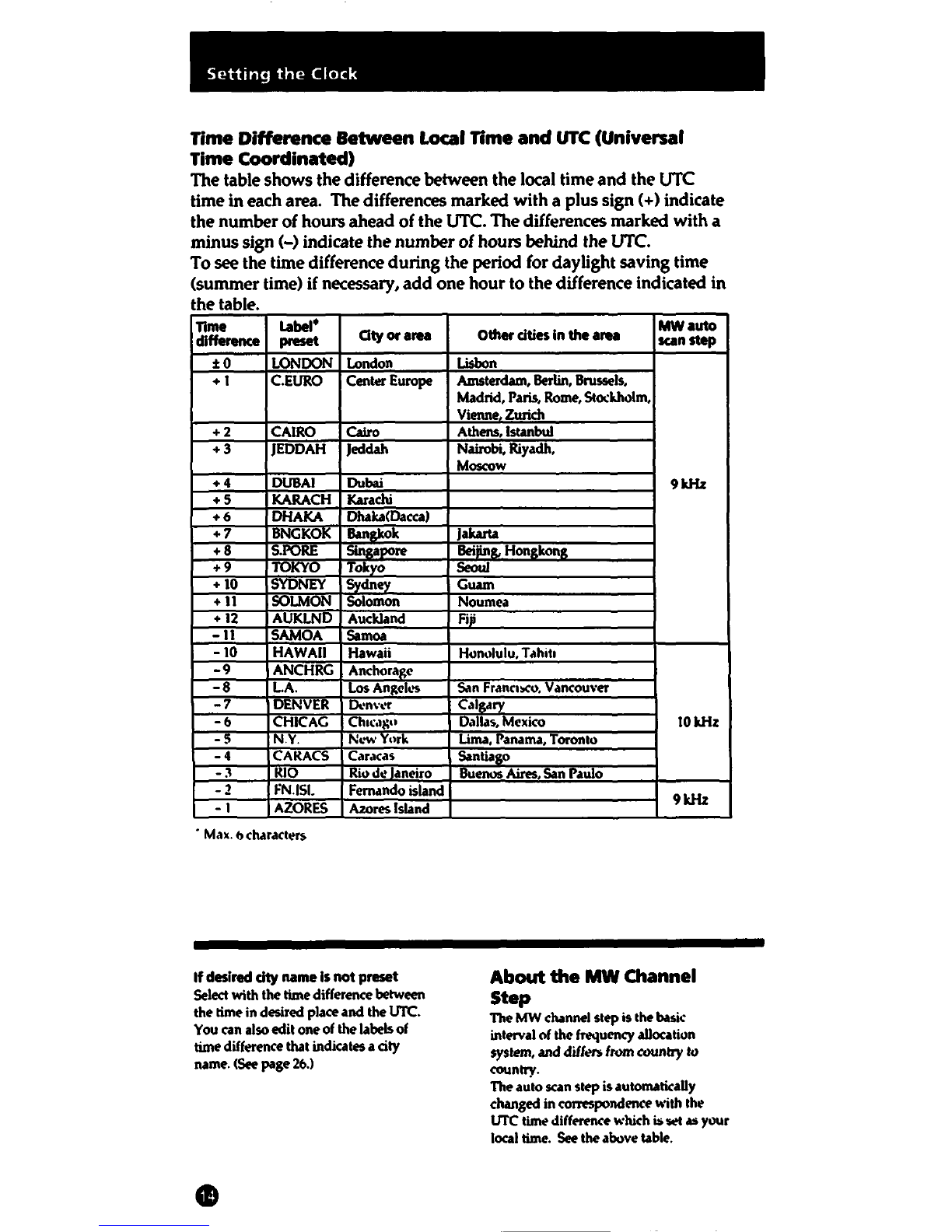

Time Difference Between Local Time and UTC (Universal
Time Coordinated)
The table shows thedifference between the local time
and the UTC
time ineach area. Thedifferences marked with a
plus sign ( +) indicate
the numberofhoursahead of the UTC. Thedifferences marked with a
minussign (-) indicate the
number of hours behind the UTC.
Tosee the timedifference during the period for daylight saving time
(summertime) if necessary,
add one hour to thedifference indicated in
thetable.
nme
Label. City orarea
difference preset
:tO LONDON
London
+1
C.EURO Center Europe
+2 CAIRO Cairo
+3
JEDD AH
Jedd.ah
+4
DUBAI Dubai
+S KARA CH
J<arachi
+6
DHAKA
Dhaka(Dacca)
+7 BNGKOK Ban2k0k
+8
S.PORE
Sinnoore
+9
TOKYO Tokvo
+ 10
SYDNEY
Sydnev
+ 11
SOLMON Solomon
+ 12 AUKLND Auckland
-11
SAMOA
Samoa
-10 HAWAII
Hawaii
-9
ANCHRG
Anchora2e
-8 L.A. Los Angel~>s
-7
DENVER °'1n\'\'I'
-6 CHlCAG
Chu:.1i;"
-5
NY.
N..wYurk
-4
CARACS
Caracas
-:l RIO Rio di! Ianciro
-2
1-'N.ISI.
Fernando island
-1
AZORES Azores Island
• Max. I> characters
If desired dty namels not preset
Select with thetime difference between
the time in desired placeand the UTC.
You can also edit one of the labelsof
timedifference that indicates a city
name.
(See page 26.)
Otherdtles In the area
MW auto
scan step
Lisbon
Amsterdam, Berlin, Brussels,
Madrid, Paris,
Rome. Stoc:l<holm.
Vlenne Zurich
Athens, Istanbul
Nairobi, Riyadh,
Moscow 9kHz
Jakarta
Beiiine. Honnnn2
Seoul
Guam
Noumea
Fi ii
HoMlulu, Tahih
S.n Franc1!oCo, Vancou\·er
Call?drv
Dallas, Mexico
lOkHz
Uma, Panama, Toronto
Santlair.o
Buenos Aires San Paulo
9kHz
About the MW Channel
Step
The MW channel stepis the basic
interval of the frequency allocation
system, and differs from country to
country.
The autoscan step is automatically
changed in
correspondence with the
UTC timedifference which ii; 1"t .Ill your
local time. See theabove table.

Finding Out the Current Time in Some Place in
the World
When the radio is off, youcan fmd out the time in someother place in
the world.
3
2-----'
1 Set the MAIN POWER ON/OFF to ON.
2 When the LOCAL time indication is displayed, Press WORLD
TIME to display the world time indication e>.
3 Press the Inner buttons of JOG/MANUAL TUNE/SCAN until
the desired city name or the time differencebetween desired place
and theUTC appears.
4 Whendaylight saving time (summertime) is not used in thedesired
place
or *is alreadydisplayed, skip this step.
Press DST if the desired place is now under daylightsaving time.
*appears in thedisplay.

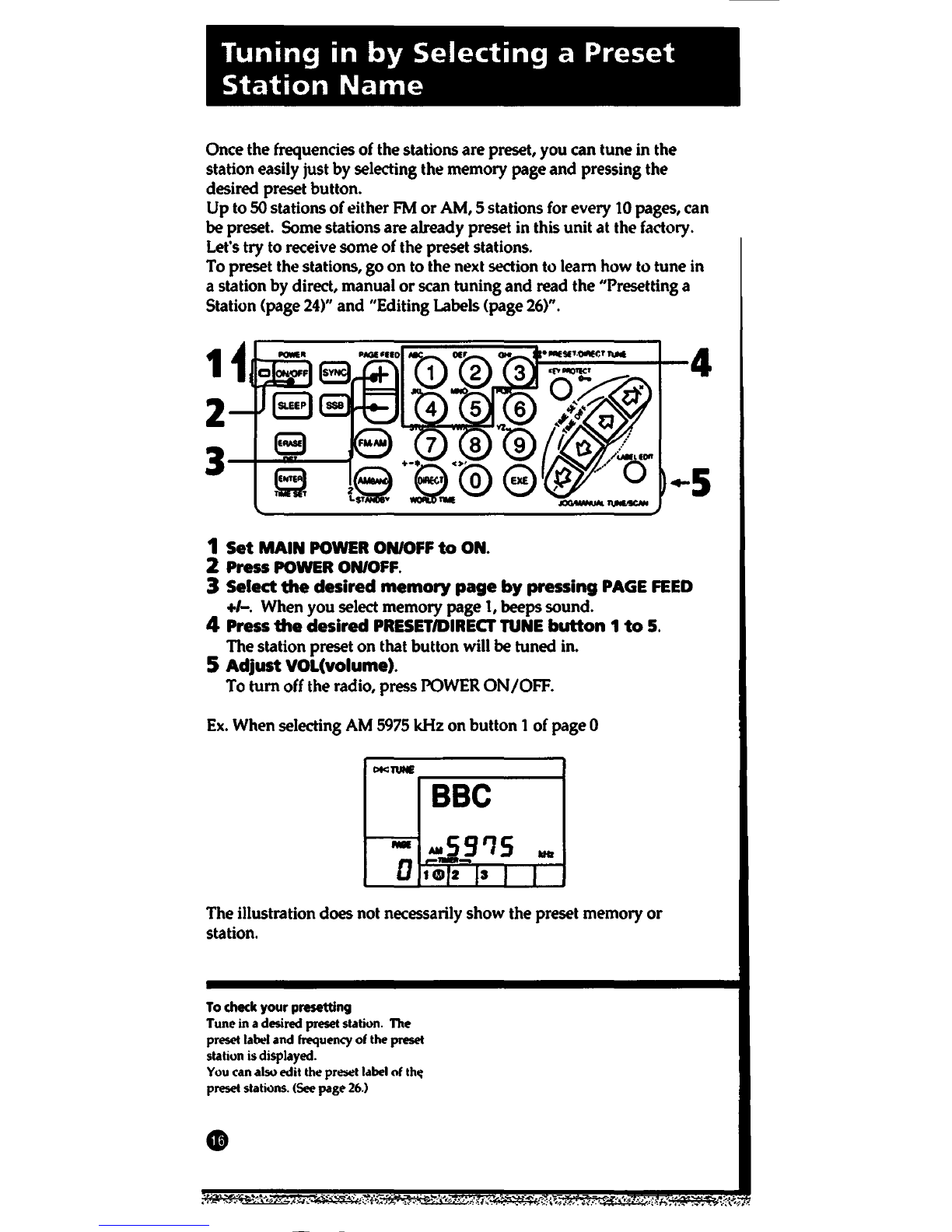

Tuning in by Selecting a Preset
Station Name
Oncethe frequencies ofthestations are preset, you can tune in the
station easily just by selecting the memory page
and pressing the
desired preset button.
Up to SO stationsofeither FM or AM, 5 stations for every 10 pages, can
be preset. Somestations are already preset in this unit at the factory.
Lefs
try to receive some of the preset stations.
To preset thestations,
go on to the next section to learn how to tune in
a station by direct, manual
or scan tuning and read the "Presettinga
Station (page24)" and "Editing Labels <page 26)".
1 Set MAIN POWER ON/OFF to ON.
2 Press POWER ON/OFF.
3 Select the desired memory page by pressing PAGE FEED
+/-. When you select memory page 1, beepssound.
4 Press the desired PRESET/DIRECT TUNE button 1 to 5.
The station preset on that button will be tuned in.
5 Adjust VOL(volume).
To tum off the radio, press POWER ON/OFF.
Ex. When selecting AM 5975 kHz on button 1 ofpage0
C>tc:TUNE
BBC
-59'15
-
llltr
D
---
Hlll2 ,, I I
The illustration does not necessarily show the preset memory or
station.
To check your presetting
Tune ina desired preset station. The
preset label and frequency of the preset
station isdisplayed.
You can alsoedit the preliet label of th~
preset stations. (See page 26.)

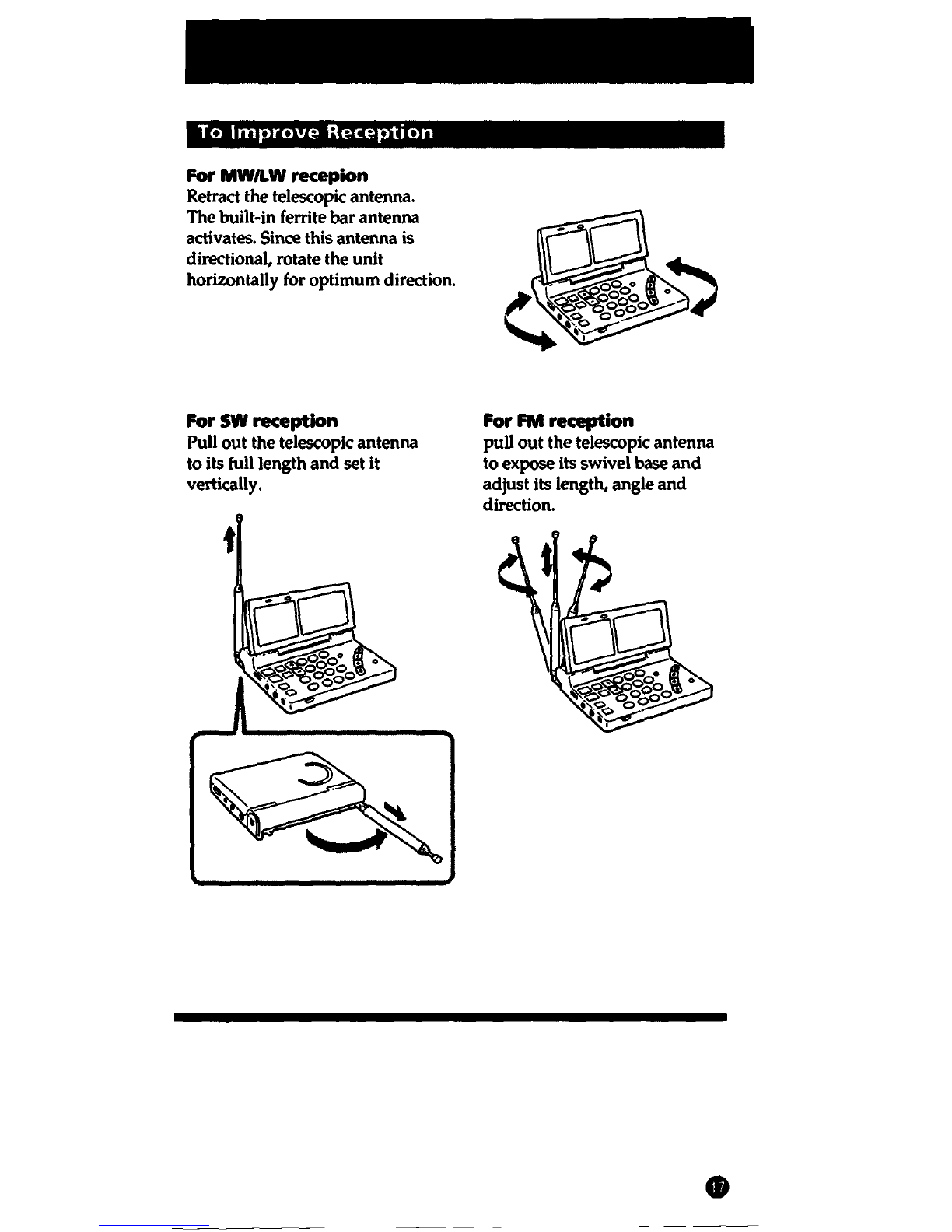

To Improve Reception
For MW/LW recepion
Retract the telescopic antenna.
Thebuilt-in ferrite bar antenna
activates. Since thisantenna is
directional, rotate theunit
horizontally for optimum direction.
For SW reception
Pull out the telescopicantenna
to its full length
and set it
vertically.
t
For FM reception
pull out the telescopic antenna
to expose its swivelbase
and
adjust its length, angle and
direction.
•

Direct Tuning
Examples
FM92.5MHz
6
(S•)~~~~~
AM 1242kHz
(S•)~~~~~~
AM lOOOkHz
(S•)~~~
AM21000kHz
(S•)~~~~
Note
After pressing a button, press the next
button within 10 seconds. Uvou do not,
thedisplay will return to the·previously
received station.
•
If you Inputa wrong frequency
l're5$ DIRECT to cancel the entry, and
perform the.ibuve
pr1>o:t!dure from stt>p 4
with the
comet frequency.
When the sound is distorted
Normally set SENS to DX. Howl?\-er,
when the sound is dist<•rtt!d, set it to
LOCAL.

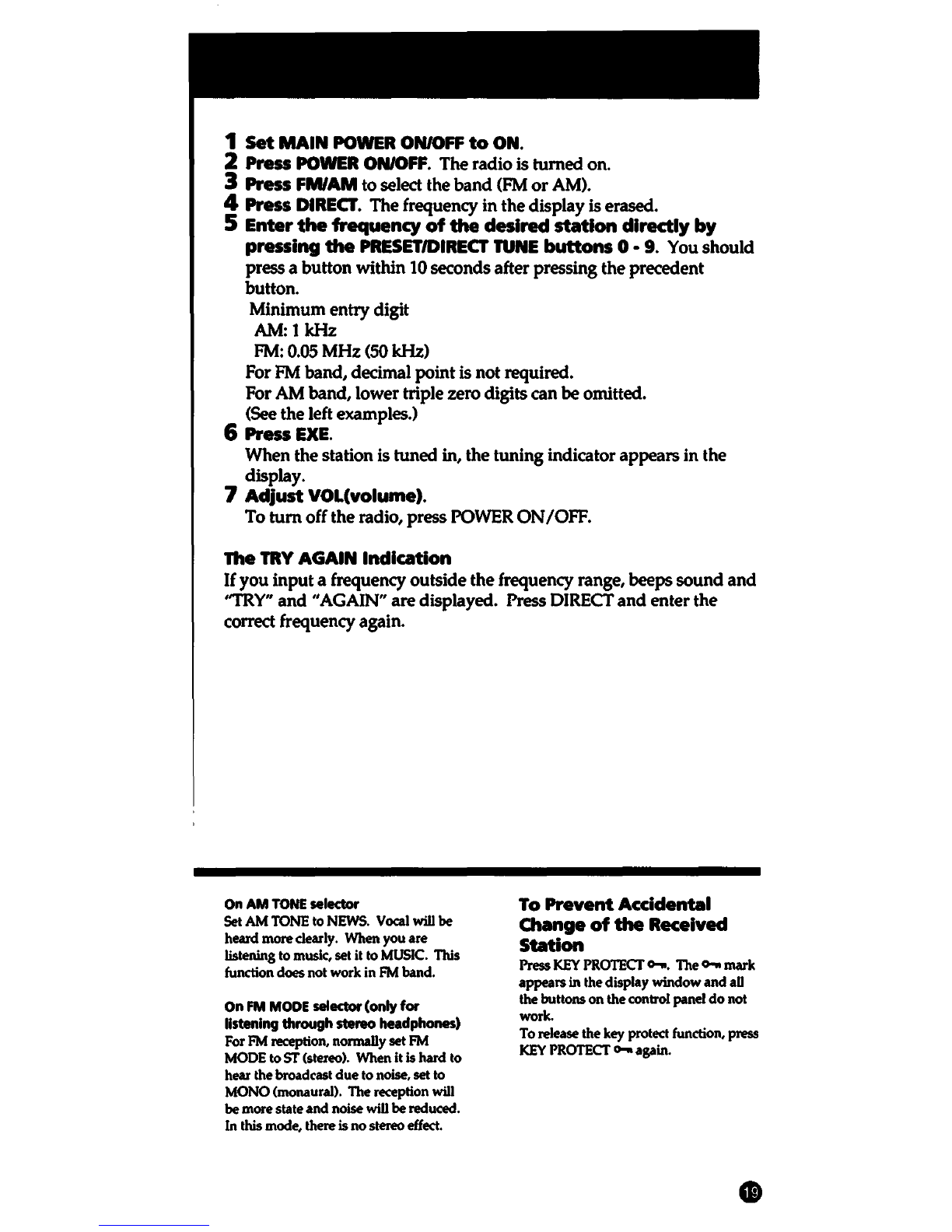

1 Set MAIN POWER ON/OFF to ON.
2 Press POWER ON/OFF. Theradio is turned on.
3 Press FM/AM to select the band (FM or AM).
4 Press DIRECT. Thefrequency in thedisplay is erased.
5 Enter the frequency of the desired station directly by
pressing the PRESET/DIRECT TUNE buttons 0 • 9. You should
pressa button within 10 seconds after pressing the precedent
button.
Minimum entrydigit
AM:t kHz
FM: 0.05 MHz (50 kHz)
For FM band, decimal pointis not required.
ForAM band, lower triple zero digits can
be omitted.
(See the left examples.)
6 Press EXE.
When thestation is tuned in, the tuningindicator appears in the
display.
7 Adjust VOL(volume).
To tum offthe radio, press POWER ON/OFF.
The TRY AGAIN Indication
If you input a frequency outside the frequency range, beeps sound and
"TRY" and "AGAIN" are displayed. Press DIRECT and enterthe
correct frequency again.
On AM TONE selector
Set AM TONE to NEWS. Vocal will be
heard moreclearly. When you are
listening to music, set ii to MUSIC. This
function doesnot work in
FM band.
On FM MODE selector (only for
listening through stereo headphones)
For FM reception, normally set FM
MODE to ST (stereo). Whenit is hard to
hear the broadcast duetonoise, set to
MONO (monaural). The reception will
be more stateand noise will be reduced.
In thismode, there isnostereo effect.
To Prevent Accidental
Change of the Received
Station
Press KEY PROTECT o-... Theo-..mark
appears
in the display window and all
the buttons onthecontrol panel donot
work.
To release the key protect function, press
KEY PROTECT o-..again.

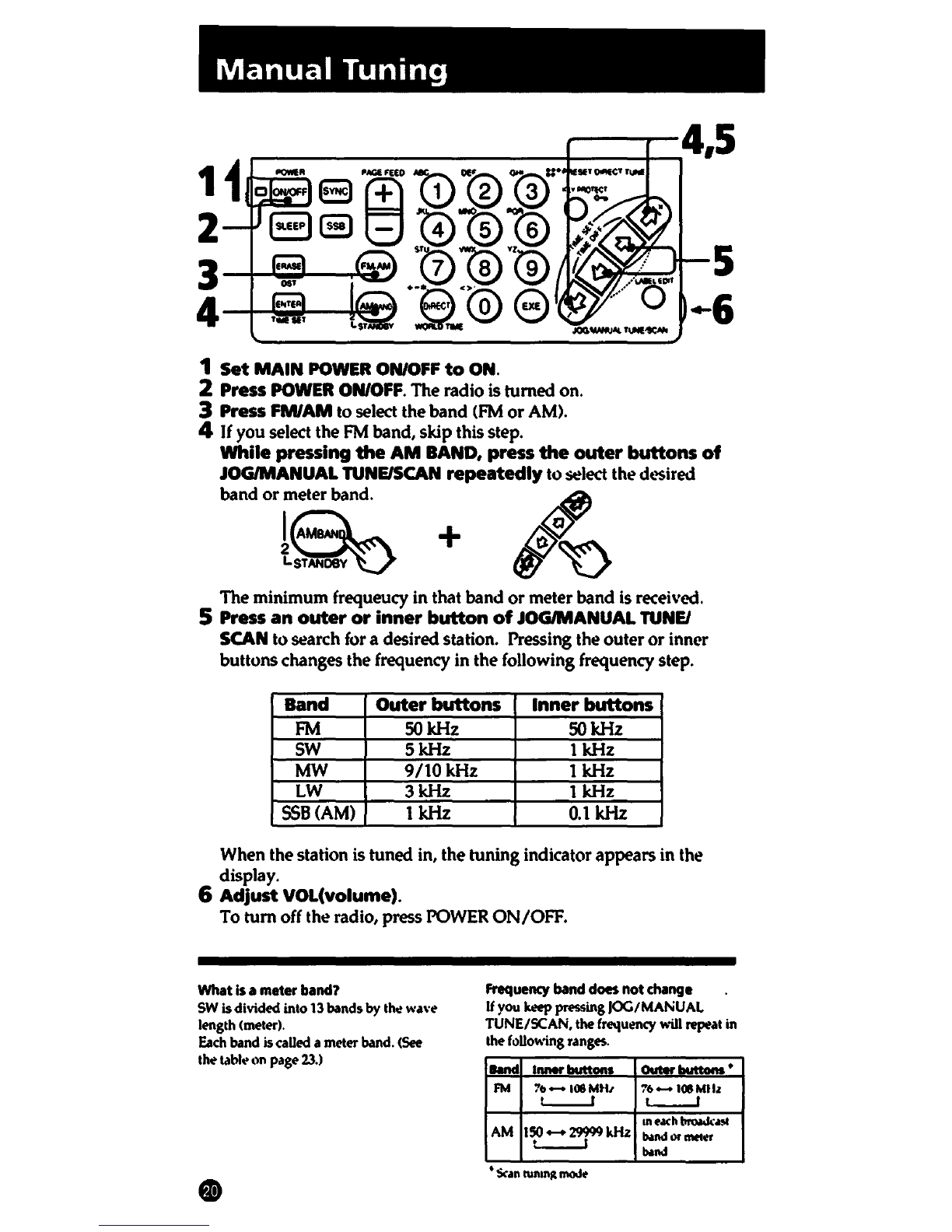

Manual Tuning
1 Set MAIN POWER ON/OFF to ON.
2 Press POWER ON/OFF. The radio is turned on.
3 Press FM/AM to select the band (FM or AM).
4 If you select the FM band, skip this step.
5
.. ,
While pressing the AM BAND, press the outer buttons of
JOG/MANUALTUNE/SCAN repeatedly to ~lect the dt.>Sired
bandor~~ + 1"
t~ fl)'~
The minimum frequeucy in that band or meter band is received.
5 Press an outer or inner button of JOG/MANUAL TUNEJ
SCAN to ~arch for a desired station. Pressing the outerorinner
buttons changes the frequency in the following frequency step.
Band Outer buttons
Inner buttons
FM SO kHz SO kHz
SW 5kHz
1kHz
MW 9/tOkHz 1kHz
LW 3kHz 1kHz
SSB(AM)
1kHz 0.1 kHz
When the station is tuned in, the tuning indicator appears in the
display.
6 Adjust VOL(volume).
To tumoff the radio, press POWER ON/OFF.
What Is ameter band?
SW isdivided into 13 bandsby the wa\·e
length
<meter).
Each band iscalled a meter band. (See
the table tln page 23.)
Frequency band does not change
U you keep pressing JOG/MANUAL
TUNE/SCAN, the frequency "ill repeat in
the following ranges.
llMd
Inner buttons
aut.r ...........
FM 71>-108Mtl1
76-108Mtlz
L__J
t..___f
1n each brw.ka!ll
AM
150 - 29999 kHz
b.andor_,
L__J
b.and
• Scan tun1n~ mo.le
