Sony 600TVL O.S.D. WDR SERIES User manual

SERVICE MANUAL
1/3” SONY DSP COLOR CCD CAMERA
600TVL O.S.D. WDR SERIES
V.4B_W_M
The serial number of this product may be found
on the bottom of the unit.
You should note the serial number of this unit in
the space provided and retain this instruction as a
permanent record of your purchase to aid
identification in the event of theft.
Model No.
SerialNo.

▲Before attempting to connect this product, please read and keep this
manual for future use.
Safety Warning
1. Do not open the cover, it may cause electric shock.
Ask a qualified service person for maintenance when you encounter any
problems.
2. Install the camera away from TV, radio transmitter, magnet, electric
motor, transformer, audio speakers because the magnetic fields
generated from above devices will distort the video image.
3. Place this camera on a solid base. Install the camera away from
stoves or other heat generating devices as the high temperature could
cause deformation, discoloration or other damages to the camera.
Install the camera at where the temperature range does not exceed
-10°C to 50°C (14°F to 122°F)
4. Do not expose and operate the camera in the rain and humid areas.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is interned to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
①

5. Use only soft dry cloth to clean the camera. Also use lens tissue or
cotton tipped applicator and ethanol to clean the CCD sensor and
camera lens.
6. When the camera is not in use, put the cover cap on the lens mount.
Please do not touch the surface of CCD by bare hand.
Introduction
This OSD series CCD camera introduces a new level of high picture quality
through the digital signal processing LSI’s technology for advanced video
surveillance. It provides the most reliable and accurate color picture in the
security industries.
Main Features
zColor camera with SONY 1/3” Super HAD II CCD sensor.
zEmploys Digital Signal Processor (DSP) chip-set for image control.
zUltra high resolution 600TVL (B/W 650TVL).
zHigh sensitivity CCD enables a clear image even in 0.01Lux.
zControlled by OSD (On Screen Display) menu.
zProgrammable AE / AWB / GAMMA processing.
z2DNR (2D Noise Reduction), digital WDR (Wide Dynamic Range).
zMotion detection, mirror, privacy mask.
zParking line guide display, lens shading correction.
zBLC (Back Light Compensation), HLC (Highlight Compensation).
zAuto DPC (Dead Pixel Compensation).
②
Highlight Compensation
Lens Shading Compensation
Wide Dynamic Range

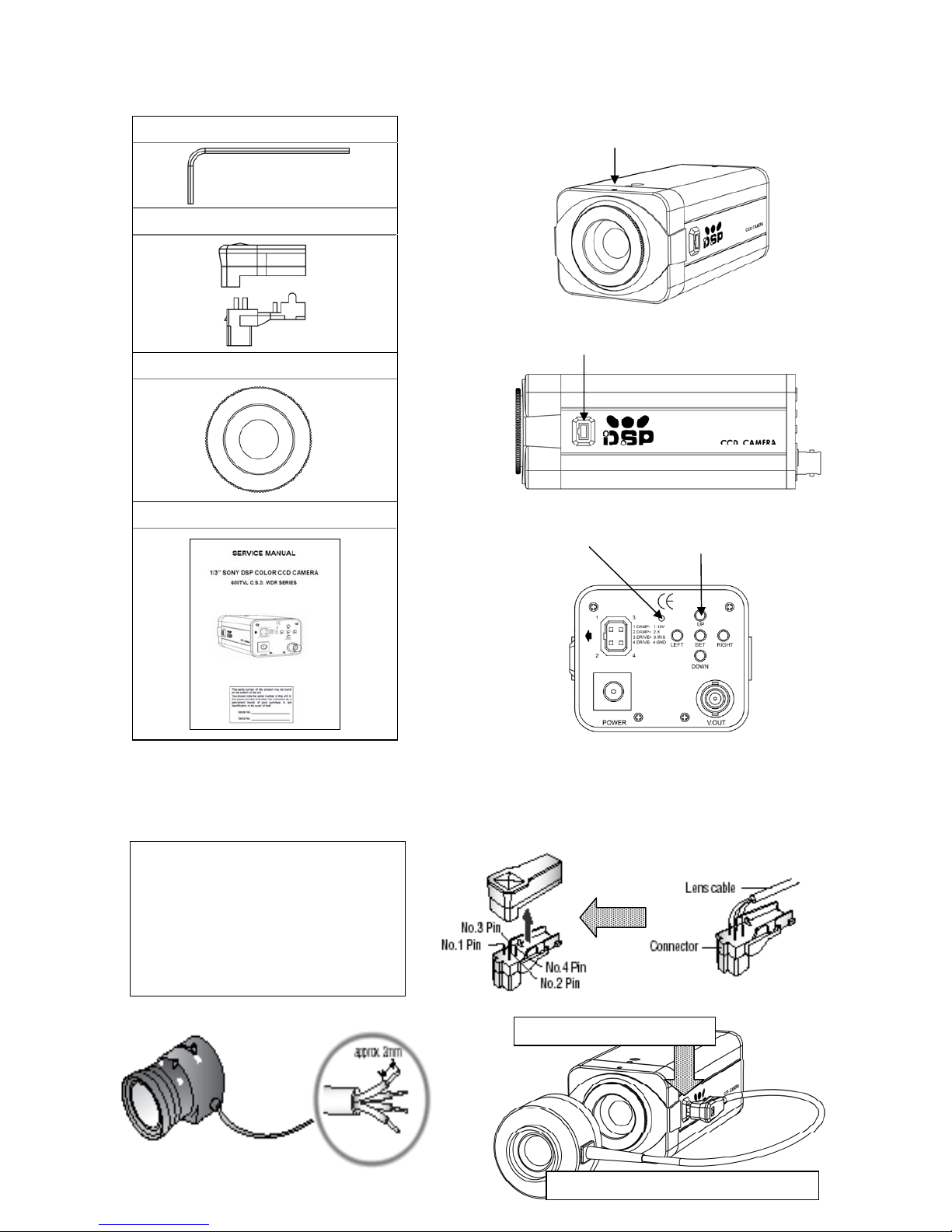

Parts Names & Components
Auto Iris Function
Hex Screwdriver
Auto Iris Plug
C-Mount Ring (Option)
Manual
DC DRIVE
Pin 1 (Red) Drive -
Pin 2 (N.C) Drive +
Pin 3 (White) Damp +
Pin 4 (Black) Damp -
Power LED Selection & setting buttons
Hole to fix lens
Auto iris connector
Screw the auto iris lens on CS mount
Plug in auto iris connector
③

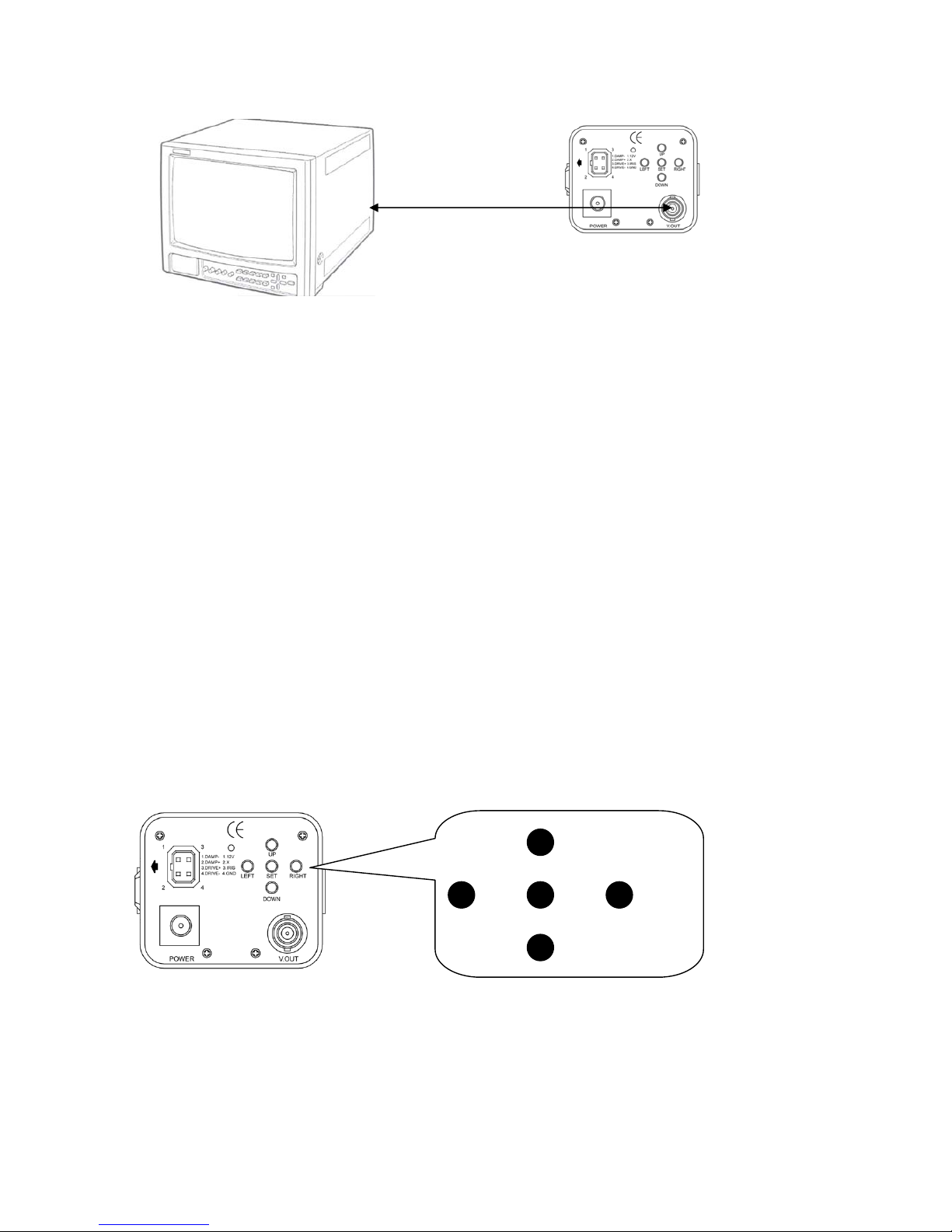

Installation Instructions
(1) Remove the cap from the lens mount.
(2) Select the C mount lens (with mount ring) or CS mount lens.
(3) Screw and fasten the lens into the lens mount.
(4) Connect the video output wire between monitor and camera through
75ohm type coaxial cable.
(5) Connect the power cord input.
(6) When monitor shows the picture, please adjust the focus and iris of the
lens to obtain the best image according to the following procedures:
‧ Choose objects at a distance about 5 ~ 10 meter away.
‧ Loosen the mount lens fixing screw (use L wrench), if necessary.
‧ Turn the lens and the mount together until image is clear.
‧ Screw the mount to camera.
(7) Fix camera to the bracket, if necessary
Switch Definition
SET button
Press to display the menu. In the menu, this button functions as “ENTER”.
UP & DOWN buttons
Press to select the item of menu.
LEFT & RIGHT buttons
Press to change the item value.
④
LEFT SET RIGHT
button button button
UP
button
DOWN
button

Menu Operation
‧ Press the SET button to display the menu on screen.
‧ Press the UP or DOWN button to select the item.
‧ The selected item will be highlighted.
‧ Press the LEFT or RIGHT button to change mode.
‧ The ENTER symbol means there is a sub-menu. Press the SET button to enter
to the sub-menu.
‧ Select the EXIT item and press the SET button to finish setting.
SETUPMENU
LENS
To select the lens mode depending on the lens used:
‧ MANUAL When manual iris lens is used.
‧ DC When auto iris lens that requires a DC drive signal is used.
‧ VIDEO Not available.
EXPOSURE
¾SHUTTER
To change the shutter setting and speed based on the environment.
‧ AUTO After an immobile brightness value is set, the shutter speed
will adjust automatically to achieve the value.
‧ FLK Select when flickering occurs on the screen due to an
Imbalance between illumination and frequency. Under this
mode, the shutter speed is NTSC: 1/100; PAL: 1/120.
‧ Fixed speed adjustable: 1/50; 1/250; 1/500; 1/1000; 1/2000; 1/4000; 1/5000;
1/10000; 1/100000.
¾BRIGHTNESS Value 0~255 adjustable.
¾AGC (Auto Gain Control)
Enable this function to heighten the brightness signal automatically.
‧ HIGH LOW; MIDDLE adjustable.
‧ OFF To disable this function.
¾DWDR (Digital Wide Dynamic Range)
When there is a very strong backlight behind the object, more than theAGC
function can handle, enable this function to achieve a clear image of the
background as well as the object.
‧ ON To enable this function. Value 0~63 adjustable.
‧ OFF To disable this function.
WHITE BAL. (White Balance)
‧ ATW1 Auto Tracking White Balance. The white balance will adjust
continually according to the color temperature of the object. The
⑤

range of color temperature is 2,000°K~9,500°K.
‧ ATW2 Auto Tracking White Balance. The white balance will adjust
continually according to the color temperature of the object. The
range of color temperature is 2,000°K~10,500°K.
‧ AWCÆSET Auto White Balance Control. Push to set white balance
according to the color temperature of the background.
‧ MANUAL The manual adjustment mode enables finer adjustment of ATW.
Set the color temperature to MANUAL and then increase or
decrease the RED (0~255) and BLUE (0~255) color values
while monitoring the color changes on the object. Or, chose the
INDOOR; OUTDOOR mode for quick adjustment.
BACKLIGHT
When there is strong backlight behind the object, enable this function to achieve a
clear image of the background as well as the object.
‧ BLC Back Light Compensation. AREA1; AREA2 adjustable.
‧ HLC Hightlight Compensation. ALL DAY; NIGHT ONLY adjustable.
‧ OFF To disable this function.
DAY&NIGHT
‧ COLOR Common mode.
‧ AUTO Automatically changes between color mode under bright light
environment and B/W mode under low light environment. Set
the value of D-N LEVEL (Day to Night 0~216); N-D LEVEL
(Night to Day 0~206); D-N DELAY (Day to Night 1~30 SEC);
N-D DELAY (Night to Day 1~30 SEC) to define the changing
condition and time.
‧ B/W Stay in B/W mode for clear and better visibility image under
low light environment. BURST (ON; OFF); IR SMART (ON;
OFF); IR LEVEL (HIGH; LOW) adjustable.
‧ EXT Control day & night mode by external device (if connected).
DPC (Dead Pixel Correction)
Cover the lens then press SET button to delete dead pixel on screen.
SPECIAL MENU
CAM TITLE (Camera Title)
‧ ON To name the camera title.
‧ OFF Not active.
MOTION (Motion Detection)
When the object on screen is moving, the camera will detect the changes and
display a warning on screen.
‧ ON AREA1~AREA4 adjustable. 0~255 DEGREE adjustable.
‧ OFF Not active.
⑥

PRIVACY (Privacy Zone)
Cover the areas you do not wish to appear on screen.
‧ ON AREA1~AREA8 adjustable. 0~15 COLOR adjustable.
‧ OFF To disable this function.
PARK. LINE (Parking Line)
‧ ON Parking line guide display on screen.
‧ OFF To disable this function.
IMAGE ADJ.
¾LENS SHAD. (Lens Shading Compensation)
‧ ON Counter lens shading on the four corners of monitor screen.
‧ OFF To disable this function.
¾2DNR (2D Noise Reduction)
Enable this function to reduce the noise at low light environment. This function
enables the camera to use a higher AGC level to electronically enhance the
sensitivity of the camera in low light environment (higher AGC, more noise).
‧ ON To enable this function.
‧ OFF To disable this function.
¾MIRROR
‧ ON To see mirror image on monitor screen.
‧ OFF To disable this function.
¾FONT COLOR
FONT color (0~15); ID&TITLE (0~15) adjustable.
¾CONTRAST Value 0~255 adjustable.
¾SHARPNESS Value 0~255 adjustable.
¾DISPLAY
‧ CRT PED LEVEL (0~63); COLOR GAIN (0~255) adjustable.
‧ LCD GAMMA (0.05~1.00); PED LEVEL (0~63); COLOR GAIN
(0~255) adjustable.
‧ USER GAMMA (0.05~1.00); PED LEVEL (0~63); COLOR GAIN
(0~255) adjustable.
¾NEG. IMAGE (Negative Image)
‧ ON To show negative image on monitor screen.
‧ OFF To disable this function.
LANGUAGE
Supports ENGLISH; 中文 (Simple Chinese).
VERSION To show the version of this camera.
RESET Select for factory reset.
⑦

Specification
MODEL OSD WDR OSD WDR with ICR (True DAY & NIGHT)
IR OPTICAL FILTER Built-in anti-aliasing IR-cut filter Built-in anti-aliasing IR-pass (850nm) filter
PICK-UP DEVICE Sony 1/3" Super HAD II High Resolution CCD
EFFECTIVE PICTURE
ELEMENTS (H*V)
NTSC: 768*494
PAL: 752*582
SIGNAL PROCESSOR D.S.P. (Digital Signal Processor)
RESOLUTION 600 TV Lines (B/W 650 TV Lines)
MIN. ILLUMINATION 0.01Lux / F1.2
S/N RATIO More than 52 dB
POWER SUPPLY DC12V; AC90~260V Switching Power; DC12V/AC24V Dual Power
CONTROL O.S.D. (On Screen Display)
LENS MOUNT C / CS Mount
AUTO IRIS DC Drive Auto Iris Lens
AUTO ELECTRONIC
SHUTTER
NTSC: 1/60s~1/100,000s (AES ON); 1/60s (AES OFF)
PAL: 1/50s~1/110,000s (AES ON); 1/50s (AES OFF)
VIDEO OUTPUT 1 Vp-p Composite Video / 75 ohm Load
POWER CONSUMPTION 3.5W (Max.)
OPERATING TEMP. -10°C~50°C (14°F~122°F)
MENU OPERATION
SETUP MENU
LENS: MANUAL – DC – VIDEO
EXPOSURE:
¾SHUTTER: AUTO – FLK – 1/50 – 1/250 – 1/500 – 1/1000 – 1/2000 – 1/4000 – 1/5000 –
1/10000 – 1/100000
¾BRIGHTNESS: 0~255
¾AGC: LOW – MIDDLE – HIGH – OFF
¾DWDR: ON (0~63) – OFF
WHITE BAL.: ATW1 – ATW2 – AWCÆSET – MANUAL: RED (0~255); BLUE (0~255) –
INDOOR – OUTDOOR
BACKLIGHT: BLC: AREA1; AREA2 – HLC: ALL DAY; NIGHT ONLY – OFF
DAY&NIGHT: COLOR – AUTO – B/W – EXT
DPC
RESET
SPECIAL MENU
CAM TITLE: ON – OFF
MOTION: ON:AREA1~AREA4; DEGREE (0~255) – OFF
PRIVACY: ON: AREA1~AREA8; COLOR (0~15) – OFF
PARK. LINE: ON – OFF
IMAGE ADJ.:
¾LENS SHAD.: ON – OFF
¾2DNR: ON – OFF
¾MIRROR: ON – OFF
¾FONT: FONT (0~15); ID&TITLE (0~15)
¾CONTRAST (0~255)
¾SHARPNESS (0~255)
¾DISPLAY: CRT: PED LEVEL (0~63); COLOR GAIN (0~255)
LCD: GAMMA(0.05~1.00); PED LEVEL (0~63); COLOR GAIN (0~255)
USER: GAMMA (0.05~1.00); PED LEVEL (0~63); COLOR GAIN (0~255)
¾NEG. IMAGE: ON – OFF
LANGUAGE: ENGLISH – S.CHINESE
VERSION
V.4B_W_M

Appendix
Installation Manual for Special Application: License Plate Recognition
1. A 5-55mm or other more than 10X suitable vari-focal auto iris lens is
recommended. Connect regulated DC12V power supply to the power input at the
rear panel of camera. Connect BNC video cable to the video output at the rear
panel of camera.
2. Fix the camera on the bracket. Adjust the viewing angle of camera according to
the below recommendations:
For capturing the front plate no.: Setting the camera at a 15° or less vertical
angle will achieve the best performance. Do not let the vertical angle exceed
20° (Figure 1).
For capturing the back plate no.: The vertical angle must not exceed 30°
(Figure 2).
Capture zone distance: Between 15~20 meters from the camera.
3. Adjust the zoom of the vari-focal lens. The picture width should not exceed 1.5
traffic lanes at the capture zone.
ÆEnter SETUP menu and select “DC” under LENS options.
4. In order to ensure a clear image under different light conditions, adjust the
settings once during the daytime and once during the nighttime is recommended
to achieve optimal results.
15~20M
<20°
[Figure 1]
0°
<30°
15~20M
[Figure 2]
0°

Daytime setting:
Adjust the lens focus to see a clear image both at the center and the upper /
down edges of the monitor. If the image on the monitor is too bright, adjust
the shutter speed accordingly.
ÆEnter EXPOSURE sub-menu under SETUP menu and select “SHUTTER”.
ÆSelect shutter speed according to the speed of vehicle.
Suggested Shutter Speed:
¾When speed of vehicle is less than 50km: 1/250 sec.
¾When speed of vehicle is less than 100km: 1/500 sec.
¾When speed of vehicle is more than 100km: 1/2000 sec.
Nighttime setting:
Adjust the lens focus to see a clear image at the upper / down edges of the
monitor (means focus at the center). According to the environment, adjust
AGC value to heighten the brightness signal when necessary.
ÆEnter EXPOSURE sub-menu under SETUP menu and select “AGC”.
ÆAGC: LOW – MIDDLE – HIGH adjustable.
5. If the image is smeared and the license plate number is not captured clearly:
When the camera is connected directly to the monitor: Adjust the shutter
speed until the image is clear.
When the camera is connected to a DVR system: If you get a smeared image
during playback, the reason is the performance of VGA card in the DVR is
not sufficient.
V.4B_W_M
NTSC PAL
1/60 1/50
1/250 1/250
1/500 1/500
1/1000 1/1000
1/2000 1/2000
1/4000 1/4000
1/5000 1/5000
1/10000 1/10000
1/100000 1/100000
