Sony DVP-NW50 - In-wall Dvd Player User manual

2-593-899-11(2)
Utility for In-Wall
Unit
CDP-NW10/DVP-NW50
 2005 Sony Corporation
User’s Manual

2
• Copyright laws prohibit reproducing the software or the manual accompanying it in whole or in part, or renting
the software without the permission of the copyright holder.
• In no event will SONY be liable for any financial damage, or loss of profits, including claims made by third
parties, arising out of the use of the software supplied with this Unit.
• In the event a problem occurs with this software as a result of defective manufacturing, SONY will replace it.
However, SONY bears no other responsibility.
• The software provided with this Unit cannot be used with equipment other than that which is so designated.
• Please note that, due to continued efforts to improve quality, the software specifications may be changed
without notice.
• Operation of this Unit with software other than that provided is not covered by the warranty.
Program © 2005 Sony Corporation
Documentation © 2005 Sony Corporation
Notice for users

3
TABLE OF CONTENTS
Notice for users 2
Chapter 1 Getting Started
Overview 4
System network 5
Setup 1: Installing the Utility for In-Wall Unit Software to Your Computer 6
System requirements 6
Installing Utility for In-Wall Unit 7
Setup 2: Connecting the Computer to the Unit 7
Setup 3: Setting up the Utility for In-Wall Unit Software 8
Setting up Gracenote CDDBR8
Setting up all Units 9
The “Utility for In-Wall Unit Setup Menu” window for all Units 10

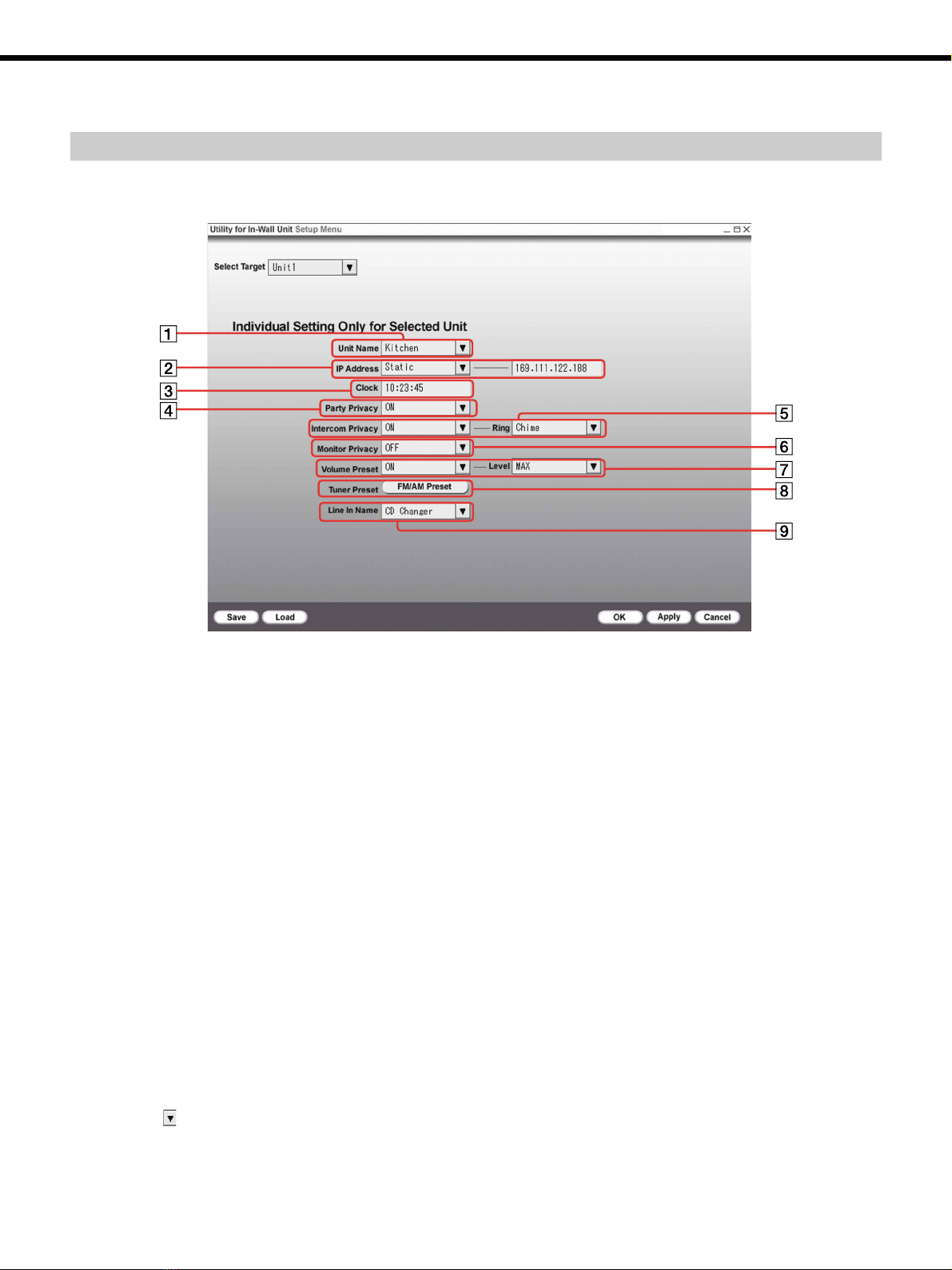

Setting up each Unit individually 11
The “Utility for In-Wall Unit Setup Menu” window for each unit 12
Storing FM/AM radio stations (Preset memory) 13
Setup 4: Setting up “Server Setup, powered by DiXiM” 14

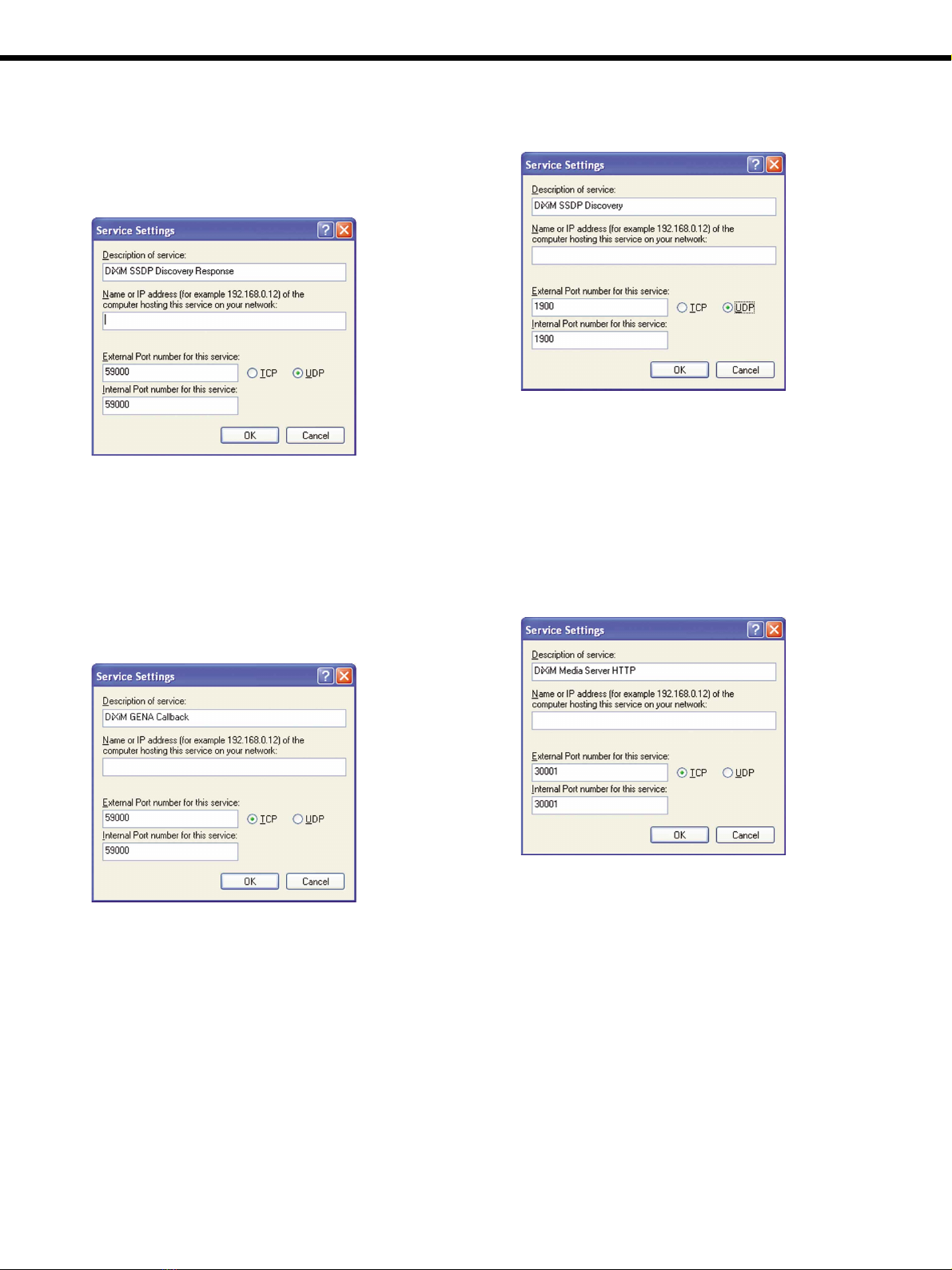

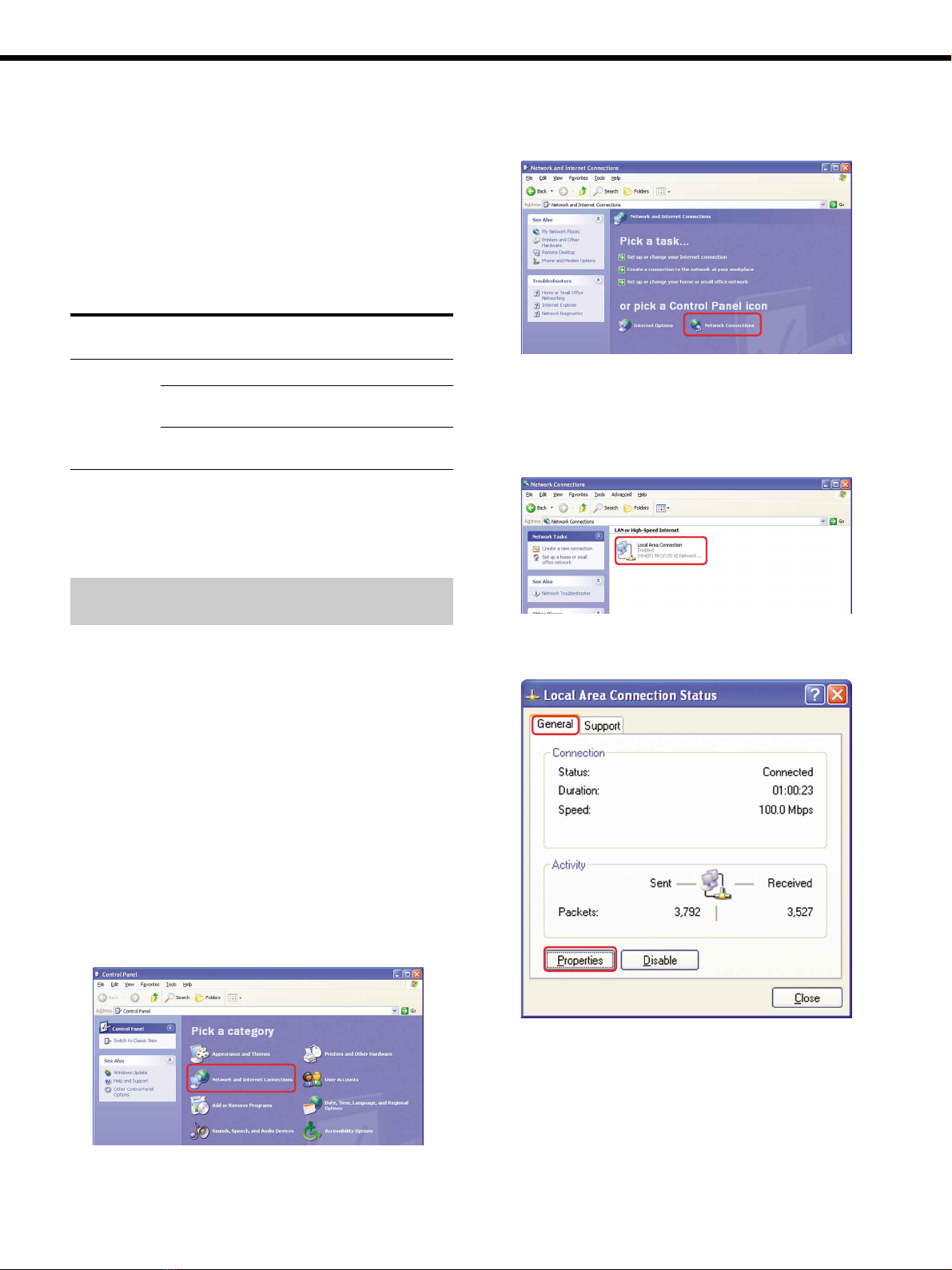

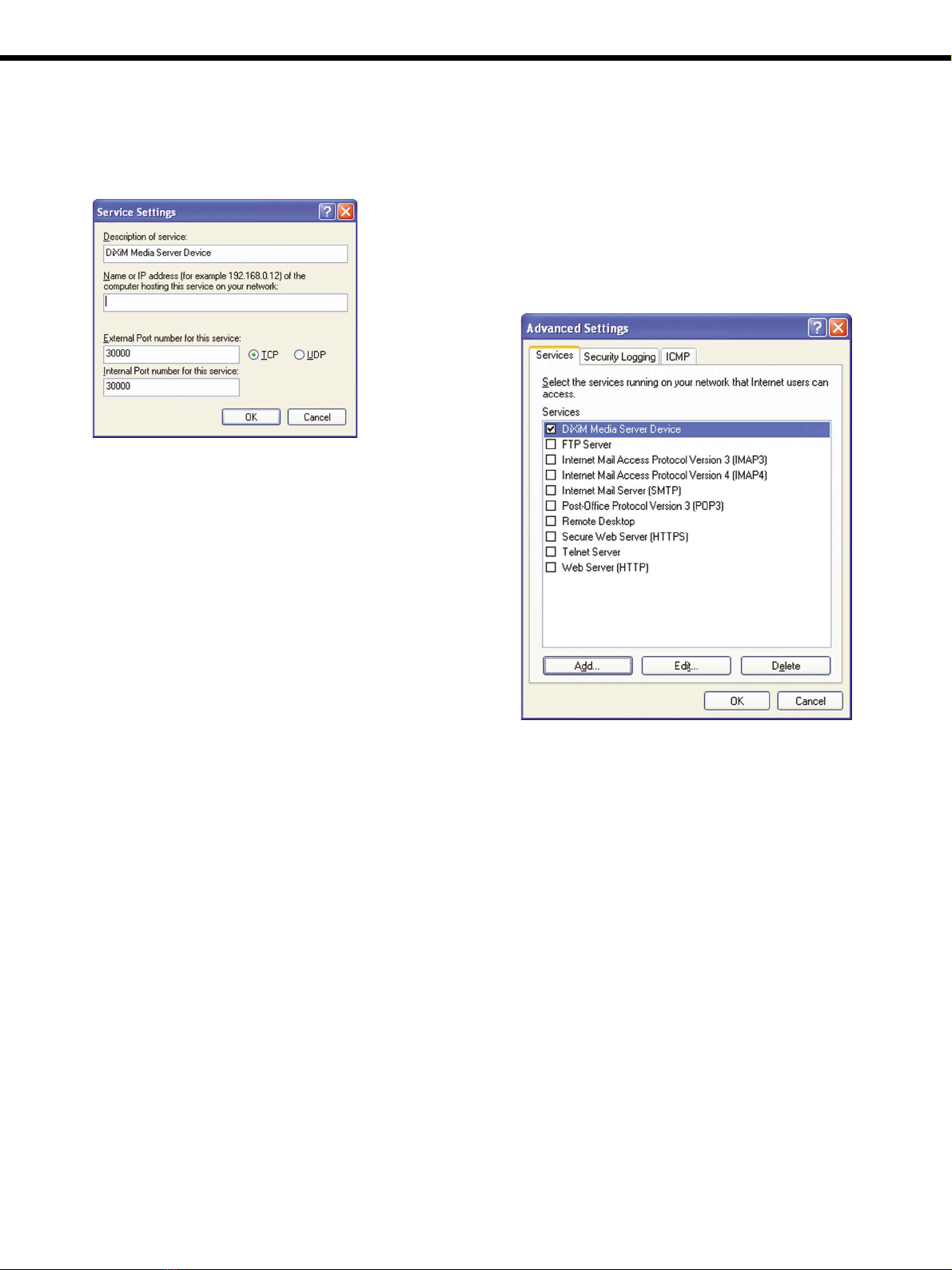

Settings for “Windows Firewall” for Windows XP SP2 14
Settings for “Internet Connection Firewall” for Windows XP SP1 17
Starting “Server Setup, powered by DiXiM” 21
Starting the Media Server 22
Naming the Media Server 22
Prohibiting a Unit from accessing contents 23
Setting up a shared folder from “Server Setup, powered by DiXiM” 24
Chapter 2 Main Features
Starting and Quitting the Utility for In-Wall Unit Software 25
Watching Playlists (Import) 26
Creating a Playlist Using Utility for In-Wall Unit 27
Operating the Unit from a Computer 29
Other Features 32
Using right-click 32
Chapter 3 Additional Information
Troubleshooting 34
Error Messages 36
Trademarks and Copyrights 38

Chapter 1 Getting Started 4
Chapter 1
Getting Started
This chapter describes the features of the
Utility for In-Wall Unit software, how to
set up the Utility for In-Wall Unit and set
up the “Server Setup, powered by
DiXiM.”
Important features of the the Utility for In-
Wall Unit software include the following:
• Using a computer to set up each installed Unit individually or all
Units simultaneously (page 9)
• Sharing music between your computer and each Unit (page 26)
• Creating original playlists (page 27)
• Using a computer to operate each installed Unit individually or
all installed Units simultaneously (page 29)
• Getting CD information from the Gracenote CDDBR* (page 8)
* CD DataBase
Note
Depending upon the configuration of your computer, visual details
of the Utility for In-Wall Unit software (such as window design, the
size, or location of images) may differ from the pictures in this
manual. The features of the software, however, operate as
described.
Overview
Continue to the next pagel

Chapter 1 Getting Started 5
System network

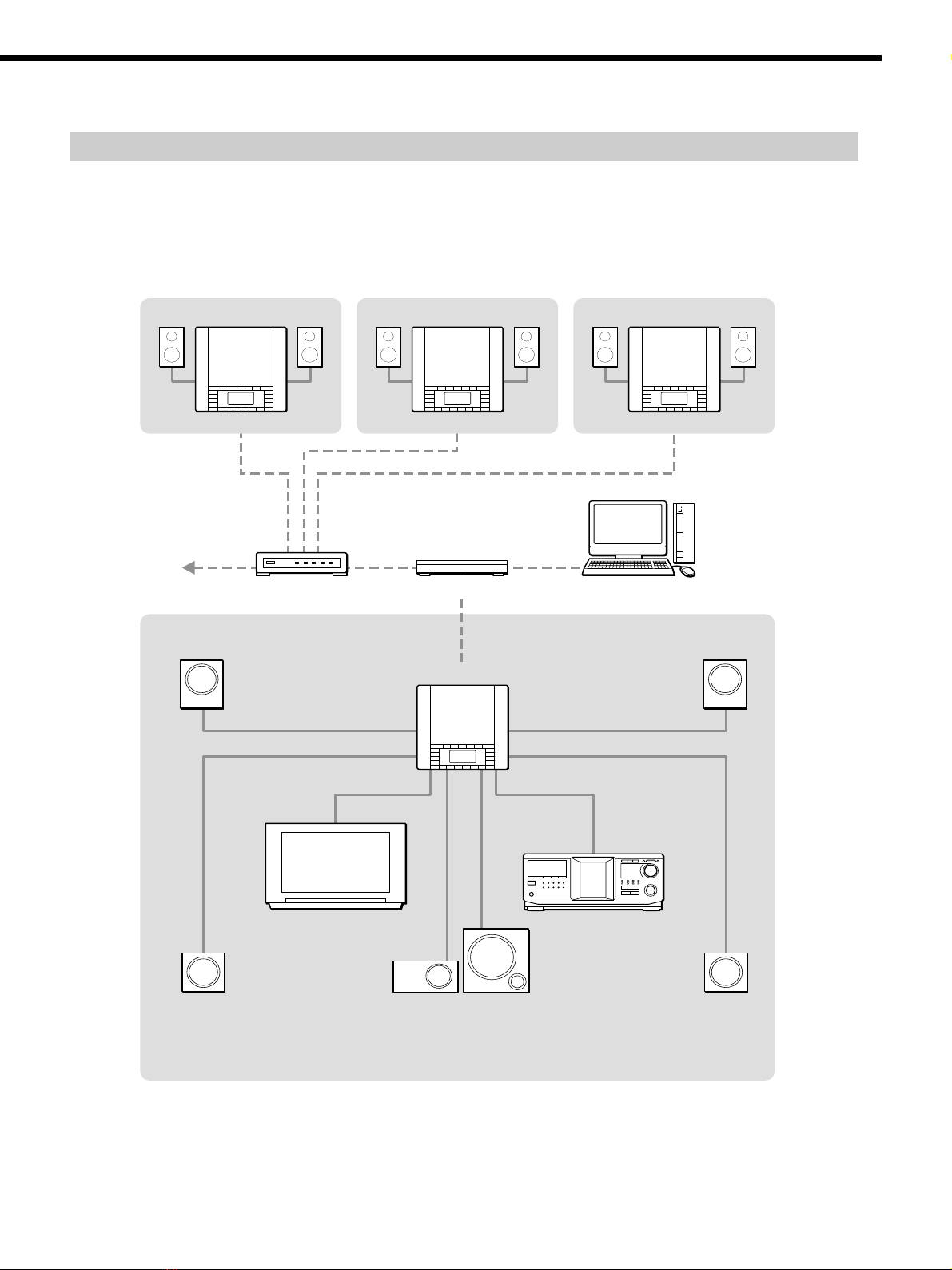

The diagram below illustrates an entire system network made up of multiple Units.
Contact your nearest installer for details on making the required connections for the system network.
Note
The configuration shown below is for illustrative purposes only. It may differ from an actual system network.
LIVING ROOM
GUEST ROOMKITCHEN
Computer
Router
TV/Projector CD Changer
INTERNET
Example of a DVP-NW50 system network
Front Speaker
Rear
Speaker
Front Speaker
Rear
Speaker
Sub Woofer
Center
Speaker
DVP-NW50
CDP-NW10
Hub
CDP-NW10 CDP-NW10
Overview (continued)
BEDROOM

Chapter 1 Getting Started 6
Setup 1: Installing the Utility for In-Wall Unit Software to
Your Computer
Use the supplied CD-ROM to install the Utility for In-Wall Unit software.
A PDF version of this user’s manual is installed along with the software.
System requirements
The Utility for In-Wall Unit software requires the following system environment.
Computer IBM PC/AT or Compatible
• CPU: CeleronR1GHz or PentiumRIII or higher, compatible
(Pentium III 1 GHz or higher is recommended.)
• Memory: 256 MB or more
Operating System Factory installed:
WindowsRXP Home Edition with Service Pack 1 (or later)
WindowsRXP Professional with Service Pack 1 (or later)
Network 100BASE-T Ethernet
Display High Color (16 bit) or higher, 800 x 600 dots or better
The following environments are not supported:
•Operating systems other those indicated above
•Personally constructed PCs or personally installed operating systems
•An environment that is an upgrade of the original manufacturer-installed operating system
•A multi-boot environment
•A multi-monitor environment
•A Macintosh environment
Continue to the next page l

Chapter 1 Getting Started 7
Setup 2: Connecting the
Computer to the Unit
For your computer to be able to communicate with your
installed Units, the computer and the Units must be on a
single 100BASE-TX network. Typically, this requires
100BASE-TX Ethernet cabling and a 100BASE-TX router,
hub, or switch. For details on setting up such a network,
refer to the instruction manual supplied with your router,
hub, or switch, and consult with the local installer of your
Units.
If other network devices are connected to the same
network as your Units and your computer, these devices
may be able to “see”your Units on the network or may
be “seen”by your Units or computer. This does not
mean, however, that these other products will be able to
use the network features of the Units and the Utility for
In-Wall Units software, such as music streaming.
Setup 1: Installing the Utility for In-Wall Unit
Software to Your Computer (continued)
Installing Utility for In-Wall Unit
Before installing Utility for In-Wall Unit
software
When the Utility for In-Wall Unit software is installed, the
“Server Setup, powered by DiXiM”software is installed at
the same time.
Disable any virus protection software before installing the
Utility for In-Wall Unit software.
1Turn on your computer, and start up Windows.
2Insert the supplied CD-ROM into your computer’s CD
or DVD drive.
The setup program starts automatically, and then the
installation window appears.
3Follow the on-screen instructions.
Read the instructions carefully.
If any trouble occurs during the installation, see
“Troubleshooting”(page 34).
To uninstall the Utility for In-Wall Unit or the
“Server Setup, powered by DiXiM”
To uninstall the Utility for In-Wall Unit or the “Server
Setup, powered by DiXiM,”follow the steps below. To
uninstall both software programs, perform the procedure
twice, selecting a different program each time.
1Click “Start”on the Windows taskbar to select
“Control Panel.”
2Double-click “Add or Remove Programs.”
3Click “Utility for In-Wall Unit”or “Utility for In-Wall
Unit-Server Setup, powered by DiXiM”in the
“Currently installed programs”list.
4
Click “Change/Remove.”
Follow the on-screen instructions to uninstall the
software.

Chapter 1 Getting Started 8
Setup 3: Setting up the Utility for In-Wall Unit Software
You can set up Units connected to your network from your
computer.
Before your computer can operate your Units, the Units
must be configured with such settings as IP addresses and
tuner presets.
Using the Setup menu in the Utility for In-Wall Unit
software, you can configure these settings either for all
Units at once or for each Unit individually.
When the Music Menu appears, click “Setup Menu”on the
upper right of the window to display the Setup Menu.
Setting up Gracenote CDDBR
Gracenote CDDBRis an online music recognition service to
identify CDs and digital music files. You must have the
Internet access in order to use Gracenote CDDBR.
You can access Gracenote CDDB
R
to download and
Gracenote provides this service free to end-users.
Using Gracenote CDDB
R
, artist name, album and track titles,
etc., are displayed on the wondow in the Utiltity for In-Wall
Unit software and on the front panel display of your Units.

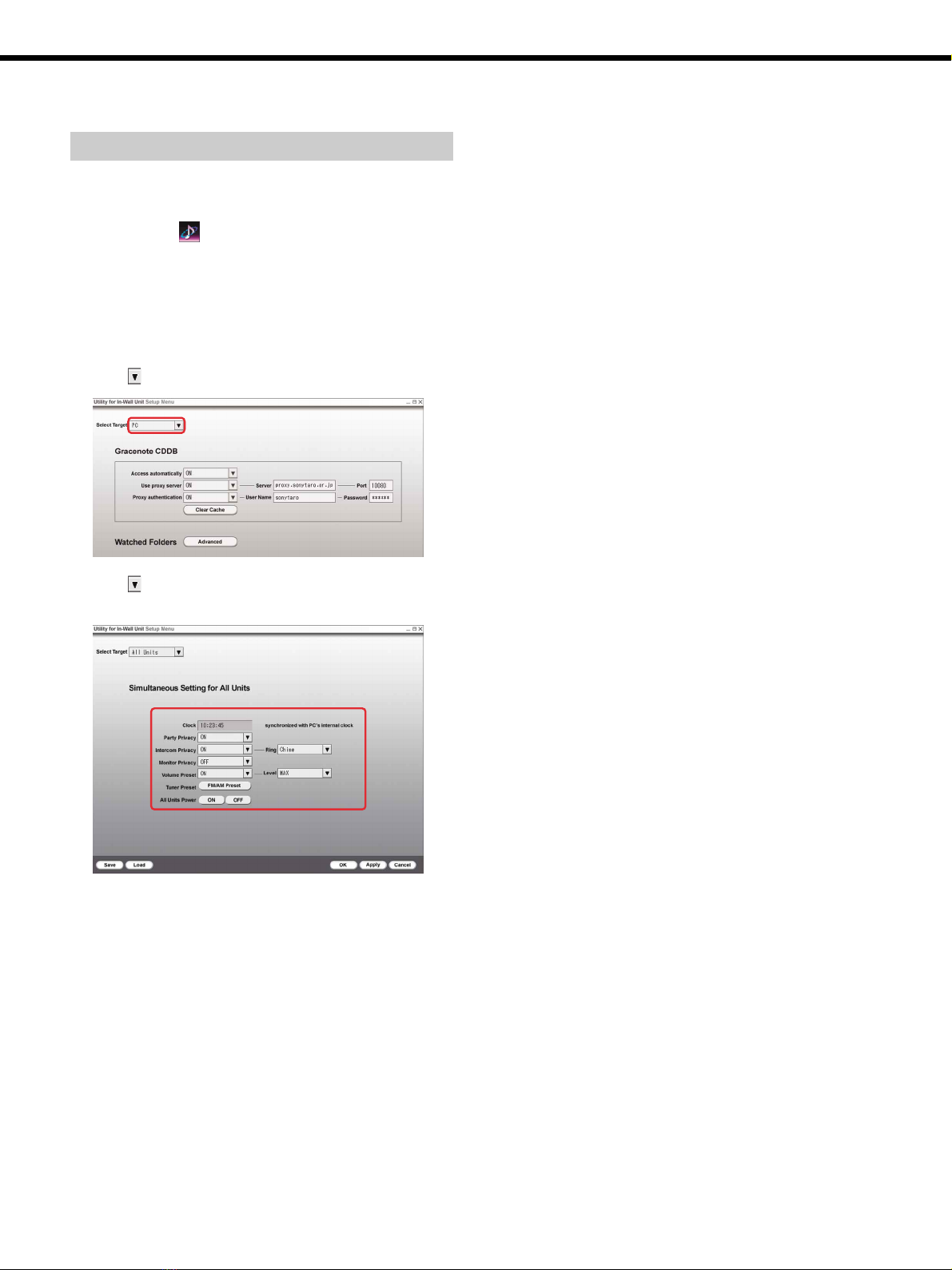

Use the following steps to configure access to the Gracenote
CDDB
R
.
1Double-click (“Utility for In-Wall Unit” icon) in the
task tray.
The main window appears.
You can also click “Start”on the Windows taskbar, then
point to “All Programs”—“Utility for In-Wall Unit,”then
click “Utility for In-Wall Unit.”
2Click to select “PC.”
3Click to select the item you want to set up.
See the table below for details on each item.
Access automatically:
ON: When a CD is inserted into the Unit, information
about the disc is automatically retrieved from the
Gracenote CDDBR.
OFF: When a CD is inserted into the Unit, the Utility for In-
Wall Unit software does not access the Gracenote
CDDBR.
Use proxy server:
Same as IE:
These proxy server settings are the same as
that of in the LAN Settings window on the
Connections panel of Internet Options in Windows
Control Panel.
ON: Your computer accesses the Internet through a
proxy server.
Enter the appropriate proxy server IP address and
port number.
OFF: Your computer accesses the Internet directly,
rather than through a proxy server.
Proxy authentication:
ON: Select if a log-in window appears when your
computer attempts to access the Internet through
your proxy server.
Enter a user name and password for the the Utility
for In-Wall Unit software to automatically enter
into the log-in window.
OFF: Select if no log-in window appears when your
computer attempts to access the Internet through
your proxy server.
When “Use proxy server”is set to OFF, this feature
is not used.
4Click “OK” or “Apply.”
The setting goes into effect for all Units.
When you click “OK”or “Cancel,”the Music Menu
Window appears.
To clear the internal cache for Gracenote
CDDBR
Click “Clear Cache.”
To display the “Server Setup, powered by
DiXiM” window
Click “Advanced.”
Continue to the next page l

Chapter 1 Getting Started 9
Setup 3: Setting up the Utility for In-Wall Unit Software (continued)
Continue to the next page l
Setting up all Units
You can configure settings such as clock, volume, privacy,
and intercom, and so on for all Units simultaneously.
1Double-click (“Utility for In-Wall Unit” icon) in the
task tray.
The main window appears.
You can also click “Start”on the Windows taskbar, then
point to “All Programs”—“Utility for In-Wall Unit,”then
click “Utility for In-Wall Unit.”
2Click to select “All Units.”
3Click to select the item you want to adjust or set up.
For details on each item, see the next page.
4Click “OK” or “Apply.”
The setting goes into effect for all units.
When you click “OK”or “Cancel,”the Music Menu
Window appears.

Chapter 1 Getting Started 10

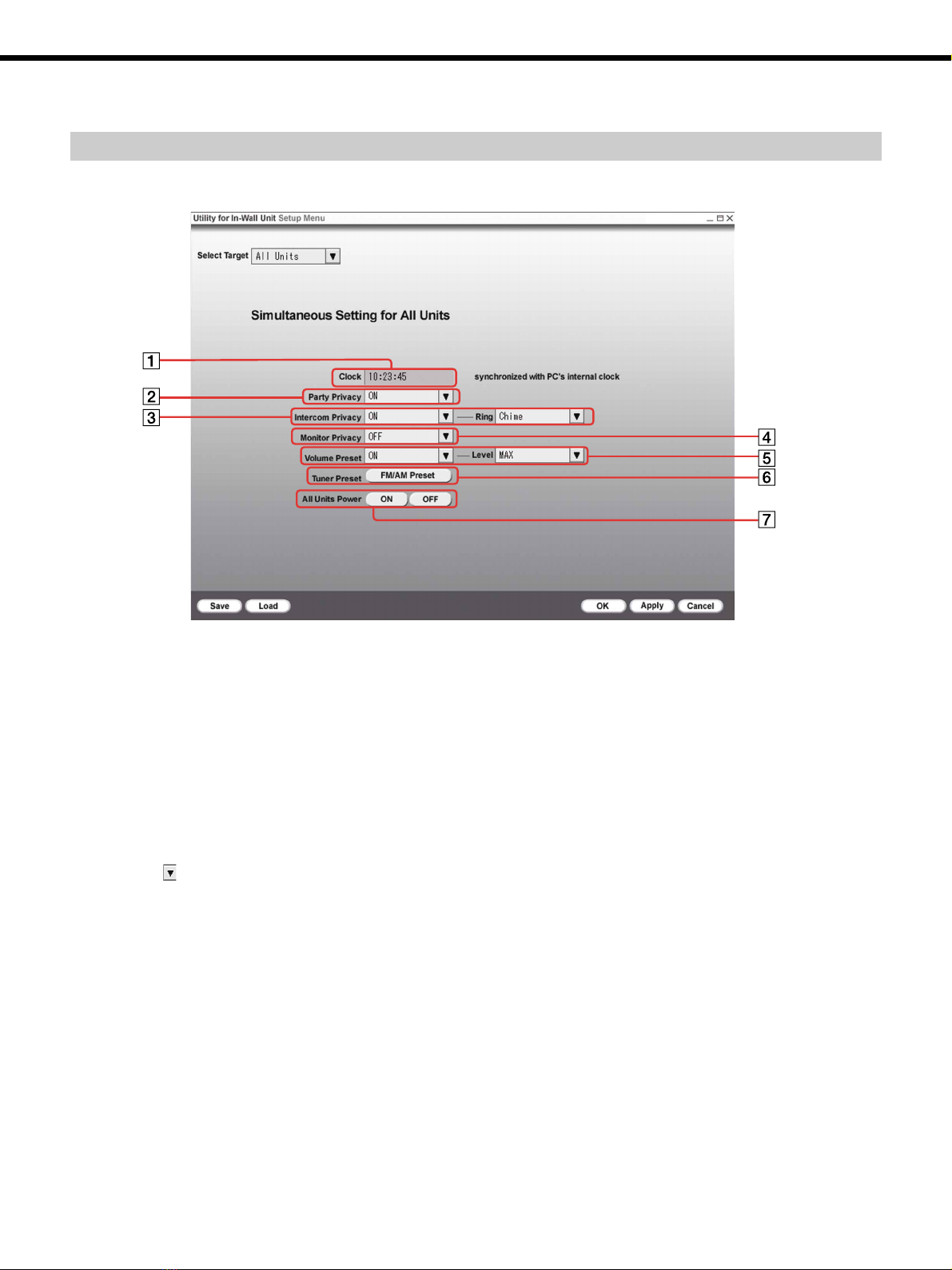

1Clock
The time appeared is the same as that of the computer.
You cannot change the time in this window.
2Party Privacy
ON: Units do not join Party Mode.
OFF: Units join Party Mode automatically.
3Intercom Privacy
ON: Units ignore the Intercom signal.
OFF: Units receive the Intercom signal.
Click to select the ring tone.
4Monitor Privacy
ON: Units cannot be monitored by other Units.
OFF: Units can be monitored by other Units.
5Volume Preset
ON: The Units play sound at the selected volume level.
OFF: The preset volume level is disabled.
The Units play sound at whatever volume level
was set when the individual Unit was last turned
off.
The “Utility for In-Wall Unit Setup Menu” window for all Units
Setup 3: Setting up the Utility for In-Wall Unit software (continued)
Continue to the next page l
6Tuner Preset
Click “FM/AM Preset”to configure all Units with up to
20 FM or AM radio stations. For details on how to
storing FM/AM radio stations, see page 13.
7All Units Power
All Units turn “ON”/“OFF”simultaneously.

Chapter 1 Getting Started 11
Setup 3: Setting up the Utility for In-Wall Unit software (continued)
Setting up each Unit individually
You can configure settings such as clock, volume, privacy,
and intercom for each Unit individually.
1Double-click (“Utility for In-Wall Unit” icon) in the
task tray.
The main window appears.
You can also click “Start”on the Windows taskbar, then
point to “All Programs”—“Utility for In-Wall Unit,”then
click “Utility for In-Wall Unit.”
2Click to select any Units.
3Click to select the item you want to adjust or set
up.
For details on each item, see the next page.
4Click “OK” or “Apply.”
The setting takes effective.
When you click “OK”or “Cancel,”the Music Menu
Window appears.
Continue to the next page l
To save the setting data
1Click “Save.”
2Click to select the folder in which the setting data is
to be saved.
3Click “OK.”
To load the setting data
1Click “Load.”
2Click to select the folder that contains the setting
file.
3Select the setting file you want to load.
4Click “OK.”

Chapter 1 Getting Started 12
The “Utility for In-Wall Unit Setup Menu” window for each unit
1Unit Name
You can enter a name of up to eight characters for each
Unit.
2IP Address
Static: You must enter an IP address manually.
Auto: An IP address is acquired automatically.
Tip
To use “Auto”to automatically acquire an IP address, a DHCP
server must be available on the network. Most broadband
routers can act as DHCP servers. Refer to the manual that
supplied with your router for more information.
3Clock
You can adjust the time of the selected Unit by entering
a new time.
4Party Privacy
ON: The selected Unit does not join Party Mode.
OFF: The selected Unit joins Party Mode automatically.
5Intercom Privacy
ON: The selected Unit ignore the Intercom signal.
OFF: The selected Unit can receive the Intercom
signal.
Click to select the ring tone.
6Monitor Privacy
ON: The selected Unit cannot be monitored by other
Units.
OFF: The selected Unit can be monitored by other
Units.
7Volume Preset
ON: The selected Unit plays sound at the selected
volume level.
OFF: The preset volume level is disabled.
The selected Unit plays sound at whatever volume
level was set when the Unit was last turned off.
8Tuner Preset
Click “FM/AM Preset”to configure the selected Unit
with up to 20 FM or AM radio stations. For details on
how to storing FM/AM radio stations, see page 13.
9Line in Name
You can enter a name for an audio component
connected to the LINE IN of the selected Unit.
Setup 3: Setting up the Utility for In-Wall Unit software (continued)
Continue to the next page l

Chapter 1 Getting Started 13
Storing FM/AM radio stations
(Preset memory)
You can preset up 20 FM or AM radio stations on all Units
simultaneously or on each Unit individually.
1Double-click (“Utility for In-Wall Unit” icon) in the
task tray.
The main window appears.
You can also click “Start”on the Windows taskbar, then
point to “All Programs”—“Utility for In-Wall Unit,”then
click “Utility for In-Wall Unit.”
2Click to select “All Units” or any Units.
3Click “FM/AM Preset.”
Setup 3: Setting up the Utility for In-Wall Unit software (continued)
4Click to select “FM” or “AM.”
“Band”
5Click to select the frequency.
You can also enter the frequency using the numeric
keys.
“Frequency”
Continue to the next page l

Chapter 1 Getting Started 14
Setup 3: Setting up the Utility for In-Wall Unit
software (continued)
6Enter a name for the station.
You can enter a station name of up to eight characters. If
you have previously preset the station name in one of
the Units, you can enter the station name by clicking
to select the station name from the list.
“Station Name”
7Click “OK” or “Apply.”
The setting takes effect.
When you click “OK”or “Cancel”in this window, you
return to the Setup Menu window shown in step 3.
Setup 4: Setting up “Server
Setup, powered by DiXiM”
The“Server Setup, powered by DiXiM”makes it possible
for you to share audio files between your computer and
your Units.
You must set up the “Server Setup, powered by DiXiM”to
be able to share MP3-format audio files and M3U-format
playlists between the Utility for In-Wall Unit software and
your installed Units.
The “Server Setup, powered by DiXiM”is a program that
manages permission levels for contents.
Before using the “Server Setup, powered by DiXiM,”you
must configure your computer’s networking environment
as described in the following sections.
Settings for “Windows Firewall” for
Windows XP SP2
Windows XP SP2 (Service Pack 2) contains the “Windows
Firewall”features that improve security when you connect
your computer to a network, and to the Internet. This
feature also affects the DiXiM home network.
You can enjoy home network contents safety by setting the
“Windows Firewall”feature appropriately.
To connect and enjoy DiXiM home network contents safety,
make sure that you set the firewall settings correctly.
The following procedures are necessary only if you did not
choose to change your Windows Firewall settings when you
installed the “Server Setup, powered by DiXiM.”If you
choose to change your Windows Firewall settings when you
installed the “Server Setup, powered by DiXiM,”Windows
Firewall has already been configured for you.
1Click “Start” on the Windows taskbar to select
“Control Panel.”
2Click the “Security Center” in the “Pick a category”
window.
If you have changed the “Control Panel”to classic view,
double-click “Windows Firewall,”and go to step 4.
The “Windows Security center”window appears.
Continue to the next page l

Chapter 1 Getting Started 15
Continue to the next page l
3Click “Windows Firewall.”
The “Windows Firewall”window appears.
4Click the “General” tab.
Confirm that the “On”radio button is selected and the
“Don’t allow exceptions”check box is cleared, as shown
below.
5Click the “Exceptions” tab, and click
“Add Program….”
The “Add a Program”window appears.
6Click “Browse….”
The “Browse”window appears.
Setup 4: Setting up “Server Setup, powered by DiXiM” (continued)

Chapter 1 Getting Started 16
Setup 4: Setting up “Server Setup, powered by DiXiM” (continued)
Continue to the next page l
7Click to select the folder in which “Server Setup,
powered by DiXiM” is to be installed from “Look in.”
Navigate to the folder in which you installed “Server
Setup, powered by DiXiM.”
If you did not change the default location when you
installed “Server Setup, powered by DiXiM,”click “My
Computer,”click “Local Disk (c:),”click “Program
Files,”click “DigiOn,”and click “Media Server for In-
Wall Unit.”
8Select “dmsiwu” (or “dmsiwu.exe”), and click
“Open.”
The “Add a Program”window appears again.
9Confirm that “dmsiwu” (or “dmsiwu.exe”) has been
added to the list, and click “OK.”
The “Windows Firewall”window appears again.
10 Confirm that “dmsiwu” (or “dmsiwu.exe”) has been
added to the “Programs and Services” list, and click
“OK.”
The Windows Firewall settings for the DiMiX Media
Server are complete.

Chapter 1 Getting Started 17
Setup 4: Setting up “Server Setup, powered by DiXiM” (continued)
Continue to the next page l
(Reference) Networking ports used by
“Server Setup, powered by DiXiM”
The “Server Setup, powered by DiXiM”uses following
ports for communication. The configuration of Windows
Firewall described on pages 14 to 16 allows DiXiM
communications to use these ports.
If you are using a firewall program other than Windows
Firewall, configure your firewall software to allow the use
of the ports described in the following table.
Program Feature file name Port Protocol
number
dmsiwu.exe*1DiXiM SSDP Discovery 1900 UDP
DiXiM Media Server 30000 TCP
Device
DiXiM Media Server 30001 TCP
HTTP
*1If you did not change the destination folder when you installed
the software, “Server Setup, powered by DiXiM,”it is installed
in:
C:\Program Files\DigiOn\Media Server for In-Wall Unit\
Settings for “Internet Connection
Firewall” for Windows XP SP1
Windows XP SP1 (Service Pack 1) includes a network
firewall feature called “Internet Connection Firewall”that
improves security when you connect your computer to a
network. These new features also affect the DiXiM home
network.
To be able to connect devices across your network to share
contents, while maintaining an appropriate level of network
security, make sure that Internet Connection Firewall is
configured as described in the following procedure.
1Click “Start” on the Windows taskbar to select
“Control Panel.”
2Click the “Network and Internet Connection” in the
“Pick a category” window.
If you have changed “Control Panel”to classic view,
double-click the “Network Connection,”and go to step
4.
The “Network and Internet Connections”window
appears.
3Click “Network Connections.”
4Double-click “Local Area Connection.”
If you use a connection method other than “Local Area
Connection,”open the connection icon you are actually
use, and match the following explanation to connection
method you use.
The “Local Area Connection Status”window appears.
5Click the “General” tab, and click “Properties.”
The “Local Area Connection Properties”window
appears.

Chapter 1 Getting Started 18
Setup 4: Setting up “Server Setup, powered by DiXiM” (continued)
Continue to the next page l
6Click the “Advanced” tab.
Make sure that the “Protect my computer and network
by limiting or preventing access to this computer from
the Internet”check box is selected.
When the check box is cleared, the “Internet
Connection Firewall”feature of Windows is disabled.
With the “Internet Connection Firewall”feature
disabled, the “Server Setup, powered by DiXiM”will
work without the following steps being performed, but
the network protection offered by this feature will not be
provided. To enable the “Internet Connection Firewall”
feature, select this check box, and continue with step 7.
7Click “Settings….”
The “Advanced Settings”window appears.
8Click the “Services” tab, and click “Add….”
The “Service Settings”window appears.

Chapter 1 Getting Started 19
Setup 4: Setting up “Server Setup, powered by DiXiM” (continued)
Continue to the next page l
9Enter the information indicated into the boxes in the
“Service Settings” window.
DiXiM Media Server Device
Description of service: DiXiM Media Server Device
Name or IP address (for example 192.168.0.12) of the
computer hosting this service on your network:
Enter the name or IP address of your computer.
External Port number for this service:
Enter “30000,”and then select the TCP radio button.
Internal Port number for this service: 30000
To determine the name of your computer, click “Start”
on the Windows taskbar, right-click “My Computer,”
select “Properties,”and click the “Computer Name”tab.
The name of your computer is shown in the “Computer
description”box.
10 Click “OK.”
The “Service Settings”window closes.
11 Confirm that the the DiXiM Media Server Device
added in step 9 appears in the “Services” list in the
“Advanced Settings” window and that the check box
beside it is selected.
If the service added in step 9 does not appear, click
“Add…,”and complete steps 9 and 10 again.
If there is no check mark in the check box beside the
service, click the check box so that a check mark
appears.

Chapter 1 Getting Started 20
Setup 4: Setting up “Server Setup, powered by DiXiM” (continued)
Continue to the next page l
12 Repeat the process shown in steps 9 to 11 for the
four following services, entering the indicated
information for each.
DiXiM SSDP Discovery Response
Description of service: DiXiM SSDP Discovery Response
Name or IP address (for example 192.168.0.12) of the
computer hosting this service on your network:
Enter the name or IP address of your computer as
described in step 9.
External Port number for this service:
Enter “59000,”and then select the UDP radio button.
Internal Port number for this service: 59000
DiXiM GENA Callback
Description of service: DiXiM GENA Callback
Name or IP address (for example 192.168.0.12) of the
computer hosting this service on your network:
Enter the name or IP address of your computer as
described in step 9.
External Port number for this service:
Enter “59000,”and then select the TCP radio button.
Internal Port number for this service: 59000
DiXiM SSDP Discovery
Description of service: DiXiM SSDP Discovery
Name or IP address (for example 192.168.0.12) of the
computer hosting this service on your network:
Enter the name or IP address of your computer as
described in step 9.
External Port number for this service:
Enter “1900,”and then select the UDP radio button.
Internal Port number for this service: 1900
DiXiM Media Server HTTP
Description of service: DiXiM Media Server HTTP
Name or IP address (for example 192.168.0.12) of the
computer hosting this service on your network:
Enter the name or IP address of your computer as
described in step 9.
External Port number for this service:
Enter “30001,”and then select the TCP radio button.
Internal Port number for this service: 30001
