Getting Started
Welcome to “AIBO Life,” a software application that helps you to raise
your AIBO ERS-310 series into an entertainment robot that is just
right for you.
This chapter provides basic information about AIBO to help you to get
along well with AIBO.
* In this manual, “AIBO Life” ERF-310AW01E is referred to as
“AIBO Life” hereinafter.

10
Checking the supplied accessories
Check to see if you have the following accessories before you play with AIBO.

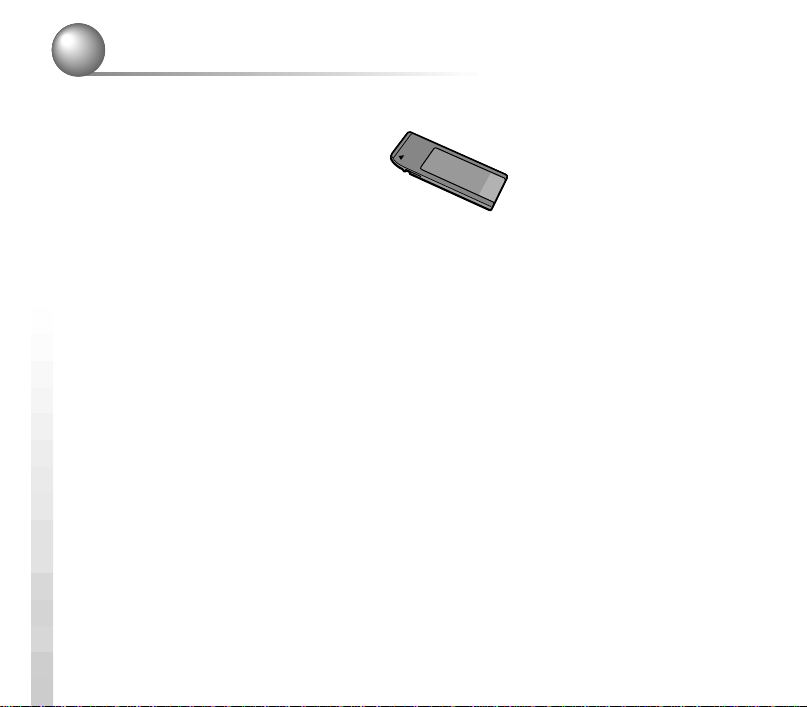

xAIBO-ware “Memory Stick”
xUser’s Guide (this manual)
xQuick Guide
xEnd-User License Agreement

11
Getting Started
About “AIBO Life”
About AIBO-ware
AIBO-ware is software that can be executed with AIBO. AIBO by itself is just a
“physical body,” and is capable of only the most basic movements.
For more complicated operations, you must use an AIBO-ware “Memory Stick.”
AIBO-ware gives AIBO its capabilities and character, so you might think of it as
AIBO’s “mind.” By combining AIBO with different AIBO-ware and peripheral
devices, you can enjoy AIBO in a variety of ways.
“AIBO Life” is AIBO-ware
that allows AIBO to move
around autonomously and
helps you to raise AIBO into
the kind of companion that is
best for you.

12
AIBO’s autonomous activities
AIBO comes with all the necessary hardware, such as a brain, sensors, motors, and
power supply, to move about on its own. AIBO Life has a set of emotions,
instincts, learning ability and the capacity to mature. ThroughAIBO Life,AIBO
can act according to its own judgments, all the while expressing emotions,
collecting information from you and its environment, learning and maturing.
With AIBO Life, AIBO will let you know by gesture and sound when it wants you
to play with it, and may even call your name. On the other hand, when something
catches AIBO’s attention, it may ignore you even when you call its name. Your
understanding of AIBO’s autonomous character helps you to enjoy playing with
and living with AIBO.

13
Getting Started
AIBO is a robot. Why does it have to be
educated?
The reason is that AIBO was born to live together with people. AIBO is capable of
autonomous action based on external information from its various sensors and from
internal motivations (i.e. its emotions and instincts.) Nevertheless, AIBO will not
be too self-centered and will always entertain you.
AIBO Life gives AIBO the capacity to learn and mature so that it can react to your
actions and its surroundings. For example, if you talk and play with AIBO a lot,
AIBO will grow to be sociable. If you prefer to simply watch AIBO, AIBO will
become independent and wander around as it waits for you to play with it.
In short, AIBO Life makes it possible for AIBO to adjust to you as it lives with you
and matures.
We hopeAIBO will become a good friend.

14

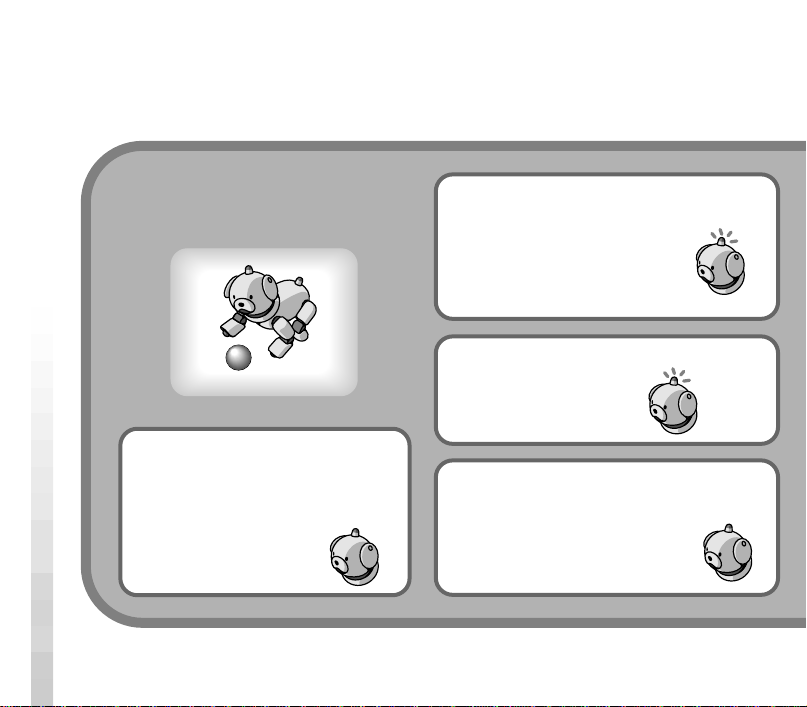

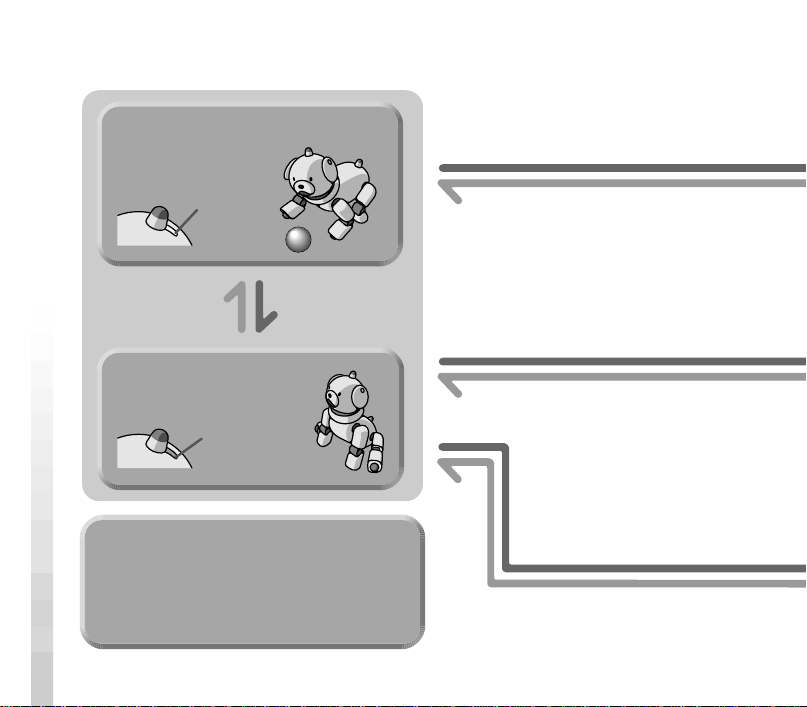

Modes and conditions of AIBO
Autonomous mode
Pause mode
(Inactive condition)
Gently shake the body of AIBO.
Something is caught any of AIBO’s
joints.
AIBO moves around
on its own: basic
mode of AIBO.
Press the pause button located
on the back of AIBO.AIBO is
turned off.
Lift AIBO up or push its tail switch in the back
direction for 3 seconds while lifting it up.
Place AIBO on the floor or push the tail
switch in the front direction for 3 seconds
after placing AIBO on the floor.
Push the tail switch in the front direction for 3
seconds.
Say
“Good night” to AIBO, or turn around the
tail switch three times (in any direction).
The mode
indicator
goes off.
The mode
indicator
lights.
Push the tail switch
in the right
direction for 3
seconds.
Push the tail switch
in the front
direction for 3
seconds.
Rest mode
AIBO stops moving around.
The back
light turns
off.

15
Getting Started
Station mode
Jam condition
Station
Sleep mode
When you lift up
AIBO, it becomes
still and quiet in this
mode.
AIBO sleeps in this mode.
The joints of AIBO
become loose when
something gets caught
in them.
Pick-up condition AIBO plays even on the Station.
The mode
indicator
lights.
The back light flashes
in green slowly. The mode
indicator
goes off.
The mode
indicator
flashes.
Place AIBO on
the Station.
Place AIBO on
the Station.
Move AIBO
from the
Station.
Stand (supplied
accessory) Energy Station
Core (optional
accessory)
The mode
indicator
goes off.
+
Tail switch
Rest mode
Pick-up condition (when lifted up)
Autonomous mode

16
Playing with AIBO in Autonomous mode/
Station mode
When AIBO is in Autonomous mode, it can play with you or another AIBO.
You can teach AIBO its
name or your name (see
page 64).
Teaching the name
AIBO responds to another AIBO
when talked from it, and then
tries to communicate with it (see
page 53).
You can teach AIBO
a desired action (see
page 66).
Training
You can train AIBO so that it acts
as you instruct. After training,
you can name the instructed
action and register it also (see
page 70).
What can AIBO do in
Autonomous mode?
Teaching AIBO a desired
action (action registration)
Communication
between AIBO The horn light slowly
flashes light blue.
The horn
light
flashes
blue.
The horn
light lights up
green.
The horn light
lights up orange.

17
Getting Started
When you give the
appropriate signal to
AIBO with your voice,
AIBO snaps a picture
for you (see page 76).
AIBO can sing a song or emit
various sounds (see page 80).
Taking a photo The horn
light flashes
blue.
Playing with the
voice/sound of AIBO
What can AIBO do in
Station mode?
You can enjoy playing with the voice/
sound of AIBO (see page 80) in Rest
mode or Pick-up condition also.

18
Autonomous mode
This is AIBO’s basic mode when “AIBO Life” is loaded to it. When you start up
AIBO Life, AIBO enters Autonomous mode first.
AIBO obtains information on its surroundings through its camera/microphone/
sensors, and carries out various autonomous actions based on its instincts or
emotion as follows.
• When you talk to AIBO, it stops moving and listens to you.
• When you leave AIBO without talking to it, it looks around tediously or takes an
exercise slowly.
• AIBO dozes off to sleep when it feels tired.
• AIBO will explore the room.
• AIBO reacts keen to a pink ball or moving objects: for example, looks at it from
a distance or tries to touch it.
• AIBO responds to another AIBO when spoken to, and tries to communicate with
it.
See page 16 for what kind of games you can do with AIBO in Autonomous mode.
Notes
• Do not put AIBO on an unstable surface where it might fall or be subject to vibrations.
• Do not place anything near AIBO that may hinder it in its movements.

19
Getting Started
Rest mode
When you play with AIBO in a small place, or when you do
not want AIBO to move around, put AIBO into this mode. In
this mode, AIBO stops walking around.
Push the tail switch in the right direction for 3 seconds. The
mode indicator lights and AIBO lies down or sits down, and
then carries out autonomous actions. However, AIBO cannot
carry out the following actions:
• Taking a photo
• Learning a name
• Learning an action
• Training
• Communicating with another AIBO
If you want to use any of the functions above, push the tail switch in the front
direction for 3 seconds to enter AIBO to Autonomous mode.
Notes
• Do not put AIBO on an unstable surface where it might fall or be subject to vibrations.
• Do not place anything near AIBO that may hinder it in its movements.

20
Sleep mode
In Sleep mode, AIBO sleeps, and the back light slowly
flashes green. See page 35 for details of Sleep mode.
Note
Do not put AIBO on the stand when it is in Sleep mode. When
it wakes up and starts moving on its own, it may fall down or
may be damaged.
Jam condition
If something gets jammed in any of the joints of AIBO, AIBO changes to this
condition and all of its joints become loose. This mode is provided to protect you
from your fingers being caught between the joints of AIBO, then injured. The
mode indicator flashes. To returnAIBO to Autonomous mode, place it on the floor
and push the tail switch in the forward direction for 3 seconds.
