Sony STR-KS1000P User manual

SERVICE MANUAL
MULTI CHANNEL AV RECEIVER
AEP Model
UK Model
SPECIFICATIONS
STR-KS1000P
•STR-KS1000P is the receiver section in HT-SS1000P/HTP-36SS.
Ver. 1.0 2006.04
9-887-184-01
2006D05-1
© 2006.04
Sony Corporation
Home Audio Division
Published by SonyTechno Create Corporation
Thisreceiverincorpoates Dolby* Digital and ProLogic Suround and the DTS** Digital
Suround System.
*Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D
symbol are trademarks of Dolby Laboratories.
** “DTS” and ?DTS Digital Surround? are registerd trademarks of Digital Theater Systems, Inc.
Amplifier section
Power Output1)
Stereo mode (rated) 70 W + 70 W
(4 ohms at 1 kHz, 0.7%)
Music power output (reference)
FRONT2): 143 W/ch
(With SS-MSP1000)
CENTER2): 143 W
(With SS-CNP1000)
SUR2): 143 W/ch
(With SS-SRP1000)
SUBWOOFER2): 285 W
(With SS-WP1000)
1) Measured under the following conditions:
Area code Power requirements
CEL, CEK 230 V AC, 50 Hz
2) Depending on the sound field settings and the source,
there may be no sound output.
Inputs (Analog)
SA-CD/CD, Sensitivity: 1 V
VIDEO 1, 2 Impedance: 50 kohms
Inputs (Digital)
DVD (Coaxial) Sensitivity: –
Impedance: 75 ohms
VIDEO 2, SA-CD/ Sensitivity: –
CD (Optical) Impedance: –
Reproduction frequency range:
28 – 20,000 Hz
Tone
Gain levels ±6 dB, 1 dB step
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Models of area code CEL, CEK
With 9-kHz tuning scale:
531 – 1,602 kHz
Antenna Loop antenna
Intermediate frequency 450 kHz
General
Power requirements
Area code Power requirements
CEL, CEK 230 VAC, 50/60 Hz
Power consumption
Area code Power consumption
CEL, CEK 110 W
Power consumption (during standby mode)
0.3 W
Dimensions (w/h/d) (Approx.)
430 ×64 ×338 mm
including projecting parts
and controls
Mass (Approx.) 3.5 kg
Design and specifications are subject to change without
notice.

2
STR-KS1000P
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
TABLE OF CONTENTS
1. GENERAL ................................................................... 3
2. DISASSEMBLY
2-1. Disassembly Flow ........................................................... 5
2-2. Case (SL06) ..................................................................... 5

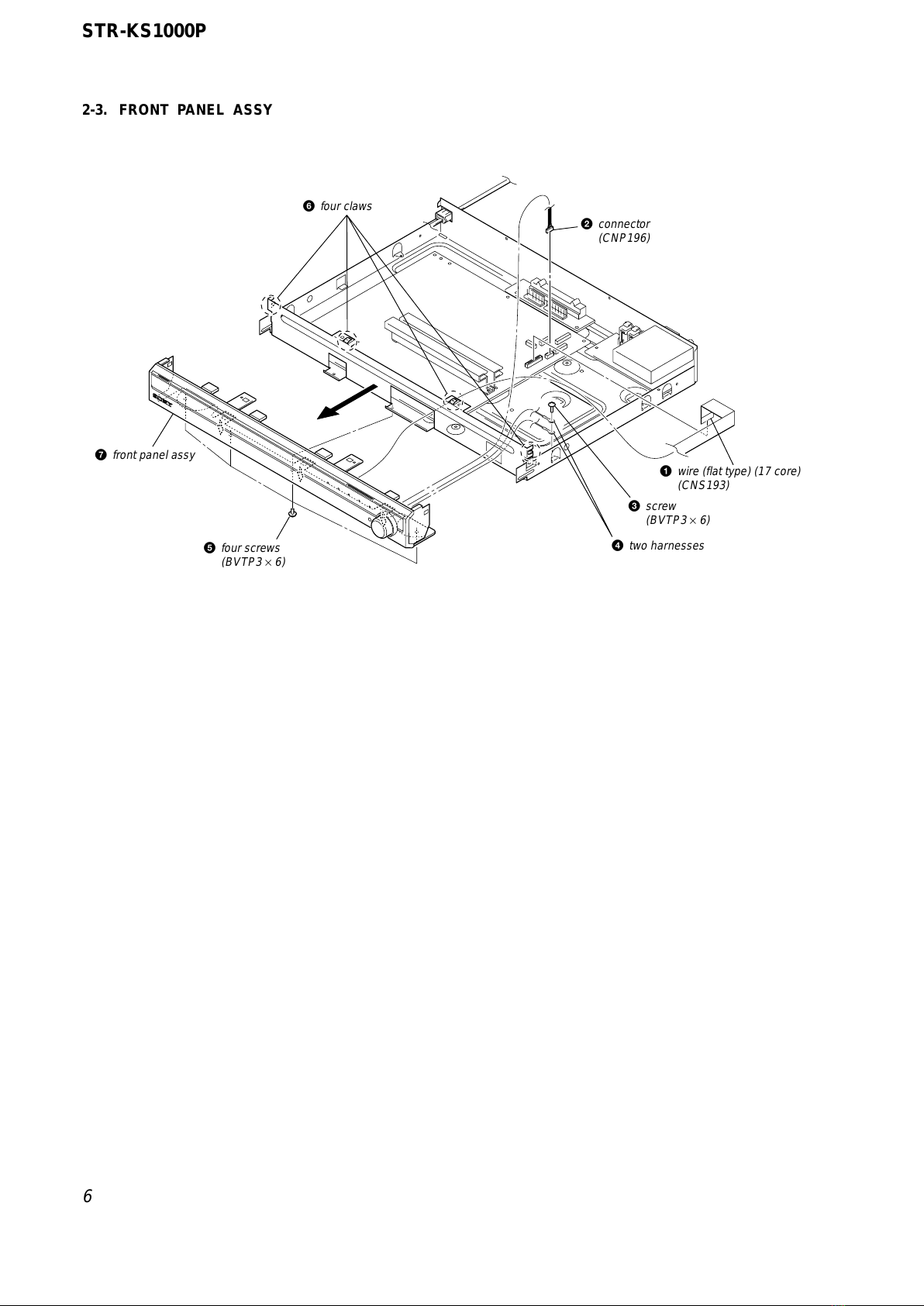

2-3. Front Panel Assy.............................................................. 6

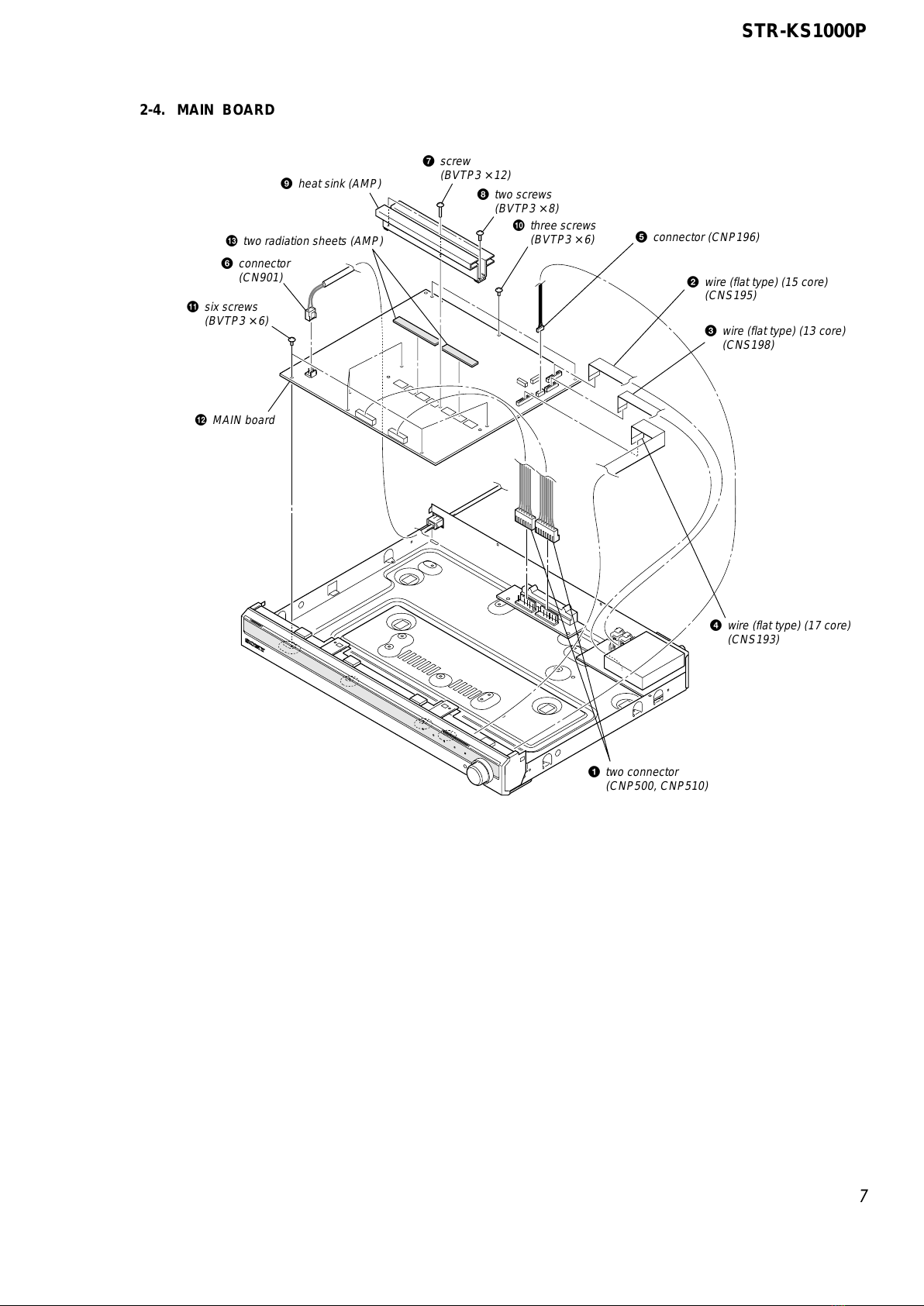

2-4. MAIN Board.................................................................... 7
3. TEST MODE.............................................................. 8
4. DIAGRAMS

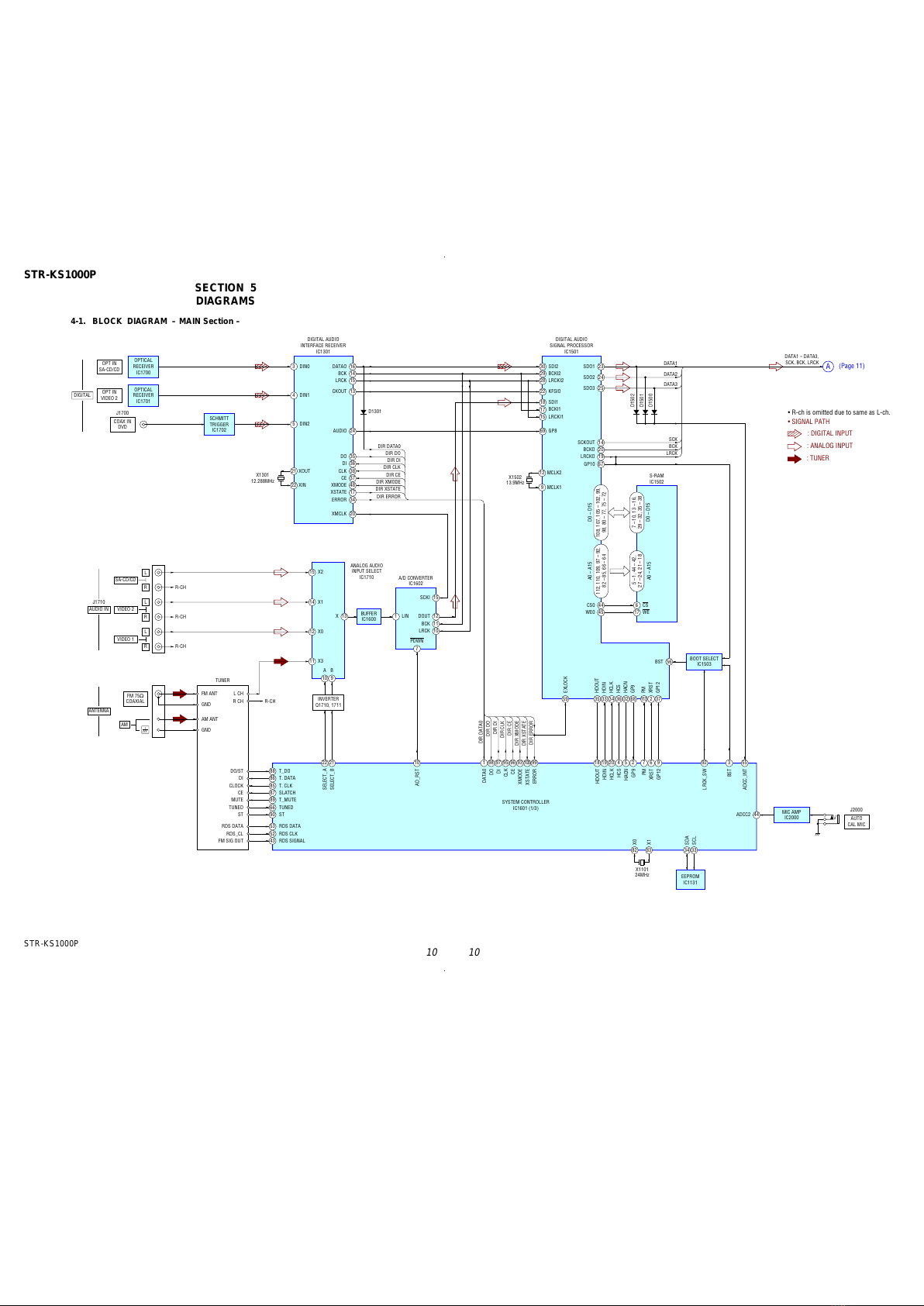

4-1. Block Diagram – MAIN Section –.................................. 10

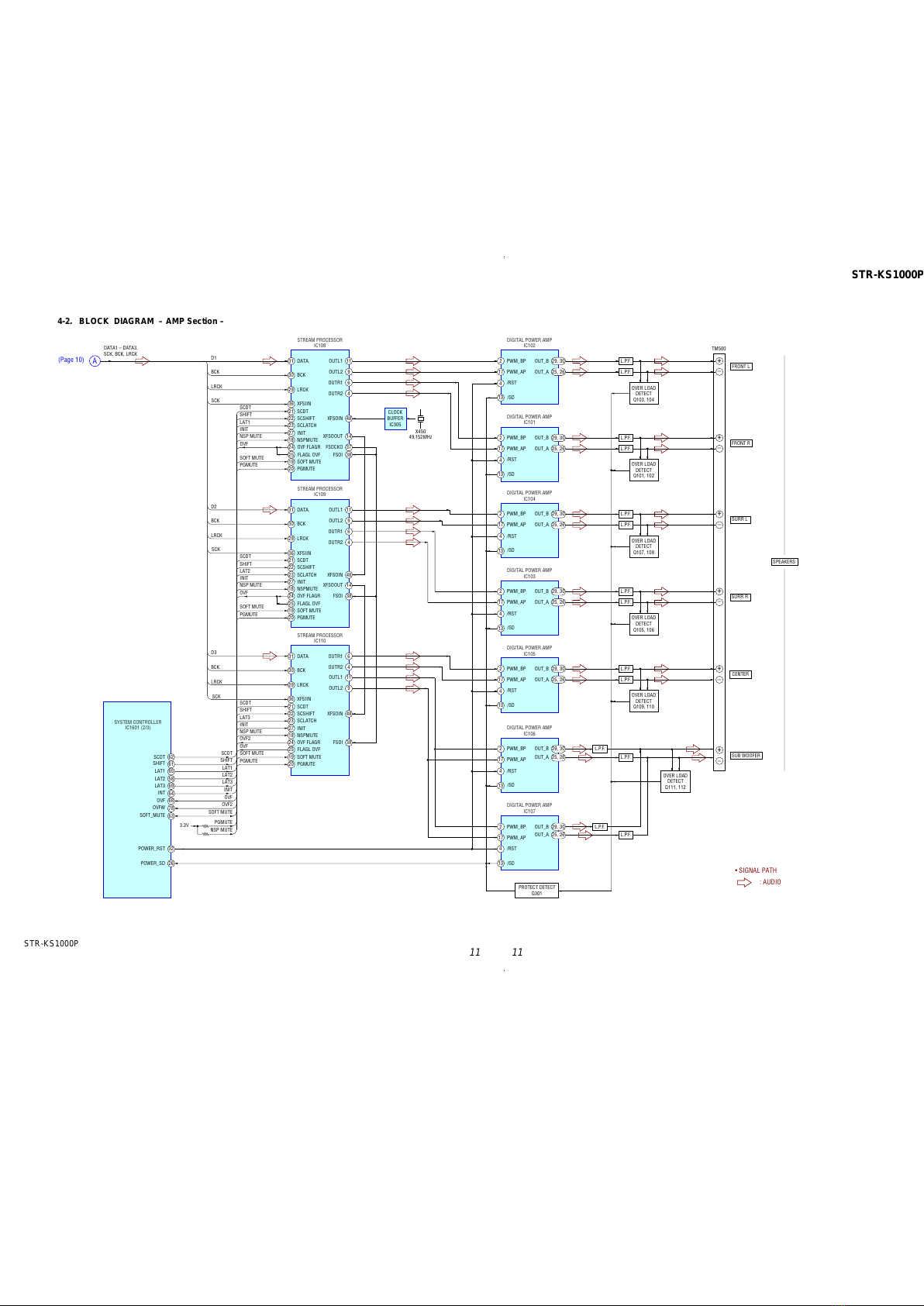

4-2. Block Diagram – AMP Section – .................................... 11
4-3. Block Diagram
– PANEL, POWER SUPPLY Section – .......................... 12

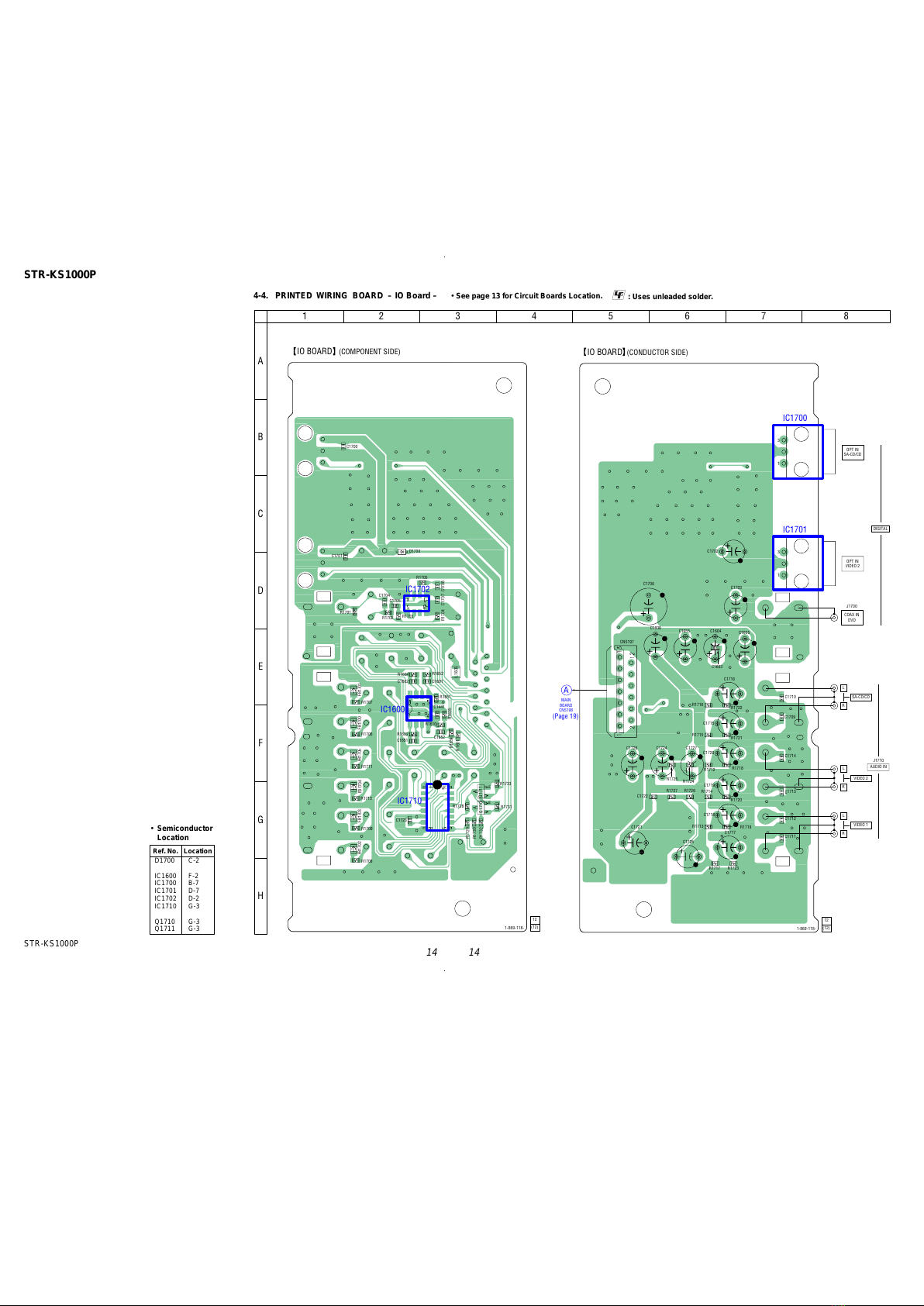

4-4. Printed Wiring Board – IO Board –................................. 14
4-5. Printed Wiring Board – ADCC Board – .......................... 15
4-6. Schematic Diagram – IO Section – ................................. 16
4-7. Printed Wiring Board
– MAIN Board (Component Side) – ............................... 18
4-8. Printed Wiring Board
– MAIN Board (Conductor Side) – ................................. 19
4-9. Printed Wiring Board – SPEAKER Board – ................... 20
4-10. Schematic Diagram – MAIN Section (1/7) – .................. 21
4-11. Schematic Diagram – MAIN Section (2/7) – .................. 22
4-12. Schematic Diagram – MAIN Section (3/7) – .................. 23
4-13. Schematic Diagram – MAIN Section (4/7) – .................. 24
4-14. Schematic Diagram – MAIN Section (5/7) – .................. 25
4-15. Schematic Diagram – MAIN Section (6/7) – .................. 26
4-16. Schematic Diagram – MAIN Section (7/7) – .................. 27
4-17. Printed Wiring Boards – DISPLAY Section –................. 28
4-18. Schematic Diagram – DISPLAY Section – ..................... 29
5. EXPLODED VIEWS
5-1. Overall Section ................................................................ 38
5-2. MAIN Section ................................................................. 39
6. ELECTRICAL PARTS LIST................................ 40
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

3
STR-KS1000P
SECTION 1
GENERAL This section is extracted from
instruction manual.
LOCATION OF CONTROLS
Description and location of parts
Front panel
Getting Started
Receiver
VIDEO 1 VIDEO 2 DVD SA-CD/CD TUNER
PRESETTUNING SOUND FIELD MUTING
AUTO CAL MIC
MASTERVOLUME
1 52 4 63
q
;
9 8 7
INPUT SELECTOR
?/1
Name Function
A?/1Press to turn the receiver
on or off.
BDisplay The current status of the
selected component or a
list of selectable items
appears here.
CInput lamps The lamp of the chosen
input source lights up.
DRemote sensor Receives signals from
remote commander.
EINPUT
SELECTOR Press to select the input source to playback.
FMUTING Press to mute the sound.
Name Function
GMASTER
VOLUME Turn to adjust the volume level of all speakers at the
same time.
HAUTO CAL MIC
jack Connects to the supplied ECM-AC2 optimizer
microphone for the Auto
Calibrationfunction.
ISOUND FIELD
+/– Press to select a sound field.
JPRESETTUNING
+/– Press to select a preset station.
About the indicators on the display
LCR
SL SR
SW
D.RANGERDS
ST MONO
MEMORY
S
SLEEP
DIGITAL
DTS
PL
LFE
OPT COAX
21 3 4 5 6
789q
;
q
a
q
s
q
d
Name Function
ALights up when the disc being
played back contains an LFE
(Low Frequency Effect) channel
and the LFE channel signal is
actually being reproduced.
BSLEEP Lights up when the sleep timer is
activated.
CPlayback
channel
indicators
L
R
C
SL
SR
S
Theletters(L,C,R,etc.)indicate
the channels being played back.
Theboxes around the letters vary
to show how the receiver
downmixes the source sound.
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Sound Field: A.F.D. AUTO
D;DIGITAL Lights up when Dolby Digital
signals are input.
Note
When playing a Dolby Digital
formatdisc,be sure thatyou have
madedigitalconnections andthe
audio input mode for VIDEO 2
input or SA-CD/CD input is not
set to “V2 ANLG” or “CD
ANLG”.
LFE
LCR
SL SR
SW
Name Function
EPreset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations.
FD.RANGE Lights up when dynamic range
compression is activated.
GTuner
indicators Lights up when using the receiver to tune in radio stations,
etc.
HMEMORY Lights up when a memory
function, such as Preset Memory,
etc., is activated.
ICOAX Lights up when the DVD input is
selected.
JOPT Lights up when
–audioinput mode for VIDEO 2
input is set to “V2 AUTO” and
the source signal is a digital
signal being input through
VIDEO 2 OPT IN jack.
–audio input mode for SA-CD/
CD input is set to “CD AUTO”
and the source signal is a
digital signal being input
through SA-CD/CD OPT IN
jack.
–audioinput mode for VIDEO 2
input or SA-CD/CD input is set
to “V2 OPT” or “CD OPT”.
Name Function
K;PL(II)Lights up when the receiver
applies Pro Logic processing to 2
channel signalsin order tooutput
the center and surround channel
signals. “; PLII” lights up
when the Pro Logic II Movie/
Music decoder is activated.
Note
Dolby Pro Logic and Dolby Pro
Logic II decoding do not
function for DTS format signals.
LDTS Lights up when DTS signals are
input.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and the audio
input mode for VIDEO 2 input
or SA-CD/CD input is not set to
“V2 ANLG” or “CD ANLG”.
MSW Lights up when the audio signal
is output from the
SUBWOOFER jack.
Rear panel
U
ANTENNA
AM
DVD
COAX IN
OPT IN
SA-CD/CD
OPT IN
VIDEO 2
DIGITAL
SA-CD/CD
AUDIO IN
VIDEO 2
AUDIO IN
VIDEO 1
AUDIO IN
L
R
L
R
FRONT R
– +
FRONT L
– + – + – + – + – +
SUR R SURL CENTER SUBWOOFER
1 2
4 3
AANTENNA section
FM
ANTENNA Connects to the FM wire antenna
supplied with this
receiver.
AM
ANTENNA Connects to the AM loop antenna
supplied with this
receiver.
BAUDIO INPUT section
AUDIO IN
jack Connects to a satellite tuner, CD
player, etc.
CSPEAKER section
Connects to speakers.
The following table shows
the respective color for the
speaker jacks.
White(L)
Red (R)
Speaker jack Color
FRONT R
(Front right speaker) Red
FRONT L
(Front left speaker) White
SUR R
(Surround right speaker) Grey
SUR L
(Surround left speaker) Blue
CENTER
(Center speaker) Green
SUBWOOFER
(Sub woofer) Purple
DDIGITAL INPUT section
OPTICAL
IN jack Connects to a DVD player, etc. The COAX
IN jack provides a better
quality of loud sound.
COAXIAL
IN jack

4
STR-KS1000P
a)The number 5,MASTER VOL +, TV VOL +, and
Hbuttons havetactile dots.Use thetactiledots as
references when operating the receiver.
Notes
•Some functions explained in this section may not
work depending on the model.
•The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
Name Function
RControl
buttons After pressing AMP MENU (D), DVD MENU (J), or
MENU(N),pressthecontrol
button V,v,Bor bto select
the settings. When you press
DVDMENUor MENU, press
the control button to enter the
selection.
SDISPLAY Press to
–selectinformationdisplayed
on the receiver’sdisplay (for
TUNER input only).
–selectinformationdisplayed
on the TV screen of the
VCR, satellite tuner, CD
player, DVD player, or MD
deck.
T-/-- Press -/-- and TV (P) at the
same time to select the
channel entry mode, either
one or two digits of the TV.
>10/xPress to select
–track numbers over 10 of the
VCR, satellite tuner, CD
player or MD deck.
–channel numbers of the
Digital CATV terminal.
CLEAR Press to
–clear a mistake when you
press the incorrect numeric
button.
–returnto continuous
playback, etc. of thesatellite
tuner or DVD player.
UNumeric
buttons
(number 5a))
Press to
–preset/tune to preset
stations.
–select track numbers of the
CD player, DVD player or
MD deck. Press 0/10 to
select track number 10.
–select channel numbers of
the VCR or satellite tuner.
Press the numeric buttons and
TV (P) at the same time to
select the TV channels.
V2CH Press to select 2CH STEREO
mode.
WA.F.D. Press to select A.F.D. mode.
XAUTO CAL Press to activate the Auto
Calibration function.
Name Function
YTV/VIDEO Press TV/VIDEO and TV
(P) at the same timeto select
the input signal (TV input or
video input).
SLEEP Press to activate the Sleep
Timer function and the
duration which the receiver
turns off automatically.
You can operate the receiver with the supplied
remote. You can also use the remote to control
the Sony audio/video components that the
remote is assigned to operate.
RM-AAU006
Remote commander
AV ?/1
(on/standby) switch
TV ?/1,?/1
( on/standby) switch
123
46
78
0/10 ENTER
9
SYSTEM STANDBY
TV/VIDEO
SLEEP AUTO CAL AV
?/1
VIDEO 1 VIDEO 2 DVD SA-CD/CD
2CH A.F.D.
RETURN/EXIT
TV CH –
PRESET – TV CH + PRESET +
TUNING –
TV
TUNING +
REPLAY ADVANCE
MENU
MOVIE MUSIC
MEMORY DVD MENU
CLEAR
TOOLSDISPLAY MUTING
TV VOL
MASTER VOL
FM MODE
D.TUNING
D.SKIP
DUAL MONO
TUNER AMP MENU
TV ?/1
?/1
>10/
-
F
Gg
f
.
HmM
Xx
< <
>
5
1
3
2
wf
wg
5
6
7
8
q;
9
qs
qd
qf
qg
qj
qk
qh
ql qa
4
w;
wa
ws
wd
Name Function
AAV ?/1Press to turn on or off the
Sonyaudio/videocomponents
that the remote is assigned to
operate.
If you press ?/1(B) at the
same time, it will turn off the
receiver and other
components (SYSTEM
STANDBY).
Note
The function of the AV ?/1
switch changes automatically
each time you press the input
buttons (C).
BTV ?/1Press TV ?/1and TV (P) at
the same time to turn the TV
on or off.
?/1Press to turn thereceiver on or
off.
To turn off all components,
press ?/1and AV ?/1(A) at
the same time (SYSTEM
STANDBY).
CInput buttons Press one of the buttons to
select the component you
want to use. When you press
any of the input buttons, the
receiver turns on. The buttons
are factory assigned to control
Sony components as follows.
You can change the button
assignments following the
steps in “Changing button
assignments”.
DAMP MENU Press to display the menu of
the receiver. Then, use the
control buttons to perform
menu operations.
EMOVIE,
MUSIC Press to select sound fields for movie or music.
Button Assigned Sony
component
VIDEO 1 VCR (VTR mode 3)
VIDEO 2 VCR (VTR mode 2)
DVDDVD player
SA-CD/CD Super Audio CD/CD
player
TUNER Built-in tuner
FDUAL MONO Press to select the language
you want during digital
broadcast.
GFM MODE Press to select FM monaural
or stereo reception.
HD.TUNING Press to enter direct tuning
mode.
D.SKIP Press to skip disc of the CD
player or DVD player (multi-
disc changer only).
IENTER Press to enter the value after
selecting a channel, disc or
track using the numeric
buttons.
MEMORY Press to store a station.
JDVD MENU Press to display the menu of
the DVD player on the TV
screen. Then, use the control
buttons to perform menu
operations.
KTOOLS Press to display options
applicable to the entire disc
(e.g. disc protection), recorder
(e.g. audio settings during
recording), or multiple items
on a list menu (e.g. erasing
multiple titles).
LMUTING Press to mute the sound.
MTV VOL
+a)/– Press TV VOL +/– and TV
(P)at thesame time to adjust
the TV volume level.
MASTER
VOL +a)/– Press to adjust the volume
level of all speakers at the
same time.
NMENU Press to display the menus of
the VCR, DVD player, or
satellite tuner on the TV
screen. Then, use the control
buttons to perform menu
operations.
Name Function Name Function
O./>Press to skip tracks of the CD
player, DVD player, MD
deck, or tape deck.
REPLAY /
ADVANCE Press to replay the previous scene or fast forward the
current scene of the VCR or
DVD player.
m/MPress to
–searchtracks in the forward/
backward direction of the
DVD player.
–fast forward/rewind of the
VCR, CD player, MD deck,
or tape deck.
Ha) Press to start playback of the
VCR,CDplayer,DVDplayer,
MD deck, or tape deck.
XPress to pause playback or
recording of the VCR, CD
player, DVD player, MD
deck, or tape deck. (Also
starts recording with
components in recording
standby.)
xPress to stop playback of the
VCR,CDplayer,DVDplayer,
MD deck, or tape deck.
TV CH +/– Press TV CH +/– and TV (P)
at the same time to select
preset TV channels.
PRESET +/– Press to select
–preset stations.
–preset channels of the VCR
or satellite tuner.
TUNING +/– Press to scan a station.
PTV To activate the buttons with
orange printing, press TV and
the button with orange
printing simultaneously.
QRETURN/
EXIT OPress to –return to the previous menu.
–exit the menu while the
menu or on-screen guide of
the VCR, DVD player, or
satellite tuner is displayed
on the TV screen.
<
<

STR-KS1000P
5
Note: Follow the disassembly procedure in the numerical order given.
2-2. CASE (SL06)
•This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SECTION 2
DISASSEMBLY
1 two screws
(BVTP3 × 8)
2 two tapping screw
s
2 two tapping screws
3 case (SL06)
3-2. CASE (SL06)
(Page 5)
SET
3-3. FRONT PANEL ASSY
(Page 6) 3-4. MAIN BOARD (Page 7)

STR-KS1000P
6
2-3. FRONT PANEL ASSY
3 screw
(BVTP3
× 6)
5 four screws
(BVTP3
× 6)
7 front panel assy
4 two harnesses
6 four claws
1 wire (flat type) (17 core)
(CNS193)
2 connector
(CNP196)

STR-KS1000P
7
2-4. MAIN BOARD
7 screw
(BVTP3
× 12)
9 heat sink (AMP)
8 two screws
(BVTP3
× 8)
0 three screws
(BVTP3
× 6)
qa six screws
(BVTP3
× 6)
qs MAIN board
1 two connector
(CNP500, CNP510)
2 wire (flat type) (15 core)
(CNS195)
5 connector (CNP196)
3 wire (flat type) (13 core)
(CNS198)
4 wire (flat type) (17 core
)
(CNS193)
6 connector
(CN901)
qd two radiation sheets (AMP)

STR-KS1000P
8
SECTION 3
TEST MODE
FACTORY PRESET MODE
All preset contents are reset to the default setting.
Procedure:
1. While pressing the [SOUND FIELD --] and [PRESET TUNING
+] buttons, press the I/1button to turn on the main power.
2. The message “FACTORY” appears and the present contents
are reset to the default values.
ALL CLEAR MODE
All preset contents are cleared when this mode is activated. Use
this mode before returning the product to clients upon completion
of repair.
Procedure:
1. While pressing the [INPUT SELECTOR] and [PRESET TUNING
+] buttons, press the I/1button to turn on the main power.
2. The message “CLEARED” appears.
FL CHECK MODE
All fluorescent segments are tested. When this test is activated, all
segments turn on at the same time, then each segment turns on one
after another.
Procedure:
1. While pressing the [MUTING] and [PRESET TUNING --] buttons,
press the I/1button to turn on the main power.
2. All segments and all LEDs turn on.
3. Press the [INPUT SELECTOR] button.
4. Half of segments and [VIDEO 1], [SA-CD/CD] LEDs turn on.
5. Press the [INPUT SELECTOR] button once again.
6. Others half of segments and [VIDEO 2], [DVD] LEDs turn on.
7. Press the [INPUT SELECTOR] button once again.
8. All segments and all LEDs turn off.
VERSION MODE
When this mode is used, the model, the destination and the software
version number are displayed.
Procedure:
1. While pressing the [SOUND FIELD +] and [PRESET TUNING --]
buttons, press the I/1button to turn on the main power.
2. The model, the destination and the software version number
appear.
KEY CHECK MODE
This mode is used to check the key.
Procedure:
1. While pressing the[MUTING] and [INPUT SELECTOR] buttons,
press the I/1button to turn on the main power.
2. The message “REST 06” appears.
3. Every pressing of any button other than the I/1button counts
down the buttons. The buttons which are already counted once
are not counted again.
4. When all buttons are pressed, the message “REST 00”appears.
PROTECTOR AUTO OFF MODE
When this mode is used, a protector on state is maintainable.
Procedure:
1. While pressing the [MUTING] and [SOUND FIELD --] buttons,
press the I/1button to turn on the main power.
2. The message “PROT EVER” appears.
SOUND FIELD CLEAR MODE
The preset sound field is cleared when this mode is activated. Use
this mode before returning the product to clients upon completion
of repair.
Procedure:
1. While pressing the [SOUND FIELD +] button, press the I/1
button to turn on the main power.
2. The message “SF. CLR.” appears and initialization is
performed.
RDS AUTOBETICAL MODE
Procedure:
1. While pressing the [INPUT SELECTOR] button, press the I/1
button to turn on the main power.
2. The message “AUTO-BET” appears and scans and stores all
the FM and FM RDS stations in the broadcast area.
3. When done, the message “FINISH” appears.
VACS OFF MODE
This mode is used to switch off the VACS (Variable Attenuation
Control System).
Procedure:
1. While pressing the [SOUND FIELD --] and [PRESET TUNING --]
buttons, press the I/1button to turn on the main power.
2. The message “VACS OFF” appears and the switch off the
VACS.
TUNER CHECK MODE
Tuner is tested
Procedure:
1. While pressing the [SOUND FIELD +] and [INPUT SELECTOR]
buttons, press the I/1button to turn on the main power.
2. The message “TUN CHK” appears and tuner is tested.
SWAP ALL MODE
Whenthis mode is used, output the audio signal of front L/R channel
to all channel.
Procedure:
1. Whilepressing the[MUTING] and[PRESET TUNING +] buttons,
press the I/1button to turn on the main power.
2. The message “SWP. ALL” appears .
3. Each time [PRESET TUNING +] or [PRESET TUNING --] button
is pressed, output channel is switched.

99
STR-KS1000P
STR-KS1000P

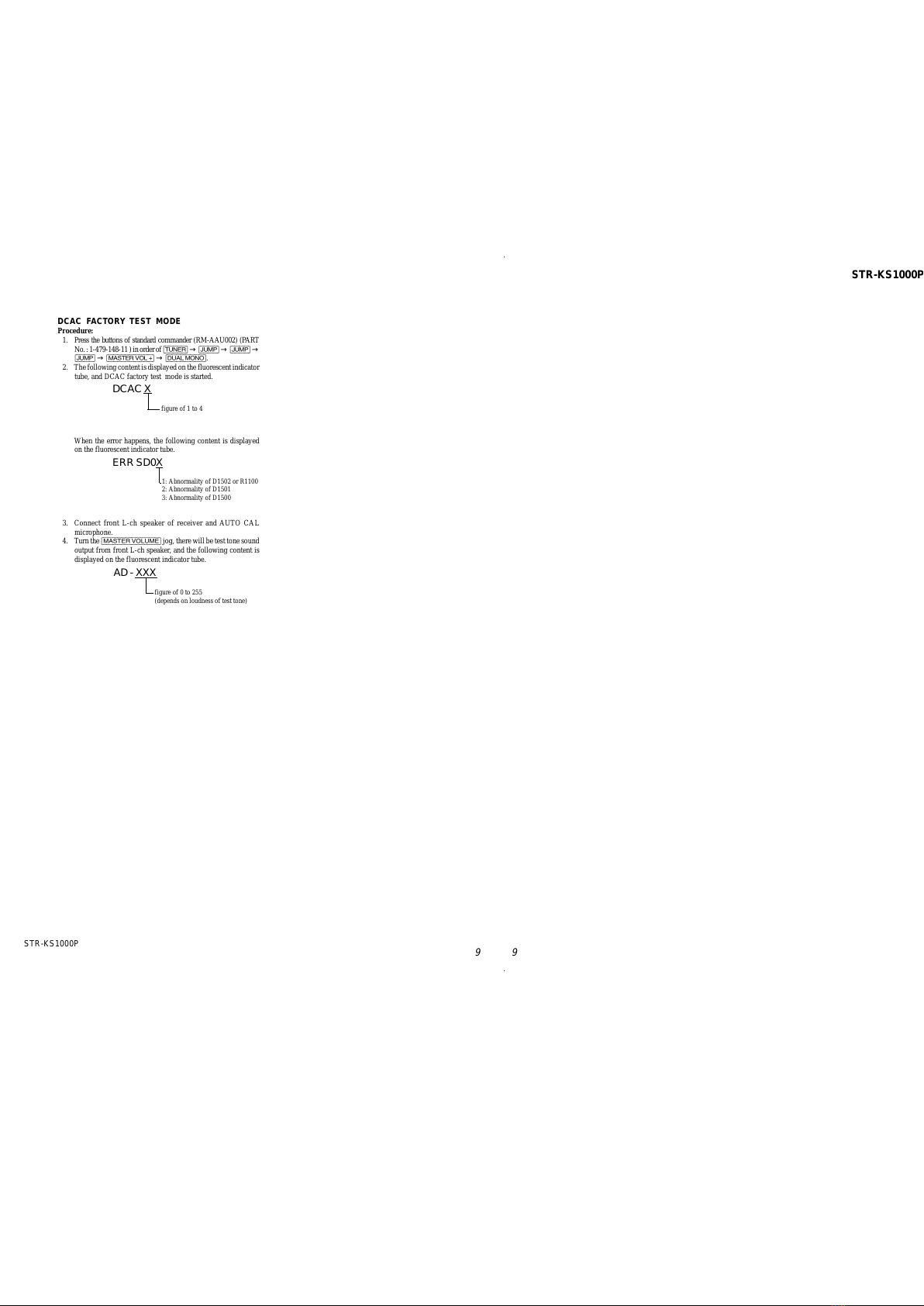

DCAC FACTORY TEST MODE
Procedure:
1. Press the buttons of standard commander (RM-AAU002) (PART
No.: 1-479-148-11 )in orderof [TUNER] →[JUMP] →[JUMP] →
[JUMP] →[MASTER VOL +] →[DUAL MONO].
2. The following content is displayed on the fluorescent indicator
tube, and DCAC factory test mode is started.
When the error happens, the following content is displayed
on the fluorescent indicator tube.
3. Connect front L-ch speaker of receiver and AUTO CAL
microphone.
4. Turn the [MASTER VOLUME] jog, there will be test tone sound
output from front L-ch speaker, and the following content is
displayed on the fluorescent indicator tube.
DCAC X
figure of 1 to 4
ERR SD0X
1: Abnormality of D1502 or R1100
2: Abnormality of D1501
3: Abnormality of D1500
AD - XXX
figure of 0 to 255
(depends on loudness of test tone)

1010
STR-KS1000P
STR-KS1000P
4-1. BLOCK DIAGRAM – MAIN Section –
BOOT SELECT
IC1503
INVERTER
Q1710, 1711
BUFFER
IC1600
EEPROM
IC1131
SYSTEM CONTROLLER
IC1601 (1/3)
OPTICAL
RECEIVER
IC1700
CS
6
10
A
9
B
X2
15
X1
14
X0
L CH
R CH
DO/ST
DI
12
X3
11
LIN
1
SDI2
30
BCKI2
29
LRCKI2
28
KFSIO
22
SDI1
18
BCKI1
17
GP8
69
LRCKI1
15
DIN0
3
DO
98
DI
97
CLK
95
CE
96
ERROR
99 18 19 20 452 769
XMODE
93
XSTATE
100
DATA0
1
AD_RST
10
SELECT_B
21
SELECT_A
22
88
EXLOCK
59
PDWN
7
CS0 44
SDO1 23
SDO2 24
SDO3 25
SCKOUT 14
BCKO 20
LRCKO
DATA1
DATA1 – DATA3,
SCK, BCK, LRCK
DATA2
DATA3
SCK
BCK
LRCK
19
GP10 67
DOUT 12
SCKI 15
BCK 11
LRCK 10
X13
DO 35
DI 36
CLK 38
CE 37
ERROR 34
XMODE 48
XSTATE
DIR DO
HDOUT
35
HDIN
33
HCLK
34
HCS
36
HACN
32
GP9
68
PM
113
XRST
2
GP12
37
DIR DATA0
DIR DI
DIR CLK
DIR CE
DIR ERROR
DIR XMODE
DIR XSTATE
DIR DO
DIR DATA0
DIR DI
DIR CLK
DIR CE
DIR ERROR
DIR XMODE
DIR XSTATE
17
XMCLK 20
DATAO 16
BCK 14
LRCK 15
CKOUT 13
AUDIO 24
OPT IN
SA-CD/CD
AUTO
CAL MIC
OPTICAL
RECEIVER
IC1701
DIN1
4
OPT IN
VIDEO 2
SCHMITT
TRIGGER
IC1702
DIGITAL AUDIO
INTERFACE RECEIVER
IC1301
DIGITAL AUDIO
SIGNAL PROCESSOR
IC1501
DIN2
J1700
5
COAX IN
DVD
FM 75Ω
COAXIAL
86
85
87
89
66
90
WE
17
WE0 45
BST 56
DIGITAL
SA-CD/CD
VIDEO 2AUDIO IN
ANTENNA
J1710
TUNER
VIDEO 1
AM
L
R
L
R
L
R
R-CH
R-CH
R-CH
ANALOG AUDIO
INPUT SELECT
IC1710 A/D CONVERTER
IC1602
S-RAM
IC1502
R-CH
21
22
X1301
12.288MHz
XOUT
XIN 9
12
X1502
13.9MHz MCLK1
MCLK2
FM ANT
GND
AM ANT
GND
CLOCK
CE
MUTE
TUNED
ST
T_DO
T. DATA
T. CLK
SLATCH
T_MUTE
TUNED
ST
53
52
RDS DATA
RDS_CL
RDS DATA
RDS CLK
43
FM SIG OUT RDS SIGNAL
108, 107, 105 – 102, 99,
98, 80 – 77, 75 – 72
7 – 10, 13 – 16,
29 – 32, 35 – 38
112, 110, 109, 97 – 92,
82 – 85, 66 – 64
D0 – D15A0 – A15
5 – 1, 44 – 42,
27 – 24, 21 – 18
D0 – D15
A0 – A15
D1301
D1502 D1501 D1500
MIC AMP
IC2000
J2000
ADCC2 44
HDOUT
HDIN
HCLK
HCS
HACN
GP9
PM
XRST
GP12
92
LRCK_SW
3
BST
55
ADCC_INT
82 83
X0 X1
34
SDA
33
SCL
X1101
24MHz
A
•SIGNAL PATH
: TUNER
: ANALOG INPUT
: DIGITAL INPUT
•R-ch is omitted due to same as L-ch.
(Page 11)
SECTION 5
DIAGRAMS

1111
STR-KS1000P
STR-KS1000P
4-2. BLOCK DIAGRAM – AMP Section –
+
A
DATA1 – DATA3,
SCK, BCK, LRCK
BCK
D1
D2
DIGITAL POWER AMP
IC102
STREAM PROCESSOR
IC108
31 DATA
OVER LOAD
DETECT
Q103, 104
SYSTEM CONTROLLER
IC1601 (2/3)
30 BCK
LRCK 29 LRCK
36 XFSIIN
21 SCDT
SCDT
SCK
BCK
LRCK
SCK
D3
BCK
LRCK
SCK
22 SCSHIFT
SHIFT
23 SCLATCH
LAT1
27 INIT
INIT
18 NSPMUTE
24 OVF FLAGR
25 FLAGL OVF
FLAGL OVF
FLAGL OVF
NSP MUTE
OVF2
X450
49.152MHz
L.P.F.
L.P.F.
OVF
19 SOFT MUTE
20 PGMUTE
SOFT MUTE
PGMUTE
19 SOFT MUTE
20 PGMUTE
SOFT MUTE
PGMUTE
19 SOFT MUTE
20 PGMUTE
SOFT MUTE
PGMUTE
OUTL1 11
OUTL2 9
OUTR1 6
OUTR2 4
XFSOIN 48
FSOCKO 37
XFSOOUT 14
FSOI 38
STREAM PROCESSOR
IC109
31 DATA
30 BCK
29 LRCK
36 XFSIIN
21 SCDT
SCDT
22 SCSHIFT
SHIFT
23 SCLATCH
LAT2
27 INIT
INIT
18 NSPMUTE
24 OVF FLAGR
25
NSP MUTE
OVF
OUTL1 11
OUTL2 9
OUTR1 6
OUTR2 4
XFSOIN 48
XFSOOUT 14
FSOI 38
STREAM PROCESSOR
IC110
31 DATA
30 BCK
29 LRCK
36 XFSIIN
21 SCDT
SCDT
22 SCSHIFT
SHIFT
23 SCLATCH
LAT3
27 INIT
INIT
18 NSPMUTE
24 OVF FLAGR
SCDT
SHIFT
LAT1
LAT2
LAT3
INIT
25
NSP MUTE
OVF
OUTR1 6
OUTR2 4
OUTL1 11
OUTL2 9
XFSOIN 48
FSOI 38
CLOCK
BUFFER
IC305
FRONT L
+
_
_
_
_
_
DIGITAL POWER AMP
IC101
OVER LOAD
DETECT
Q101, 102
L.P.F.
L.P.F.
FRONT R
+
TM500
+
_
OVER LOAD
DETECT
Q107, 108
OVER LOAD
DETECT
Q109, 110
OVER LOAD
DETECT
Q111, 112
L.P.F.
L.P.F.
SURR L
SPEAKERS
SURR R
SUB WOOFER
+
DIGITAL POWER AMP
IC103
OVER LOAD
DETECT
Q105, 106
L.P.F.
L.P.F.
CENTER
+
DIGITAL POWER AMP
IC105
L.P.F.
L.P.F.
DIGITAL POWER AMP
IC104
/SD
DIGITAL POWER AMP
IC107
PWM_BP OUT_B2
PWM_AP
17
13
/RST
4
29, 30
/SD
PWM_BP OUT_B
OUT_A
2
PWM_AP
17
13
/RST
4
29, 30
25, 26
PROTECT DETECT
Q301
SCDT 62
SHIFT 61
LAT1
LAT2
LAT3
65
58
69
INT 64 OVF
OVF 68 OVF2
OVFW 78 SOFT MUTE
PGMUTE
3.3V
SOFT_MUTE 63
POWER_SD 26
POWER_RST 32
DIGITAL POWER AMP
IC106
L.P.F.
L.P.F.
L.P.F.
/SD
PWM_BP OUT_B
OUT_A
2
PWM_AP
17
13
/RST
4
29, 30
25, 26
/SD
PWM_BP OUT_B
OUT_A
2
PWM_AP
17
13
/RST
4
29, 30
25, 26
/SD
PWM_BP OUT_B
OUT_A
2
PWM_AP
17
13
/RST
4
29, 30
25, 26
/SD
PWM_BP OUT_B
OUT_A
2
PWM_AP
17
13
/RST
4
29, 30
25, 26
/SD
PWM_BP OUT_B
OUT_A
2
PWM_AP
17
13
/RST
4
29, 30
25, 26
• SIGNAL PATH
: AUDIO
OUT_A 25, 26 L.P.F.
NSP MUTE
(Page 10)

1212
STR-KS1000P
STR-KS1000P
4-3. BLOCK DIAGRAM – PANEL, POWER SUPPLY Section –
3
POWER CONTROL
IC901
D
(AC IN)
MAIN POWER
TRANSFORMER
T901
SUB POWER
TRANSFORMER
T902
F901
D908
ISOLATOR
PC901
B+ SWITCH
Q901 4VCC
1OCP/SYNC
5FB/OLP
1
POWER CONTROL
IC921
DRAIN
4VCC
6FB/OLP
8STARTUP
RECT
D931
D932
ISOLATOR
PC903
SHUNT
REGULATOR
IC931
D922
D910
D905
D906, 907
POWER ON/OFF
CONTROL
Q943, 947
AMP +30.5V
RECT
D943
E4V
D914, 915
TH901
B+ SWITCH
Q921
ISOLATOR
D904
PC902
DSP +1.8V
+3.3V
REGULATOR
IC943
LINE
FILTER
LF901
LINE
FILTER
LF902
RECT
D901
+1.8V
REGULATOR
IC1034
AMP +1.8V
+1.8V
REGULATOR
IC303
3.3V
RECT
D942
D. DCON +5V
+5V
REGULATOR
IC942
RECT
D941
+12V
REGULATOR
IC941
D +9V
AMP +12V
RECT
D944
B+ SWITCH
Q945
B+ SWITCH
Q946
+5V
REGULATOR
IC1033
+8V
A +5V
SHUNT
REGULATOR
IC951
STBY +3.3V
D1006
RESET SIGNAL
GENERATOR
IC1111
48STOP P. STOP
77RSTX
46P. CONT1
17P-CONT2
SYSTEM CONTROLLER
IC1601 (3/3)
FL
FL
VEE
FOR FLUORESCENT
INDICATOR TUBE
DC/DC CONVERTER
T700
RECT
D700 – 703
OSC
Q801
72 FL_DATA
73 FL_CLK
74 FL_STB
FLUORESCENT
INDICATOR TUBE DRIVER,
LED DRIVER
IC700
7
DIN
8
CLK
9
STB
1DVD LED
2SA-CD LED
3VIDEO2 LED
4VIDEO1 LED
D705 – 708
(PANEL INDICATOR)
FLUORESCENT
INDICATOR TUBE
FL700
SEG1 – SEG16
14 – 29
GRID1 – GRID12
42 – 31
54 SIRCS
ROTARY
ENCODER
RV700
LEVEL SHIFT
IC1651
REMOTE CONTROL
RECEIVER
IC701
MASTER
VOLUME
I/1
38 – 40
A/D0 – A/D2
S701 – 705
56 POWER_KEY
70 VOLB
71 VOLA
67 TUNER_LED
D710 LED DRIVE
Q710
TUNER
S706
ISOLATOR
PC904
AC DETECT
Q961
+9V
REGULATOR
IC1712
RDS +3.3V
+3.3V
REGULATOR
IC1711

1313
STR-KS1000P
STR-KS1000P

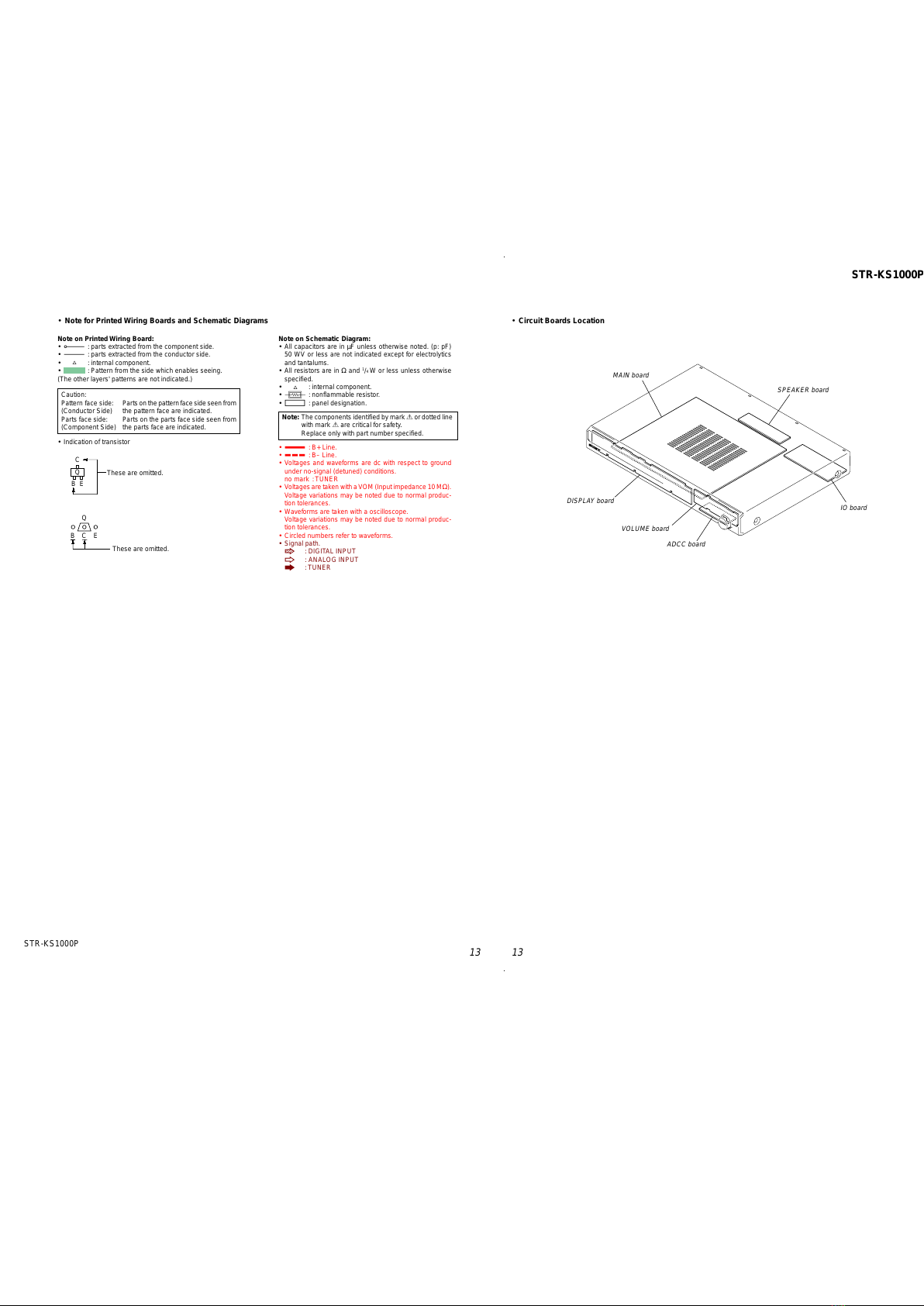

•Note for PrintedWiring Boards and Schematic Diagrams
•Indication of transistor
C
BThese are omitted. E
Q
•Circuit Boards Location
Note on Schematic Diagram:
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
•f: internal component.
•2: nonflammable resistor.
•C: panel designation.
Note: The components identified by mark 0or dotted line
with mark 0are critical for safety.
Replace only with part number specified.
Note on PrintedWiring Board:
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•f: internal component.
•: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Caution:
Pattern face side: Partsonthe patternfaceside seenfrom
(Conductor Side) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Component Side) the parts face are indicated.
•A: B+ Line.
•B: B– Line.
•Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark :TUNER
•Voltagesaretakenwith aVOM(Input impedance10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
•Circled numbers refer to waveforms.
•Signal path.
J: DIGITAL INPUT
F: ANALOG INPUT
f: TUNER
B
These are omitted.
CE
Q
SPEAKER board
ADCC board
VOLUME board
IO board
DISPLAY board
MAIN board

1414
STR-KS1000P
STR-KS1000P
R1604
IC1600
C1652
R1654
R1602
C1651
R1601
IC1702
D1700
FB1700 FB1701
Q1710 Q1711
C1700
C1701
C1705
C1708
C1723
R1702 R1703
R1704
R1705
R1706
R1707
R1728
R1729
R1730
R1731
R1732
R1733
FB1702 FB1703 FB1704 FB1705
R1708
R1709
R1710
R1711
IC1710
C1441
R1605
R1610
C1707
C1704
R1651
C1602 C1601
R1652
L1603
R1701
C1604
IC1700
IC1701
C1702
C1706
C1716
C1721
C1724
C1725
C1726 C1727
C1717
C1718
C1715
C1720
C1719
C1608
C1605
CNS197
C1703
J1700
C1709
C1710
C1722
R1715
R1716
R1721
R1724
R1725
R1726
R1727
C1711
C1712
C1713
C1714
R1717 R1723
R1713
R1720
R1719
R1714
R1712 R1718
C1603
R1722
1-869-118-
12
(12)
IO BOARD (COMPONENT SIDE)
E
E
IO BOARD (CONDUCTOR SIDE)
1-869-118-
12
(12)
L
R
SA-CD/CD
COAX IN
DVD
OPT IN
VIDEO 2
L
R
VIDEO 2
AUDIO IN
L
R
VIDEO 1
J1710
DIGITAL
1
3
OPT IN
SA-CD/CD
1
3
A
MAIN
BOARD
CNS198
C1655
A
B
C
D
E
F
G
H
1 2 3 4 5 6 7 8
4-4. PRINTED WIRING BOARD – IO Board – •See page 13 for Circuit Boards Location. : Uses unleaded solder.
•Semiconductor
Location
Ref. No. Location
D1700 C-2
IC1600 F-2
IC1700 B-7
IC1701 D-7
IC1702 D-2
IC1710 G-3
Q1710 G-3
Q1711 G-3
(Page 19)

1515
STR-KS1000P
STR-KS1000P
R2009
R2012
D864
D863
R2010
C2009
R2011
IC2000
R2002
C2003
R2001
R2003
R2004
C2005
R2005
R2006
C2006
R2008
R2007
C2008
C2015
C2017
C2011
C2010
C2002
C2007
C2004
C2001
J2000
BR1
BR2
CNP2000
C2016
R2013
R2014
R2015
ADCC BOARD (COMPONENT SIDE)
1-869-116-
12
(12)
ADCC BOARD (CONDUCTOR SIDE)
1-869-116-
12
(12)
1
4
(CHASSIS)
(CHASSIS)
(CHASSIS)
B
MAIN
BOARD
CNP196
AUTO
CAL MIC
A
B
C
D
E
1 2 3 4 5
4-5. PRINTED WIRING BOARD – ADCC Board – •See page 13 for Circuit Boards Location. :Uses unleaded solder.
(Page 19)

1616
STR-KS1000P
STR-KS1000P
(Page 21)
4-6. SCHEMATIC DIAGRAM – IO Section – •See page 30 for IC Block Diagrams.
L1603
C1601
C1605
C1655
C1725
C1727
C1608
R1712
R1713
R1714
R1715
R1716
R1717
R1718
R1719
R1720
R1721
R1722
R1723
FB1704
FB1705
R1605
C1652
C1651R1602
R1654
R1610
C1603C1604
R1652
R1604
C1602
R1601C1441
R1731
C1726
R1727
R1726
R1733
Q1711
R1730
R1729
R1728
IC1710
R1724
R1725 C1723
C1724
R1651
C1722
C1721
C1715
C1716
C1717
C1718
C1719
C1720R1711
R1710
R1709
R1708
R1707
R1706
FB1700
FB1701
FB1703
FB1702
C1709
C1711
C1710
C1712
C1713
C1714
D1700
C1707 C1708
C1702
IC1702
C1705R1703
R1704
R1702
R1705
C1703
C1704
C1700
C1701
R1732
CNS197
IC1600
C1706
J1700
Q1710
J1710
R1701
IC2000
CNP2001
R2003
R2002
R2009
R2005
R2010
R2008 R2011
R2004
R2006
R2007
R2012
R2013
R2014
R2015
R2016 C2003 C2002
C2008
C2005
C2012
C2011
J2001
C2004
C2018
C2010
C2009
C2006
C2007
C2016
C2017
D864
D865
IC1700
IC1701
220p
10
50V
10
50V
10 50V
10 50V
10
50V
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
4.7k
220p
220p470
10k
4.7k
0.1100
16V
10k
470
220p
10k0.0033
10k
100
16V
10k
10k
10k
DTC124EKA-T146
10k
100
100
MC14052 BD
R2
10k
10k 0.1
100
16V
10k
0.1
100
16V
10 50V
10 50V
10 50V
10 50V
10 50V
10 50V1k
1k
1k
1k
1k
1k100p
100p
100p
100p
100p
100p
1SS355TE-17
0.1 47p
10
50V
TC7WU04F
(TE12R)
1p22k
560k
1k
100
22
50V
0.1
0.1
0.1
10k
13P
NJM4565M(TE2)
1000
6.3V
1P
DTC124EKA-T146
6P
75
NJM4565TE
4P
4.7k
4.7k
10k
1k
10k
1k 560k
10k
1M
10k
18k
22k
4.7k
2.2k
2.2k 47
16V 47
16V
1
50V 1
50V
0.47
50V
1
50V
0.1
0.1
56p
0.033
33p
0.033
100p
0.1
ISS355TE-17
ISS355TE-17
TORX147L
TORX147L
OPT1
OPT2
3.3V
COAX
DGND
9V
L_IN
R_IN
AGND
TUNER_L
TUNER_R
IO_A
IO_B
BUFFER
GND
VCC
Q1710,1711
INVERTER
ANALOG INPUT SELECT
GND
VCC
OPTICAL RECEIVER
OPTICAL RECEIVER
OPT IN
SA-CD/CD
OPT IN
VIDEO 2
COAX IN
DVD
DIGITAL
SA-CD/CD
VIDEO 2
VIDEO 1
AUDIO IN
L
R
L
R
L
R
ADCC2
9V
AGND
NC
VCC
GND
MIC AMP
AUTO
CAL MIC (CHASSIS)
SCHMIT TRIGGER
10µH
(Page 23)

1717
STR-KS1000P
STR-KS1000P

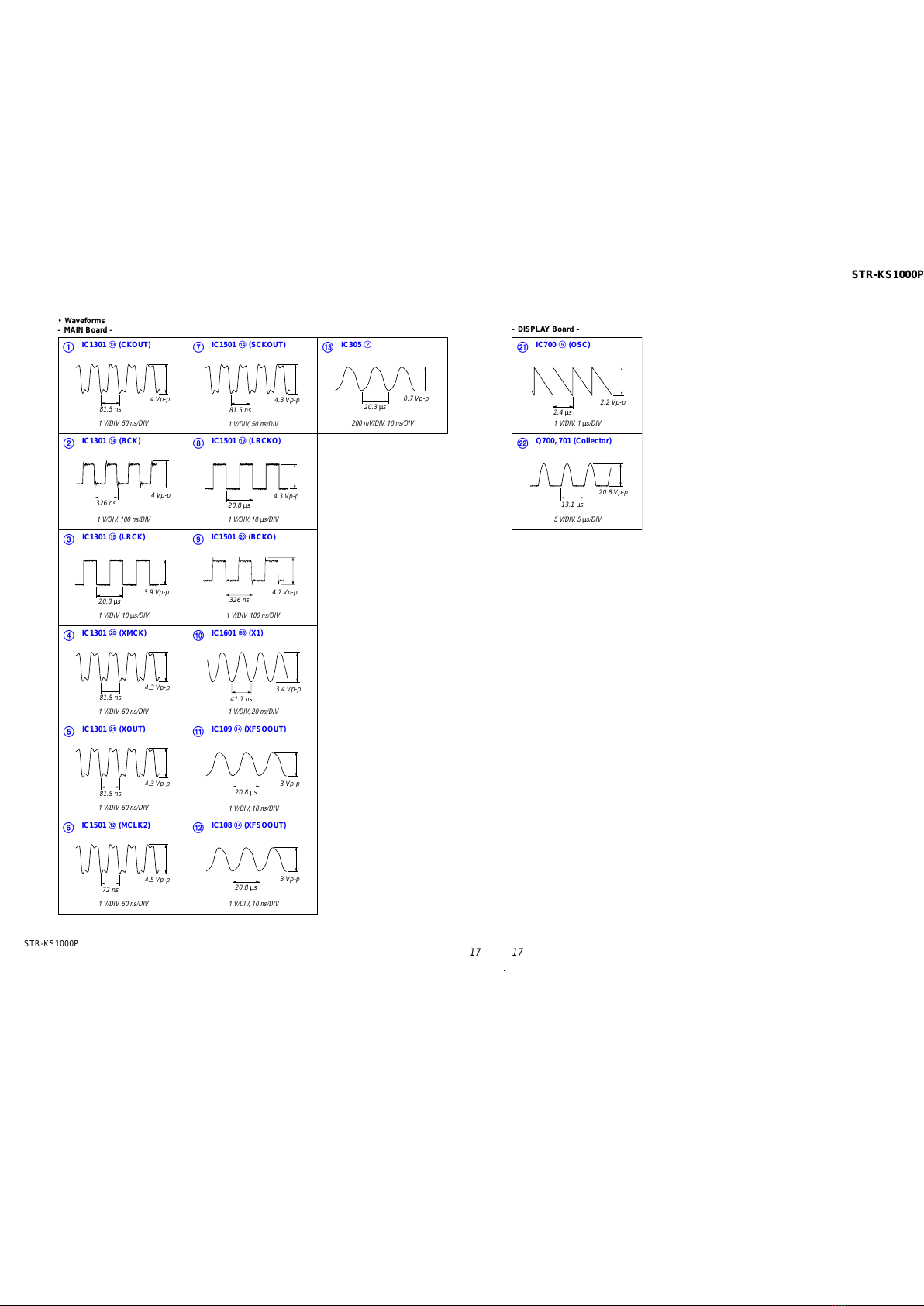

•Waveforms
– MAIN Board –
2
IC1301 qf (BCK)
1 V/DIV, 100 ns/DIV
326 ns 4 Vp-p
20.8 µ s3.9 Vp-p
3
IC1301 qg (LRCK)
1 V/DIV, 10 µ s/DIV
4
IC1301 w; (XMCK)
5
IC1301 wa (XOUT)
6
IC1501 qs (MCLK2)
7
IC1501 qf (SCKOUT)
20.8 µ s4.3 Vp-p
8
IC1501 ql (LRCKO)
1 V/DIV, 10 µ s/DIV
9
IC1501 w; (BCKO)
1 V/DIV, 100 ns/DIV
326 ns 4.7 Vp-p
q;
IC1601 id (X1)
1 V/DIV, 20 ns/DIV
41.7 ns 3.4 Vp-p
qs
IC108 qf (XFSOOUT)
qa
IC109 qf (XFSOOUT)
qd
IC305 2
200 mV/DIV, 10 ns/DIV
20.3 µ s0.7 Vp-p
1 V/DIV, 10 ns/DIV
20.8 µ s3 Vp-p
1 V/DIV, 10 ns/DIV
20.8 µ s3 Vp-p
1
IC1301 qd (CKOUT)
1 V/DIV, 50 ns/DIV
81.5 ns 4 Vp-p
1 V/DIV, 50 ns/DIV
81.5 ns 4.3 Vp-p
1 V/DIV, 50 ns/DIV
81.5 ns 4.3 Vp-p
1 V/DIV, 50 ns/DIV
81.5 ns 4.3 Vp-p
1 V/DIV, 50 ns/DIV
72 ns 4.5 Vp-p
wa IC700 5(OSC)
1 V/DIV, 1 µ s/DIV
2.4 µ s2.2 Vp-p
ws Q700, 701 (Collector)
5 V/DIV, 5 µ s/DIV
13.1 µ s
20.8 Vp-p
– DISPLAY Board –

1818
STR-KS1000P
STR-KS1000P
R966
C406
R918
Q943
D932
R907
R932
R910
R909
R480
R940
R952
R931
D925
L947
R911
R951
C911
C923
R948
D923
D914
R946
Q947
R949
R938
R937
R919
D915
IC303
C374
L941
C350
R353
R356
R354
R357
R355
R358
R120 R128 R118
R119
R117
R116
R115
R114 R113 R112
R111
R109
R110
R108
C105
C141
R348
R346
R141
R312
C403
C381
R303
R311
R320
R396
R384
R374
R373
R151
R372
R161
R371
C189
C142
R306
R302
C402
C404
R347
R308
R315
R314
R382
C405
R313
R310
R345
R325
R321
R323
R322
R329
R393
IC108
R305
R351
IC305
X450
R304
R143
R153
R163
C198
C144
R142
R152
R162
C190
C143
R144
R154
R164
C145
R146
R156
R166
C218
C147
R145
R155
R165
C200
C146
R147
R157
R167
C199
R300
R344
R318
R378
R377
R376
R375
R324
R327
IC109
R316
R317
R383
R381
R380
R379
C188
R328
R326
R319
IC110
C274 C273 C272 C271 C114
C210 C209 C208 C207 C206 C205 C204 C203
IC102
C202
IC103
IC104IC105
IC106
C201
IC101 R965
R475
R474
R473
R472
C119
IC1502
R1548
R1549
R1550
RB1500
RB1501
RB1502
RB1503
RB1504
RB1505
RB1506
R1528
R1555
R1541
R1556
C1520
C1521
R1523
X1502
R1515
R1044
R1142
R1143
R1144
R1149
R1150
R1151
R1121
R1076
R1087
X1101
R1137
IC1602
R1672
C1675
IC1301
R1311
X1301
C1310 C1309
R1308
D1301
R1511
R1508
R1509
R1166
R1183
IC1601
R1309
R1136
R1313
R1134
R1316
R1140
R1042
R1041
R1115
R1126R1125
R1168
R1167
R1170
R1171
R1172
R1173
R1185
R1186
R1187
R1188
R1189
R1184
R1119
R1120
R1635
R1128
R1129
R1058
R1059
R1124
R1305
R1360
R1306
R1307
R1221
R1159
R1158
C1139
C1142
R1071
R1072
C1124
R1083
R1082
D1500
D1501
D1502
R1145
C1104
C1105
R1636
R1105
R1123
R1122
R1135
IC1651
IC1111
R1190
C1108
R1127
C1137C1107
C1138
R1175
IC1501
C1065
C1066
C1067
C1068
R1261
R1260
R1251
R1315
R1220
C1302
JR1101
C1303
JR1102 R1303
R1700
R1362
R1607
C1304
IC1503
C1502
R1570
R1571
R1572
R1573
R1574
C1659
C1672
JR1104
R1506
R1505
R1504
R1053
R1086
R1169
R1304
R1310
R1312
R1318
R1502
R1503
C1511
R1514
R1529
R1608
R1618
R1609
R1671
C1674
D1600
D1661
R1606
R510
C1657
C1658
L1604
JR1106
R1163
Q945
R958
R957
C1518
R1542
IC107
L1600
D926
R969
R978
R1116
R1156
R1157
R1252
Q946
FB1102
FB1314
FB1315
FB1503
FB1302
FB1305
FB1551
FB1301
R538
L503
L1605
R941
IC1131
R1081
R1084
EE
130
31
50
100
81
8051
13
45
1
3
45
1-869-115-
12
(12)
MAIN BOARD (COMPONENT SIDE)
1
3
45
1
12
13
24
48
37
36
25
1
12
13
24
48
37
36
25
1
12
13
24
48
37
36
25
S
GD
S
GD
1
1
4
8
5
1
10
20
11
1
12
1324
36
37 48
25
30
9061
60
31
91
120
A
B
C
D
E
F
G
H
I
J
1 2 3 4 5 6 7 8 9 10 11
K
4-7. PRINTED WIRING BOARD – MAIN Board (Component Side) – •See page 13 for Circuit Boards Location. : Uses unleaded solder.
•Semiconductor
Location
Ref. No. Location
D914 G-10
D915 G-10
D923 J-10
D925 J-10
D926 J-10
D932 D-9
D1301 G-4
D1500 G-4
D1501 G-4
D1502 G-4
D1600 F-3
D1661 F-3
IC101 E-7
IC102 E-6
IC103 E-5
IC104 E-5
IC105 E-4
IC106 E-3
IC107 E-2
IC108 F-6
IC109 F-5
IC110 F-3
IC303 E-8
IC305 F-6
IC1111 J-4
IC1131 I-3
IC1301 H-3
IC1501 H-5
IC1502 H-6
IC1503 G-4
IC1601 I-4
IC1602 G-3
IC1651 H-2
Q943 E-9
Q945 J-6
Q946 J-6
Q947 E-9

1919
STR-KS1000P
STR-KS1000P
EB909
R901
C965
C966
PC904
LF902
C961
F901
CN302
CN303
C920
EB910
C948
R927
C963
C964
C925
IC901
D901
EB901
R912
C934
C933
D931
LF901
PC901
R903
R904
C944
C931
TH901
R914
T901
C932
EB904
C939
C910
C924
C943
C947
C949
C912
C938
C941
C928
C953
L931
Q901
D905
IC951
EB902
EB903
Q921
C903
C940
C945
R908
R921
D922
D913
C908
VDR901
C942
C329
IC921
IC931
T902
C913
C375
CN901
C902 EB911
C213
L116
R967
EB905
EB907
C366
C380
C332 C335
C542
L127
EB908
L137
C212
C197
L126L136
L106
L115
C196
L125L135
L105
L114
C195
L124L134
L104
L113
C194
L123L133
L112
L102
C193
C158
L122L132
L103
L111
C192
C918
L121
EB906
L131
L101
C191
C901
D941
D921
C946
C214
C905
C921
C215
C216
C217
C221
C222
C223
C224
C225
C226
C227
C211
C906
C922
C1656
C1670
IC1712
IC1033
IC1711
C1750
C1730
C1728
C1732
C1306
C1330
C1673
C1069
C1517
C1035
C1033
CNS193
CNP196
CNS198
CNS195
D904
PC903
PC902
FH901FH902
Q961
R960
R930
R924
R915
R939
C951
R933
C955
L945
D942
C909
R934
C935
IC943
C929
R935
R925
R923
IC941
R968
C952
C936
D908
D945
D924
R905
R922
R926
C937
D909
C954
R953
R954
R955
R956
L942
IC942
R936
C371
D104
FB301
D944
C368
R400
L301
D910
C367
C305
C382
R171
R131
C384
L302
C383
C309
C131
C308
C306
R394
C301
C302
C303
C304
C319
R173
R133
C133
R172
R132
C132
R174
R134
C134
R176
R136
C136
R175R135
C135
R177
R137
C137
C315
C318
C317
C311
C312
C313
C314
C328
C324
C327
C326
C325
C320
C321
C322
C323
C310
C157
C187
C107
C117
C257
C167
R207
C267
C293
D207
R227
R217
D206
C177
C294
R197
C279
C280
C156
C186
C106 C116
Q111
R411
Q112
R412
R366
R452 R453
R483 R484
C256
C166
R206
C266
C291
D106
R226
R216
D205
C176
C292
R196
C269
C268
C155
C185
C115
C395
Q109
R409
Q110
R410
R365
R450 R451
R481 R482
C255
C165
R205
C265
C289
D105
R225
R215
D204
C385
C175
C290
R195
C296
C297
C154
C184
C104
C394
Q107
R407
Q108
R408
R364
R461 R462
R492 R493
C254
C164
R204
C264
C287
R224
R214
D203
C174
C288
R194
C298
C299
C153
C183
C103 C113
C393
Q105
R405
Q106
R406
R363
R464 R460
R463 R491
C253
C163
R203
C263
C285
D103
R223
R213
R191
D202
C173
C286
R193
Q301
R139
R395
C392
Q103
R403
Q104
R404
R362
R457 R456
R488 R487
C252
C162
R361
R202
C152
C182
C262
C283
D102
R222
R212
D201
C172
C284
R192
C278
C396
R490 R489
C277
R402
C276
R459 R458
C251
C161
C101
Q102
R401
R201
C151
C181
C102
C261
Q101
C391
C281
C275
C112
D101
R221
R211
C111
C171
C282
R566
D107
D943
R476
R477
R478
R479
C907
R906D907
D906
C1519
C1503
C1501
C1509
C1514
C1513
C1510
C1508 C1507
IC1034
C1034
C1516
C1654
C1671
R1501
C1123
C1122
C1620
C1130
C1129
C1102
R1049
R1043
C1120
C1125
C1121
R1165
C1751
C1729
C1731
C1252
C1251
FB1313
R1180
R1179
C1163
FB1101
C1299
C1305
R1302
C1301R1301
C1312
C1314
C1505
C1506
C1522
FB1502
FB1501
R1513
R1314
R1512
C1331
C1315
C1313
C536
R1073
R1088
R1130
C1037
D1006
R1160
R1161
R1162
R943
C1504
JR1203
R1100
R1097
L950
R309
C1150
C1151
C1152
C1153
C316
R241
R242
R244
R243
R245
R246
R247
C120
R471
R468
R469
R470
1
2
1
3
E
EE
1
6
1
7
EE
E
E
E
E
EE
E
E
3
1
2
E
(CHASSIS)(CHASSIS)(CHASSIS)
(CHASSIS)
(CHASSIS)
(CHASSIS)(CHASSIS)
(CHASSIS) (CHASSIS)(CHASSIS)
1-869-115-
12
(12)
MAIN BOARD (CONDUCTOR SIDE)
K
A
E
C
K
A
E
C
K
A
E
C
1
3
1
5
2
4
E
A
K
MAIN POWER
TRANSFORMER
SUB POWER
TRANSFORMER
18
E
K
A
E
C
1
15 15 15
3
13
13
13
K
A
A
ESPEAKER BOARD
CNP510 FSPEAKER BOARD CNP500
C
DISPLAY
BOARD
CNS703
A
IO
BOARD
CNS197
B
ADCC
BOARD
CNP2000
TUNER
FM 75Ω
COAXIAL
ANTENNA
AM
(CHASSIS)
A
B
C
D
E
F
G
H
I
J
1 2 3 4 5 6 7 8 9 10 11 12
K
(AC IN)
4-8. PRINTED WIRING BOARD – MAIN Board (Conductor Side) – •See page 13 for Circuit Boards Location. :Uses unleaded solder.
(Page 20) (Page 20)
(Page 28)
(Page 15)
(Page 14)
•Semiconductor
Location
Ref. No. Location
D101 D-5
D102 D-6
D103 D-7
D104 D-8
D105 D-9
D106 D-9
D107 D-10
D201 D-6
D202 D-7
D203 D-7
D204 D-8
D205 D-9
D206 D-10
D207 D-11
D901 E-2
D904 D-3
D905 H-2
D906 H-2
D907 H-2
D908 H-2
D909 E-3
D910 I-2
D913 I-2
D921 I-3
D922 J-3
D924 J-3
D931 H-5
D941 K-5
D942 J-5
D943 J-5
D944 J-5
D945 I-6
D1006 I-7
IC901 G-2
IC921 I-3
IC931 E-4
IC941 I-6
IC942 I-6
IC943 I-5
IC951 K-4
IC1033 J-7
IC1034 I-7
IC1711 K-7
IC1712 J-7
Q101 B-6
Q102 B-6
Q103 B-6
Q104 B-7
Q105 B-7
Q106 B-7
Q107 B-8
Q108 B-8
Q109 B-9
Q110 B-9
Q111 B-10
Q112 B-11
Q301 C-11
Q901 H-2
Q921 J-3
Q961 H-5
PC901 F-3
PC902 J-4
PC903 D-3
PC904 D-3

2020
STR-KS1000P
STR-KS1000P
EP500
CNP500
CNP510
EP501
C500
C501
C502
C503
C504
C505
C506
C507
C508
C509
C510
C511
C512
C513
C514
C515
SPEAKER BOARD (COMPONENT SIDE)
1-869-117-
12
(12)
SPEAKER BOARD (CONDUCTOR SIDE)
1-869-117-
12
(12)
(CHASSIS)
1
6
1
7
(CHASSIS)
–
+
FRONT L
SPEAKERS
TM500
–
+
FRONT R
–
+
SURR R
–
+
SURR L
–
+
CENTER
–
+
SUB WOOFER
E
MAIN
BOARD
CN303
F
MAIN
BOARD
CN302
A
B
C
D
E
F
G
H
1 2 3 4 5
4-9. PRINTED WIRING BOARD – SPEAKER Board –
•See page 13 for Circuit Boards Location. : Uses unleaded solder.
(Page 19)
(Page 19)
