Sony GTK-XB60 User manual

SERVICE MANUAL
Sony Video & Sound Products Inc.
SPECIFICATIONS
HOME AUDIO SYSTEM
9-896-413-01
2017G33-1
© 2017.07
US Model
Canadian Model
AEP Model
UK Model
Australian Model
Ver. 1.0 2017.07
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(The United States model only)
Left/Right Channel:
channel minimum RMS power, with
no more than 1% total harmonic
rated output.
Speaker section
T
weeter: 60 mm (2 in) × 2, cone type
Woofer: 130 mm (5 in) × 2, cone type
Inputs
AUDIO/PARTY CHAIN IN L/R:
Voltage 2 V, impedance 10 kilohms
MIC:
Sensitivity 1 mV, impedance
Outputs
AUDIO/PARTY CHAIN OUT L/R:
Voltage 2 V, impedance 600 ohms
USB section and supported
audio formats
(USB) port:
Supported bit rate:
MP3 (MPEG1 Audio Layer-3):
Sampling frequencies:
MP3 (MPEG1 Audio Layer-3):
32/44.1/48 kHz
WMA: 44.1 kHz
BLUETOOTH section
Communication system:
BLUETOOTH Standard version 4.2
Output:
BLUETOOTH Standard Power Class 2
Maximum output power:
< 20.0 dBm
Maximum communication range:
Line of sight approx. 10 m (33 feet)1)
Frequency band:
2.4 GHz band (2.4000 GHz –
Modulation method:
FHSS (Freq Hopping Spread
Spectrum)
Compatible BLUETOOTH proles 2):
A2DP (Advanced Audio Distribution
Prole)
AVRCP (Audio Video Remote Control
Prole)
HFP (Hands-free Prole)
HSP (Headset Prole)
SPP (Serial Port Prole)
Supported codecs:
SBC (Sub Band Codec)
AAC (Advanced Audio Coding)
LDAC
1)
The actual range will vary depending on
factors such as obstacles between devices,
magnetic elds around a microwave oven,
static electricity, reception sensitivity,
antenna’s performance, operating system,
software application, etc.
2) BLUETOOTH standard proles indicate the
purpose of BLUETOOTH communication
between devices.
Type A, maximum current 2.1A
32kbps 320kbps, VBR
WMA: 32kbps 192kbps, VBR
With 3ohms loads, both channels
driven at 1kHz; rated 15watts per
distortion from 250milliwatts to
10 kilohms
2.4835GHz)
NFC section
Maximum output power:
< 60 dBμA/m at 10 m
Operating frequency:
13.56 MHz
Lithium-ion battery section
Usage life of the lithium-ion
battery
When the Speaker Lights are turned o:
3.5 hours (at the maximum volume
level)
5 hours (at the maximum volume
level with the STAMINA
mode turned on)
14 hours (at volume level 17)
When the Speaker Lights are turned on:
3 hours (at the maximum volume
level)
The times given above:
— were measured using a predetermined
music source.
— may vary depending on the playback
content.
— will be shortened if you charge and
discharge the battery repeatedly.
General
Power requirements:
Power consumption:
Standby power consumption:
When BLUETOOTH standby mode is
When BLUETOOTH standby mode is
ports on)
Dimensions (W/H/D) (Approx.):
Mass (Approx.):
Quantity of the system:
1 piece
Supplied accessories:
AC power cord (1)
Design and specications are subject to
change without notice.
Normal voltage: 14.4V
Normal capacity: 2500mAh, 36Wh
Maximum charging current: 1A
Maximum charging voltage:
16.7Vdc
North American model: AC 120V,
60 Hz
Other models: AC 120V 240 V,
50/60Hz
55W
set to o: 0.5W (eco mode)
set to on: 1.5W (all wireless network
264mm × 552mm × 272mm
10 in × 21 in × 10 in)
8kg (17lb 11oz)
Условия хранения:
(RU)
Товары сохраняют в упакованном
виде в темных, сухих, чистых,
хорошо вентилируемых
помещениях, изолированных от
мест хранения кислот и щелочей.
Температура хранения:
от -10°C до + 45°C
Относительная влажность
хранения: от 30% до 70%
Срок хранения не установлен.
Рабочая температура:
от 5°C до 35°C
Рабочая относительная
влажность: от 30% до 70%
GTK-XB60
Note:
Be sure to keep your PC used for service and
checking of this unit always updated with the
latest version of your anti-virus software.
In case a virus affected unit was found during
service, contact your Service Headquarters.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

GTK-XB60
2
SAFETY-RELATED COMPONENT WARNING!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINE
WITH MARK 0ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC-
TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON-
NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.
License and Trademark
Notice
tMPEG Layer-3 audio coding
technology and patents licensed
from Fraunhofer IIS and Thomson.
tWindows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States
and/or other countries.
tThis product is protected by
certain intellectual property rights
of Microsoft Corporation. Use or
distribution of such technology
outside of this product is prohibited
without a license from Microsoft or
an authorized Microsoft subsidiary.
tThe BLUETOOTH® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are
those of their respective owners.
tThe N-Mark is a trademark or
registered trademark of NFC Forum,
Inc. in the United States and in other
countries.
tGoogle Play and Android are
trademarks of Google Inc.
tLD AC™ and LDAC logo are
trademarks of Sony Corporation.
tApple , the Apple logo, iPhone, and
iPod touch are trademarks of Apple
Inc., registered in the U.S. and other
countries. App Store is a service
mark of Apple Inc.
t“Made for iPod” and “Made for
iPhone” mean that an electronic
accessory has been designed to
connect specically to iPod or
iPhone, respectively, and has been
certied by the developer to meet
Apple performance standards. Apple
is not responsible for the operation
of this device or its compliance with
safety and regulatory standards.
Please note that the use of this
accessory with iPod or iPhone may
aect wireless performance.
tWALKMAN and WALKMAN logo
are registered trademarks of Sony
Corporation.
tAll other trademarks and registered
trademarks are of their respective
holders. In this manual,TM and ®
marks are not specied.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 V AC range are suitable. (See
Fig. A)
1.5 kΩ0.15 μF
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.

GTK-XB60
3
1. SERVICING NOTES ............................................. 4
2. DISASSEMBLY
2-1. Disassembly Flow........................................................... 6
2-2. Side Panel L, Lithium Ion Battery Connector (XP3)...... 7
2-3. Lithium Ion Battery ........................................................ 7
2-4. Side Panel R.................................................................... 8
2-5. Top Panel Block.............................................................. 8
2-6. POWER Board................................................................ 9
2-7. MIC KNOB Board.......................................................... 9
2-8. MAIN Board ................................................................... 10
2-9. Board Block .................................................................... 11
2-10. NFC Board...................................................................... 12
2-11. Top Handle...................................................................... 12
2-12. KEY Board...................................................................... 13
2-13. BT Board......................................................................... 13
2-14. Bottom Panel Assy.......................................................... 14
2-15. Front Panel Block-1 ........................................................ 15
2-16. Front Panel Block-2 ........................................................ 16
2-17. Speaker Unit (WF).......................................................... 17
2-18. TOP SPEAKER Board, BOTTOM SPEAKER Board,
TOP LED Board, BOTTOM LED Board ....................... 18
2-19. Speaker Unit (TW).......................................................... 19
3. TEST MODE ............................................................ 19
4. DIAGRAMS
4-1. Block Diagram - OVERALL Section -........................... 20
4-2. Block Diagram - POWER SUPPLY Section -................ 21
4-3. Printed Wiring Board - MAIN Board -........................... 23
4-4. Schematic Diagram - MAIN Board (1/8) -..................... 24
4-5. Schematic Diagram - MAIN Board (2/8) -..................... 25
4-6. Schematic Diagram - MAIN Board (3/8) -..................... 26
4-7. Schematic Diagram - MAIN Board (4/8) -..................... 27
4-8. Schematic Diagram - MAIN Board (5/8) -..................... 28
4-9. Schematic Diagram - MAIN Board (6/8) -..................... 29
TABLE OF CONTENTS
4-10. Schematic Diagram - MAIN Board (7/8) -..................... 30
4-11. Schematic Diagram - MAIN Board (8/8) -..................... 31
4-12. Printed Wiring Board - NFC Board -.............................. 32
4-13. Schematic Diagram - NFC Board -................................. 32
4-14. Printed Wiring Board - BT Board -................................. 32
4-15. Schematic Diagram - BT Board - ................................... 33
4-16. Printed Wiring Board - KEY Board -.............................. 34
4-17. Schematic Diagram - KEY Board - ................................ 35
4-18. Printed Wiring Board - MIC KNOB Board -.................. 36
4-19. Schematic Diagram - MIC KNOB Board - .................... 36
4-20. Printed Wiring Board - TOP SPEAKER Board -............ 37
4-21. Schematic Diagram - TOP SPEAKER Board - .............. 37
4-22. Printed Wiring Board
- BOTTOM SPEAKER Board - ..................................... 37
4-23. Schematic Diagram - BOTTOM SPEAKER Board -..... 37
4-24. Printed Wiring Board - TOP LED Board -...................... 38
4-25. Schematic Diagram - TOP LED Board - ........................ 38
4-26. Printed Wiring Board - BOTTOM LED Board -............ 39
4-27. Schematic Diagram - BOTTOM LED Board -............... 39
4-28. Schematic Diagram - POWER Board - .......................... 40
4-29. Printed Wiring Board
- POWER Board (US and CND models) - ..................... 41
4-30. Printed Wiring Board
- POWER Board (Except US and CND models) - ......... 42
5. EXPLODED VIEWS
5-1. Side Panel Section .......................................................... 43
5-2. Speaker Cabinet Section ................................................. 44
5-3. Top Panel Section ........................................................... 45
5-4. Board Section.................................................................. 46
5-5. Front Panel Section......................................................... 47
6. ELECTRICAL PARTS LIST .............................. 48
Accessories are given in the last of the electrical parts list.

GTK-XB60
4
SECTION 1
SERVICING NOTES
The SERVICING NOTES contains important information for servicing. Be sure to read this section before repairing the unit.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
NOTE FOR DISASSEMBLY
Lithium ion battery is installed in this unit.
When disassembling this unit, be sure to disassembly after remov-
ing the connector of lithium ion battery from board.
lithium ion
battery
connector
(XP3)
MAIN board
front side
left side
rear side
– The state that left side panel is removed –
DESTINATION ABBREVIATIONS
The following abbreviations for model destinations are used in this
service manual.
• Abbreviations
AEP : European area (Except for UK, Ireland), East European
area, CIS area (Moldova) and Middle Eastern area (Is-
rael, Jordan) models
AUS : Australian and New Zealand models
CND : Canadian and Latin American area (Puerto Rico) models
UK : European area (UK, Ireland) model
RU : CIS area (Except for Moldova) model

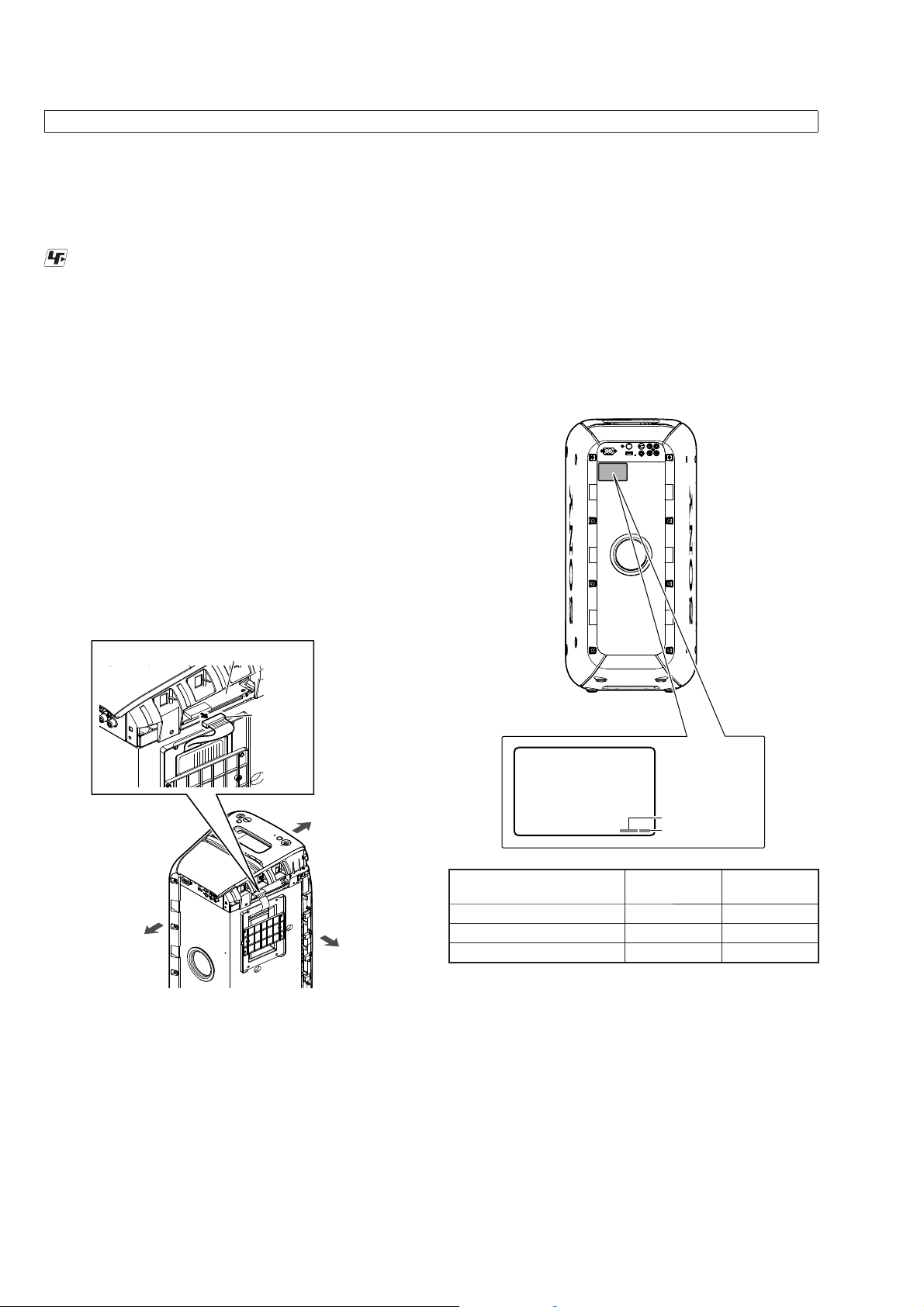

MODEL IDENTIFICATION
Distinguish by Part No. and destination code on the rear side of
the main unit.
– Rear view –
MODEL NUMBER LABEL
SONY®
Part No.
Destination code
Destination Part No. Destination
code
US, CND models (UC2) 4-697-233-0[] UC2
AEP, UK, models (CEL, CEK) 4-697-234-0[] CEL/CEK
AUS, RU models (AU1, RU1) 4-697-235-0[] AU1/RU1/SP6

GTK-XB60
5
COLOR VARIATIONS
(B) Black : All models
(L) Blue : Except US, CND models
(R) Orange Red : Except US, CND models
NOTE OF REPLACING THE ELECTRICAL PARTS ON
EACH BOARD FOR REPAIRING
Among mounted electrical parts on each board, only parts that are
described in the electrical parts list can be replaced for repairing.
The parts that are not described in the electrical parts list cannot be
replaced with single for repairing.
In that case, replace the complete mounted board.
Printed wiring board and schematic diagram that have been de-
scribed on this service manual are for reference.
NOTE OF REPLACING THE BT BOARD OR THE NFC
BOARD
When replacing the BT board or the NFC board, be sure to replace
the BT board and the NFC board simultaneously.
The BT board or the NFC board cannot replace with single.
Among the repair parts, the BT board and the NFC board are sup-
plied as one unit.
BT board
rear side
left side
front side
NFC board
RESETTING THE SYSTEM
If the system doesn’t respond and
cannot be operated despite the power
being on, reset the system using the
RESET button.
1 Press RESET on the rear of
the unit with a pin or other
pointed object.
The system will turn off.
2 Press Æto turn the system
back on.
Notes
• If the system doesn’t turn back on, consult
your Sony dealer.
• Pairing information is not deleted when
you press RESET.
CHARGING THE BATTERY
The system can be used with the
built-in battery (rechargeable) instead
of connecting the AC power cord to
a wall outlet if the battery has been
sufficiently charged.
Connect the AC power cord
(supplied) to the AC IN jack on
the rear of the unit, and then to
the wall outlet.
ʭAC power cord (supplied)
ʮTo wall outlet
The CHARGE indicator will light up in
amber. Charging will be completed in
about 4 hours and the indicator will turn
off.
Notes
• It may take longer to charge the battery
depending on the conditions of use.
• Even if you do not intend to use the
system for a long time, charge the battery
to its full capacity once every six months
to maintain its performance.
• In an extremely cold or hot environment,
charging stops for safety.
If charging is taking a long time, this also
stops the system from charging.
In these conditions, the CHARGE indicator
continues to flash quickly in amber, but
this is not a malfunction.
To resolve these issues, disconnect the
AC power cord and connect it again in an
operating temperature between 5°C and
35°C (41°F and 95°F).
Hint
You can operate the system while it is
charging.

GTK-XB60
6
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
2-2. SIDE PANEL L,
LITHIUM ION BATTERY CONNECTOR (XP3)
(Page 7)
2-3. LITHIUM ION BATTERY
(Page 7)
2-4. SIDE PANEL R
(Page 8)
2-5. TOP PANEL BLOCK
(Page 8)
2-12. KEY BOARD
(Page 13)
2-11. TOP HANDLE
(Page 12)
2-9. BOARD BLOCK
(Page 11)
2-13. BT BOARD
(Page 13)
2-7. MIC KNOB BOARD
(Page 9)
SET
2-8. MAIN BOARD
(Page 10)
2-6. POWER BOARD
(Page 9)
2-10. NFC BOARD
(Page 12)
2-14. BOTTOM PANEL ASSY
(Page 14)
2-15. FRONT PANEL BLOCK-1
(Page 15)
2-16. FRONT PANEL BLOCK-2
(Page 16)
2-17. SPEAKER UNIT (WF)
(Page 17)
2-18. TOP SPEAKER BOARD,
BOTTOM SPEAKER BOARD,
TOP LED BOARD,
BOTTOM LED BOARD
(Page 18)
2-19. SPEAKER UNIT (TW)
(Page 19)
JIG
When disassembling the unit, use the following
jig for speaker removal.
Part No. Description
J-2501-238-A JIG FOR SPEAKER REMOVAL

GTK-XB60
7
Note: Follow the disassembly procedure in the numerical order given.
2-2. SIDE PANEL L, LITHIUM ION BATTERY CONNECTOR (XP3)
top side
front side
rear side
4five claws
4four
claws
4four
claws
1two rubbers
(See Fig. A)
1two rubbers
(See Fig. A)
+RZWRUHPRYHWKHUXEEHU
rubber
tweezers, etc.
–/HIWYLHZ–
Note: When removing the rubber, insert a
sharp-tipped object such as tweezers
into the cutout.
)LJ$!
2two screws
(M3 u10)
2screw
(M3 u10)
3three screws
(M4 u20)
5Remove the side panel L
in the direction of the arrow.
3two screws
(M4 u20)
6side panel L
two bosses
(with two rubbers)
two bosses
(with two
rubbers)
7lithium ion
battery
connector
(XP3)
MAIN board
front side
rear side left side
2-3. LITHIUM ION BATTERY
top side
front side
rear side
boss
boss
1four screws
(M4 u20)
2battery cover
Note 2: When installing the battery cover,
align the two bosses and two holes.
6lithium ion battery
hole
hole
3Remove the lithium ion battery block
in the direction of the arrow.
10 mm
bottom side
top side
lithium ion battery
– Right view –
guide line
guide line
+Rw tRiQVtDOO the thUee FXVhiRQV
left side
right side
cushion (battery cable)
cushion (battery)
Wrap the cushion
(battery cable) around.
cushion (battery)
Wrap the cushion
(battery cable) around.
4cushion
(battery cable)
Note 1: This parts cannot be reused.
When replacing the lithium
ion battery, be sure to replace
them with new parts
simultaneously.
5two cushions (battery)
Note 1: This parts cannot be reused.
When replacing the lithium ion battery,
be sure to replace them with new parts
simultaneously.

GTK-XB60
8
2-5. TOP PANEL BLOCK
front side
rear side
2Remove the top panel block
in the direction of the arrow. 4claw
3FFC (BT-MAIN)
(XP35)
terminal side
top side
1screw
(M3 u10)
1screw
(M3 u10)
5top panel block
1screw
(M3 u10)
1screw
(M3 u10)

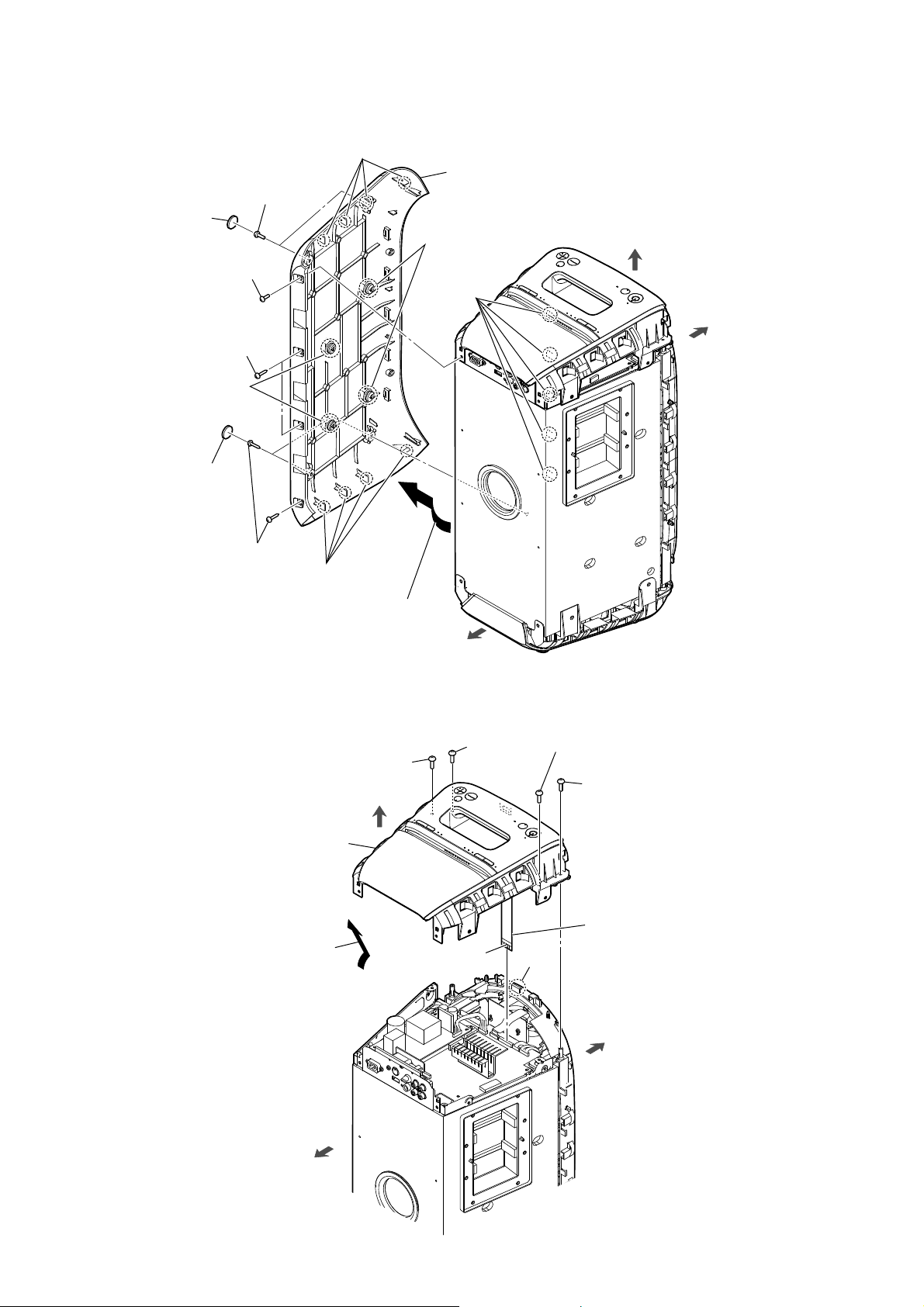

2-4. SIDE PANEL R
top side
front side
rear side
2two screws
(M3 u10)
2screw
(M3 u10)
6side panel R
5Remove the side panel R
in the direction of the arrow.
1two foot pads
(circle)
3two screws
(M4 u20)
two bosses
(with two rubbers)
4four claws
1two foot
pads
(circle)
3three screws
(M4 u20)
4four claws
4five
claws
two bosses
(with two rubbers)

GTK-XB60
9

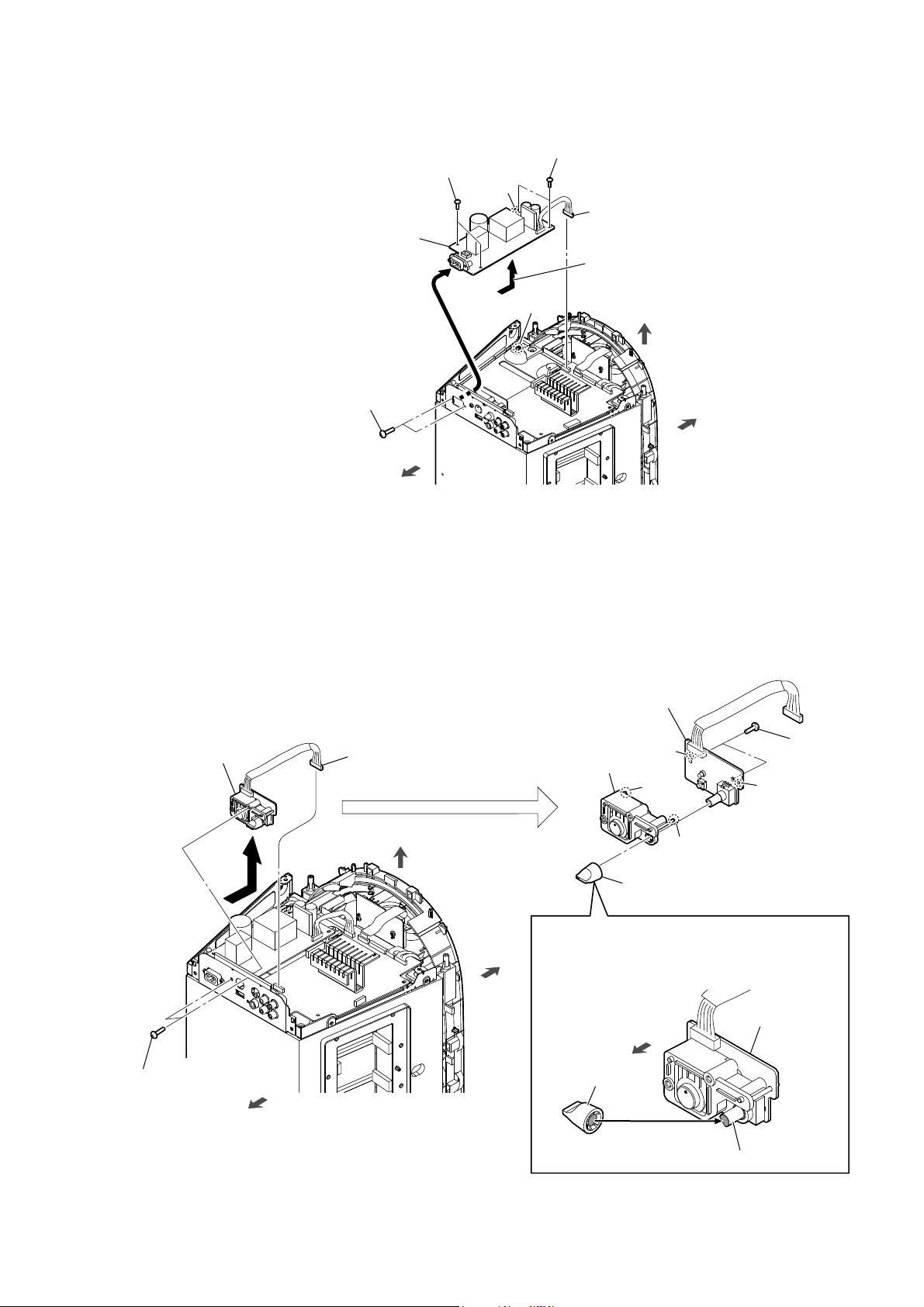

2-6. POWER BOARD
2-7. MIC KNOB BOARD
rear side
2two screws
(M3 u10)
rib
hole
3two screws
(3 u6)
4 Remove the POWER board
in the direction of the arrow.
5POWER board
Note: When installing the POWER
board, align the rib and hole.
3two screws
(3 u6)
front side
top side
1POWER board cable
connector (XP20)
5two screws
(M3 u10)
4MIC knob
MIC knob
rotary encoder
rear side
2two screws
(M3 u10)
1MIC KNOB board cable
connector (XP4)
3MIC KNOB board block 6party chain
button&lens
7MIC KNOB board
Note: When installing the MIC KNOB board,
align the two bosses and two holes.
MIC KNOB
board block
How to install the MIC knob
When installing the MIC knob to the rotary encoder,
align the directions of the D-shaped tip of the rotary
encoder and the D-shaped notch at the inner side
of the MIC knob.
front side
top side
rear side
hole
boss
boss
hole

GTK-XB60
10

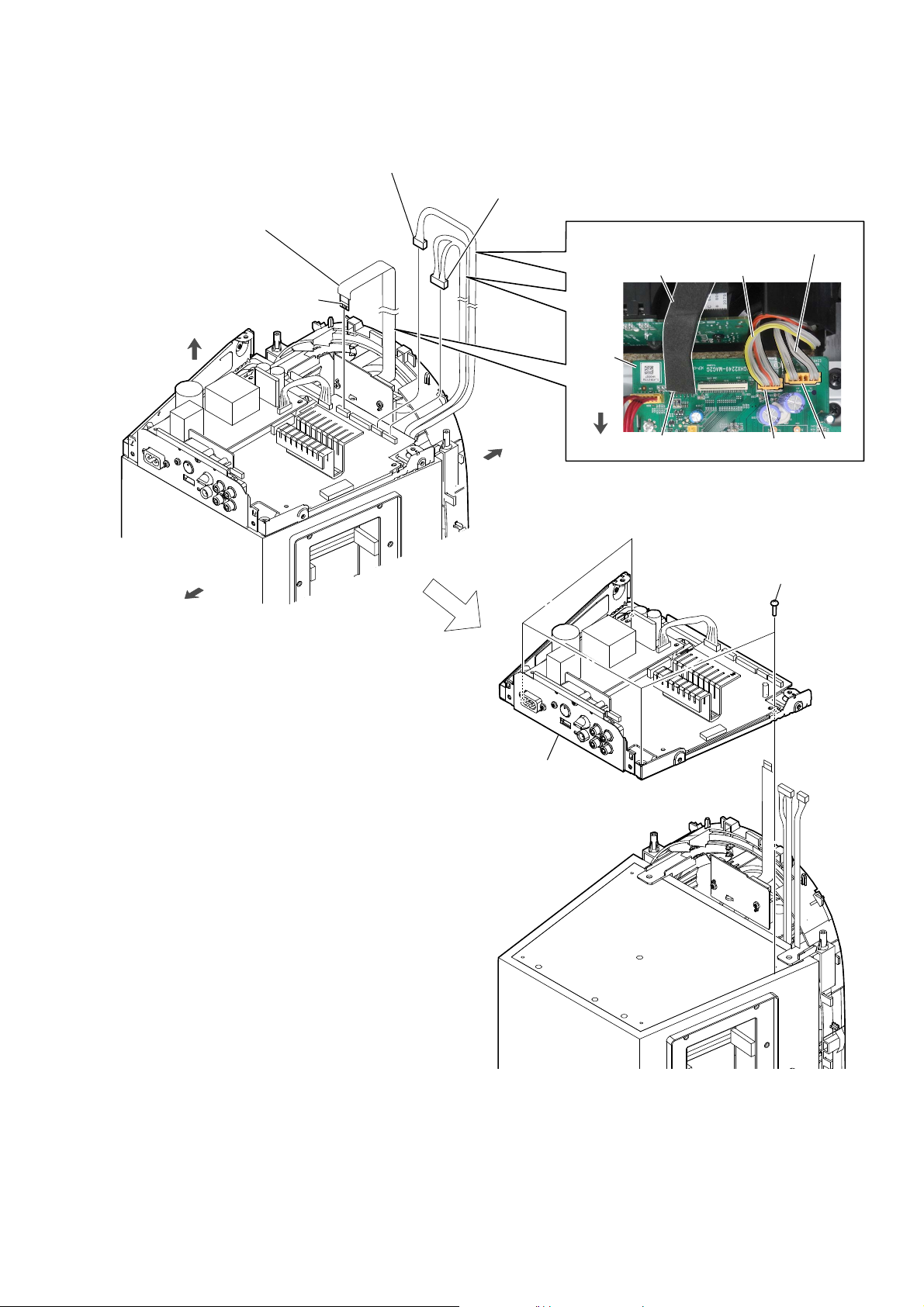

2-8. MAIN BOARD
7 Remove the MAIN board
block in the direction of
the arrow.
5screw
(M3 u10)
rear side
hole
9MAIN board
Note: When installing the MAIN board,
align the rib and hole.
:LUHVHtting
MAIN
board
terminal
side
XP11
XP13
XP7
A
A
B
B
3FFC (TOP LED
-MAIN) (XP7)
4POWER board cable
connector (XP20)
rib
2woofer cable connector
(XP13)
1tweeter cable connector
(XP11)
–7RSYLHZ–
FFC
(TOP LED-MAIN)
tweeter cable
woofer cable
rear side
XP20
8thermal sheet
(See Fig. B)
6four screws
(3 u6)
left side
right side
)LJ%!
3DVWLQJSRVLWLRQRIWKHWKHUPDOVKHHW
When affixing the thermal sheet, affix so that the entire
projection of the bottom shell is covered.
thermal sheet
rear side left side

GTK-XB60
11
2-9. BOARD BLOCK
front side
rear side
terminal side
4four screws
(M4 u20)
5board block
2woofer cable connector
(XP13)
1tweeter cable connector
(XP11)
3FFC (TOP LED-MAIN)
(XP7) :LUHVHtting
MAIN
board
XP11
XP13
XP7 –7RSYiHZ–
FFC
(TOP LED-MAIN)
tweeter cable
woofer cable
rear side
top side

GTK-XB60
12

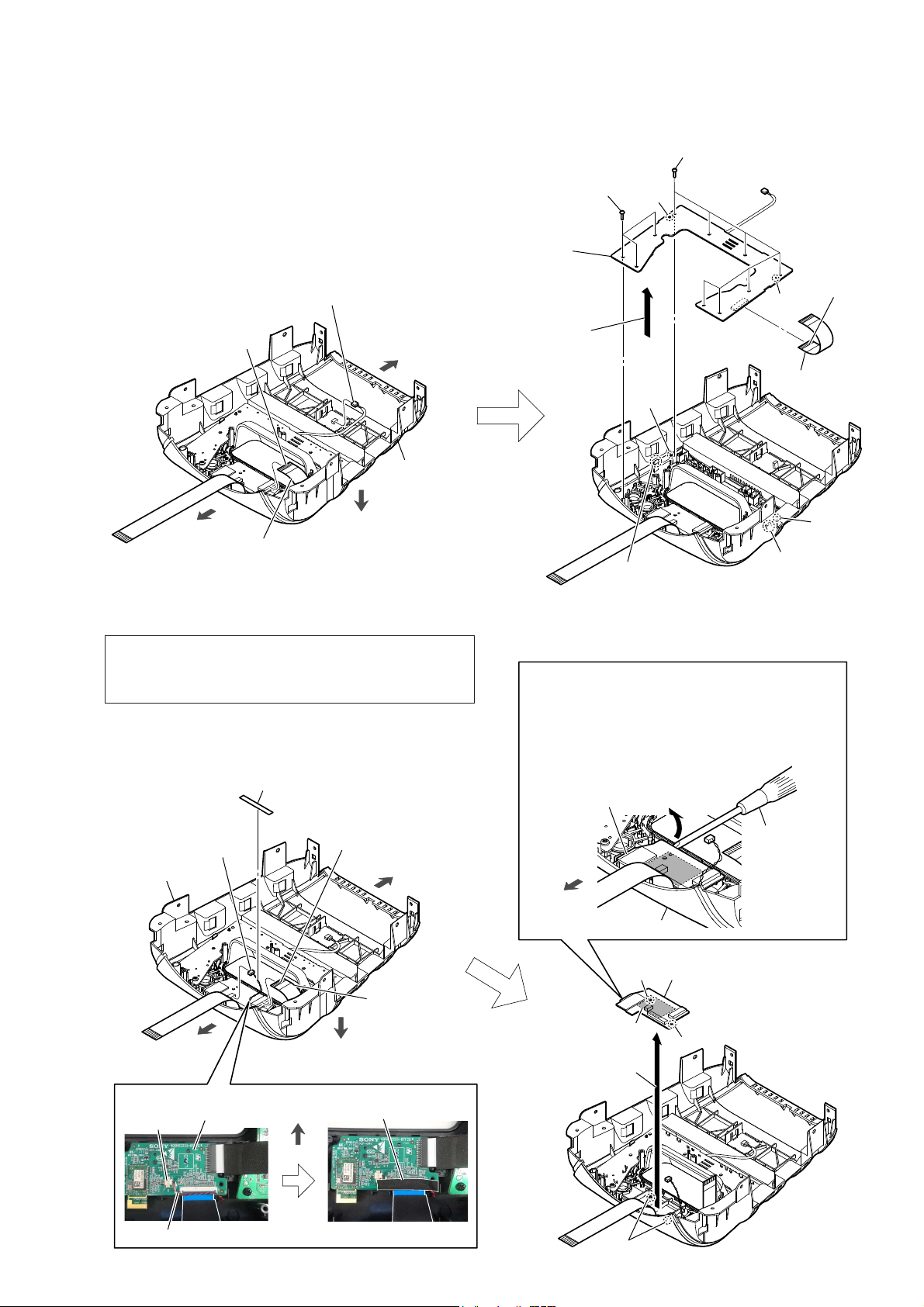

2-10. NFC BOARD
2-11. TOP HANDLE
front side
rear side
top side
adhesive sheet
hook
2claw
1KEY board cable
connector (XP12)
5NFC board
top panel block
top panel block
NFC board
flathead
screwdriver,
etc.
3Gradually peel off the NFC board with
a flathead screwdriver, etc.
Note 2: The NFC board is affixed to the top panel with
a adhesive sheet.
When removing the NFC board, remove slowly
so that you do not damage the hook, etc. of the
top panel.
hook
,QVWDOODWLRQGLUHFWLRQIRUWKH1)&ERDUG
front side
rear side
Arrow direction NFC board
–%RWWRPYLHZ–
4Remove the NFC board in
the direction of the arrow.
1cushion
front side top side
top panel block
FFC
(BT-MAIN)
cushion
front side
))&%70$,1VHWWLQJ
rear side
3Move the FFC (BT-MAIN)
to the front side.
2three screws
(M3 u10)
2screw
(M3 u10)
2screw
(M3 u10)
–%RWWRPYLHZ–
rear side
hole
boss
4top handle
Note: When installing the top handle,
align the boss and hole.
Note 1: When replacing the NFC board, be sure to replace the BT
board and the NFC board simultaneously. The NFC board
cannot replace with single. Among the repair parts, the BT
board and the NFC board are supplied as one unit.

GTK-XB60
13
2-12. KEY BOARD
2-13. BT BOARD
5 Remove the KEY board
block in the direction of
the arrow.
terminal side
2KEY board cable
connector (XP12)
top panel block
front side
rear side
top side
1FFC (BT-KEY)
(XP10) 4claw
hole
3three screws
(M3 u10)
3seven screws
(M3 u10)
hole
7KEY board
Note: When installing the KEY board,
align the two bosses and two holes.
terminal
side
6FFC (BT-KEY)
(XP8)
4claw
boss
boss
terminal
side
top panel block
3FFC (BT-KEY)
(XP10)
1cushion
0LFURSKRQHFDEOHVHWWLQJ
cushion
2microphone cable
connector (XP6)
–%RWWRPYLHZ–
microphone cable
XP6 BT board rear side
BT board
4Gradually peel off the BT board with
a flathead screwdriver, etc.
Note 3: The BT board is affixed to the top panel with
a adhesive sheet.
When removing the BT board, remove slowly
so that you do not damage the boss, etc. of the
top panel.
hole
hole
two bosses
adhesive
sheet
6BT board
Note 2: When installing the BT board,
align the two bosses and two
holes.
5Peel the BT board off of
the top panel block.
front side
rear side
top side
top panel block
flathead
screwdriver,
etc.
front side
Note 1: When replacing the BT board, be sure to replace the BT board
and the NFC board simultaneously. The BT board cannot re-
place with single. Among the repair parts, the BT board and
the NFC board are supplied as one unit.

GTK-XB60
14
2-14. BOTTOM PANEL ASSY
Note 1: When removing the bottom panel assy, move the bottom
panel assy slowly and remove the bond as shown figure.
Note 2: When removing the bottom panel assy, please remove
carefully so as not to damage the four bosses.
bottom side
1two foot pads
(flat)
1two foot pads
(flat)
3screw
(M3 u10) 3screw
(M3 u10)
2two screws
(M4 u20)
8bottom panel assy
Note 3: When installing the bottom panel assy,
remove the used bond and use a new
bond to fix the bottom panel assy.
7Remove the bottom panel assy
in the direction of the arrow.
top side
front side
bond
bond
bond
6claw
4
4
bottom side
bottom panel assy
5four bosses

GTK-XB60
15
2-15. FRONT PANEL BLOCK-1
• Continued on 2-16 (page 16).

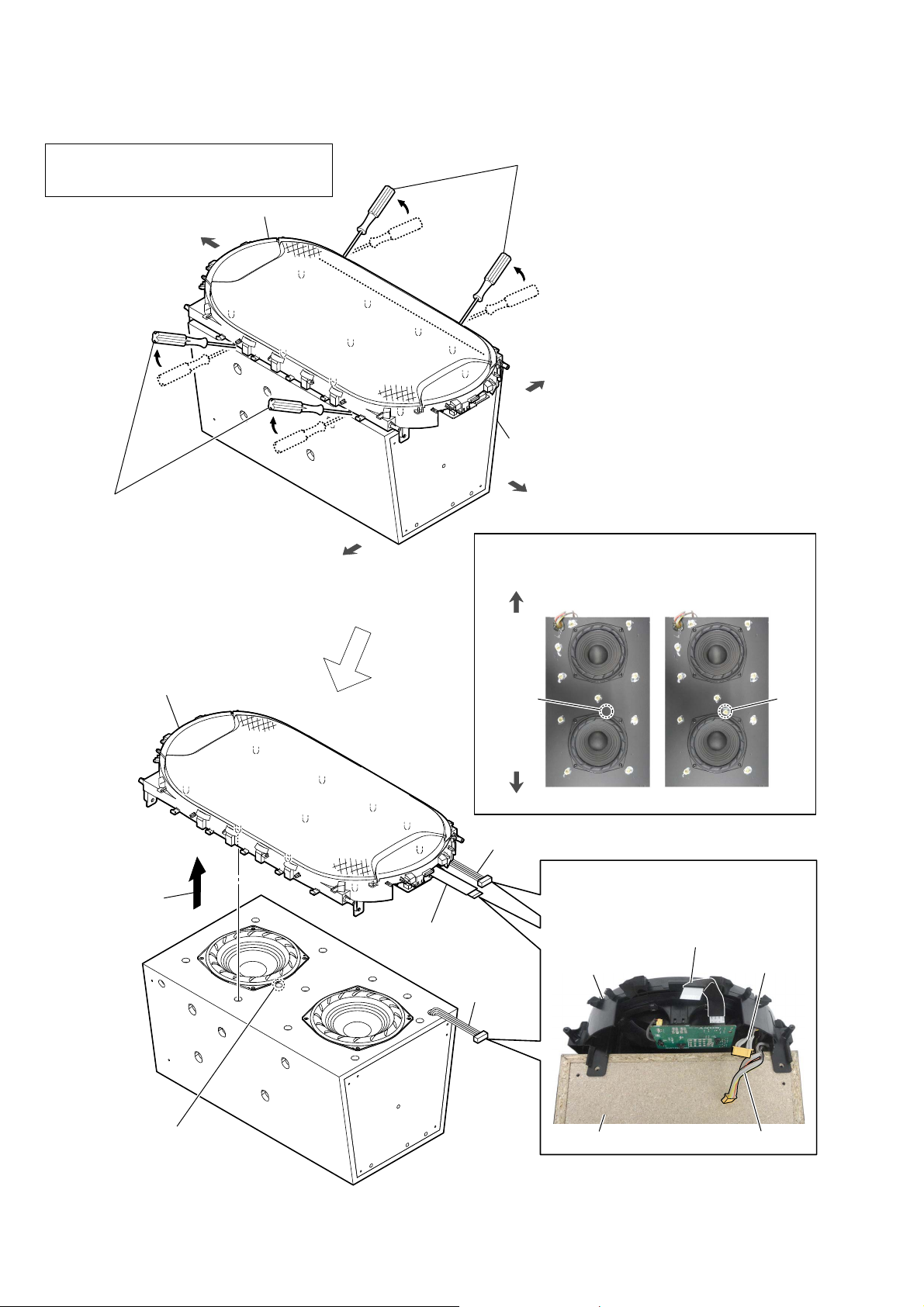

2Align the front panel block and wood
cabinet around the boss from the side,
insert a jig between them, and open a
gap of about 3 to 5 mm (perform at
the top, bottom, left, and right).
Note 1: When using a jig, please work carefully
so as not to damage the front panel
block and wood cabinet.
bottom side
top side
– Top view –
– Bottom view –
4Insert a thick screwdriver into the bottom side
and widen the gap (perform at two places).
Note 2: Be careful because if a screwdriver is
inserted too far in, the speaker unit (WF)
may get damaged.
3Insert a thick screwdriver into the top side and
widen the gap (perform at two places).
Note 2: Be careful because if a screwdriver is
inserted too far in, the speaker unit (WF)
may get damaged.
front side
boss
front panel block
about
3 to 5 mm
1two screws
(M4 u20)
front panel block
1two screws
(M4 u20)
wood cabinet
total ten bosses (US, CND)
total eleven bosses (Except US, CND)
Note 3: This boss excludes US
and CND models.

GTK-XB60
16
2-16. FRONT PANEL BLOCK-2
left side
right side
2Insert a thick screwdriver into the right side
and widen the gap (perform at two places).
Note 2: Be careful because if a screwdriver is
inserted too far in, the speaker unit (WF)
may get damaged.
Note 1: Make sure to proceed with the top and bottom
sides first because the right and left sides may
damage the sides of the front panel block.
top side
3Remove the front
panel block in the
direction of the
arrow.
woofer cable
tweeter cable
wood cabinet
front panel block
– Top view –
Note 4: When installing the front panel block,
be careful not to pinch the three cables.
tweeter cable
woofer cable
FFC
(TOP LED-MAIN)
FFC
(TOP LED-MAIN)
4front panel block
Note 3: When installing the front panel block
remove the used bond and use a new
bond to fix the front panel block.
wood cabinet
bottom side
front panel block
1Insert a thick screwdriver into the left side
and widen the gap (perform at two places).
Note 2: Be careful because if a screwdriver is
inserted too far in, the speaker unit (WF)
may get damaged.
Note about installing the front panel block
total ten bosses total eleven bosses
– Front view –
Note 6: The number of boss holes varies depending
on the destination.
No
boss
hole.
top side
With
boss
hole.
Except US, CNDUS, CND
Note 5: This boss excludes US
and CND models.
bottom side

GTK-XB60
17

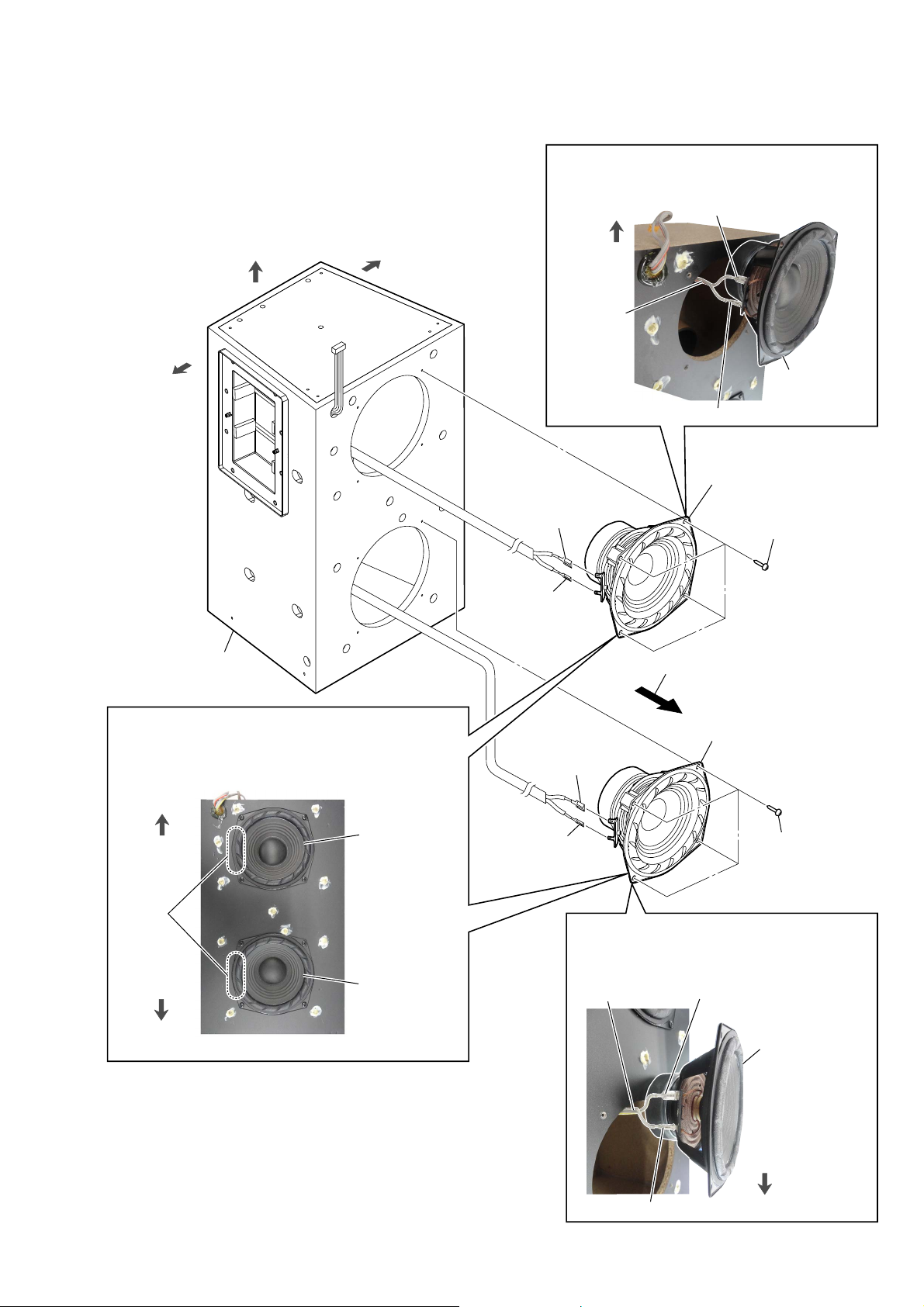

2-17. SPEAKER UNIT (WF)
:RRIHUFDEOHVHWWLQJZRRIHUWRS
:RRIHUFDEOHVHWWLQJZRRIHUERWWRP
4speaker unit (WF)
(woofer bottom)
3terminal
(wide)
3terminal
(narrow)
4speaker unit (WF)
(woofer top)
3terminal
(wide)
3terminal
(narrow)
2Pull out the speaker unit (WF)
in the direction of the arrow.
–)URQWYLHZ–
,QVWDOODWLRQGLUHFWLRQIRUWKHVSHDNHUXQLW:)
Note 1: When installing the speaker unit (WF), make sure
that there is a position of the speaker terminal to
the position shown in the figure below.
Note 2: When installing the woofer cable, make the
position of caulking of terminals is outside.
Note 2: When installing the woofer cable, make the
position of caulking of terminals is outside.
left side
right side
top side
wood cabinet
terminals
position
top side
terminal (wide)
terminal (narrow) bottom side
woofer cable
[yellow line]
terminal (wide)
terminal (narrow)
top side
woofer cable
[red line]
speaker unit (WF)
(woofer top)
1four screws
(M4 u20)
1four screws
(M4 u20)
speaker unit (WF)
(woofer bottom)
speaker unit (WF)
(woofer top)
speaker unit (WF)
(woofer bottom)
bottom side

GTK-XB60
18
2-18. TOP SPEAKER BOARD, BOTTOM SPEAKER BOARD, TOP LED BOARD, BOTTOM LED BOARD
/('ERDUGFDEOHDQG
WZHHWHUFDEOHVHWWLQJ
front side
top side
terminal side
groove
groove
groove
groove
groove
groove
–5HDUYLHZ–
top side
2two screws
(M3 u10)
5TOP
SPEAKER
board
6LED board cable
connector (XP16)
1Draw the LED board cable out
of the six grooves in front panel.
8BOTTOM LED board
Note: When installing the BOTTOM LED board,
align the two bosses and two holes.
8TOP LED board
Note: When installing the TOP LED
board, align the two bosses and
two holes.
hole
hole
7FFC (TOP LED
-MAIN) (XP7)
boss
boss
boss
boss
bottom side
4SPEAKER board
cable connector
(XP14)
2two screws
(M3 u10)
3Remove the LED+SPEAKER board
block in the direction of the arrow.
3Remove the LED+SPEAKER board
block in the direction of the arrow.
hole
hole
4SPEAKER board cable
connector (XP18)
5BOTTOM SPEAKER board
6LED board cable
connector (XP12)
left side
OK
NG
bottom side

GTK-XB60
GTK-XB60
1919
2-19. SPEAKER UNIT (TW)
7ZHHWHUFDEOHDQG/('ERDUGFDEOHVHWWLQJ
3terminal
(wide)
3terminal
(narrow)
4speaker unit (TW)
(tweeter: left)
3terminal
(wide)
3terminal
(narrow)
4speaker unit (TW)
(tweeter: right)
front side
top side
bottom side
1Draw the tweeter cable out
of the four grooves in front
panel.
2two screws
(M3 u10)
–5HDUYLHZ–
left side
groove
groove
groove
groove
top side
bottom side
2screw
(M3 u10)
2screw
(M3 u10)
OK
NG
SECTION 3
TEST MODE
Buttons and indicators position:
CHARGE
– Top view –
ADD
RL
STAMINA FUNCTION USB AUDIO IN
SOFTWARE VERSION
It can confirm the software version.
Procedure:
1. Press the [1] button to turn the power on.
2. Press the [FUNCTION] button to select the AUDIO IN func-
tion.
3. Press two buttons of the [u] and [ADD] simultaneously for
5 seconds.
4. Each software version are shown by the flashing frequency of
LEDs simultaneously.
Example:
• When the MCU version is “v12”, the [ADD L] LED flashes 1
time, the [ADD R] LED flashes 2 times.
ADD
RL
Flash
(1 time)
Flash
(2 times)
• When the MPEG version is “v14”, the [STAMINA] LED
flashes 1 time, the [CHARGE] LED flashes 4 times.
CHARGE
STAMINA FUNCTION
Flash
(1 time)
Flash
(4 times)
• When the BT version is “v062”, the [AUDIO IN] LED does
not flash, the [ ] LED flashes 6 times, the [USB] LED flashes
2 times.
USB AUDIO IN
Flash
(6 time)
flash
(2 times)
Not flash
FACTORY RESET
It can reset all settings and clear the Bluetooth linked list. Execute
this mode when returning the this unit to the customer.
Procedure:
1. Press the [1] button to turn the power on.
2. Press two buttons of the [FUNCTION] and [–] simultaneously
for 5 seconds.
3. The [ ], [USB], [AUDIO IN] and [1] LEDs flashes 2 times,
and then reboot the system.
CHARGE
USB AUDIO IN
flash
(2 times)
flash
(2 times)

GTK-XB60
GTK-XB60
2020
SECTION 4
DIAGRAMS

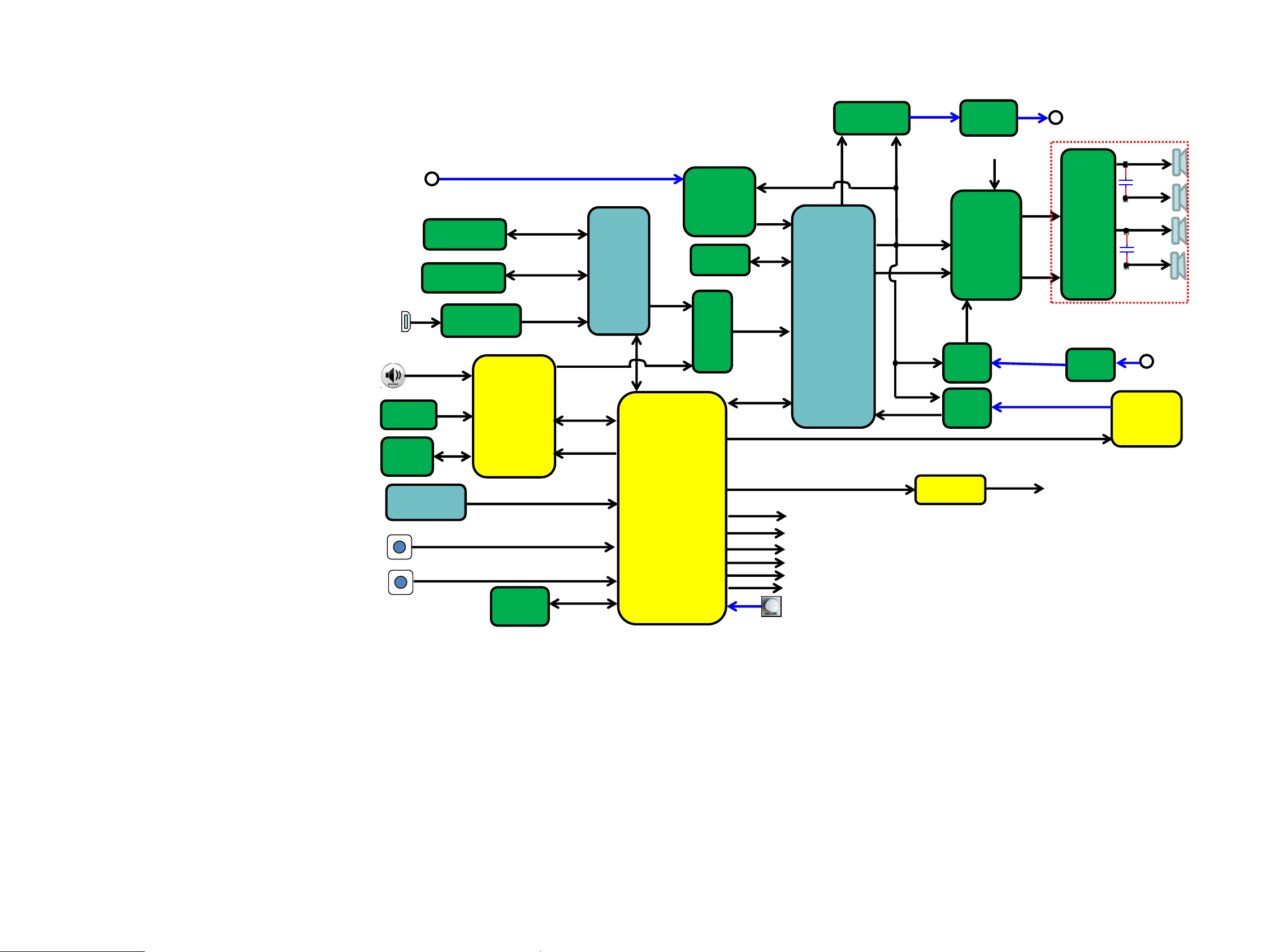

4-1. BLOCK DIAGRAM - OVERALL Section -
MCU
STM32F091
VC
UART2
Audio IN
BCLK2
LRCLK2
DATA2
DSP
YSS952
NFC
MN63Y1212
NFC_INT
crystal
01UCRYST
A-201
XI,XO
AD*2 +GPIO*1
Buttom*10
IO*21 For Others
crystal
24.576MHz
Audio
Processor
TAS5538
OP
AS9632
PWM1
PWM2
AMP
IC
TAS53
42A
TL
WL
TR
WR
ADC
PCM1808
LED Driver
SN3218
PWM* 16 For RGB_LED*4&White_LED*4
IIC1
For Blue_LED(BT)
IO*1
MCLK5
BCLK5
LRCLK5
Audio Out&Party Chain
FLASH 8M
01U0FLASH -202
crystal
01UCRYSTA-502
USBP,USBM
XI,XO
SW
NX3DV42GU
USB
DAC
AK4430
DATA4
DATA5
BCLK1
LRCLK1
DATA1
SW
74L
VC2
44
BCLK3
LRCLK3
DATA3
XI,XO
IIC1
From
MCU
IO*5 For White_LED*5(USB*1+Audio IN*1+L/R*2+Party Chain*1)
IO*1 For RED_LED(Bass)
IO*1 For Amber _LED(Charge)
IO*2 For Red+Green(Stanby)_LED(Charge)
ROM:256K bytes
RAM:32K bytes
IIC1
IIC2
DATA0
MPEG
Decoder
SPHE81
07C
Embedded
SDRAM
BT
BM63 -3G
CP IC
MF133
7S3959
IIC3
UART1
RESET¥&MF
B
&NFC_INT
Reset IC
SGM803
BT_RST
Hands Free
Reset Button
Reset
Sampler
IC
AM4KA340
ADC
PCM
1808
MIC*1
OP
F4558
DATA6
ADC
PCM
1808
DATA7
Mic Knob
AC:BTL 75W*2(3ȍ) 10%
Battery:BTL 35W*2(3 ȍ) 10%
