Sony LBT-XG60 User manual

Compact Hi-Fi
Stereo System
© 2001 Sony Corporation
Operating Instructions
4-233-529-12 (1)
LBT-XG700
LBT-XG500
LBT-XG80
LBT-XG60
Owner’s Record
The model and serial numbers are located on the rear panel. Record the serial number
in the space provided below. Refer to them whenever you call upon your Sony dealer
regarding this product.
Model No. Serial No.

2

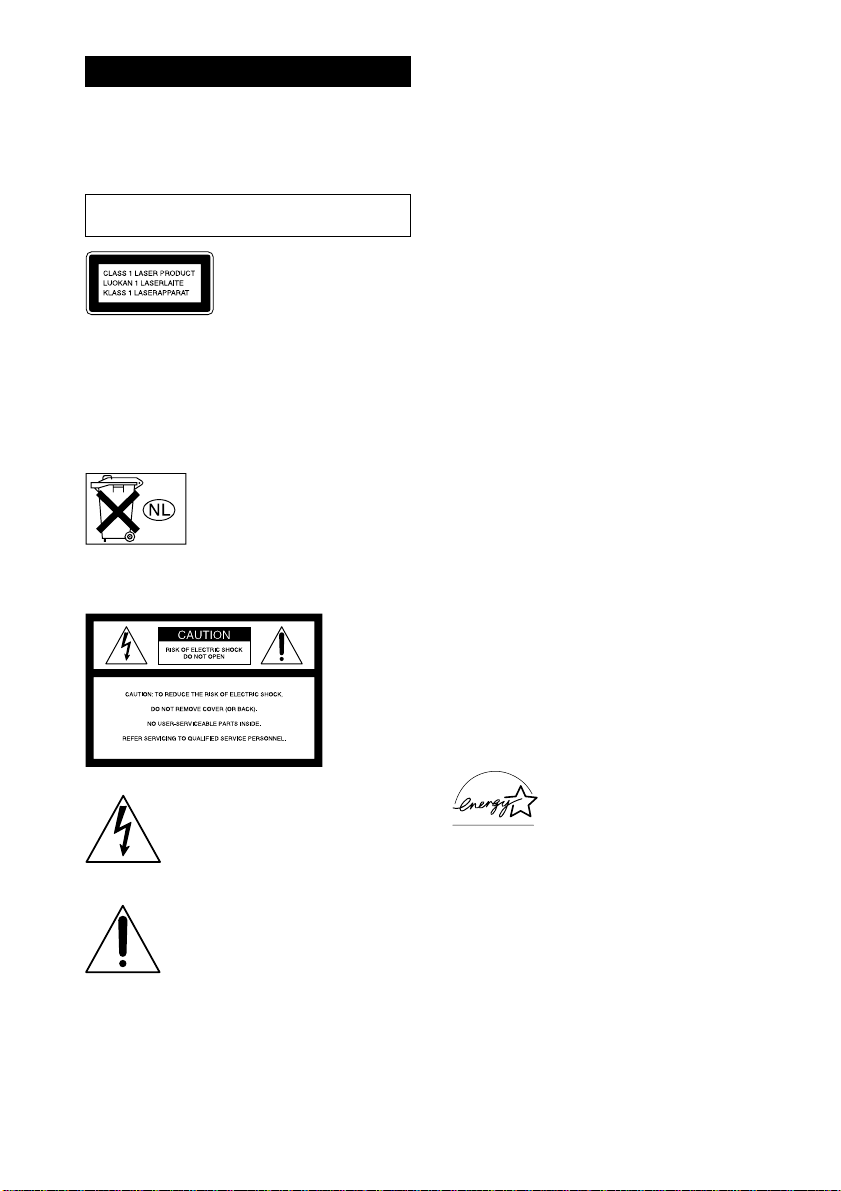

WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
To prevent fire, do not Cover the ventilation of the
apparatus with newspapers, table-cloths, curtains, etc.
And don’t place lighted candles on the apparatus.
To prevent fire or shock hazard, do not place vases on
the apparatus.
NOTICE FOR THE CUSTOMERS IN THE
U.S.A.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
NOTICE FOR THE CUSTOMERS IN
CANADA
CAUTION:
TO PREVENT ELECTRIC SHOCK, DO NOT USE
THIS POLARIZED AC PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
For the customers in North America
ENERGY STAR®is a U.S.
registered mark.
As an ENERGY STAR®partner,
Sony Corporation has determined
that this product meets the
ENERGY STAR®guidelines for
energy efficiency.
This stereo system is equipped with the Dolby B-type
noise reduction system*.
* Manufactured under license from Dolby
Laboratories Licensing Corporation.
DOLBY and the double-D symbol ;are
trademarks of Dolby Laboratories Licensing
Corporation.
Don’t throw a battery, dispose it as
the injurious wastes.
This appliance is classified as
a CLASS 1 LASER product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.

3
Table of Contents
Sound Adjustment
Adjusting the sound ............................. 18
Selecting the audio emphasis effect .... 18
Selecting the surround effect ............... 18
Making a personal audio emphasis file
–– Personal File............................. 19
Other features
Changing the spectrum analyzer
display ........................................... 20
Singing along: Karaoke ....................... 20
Playing a guitar....................................21
Enhancing video game sound
— Game Sync ............................... 21
Falling asleep to music
— Sleep Timer .............................. 21
Waking up to music
— Daily Timer .............................. 22
Hooking up the optional
components
Connecting MD deck/VCR/camcorder/
video game .................................... 23
Connecting a turntable/mixer .............. 24
Additional Information
Precautions .......................................... 25
Troubleshooting................................... 26
Specifications ...................................... 28
Parts Identification
Main unit ............................................... 4
Remote control ...................................... 5
Getting Started
Hooking up the system .......................... 6

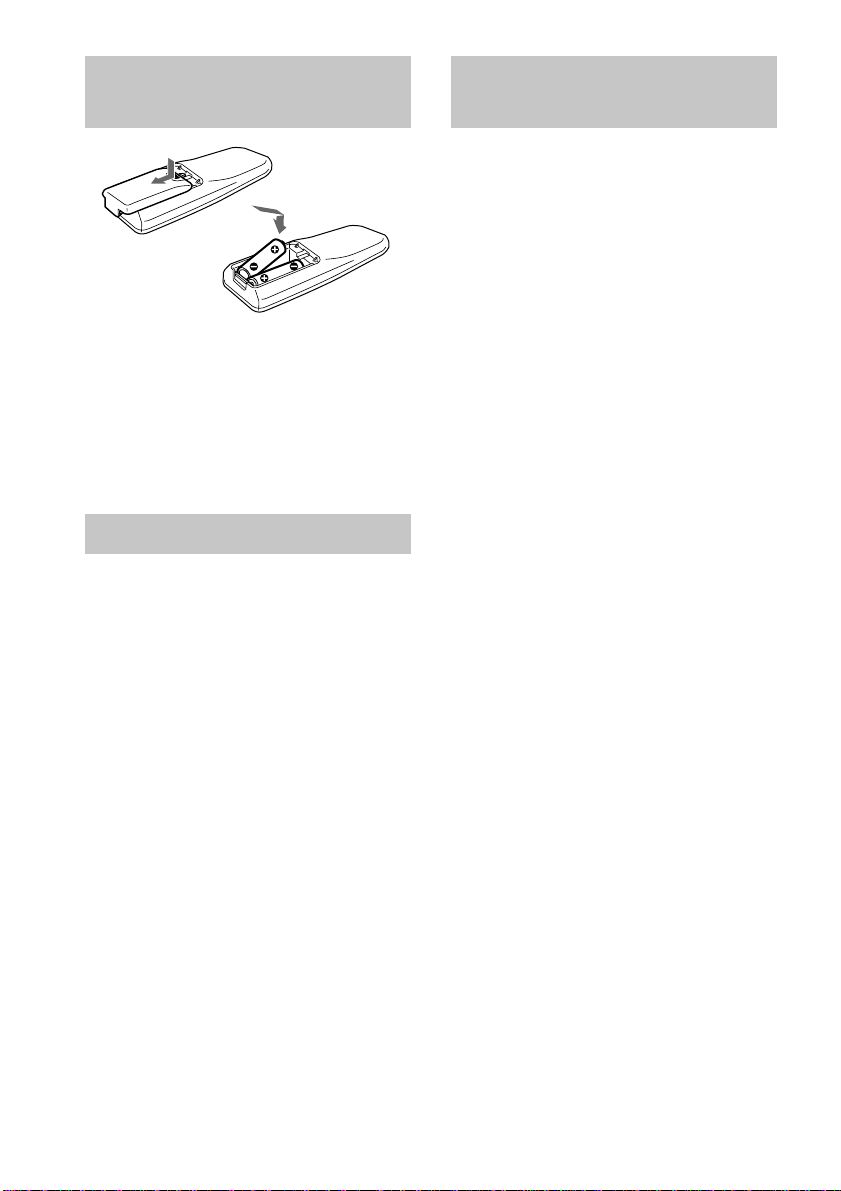

Inserting two size AA (R6) batteries into
the remote ........................................ 8
Setting the time...................................... 8
Saving the power in standby mode........ 8
CD
Loading the CD ..................................... 9
Playing the CD
–– Normal Play/Shuffle Play/
Repeat Play...................................... 9
Playing CDs without interruption
–– Non-Stop Play .......................... 10
Programming the CD tracks
–– Program Play ............................ 10
DJ Effects ............................................ 11
Using the CD display .......................... 11
Tuner
Presetting radio stations....................... 12
Listening to the radio
–– Preset Tuning ........................... 13
Using the Radio Data System (RDS)* . 13
Tape
Loading a tape ..................................... 15
Playing a tape ...................................... 15
Recording to a tape
–– CD Synchro Recording/
High Speed Dubbing/Recording
Manually/Program Edit ................. 16
Timer-recording radio programs ......... 17
* For European models only

4
A EJECT Z/Z B EJECT wg (15)
AUDIO L w; (23)
AUDIO R ql (23)
CD SYNC qg (16,17)
DIRECT EQUALIZER 5(18)
SALSA
REGGAE
SAMBA
TANGO
MOVIE
GUITAR
ROCK
JAZZ
DANCE
GAME
DIRECTION eh (15,16,17)
DISC SKIP qk (9,10,17)
DISC 1~5 wj (9)
DISPLAY 3(8,11,13)
DOLBY NR eh (15,16)
EDIT wl (17)
ENTER wh (12,14)
ENTER/NEXT qd (8,17,19,22,27)
FLASH e; (11)
FLAT qd (18)
FUNCTIONq; (7,9,10,16,17,23,24)
GAME qa (21)
GROOVE r; (18)
GUITAR DISTORTION wh (21)
GUITAR jack es (21)
GUITAR LEVEL eg (21)
H SPEED DUB qg (16)
Jog dial (AMS./>) qj
(9,10,11,17)
LOOP ea (7,11)
MIC LEVEL ef (20)
MIX GUITAR/KARAOKE ej (20,21)
MIX MIC jack ed (20)
NON STOP wk (10)
P.FILE qd (18,19)
PHONES jack qh
PLAY MODE qk (9,10,17)
POWER SAVE/DEMO
(STANDBY) 2(8)
PTY ws (14) *European model only
PUSH OPEN wf (9)
REPEAT qk (9)
SLEEP 7(21)
SPECTRUM ANALYZER 4(20)
STEREO/MONO ws (13)
SUPER WOOFER el (18)
SUPER WOOFER MODE ek (18)
SURROUND ra(16,18)
TIMER SELECT 8(17, 22)
TUNER/BAND wd(12,13,16)
TUNER MEMORY wh (12)
TUNING MODE ws (12,13)
VIDEO wa (23)
VOLUME control qs (9,13)
BUTTON DESCRIPTIONS
@/1 1
c/CLOCK SET 6
v/V/b/B9
z REC qf
Xqf
m/M, AMS./> qfeh
h,Hqfeh
xqfqkeh
m/Mqk
HX qk
+/– wd
Parts Identification
The items are arranged in alphabetical order.
Refer to the pages indicated in parentheses ( ) for details.
Main unit
wawswdwfwgwjwkwl
e;
ea
es
ed
ef
eg
ej
el
ek
r;
ra
eh
wh w;ql
qd
qs
qa
234 5 6789
q;
qf
qg
qh
qj
qk
1

Parts Identification
5
Remote control
AMS ./>, PRESET+/– 5
(9,13,14,15)
CD Nwa (9)
CHECK 8(10)
CLEAR 7(10)
DECK A Nql (15)
DECK B Nqk (15)
DISC SKIP 1(9,10,17)
FILE SELECT ON/OFF qf (18)
FILE SELECT F/f qg (11)
FLASH qs (11)
FUNCTION qa (7,9,10,16,17,23,24)
LOOP qh (11)
MD Nqj
MD X0
MD x9
SLEEP 2(21)
TUNER/BAND w;(12,16)
VOL +/– qd (9,13)
BUTTON DESCRIPTIONS
@/1 3
x4
m/M6
Xws
ql
qk
qj
qh
qg
qf
ws
wa
w;
6
7
8
9
q;
4
5
qd
qs
qa
123

6
AM
COAXIAL
FM 75
FM 75
AM
Getting Started

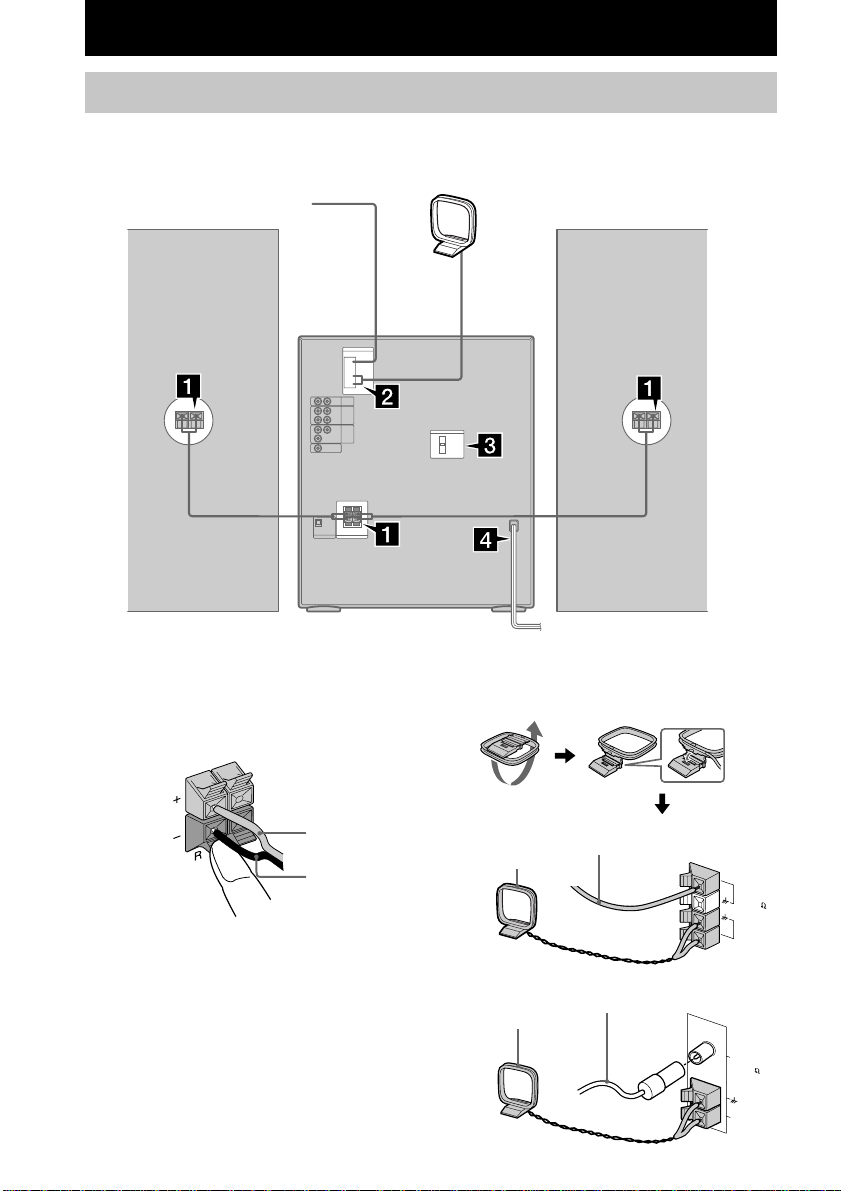

Hooking up the system
Do the following procedure 1to 4to hook up your system using the supplied cords and
accessories. AM loop antenna
FM antenna
Right speaker Left speaker
1Connect the speakers.
Connect the speaker cords to the SPEAKER
jacks as below.
Note
Keep the speaker cords away from the antennas to
prevent noise.
Insert only the stripped portion.
Black/Stripe (#)
Red/Solid (3)
Extend the FM lead
antenna horizontally.
AM loop antenna
Extend the FM lead
antenna horizontally.
AM loop antenna
Jack type B
Jack type A
2Connect the FM/AM antennas.
Set up the AM loop antenna, then connect
it.

7
Getting Started

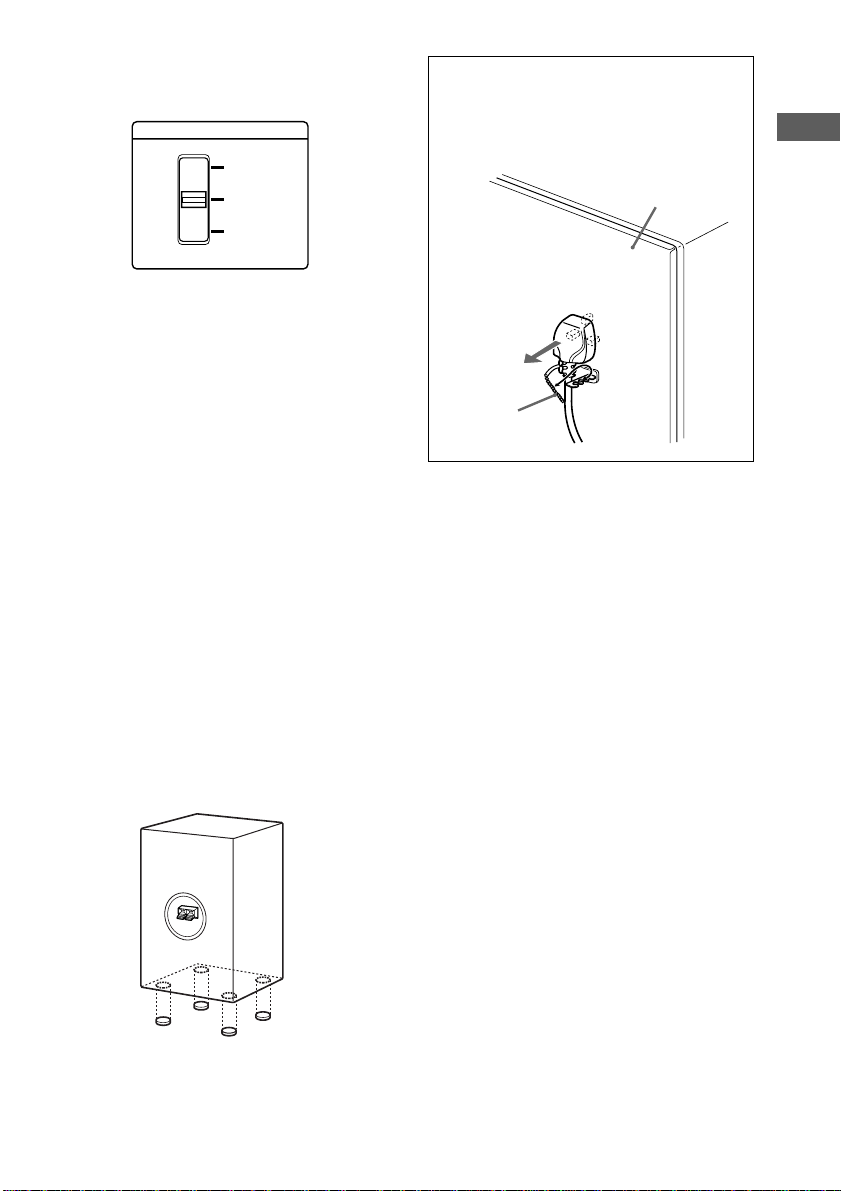

3For models with a voltage selector, set
VOLTAGE SELECTOR to the position of
your local power line voltage.
4Connect the power cord to a wall outlet.
The demonstration appears in the display.
When you press ?/1, the system turns on
and the demonstration automatically ends.
If the supplied adaptor on the plug does not
fit your wall outlet, detach it from the plug
(only for models equipped with the
adaptor).
When carrying this system
Do the following to protect the CD mechanism.
1Make sure that all discs are removed from
the unit.
2Press FUNCTION repeatedly until “CD”
appears.
3Hold down LOOP and then press ?/1until
“LOCK”appears.
4Unplug the AC power cord.
Before connecting the Front speaker
Stick the supplied front speaker pads to the
bottom of the front speakers to stabilize the
speakers and prevent them from slipping.
VOLTAGE SELECTOR
120V
220V
230~240V
Notice for customers in the United
Kingdom
The AC power cord has been fixed temporarily on
the rear panel with the plug band for shipment.
Unlock the plug band to remove the plug.
Plug band
Back panel

8
Setting the time
1 Turn on the system.
2Press c/CLOCK SET.
When you set the time for the first time,
skip to the step 5.
3Press v/Vrepeatedly to select SET
CLOCK.
4Press ENTER/NEXT.
5Press v/Vrepeatedly to set the hour.
6Press ENTER/NEXT.
The minute indication flashes.
7Press v/Vrepeatedly to set the minute.
8Press ENTER/NEXT.
The clock starts working.
Tip
If you’ve made a mistake or want to change the time,
start over from step 1.
Note
The clock settings are canceled when you disconnect
the power cord or if a power failure occurs.
Saving the power in
standby mode
Press POWER SAVE/DEMO (STANDBY)
when the power is off. Every time you
press the button, the system switches as
follows:
Power Saving Mode y Demonstration
The system is turned on/off by pressing ?/1.
Tips
•?/1 indicator lights up even in the Power Saving
Mode.
•The timer works in the Power Saving Mode.
•Everytime you press DISPLAY when the power is
off, the display changes as follows:
Demonstration y Clock
Note
You cannot set the time in the Power Saving Mode.
To cancel the Power Saving Mode
Press POWER SAVE/DEMO (STANDBY) to
show the demonstration.
Inserting two size AA (R6)
batteries into the remote
Tip
When the remote no longer operates the system,
replace both batteries with new ones.
Note
If you do not use the remote for a long period of time,
remove the batteries to avoid possible damage from
battery leakage.

9
CD
DOLBY NR
VOLUME
OFF

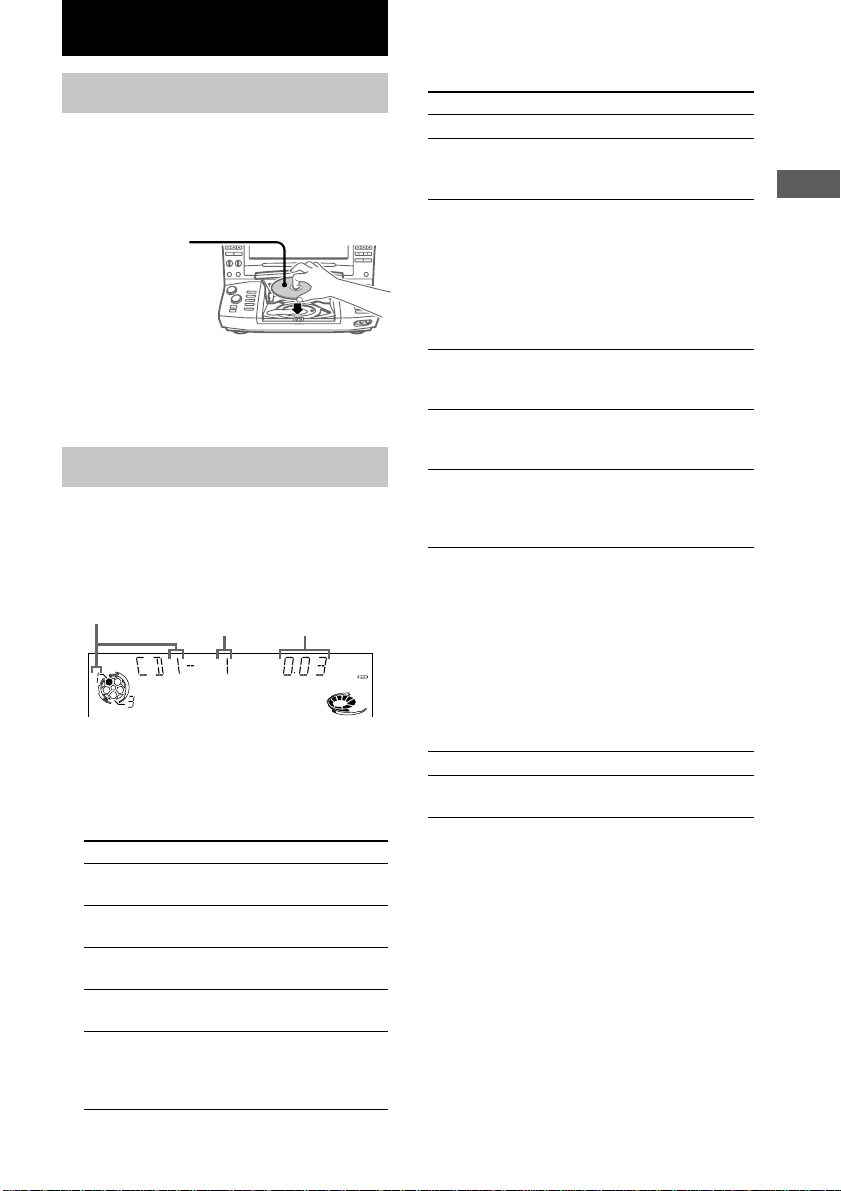

Loading the CD
1Press PUSH OPEN.
The front cover opens.
2Place a CD with the label side up on the
disc tray.
To insert additional discs, press DISC SKIP
to rotate the disc tray.
3Close the front cover.
Playing the CD
––Normal Play/Shuffle Play/Repeat
Play
This unit lets you play the CD in different play
modes.
1Press FUNCTION repeatedly until “CD”
appears.
2Press PLAY MODE repeatedly until the
mode you want appears.
3Press HX (or CD Non the remote).
Other Operations
To
Stop playback
Pause
Select a track
Find a point in a track
Select a CD
Switch to CD function
from another source
Play repeatedly
(Repeat Play)
Remove the CD
Adjust the volume
CD
Disc number in the playing position
Track number Elapsed time
Select
ALL DISCS
1 DISC
ALL DISCS
SHUFFLE
1 DISC
SHUFFLE
PROGRAM
To play
All CDs in the disc tray
continuously.
The CD you selected in the
original order.
The tracks on all CDs in random
order.
The tracks on the CD you
selected in random order.
The tracks on all CDs in the
order you want them to be
played (see “Programming the
CD tracks”on page 10).
Do this
Press x.
Press HX (or X on the
remote). Press again to
resume play.
During play or pause, turn
the jog dial clockwise (to
go forward) or
counterclockwise (to go
backward) (or press
AMS.( to go forward)
or AMS> (to go
backward) on the remote).
Press and hold Mor m
during playback, and
release at the desired point.
Press DISC 1~5 or DISC
SKIP (or DISC SKIP on the
remote).
Press DISC 1~5 or HX
(or CD N on the remote)
(Automatic Source
Selection).
Press REPEAT during
playback until “REPEAT”
or “REPEAT1”appears.
REPEAT: For all the tracks
on the CD.
REPEAT1: For a single
track only.
To cancel playing
repeatedly, press REPEAT
until “REPEAT”or
“REPEAT1”disappears.
Press PUSH OPEN.
Turn VOLUME (or press
VOL +/–on the remote).
When you play
a CD single,
place it on the
inner circle of
the tray.
Tip
You can change the CD in the loading position during
playback of the CD in the playing position.

10
Playing CDs without
interruption
–– Non-Stop Play
You can play CDs without pausing between
tracks.
1Press FUNCTION repeatedly until “CD”
appears, then load a CD.
2Press NON STOP so that the indicator
on this button lights up.
3Press HX.
To cancel Non-Stop Play
Press NON STOP so that the indicator on this
button goes off.
Programming the CD
tracks
–– Program Play
You can make a program of up to 32 tracks
from all the CDs in the order you want them to
be played.
1Press FUNCTION repeatedly until “CD”
appears, then load a CD.
2Press PLAY MODE repeatedly until
“PROGRAM” appears.
3Press DISC SKIP to select a CD.
4Turn the jog dial until the track you
want appears.
5Press PLAY MODE once.
The track is programmed. First “STEP”and
the programmed playing order appear, then
the total playing time appears.
6To program additional tracks, repeat
steps 3 to 5.
Skip step 3 to select tracks from the same
disc.
7Press HX.
To
Cancel Program Play
Check the program
Clear a track from
the end
Clear a specific track
in stop mode
Add a track to the
program in stop mode
Clear the entire
program
Tips
•The program you made remains in the CD player
after it has been played back. Press HX to play
the same program again.
•If “--.--”appears instead of the total playing time
during programming, this means:
–you have programmed a track number
which exceeds 20.
–the total playing time has exceeded 100 minutes.
Press
PLAY MODE repeatedly
until “PROGRAM,”“ALL
DISCS SHUFFLE”or “1
DISC SHUFFLE”
disappears.
CHECK on the remote
repeatedly. After the last
track, “CHECK END”
appears.
CLEAR on the remote in
stop mode.
CHECK on the remote
repeatedly until the number
of the track to be erased
lights up, then press
CLEAR.
1 Press DISC SKIP to
select a CD.
2 Turn the jog dial to select
a track.
3 Press PLAY MODE.
xonce in stop mode or
twice while playing.

11
CD
DJ Effects
Looping and flashing part of a
CD
With the loop function, you can repeat part of a
CD during playback. With the flash function,
you can “flash”part of a CD sound during
playback. Both functions let you create original
recordings.
To
Start the function at the
point you want
Resume normal play
Adjust the function
length (LOOP lengths
or FLASH lengths)
Use FLASH and LOOP
together
Notes
•Adjust the loop and flash lengths independently
before using the functions if necessary.
•To record the loop or flash effect, use the tape deck
on this unit.
Do this
Press and hold LOOP or
FLASH during playback.
Release LOOP or FLASH.
Turn the jog dial while
holding LOOP or FLASH
(or press FILE SELECT
F/fwhile holding LOOP or
FLASH on the remote).
Press and hold both LOOP
and FLASH at the same
time.
Using the CD display
You can check the remaining time of the
current track or that of the CD.
When a CD TEXT disc is loaded, you can
check the information stored on the disc, such
as the titles or artist names. When the unit
detects CD TEXT discs, the “CD-TEXT”
indication appears.
Press DISPLAY.
During normal playback
Playing time on the current track t
Remaining time on the current track t
Remaining time on current CD (1 DISC mode)
or “--.-- ”display (ALL DISCS mode) tTitle
name of the current track* tClock display
(for a few seconds) tEffect status
In the stop mode
When the CD player is in program mode and
there is a program:
The last track number of the program and the
total playing time tThe last track number of
the current CD and the total playing time t
Clock display (for a few seconds) tEffect
status
In other conditions:
The current disc number tDisc title* tThe
artist information* t Total number of tracks
and total playing time t Clock display (for a
few seconds) tEffect status
* With CD TEXT discs only (certain characters
cannot be displayed). When the CD contains more
than 20 tracks, CD TEXT is not displayed from
track 21 on.
Notes
•The display may not show all the characters
depending on the disc.
•This player can only display the disc titles, track
titles and artist names from CD TEXT discs. Other
information cannot be displayed.

12
Tuner

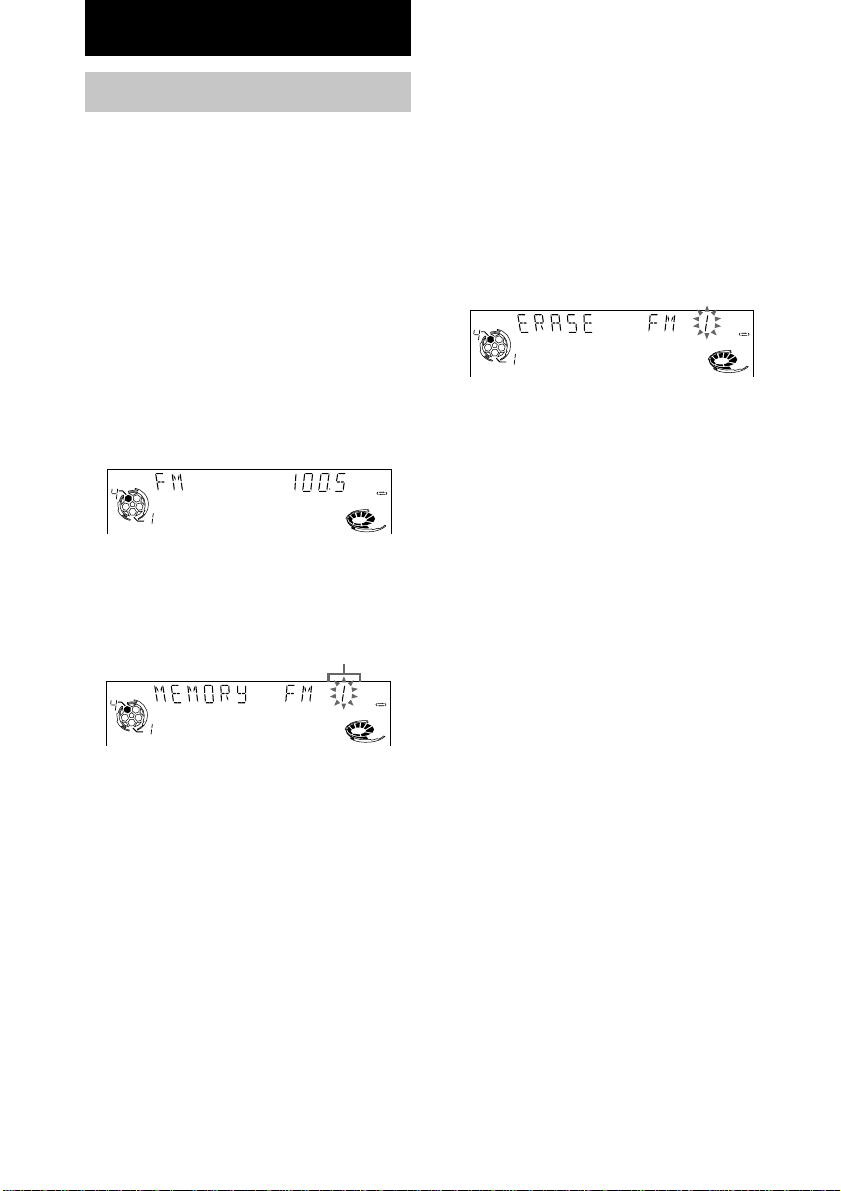

Presetting radio stations
You can preset 20 stations for FM and 10
stations for AM.
1Press TUNER/BAND repeatedly until
the band you want appears.
Each time you press this button, the band
changes as follows:
FM yAM
2Press TUNING MODE repeatedly until
“AUTO”appears.
3Press +/–until the frequency indication
starts to change.
Scanning stops when the system tunes in a
station. “TUNED”and “STEREO”(for a
stereo program) appear.
4Press TUNER MEMORY.
The next available preset number flashes in
the display. The stations are stored from
preset number 1.
5Press ENTER.
“COMPLETE”appears and the station is
stored.
6Repeat steps 1 to 5 to store other
stations.
To tune in a station with a weak
signal
Press TUNING MODE repeatedly until
“MANUAL”appears in step 2, then press +/–
to tune in the station.
To set another station to the
existing preset number
Start over from step 1. After step 4, press +/–to
select the preset number you want to store for
another station.
You can add a new preset number after the last
preset number.
To erase the preset station
1Hold down TUNER MEMORY until a preset
number appears.
2Press +/–to select the preset number you
want to erase.
Select “ALL ERASE”when you want to
erase all the preset stations.
3Press ENTER.
“COMPLETE”appears.
When you erase a preset number, the preset
number decreases by one and all preset
numbers following the erased one are
renumbered.
To change the AM tuning interval
(Except for the European and Middle
Eastern models)
The AM tuning interval is factory set to 9 kHz (10
kHz in some areas). To change the AM tuning
interval, tune in any AM station first, then turn off the
power. While holding down the ENTER button, turn
the power back on. When you change the interval,
AM preset stations will be erased. To reset the
interval, repeat the same procedure.
Tip
The preset stations are retained for half a day even if
you unplug the power cord or if a power failure
occurs.
Preset number
MHz
DOLBY NR
VOLUME
OFF
DOLBY NR
VOLUME
OFF
DOLBY NR
VOLUME
OFF

13
Tuner
MHz
DOLBY NR
VOLUME
OFF
Listening to the radio
–– Preset Tuning
Preset radio stations in the tuner's memory first
(see “Presetting radio stations”on page 12).
1Press TUNER/BAND repeatedly until
the band you want appears.
2Press TUNING MODE repeatedly until
“PRESET”appears.
Each time you press this button, the tuning
mode changes cyclically as follows:
MANUAL tAUTO tPRESET
3Press +/–(or PRESET +/–on the
remote) to tune in the preset station
you want.
* When only one station is preset, “ONE PRESET”
appears.
To
Turn off the radio
Adjust the volume
To listen to non-preset radio stations
Press TUNING MODE repeatedly in step 2
until “MANUAL”appears, then press +/–to
tune in the desired station.
Tips
•When an FM program is noisy, press
STEREO/MONO so that “MONO”appears. There
will be no stereo effect, but the reception will
improve.
•To improve broadcast reception, reorient the
antennas.
Using the Radio Data
System (RDS)
(For European model only)
What is the Radio Data System?
Radio Data System (RDS) is a broadcasting
service that allows radio stations to send
additional information along with the regular
program signal. This tuner offers convenient
RDS features, such as station name display and
location of stations by program type. RDS is
available only on FM stations*.
Note
RDS may not work properly if the station you are
tuned to is not transmitting the RDS signal properly
or if the signal strength is weak.
* Not all FM stations provide RDS service, nor do they
all provide the same types of services. If you are not
familiar with the RDS system, check with your local
radio stations for details on RDS services in your
area.
Receiving RDS broadcasts
Simply select a station from the FM band.
When you tune in a station that provides RDS
services, the station name appears.
To check the RDS information
Each time you press DISPLAY, the display
changes cyclically as follows:
Station name* tFrequency tProgram
type* tClock display tEffect status
* If the RDS broadcast is not received, the station
name and program type may not appear in the
display.
Preset number*Frequency
Do this
Press ?/1.
Turn VOLUME (or press
VOL +/–on the remote).
continued

14
Locating a station by
program type (PTY)
You can locate a station you want by selecting
a program type. The tuner tunes in the type of
programs currently being broadcast from the
RDS stations stored in the tuner’s preset
memory.
The types of programs include NEWS,
AFFAIRS (current news), INFORMATION,
SPORT, EDUCATION (education programs),
DRAMA, CULTURE, SCIENCE, VARIED
(interviews, games and comedy), POP, ROCK ,
EASY MUSIC (Easy listening),
L.CLASSICAL (Classical music, such as
instrumental, vocal, and choral works),
S.CLASSICAL, OTHER MUSIC (music, such
as rhythm and blues and reggae), WEATHER,
FINANCE, CHILDREN, SOCIAL,
RELIGION, PHONE IN, TRAVEL, LEISURE,
JAZZ, COUNTRY (country music), NATION
(nation's popular music), OLDIES, FOLK,
DOCUMENTARY (investigative features),
ALARM TEST (test signal for emergency
broadcast), ALARM-ALARM (emergency
broadcast), and NONE (any programs not
defined above).
1Press PTY while listening to the radio.
2Press +/–to select the program type
you want.
3Press ENTER.
“SEARCH”and the selected program type
are shown alternately in the display.
When the tuner receives a program, the
preset station number flashes.
4Press +/–to continue searching for the
station number you want.
5Press ENTER while the preset station
number you want is flashing.
To stop the search while it is in
progress
Press PTY.
Using the Radio Data System (RDS)
(continued)

15
Tape
Loading a tape
1Press A EJECT Zor ZB EJECT.
2Insert a tape in deck A or B with the
side you want to play facing forward.
Playing a tape
You can play any type of tape. TYPE I
(normal), TYPE II (CrO2), or TYPE IV (metal).
The deck automatically detects the tape type.
1Load a recorded tape.
2Press DIRECTION repeatedly to select
gto play one side. Select jto play
both sides. Select RELAY (Relay Play)*
to play both decks in succession.
3Press H.
Press hto play the reverse side. The tape
starts playing.
* Relay Play always follow this cyclic sequence:
Deck A (front side) tDeck A (reverse side) t
Deck B (front side) tDeck B (reverse side)
To
Stop play
Pause
(deck B only)
Fast-forward
Rewind
Remove the
cassette
Tape
Insert with the
side you want to
play/record facing
forward.
Tips
•The deck stops automatically after repeating the
sequence five times.
•You can fast-forward or rewind the tape, regardless
of the selected source.
•When you want to reduce the hiss noise in low-level
high-frequency signals, press DOLBY NR so that
“DOLBY NR B”appears.
Searching for the beginning of a
track (AMS)
During playback, press .or >repeatedly
for the number of songs you want to skip
forward (or backward).
The search direction, + (forward) or –(back),
and number of songs being skipped (1~9)
appear.
Note
The AMS function may not operate correctly under
the following circumstances:
–When the unrecorded space between songs is less
than 4 seconds long.
–When the unit is placed near a television.
Do this
Press x.
Press X.
Press again to resume play.
Press Mor min stop mode.
Press mor Min stop mode.
Press A EJECT Z(or ZB
EJECT).
Example: searching forward 2 songs

16
Recording to a tape
–– CD Synchro Recording/High Speed Dubbing/Recording Manually/
Program Edit
You can record from a CD, tape or radio. You can use TYPE I (normal) or TYPE II (CrO2) tapes.
The recording level is adjusted automatically.
Recording from a tape
(High-Speed Dubbing)
Recording from a CD
(CD Synchro Recording) Recording Manually
Insert a recordable tape into deck B.
Press FUNCTION
repeatedly until “TAPE”
appears.
Press FUNCTION
repeatedly until “CD”
appears.
Press FUNCTION or
TUNER/BAND
repeatedly until the
source or band you
want to record appears.
Insert the tape you want to
record into deck A.
Insert the CD you want to
record. Insert the CD/tape, or tune to the station you
want to record.
Press CD SYNC. Press zREC.
Press DIRECTION repeatedly to select gto record on one side.
Select j(or RELAY) to record on both sides.
Press X.
Recording starts.
Tips
•When you want to record on the reverse side, press
hafter pressing zREC so that the indicator on
the hbutton (for the reverse side) lights up green.
•When you record on both sides, be sure to start
from the front side. If you start from the reverse
side, recording stops at the end of the reverse side.
•For recording from the tape:
If you set the direction to jwhen the tapes you
use have different lengths, the tapes in each deck
1
2
3
4
5
6
7
reverses independently. If you select RELAY, the
tapes in both decks reverse together.
•To record with the surround effect, press
SURROUND so that “SUR ”appears.
The equalizer settings will not be recorded.
•For recording from the radio:
If noise is heard while recording from the radio,
move the respective antenna to reduce the noise.
Press H SPEED DUB.
Steps
DECK B stands by for recording.
To reduce the hiss noise in low level high frequency signals, press DOLBY NR so that
“DOLBY NR B”appears in the display (except when recording from a tape).
Start playing the
source to be recorded.
To stop recording
Press x.

17
Tape
To
Check the setting
Cancel timer
operation
Notes
•The system turns on 15 seconds before the preset
time.
•If the system is on at the preset time, the Timer
recording will not be made.
•When you use the Sleep Timer, Daily Timer and
Timer recording will not turn on the system until
the Sleep Timer turns it off.
•Recording starts from the front side.
Do this
Press TIMER SELECT. Press
v/Vto select “SEL REC.”
Then, press ENTER/NEXT. To
change the setting, start over
from step 1.
Press TIMER SELECT. Press
v/Vto select “TIMER OFF.”
Then, press ENTER/NEXT.
Timer-recording radio
programs
To timer-record, you must preset the radio
station (see “Presetting radio stations”on page
12) and set the clock (see “Setting the time”on
page 8) beforehand.
1Tune in the preset radio station (see
“Listening to the radio”on page 13).
2Press c/CLOCK SET.
3Press v/Vrepeatedly to select “REC,”
then press ENTER/NEXT.
“ON”appears and the hour indication
flashes in the display.
4Set the time to start recording.
Press v/Vto set the hour, then press
ENTER/NEXT.
The minute indication starts flashing.
Press v/Vto set the minute, then press
ENTER/NEXT.
The hour indication flashes again.
5Set the time to stop recording following
the above procedure.
The start time appears, followed by the stop
time, the preset radio station to be recorded
(e.g., “TUNER FM 5”), then the original
display appears.
6Insert a recordable tape into deck B.
7Turn off the power.
When the recording starts, the volume level
is set to the minimum.
Recording a CD by specifying
track order
—Program Edit
When programming, make sure the playing
times for each side do not exceed the length of
one side of the tape.
1Load CDs and a recordable tape into
deck B, then press FUNCTION
repeatedly until “CD”appears.
2Press PLAY MODE repeatedly until
“PROGRAM”appears.
3Select a CD and track by pressing DISC
SKIP and turning the jog dial, then
press PLAY MODE once.
Repeat this procedure to program the
remaining tracks for A side.
4Press Xon the remote to insert a
pause at the end of side A.
“P”appears and the total playing time resets
to “0.00”in the display.
5Repeat step 3 to program the remaining
tracks to be recorded on side B.
6Press CD SYNC.
Deck B stands by for recording.
7Press DIRECTION repeatedly to select
gto record on one side.
Select j(or RELAY) to record on
both sides.
8Press X.
Recording starts.
9 Press xon the deck B and the CD
player to stop recording.
Tip
To check the required tape length for recording a CD,
press EDIT so that “EDIT”flashes after you have
loaded a CD and switched function to CD. The
required tape length for the currently selected CD
appears, followed by the total playing time for side A
and side B respectively (Tape Select Edit).
Notes
•You cannot use Tape Select Edit for discs
containing over 20 tracks.
•You cannot use this function when Program Play
mode has been set. After clearing the entire
program, follow the above procedure.

18
Sound Adjustment
Adjusting the sound
To reinforce lower bass sound
(SUPER WOOFER)
Press SUPER WOOFER.
Each time you press this button, the super
woofer level display changes cyclically as
follows:
SUPER WOOFER FLAT tLOW tHIGH
To select the super woofer mode
Press SUPER WOOFER MODE while the
super woofer is on.
Each time you press this button, the super
woofer mode display changes as follows:
MODE MOVIE yMODE MUSIC
For a powerful sound (GROOVE)
Press GROOVE.
The volume switches to power mode, the
equalizer curve changes, and the indicator on
the GROOVE button lights up.
Press GROOVE again to return to the previous
volume.
Note
Canceling the Groove mode cancels the equalizer
curve and super woofer level. Adjust the equalizer
settings to obtain the desired effect.
Selecting the audio
emphasis effect
Selecting the preset effect from the
music menu
Press DIRECT EQUALIZER button you want.
The preset effect name appears.
See the chart “Music menu options.”
To
Select USER FILE
Cancel the effect
Music menu options
“SUR ”appears if you select an effect
with surround effects.
Effect
SALSA
REGGAE
SAMBA
TANGO
MOVIE
DANCE
JAZZ
ROCK
GAME
GUITAR
Selecting the surround
effect
Press SURROUND.
Every time you press the button, the display
changes as follows:
SURROUND ON (SUR )
Y
SURROUND OFF
For
standard music sources
soundtracks and special
listening situations
Press
P.FILE
FLAT (or FILE SELECT
ON/OFF on the remote).

19
Sound adjustment
Frequency level
Making a personal audio
emphasis file
–– Personal File
You can create personal files of audio patterns
(surround effect and graphic equalizer) and
store them in the system’s memory. Later, you
can call up an audio pattern when playing a
favorite tape, CD, or radio program.
Before operating, first select the basic audio
emphasis you want for your sound.
1Press b/Bto select the frequencies,
then press v/Vto adjust the level.
2Press ENTER/NEXT.
This setting is automatically stored as
P.FILE.
Any settings previously stored at this
memory location are erased and replaced by
the new settings.
To call up the personal file
Press P.FILE.
Tip
If you choose another audio emphasis, the adjusted
sound effect is lost. To retain the adjusted sound
effect, press P.FILE.
DOLBY NR
VOLUME
ALL DISC S
OFF

20
Notes
•With some songs, vocals may not be canceled when
you select “MIX GUITAR/KARAOKE.”
•During MIX GUITAR/KARAOKE, equalizer and
surround settings cannot be changed.
•If you select a sound effect, the karaoke mode is
canceled.
•The instrumental sound may be reduced as well as
the singer’s voice when the sound is recorded in
monaural.
•The singer’s voice may not be reduced when:
—only a few instruments are playing.
—a duet is being played.
—the source has strong echoes or chorus.
—the singer’s voice deviates from the center.
—the voice on the source is singing in high
soprano or tenor.
Mixing and recording sound
1Do the procedure for “Singing along”
(steps 1 through 5). Then, load a
recordable tape in deck B.
2Press FUNCTION repeatedly to select
the source you desire and set it to
pause mode.
3Press z REC.
4Press DIRECTION repeatedly to select
gto record on one side. Select j
(or RELAY) to record on both sides.
5Press X.
6Press HX to start playing the CD (or
Hon deck A to start playing the tape).
Start singing along with the music.
To stop recording
Press x.
Tips
•If acoustic feedback (howling) occurs, move the
microphone away from the speakers or change the
direction of the microphone.
•If you want to record your voice through the
microphone only, you can do so by selecting the
CD function and not playing a CD.
•When high level sound signals are input, the unit
automatically adjusts the recording level to prevent
distortion of the recorded sound signal (Auto Level
Control Function).
Changing the spectrum
analyzer display
Press SPECTRUM ANALYZER.
Each time you press the button, the display
changes cyclically as follows:
IMAGE ILLUMINATION tIMAGE t
NORMAL ILLUMINATION tNORMAL
Singing along: Karaoke
You can sing along with any stereo CD or tape
by turning down the singer’s voice. You need
to connect an optional microphone.
1Turn MIC LEVEL to MIN to turn down
the microphone control level.
2Connect an optional microphone to MIX
MIC.
3Press MIX GUITAR/KARAOKE.
Each time you press the button, the display
changes as follows:
MIX GUITAR/KARAOKE yOFF or
audio emphasis name
The mindicator appears when karaoke mode is
activated.
To sing karaoke by decreasing the vocal level of a
CD or TAPE, select “MIX GUITAR/
KARAOKE.”
4Start playing the music and adjust the
volume.
5Adjust the microphone volume by
turning MIC LEVEL.
After you have finished
Turn MIC LEVEL to MIN and disconnect the
microphone from MIX MIC, then press MIX
GUITAR/KARAOKE repeatedly until “m”
disappears.
Other features
