Sony SA-iP001P User manual

SA-iP001P
US Model
Canadian Model
AEP Model
UK Model
SERVICE MANUAL

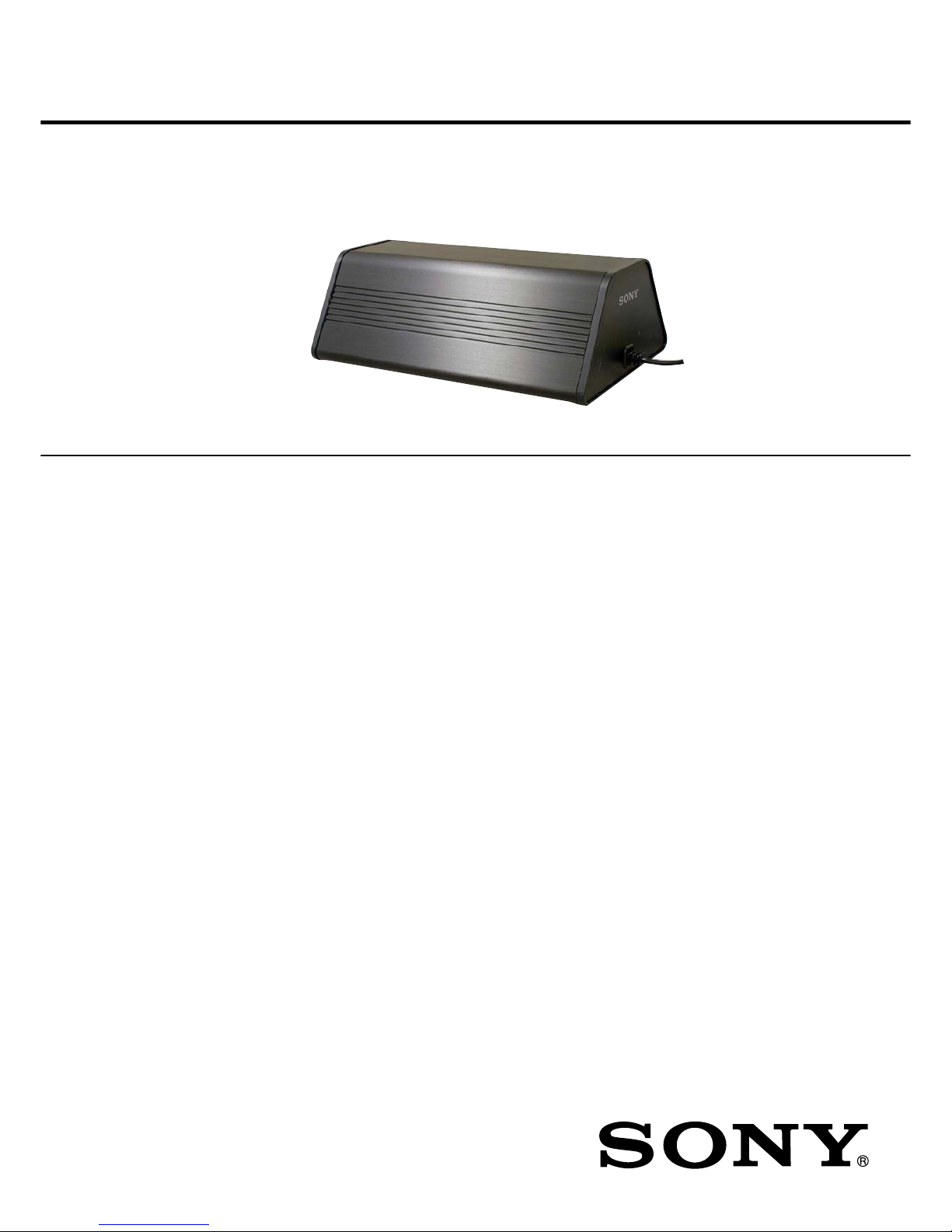

CRADLE AUDIO SUBWOOFER
SPECIFICATIONS
Ver. 1.0 2006. 12
• SA-iP001P is active subwoofer in CPF-iP001.
Continuous RMS power output (reference):
15 W (100 Hz, 10% THD)
Speaker units: 70 mm (2 7/8in) dia.
Dimensions (w/h/d): Approx. 218 ×74 ×131 mm
(8 5/8×3 ×5 1/4in), incl.
projecting parts
Mass: Approx. 1.3 kg (2 lb 14 oz)
Operating temperature: 10°C to 35°C (50°F to 95°F)
Power requirements: AC 120 V , 18W, 50/60Hz
(US, CND)
AC 220 V – 240 V,
18 W, 50/60 Hz
(AEP, UK)
(DC OUT: 12 V, 1.0 A)
Design and specifications are subject to change
without notice.
Sony Corporation
Home Audio Division
Published by SonyTechno Create Corporation
9-887-493-01
2006L02-1
© 2006.12
TABLE OF CONTENTS
1. GENERAL ................................................................... 2
2. DIAGRAMS ................................................................. 3
2-1. Block Diagram ................................................................ 4
2-2. Printed Wiring Board – POWER Board (Side A) – ....... 5
2-3. Printed Wiring Board – POWER Board (Side B) – ....... 6
2-4. Schematic Diagram – POWER Board (1/2) – ................ 7
2-5. Schematic Diagram – POWER Board (2/2) – ................ 8
3. EXPLODEDVIEWS ................................................. 9
4. ELECTRICAL PARTS LIST .................................. 10

2
SA-iP001P
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
Checktheantennaterminals,metaltrim,“metallized” knobs, screws,
and all other exposed metal parts forAC leakage. Check leakage as
described below.
LEAKAGE
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. Acommercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’instructions to use these
instruments.
2. Abattery-operatedAC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOMor battery-operatedACvoltmeter.The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2VAC range are suitable. (See
Fig. A)
SAFETY CHECK-OUT
To Exposed Metal
Parts on Set
0.15 µF1.5 kΩAC
Voltmeter
(0.75V)
Earth Ground
Fig.A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND INTHE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
Notes on chip component replacement
•Never reuse a disconnected chip component.
•Notice that the minus side of a tantalum capacitor may be
damaged by heat.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•Unleadedsolder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
SECTION 1
GENERAL This section is extracted from
instruction manual.

33
SA-iP001P
SA-iP001P
SECTION 2
DIAGRAMS
Note on Printed Wiring Boards.
•X: parts extracted from the component side.
•Y: parts extracted from the conductor side.
•a: Through hole.
•f: internal component
•: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
•Note for PrintedWiring Boards and Schematic Diagrams
Note on Schematic Diagrams.
•All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
•All resistors are in Ωand 1/4W or less unless otherwise
specified.
• f: internal tolerance.
•C: panel designation.
•A: B+ Line.
•Voltages are dc with respect to ground under no-signal
conditions.
•Voltagesare taken with aVOM (Input impedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
•Signal path.
F: AUDIO
Caution:
Pattern face side: Partsonthe patternfaceside seenfrom
(Side B) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(Side A) the parts face are indicated.
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
22
23
24
25
26
27
28
RXP3
RXP2
RXP1
RXP0
RXN
VA
AGND
FILT
RST
RXSEL1
RXSEL0
TXSEL0
TXSEL1
NV/RERR AUDIO
96kHz
RCBL
U
C
TX
VL
DGND
VD
RMCK
SDOUT
OSCLK
OLRCK
OMCK
4:2
MUX
AES3 RX
&
DECODER
DE–EMPHASIS
FILTER
SERIAL
AUDIO
OUTPUT
S P
Sampling Rate
Converter
DF1
DF2
Gain
Control
Filter
&
LOW
CUT
Filter
Serial Control
Liner
Interpolator
∆ ∑ Converter
XVSS
PWM
INIT/MUTE
Clock Generator
Clock Generator
(Secondary Clock System)
1
VSUBC
2
VSSR
VSSL
VSSL
VSSR
3
OUTR2
OUTL2
OUTR1
OUTL1
4
VDDR
DVDD
DVSS
VDDL
5678
XOVSS
XOVDD
9
XFSOOUT
10 11
NSPMUTE
12
SOFTMUTE
13
PGMUTE
SCSHIFT
14
SCDT
15
SCLATCH
OVF FLAGR
OVF FLAGL
16
SFLAG
INIT
17
MCKSEL
18
LRCK
19
BCK
20
DATA
BFVDD
BFVSS
TEST
DVDD
XFSIIN
21
42
43 41 40 39 38 37
XFSOIN
36
XVDD
35
HPVDDL
34
HPOUTL2
33
HPVSSL
32
31
HPVDDR
30
HPOUTR1 HPOUTL1
29
28
HPVSSR
27
26
25
HPOUTR2
24
FSOI
23
FSOCKO
22
4445
46
47
48
(Primary Clock System)
RESET 4
GND 1
GND 3
PWM BP 2
DREG RTN 5
GVDD 6
M3 7
M1 10
M2 11
DVDD 12
DREG 8
DGND 9
DGND 14
GND 16
GND 18
PWM
RECEIVER
TIMING
CONTROL
&
PROTECTION
SD 13
OTW 15
DIGITAL
REGULATOR
PROTECTION
LOGIC
OT
&
UVP
DVDD DREG DREG
DGND
PWM AP 17 PWM
RECEIVER
DVDD DREG
DGND
DREG
GVDD
DREG
GATE
DRIVE
GVDD B35
GVDD B36
BST B33
PVDD B
32
PVDD B
31
OUT B
30
OUT B
29
GND
28
GND
34
GATE
DRIVE
OCH
OCL
TIMING
CONTROL
&
PROTECTION
DREG
GATE
DRIVE
GVDD A
20
GVDD A
19
BST A
22
PVDD A
23
PVDD A
24
OUT A
25
OUT A
26
GND
27
GND
21
GATE
DRIVE
OCH
OCL
GVDD
GVDD
4 67
LATCH CIRCUIT RESET
COMPARATOR
START–UP CIRCUIT
UVLO
COMPARATOR
OCP THRESHOLD
COMPARATOR
UVLO
COMPARATOR
OVP
COMPARATOR VUL VCC (START)/
VCC (STOP)
VCC (STARTUP OFF)/
VCC (STARTUP ON)
START–UP
CIRCUIT
SOFT DRIVE
CIRCUIT
VOVP
THERMAL
SHUTDOWN
CIRCUIT
ZERO CURRENT
DETECTION CIRCUIT
TURN–ON
DEAD TIMER
STANDBY
CIRCUIT
VREF
IF/B
ON WIDTH
TIMER
VTH (OCL)
BURST MODE
OCP THRESHOLD
COMPARATOR RESTART
TIMER
VTH (BURST LIMIT)
+
–
+
–
+
–
+
–
+
–
+
–
R
S
Q
R
S
Q
GND
1
+
–
3
2
5
Z/C
F/B
SOURCE/OCL
DRAINVINVCC
Q1
•IC Block Diagrams
IC801 CS8416-CZZR
IC803 CXD9774M IC901 MR4010-7103
IC802 CXD9788AR
Note:
Thecomponentsidenti-
fied by mark 0or dot-
tedlinewith mark 0are
critical for safety.
Replace only with part
number specified.
Note:
Les composants identifiés
par une marque 0sont cri-
tiques pour la sécurité.
Nelesremplacer queparune
piéce portant le numéro
spécifié.
1.6 Vp-p
5 MHz
0.5 Vp-p
49.152 MHz
1IC704 qc ( X IN )
0.5 V/DIV, 0.1 µ sec/DIV 0.1 V/DIV, 50 µ sec/DIV
2IC806 2( A )
•Waveforms

44
SA-iP001P
SA-iP001P

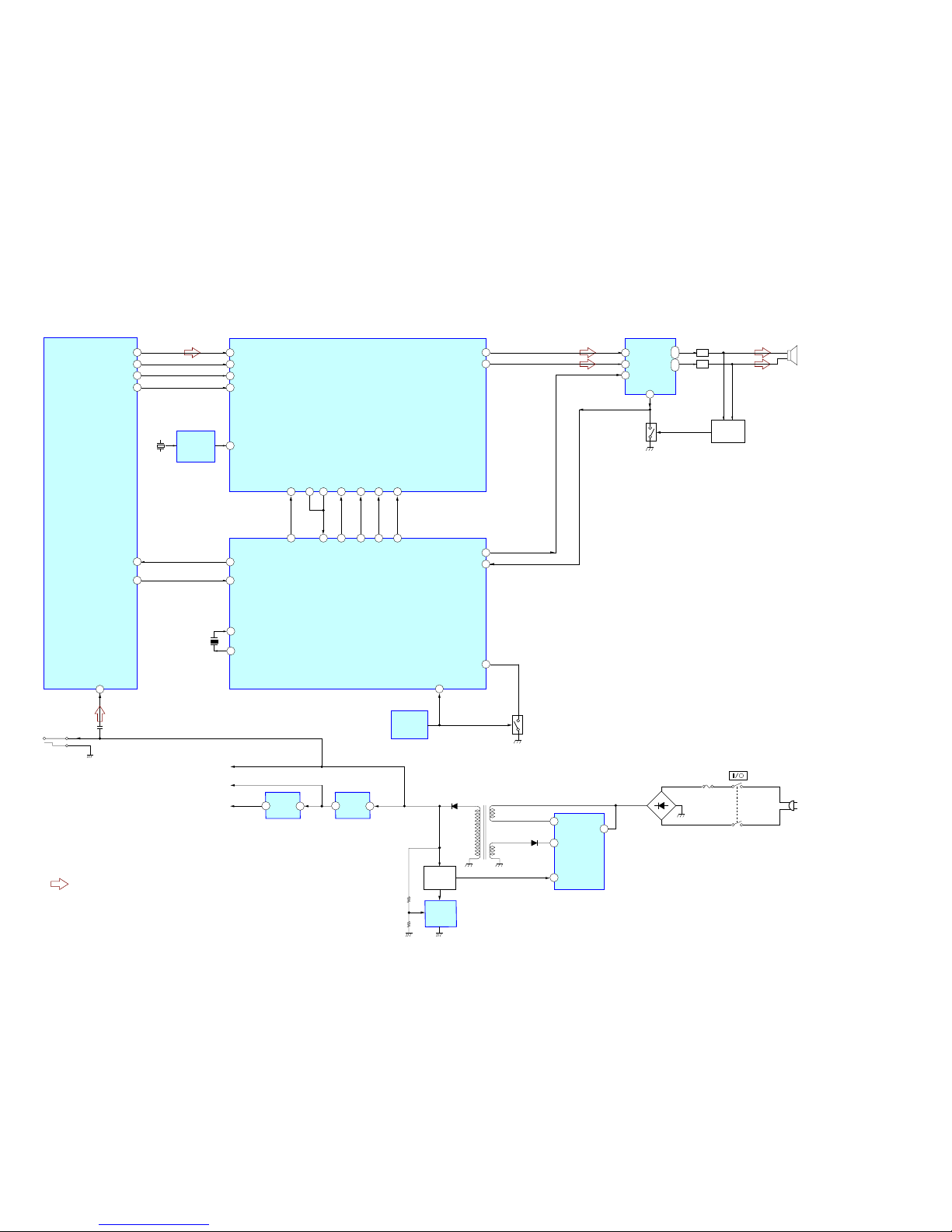

2-1. BLOCK DIAGRAM
IC902
SHUNT
REG
IC804
+3.3V REG
IC701
RESET
T901
POWER TRANSFORMER
D907
D903
D901 F901
AC IN
7
4
5
IC805
+1.8V REG 5
4
4
2FB
VIN
DRAIN
Q801
PROTECT
SWITCH
ERROR
AMP
PC901
+B 3.3V
+B 12V
+B 1.8V
DC OUT
SD
13
IC803
POWER DRIVER
2PWMBP
11
OUT1
9
OUT2
40
DRIVE_RST (EN)
41
DRIVE_OCP (DIAG)
10
RESET
29 LRCK
30 BCK
36 XFSI_IN
27
INIT
48
DAMP_INT
31 DATA
26
SDOUT
28
OLRCK
27
OSCLK
24
RMCK
48 XFSO_IN
56 DIR_RST
9
RST
55 DIR_ERR
14
NV/RERR
17 PWMAP
4RESET
29
30
25
26
OUTB
OUTA
Q802, 803
OVER LOAD
DETECT
LPF
LPF
Q701
RESET
IC901
POWER
SWITCHING
CONVERTER
VCC
SP1
SUB WOOFER
25
FLAG_L_OVF
24
OVR_FLAGR
42
OVERFLOW1
23
SCLATCH
45
DAMP_LATCH1
22
SCSHIFT
100
DAMP_SHIFT
21
SCDT
99
DAMP_SCD
19
SOFTMUTE
18
AC_CUT
49
DAMP_SOFTMUTE
X701
5MHz
13 X-IN
11 X-OUT
4
RXP0
IC801
192kHz DIGITAL AUDIO
INTERFACE RECEIVER
IC802
S-MASTER
PROCESSOR
IC806
OSC
IC704
SYSTEM CONTROL
X801
49.152MHZ
S901
: AUDIO
• Signal Path
6

55
SA-iP001P
SA-iP001P

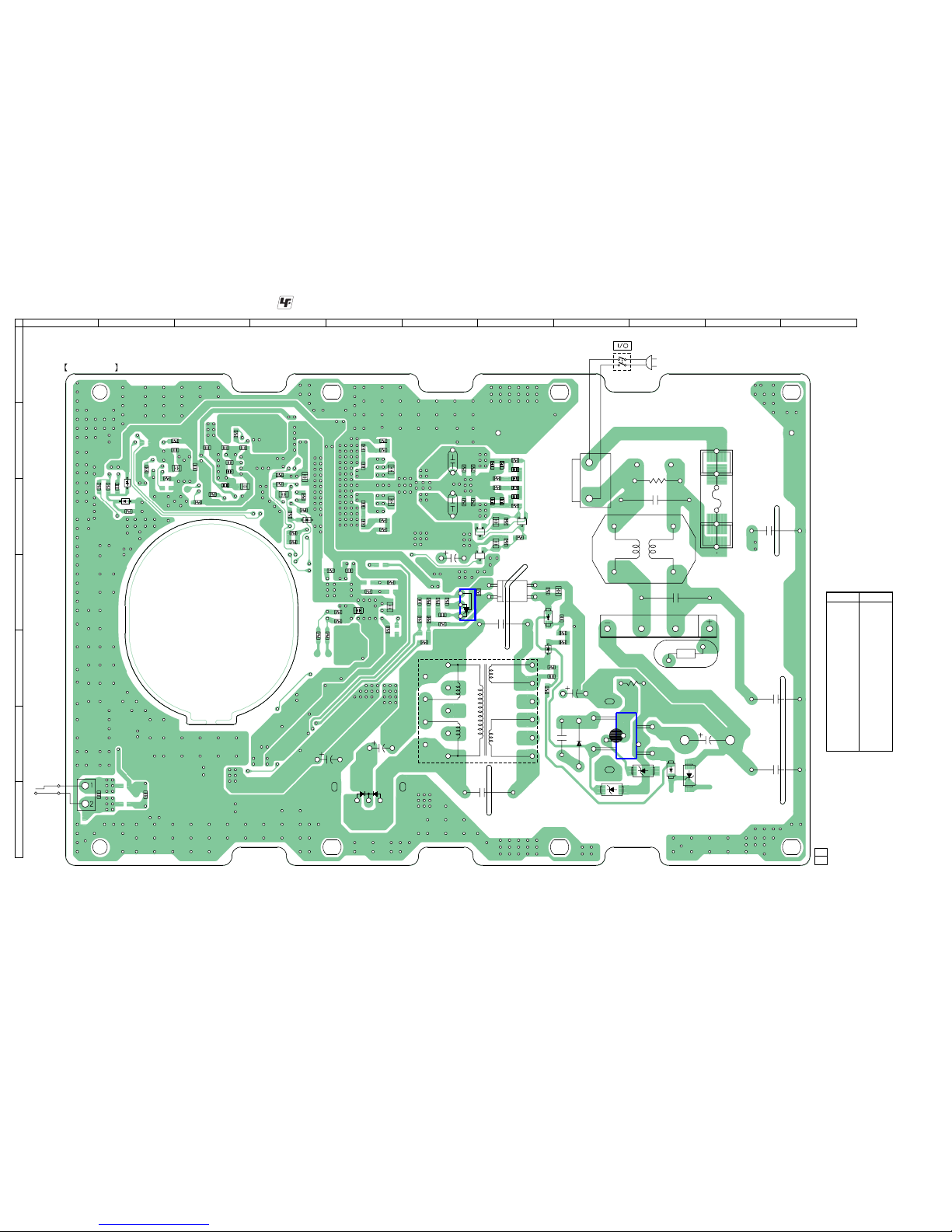

2-2. PRINTED WIRING BOARD – POWER BOARD (SIDE A) – :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D701 E-7
D903 E-4
D904 D-4
IC701 F-8
IC704 D-7
IC801 B-9
IC802 B-8
IC803 C-7
IC804 D-6
IC805 B-7
IC806 B-8
Q701 E-7
1
1
E
3
3
4
4
5
5
1
3
13
4
4
5
5
CP2
TH902
R708
R808
X801
R822
R921
C920
R823
R720
R722
C803
C922
L801
R803
R819
R830
IC805
C829
C818
C811
D701
R706
IC806
R704
R701
Q701
IC701
C712
C703
C702
C701
R812
R715
R804
R714
R713
C801
R801
C802
R846
R841
R863
C825
R845
R716
IC802
R811
R705
R813
R815
R816
C813
C840
C841
C809
C830
IC803
R829
C810
CN801
X701
R712
C806
R721
D904
IC704
R903
D903
L903
L901
R904
C812
L902
IC801
IC804
12
(12)
1-869-196-
POWER BOARD (SIDE A)
SP1
SUB WOOFER
23 4 5 6 7 89 10
A
1
B
C
D
E
F
G

66
SA-iP001P
SA-iP001P
1
7
6
23
45
E
E
E
POWER BOARD (SIDE B) AC IN
S901
DC OUT
R806
R821
R850
R826
D905
C834
C807
D805
R852
C804
R854
R851
R855
C814
C911
R809
R814
C827
R862
C711
R849
R817
R825
R730
C844
R711
R810
C704
R859
C805
R858
R856
C832
C846
C817
R710
C815
C842
C821 R861
C710
C823 C826
R820
R707
C845
R844
R807
R860
C836
R843
R831
R175
R857
C843
C820
Q802
C849
R724
R717
R853
C831
C850
Q801
R731
C854
C822
C851
C833
Q803
R703
C847
D909
C848
C835
C816
C915
D802
R911
R901
C910
R909
R908
D906
R905
C909
D908
R915
R913
R914
R916
C918
R910
C917
D801
D911
R906
R912
C916
R907
D910
R832
R833
C908
C906
C913
C914
C912
D907
CN902
C819
C837 C838
IC902
PC901
C919
T901
POWER TRANSFORMER
C907
D902
R902
IC901
TH901
C905
C903
12
(12)
1-869-196-
D901
C902
C904
F901
LF901
C901
1
2
FH902
CN901
R918
FH901
23 4 5 6 7 8910
A
1
B
C
D
E
F
G
11
2-3. PRINTEDWIRING BOARD – POWER BOARD (SIDE B) – :Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D801 C-2
D802 C-2
D805 C-4
D901 D-9
D902 F-8
D905 D-7
D906 E-7
D907 G-5
D908 F-9
D909 G-8
D910 F-9
D911 F-9
IC901 F-8
IC902 D-6
Q801 D-7
Q802 C-7
Q803 C-7

77
SA-iP001P
SA-iP001P
2-4. SCHEMATIC DIAGRAM – POWER BOARD (1/2) –
R722
R720
C701
C702
R701
C712
R706
R705
R704
C703
R716
R721
R708
C710
R730 R731
R711
R710
R712
R713
R714
R715
R707
C704
R703
R717
C711
R724
X701
IC704
IC701
D701
Q701
10k
4.7k
0.1
0.22
10k
0.1
47k
100k
47k
0.22
10k 100
10k
10
4.7k 4.7k
47
47
100
100
100
100
10k
0.1
47k
10k
10
47k
5MHz
M30620MCP
-A44GPU0
PST3629NR
1SS355WTE-17
2SC4154
RESET
GND
3.3V
DIR_RST
12V
SCDT
SCSHIFT
SCLATCH
INIT
SOFTMUTE
OVF
EN
SD
DIR_ERR
INIT
SCDT
SCSHIFT
SCLATCH
SOFTMUTE
OVF
EN
SD
SOFTMUTE
INIT
SCLATCH
OVF
EN
SD
DIR_RST
DIR_ERR
SCDT
SCSHIFT
DIR_RST
DIR_ERR
RESET
SYSTEM CONTROL
(2/2)
BOARD
POWER
(Page 8)
• See page 3 forWaveforms.

88
SA-iP001P
SA-iP001P
2-5. SCHEMATIC DIAGRAM – POWER BOARD (2/2) – • See page 3 forWaveforms. • See page 3 for IC Block Diagrams.
C821
C820
C815
C814
R841
R846
R843
R844
R845
R849
R850
CN801
C846
C847
C842
C843
C825
C827
C804
C803
R801
C813 R829
IC805
C810
C811 C812
R830
R811
R812
R815
R816
R814
R817
R819
X801
R803
C840
C841
R804
IC806
R806
R808
R810
R809 R820
R821
C807
R831
R832
R833
C851
R860
R859
C837
C838
C822
C823
C817
C816
C826
C829
C830
C831
C834
C832
C833
R857
R856
R858
C850
R855 R175
C844
C848
C845
C849
C835
C836
R853
R854
R851
R852
C818
R813
C801
C802
C805
R862 R863
C819
L801
10uH
C854
D805
R822
C809
IC804
C806
R823
R826
R825
D801
D802
C901 C902 C903
C904
C905
C906
R902
C907
C909
R906
D904
R903
R904
R907
R905
C910 C911 R908
R909
D906
L902
4.7uH
R911
R910
R913
R916
R915
R912
R914
L901
0uH
C915
C916
L903
68uH
TH901 CN902
FH901 FH902
D909 D910
D907
CN901
D908
C920
TH902
F901
LF901
D901 D902
C908
D903
D905
C912 C914
IC902
C917
C918
R901
R918
D911 C919
C913
R921
C922
PC901
R861
R807
Q803
Q802
Q801
S901
IC801
IC802
IC803
IC901
0.1
0.1
0.1
0.1
100
100
10k
10k
10k
2.2
2.2
2P
0.0022
0.0022
0.0022
0.0022
116V
1
10
10
1k
0.01 10k
TK11118CSCL-G
1
10 0.01
10k
47k
47k
47k
47k
47k
47k
47k
49.152MHz
330
4p
4p
1M
TC7SHU04FU
100
100
3.3k
1k 3.3k
10k
0.01
2.2
2.2
15
4.7
100k
10k
1
1
10
0.1
0.1
0.1
116V
1
116V
0.047
0.047
470p
470p
100k
100k
100k
4.7
4.7 4.7
0.1
0.1
0.001
0.001
470p
470p
10k
10k
10k
10k
0.1
47k
0.022
0.001
0.1
10k 10k
2200
16V
DBE
0.01
UDZW-TE17-2.7B
10k
10
TK11233CUCB-G
0
0
0
0
1SS355WTE-17
1SS355WTE-17
0.1 0.1
275V
275V
220p
250V
220p
250V
220p
100
400V
0.33 2W
560p
2kV
0.001
20k
PTZ-TE25-18B
2.2
0.5W
150
0.5W
10k
10k
47p 0.0022 1k
4.7k
UDZW-TE17-8.2B
1k
3.3k
2.2k
10k
8.2k
4.7k
4.7k
220p
220p
M22007C 2P
PTZ-TE25-22 PTZ-TE25-22
D10SC6M
2P
PTZ-TE25-22
0.1
SMD150/33
T1AL
250V
250V
D3SB60F 05NU42-TPA2
220
35V
M1FL20U-4063
M1FL20U-4063
2200
16V 470
16V
TA76L431S
0.0033
0.01
0
1M
M1FL20U-4063 470p
100p
250V
250V
0
0.1
TLP421F(D4-GR)
10k
10k
2SA1602
OVER LOAD DETECT
2SA1602
OVER LOAD DETECT
2SC4154
PROTECT
SWITCH
CS8416-CZZR
CXD9788AR
CXD9774M
MR4010-7103
SCLATCH
SCSHIFT
SCDT
INIT
SD
EN
SOFTMUTE
OVF
DIR_ERR
GND
3.3V
12V
DIR_RST
192kHz DIGITAL AUDIO
INTERFACE RECEIVER
SP1
DC OUT
SUB WOOFER
POWER DRIVER
S-MASTER
PROCESSOR
OSC
+1.8V REG
+3.3V REG
POWER SWITCHING
CONVERTER
SHUNT REG
I/O
(Page 7)
BOARD
(1/2)
POWER
T901
POWER
TRANSFORMER
AC IN
IC B/D
IC B/D
IC B/D
IC B/D

9
SA-iP001P
SECTION 3
EXPLODED VIEWS
NOTE:
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•The mechanical parts with no reference
numberin the exploded views arenot supplied.
•Accessories are given in the last of the
electrical parts list.
•Abbreviation
CND : Canadian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1X-2109-404-1 COVER (JACK) ASSY
2X-2109-401-1 BRACKET (SIDE) (L) ASSY
32-667-935-11 CASE (L), SIDE
*43-703-244-00 BUSHING (2104), CORD
051-832-383-11 CORD, POWER (AEP)
051-832-965-11 CORD, POWER (US, CND)
051-832-966-11 CORD, POWER (UK)
62-667-948-01 FOOT
7X-2109-403-1 PLATE ASSY, BOTTOM
8A-1193-778-A POWER BOARD, COMPLETE
9X-2109-934-1 SPACER ASSY
10 2-661-193-11 CASE, TOP
#1 #1
#1
#1
#1
#1
#1
#2
#2 #1
#3 #1
#1
#1
#1
#4 #4
#1
not supplied
not supplied not supplied
not supplied
not
supplied
not supplied not supplied
not
supplied
not supplied
S901
SP1
F901
1
2
3
4
5
6
6
78
9
9
10
11
12
13
14 15
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
11 X-2109-400-1 PLATE ASSY, INNER
12 X-2109-402-1 BRACKET (SIDE) (R) ASSY
13 2-667-936-11 CASE (R), SIDE
14 1-831-587-11 CORD WITH DC PLUG
15 1-500-497-21 FILTER, CLAMP (FERRITE CORE)
0F901 1-576-225-51 FUSE (H.B.C.) (T1AL/250V)
0S901 1-771-124-21 SWITCH, POWER (I/O)
SP1 1-826-330-21 LOUDSPEAKER (8cm)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-649-79 SCREW +BVTP 3X14 TYPE2 IT-3
#3 7-685-132-19 SCREW +P 2.6X5 TYPE2 NON-SLIT
#4 7-685-659-79 SCREW +BVTP 4X8 TYPE2 IT-3

10
SA-iP001P SECTION 4
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
•Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
•-XX and -X mean standardized parts, so they
may have some difference from the original
one.
•RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METALOXIDE: Metal oxide-film resistor.
F: nonflammable
•Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•SEMICONDUCTORS
In each case, u: µ, for example:
uA... : µA... uPA... : µPA...
uPB... : µPB... uPC... : µPC...
uPD... : µPD...
•CAPACITORS
uF: µF
•COILS
uH: µH
•Abbreviation
CND : Canadian model
POWER
A-1193-778-A POWER BOARD, COMPLETE
**********************
7-685-871-01 SCREW +BVTT 3X6 (S)
7-685-872-01 SCREW +BVTT 3X8 (S)
< CAPACITOR >
C701 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C702 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C703 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V
C704 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C710 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C711 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C712 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C801 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V
C802 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C803 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C804 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C805 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C806 1-216-864-11 SHORT CHIP 0
C807 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C809 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C810 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C811 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C812 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C813 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
C814 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C815 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C816 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C817 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C818 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C819 1-128-951-21 ELECT 2200uF 20% 16V
C820 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C821 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C822 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V
C823 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C825 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C826 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C827 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C829 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C830 1-112-298-91 CERAMIC CHIP 1uF 10% 16V
C831 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V
C832 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C833 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C834 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V
C835 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C836 1-164-315-11 CERAMIC CHIP 470PF 5% 50V
C837 1-131-704-11 FILM 1uF 5% 50V
C838 1-131-704-11 FILM 1uF 5% 50V
C840 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C841 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C842 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C843 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C844 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C845 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C846 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C847 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C848 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C849 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
C850 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C851 1-117-720-11 CERAMIC CHIP 4.7uF 10V
C854 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
0C901 1-165-528-11 MYLAR 0.1uF 10 275V
0C902 1-165-528-11 MYLAR 0.1uF 10 275V
0C903 1-113-896-11 CERAMIC 220PF 10% 250V
0C904 1-113-896-11 CERAMIC 220PF 10% 250V
0C905 1-113-896-11 CERAMIC 220PF 10% 250V
0C906 1-112-684-21 ELECT (BLOCK) 100uF 20% 400V
0C907 1-100-448-51 CAP, HIGH-VOLTAGE CERAMIC 560PF
0C908 1-107-894-11 ELECT 220uF 20% 35V
0C909 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V
0C910 1-162-923-11 CERAMIC CHIP 47PF 5% 50V
0C911 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V
C912 1-128-951-21 ELECT 2200uF 20% 16V
0C913 1-117-693-11 CERAMIC 100PF 10% 250V
C914 1-165-729-31 ELECT 470uF 20% 16V
C915 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C916 1-164-816-11 CERAMIC CHIP 220PF 2% 50V
C917 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V
C918 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V
0C919 1-113-900-11 CERAMIC 470PF 10% 250V
C920 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
C922 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
CN801 1-778-638-21 PIN, CONNECTOR (PC BOARD) 2P
0CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P
When indicating parts by reference
number, please include the board
name.
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
11
SA-iP001P
CN902 1-564-320-00 PIN, CONNECTOR (3.96mm PITCH) 2P
< DIODE >
D701 6-501-193-01 DIODE 1SS355WTE-17
D801 6-501-193-01 DIODE 1SS355WTE-17
D802 6-501-193-01 DIODE 1SS355WTE-17
D805 6-501-160-01 DIODE UDZW-TE17-2.7B
0D901 8-719-510-51 DIODE D3SB60F
0D902 8-719-058-74 DIODE 05NU42-TPA2
0D903 8-719-080-75 DIODE M1FL20U-4063
0D904 8-719-076-95 DIODE PTZ-TE25-18B
0D905 8-719-080-75 DIODE M1FL20U-4063
0D906 6-501-172-01 DIODE UDZW-TE17-8.2B
D907 8-719-510-09 DIODE D10SC6M
0D908 8-719-079-55 DIODE PTZ-TE25-22
0D909 8-719-079-55 DIODE PTZ-TE25-22
0D910 8-719-079-55 DIODE PTZ-TE25-22
0D911 8-719-080-75 DIODE M1FL20U-4063
< FUSE HOLDER >
0FH901 1-533-217-41 HOLDER, FUSE
0FH902 1-533-217-41 HOLDER, FUSE
< IC >
IC701 6-701-680-01 IC PST3629NR
IC704 6-807-280-01 IC M30620MCP-A44GPU0
IC801 6-709-054-01 IC CS8416-CZZR
IC802 6-705-979-01 IC CXD9788AR
IC803 6-704-802-01 IC CXD9774M
IC804 6-702-316-11 IC TK11233CUCB-G
IC805 6-702-300-01 IC TK11118CSCL-G
IC806 6-706-492-01 IC TC7SHU04FU (T5RSOJF)
0IC901 6-708-175-01 IC MR4010-7103
IC902 6-707-743-01 IC TA76L431S (TPE6, Q)
< COIL >
L801 1-457-191-11 INDUCTOR 10uH
L901 1-400-101-21 COIL, COMMON MODE CHOKE
L902 1-457-190-21 INDUCTOR 4.7uH
L903 1-457-192-21 INDUCTOR 68uH
< LINE FILTER >
0LF901 1-457-254-11 COIL,LINE FILTER (SS21V-050360)
< PHOTO COUPLER >
0PC901 6-600-438-01 IC TLP421F (D4-GR)
< TRANSISTOR >
Q701 8-729-602-21 TRANSISTOR 2SC4154-F
Q801 8-729-602-21 TRANSISTOR 2SC4154-F
Q802 8-729-602-36 TRANSISTOR 2SA1602-F
Q803 8-729-602-36 TRANSISTOR 2SA1602-F
< RESISTOR >
R175 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R701 1-216-833-11 METAL CHIP 10K 5% 1/10W
R703 1-216-841-11 METAL CHIP 47K 5% 1/10W
R704 1-216-841-11 METAL CHIP 47K 5% 1/10W
R705 1-216-845-11 METAL CHIP 100K 5% 1/10W
R706 1-216-841-11 METAL CHIP 47K 5% 1/10W
R707 1-216-833-11 METAL CHIP 10K 5% 1/10W
R708 1-216-833-11 METAL CHIP 10K 5% 1/10W
R710 1-216-805-11 METAL CHIP 47 5% 1/10W
R711 1-216-805-11 METAL CHIP 47 5% 1/10W
R712 1-216-809-11 METAL CHIP 100 5% 1/10W
R713 1-216-809-11 METAL CHIP 100 5% 1/10W
R714 1-216-809-11 METAL CHIP 100 5% 1/10W
R715 1-216-809-11 METAL CHIP 100 5% 1/10W
R716 1-216-833-11 METAL CHIP 10K 5% 1/10W
R717 1-216-833-11 METAL CHIP 10K 5% 1/10W
R720 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R721 1-216-809-11 METAL CHIP 100 5% 1/10W
R722 1-216-833-11 METAL CHIP 10K 5% 1/10W
R724 1-216-841-11 METAL CHIP 47K 5% 1/10W
R730 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R731 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R801 1-216-821-11 METAL CHIP 1K 5% 1/10W
R803 1-216-815-11 METAL CHIP 330 5% 1/10W
R804 1-216-857-11 METAL CHIP 1M 5% 1/10W
R806 1-216-809-11 METAL CHIP 100 5% 1/10W
R807 1-216-833-11 METAL CHIP 10K 5% 1/10W
R808 1-216-809-11 METAL CHIP 100 5% 1/10W
R809 1-216-821-11 METAL CHIP 1K 5% 1/10W
R810 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R811 1-216-841-11 METAL CHIP 47K 5% 1/10W
R812 1-216-841-11 METAL CHIP 47K 5% 1/10W
R813 1-216-841-11 METAL CHIP 47K 5% 1/10W
R814 1-216-841-11 METAL CHIP 47K 5% 1/10W
R815 1-216-841-11 METAL CHIP 47K 5% 1/10W
R816 1-216-841-11 METAL CHIP 47K 5% 1/10W
R817 1-216-841-11 METAL CHIP 47K 5% 1/10W
R819 1-216-841-11 METAL CHIP 47K 5% 1/10W
R820 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R821 1-216-833-11 METAL CHIP 10K 5% 1/10W
R822 1-216-833-11 METAL CHIP 10K 5% 1/10W
R823 1-216-864-11 SHORT CHIP 0
R825 1-216-864-11 SHORT CHIP 0
R826 1-216-864-11 SHORT CHIP 0
R829 1-216-833-11 METAL CHIP 10K 5% 1/10W
R830 1-216-833-11 METAL CHIP 10K 5% 1/10W
R831 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R832 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R833 1-216-799-11 METAL CHIP 15 5% 1/10W
R841 1-216-809-11 METAL CHIP 100 5% 1/10W
R843 1-216-833-11 METAL CHIP 10K 5% 1/10W
R844 1-216-833-11 METAL CHIP 10K 5% 1/10W
R845 1-216-833-11 METAL CHIP 10K 5% 1/10W
R846 1-216-809-11 METAL CHIP 100 5% 1/10W
R849 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R850 1-216-789-11 METAL CHIP 2.2 5% 1/10W
R851 1-216-833-11 METAL CHIP 10K 5% 1/10W
R852 1-216-833-11 METAL CHIP 10K 5% 1/10W
R853 1-216-833-11 METAL CHIP 10K 5% 1/10W
R854 1-216-833-11 METAL CHIP 10K 5% 1/10W
R855 1-216-793-11 METAL CHIP 4.7 5% 1/10W
POWER

12
SA-iP001P
R856 1-216-845-11 METAL CHIP 100K 5% 1/10W
R857 1-216-845-11 METAL CHIP 100K 5% 1/10W
R858 1-216-845-11 METAL CHIP 100K 5% 1/10W
R859 1-216-833-11 METAL CHIP 10K 5% 1/10W
R860 1-216-845-11 METAL CHIP 100K 5% 1/10W
R861 1-216-833-11 METAL CHIP 10K 5% 1/10W
R862 1-216-833-11 METAL CHIP 10K 5% 1/10W
R863 1-216-833-11 METAL CHIP 10K 5% 1/10W
R901 1-216-864-11 SHORT CHIP 0
0R902 1-243-944-71 METAL 0.33 5% 2W
0R903 1-246-023-11 METAL CHIP 2.2 5% 1/2W
0R904 1-246-024-11 METAL CHIP 150 5% 1/2W
0R905 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
0R906 1-218-878-11 METAL CHIP 20K 0.5% 1/10W
0R907 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
0R908 1-218-847-11 METAL CHIP 1K 0.5% 1/10W
0R909 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R910 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W
R911 1-216-821-11 METAL CHIP 1K 5% 1/10W
R912 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W
R913 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R914 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R915 1-218-869-11 METAL CHIP 8.2K 0.5% 1/10W
R916 1-218-871-11 METAL CHIP 10K 0.5% 1/10W
0R918 1-245-486-21 METAL 1M 1% 1/4W
R921 1-216-864-11 SHORT CHIP 0
< TRANSFORMER >
0T901 1-443-899-11 TRANSFORMER, DC-DC CONVERTER
< THERMISTOR >
0TH901 1-803-586-11 THERMISTOR, NTC
TH902 1-803-150-22 THERMISTOR, POSITIVE
< VIBRATOR >
X701 1-795-628-21 VIBRATOR, CERAMIC (CHIP TYPE) (5 MHz)
X801 1-813-720-21 VIBRATOR, CRYSTAL (49.152 MHz)
************************************************************
MISCELLANEOUS
*************
051-832-383-11 CORD, POWER (AEP)
051-832-965-11 CORD, POWER (US, CND)
051-832-966-11 CORD, POWER (UK)
14 1-831-587-11 CORD WITH DC PLUG
15 1-500-497-21 FILTER, CLAMP (FERRITE CORE)
0F901 1-576-225-51 FUSE (H.B.C.) (T1AL/250V)
0S901 1-771-124-21 SWITCH, POWER (I/O)
SP1 1-826-330-21 LOUDSPEAKER (8cm)
************************************************************
ACCESSORIES
***********
1-479-970-11 REMOTE COMMANDER (RM-ANU0009)
1-500-082-21 CLAMP, SLEEVE FERRITE
1-833-011-21 CORD, CONNECTION (STEREO MINI PLUG/
STEREO MINI PLUG, 0.5m)
POWER
Ref. No. Part No. Description Remark

13
SA-iP001P
MEMO

SA-iP001P
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver. Date Description of Revision
1.0 2006.12 New
