SERVICE MANUAL
ACTIVE SUBWOOFER
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model

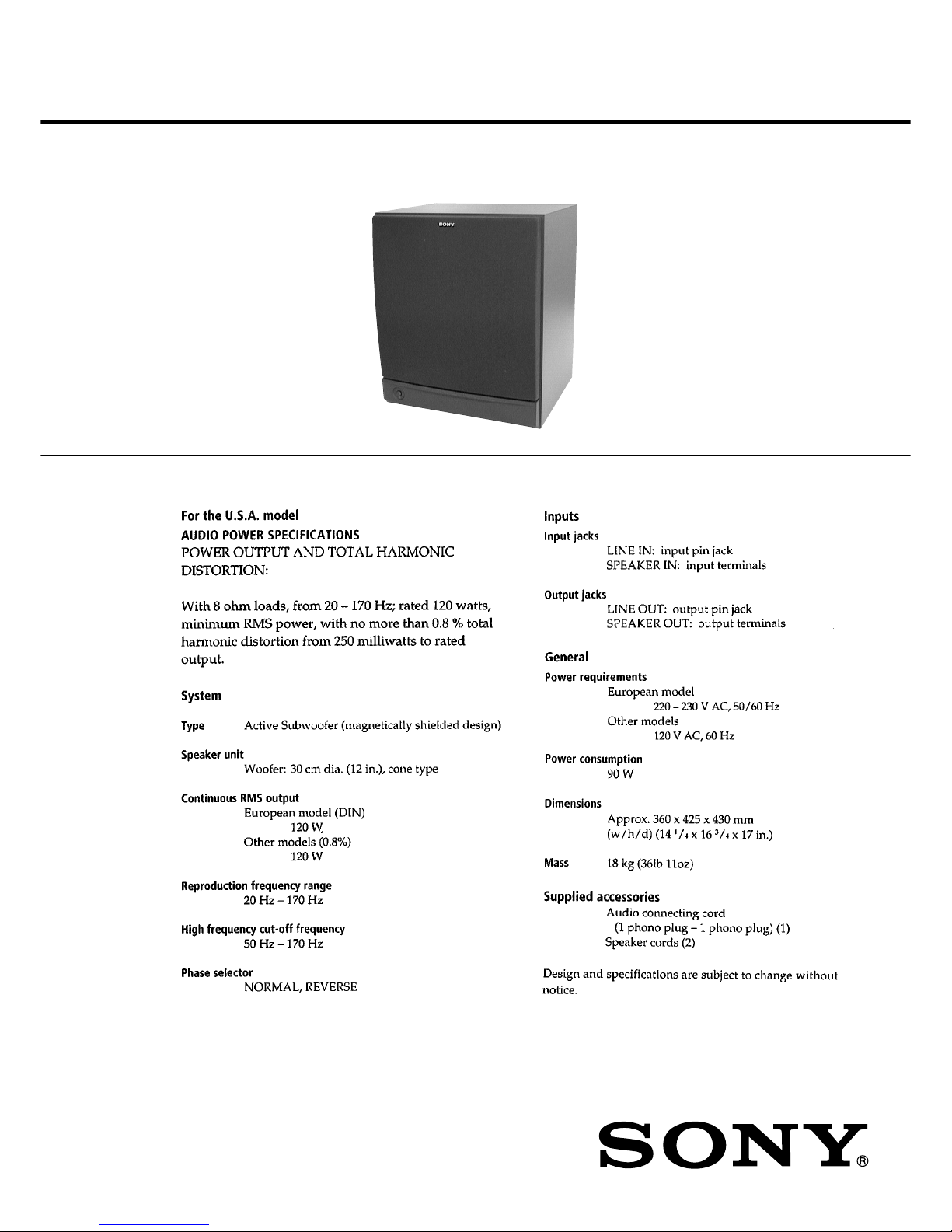

SPECIFICATIONS
SA-WM40

2
MODEL IDENTIFICATION
– Rear View –
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0
SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE
DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIÈCES SONY DONT LES
NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED
LINE WITH MARK 0ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
SAFETY CHECK-OUT
After correcting the original service problem, perform the follow-
ing safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.
LEAKAGE TEST
TheAC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’instructions to use these
instruments.
2. A battery-operatedAC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indica-
tion is 0.75 V, so analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex-
amples of a passive VOM that is suitable. Nearly all battery
operated digital multimeters that have a 2VAC range are suit-
able. (See Fig. A)
Fig. A. Using an AC voltmeter to check AC leakage.
1.5 k Ω 0.15 µF
AC
voltmeter
(0.75 V)
To Exposed Metal
Parts on Set
Earth Ground
with this indication : US, Canadian models
without this indication : Except US, Canadian model
s

33
SECTION 1
GENERAL SECTION 2
DIAGRAMS
• Location of controls
– FrontView (a part) –
– Upper View (a part) –
– Rear View (a part) –
2-1. NOTE FOR PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM
• Circuit Boards Location
CONTROL board
POWER SW UC board
PS board
POWER TR boar
d
MAIN board
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•C: panel designation.
•U: B+ Line.
•V: B– Line.
• Voltages are dc with respect to ground under no-signal
conditions.
no mark :Power on
( ) : Automatic power off
∗: Impossible to measure
• Voltages aretakenwithaVOM(Input impedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F: AUDIO
• Abbreviation
AUS : Australian model
CND : Canadian model
Note:
The components identi-
fied by mark 0or dotted
linewith mark 0are criti-
cal for safety.
Replace only with part
number specified.
Note:
Lescomposants identifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro
spécifié.
Note on PrintedWiring Boards:
•X: parts extracted from the component side.
•Y: parts extracted from the component side.
•b: Pattern from the side which enables seeing.

44
SA-WM40
• Semiconductor
Location
Ref. No. Location
D501 B-3
D502 B-3
D503 D-3
D504 C-2
D505 D-3
D506 C-2
D507 B-8
D508 B-8
D509 F-3
D510 F-2
D511 B-11
D512 D-11
D601 F-4
D602 F-4
D605 G-4
D606 H-2
D801 I-3
D802 I-3
D803 I-2
D804 I-2
D810 H-12
D817 B-4
D818 B-4
D819 B-5
D820 B-5
D821 C-4
D822 C-5
IC501 C-3
IC502 B-3
IC503 B-7
IC504 C-8
IC505 E-3
IC506 B-8
IC507 D-4
IC508 C-8
Q503 F-2
Q504 F-3
Q505 E-3
Q507 B-11
Q508 C-11
Q601 E-4
Q602 E-4
Q603 F-4
Q604 E-4
Q605 E-4
Q606 F-4
Q607 E-8
Q608 F-3
Q609 E-9
Q610 E-7
Q611 G-4
Q612 G-4
Q613 G-3
Q614 G-4
Q801 C-4
Q802 C-5
MAIN BOARD
CONTROL BOARD
POWER TR BOARD
PS BOARD
POWER SW UC
BOARD
JK501
IN
L
OUT
LINE
TM501
IN OUT
SPEAKER
++
––
––
++
R
SW502
POWER SAVE
AUTO
OFF
(CHASSIS)
05
SP601
1-677-924-
(11)
11
RLY601
1-677-927-
(11)
11
1313
VR501
LEVEL
SW501
PHASE
VR502
15
CUT OFF FREQ
D512, S801
POWER
31 NORMAL REVERSE
1-677-925-
(11)
11
1-677-933-
(11)
11
AC IN
T801
POWER TRANSFORMER
T851
POWER TRANSFORMER
1-677-926-
(11)
11
1
A
2 3 4 5 6 7 8 9 10 11 12
B
C
D
E
F
G
H
I
–1–2
2-2. PRINTED WIRING BOARDS • See page 3 for Note on PrintedWiring Boards. • See page 3 for Circuit Boards Location.

55
SA-WM40
2-3. SCHEMATIC DIAGRAM • See page 3 for Note on Schematic Diagram.
The components identified by mark 0or dotted
line with mark 0are critical for safety.
Replaceonly with partnumber specified.
Lescomposants identifiés parune marque 0sont
critiques pour la sécurité. Nelesremplacer que
par une pièce portant le numéro spécifié.

66
AEP, UK, E
AUS
US, CND
4
not
supplied
SP601
not
supplied
not
supplied
6
3
26
26
26
26
26
26
26
1
26
26 24
7
28
8
29 26
17
16
23
13
20
25
14
26
4
11
10
12
12
12
4
4
4
4
9
not
supplied
T801
T851
not
supplied
not
supplied
not
supplied
not
supplied
(1) TOP PLATE SECTION
SECTION 3
EXPLODED VIEW
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories and packing materials are given
in the last of the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AUS : Australian model
CND: Canadian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-228-132-01 PLATE, REAR
3 X-4952-847-1 FRAME ASSY, GRILLE
4 4-914-430-11 SCREW (4X20), TAPPING
6 A-4412-160-A CABINET ASSY, SPEAKER
7 A-4473-571-A CONTROL BOARD, COMPLETE
8 X-4952-848-1 PANEL ASSY, FRONT (US, CND, E, AUS)
8 X-4952-914-1 PANEL ASSY, FRONT (AEP, UK)
9 4-228-138-01 BUTTON
10 4-228-148-01 COVER, REAR (US, CND)
10 4-228-148-11 COVER, REAR (EXCEPT US, CND)
*11 3-703-244-00 BUSHING (2104), CORD
012 1-696-571-21 CORD, POWER (AEP, E)
012 1-696-845-31 CORD, POWER (AUS)
012 1-751-520-11 CORD, POWER (UK)
012 1-783-820-11 CORD, POWER (US, CND)
13 7-621-846-60 SCREW (4X25), TAPPING
14 4-228-141-01 DUCT (A)
16 4-229-627-01 PACKING
17 A-4473-570-A MAIN BOARD, COMPLETE
20 3-710-901-11 SCREW, TAPPING
23 4-981-864-01 FOOT
24 7-685-660-19 SCREW +BVTP 4X10 TYPE2 N-S
25 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
26 7-685-648-79 SCREW +P 3X12 TYPE2 NON-SLIT
28 1-677-926-11 PS BOARD
29 1-677-933-11 POWER SW UC BOARD
SP601 1-529-652-11 SPEAKER (30cm)
0T801 1-435-488-11 TRANSFORMER, POWER (US, CND)
0T801 1-435-489-11 TRANSFORMER, POWER (AEP, UK, AUS)
0T801 1-435-491-11 TRANSFORMER, POWER (E)
0T851 1-435-492-11 TRANSFORMER, POWER (US, CND)
0T851 1-435-493-11 TRANSFORMER, POWER (AEP, UK, AUS)
0T851 1-435-495-11 TRANSFORMER, POWER (E)
Les composants identifiés par une
marque 0sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
SECTION 4
ELECTRICAL PARTS LIST
CONTROL MAIN
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A-4473-571-A CONTROL BOARD, COMPLETE
************************
< CONNECTOR >
*BC501 1-564-508-11 PLUG, CONNECTOR 5P
< CAPACITOR >
C508 1-104-664-11 ELECT 47uF 20% 25V
C509 1-136-170-00 MYLAR 0.27uF 5% 50V
C510 1-136-170-00 MYLAR 0.27uF 5% 50V
C511 1-137-193-11 MYLAR 0.39uF 5% 50V
C512 1-137-193-11 MYLAR 0.39uF 5% 50V
C513 1-130-489-00 MYLAR 0.033uF 5% 50V
C514 1-136-176-00 MYLAR 0.82uF 5% 50V
C515 1-104-664-11 ELECT 47uF 20% 25V
C516 1-104-664-11 ELECT 47uF 20% 25V
C517 1-130-483-00 MYLAR 0.01uF 5% 50V
C518 1-130-483-00 MYLAR 0.01uF 5% 50V
C526 1-130-499-00 MYLAR 0.22uF 5% 50V
C527 1-130-495-00 MYLAR 0.1uF 5% 50V
< DIODE >
D507 8-719-991-33 DIODE 1SS133T-77
D508 8-719-991-33 DIODE 1SS133T-77
< IC >
IC503 8-759-909-71 IC BA4558F-E2
IC504 8-759-909-71 IC BA4558F-E2
IC506 8-759-909-71 IC BA4558F-E2
IC508 8-759-909-71 IC BA4558F-E2
< RESISTOR >
R515 1-249-429-11 CARBON 10K 5% 1/4W
R516 1-249-429-11 CARBON 10K 5% 1/4W
R517 1-249-429-11 CARBON 10K 5% 1/4W
R518 1-249-426-11 CARBON 5.6K 5% 1/4W
R519 1-249-438-11 CARBON 56K 5% 1/4W
R520 1-249-431-11 CARBON 15K 5% 1/4W
R521 1-249-431-11 CARBON 15K 5% 1/4W
R522 1-249-427-11 CARBON 6.8K 5% 1/4W
R523 1-249-427-11 CARBON 6.8K 5% 1/4W
R525 1-249-431-11 CARBON 15K 5% 1/4W
R526 1-247-843-11 CARBON 3.3K 5% 1/4W
R527 1-247-807-31 CARBON 100 5% 1/4W
R528 1-249-429-11 CARBON 10K 5% 1/4W
R529 1-249-429-11 CARBON 10K 5% 1/4W
R530 1-249-429-11 CARBON 10K 5% 1/4W
R531 1-249-429-11 CARBON 10K 5% 1/4W
R532 1-249-429-11 CARBON 10K 5% 1/4W
R533 1-249-429-11 CARBON 10K 5% 1/4W
R556 1-249-425-11 CARBON 4.7K 5% 1/4W
R557 1-249-425-11 CARBON 4.7K 5% 1/4W
< SWITCH >
SW501 1-571-588-21 SWITCH, SLIDE (PHASE)
< VARIABLE RESISTOR >
VR501 1-225-826-11 RES, VAR, CARBON 20K (LEVEL)
VR502 1-225-826-11 RES, VAR, CARBON 20K (CUT OFF FREQ)
**************************************************************
A-4473-570-A MAIN BOARD, COMPLETE
*********************
< CONNECTOR >
*BC503 1-564-508-11 PLUG, CONNECTOR 5P
*BC602 1-566-693-11 PIN, CONNECTOR 2P
*BC803 1-564-506-11 PLUG, CONNECTOR 3P
< CAPACITOR >
C501 1-126-964-11 ELECT 10uF 20% 50V
C502 1-102-978-00 CERAMIC 220PF 5% 50V
C503 1-102-978-00 CERAMIC 220PF 5% 50V
C504 1-102-978-00 CERAMIC 220PF 5% 50V
C505 1-102-978-00 CERAMIC 220PF 5% 50V
C506 1-130-483-00 MYLAR 0.01uF 5% 50V
C507 1-130-483-00 MYLAR 0.01uF 5% 50V
C519 1-126-964-11 ELECT 10uF 20% 50V
C524 1-128-551-11 ELECT 22uF 20% 63V
C525 1-126-934-11 ELECT 220uF 20% 16V
C601 1-130-496-71 MYLAR 0.12uF 5% 50V
C602 1-126-960-11 ELECT 1uF 20% 50V
C603 1-101-002-00 CERAMIC 0.0022uF 50V
C604 1-102-973-00 CERAMIC 100PF 5% 50V
C608 1-104-664-11 ELECT 47uF 20% 10V
C611 1-130-491-00 MYLAR 0.047uF 5% 50V
C615 1-126-934-11 ELECT 220uF 20% 10V
C616 1-126-963-11 ELECT 4.7uF 20% 50V
C617 1-126-948-11 ELECT 100uF 20% 35V
C618 1-102-937-00 CERAMIC 4.0PF 0.25PF 50V
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used
on the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Abbreviation
AUS : Australian model
CND: Canadian model
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
Les composants identifiés par une
marque 0sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0or dotted line with mark
0are critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.

7
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN
The components identified by
mark 0or dotted line with
mark 0are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
C619 1-130-485-00 MYLAR 0.015uF 5% 50V
C620 1-101-001-00 CERAMIC 0.001uF 50V
C621 1-130-491-00 MYLAR 0.047uF 5% 50V
C623 1-130-483-00 MYLAR 0.01uF 5% 50V
C801 ELECT 6800uF 71V
C802 ELECT 6800uF 71V
C803 1-104-666-11 ELECT 220uF 20% 25V
C804 1-104-666-11 ELECT 220uF 20% 25V
C807 1-126-964-11 ELECT 10uF 20% 50V
C808 1-126-964-11 ELECT 10uF 20% 50V
C809 1-126-964-11 ELECT 10uF 20% 50V
C810 1-126-964-11 ELECT 10uF 20% 50V
< CONNECTOR >
*CN501 1-564-508-11 PLUG, CONNECTOR 5P
*CN603 1-564-509-11 PLUG, CONNECTOR 6P
*CN804 1-564-505-11 PLUG, CONNECTOR 2P
< DIODE >
D501 8-719-991-33 DIODE 1SS133T-77
D502 8-719-991-33 DIODE 1SS133T-77
D503 8-719-991-33 DIODE 1SS133T-77
D504 8-719-991-33 DIODE 1SS133T-77
D505 8-719-991-33 DIODE 1SS133T-77
D506 8-719-991-33 DIODE 1SS133T-77
D509 8-719-991-33 DIODE 1SS133T-77
D510 8-719-991-33 DIODE 1SS133T-77
D601 8-719-991-33 DIODE 1SS133T-77
D602 8-719-991-33 DIODE 1SS133T-77
D605 8-719-991-33 DIODE 1SS133T-77
D606 8-719-991-33 DIODE 1SS133T-77
D801 8-719-030-52 DIODE 1N5402
D802 8-719-030-52 DIODE 1N5402
D803 8-719-030-52 DIODE 1N5402
D804 8-719-030-52 DIODE 1N5402
D817 8-719-200-82 DIODE 1SR139-100
D818 8-719-200-82 DIODE 1SR139-100
D819 8-719-200-82 DIODE 1SR139-100
D820 8-719-200-82 DIODE 1SR139-100
D821 8-719-200-82 DIODE 11ES2
D822 8-719-200-82 DIODE 11ES2
< IC >
IC501 8-759-909-71 IC BA4558F-E2
IC502 8-759-909-71 IC BA4558F-E2
IC505 8-759-909-71 IC BA4558F-E2
IC507 8-759-909-71 IC BA4558F-E2
< JACK >
JK501 1-785-795-11 JACK, PIN 2P (LINE)
< TRANSISTOR >
Q503 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q504 8-729-119-54 TRANSISTOR 2SA1464-T2Y13
Q505 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q601 8-729-117-41 TRANSISTOR 2SA1174-P
Q602 8-729-117-41 TRANSISTOR 2SA1174-P
Q603 8-729-119-54 TRANSISTOR 2SA1464-T2Y13
Q604 8-729-119-78 TRANSISTOR 2SC2785-F
Q605 8-729-119-78 TRANSISTOR 2SC2785-F
Q606 8-729-214-51 TRANSISTOR 2SA1145-O
Q608 8-729-270-51 TRANSISTOR 2SC2705-O
Q611 8-729-119-78 TRANSISTOR 2SC2785-F
Q612 8-729-178-41 TRANSISTOR 2SC2784-P
Q613 8-729-119-78 TRANSISTOR 2SC2785-F
Q614 8-729-029-86 TRANSISTOR DTC124ESA-TP
Q801 8-729-281-53 TRANSISTOR 2SC1815-GR
Q802 8-729-231-12 TRANSISTOR 2SA1015TP-O
< RESISTOR >
R501 1-249-429-11 CARBON 10K 5% 1/4W
R502 1-249-429-11 CARBON 10K 5% 1/4W
R503 1-249-429-11 CARBON 10K 5% 1/4W
R504 1-249-429-11 CARBON 10K 5% 1/4W
R505 1-247-760-11 CARBON 4.7K 5% 1/2W
R506 1-247-760-11 CARBON 4.7K 5% 1/2W
R507 1-249-417-11 CARBON 1K 5% 1/4W
R508 1-249-417-11 CARBON 1K 5% 1/4W
R509 1-249-437-11 CARBON 47K 5% 1/4W
R510 1-249-436-11 CARBON 39K 5% 1/4W
R511 1-249-439-11 CARBON 68K 5% 1/4W
R512 1-249-415-11 CARBON 680 5% 1/4W
R513 1-249-427-11 CARBON 6.8K 5% 1/4W
R514 1-249-436-11 CARBON 39K 5% 1/4W
R537 1-249-429-11 CARBON 10K 5% 1/4W
R538 1-247-895-00 CARBON 470K 5% 1/4W
R539 1-249-417-11 CARBON 1K 5% 1/4W
R540 1-247-887-00 CARBON 220K 5% 1/4W
R541 1-247-903-00 CARBON 1M 5% 1/4W
R542 1-249-441-11 CARBON 100K 5% 1/4W
R543 1-249-441-11 CARBON 100K 5% 1/4W
R544 1-247-903-00 CARBON 1M 5% 1/4W
R545 1-249-429-11 CARBON 10K 5% 1/4W
R546 1-249-429-11 CARBON 10K 5% 1/4W
R547 1-249-431-11 CARBON 15K 5% 1/4W
R548 1-249-433-11 CARBON 22K 5% 1/4W
R549 1-249-435-11 CARBON 33K 5% 1/4W
R553 1-249-421-11 CARBON 2.2K 5% 1/4W
R554 1-249-421-11 CARBON 2.2K 5% 1/4W
R555 1-249-433-11 CARBON 22K 5% 1/4W
R601 1-249-425-11 CARBON 4.7K 5% 1/4W
R602 1-249-437-11 CARBON 47K 5% 1/4W
R603 1-249-411-11 CARBON 330 5% 1/4W
R604 1-249-431-11 CARBON 15K 5% 1/4W
R605 1-249-408-11 CARBON 180 5% 1/4W
0R606 1-247-703-11 CARBON 180 5% 1/4W F
0R607 1-247-703-11 CARBON 180 5% 1/4W F
R608 1-249-433-11 CARBON 22K 5% 1/4W
R609 1-249-417-11 CARBON 1K 5% 1/4W
R610 1-249-441-11 CARBON 100K 5% 1/4W
0R611 1-247-702-11 CARBON 150 5% 1/4W F
0R615 1-247-696-11 CARBON 47 5% 1/4W F
0R616 1-247-688-11 CARBON 10 5% 1/4W F
0R617 1-247-688-11 CARBON 10 5% 1/4W F
R618 1-249-437-11 CARBON 47K 5% 1/4W

8
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
MAIN POWER SW UC PS POWERTR
0R625 1-247-688-11 CARBON 10 5% 1/4W F
0R640 1-216-364-11 METAL OXIDE FILM 0.39 5% 2W F
0R641 1-216-364-11 METAL OXIDE FILM 0.39 5% 2W F
R642 1-249-415-11 CARBON 680 5% 1/4W
R643 1-249-429-11 CARBON 10K 5% 1/4W
R644 1-247-838-00 CARBON 2K 5% 1/4W
R645 1-249-420-11 CARBON 1.8K 5% 1/4W
R646 1-249-429-11 CARBON 10K 5% 1/4W
R647 1-249-431-11 CARBON 15K 5% 1/4W
R648 1-249-421-11 CARBON 2.2K 5% 1/4W
R649 1-249-425-11 CARBON 4.7K 5% 1/4W
R650 1-249-429-11 CARBON 10K 5% 1/4W
R651 1-249-429-11 CARBON 10K 5% 1/4W
R652 1-247-860-11 CARBON 16K 5% 1/4W
R653 1-249-433-11 CARBON 22K 5% 1/4W
R654 1-249-438-11 CARBON 56K 5% 1/4W
R655 1-249-441-11 CARBON 100K 5% 1/4W
R656 1-249-441-11 CARBON 100K 5% 1/4W
R657 1-249-433-11 CARBON 22K 5% 1/4W
R658 1-249-433-11 CARBON 22K 5% 1/4W
0R659 1-216-458-71 METAL OXIDE 1.8K 5% 2W F
R660 1-249-430-11 CARBON 12K 5% 1/4W
R661 1-249-429-11 CARBON 10K 5% 1/4W
R662 1-249-422-11 CARBON 2.7K 5% 1/4W
R663 1-249-417-11 CARBON 1K 5% 1/4W
R803 1-249-421-11 CARBON 2.2K 5% 1/4W
R804 1-249-421-11 CARBON 2.2K 5% 1/4W
< RELAY >
RLY601 1-515-920-11 RELAY (24V)
< SWITCH >
SW502 1-571-588-21 SWITCH, SLIDE (POWER SAVE)
< TERMINAL >
TM501 1-537-737-11 TERMINAL BOARD (SPEAKER)
**************************************************************
1-677-933-11 POWER SW UC BOARD
*******************
< CONNECTOR >
*BC502 1-566-693-11 PIN, CONNECTOR 2P
< DIODE >
D511 8-719-991-33 DIODE 1SS133T-77
D512 8-719-061-31 LED SML72420CTH8F (POWER)
< TRANSISTOR >
Q507 8-729-029-40 TRANSISTOR BN1F4M
Q508 8-729-029-40 TRANSISTOR BN1F4M
< RESISTOR >
R550 1-249-417-11 CARBON 1K 5% 1/4W
R551 1-249-421-11 CARBON 2.2K 5% 1/4W
R552 1-249-421-11 CARBON 2.2K 5% 1/4W
< SWITCH >
S801 1-554-920-11 SWITCH, PUSH (AC POWER) (1 KEY)
(POWER)
**************************************************************
1-677-926-11 PS BOARD
*********
< CONNECTOR >
*BC801 1-564-506-11 PLUG, CONNECTOR 3P
*BC804 1-564-505-11 PLUG, CONNECTOR 2P
< CAPACITOR >
0C851 1-113-925-11 CERAMIC 0.01uF 20% 250V
< CONNECTOR >
*CN801 1-564-104-00 PIN, CONNECTOR (B3P-VH) 3P
*CN803 1-564-104-00 PIN, CONNECTOR (B3P-VH) 3P
< DIODE >
D810 8-719-991-33 DIODE 1SS133T-77
< FUSE >
0F801 1-532-437-11 FUSE, GLASS TUBE (2.5A/125V) (US, CND)
0F801 1-532-463-51 FUSE (T1AL/250V) (EXCEPT US, CND)
< RELAY >
0RLY801 1-755-276-11 RELAY, POWER
< POWER TRANSFORMER >
0T801 1-435-488-11 TRANSFORMER, POWER (US, CND)
0T801 1-435-489-11 TRANSFORMER, POWER (AEP, UK, AUS)
0T801 1-435-491-11 TRANSFORMER, POWER (E)
0T851 1-435-492-11 TRANSFORMER, POWER (US, CND)
0T851 1-435-493-11 TRANSFORMER, POWER (AEP, UK, AUS)
0T851 1-435-495-11 TRANSFORMER, POWER (E)
**************************************************************
1-677-927-11 POWER TR BOARD
***************
< CONNECTOR >
BC603 1-506-947-11 PIN, CONNECTOR 6P
< CAPACITOR >
C605 1-101-001-00 CERAMIC 0.001uF 50V
< TRANSISTOR/IC >
Q607 8-729-281-53 TRANSISTOR 2SC1815-GR
Q609 8-749-010-25 IC MN2488-OPY-M
Q610 8-749-010-26 IC MP1620-OPY-M
< RESISTOR >
R612 1-249-422-11 CARBON 2.7K 5% 1/4W
R613 1-249-417-11 CARBON 1K 5% 1/4W
R614 1-249-411-11 CARBON 330 5% 1/4W
The components identified by
mark 0or dotted line with
mark 0are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.

9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
POWERTR
0R621 1-216-364-11 METAL OXIDE FILM 0.39 5% 2W F
0R622 1-216-364-11 METAL OXIDE FILM 0.39 5% 2W F
0R623 1-216-364-11 METAL OXIDE FILM 0.39 5% 2W F
0R624 1-216-364-11 METAL OXIDE FILM 0.39 5% 2W F
**************************************************************
MISCELLANEOUS
**************
012 1-696-571-21 CORD, POWER (AEP, E)
012 1-696-845-31 CORD, POWER (AUS)
012 1-751-520-11 CORD, POWER (UK)
012 1-783-820-11 CORD, POWER (US, CND)
SP601 1-529-652-11 SPEAKER (30cm)
0T801 1-435-488-11 TRANSFORMER, POWER (US, CND)
0T801 1-435-489-11 TRANSFORMER, POWER (AEP, UK, AUS)
0T801 1-435-491-11 TRANSFORMER, POWER (E)
0T851 1-435-492-11 TRANSFORMER, POWER (US, CND)
0T851 1-435-493-11 TRANSFORMER, POWER (AEP, UK, AUS)
0T851 1-435-495-11 TRANSFORMER, POWER (E)
************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
01-569-008-21 ADAPTOR, CONVERSION 2P (MY, SP, AUS)
1-769-329-21 CORD, CONNECTION (PIN-PIN)
1-769-433-21 CORD, SPEAKER
4-228-525-11 MANUAL, INSTRUCTION (US, UK)
(ENGLISH, SPANISH)
4-228-525-21 MANUAL, INSTRUCTION
(CND, AEP, MY, SP, AUS) (ENGLISH, FRENCH)
4-228-525-31 MANUAL, INSTRUCTION (AEP) (GERMAN,
DUTCH, SWEDISH, ITALIAN, PORTUGUESE,
FINNISH, DANISH, SPANISH)
4-228-525-11 MANUAL, INSTRUCTION (MY, SP)
(SPANISH, CHINESE)
************************************************************
The components identified by
mark 0or dotted line with
mark 0are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.

10
SA-WM40
Sony Corporation
Home Audio Division Company
9-929-065-11 2000B0585-1
Printed in Japan C2000. 2
Published by Quality Assurance Dept.
