Sony BRAVIA KD-43X80J Owner's manual

Dismantling Information forUse
by ProfessionalRecyclers
9-888-789-43
LCD TV
Sony EMCS (M) Sdn. Bhd., SHES-M
© 2021.03
ORIGINAL MANUAL ISSUE DATE: 2021.03
Conditions of Use:
(1) Please use this information only for the purpose of performing repair and recycling Sony products. Using this information
for any purpose other than the purpose described foregoing is forbidden.
(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part
without the prior written permission of the author.
Revision of Information:
This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-to-
date before using it.
Model:
KD-43X80J KD-50X80J KD-55X80J KD-65X80J KD-75X81J
KD-43X81J KD-50X81J KD-55X81J KD-65X81J KD-75X82J
KD-43X82J KD-50X82J KD-55X82J KD-65X82J

MODEL LISTS
Remote
2
Model Remote Destination
KD-55X80J RMF-TX520E CEI , UKA, CEP
KD-55X81J RMF-TX520E CEI , UKA , RU3
KD-55X82J RMF-TX520E CEI
KD-65X80J RMF-TX520E CEI , UKA, CEP
KD-65X81J RMF-TX520E CEI ,UKA , RU3
KD-65X82J RMF-TX520E CEI
KD-75X81J RMF-TX520E CEI, UKA, CEP
KD-75X82J RMF-TX520E CEI
Add Model
KD-43X80J RMF-TX520E CEI , UKA, CEP
KD-43X81J RMF-TX520E CEI , UKA , RU3
KD-43X82J RMF-TX520E CEI
KD-50X80J RMF-TX520E CEI , UKA, CEP
KD-50X81J RMF-TX520E CEI , UKA , RU3
KD-50X82J RMF-TX520E CEI

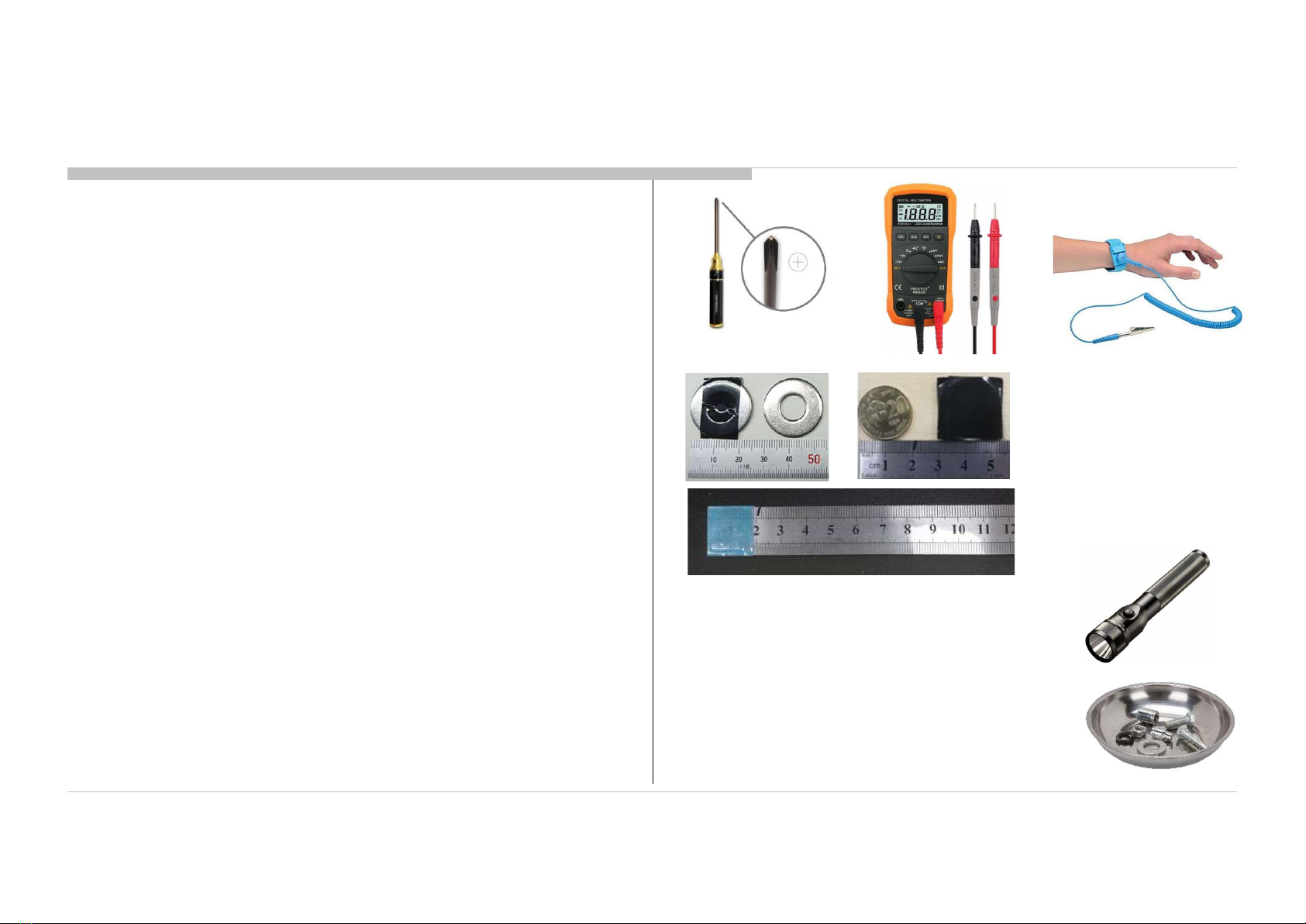

1 LIST OF ITEMS TO BRING
1. Screwdriver (e.g. #2 Phillips Screwdriver)
2. Multimeter
3. ESD Wrist Straps
4. Metal Washer (Flat) or Coin (for remove Rear Cover)
5. Ruler (for remove Rear Cover)
6. Service Manual (Unique) (for remove & replace details)
2 OPTIONAL EQUIPMENT
1. Screwdriver (e.g. #0 Phillips Screwdriver)
2. Parts Tray for loose screws and small items
2. Flashlight
3. Service Manual (Common) (for t/shooting information)
For Surface Mounted Parts/Connectors:
Hot-Air Type soldering Iron is needed.
Thickness: approx. 1.5mm
Diameter: 20~25mm
(wrap in tape (L=50mm))
Plastic or Metal Ruler
(In case of Metal ruler, wrap in tape
(L=50mm) for prevent scratches)
TOOLS & EQUIPMENT
3

DISSASSEMBLY AND REMOVAL CAUTION 55”
4

DISSASSEMBLY AND REMOVAL CAUTION 55”
5

6
(*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when
ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
• Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•and shaded parts are critical for safety. Replace only with part number specified.
•Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and/or replaced

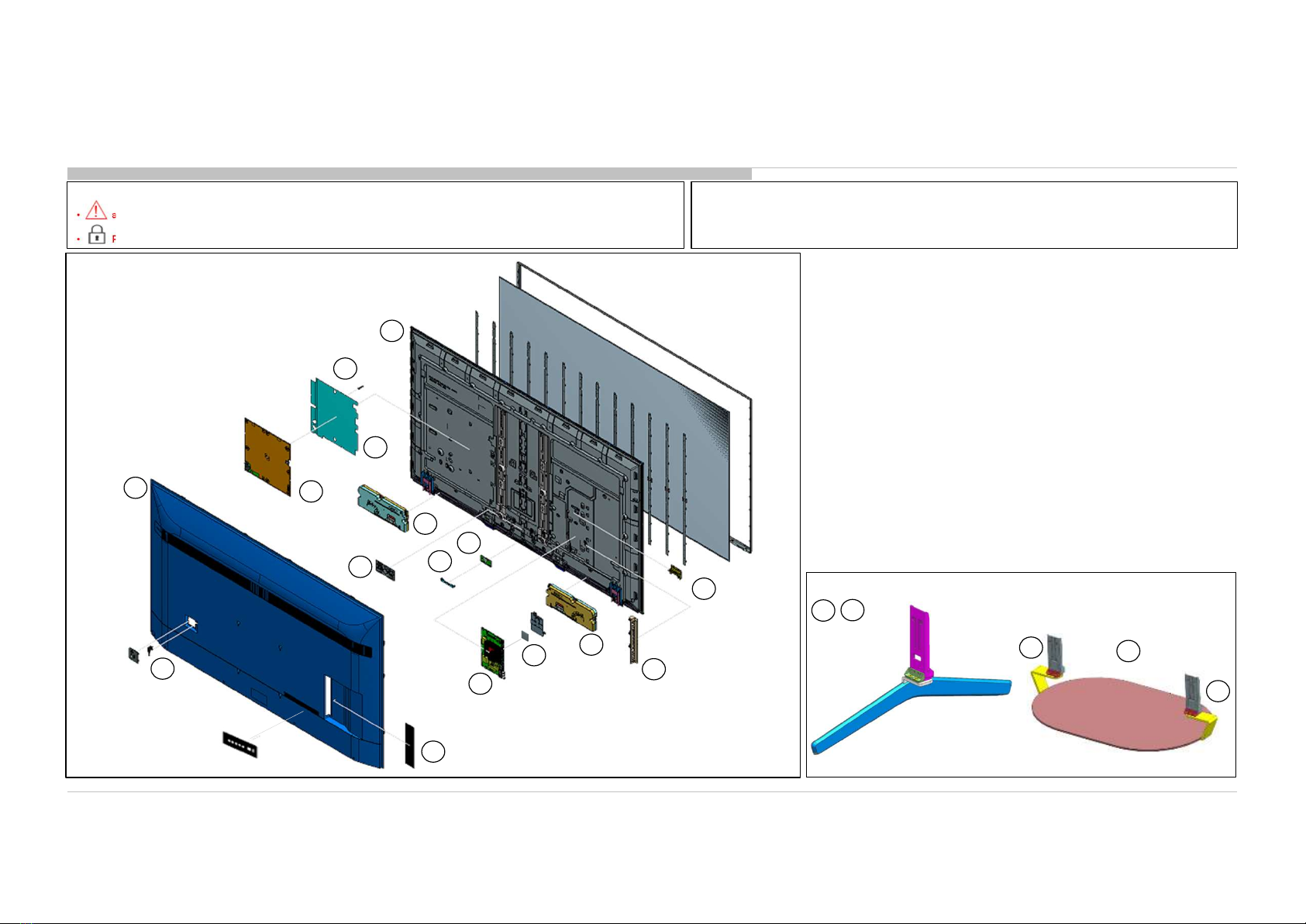

1-4 EXPLODED VIEW AND PART LIST
1
2
10
13
5
6
7
11 9
8
4
14
312
Stand
15 16
*
*
*Only on limited region / country / TV model
17
18
18
EXPLODED VIEWS AND OTHER PARTS 55”

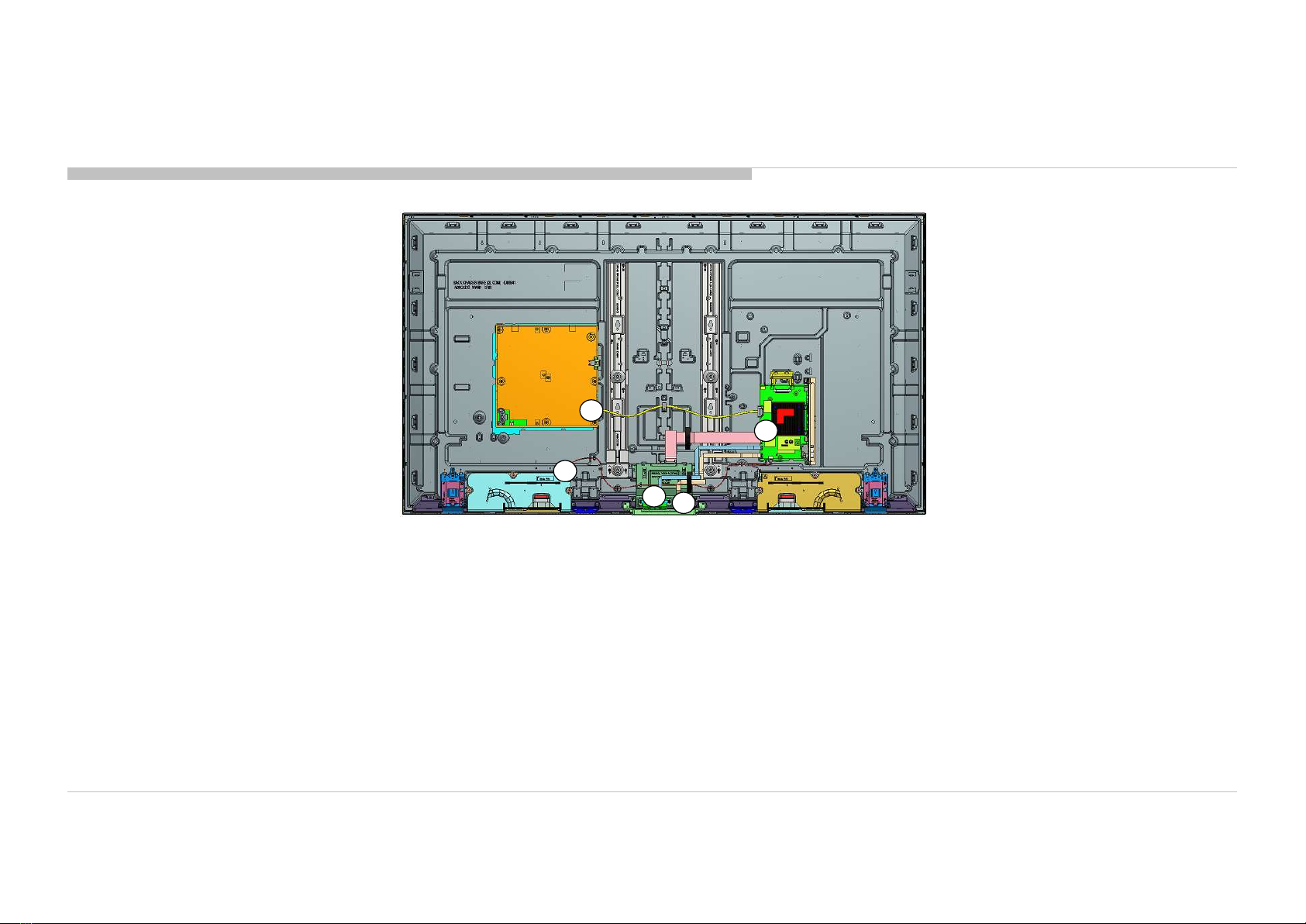

CONNECTOR
2
1
5
4
3
HARNESS/CABLES 55”
7
REF. NO PART NO. DESCRIPTION DESTINATION REMARKS
11-006-501-31 CONNECTOR ASSY 4P (SP) Except RU3 CN3550(BM5A)/CN6603(BM5ST)-
SP(1)
1 1-006-501-41 CONNECTOR ASSY 4P (SP) RU3 CN3550(BM5A)/CN6603(BM5ST)-SP(1)
21-006-502-11 CONNECTOR ASSY 30P Except RU3 CN1701(BM5A)-
CN6401(GL)(1)
21-006-502-21 CONNECTOR ASSY 30P RU3 CN1701(BM5A)-
CN6401(GL)(1)
3 1-006-505-11 FLEXIBLE FLAT CABLE 20P Except RU3 CN3801(BM5A)-
J1(WIFI/BT)(1)
31-006-506-11 FLEXIBLE FLAT CABLE 20P RU3 CN3801(BM5A)-
J1(WIFI/BT)(1)
4 1-006-510-11 FLEXIBLE FLAT CABLE 25P Except RU3 CN1200(BM5A)-
CN102(HT2)(1)
41-006-509-11 FLEXIBLE FLAT CABLE 25P RU3 CN1200(BM5A)-
CN102(HT2)(1)
51-010-542-11 FLEXIBLE FLAT CABLE 51P Except RU3 CN4200(BM5A)-U1(T-
CON)(1)
5 1-010-543-11 FLEXIBLE FLAT CABLE 51P RU3 CN4200(BM5A)-U1(T-
CON)(1)

REF. NO PART NO. DESCRIPTION REMARKS
21-005-621-11 C7L AC POWER CODE SETS (EU) CEI , CEP
Cable
21-005-628-13 C7L AC POWER CODE SETS (UK) UKA
10 A-5027-340-A COMPL_SVC_BM5A_APH_EUUK Printed Circuit Board, incl. capacitors
12 1-004-422-22 GL01B-STATIC CONVERTER (TV) Internal Power Supply
14 A-5029-028-A P-MOD(YSBM055CNO01)SVC
Liquid Crystal Display
14 A-5029-083-A P-MOD(YSBM055CNO01)SVC
SET PART LIST
PARTS LIST 55”
8

DISSASSEMBLY AND REMOVAL CAUTION 65”
9

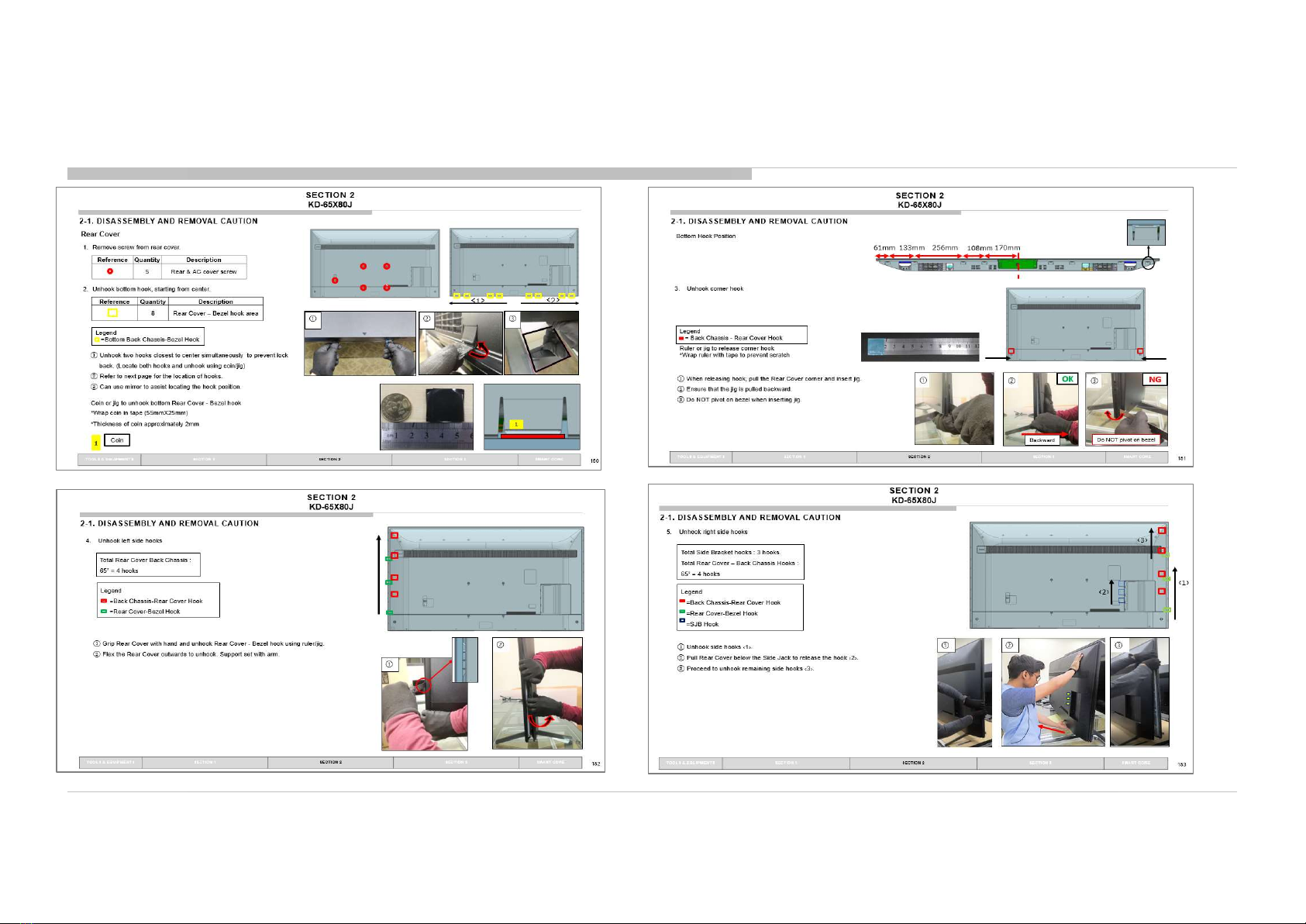

DISSASSEMBLY AND REMOVAL CAUTION 65”
10

11
(*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when
ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
• Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•and shaded parts are critical for safety. Replace only with part number specified.
•Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and/or replaced
Stand
2-4 EXPLODED VIEW AND PART LIST
1
210
13
5
6
7
11
9
8
4
14
312
15 16
*
*
*Only on limited region / country / TV model
17
18
18
EXPLODED VIEWS AND OTHER PARTS 65”

CONNECTOR
2
1
5
4
3
HARNESS/CABLES 65”
12
REF. NO PART NO. DESCRIPTION DESTINATION REMARKS
11-006-513-32 CONNECTOR ASSY 4P (SP) Except RU3 CN3550(BM5A)/CN6603(BM5ST)-
SP(1)
11-006-513-42 CONNECTOR ASSY 4P (SP) RU3 CN3550(BM5A)/CN6603(BM5ST)-
SP(1)
21-006-502-11 CONNECTOR ASSY 30P Except RU3 CN1701(BM5A)-
CN6401(GL)(1)
21-006-502-21 CONNECTOR ASSY 30P RU3 CN1701(BM5A)-
CN6401(GL)(1)
31-006-505-11 FLEXIBLE FLAT CABLE 20P Except RU3 CN3801(BM5A)-
J1(WIFI/BT)(1)
31-006-506-11 FLEXIBLE FLAT CABLE 20P RU3 CN3801(BM5A)-
J1(WIFI/BT)(1)
41-006-510-11 FLEXIBLE FLAT CABLE 25P Except RU3 CN1200(BM5A)-
CN102(HT2)(1)
41-006-509-11 FLEXIBLE FLAT CABLE 25P RU3 CN1200(BM5A)-
CN102(HT2)(1)
51-010-542-11 FLEXIBLE FLAT CABLE 51P Except RU3 CN4200(BM5A)-U1(T-
CON)(1)
51-010-543-11 FLEXIBLE FLAT CABLE 51P RU3 CN4200(BM5A)-U1(T-
CON)(1)

REF. NO PART NO. DESCRIPTION REMARKS
21-005-621-11 C7L AC POWER CODE SETS (EU) CEI, CEP Cable
21-005-628-13 C7L AC POWER CODE SETS (UK) UKA Cable
10 A-5027-340-A COMPL_SVC_BM5A_APH_EUUK Printed Circuit Board, incl. capacitors
12 1-004-423-23 GL02P-STATIC CONVERTER (TV) Internal Power Supply
14 A-5029-026-A P-MOD(YSBM065CNO01)SVC Liquid Crystal Display
SET PART LIST
PARTS LIST 65”
13

DISSASSEMBLY AND REMOVAL CAUTION 75”
14

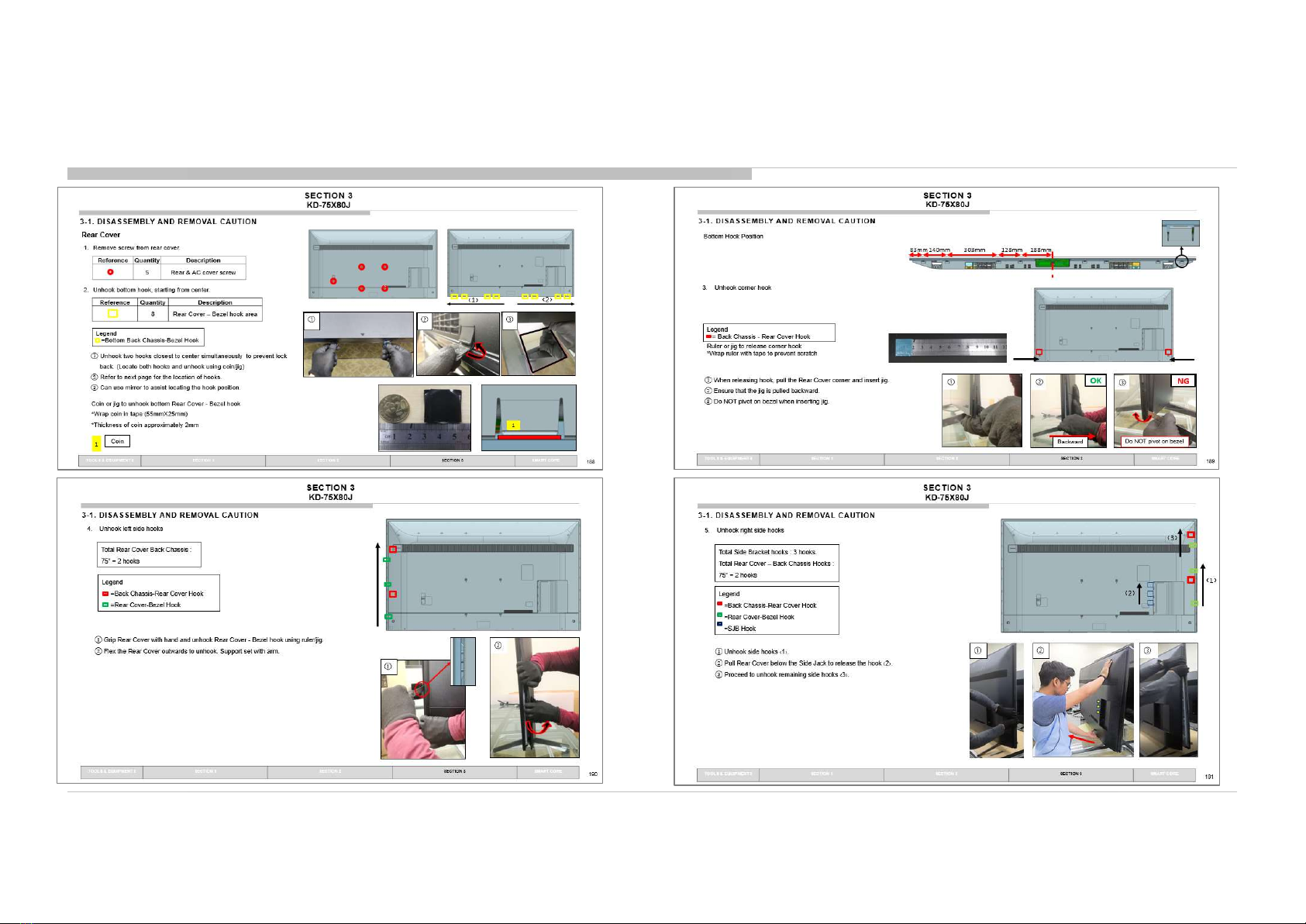

DISSASSEMBLY AND REMOVAL CAUTION 75”
15

16
(*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when
ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
• Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•and shaded parts are critical for safety. Replace only with part number specified.
•Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and/or replaced
3-4 EXPLODED VIEW AND PART LIST
2
10
13
5
14
6
7
11
9
8
4
17
15
312
1
Stand
16 17
*Only on limited region / country / TV model
*
*
18
19
19
EXPLODED VIEWS AND OTHER PARTS 75”

CONNECTOR
2
1
5
4
3
HARNESS/CABLES 75”
17
REF. NO PART NO. DESCRIPTION REMARKS
11-006-514-11 CONNECTOR ASSY 4P (SP) CN3550(BM5A)/CN6603(BM5ST)-
SP(1)
21-006-502-11 CONNECTOR ASSY 30P CN1701(BM5A)-
CN6401(GL)(1)
31-006-505-11 FLEXIBLE FLAT CABLE 20P CN3801(BM5A)-
J1(WIFI/BT)(1)
41-006-510-11 FLEXIBLE FLAT CABLE 25P CN1200(BM5A)-
CN102(HT2)(1)
51-010-542-11 FLEXIBLE FLAT CABLE 51P CN4200(BM5A)-U1(T-
CON)(1)

REF. NO PART NO. DESCRIPTION REMARKS
21-005-621-11 C7L AC POWER CODE SETS (EU) CEI, CEP Cable
21-005-628-13 C7L AC POWER CODE SETS (UK) UKA
10 A-5027-340-A COMPL_SVC_BM5A_APH_EUUK Printed Circuit Board, incl. capacitors
12 1-009-802-21 GL14P-STATIC CONVERTER (TV) Internal Power Supply
15 A-5029-053-A P-MOD(YSBM075CNO02)SVC
Liquid Crystal Display
15 A-5029-054-A P-MOD(YSBM075CNO02)SVC
SET PART LIST
PARTS LIST 75”
