SERVICE MANUAL
Version Date Subject
1.0 2/2012 Original manual issue.
2.0 8/2012 Addition of models for AFRICA/MIDDLE EAST/PACIFIC ISLAND. (P.3, P.14, P.15, P.17, P.18, P.20)
3.0 9/2012 Addition of models for GENARAL AREA. (P.3, P.14~20)
LCD Digital Color TV
9-888-467-03
HISTORY INFORMATION FOR THE FOLLOWING MANUAL:
ORIGINAL MANUAL ISSUE DATE: 2/2012 AZ3WKCHASSIS
Segment: P-2F

SERVICE MANUAL
LCD Digital Color TV
AZ3WKCHASSIS
Segment: P-2F
9-888-467-03

KDL-32BX350/40BX450(SP/AUS/AF/GA) 3
MODEL LIST
MODEL COLOR COMMANDER DEST.MODEL COLOR COMMANDER DEST.
KDL-32BX350 Black RM-ED049 SINGAPORE
AUSTRALIA
AFRICA
MIDDLE EAST
PACIFIC ISLAND
GENERAL AREA
KDL-40BX450 Black RM-ED049 SINGAPORE
AUSTRALIA
AFRICA
MIDDLE EAST
PACIFIC ISLAND
GENERAL AREA

KDL-32BX350/40BX450(SP/AUS/AF/GA) 4
WARNINGS AND CAUTIONS -ENGLISH
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
WARNING!!
An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis.
The chassis of this receiver is directly connected to the ac power line.
CARRYING THE TV
Be sure to follow these guidelines to protect your property and avoid causing serious injury.
• Carry the TV with an adequate number of people; larger size TVs require two or more people.
• Correct hand placement while carrying the TV is very important for safety and to avoid damages.
SAFETY-RELATED COMPONENT WARNING!!
Components identified by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace these components with Sony
parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that are critical for safe operation are identified in this manual.
Follow these procedures whenever critical components are replaced or improper operation is suspected.

KDL-32BX350/40BX450(SP/AUS/AF/GA) 5
WARNINGS AND CAUTIONS -FRENCH
ATTENTION!!
Ces instructions de service sont à l’usage du personnel de service qualifi é seulement.
Pour prévenir le risque de choc électrique, ne pas faire l’entretien autre que celui contenu dans le Mode d’emploi à moins que vous soyez qualifi é faire ainsi.
WARNING!!
Afi n d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout dépannage. Le chássis de ce récepteur est
directement raccordé à l’alimentation du secteur.
POUR TRANSPORTER LE TÉLÉVISEUR
Tenez compte de ce qui suit pendant l’installation du téléviseur :
• Débranchez tous les câbles avant de transporter le téléviseur.
• Transportez le téléviseur avec le nombre de personnes approprié ; un téléviseur de grande taille doit être transporté par au moins deux personnes.
• Lors du transport du téléviseur, l’emplacement des mains est très important pour votre sécurité, ainsi que pour éviter de causer des dommages.
ALERTE!!
Afi n d’eviter tout risque d’electrocution provenant d’un chassis sous tension, un transformateur d’isolement doit etre utilise lors de tout depannage. Le chassis de ce recepteur est
directement raccorde a l’alimentation du secteur.
ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!
Les composants identifi es par une trame et par une marque ! sur les schemas de principe, les vues explosees et les listes de pieces sont d’une importance critique pour la securite du
fonctionnement. Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les reglages
de circuit dont l’importance est critique pour la securite du fonctionnement sont identifi es dans le present manuel. Suivre ces procedures lors de chaque remplacement de
composants critiques, ou lorsqu’un mauvais fonctionnement suspecte.

KDL-32BX350/40BX450(SP/AUS/AF/GA) 6
WARNINGS AND CAUTIONS
USE CAUTION WHEN HANDLING THE LCD PANEL
When repairing the LCD panel, be sure you are grounded by using a wrist band.
When repairing the LCD panel on the wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.
1) Do not press on the panel or frame edge to avoid the risk of electric shock.
2) Do not scratch or press on the panel with any sharp objects.
3) Do not leave the module in high temperatures or in areas of high humidity for an extended period of time.
4) Do not expose the LCD panel to direct sunlight.
5) Avoid contact with water. It may cause a short circuit within the module.
6) Disconnect the AC power when replacing the backlight (CCFL) or inverter circuit. (High voltage occurs at the inverter circuit at 650Vrms.)
7) Always clean the LCD panel with a soft cloth material.
8) Use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.
9) Protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).
10) It is recommended not to exceed 1 hour of Power-On nor Burn-in period with LCD panel face down condition, in repair activity.

KDL-32BX350/40BX450(SP/AUS/AF/GA) 7
SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.
2. Check the interboard wiring to ensure that no wires are “pinched” or touching high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.
6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.
7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.
8. For safety reasons, repairing the Power board and/or Inverter board is prohibited.

KDL-32BX350/40BX450(SP/AUS/AF/GA) 8
SAFETY CHECK-OUT
Leakage Test

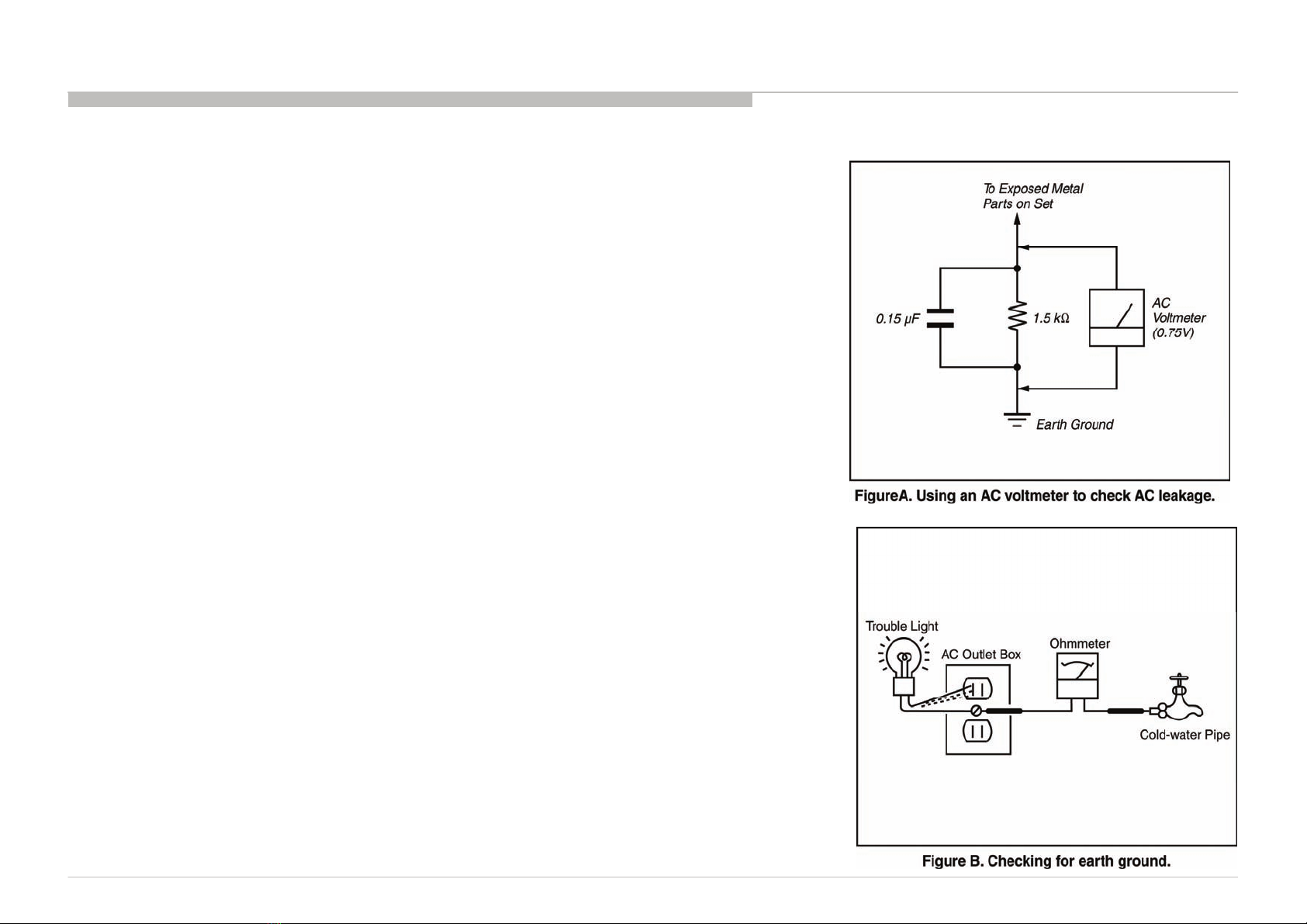

The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed
metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’
instructions to use these instructions.
2. A battery-operated AC milliampmeter. The Data Precision 245 digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The
“limit” indication is 0.75 V, so analog meters must have an accurate low voltage scale.
The Simpson’s 250 and Sanwa SH-63TRD are examples of passive VOMs that are suitable. Nearly all
battery-operated digital multimeters that have a 2 VAC range are suitable (see Figure A).
How to Find a Good Earth Ground
A cold-water pipe is a guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also
at earth ground.
If the retaining screw is to be used as your earth ground, verify that it is at ground by measuring the resistance
between it and a cold-water pipe with an ohmmeter. The reading should be zero ohms.
If a cold-water pipe is not accessible, connect a 60- to 100-watt trouble- light (not a neon lamp) between the hot
side of the receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side on the line; the
lamp should light at normal brilliance if the screw is at ground potential (see Figure B).

KDL-32BX350/40BX450(SP/AUS/AF/GA) 9
SELF DIAGNOSIS FUNCTION
DIAGNOSTIC TEST INDICATORS
When an error occurs, the STANDBY LED will flash a set number of times to
indicate the possible cause of the problem.
If there is more than one error, the LED will identify the first of the problem areas.
Result for all of the following diagnostic items are displayed on screen.
If the screen displays a “0”, no error has occurred .
The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY LED will automatically begin to flash.
The number of times the LED flashes translates to a probable source of the problem.
A definition of the STANDBY LED flash indicators is listed in the instruction manual for the user’s knowledge and reference.
If an error symptom cannot be reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past problems and how often these
problems occur.
STBYLED
Flash time Service menu Item name (Screen Display) Diagnostic Item Description
2 MAIN_POWER Main Power Over Voltage Protection
DC_ALERT1 DC_ALERT
AUDIO_PROT Audio Abnormal Detection
4 BALANCER_ERR Balancer Error
TCON_ERR Detect TCON_RDY
PANEL_ID__NVM_ERR Panel ID NVMError
6 BACKLIGHT_ERR Back LightError (Panel Inverter)
7TEMP_ERR Thermal Error
8 - Not used
9 - Not used
10 - Not used
11 - Not used
12 - Not used
3
5
0.5
0.5 3
DISPLAY OF STANDBY LED FLASH COUNT
SELF-DIAGNOSTIC SCREEN DISPLAY
For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it is possible to bring up past occurrences of failure for
confirmation on the screen:
[To Bring Up Screen Test]
In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:
5
*: Note that this differs from entering the service mode (volume +)
*
Info TV POWERChannel Volume

KDL-32BX350/40BX450(SP/AUS/AF/GA) 10
SELFCHECK
BACK <<
002MAIN_POWER 000
003DC_ALERT1 000
003AUDIO_PROT 000
004BALANCER_ERR 000
005TCON_ERR 000
005PANEL_ID_NVM_ERR 000
006BACKLIGHT_ERR 000
007TEMP_ERR 000
12345‐67891‐23456
[Home]Exit
SELF DIAGNOSIS FUNCTION
[SELF DIAGNOSTIC SCREEN DISPLAY]
Error count
Item name
STBY LED flash time
Total operation time by hour
Boot count
Panel operation time by hour
Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic screen.
After you have completed the repairs, clear the result display to “0”.
Clearing the Self Check Diagnostic List
1. Error history and Error count : Press the Channel 8 => Channel 0 .
2. Panel operation time : Press the Channel 7 => Channel 0 .
Exiting the Self-diagnostic screen
To exit the Self Diagnostic screen, turn off the power to the TV by pressing the POWER button on the remote or the POWER button on the TV.

KDL-32BX350/40BX450(SP/AUS/AF/GA) 11

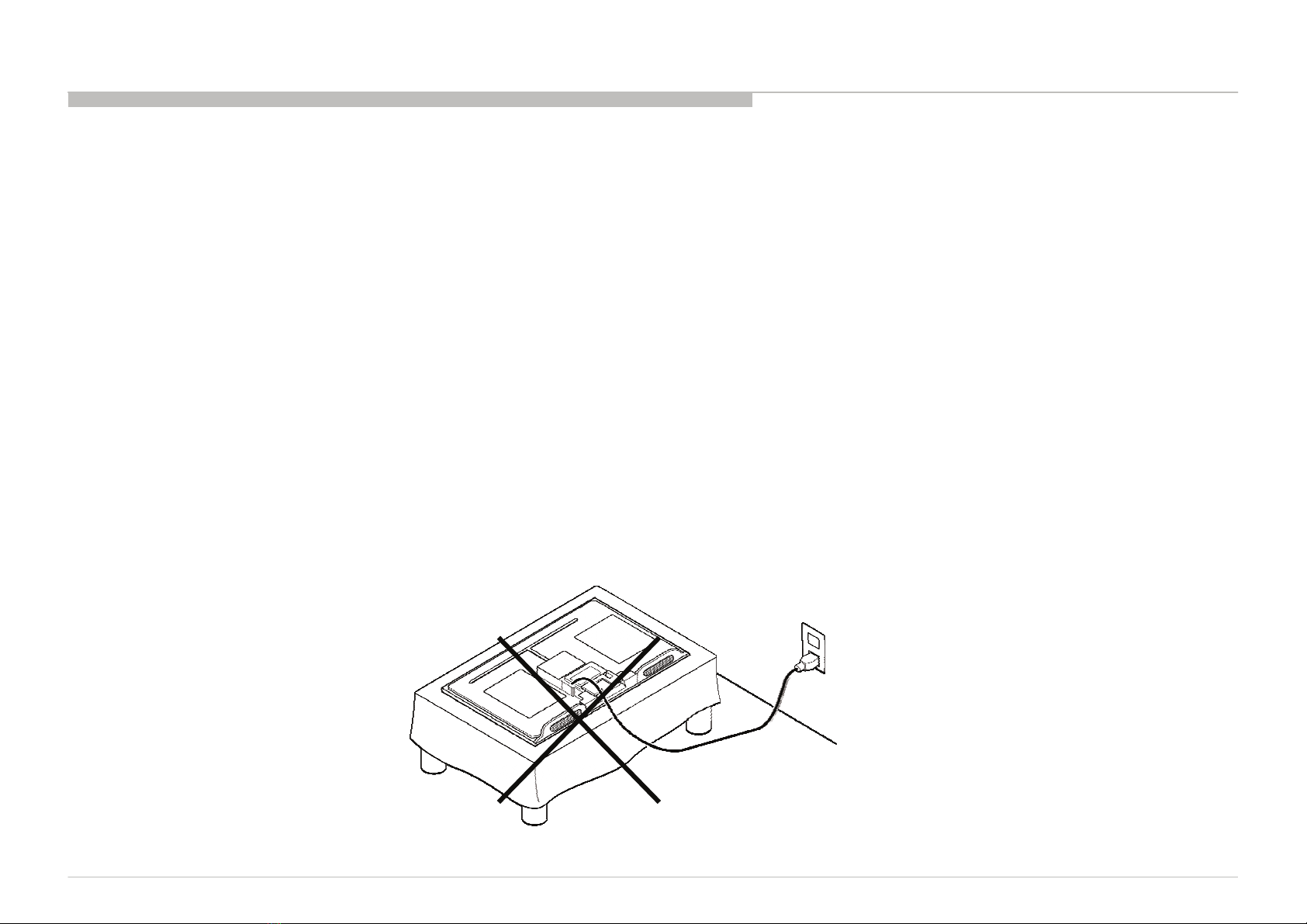

1. Disassemble of the Bottom frame from the Rear cover (Three screws)
SERVICE POSITION
As for this model, the stands are attached the rear cover side.
Therefore assemble the stand assy to the main unit according to the following procedure when performing adjustment and operation check after the part replacement.
<32 inch>
2. Assemble of the Bottom frame to LCD panel (Three screws)
3. Assemble of the Stand to main unit (Three screws)

KDL-32BX350/40BX450(SP/AUS/AF/GA) 12
1. Disassemble of the Bottom frame from the Rear cover (Three screws)
SERVICE POSITION
<40 inch>
2. Assemble of the Bottom frame to LCD panel (Three screws)
3. Assemble of the Stand to main unit (Three screws)

KDL-32BX350/40BX450(SP/AUS/AF/GA) 13
• Items with no part number and no description are not stocked because they are seldom required for roution service.
• The construction parts of an assembled part are indicated with a collation number in the remark colum.
• Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
SEC 1. DISASSEMBLY AND PARTS LIST
Note: Bezel and LCD panel have points installing with double sided tape.
About the procedure of those disassembly and assembly methods, please refer to “APPENDIX-2”.
Note: When removing the rear cover, to prevent damaging the rear cover, please refer to “APPENDIX-1”.

KDL-32BX350/40BX450(SP/AUS/AF/GA) 14
1-1. KDL-32BX350
1-1-1. BASE STAND
REF. No. PART No. DESCRIPTION MARK
1 4-419-586-01 STAND, BASE(M)
2 4-400-568-01 COVER AC (APOW)
3 1-838-984-11 POWER SUPPLYCORD (for SP/AF)
1-839-911-11 POWER SUPPLYCORD (for AUS)
1-839-909-21 POWER SUPPLYCORD (for GA)
4-167-019-01 SCREW, +PSW M3X8
2-580-608-11 SCREW, +PSW M5X16
DISASSEMBLY AND PARTS LIST
1-1-2. AC COVER AND AC CORD
1
2
3

KDL-32BX350/40BX450(SP/AUS/AF/GA) 15
DISASSEMBLY AND PARTS LIST
1-1. KDL-32BX350
1-1-3. REAR COVER

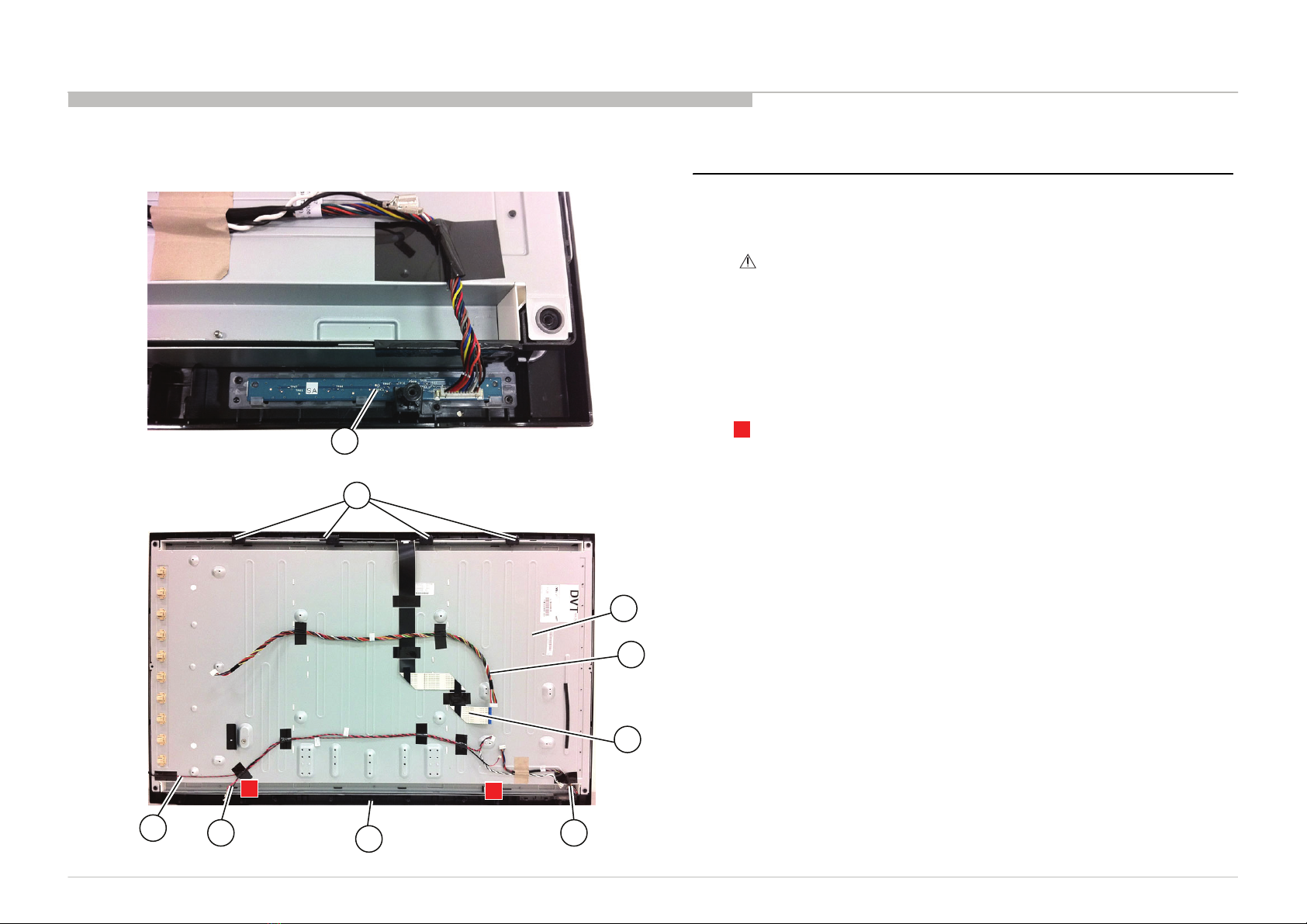

1-1-4. G9 BOARD, A BOARD, SPEAKER AND SWITCH UNIT
REF. No. PART No. DESCRIPTION MARK
4 4-419-547-11 REAR COVER (32APOW)
5 1-490-176-11 SWITCH UNIT
6 1-474-381-12 G9(CH) STATIC CONVERTER (TV) (for SP/AUS/AF)
1-474-381-31 G9(ID) STATIC CONVERTER (TV) (for GA)
7 1-895-168-21 MOUNTED PWB A (for SP/AUS)
A-1885-671-A MOUNTED PWB A (WXGA) (for AF/GA)
8 4-410-589-01 BRACKET,SIDE (APOW PAD)
9 1-858-770-11 SPEAKER 4X10
2-580-640-01 SCREW,+BVTP 4X16 TYPE2 IT-3
7-682-948-01 SCREW, +PSW 3X8
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
4-159-298-01 SCREW, +PSW M4X10
4
8
7
6
5
9

KDL-32BX350/40BX450(SP/AUS/AF/GA) 16
DISASSEMBLY AND PARTS LIST
1-1. KDL-32BX350

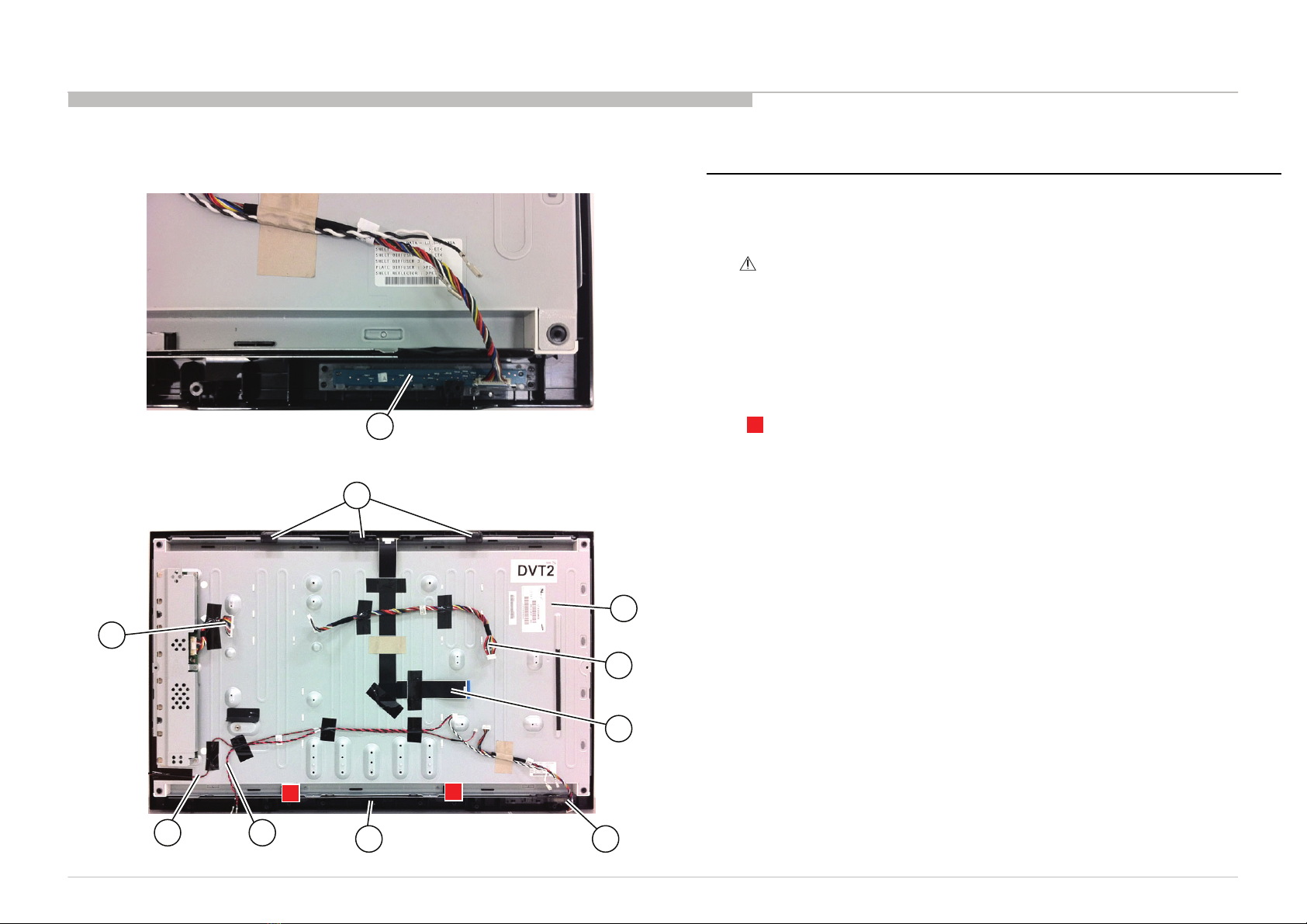

1-1-5. H BOARD
1-1-6. PANEL SUPPORT, LCD PANEL AND BEZEL
REF. No. PART No. DESCRIPTION MARK
10 1-895-170-21 MOUNTED PWB H
11 4-417-048-01 PANEL SUPPORT (E)
12 4-419-544-01 BEZEL (32APOW) (for SP/AUS/AF)
4-419-544-21 BEZEL (32APOW) (for GA)
13 1-811-602-11 PANEL,LCD (W32)
14 1-910-105-27 CONNECTOR ASSYFFC,32
15 1-910-103-73 CONNECTOR ASSY12P IR
16 1-910-103-74 CONNECTOR ASSY3P MB-KEY
17 1-910-103-75 CONNECTOR ASSY14P INV
18 1-910-103-76 CONNECTOR ASSY16P PS
19 1-910-103-77 CONNECTOR ASSY4P SP
2-580-640-01 SCREW,+BVTP 4X16 TYPE2 IT-3
10
11
13
12
14
17
16 19
18
15

KDL-32BX350/40BX450(SP/AUS/AF/GA) 17
1-2. KDL-40BX450
1-2-1. BASE STAND
REF. No. PART No. DESCRIPTION MARK
1 4-419-587-01 STAND, BASE(ML)
2 4-400-568-01 COVER AC (APOW)
3 1-838-984-11 POWER SUPPLYCORD (for SP/AF)
1-839-911-11 POWER SUPPLYCORD (for AUS)
1-839-909-21 POWER SUPPLYCORD (for GA)
4-167-019-01 SCREW, +PSW M3X8
2-580-608-11 SCREW, +PSW M5X16
DISASSEMBLY AND PARTS LIST
1-2-2. AC COVER AND AC CORD
1
2
3

KDL-32BX350/40BX450(SP/AUS/AF/GA) 18
REF. No. PART No. DESCRIPTION MARK
4 4-419-548-11 REAR COVER (40APOW PAD)
5 1-490-176-11 SWITCH UNIT
6 1-895-171-11 MOUNTED PWB W40
7 1-895-168-11 MOUNTED PWB A (for SP/AUS)
A-1885-680-A MOUNTED PWB A(FHD) (for AF/GA)
8 4-410-589-01 BRACKET,SIDE (APOW PAD)
9 1-858-770-11 SPEAKER 4X10
2-580-640-01 SCREW,+BVTP 4X16 TYPE2 IT-3
7-682-948-01 SCREW, +PSW 3X8
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
4-159-298-01 SCREW, +PSW M4X10
DISASSEMBLY AND PARTS LIST
1-2. KDL-40BX450
1-2-3. REAR COVER
1-2-4. W40 BOARD, A BOARD, SPEAKER AND SWITCH UNIT
4
8
7
6
5
9

KDL-32BX350/40BX450(SP/AUS/AF/GA) 19
DISASSEMBLY AND PARTS LIST
1-2. KDL-40BX450
1-2-5. H BOARD
1-2-6. PANEL SUPPORT, LCD PANEL AND BEZEL
REF. No. PART No. DESCRIPTION MARK
10 1-895-170-21 MOUNTED PWB H
11 4-417-086-01 PANEL SUPPORT (F)
12 4-419-545-01 BEZEL (40APOW)
(for SP/AUS/AF)
4-419-545-22 BEZEL (40APOW)
(for GA)
13 1-811-603-11 PANEL,LCD (W40)
14 1-910-105-26 CONNECTOR ASSYFFC 40
15 1-910-103-73 CONNECTOR ASSY12P IR
16 1-910-103-78 CONNECTOR ASSY3P MB-KEY
17 1-910-103-79 CONNECTOR ASSY16P PS
18 1-910-103-80 CONNECTOR ASSY4P SP
2-580-640-01 SCREW,+BVTP 4X16 TYPE2 IT-3
10
13
12
14
11
17
1518
16

KDL-32BX350/40BX450(SP/AUS/AF/GA) 20
1-3. OTHER PART
PART No. DESCRIPTION MARK
4-418-597-01 CUSHIN, UPPER (32APOW) (for SP/AUS/AF)
4-412-980-01 CUSHIN, UPPER (32APOW) (for GA)
4-418-599-01 CUSHIN, UPPER (40APOW) (for SP/AUS/AF)
4-412-982-01 CUSHIN, UPPER (40APOW) (for GA)
4-418-598-01 CUSHIN, LOWER (32APOW) (for SP/AUS/AF)
4-412-981-01 CUSHIN, LOWER (32APOW) (for GA)
4-418-600-01 CUSHIN, LOWER (40APOW) (for SP/AUS/AF)
4-412-983-01 CUSHIN, LOWER (40APOW) (for GA)
4-421-104-01 CARTON,INDIVIDUAL (APO 32) (for SP/AUS/AF)
4-421-104-11 CARTON,INDIVIDUAL (APO 32) (for GA)
4-421-105-01 CARTON,INDIVIDUAL (APO 40) (for SP/AUS/AF)
4-421-105-11 CARTON,INDIVIDUAL (APO 40) (for GA)
A-1869-239-A MANUAL, INSTRUCTION (for SP/AUS)
A-1913-679-A MANUAL, INSTRUCTION (for AF)
4-415-185-31 MANUAL, INSTRUCTION (for GA)
1-489-992-11 REMOTE COMMANDER (RM-ED049)
1-3-1. MISCELLANEOUS
DISASSEMBLY AND PARTS LIST
