LCD DIGITAL COLOR TV
SERVICE MANUAL AZ2-F CHASSIS
MODEL COMMANDER DESTINATION
9-888-449-52
KDL-32EX729 RM-YD061 US
KDL-40EX729 RM-YD061 US
KDL-46EX729 RM-YD061 US
LEVEL 3
CONFIDENTIAL
HISTORY INFORMATION FOR THE FOLLOWING MANUAL:
CONFIDENTIAL
ELECTRICAL SERVICE MANUAL
INTERNAL ONLY
ORIGINAL MANUAL ISSUE DATE: 3/2011
REVISION DATE SUBJECT
3/25/2011 Original Manual Release Date
11/16/2011 Reissue Entire Manual.

2
KDL-32EX729/40EX729/46EX729
KDL-32EX729/40EX729/46EX729
TABLE OF CONTENTS
SECTION TITLE PAGE
Safety-Related Component Warning ...............................................................................................................................................................................3
Safety Check-Out...............................................................................................................................................................................................................5
SECTION 1: DIAGRAMS...................................................................................................................................................................................................6
1-1. Circuit Boards Location ...................................................................................................................................................................................... 6
1-2. Printed Wiring Boards and Schematic Diagrams Information ............................................................................................................................ 7
1-3. Block Diagram....................................................................................................................................................................................................9

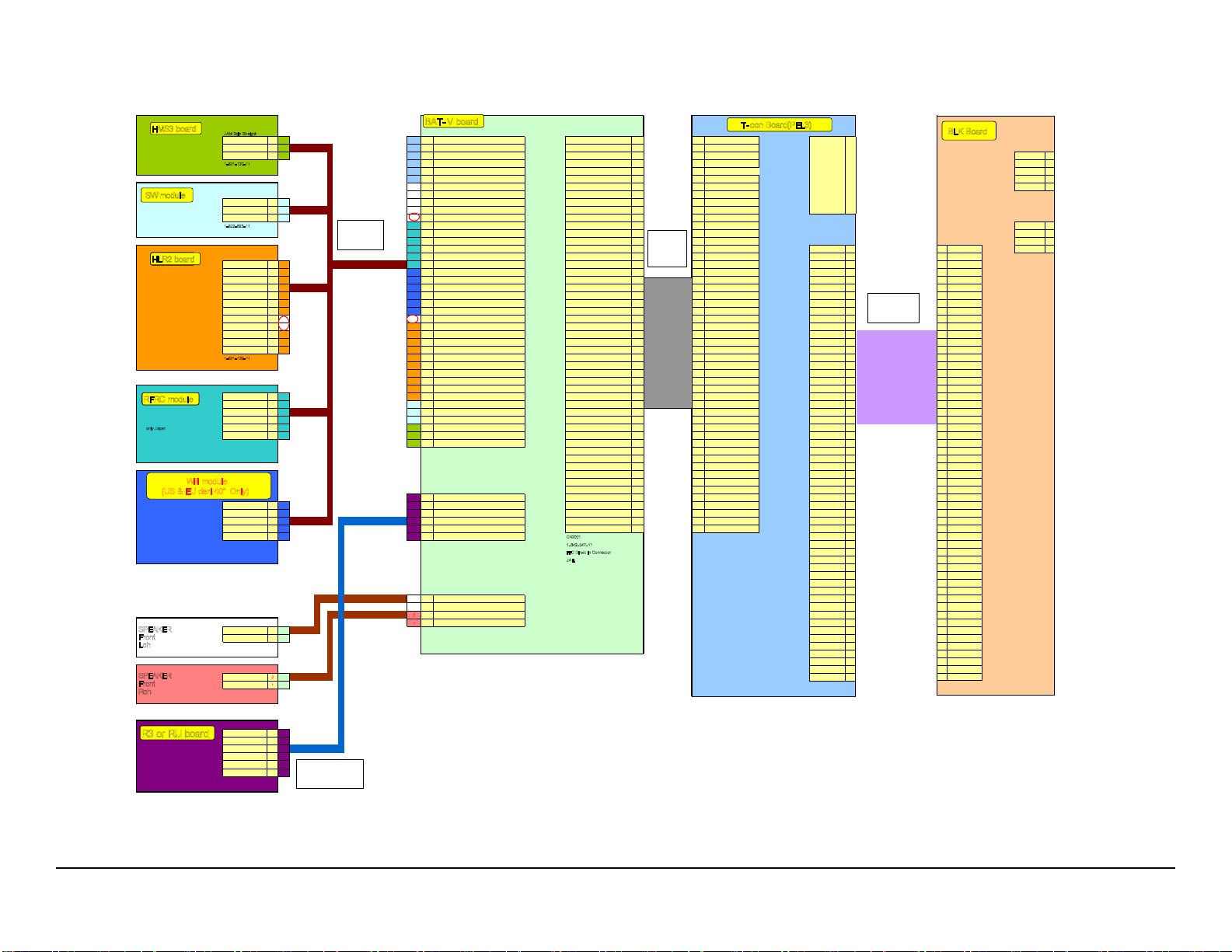

1-4. Connector Diagrams ........................................................................................................................................................................................10
1-5. Schematics and Supporting Information ..........................................................................................................................................................14
BATV Board Schematic Diagram (1 of 12)....................................................................................................................................................... 14
BATV Board Schematic Diagram (2 of 12)....................................................................................................................................................... 15
BATV Board Schematic Diagram (3 of 12)....................................................................................................................................................... 16
BATV Board Schematic Diagram (4 of 12)....................................................................................................................................................... 17
BATV Board Schematic Diagram (5 of 12)....................................................................................................................................................... 18
BATV Board Schematic Diagram (6 of 12)....................................................................................................................................................... 19
BATV Board Schematic Diagram (7 of 12)....................................................................................................................................................... 20
BATV Board Schematic Diagram (8 of 12)....................................................................................................................................................... 21
BATV Board Schematic Diagram (9 of 12)....................................................................................................................................................... 22
BATV Board Schematic Diagram (10 of 12)..................................................................................................................................................... 23
BATV Board Schematic Diagram (11 of 12) ..................................................................................................................................................... 24
BATV Board Schematic Diagram (12 of 12)..................................................................................................................................................... 25
G4B Board Schematic Diagram (KDL-40EX729 Only) (Page 1 of 2) .............................................................................................................. 28
G4B Board Schematic Diagram (KDL-40EX729 Only) (Page 2 of 2) .............................................................................................................. 29
G5 Board Schematic Diagram (KDL-46EX729 Only) (Page 1 of 2)................................................................................................................. 31
G5 Board Schematic Diagram (KDL-46EX729 Only) (Page 2 of 2)................................................................................................................. 32
G10 Board Schematic Diagram (KDL-32EX729 Only)..................................................................................................................................... 34
HEM2 Board Schematic Diagram ....................................................................................................................................................................36
HLR2 Board Schematic Diagram ..................................................................................................................................................................... 38
HMS3 Board Schematic Diagram ....................................................................................................................................................................40
LD Board Schematic Diagram.......................................................................................................................................................................... 42
RU Board Schematic Diagram ......................................................................................................................................................................... 44
SECTION 2: ELECTRICAL PARTS LIST........................................................................................................................................................................ 45
APPENDIX A: ENCRYPTION KEY COMPONENTS..................................................................................................................................................... A-1

3
KDL-32EX729/40EX729/46EX729
KDL-32EX729/40EX729/46EX729
SAFETY-RELATED COMPONENT WARNING
There are critical components used in LCD color TVs that are important for safety. These components are identied with shading and
!
mark on the schematic diagrams and the electrical parts list. It is essential that these critical parts be replaced only with the part number
specied in the electrical parts list to prevent electric shock, re, or other hazard.
NOTE: Do not modify the original design without obtaining written permission from the manufacturer or you will void the original parts and
labor guarantee.
USE CAUTION WHEN HANDLING THE LCD PANEL
When repairing the LCD panel, be sure you are grounded by using a wrist band.
When installing the LCD panel on a wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.
To avoid damaging the LCD panel:
Údo not press on the panel or frame edge to avoid the risk of electric shock.
Ú do not scratch or press on the panel with any sharp objects.
Ú do not leave the module in high temperatures or in areas of high humidity for an extended period of time.
Ú do not expose the LCD panel to direct sunlight.
Ú avoid contact with water. It may cause a short circuit within the module.
Ú disconnect the AC adapter when replacing the backlight (CCFL) or inverter circuit.
(High voltage occurs at the inverter circuit at 650Vrms.)
Ú always clean the LCD panel with a soft cloth material.
Ú use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.
Ú protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).
LEAKAGE CURRENT HOT CHECK CIRCUIT
• Avoid contact with water as it may a short circuit within the module.
• If the surface of panel becomes dirty, please wipe it off with a soft material. (Cleaning with a dirty or rough cloth may
damage the panel.)
• If you want to replace with the new backlight (CCFL) or inverter circuit, must disconnect the AC adapter because high
voltage appears at inverter circuit about 650Vrms.
• Handle with care wires or connectors of the inverter circuit. If the wires are pressed cause short and may burn or take
fire.
Leakage Current Hot Check Circuit
KLV-32U100M(UC) 5

4
KDL-32EX729/40EX729/46EX729
KDL-32EX729/40EX729/46EX729
Th
e c
i
rcu
i
t
b
oar
d
s use
d
i
n t
h
ese mo
d
e
l
s
h
ave
b
een processe
d
us
i
ng
Lead Free Solder. The boards are identified by the LF logo located
close to the board designation e.g. H1 etc [ see example ]. The
servicing of these boards requires special precautions to be taken as
outlined below.
example
It is strongly recommended to use Lead Free Solder material in order to guarantee optimal quality of new solder joints.
Lead Free Solder is available under the following part numbers :
Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade.
This requires soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics.
rebmuntraP retemaiD skrameR
91-500-046-7mm3.0gK52.0
02-500-046-7mm4.0gK05.0
12-500-046-7mm5.0gK05.0
22-500-046-7mm6.0gK52.0
32-500-046-7mm8.0gK00.1
42-500-046-7mm0.1gK00.1
52-500-046-7mm2.1gK00.1
62-500-046-7mm6.1gK00.1

5
KDL-32EX729/40EX729/46EX729
KDL-32EX729/40EX729/46EX729
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly soldered
connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are pinched or
touching high-wattage resistors.
3. Check that all control knobs, shields, covers, ground straps, and
mounting hardware have been replaced. Be absolutely certain that
you have replaced all the insulators.
4. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of
deterioration. Point them out to the customer and recommend their
replacement.
6. Check the line cords for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.
7. Check the antenna terminals, metal trim, metallized knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
Leakage Test
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.
1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instructions.
2. A battery-operated AC milliampmeter. The Data Precision 245
digital multimeter is suitable for this job.
3. Measuring the voltage drop across a resistor by means of a VOM
or battery-operated AC voltmeter. The limit indication is 0.75
V, so analog meters must have an accurate low voltage scale.
The Simpson’s 250 and Sanwa SH-63TRD are examples of
passive VOMs that are suitable. Nearly all battery-operated digital
multimeters that have a 2 VAC range are suitable (see Figure A).
How to Find a Good Earth Ground
The cover-plate retaining screw on most AC outlet boxes is at earth
ground. Verify the AC outlet box retaining screw ground by connecting
a 60-to 100-watt trouble-light (not a neon lamp) between the hot side
of the receptacle and the retaining screw. Try both slots, if necessary,
to locate the hot side on the line; the lamp should light at normal
brilliance if the screw is at ground potential (see Figure B).
To Exposed Metal
Parts on Set
0.15 µF
Earth Ground
AC
Voltmeter
(0.75V)
Trouble Light
AC Outlet Box
Figure A. Using an AC voltmeter to check AC leakage. Figure B. Checking for earth ground.

6
KDL-32EX729/40EX729/46EX729
KDL-32EX729/40EX729/46EX729
SECTION 1: DIAGRAMS
1-1. CIRCUIT BOARDS LOCATION
SWITCH
UNIT
HLR2HEM2 HMS3
NOTE: The RU Board is NOT mounted on the LCD Panel. It is enclosed in the
Top R Bracket and Bottom R Bracket and is mounted on the Rear Cover.
TCON
LD
G10A
BATV
RU
Figure 1-1. KDL-32EX729
NOTE: The RU Board is NOT mounted on the LCD Panel. It is enclosed in the
Top R Bracket and Bottom R Bracket and is mounted on the Rear Cover.
SWITCH
UNIT
HLR2
HEM2 HMS3
TCON
LD
G4B
BATV
RU
Figure 1-2. KDL-40EX729

7
KDL-32EX729/40EX729/46EX729
KDL-32EX729/40EX729/46EX729
Figure 1-3. KDL-46EX729
SWITCH
UNIT
HLR2
HEM2 HMS3
TCON
LD
G5D
BATV
NOTE: The RU Board is NOT mounted on the LCD Panel. It is enclosed in the
Top R Bracket and Bottom R Bracket and is mounted on the Rear Cover.
RU
1-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS INFORMATION
All capacitors are in µF unless otherwise noted. pF : µµF 50WV or
less are not indicated except for electrolytics and tantalums.
All electrolytics are in 50V unless otherwise specied.
All resistors are in ohms. kΩ=1000Ω, MΩ=1000kΩ
Indication of resistance, which does not have one for rating
electrical power, is as follows: Pitch : 5mm
Rating electrical power :
1/4 W
1/4 W in resistance, 1/10 W and 1/16 W in chip resistance.
: nonammable resistor
: fusible resistor
: internal component
: panel designation and adjustment for repair
: earth ground
: earth-chassis
All variable and adjustable resistors have characteristic curve B,
unless otherwise noted.
Readings are taken with a color-bar signal input.
Readings are taken with a 10MΩdigital multimeter.
Voltages are DC with respect to ground unless otherwise noted.
Voltage variations may be noted due to normal production tolerances.
All voltages are in V.
S : Measurement impossibility.
: B+line.
: B-line. (Actual measured value may be different).
: signal path. (RF)
Circled numbers are waveform references.
The components identied by shading and
!
symbol are critical for safety. Replace
only with part number specied.
The symbol indicates a fast operating fuse and is displayed on the component
side of the board. Replace only with fuse of the same rating as marked.
Les composants identies per un trame et une marque
!
sont critiques pour la
securite. Ne les remplacer que par une piece portant le numero specie.
Le symbole indique une fusible a action rapide. Doit etre remplace par une
fusible de meme yaleur, comme maque.
NOTE: The components identied by a red outline and a mark contain condential
information. Specic instructions must be adhered to whenever these components
are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.

8
KDL-32EX729/40EX729/46EX729
KDL-32EX729/40EX729/46EX729
G
D
S
B1 E1
C2
B2 C1E2
2
3
4
5
6
7
8
9
–
1
G
D
S
B2 E2C1
B1 C2
E1
B2 E2C1
B1 C2E1
B2 E2
C1
B1 C2E1
B1 E1
E2
C1(B2)C2
B1
E2
C1
C2
(B2)
E1
(B2)
E1
E2
B1
C2C1
B1
E1
C2
B2
C1
E2
G
SS
D
G
D
B1
E1
C2
B2
C1
E2
B1
E2
C2C1(B2)
E2
B1
C1
C2E1(B2)
C2
B1
C1
E2E1(B2)
C2
B1
C1
E2
B2
E1
C2
Ver.1.6
Transistor
(FET)
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Discrete semiconductor
(Chip semiconductors that are not actually used are included.)
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Source
Source
Anode Anode
(NC)
(NC)
Cathode
Anode
Cathode
Common
Cathode Cathode
Common
Cathode Cathode
Common
Common
Common
Common
Cathode
Anode
Base Emitter
Collector
Base Emitter
Collector
Drain
Gate
Gate
Drain
Device Printed symbol Terminal name Circuit
Terminal name of semiconductors in silk screen
printed circuit ( )
Anode
Anode
Anode Cathode
Anode Anode
Cathode
Transistor
(FET)
Transistor
(FET)
Emitter
Collector
Base
Transistor
Source
Gate
Drain
Cathode
Anode
Anode Cathode
Anode
Anode
*
18
11
17
16
15
14
13
12
10
21
20
19
23
22
REFERENCE INFORMATION
RESISTOR
: RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW NONFLAMMABLE WIREWOUND
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
: ADJUSTMENT RESISTOR
COIL
: LF-8L MICRO INDUCTOR
CAPACITOR
: TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE

9
KDL-32EX729/40EX729/46EX729
KDL-32EX729/40EX729/46EX729
1-3. BLOCK DIAGRAM
48M
32.76
8K
[PST3629]
GND
Push
P
A
N
E
L
[LM75B]
DDR3
–1333
2Gb
DDR3
–1333
2Gb
One–
NAND
Muxed
2Gb
[RTL8201E]
[TPS2553DBV]
[GL850G]
12M
[TPS2553DBV]
H/L
[D–510D]
[D–510D]
[NJU72040V]
41M
[LNBH23]
[MIC2005]
[SEKITO2]
[GAIA1a]
41M
[HORUS3]
27M
4M
[ASCOT2Sip]
[Sil9287B]
0
0
XReality
HDMI1
(ARC)
HDMI2
HDMI3
Aerial
Cable
Satellite
PCPC
COMP
CVBS
SPDIF
Main
SPEAKER
HP/Line
Out
Assist
SPEAKER
Analog Video
Digital Video/TS/TMDS
Analog AudioAnalog Signal
PWM
I2C
SPI
X_SYSTEM1_RST
AUDIO_MON
X_FAULT
Main Speaker_Out_LR
X_SYSTEM1_RST
Assist Speaker_Out
SPDIF
HP/Line Out LR
HP_/ Line Out Det
PC_5V, PC_DDC
PC_LR
PC_R,PC_G,PC_B,PC_H,PC_V
PC_CON_Det
Cr_Det
ASPECT1
COMP_Y, Pb, Pr
VideoB_Det
COMP2_LR
VideoA_Det
VIDEO_CV
VIDEO1_LR
CEC3
DDC4
HPD4
CEC4
DDC_5V_4
TMDS4
CEC2
DDC3
HPD3
DDC_5V_3
TMDS3
CEC1
TMDS2
DDC2
HPD2
DDC_5V_2
ARC
TMDS1
DDC1
HPD1
DDC_5V_1
EQ SW
3.3->1
I2CA
X_SYSTEM1_RST
TCON
Reset
Ether
PHY
X’tal
Temp
Sensor
Audio
Power AMP
HDMI4
Ether
KEY
LED
TMDS
DDC
CEC
Line Out_LR
Power_Control
MAIN_PWR
Power_KEY
KEY
Light_Sensor_Det
STBY_LED
POWER_LED
TL-JIG
UARTA(LOG)
Hotel
UARTC(Hotel/ECS)
BACKLIGHT_ON
DIMMER
BACKLIGHT_MON
SYSTEM2_PWR
Human Sensor
Human_Sensor_Det
X_AUDIO_MUTE1
PFC_PWR
OPAMP
AC_MON
I2CA
X’tal
DIMMER_DC
USB2
Current
Limit
USB1
USB
HUB
X’tal
Power
Tuner_LR
Current
Limit
USB3
Wifi
USB4
BD
AC_MON
PFC_MON POWER_KEY POWER_LED REC_LED X_SYSTEM1_RST
DIMMER
DC_MON KEY Light_Sensor_Det
UARTA (LOG)
PFC_PWR DEBUG_LED1 Human_Sensor_Det
LVDS
PEL3
UARTD
PANEL_SEL
5V
Aerial
Ext Demod
X’tal
LNA Ext Demod
IFAGC
DDC
I2CB
I2CB
Satellite Silicon
Tuner
X’tal
Silicon
Tuner
Zero-IF
IF1
X’tal
DiSEqC_Out
IFAGC
IF2
DiSEqC_In
27MHz
SW
COMP_Y
COMP_Pb
COMP_Pr
PC_G
PC_B
PC_R
PC_H
PC_V
PC_LR
VIDEO1_LR
COMP2_LR
Tuner_LR
VIDEO_CV
COMP_Y
S1.8V
LDO
3.3V
LDO
DDC
5V
STBY 3.3V
2.5V
LDO
TCON-ON
SYSTEM2_PWR
DDC
REG_12V
T-CON_VCC
REG12V
AUDIO_12V
REG_12V
BACKLIGHT_MON X_AUDIO_MUTE1 X_AUDIO_MUTE2 PANEL_PWR_Det
5V
UARTE
PC_CON_DET
Crystal
VIDEOA_DET VIDEOB_DET CR_DET
TIMER_LED
PIC_MUTE_LED
REC_LED
Temp Sensor
X_Hotel_PWR_CTRL
Current
Limit
5V
I2CA (EQSW, Temp Sensor, Hotel Clock)
I2CB (Ext Demod)
LOGO
DMD_RST
X_AUDIO_MON
STBY_LED TIMER_LED MAIN_PWR MAIN_SS_MON
DIMMER_DC
TS2
TS1
LNA
/ECS
Light Sensor
X_TCON_RST SA_MODE BINT TCON_RDY
IF1
Main Speaker_Out_LR
S1.2V
LDO
PEM_LOG
I2CA(Hotel_Clock)
DEBUG_LED2
DEBUG_LED3
DMD_CLK_ENABLE1
PANEL_PWR
Atreyu_SPDIF
BACKLIGHT_ON SYSTEM2_PWR SYSTEM1_PWR PIC_MUTE_LED
1.5V
3.3V
MODE_PEM
I2CC (Panel, RGB Sensor)
DMD_CLK_ENABLE2
HDMIEQ_INT
DMD_RST
DMD_CLK_ENABLE1
DMD_CLK_ENABLE2
X_SYSTEM1_RST
X_SYSTEM1_RST
Reset
SIRCS
UARTB (RF-Remote)
UARTC (IR Blaster/ECS)
MS
TS
Panelless
AC_MON
Reset
H Con.
Audio
Power AMP
Assist Speaker_Out_LR
Sircs
SIRCS
AUDIO_12V
REG12V
SYSTEM2_PWR
DDC1.2V
SYSTEM1_PWR
DDC
REG_12V
3.4V
LDO
SYSTEM2_PWR
X_RF_RST NMI X_HOTEL_PWR_CTRL DATA1
HP_DET
X_WIFI_RST
SPDIF_SEL
BACKLIGHT
DIMMER2
LVDS_ODD
LVDS_EVEN
SA_MODE/LUT_SEL0
PEM_WDT/XBUSY/BINT
I2C_C
MODE_PEM/TCON_RDY
LUT_SEL1/X_TCON_RST/LR_FLAG
T_PANEL_SEL
Digital Audio UART
REG_12V

KDL-32EX729/40EX729/46EX729 10
1-4. CONNECTOR DIAGRAMS
JAM 3pin Straight To BAT
CN/1lrtC_lenaP151CN/1lrtC_lenaPDNGBSUDB16041DNG
SUBVDB21832SNES_NOITOMrosneSnoitoM Panel_Ctrl2 / TCON_RD
Y
YDR_NOCT/2lrtC_lenaP052
P_BSUDB33933V5+GER2/V/X-a3 Panel_Ctrl3 / T_TD_HSY
N
CNYSH_DT_T/3lrtC_lenaP943 -OUT1 1
12/1-P -821- 130- 11 4 4 BD GND Panel_Ctrl4 / X_FRC_RS
T
CN844 -OUT2 2
GALF_RL/5lrtC_lenaPN_BSUDB52
(F
o
GALF_RL/5lrtC_lenaP745
(For Asura)
NC 3
EDOM_AS/6lrtC_lenaP646EDOM_AS/6lrtC_lenaPFIDPSBSUDB65 -OUT3 4
(2NOTES/7lrtC_lenaPNORDB/TCEJEDB7
N
CN547 -OUT4 5
CN448ES_LENAP/8lrtC_lenaP1OIPGRDB/1CSIDDB8 CN1000
GND 1 37 TNIB/9lrtC_lenaP349TNIB/9lrtC_lenaPTATS_LD_U/2CSIDDB9 JST SM05B-PASS-TBT
532TNI_REWOPeludomWS SV_DT_T/01lrtC_lenaP1YEKRDB/xTTRAUDB01
Y
CNYSV_DT_T/01lrtC_lenaP2401 CN1003
11lrtC_lenaPADS_ECIVEDRLH/2YEKRDB/xRTRAUDB11CN6331YEKLLA ADS/11lrtC_lenaP1411ADS/ 0-844-179-01
1-822-693-11 LCS/21lrtC_lenaP0421LCS/21lrtC_lenaPV3.3+_YBTSRDB216 KYOCERA ELCO +OUT1 1
nip65CFF11NCDNG9331DNGXT_TRAUFR/xT_TRAURDB314 04-6802-656-000-883 + +OUT2 2
P_4NEVE_LENAP8341P_4NEVE_LENAPXR_TRAU_FR/xR_TRAURDB415 1-822-905-11 +OUT3 3
NGN_4NEVE_LENAP7351N_4NEVE_LENAPLESFR/NOCIM_YBTS_PUEKAWRDB511 D 11 BL_TYPE3 +OUT4 4
1MWP-1P_3NEVE_LENAP6361P_3NEVE_LENAPTSR_FR/0OIPGRDB612 22 BL_TYPE2 CN1001
DNGRDB713331V3.3+YBTS 2MWP-1N_3NEVE_LENAP5371N_3NEVE_LENAP 33 BL_TYPE1 JST SM04B-PASS-TBT
DNGIFIW815132DN
GrosneS_TPO/rosneSBGR/RI/DEL 3MWP-1DNG4381DNG 44 REF
P_KLC_NEVE_LENAP3391P_KLC_NEVE_LENAPP_BSUIFIW913923CER_DEL3-b2 1-PWM4 55 FAIL
DNGIFIW021724YBTS_DELV-a3 5MWP-1N_KLC_NEVE_LENAP2302N_KLC_NEVE_LENAP 66 LED_ON
6MWP-1DNG1312DNGN_BSUIFIW124525REMIT_DEL2-a3 77 LD_STDBY
DNGIFIW22CN826REWOP_DEL1-P 7MWP-1P_2NEVE_LENAP0322P_2NEVE_LENAP 88 NC
SUBVIFIW322037ETUM_CIP_DEL2-P 8MWP-1N_2NEVE_LENAP9232N_2NEVE_LENAP 99 12V
1NEVE_LENAP8242P1NEVE_LENAPLCS_
ECIVEDRLH42CNCN8DNG/ADS_ECIVED DNGP 0101 NC
_LENAP7252N_1NEVE_LENAPREMIT_NO_DELRLH525CN9RDB_DEL/LCS_ECIVED CPM_DELVN_1NEVE 1111 GND
1MWP-2P_0NEVE_LENAP6262P_0NEVE_LENAPSCRISRLH62212301SNES_TPO 2121 NC
2MWP-2N_0NEVE_LENAP5272N_0NEVE_LENAPYBTS_DELRLH7244311V3.3+DV 13
56pin FFC
13 NC
3MWP-2DNG4282DNGREWOP_DELRLH8266221SCRIS 4141 TCON_VCC
1-821-139-114MWP-2P_4DDO_LENAP3292P_4DDO_LENAPCER_DELRLH923 5151 NC
5MWP-2N_4DDO_LENAP2203N_4DDO_LENAPETUM_CIP_DELRLH037 6161 NC
2 31 HLR GND 6MWP-2P_3DDO_LENAP1213P_3DDO_LENAP 7171 GND
7MWP-2N_3DDO_LENAP0223N_3DDO_LENAPSNES_TPORLH2301 8181 4-PWM8
8MWP-2DNG9133DNGV3.3_YBTSRLH331 9191 4-PWM7
V3.3RLH4311511CNYS DNGP_KLC_DDO_LENAP8143P_KLC_DDO_
LENAP 0202 4-PWM6
PYT_DLN_KLC_DDO_LENAP7153N_KLC_DDO_LENAPYEK_REWOPWS532612TESER E 1212 4-PWM5
YEK_WS633713DNGeludomCR
FR 1MWP-3DNG6163DNG 2222 4-PWM4
DNGWS731314XR1-P/2-a3/1-a3/3-b2/2-b2/1-b2 2MWP-3P_2DDO_LENAP5173P_2DDO_LENAP 3232 4-PWM3
only Japan3MWP-3N_2DDO_LENAP4183N_2DDO_LENAPOGOLYNOS/TEDSMH832415XT 4242 4-PWM2
4MWP-3P1DDO_LENAP3193P1DDO_LENAPV5OGOL/V5SMH933216DDV 5252 4-PWM1
JAM SYT10-06-WL-ET 5MWP-3N_1DDO_LENAP2104N_1DDO_LENAPDNGOGOL/DNGSMH041 6262 GND
1-821-146-11 CN9006 6MWP-3P_0DDO_LENAP1114P_0DDO_LENAP 7272 GND
1- 81 8- 692 - 217MWP-3N_0DDO_LENAP0124N_0DDO_LENAP 8282 3-PWM8
8MWP-3DNG934DNGP04YLBNESSAREDAEH 9292 3-PWM7
DNGDNG844DNG 0303 3-PWM6
DNGDNG75431lrtC_lenaP 1313 3-PWM5
1MWP-4CN664DNG 2323 3-PWM4
2MWP-4WS_CCV_LENAP574WS_CCV_LENAP 3333 3-PWM3
3MWP-4WS_CCV_LENAP484WS_CCV_LENAP 4343 3-PWM2
4MWP-4WS_CCV_LENAP394WS_CCV_LENAPV3.3YBTS11 5353 3-PWM1
5MWP-4WS_CCV_LENAP205WS_CCV_LENAPDXR_232SR22021DNG 6
363 LD_TYPE
6MWP-4WS_CCV_LENAP115WS_CCV_LENAPDX
T_232SR33322CCVIFIW 7373 GND
TUO_SCRIS44913P_BSUI
FIW 4-PWM7 8383 2-PWM8
NI_SCRIS55124M_BSUIFIW 1-842- 547-11 4-PWM8 9393 2-PWM7
DNG66815DNGIFIW GND 0404 2-PWM6
SM05B-GHS-TB CN9005 NC 1414 2-PWM5
1-819-334-11 6pin connector 182113311 NC 2424 2-PWM4
TCON_VCC 3434 2-PWM3
NC 4444 2-PWM2
NC 5454 2-PWM1
DNG 6464 VLED_MPC
NC 7474 GND
12V 8484 1-PWM8
NC 9494 1-PWM7
LD_STDBY 0505 1-PWM6
LED_ON 1515 1-PWM5
FAIL 2525 1-PWM4
FER 3535 1-PWM3
1EPYT_LB 4545 1-PWM2
2EPYT_LB 5555 1-PWM1
3EPYT_LB 6565 GND
SPEAKERL+(Fasten # 187) 1 1
FrontL- (Fasten #110) 2 2
Lch1 1 L+
22 L-
23 R-
14 R+
SPEAKERR- (Fasten # 110) 2 rotcen
noCrekaepSgnisuoH3
F
ront R+ (Fasten # 187) 1 42.0ch:4pin MOLE X 502439-0400 2. 0ch:CN4601 4pi n 1-821-614-11 MOLEX 502494-0470
R
c
h
STBY3.3V 1 1
RS232_RXD 2 2
RS232_TXD 3 3
SIRCS_IN 4 4
SIRCS_OUT 5 5
GND 6 6
CN101
182018311
PANEL FFC
SLCD : 96pin
SHARP : 80pin
AUO : ??pin
CMI :
32"~37" 60 pin
40"~55" 80pin
JAE
CN2001
FFCDirect inConnector
SW
module
HMS3board
HLR board HLR board HLR board HLR board HLR board HLR board HLR board HLR2 board
BAT- Vboard
BV - H Harness
H-B
G-B Harness
G-B
T- con Board
51pin FFC
LVDS-FFC
B-PEL3
Wifi module
(US, EU deri46”& 32”
Ol)
BLK Board
LD - TC -
Harness
TCON - LD
R3or RU board
BLK Board
G-B Harness
G-B
RFRC module RFRC module RFRC module RFRC module
FIGURE 4-1. KDL-32EX729/46EX729 (PAGE 1 OF 2)

KDL-32EX729/40EX729/46EX729 11
NC 1 12V
NC 2 12V
NC 3 GND
NC 4 GND
)NS()FL(TBT-SSAP-B40MS
1-819-460-11
V2111
V2122
DNG33
DNG44
LRTC_SLG55
1DNG
2LRTC_SLG66
2XT_DTRAU
LIAF_IME77
3XR_DTRAU
CN88
4TESER
BT-SHG-B80MSTSJ
5V3.3+_YBTS
1 1 VLED_VCC
1-819-468-11
6MVT_EDOM
2 2 VLED_VCC
7XR_ATRAU
NC 3 NC
NC (MD2) 8
NC 4 NC
UARTC_RX 9
7 5 VLED_GND
UARTC_TX 10
8 6 VLED_GND
GND 11
9 7 VLED_GND
UARTA_TX 12
10 8 VLED_GND
ECS_MATRIX 13
11 9 LD_ERR
41V3.3+_YBTS
V3.3+_YBTS0101
NC 10 NC
12
51MEP_EDOM
V5.21+OIDUA9
13 11 GL_CTRL
61XR_GOL_MEP
V5.21+OIDUA841
14 12 LED_ON
11
71XT_GOL_MEP
DNG_V5.21+OIDUA7
CN1002
81DNG
DNG_V5.21+OIDUA631
0-844-177-01
15
4009NC
DNG_V5.21+GER5
JST
15-766-477
-1
DNG_V5.21+GER471
SM12B-PBVSS-TB(LF)(SN)
16
P81CPF/CFF,rotcennoC1XE-LT
V5.21+GER3
18 2 REG+12.5V
24 1 T-CON_VCC
CN6001
1-842-569-11
HEADER ASSEMBLY FOR PWB 10P
7 9 AC_OFF_DET
18 POWERON
6 7 BL_ERR
NC 6NC
NC 5 NC
NC 4NC
8 3 TCON_ON
32 PFC_PWR
91 GND
CN6002
11-955-248-1
11V21
22V21rettimED3
33DNGV-a3
Except EX720 Model 44DNG
GLS_CTR 5 5
GLS_CTRL2 6 6
EMI_FAIL 7 7
88CN
1-821-135-11
CN6704 (32" G10A)
CN6151(46"G5D)SJM20-28WLB
ToB board (100106)
T-CON_Vcc12V 28 NC
GND 27 NC
T-CON_VCC12V 26 NC
GND 25 NC
T-CON_VCC_12V To B 24 1
GND 23 NC
BDR_ASU_12V 22 NC
GND 21 NC
BDR_ASU_12V 20 NC
GND 19 NC
REG12V 18 2
GND 17 4
REG12V 16 3
GND 15 5
AU_12V 14 8
AU_GND 13 6
AU_12V 12 9
AU_GND 11 7
STBY3.3V 10 10
GND 9 1
T-CON_ON 8 3
AC_OFF_DET 7 9
BL_ERR 6 7
NC 5 NC
NC 4 NC
PFC_ON 3 2
NC 2 NC
POWER_ON 1 8
VLED_VCC 1 1
VLED_VCC 2 2
VLED_VCC 3 NC
VLED_VCC 4 NC
NC 5 NC
6 NC
VLED_GND
VLED_GND
7 5
VLED_GND 8 6
VLED_GND 9 7
VLED_GND 10 8
LD_ERR 11 9
NC 12 NC
GL_CTRL 13 11
LED_ON 14 12
1-822-339-11 CN6705 (32" G10A)
JST XA 14P
CN6801(46" G5D)
AC IN
AC-N 1 1
AC-L 2 2
CN6001(46" G5D / 32"G10A)
SFP79-02WLB JAM
1-822-908-11
B board
T- con
Option
BAT-V board
T-conBoard
B board
TL- EX1JIG board
HEM2 Board
BLK
AC pigtail
BLK Board BLK Board
B board
T- con
Option
B board
BLK
AC pigtail
FIGURE 4-2. KDL-32EX729/46EX729 (PAGE 2 OF 2)

KDL-32EX729/40EX729/46EX729 12
JAM3pin St raight To BAT
CN/1lrtC_lenaP151CN/1lrtC_lenaPDNGBSUDB16041DNG
aP052YDR_NOCT/2lrtC_lenaPSUBVDB21832SNES_NOITOMrosneSnoitoM nel_Ctrl2 / TCON_RDY
rtC_lenaP943CNYSH_DT_T/3lrtC_lenaPP_BSUDB33933V5+GER2/V/X-a3 l3 / T_TD_HSYNC -OUT1 1
12/1-P -821- 130- 11 CN844TSR_CRF_X/4lrtC_lenaPDNGDB44 -OUT2 2
GALF_RL/5lrtC_lenaPN_BSUDB52
(For Asura)
GALF_RL/5lrtC_lenaP745
(For Asura)
NC 3
EDOM_AS/6lrtC_lenaP646EDOM_AS/6lrtC_lenaPFIDPSBSUDB65 -OUT3 4
CN547)CN(2NOTES/7lrtC_lenaPNORDB/TCEJEDB7 -OUT4 5
CN448LES_LENAP/8lrtC_lenaP1OIPGRDB/1CSIDDB8 CN1000
GND 1 37 TNIB/9lrtC_lenaP349TNIB/9lrtC_lenaPTATS_LD_U/2CSIDDB9 JST SM05B-PASS-TBT
532TNI_REWOPeludomWS 01lrtC_lenaP2401CNYSV_DT_T/01lrtC_lenaP1YEK
RDB/xTTRAUDB01 / T_TD_VSYNC CN1003
11lrtC_lenaPADS_ECIVEDRLH/2YEKRDB/xRTRAUDB11CN6331YEKLLA ADS/11lrtC_lenaP1411ADS/ 0-844-179-01
1- 822-693- 11 LCS/21lrtC_lenaP0421LCS/21lrtC_lenaPV3.3+_YBTSRDB216 KYOCERA ELCO +OUT1 1
nip65CFF11NCDNG9331DNGXT_TRAUFR/xT_TRAURDB314 04-6802-656-000-883 + +OUT2 2
P_4NEVE_LENAP8341P_4NEVE_LENAPXR_TRAU_FR/xR_TRAURDB415 1-822-905-11 +OUT3 3
NGN_4NEVE_LENAP7351N_4NEVE_LENAPLESFR/NOCIM_YBTS_PUEKAWRDB511 D 11 BL_TYPE3 +OUT4 4
1MWP-1P_3NEVE_LENAP6361P_3NEVE_LENAPTSR_FR/0OIPGRDB612 22 BL_TYPE2 CN1001
2MWP-1N_3NEVE_LENAP5371N_3NEVE_LENAPDNGRDB713331V3.3+YBTS 33 BL_TYPE1 JST SM04B-PASS-TBT
3MWP-1DNG4381DNGDN
GIFIW815132DNGrosneS_TPO/rosneSBGR/RI/DEL 44 REF
P_KLC_NEVE_LENAP3391P_KLC_NEVE_LENAPP_BSUIFIW913923CER_DEL3-b2 1-PWM4 55 FAIL
1N_KLC_NEVE_LENAP2302N_KLC_NEVE_LENAPDNGIFIW021724YBTS_DELV-a3 -PWM5 66 LED_ON
6MWP-1DNG1312DNGN_BSUIFIW124525REMIT_DEL2-a3 77 LD_STDBY
7MWP-1P_2NEVE_LENAP0322P_2NEVE_LENAPDNGIFIW22CN826REWOP_DEL1-P 88 NC
P-1N_2NEVE_LENAP9232N_2NEVE_LENAPSUBVIFIW322037ETUM_CIP_DEL2-P WM8 99 12V
1NEVE_LENAP8242P1NEVE_LENAPLCS_ECIVEDR
LH42CNCN8DNG/ADS_ECIVED DNGP 0101 NC
_LENAP7252N_1NEVE_LENAPREMIT_NO_DELRLH525CN9RDB_DEL/LCS_ECIVED CPM_DELVN_1NEVE 1111 GND
1MWP-2P_0NEVE_LENAP6262P_0NEVE_LENAPSCRISRLH62212301SNES_TPO 2121 NC
2MWP-2N_0NEVE_LENAP5272N_0NEVE_LENAPYBTS_DELRLH7244311V3.3+DV 13
56
p
in FFC
13 NC
3MWP-2DNG4282DNGREWOP_DELRLH8266221SCRIS 4141 TCON_VCC
1-821- 139- 11 4MWP-2P_4DDO_LENAP3292P_4DDO_LENAPCER_DELRLH923 5151 NC
5MWP-2N_4DDO_LENAP2203N_4DDO_LENAPETUM_CIP_DELRLH037 6161 NC
6MWP-2P_3DDO_LENAP1213P_3DDO_LENAPDNGRLH132 7171 GND
7MWP-2N_3DDO_LENAP0223N_3DDO_LENAPSNES_TPORLH2301 8181 4-PWM8
8MWP-2DNG9133DNGV3.3_YBTSRLH331 9191 4-PWM7
DNGP_KLC_DDO_LENAP8143P_KLC_DDO_LENAPV3.3RLH4311511CNYS 0202 4-PWM6
PYT_DLN_KLC_DDO_LENAP7153N_KLC_DDO_LENAPYEK_REWOPWS532612TESER E 1212 4-PWM5
1MWP-3DNG6163DNGYE
K_WS633713DNGeludomCRFR 2222 4-PWM4
LENAP5173P_2DDO_LENAPDNGWS731314XR1-P/2-a3/1-a3/3-b2/2-b2/1-b2 2MWP-3P_2DDO_ 3232 4-PWM3
only Japan 3MWP-3N_2DDO_LENAP4183N_2DDO_LENAPOGOLYNOS/TEDSMH832415XT 4242 4-PWM2
4MWP-3P1DDO_LENAP3193P1DDO_LENAPV5OGOL/V5SMH933216DDV 5252 4-PWM1
JAM SYT10-06-WL-ET 5MWP-3N_1DDO_LENAP2104N_1DDO_LENAPDNGOGOL/DNGSMH041 6262 GND
1-821-146-11 6MWP-3P_0DDO_LENAP1114P_0DDO_LENAP6009NC 7272 GND
7MWP-3N_0DDO_LENAP0124N_0DDO_LENAP 8282 3-PWM8
8MWP-3DNG934DNGP04YLBNESSAREDAEH 9292 3-PWM7
DNGDNG844DNG 0303 3-PWM6
DNGDNG75431lrtC_lenaP 1313 3-PWM5
1MWP-4CN664DNG 2323 3-PWM4
2MWP-4WS_CCV_LENAP
574WS_CCV_LENAPV3.3YBTS11 3333 3-PWM3
3MWP-4WS_CCV_LENAP484WS_CCV_LENAPDXR_232SR22021DNG 4343 3-PWM2
4MWP-4WS_CCV_LENAP394WS_CCV_LENAPDXT_232SR33322CCVIFIW 5353 3-PWM1
5MWP-4WS_CCV_LENAP205WS_CCV_LENAPTUO_SCRIS44913P_BSUIFIW 6363 LD_TYPE
6MWP-4WS_CCV_LENAP115WS_CCV_LENAPNI_SCRIS55124M_BSUIFIW 7373 GND
DNG66815DNGIFIW 4-PWM7 8383 2-PWM8
SM05B-GHS-TB 15009NC - 842- 547- 11 4-PWM8 9393 2-PWM7
1-819-334-11 6pin connector 182113311 GND 0404 2-PWM6
NC 1414 2-PWM5
NC 2424 2-PWM4
TCON_VCC 3434 2-PWM3
NC 4444 2-PWM2
NC 5454 2-PWM1
1 1 L+ DNG 6464 VLED_MPC
22 L- NC 7474 GND
23 R- V21 8484 1-PWM8
14 R+ NC 9494 1-PWM7
SPEAKERL+ (Fasten # 187) rotcennoCrekaepSgnisuoH11 6MWP-10505YBDTS_DL
Front L- (Fasten #110) 2 2 2.0ch: 4pin MOLEX 502439-040 2.
0ch: CN4601 4pin 1-821-614-11 MOLE
X 502494-0470 5MWP-11515NO_DEL
Lch 4MWP-12525LIAF
FER 3535 1-PWM3
1EPYT_LB 4545 1-PWM2
2EPYT_LB 5555 1-PWM1
SPEAKER
R- (Fasten # 110) 2 3 3EPYT_LB 6565 GND
Front R+(Fasten # 187) 1 4
Rch
STBY3.3V 1 1
RS232_RXD 2 2
RS232_TXD 3 3
SIRCS_IN 4 4
SIRCS_OUT 5 5
GND 6 6
CN101
182018311
CN2001
FFCDirect in Connector
PANEL FFC
SLCD : 96pin
SHARP : 80pin
AUO : ??pin
CMI :
32"~37" 60 pin
40"~55" 80pin
JAE
BLK Board
G-B Harness
LD - TC - Harness
TCON - LD
SW
module
HMS3 board
HLR boardHLR boardHLR boardHLR boardHLR boardHLR boardHLR boardHLR2 board
BAT- Vboard
BV - H Harness
H-B
T- con Board(PEL3)
51pin FFC
LVDS-FFC
B-PEL3
W
ifimodule
(US & EU deri40” Only)
R3or RUboard
BLK Board
G-B Harness
RFRC moduleRFRC moduleRFRC moduleRFRC module
FIGURE 4-3. KDL-40EX729 (PAGE 1 OF 2)

KDL-32EX729/40EX729/46EX729 13
NC 1 12V
NC 2 12V
NC 3 GND
DNG4CN
SM04B-PASS-TBT(LF)(SN)
11-064-918-1
V2111
V2122
DNG33
DNG44
LRTC_SLG55
2LRTC_SLG66
1DNG
LIAF_IME77
2XT_DTRAUV3.3+_YBTS0101
C
N88
3XR_DTRAUV5.21+OIDUA921
BT-SHG-B80MSTSJ
4TESERV5.21+OIDUA841
11
1-819-468-11
5V3.3+_YBTSDNG_V5.21+OIDUA7
6MVT_EDOMDN
G_V5.21+OIDUA631
1 1
VLED_VCC
15 7XR_ATRAUDNG_V5.21+GER5
2 2
VLED_VCC
8)2DM(CNDNG_V5.21+GER471
NC 3
NC
16 9XR_CTRAUV5.21+GER3
NC 4
NC
01XT_CTRAUV5.21+GER281
7 5
VLED_GND
24 11DNGCCV_NOC-T1
8 6
VLED_GND
21XT_ATRAU1006NC
9 7
VLED_GND
31XIRTAM_SCE11-965-248-1
10 8
VLED_GND
HEADER ASSEMBLY FOR PWB 10P 41V3.3+_YBTS
11 9
LD_ERR
51MEP_EDOM
NC 10
NC
61XR_GOL_MEP
13 11
GL_CTRL
71XT_GOL_MEPTED_FFO_CA97
14 12
LED_ON
181DNGNOREWOP8
CN1002
4009NCRRE_LB76
0-844-177-01
NC 6NC1-774-667-51
JST
NC 5 NCTL-EX1 Connector,FFC/FPC 18P
SM12B-PBVSS-TB(LF)(SN)
11V21
NC 4NC
NO_NOCT38
22V21rettimED3
33DNGV-a3
32 PFC_PWR
Except EX720 Model GND 4 4
91 GND
2006NC
55LRTC_SLG
11-955-248-1
662LRTC_SLG
EMI_FAIL 7 7
88CN
1-821-135-11
CN6704 (37" G10A)
To B board (100106)
T-CON_Vcc12V
28 NC
GND 27 NC
T-CON_VCC12V
26 NC
GND 25 NC
T-CON_VCC_12V To B
24 1
GND 23 NC
BDR_ASU_12V
22 NC
GND 21 NC
BDR_ASU_12V
20 NC
GND 19 NC
REG12V 18 2
GND 17 4
REG12V 16 3
GND
15 5
AU_12V 14 8
AU_GND 13 6
AU_12V 12 9
AU_GND 11 7
STBY3.3V 10 10
GND 9 1
T-CON_ON 8 3
AC_OFF_DET 7 9
BL_ERR 6 7
NC 5 NC
NC 4 NC
PFC_ON 3 2
NC 2 NC
POWER_ON 1 8
VLED_VCC
1 1
VLED_VCC
2 2
VLED_VCC
3 NC
VLED_VCC
4 NC
NC
5 NC
6 NC
VLED_GND
VLED_GND
7 5
VLED_GND
8 6
VLED_GND
9 7
VLED_GND
10 8
LD_ERR
11 9
NC
12 NC
GL_CTRL
13 11
LED_ON
14 12
CN6801 (40" G4B) CN6705 (32" G10A)
1-822-339-11
JST XA 14P
AC_IN
AC-N 1 1
AC-L 2 2
CN6001
SFP79-02WLB JAM
1-822-908-11
CN6151 (40" G4B) SJM20-28WLB
B board
T- con
Option
BLKboard
BAT- V board
T- con Board(PEL3)
HEM2 Board
T- con
B board
TL- EX1JIG board
AC pigtail
BLK Board
BLK Board
BLKboard
AC pigtail
FIGURE 4-4. KDL-40EX729 (PAGE 2 OF 2)

KDL-32EX729/40EX729/46EX729 14
KDL-32EX729/40EX729/46EX729
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 |
27 | 28 |
A
—
B
—
C
—
D
—
E
—
F
—
G
—
H
—
I
—
J
—
K
—
L
—
M
—
N
—
O
—
P
—
1-5. SCHEMATICS AND SUPPORTING INFORMATION
BATV BOARD SCHEMATIC DIAGRAM (1 OF 12)
KEY_BTK_RST/X_BD_EJT_DET/BDR_ON/UPD_PWR_SEQ2
CL9004
POWER_KEY
I2CC_SCL
DEBUG_LED1
1/16W
CHIP
5%
1M
R9203
KEY_BTK_DET/RF_WOL_X
PIC_MUTE_LED
X_SHORT_DET
SYSTEM2_PWR
M_SCI_RST
STBY_+3.3V
BACKLIGHT_ON
POL_SW
TIMER_LED
POWER_LED
SYSTEM1_PWR
X_AUDIO_MUTE1
M_CI_AD[0-14]
I2CC_SDA
GND_D
X_DISC2_DET/U_DL_STAT/SPLASH_CTRL
LNB_CONT
X_RF_RST/BDR_GPIO0
I2CB_SCL
M_CI_D[0-7]
DEBUG_LED2
NAND_WP
DMD_CLK_ENABLE2
1005
50V
8p
CH
C9038
X_AUDIO_MON
DMD_CLK_ENABLE1
DEBUG_LED3
I2CB_SDA
MAIN_PWR
EWS_DETECT
DIMMER_DC
HDMI_CECA
R9425100
SIRCS
AC_MON
M_HDMI_ARC
STBY_LED
DIMMER1
GND_D
GND_D
+3.3V_MAIN
X_SYSTEM1_RST
X_M_SCI_DET
1005
16V
0.1
C9032
X7R
X_MAIN_RST
X_DISC1_DET/WAKEUP_ITCON/UPD_RESETSV_X
STBY_+1.2V
REC_LED
I2CA_SDA
DMD_RST
M_SCI_DIO
I2CA_SCL
CL9102
CL9103
CL9106
CL9104
CL9105
CL9101
CL9059
CL9064
CL9035
CL9036
CL9037
CL9043
CL9067
CL9042
CL9057
CL9055
CL9056
CL9051
CL9060
CL9038
CL9046
CL9034
CL9047
CL9054
CL9050
CL9049
CL9058
CL9065
CL9041
CL9066
CL9039
CL9192
CL9040
CL9063
CL9053
CL9048
CL9062
CL9052
CL9045
CL9061
CL9044
CL9194
M_CI_IOWR
M_CI_CE1
M_CI_IORD
CL9193
M_CI_WE
M_CI_OVCD
M_CI_RESET
M_CI_WAIT
M_CI_CD
M_CI_OE
CL9191
1608
C9052
X7R
10
CHIP
820
R9207
1/16W
5%
1005
50V
CH
C9033
8p
CL9077
1005
6.3V
1
X6S
C9022
MM3404A12URE
IC9007
12
34
STBY_+1.2VSTBY_+3.3V
1005
6.3V
1
X6S
C9018
GND_D
VIDEOA_DET
RN-CP
22k
R9028
1/16W
1%
GND_D
PANEL_VCC_SW
RN-CP
3.3k
R9029
1/16W
1%
UARTC_RX
GND_D
XX
R9192
XX
C9025
REG+12V
1005
1/16W
CHIP
5%
R9134
22k
GND_D
STBY_+3.3V
UARTB_RX
GND_D
ASPECT1
T_PANEL_SEL
UARTA_RX
1/16W
RN-CP
1%
22k
R9163
HUMAN_SENSOR_DET
R9164
3.3k
1/16W
1%
BACKLIGHT_MON
OPT_SENS_DET
KEY
JL9299
GND_D
+3.3V_MAIN
JL9298
X_HOTEL_PWR_CTRL/X_IR_BLASTER/WAKEUP_MIMAS
VIDEOB_DET
HP_DET/BIND
1/16W
CHIP
5%
10k
R9064
JL9003
JL9000
JL9002
DL_DO
JL9001
SPDIF_SEL/SDV_DET
X_AUDIO_MUTE2
UARTA_TX
GND_D
UARTB_TX
UARTC_TX
STBY_+3.3V
2.2k
R9299
2.2kR9217 2.2kR9219 2.2kR9218
2.2kR9298
2.2kR9220
+3.3V_MAIN
1005
1/16W
CHIP
5%
R9270100
I2CA_SCL
I2CA_SDA
M_MS_INS
+3.3V_MAIN
M_MS_BS
DRA5114E0L
Q9008
16V
C9037
0.1
M_MS_PON
M_MS_CLK
GND_D
1
2
3
4
5
6
7
8
9
10
BLK 181880851
10P
CN9003
GND
MS_PON
MS_INS
MS_BS
GND
MS_DATA
GND
MS_SCK
VCC
VCC
GND_D
M_MS_DATA0
JL9017
JL9006 JL9012
GND_D
JL9016
JL9011
JL9009
JL9008
JL9015
JL9010
JL9018
JL9014
JL9005
JL9013JL9007
CL9226
UPD_PWR_SEQ3
SV_RSTWARN
UPD_PWRGD
47kR9173
R9177 47k R9169 47k
CL9230
CL9231
CL9233
*RB9004
10
2 1
4 3
6 5
8 7
*RB9024
10
2 1
4 3
6 5
8 7
*RB9023 10
2 1
4 3
6 5
8 7
10RB9025
2 1
4 3
6 5
8 7
10
*RB9027
2 1
4 3
6 5
8 7
10
*RB9028
2 1
4 3
6 5
8 7
DAUO_DAT0_HSS
DAUO_LRCK_CLK
DAUO_MCK_CLK
GND_D
DAUO_BCK_CLK
PFC_PWR
GND_D
1/16W
CHIP
10M
R9031
1kR9001
CL9228
BDR_KEY2
JL9234
JL9235
JL9113
JL9114
JL9115
JL9116
JL9117
LOGO
GND_D
BD_USB_DP_P
+3.3V_MAIN
BD_USB_DM_N
FB9001
0uH
BD_VBUS
*R9122 0
LOGO
JL9020
CL9002
POWER_KEY
033:5G;033:11J
STBY_+3.3V
KEY_BTK_RST/X_BD_EJT_DET/BDR_ON/UPD_PWR_SEQ2
GND_D
C90191
C90211
CL9003
GND_D
KEY
033:11H
JL9019
+5.0V_MAIN
STBY_+3.3V
X_DISC2_DET/U_DL_STAT/SPLASH_CTRL
UARTD_TX/FE_TX_PEM_RX
X_DISC1_DET/WAKEUP_ITCON/UPD_RESETSV_X
GND_D
GND_D
WIFI_VBUS
WIFI_USB_DM_N
WIFI_SH_GND_D
WIFI_USB_DP_P
X_HOTEL_PWR_CTRL/X_IR_BLASTER/WAKEUP_MIMAS
*R9007 0
I2CC_SDA
I2CC_SCL
*R9004 0
PIC_MUTE_LED
REC_LED
TIMER_LED
POWER_LED
STBY_LED
CL9205
CL9206
CL9207
CL9208
CL9005
M_CI_IREQ
M_CI_PWREN
DL_CLK
DL_CS
M_FIF_ADQ1
M_RDQ0
1005
50V
12p
CH
C9054
1005
50V
CH
C9055
10p
R9413100
R9416100
R9421100
R9433100
R9434100
R9435100
R9436100
R943747
R943847
R9194 XX
*R9474 XX
LINEOUT_L
3216
CHIP
*R9477 0
R9464 100
R9463 100
PANEL_PWR
100
*RB9030
2 1
4 3
6 5
8 7
100
*RB9029
2 1
4 3
6 5
8 7
PANEL_PWR_DET
PANEL_PWR_DET
Compatible
IC9008
MM3285FNRE
SCL
1
GND
2
A1
3
VDD
4
A0
5
SDA
6
M_SCI_CLKDIV
M_SCI_TDA_CLK
M_SCI_CMDVCC
12
12
12
12
12
PC_RGB_EN
*R6090 0
PANEL_PWR_JOINTPANEL_PWR
1005
CHIP
*R9490
0
SIRCS
1kohm
FB9002
1kohm
FB9003
1kohm
FB9004
1kohm
FB9005
C9066
22p
C9065
22p
C9064
22p
GND_D
C9067
22p
C9061
0.001
GND_D
C9060
0.001
GND_D
C9062
0.001
X9001
32.768kHz
12
GND_D
GND_D
*R8442
47k
M_RDQ2
GND_D
M_RDQ7
M_RDQ8
M_RDQ4
M_RDQ6
M_RDQ12
M_RDQ14
M_FIF_ADQ15
M_RDQ10
M_FIF_ADQ11
M_RDQ9
M_RDQ13
M_FIF_ADQ5
10
RB9026
2 1
4 3
6 5
8 7
47K
RB9040
2
1
4
3
6
5
8
7
47K
RB9041
2
1
4
3
6
5
8
7
47K
RB9042
2
1
4
3
6
5
8
7
47K
RB9043
2
1
4
3
6
5
8
7
M_RDQ3
1kohm
FB9006
1kohm
FB9007
1kohm
FB9008
1kohm
FB9009
1kohm
FB9010
1kohm
FB9011
C9068
0.001
C9069
0.001
GND_D
CL9234
100
RB9021
2 1
4 3
6 5
8 7
1k
RB9022
2 1
4 3
6 5
8 7
100RB9031
2 1
4 3
6 5
8 7
47K
RB9092
+3.3V_I2C
C9125
22p
C9120
22p
GND_DC9122
22p
C9121
22p C9124
22p
C9123
22p
10k
R9140
1k
R9141
1kohm
FB9012
1kohm
FB9013
1kohm
FB9014
1kohm
FB9015
CLK/CI/PERI(Normal)
CXD4727GB
*IC9000
K2 CI_CE1/UARTETX/GPIO49
L1 CI_IOR/UARTERX/GPIO50
M2 CI_IOW/UARTECTS/SPIBCS/GPIO51
N1 CI_WE/UARTEDSR/SPIBDI/GPIO53
L3 CI_OE/UARTEDTR/SPIBDO/GPIO54
R1 CI_RESET/GPIO73
P3 CI_IREQ/IOEXE_DATA//GPIO76
T2 CI_WAIT/UARTERTS/SPIBCK/GPIO52
W1 CI_CD/IOEXE_LATCH//GPIO75
W2 CI_OVD/IOEXE_CLK//GPIO77
W3 CI_PWREN/GPIO74
U1 CI_AD0/MS_SCLK
U2 CI_AD1/MS_INS_X
U3 CI_AD2/MS_BS
T1 CI_AD3/MS_DATA
T3 CI_AD4/MS_PON
R2 CI_AD5/GPIO55
R3 CI_AD6/GPIO56
P1 CI_AD7/GPIO57
M1 CI_AHL_A8/GPIO58
M3 CI_ALL_A9/GPIO59
K1 CI_DIR_A10/GPIO60
L2 CI_DOE_A11/GPIO61
P2 CI_TSOE_A12/GPIO62
N3 CI_EN_A_13
N2 CI_A14/SCIOCD/SCICLKDIV/GPIO64
V3 CI_D0/SCIRST/GPIO65
V2 CI_D1/SCIDET/GPIO66
V1 CI_D2/SCICLK/SCITDACLK/GPIO67
H1 CI_D3/SCIDIO/GPIO68
J3 CI_D4/SCIVEN/SCICMDVCC/GPIO69
J2 CI_D5/GPIO70
J1 CI_D6/GPIO71
K3 CI_D7/GPIO72
C6
POWERLED/GPIO0
D6
REC_LED/GPIO1
E6
X_SYSTEM_RST/GPIO2
H5
GPIO3
G3
GPIO4/FE_PWMA
G4
GPIO5/FE_CLKINA
G5
GPIO6/FE_PWMB
G28
GPIO7/FE_CLKINB
F27
GPIO8/PCDC_OUT
F26
GPIO9/PCDD_OUT
F25
GPIO10/PCDE_OUT
G27
GPIO11/TIMERCMPA
G26
GPIO12/TIMERCMPB
G25
GPIO13/TIMERCMPC
H27
GPIO14/TIMERCMPD
H26
GPIO15/TIMERCAPC
H25
GPIO16/TIMERCAPD
J25
GPIO17/TIMERCAPE
K25
GPIO18/TIMERCAPF
L25
GPIO19/IOEXC_CLK
V26
GPIO20/IOEXC_DATA
V25
GPIO21/IOEXC_LATCH
U25
GPIO22
F4
TIMER_CAPA/GPIO23
F5
TIMER_CAPB/GPIO24
AB26
PCDA_OUT/GPIO25
AA25
PCDA_IN/GPIO26
AA26
PCDB_OUT/GPIO27
Y26
PCDB_IN/GPIO28
J5
SCA_CH0/GPIO30
H4
SCA_CH1/GPIO31
J4
SCA_REF/GPIO29
K5
SCA_CAP/GPIO32
K27
GPIO45/DAUI_MUCK/SPIB_CS
K26
GPIO46/DAUI_LRCK/SPIB_CK
J27
GPIO47/DAUI_BCK/SPIB_DI
J26
GPIO48/DAUI_DAT/SPIB_DO
H2
I2CA_SDA
H3
I2CA_SCL
G30
I2CB_SDA
G29
I2CB_SCL
AC26
I2CC_SDA
AD25
I2CC_SCL
CLK/PERI(Standby)
CXD4727GB
*IC9000
STBY_LED/STBY_GPIO0
AD6
TIMER_LED/STBY_GPIO1
AC5
PIC_MUTE_LED/STBY_GPIO2
AC4
MAIN_PWR/STBY_GPIO3
AC3
SYSTEM1_PWR/STBY_GPIO4
AD5
SYSTEM2_PWR/STBY_GPIO5
AD4
MAIN_SS_MON/STBY_GPIO6
AD3
AC_MON/STBY_GPIO7
AE5
PFC_MON/STBY_GPIO8
AE4
POWER_KEY/STBY_GPIO9
AE3
STBY_GPIO10
AF4
STBY_GPIO11
AF3
STBY_GPIO12/STBY_IR_OUT
AG3
ST_GPIO13/ST_WDT/ST_SPIACS
AH3
ST_GPIO14/ST_SCBREF/ST_SPIACK
AK4
ST_GPIO15/ST_SCB_CH0/ST_SPIADI
AJ4
ST_GPIO16/ST_SCB_CAP/ST_SPIADO
AH4
STBY_ADC_IN_0/DC_MON
T4
STBY_ADC_IN_1
T5
STBY_ADC_IN_2
U4
STBY_ADC_IN_3
U5
STBY_ADC_IN_4
V4
STBY_ADC_IN_5
V5
STBY_ADC_IN_6
W4
STBY_ADC_IN_7
W5
STBY_ADC_IN_8
Y4
STBY_ADC_IN_9
Y5
STBY_UARTA_TX
Y1
STBY_UARTA_RX
Y2
STBY_UARTB_TX/STBY_GPIO17
Y3
STBY_UARTB_RX/STBY_GPIO18
AA1
STBY_UARTC_TX/STBY_GPIO19
AA2
STBY_UARTC_RX/STBY_GPIO20
AA3
VDD33STBY W9
VDD33STBY W10
VDDCSTBY Y9
VDDCSTBY Y10
VPGM F6
RESET_X AC6
SYS_XO AH1
SYS_XI AH2
VSS AK2
RTC_XO AJ3
RTC_XI AK3
STBY_IR_IN AB2
STBY_HDMI_CECA AB1
ICC_TCK AA4
ICC_TMS AA5
ICC_TRST AB3
ICC_TDI AB4
ICC_TDO AB5
TEST AG4
C9078
22p
C9079
22p
CL9094
CL9096
48MHz
X9000
1
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
*CN9006
40P
BLK
CL_MAIN_DET(D3.3)
BD VBUS / HTL_REG+12.5V
BD USB_P
BD GND
BD USB_N
BD USB SPDIF / CL_AC_MON
BD EJECT/BDR ON / HTL_SP-MUTE
BD DISC1/BDR WAKEUP_ITCON / HTL_VOLUME+
BD DISC2/BDR U_DL_STAT / HTL_VOLUME-
BD UART Tx/ BDR_AC_MON
BD UART Rx/ BDR KEY2/ HLR DEVICE_SDA
BDR STBY+3.3V/RF STBY+3.3V / CL_STBY_+3.3V
BDR UART_Tx/ RF UART_TX / CL_I2CA_SDA
BDR UART_Rx/ RF_UART_RX / CL_I2CA_SCL
BDR WAKEUP_STBY_MICON/RF SEL
BDR GPIO0/RF RST / HTL_LINEOUT-L
BDR GND /RF GND
WIFI USB GND
WIFI USB_P
WIFI GND
WIFI USB_N
WIFI GND
WIFI VBUS
HLR DEVICE_SCL
HLR LED_ON_TIMER
HLR SIRCS
HLR LED_STBY
HLR LED_POWER
HLR LED_REC
HLR LED_PIC_MUTE
HLR GND
HLR OPT_SENS
HLR STBY_3.3V
HLR 3.3V
SW POWER_KEY
SW_KEY
SW GND
HMS DET/SONY LOGO
HMS 5V /LOGO 5V
HMS GND/LOGO GND
12
12
12
12
12
M_MS_DATA0
M_MS_CLK
M_MS_PON
M_MS_INS
M_MS_BS
12
12
12
12
12
12
*R9492
0*R9493
0
*R9494
0
C90420.001
1005
16V
0.1
C9031
2012
C9058
10
PC_CON_DET
CR_DET
R9400 0
R9401 0
R94390
R94400
R94410
R9469 0
C90430.001
M_CI_AD[0]
M_CI_AD[1]
M_CI_AD[2]
M_CI_AD[3]
M_CI_AD[4]
M_CI_AD[7]
M_CI_AD[10]
M_CI_AD[11]
M_CI_D[6]
M_CI_AD[13]
M_CI_AD[12]
M_CI_D[7]
M_CI_D[5]
M_CI_D[4]
M_CI_AD[14]
M_CI_D[1]
M_CI_D[0]
M_CI_D[3]
M_CI_D[2]
M_CI_AD[5]
M_CI_AD[6]
M_CI_AD[8]
M_CI_AD[9]
STBY_+1.2V REG
ON/OFF
VoutVSS Vin
Temp Sensor
HTL_SP-MUTE
HTL_VOLUME+
HTL_VOLUME-
DQ2 : DDR3 capacity
[0]2G+2G
[1]2G+1G
BD-P/R both
BAT-V 1/12
SYSTEM
A-1816-704-B <AZ2F> BATV-P1
C
M
Y
CM
MY
CY
CMY
K
BATV-P1.pdf 1/8/2011 5:11:52 PM

KDL-32EX729/40EX729/46EX729 15
KDL-32EX729/40EX729/46EX729
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 |
27 | 28 |
A
—
B
—
C
—
D
—
E
—
F
—
G
—
H
—
I
—
J
—
K
—
L
—
M
—
N
—
O
—
P
—
BATV BOARD SCHEMATIC DIAGRAM (2 OF 12)
680
R1808
M_TSI_EN
TU_TS_VALID
50V
12p
CH
C1814
TU_TS_SYNC
16V
0.1
X7R
C1802
DMD_TU_IAINP
D+1.2V
1005
16V
0.1
X7R
C1803
50V
15p
CH
C1809
600ohm
FB1801
M_TSI_CLK
+3.3V_MAIN
DMD_TU_IAINM
DMD_TU_AGCVCTL
DMD_TU_IFAGC_WT
DMD_TU_IFAGC_R
1M
R1806
TU_TS_DATA0
DMD_TU_I2C_SDA
16V
0.1
X7R
C1808
M_TSI_STRT
TU_TS_CLK
DMD_TU_RFAGC
16V
0.1
X7R
C1804
16V
0.1
X7R
C1801
150
R1801
22
R9306
22
R9304
22
R9307
22
R9305
CL1504
CL1505
CL1506
CL1501
CL1502
CL1503
DMD_TU_I2C_SCL
2012
6.3V
10
X6S
C1819
4.7k
R1809
16V
0.1
X7R
C1820
CL9324
CL9303
CL9300
CL9321
CL9302
CL9322
CL9305
CL9318
CL9313
CL9312
CL9304
CL9311
CL9301
CL9316
CL9308
CL9319
CL9309
CL9317
CL9315
CL9323
CL9307
CL9310
CL9325
CL9306
CL9320
CL9314
1608
6.3V
2.2
X6S
C1821
VDD22DMD
1kohm
FB1804
BLM15BDx
DMD_TU_IAINP
DMD_TU_IAINM
47
R1813
1
47p
C1817
100
R1811
1
1.5k
R1805
1kohm
FB1805
BLM15BDx
47p
C1812
100
R1812
47
R1814
1.5k
R1810
IFOUTN1
IFOUTP1
JL1801
JL1802
CVBS_COIN_V
CL1851
ANT_T
ANT_S
47
RB9302
2
1
4
3
6
5
8
7
47
RB9303
2
1
4
3
6
5
8
7
1kohm
FB9305
1kohm
FB9306
STREAM(TS)/DMD
*IC9000
CXD4727GB
TSI_CK
P5
TSI_EN
N5
TSI_STRT
K4
TSI_DAT_0
L5
TSI_DAT_1
L4
TSI_DAT_2
M5
TSI_DAT_3
M4
TSI_DAT_4
N4
TSI_DAT_5
P4
TSI_DAT_6
R5
TSI_DAT_7
R4
TSIE_CK
L30
TSIE_EN
L28
TSIE_STRT
M28
TSIE_DAT
L29
TSIO_CK
M30
TSIO_EN
M29
TSIO_STRT
M25
TSIO_DAT_0
N30
TSIO_DAT_1
N29
TSIO_DAT_2
N28
TSIO_DAT_3
N27
TSIO_DAT_4
M27
TSIO_DAT_5
M26
TSIO_DAT_6
L27
TSIO_DAT_7
L26
FE_XO C29
FE_XI C30
DMD_TU_IFAGC_WT D27
DMD_TU_IFAGC_R E27
DMD_TU_RFAGC E26
DMD_TU_I2C_SDA H28
DMD_TU_I2C_SCLH29
VREFHDMDF24
VREFLDMDF23
DMD_TU_IAINP E30
DMD_TU_IAINME29
DMD_TU_AGCVCTL D28
VDD22DMDF28
VSS22DMD E28
VDD33DMDOSCD29
AVDD12DMDD30
AVDD12DMDL21
VDD33DMDOSCL22
DVDD12DMDK22
DVDD12DMDC28
AVSSDMD F29
AVSSDMD F30
AVSSDMD L19
AVDD33AGCC27
AVDD33AGCK21
AVSSAGC A29
AVSSAGC B29
AVSSAGC B30
41MHz
X1801
1
2
*CN1102
3546 11 12
1
2
78910
M_TSI_DAT[2] M_TSI_DAT[3] M_TSI_DAT[4] M_TSI_DAT[5] M_TSI_DAT[6] M_TSI_DAT[7] M_TSI_DAT[0] M_TSI_DAT[1]
M_TSIO_DAT[3] M_TSIO_DAT[2] M_TSIO_DAT[1] M_TSIO_DAT[0] M_TSIO_DAT[7] M_TSIO_DAT[6] M_TSIO_DAT[5]
M_TSIO_DAT[4]
IFOUTP_1
IFOUTN_1
TERRESTRIAL
SAT/CATV
BAT-V 2/12
STREAM/DEMOD/CI/BCAS
A-1816-704-B <AZ2F> BATV-P2
C
M
Y
CM
MY
CY
CMY
K
BATV-P2.pdf 1/8/2011 5:43:26 PM

KDL-32EX729/40EX729/46EX729 16
KDL-32EX729/40EX729/46EX729
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 |
27 | 28 |
A
—
B
—
C
—
D
—
E
—
F
—
G
—
H
—
I
—
J
—
K
—
L
—
M
—
N
—
O
—
P
—
BATV BOARD SCHEMATIC DIAGRAM (3 OF 12)
CL8406
CL8403
CL8417
CL8404
1005
16V
C8402
0.1
CL8420
ONENAND_+1.8V
GND_D
CL8401
CL8400
1005
C8408
0.1
CL8405
CL8414
ONENAND_+1.8V
1005
C8407
0.01
GND_D
CL8402
CL8422
1005
R8427
10k
ONENAND_+1.8V
ONENAND_+1.8V
470
R8429
STBY_+3.3V
SYSTEM2_PWR
1005
6.3V
1
X6S
C8401
GND_D
1005
6.3V
1
X6S
C8404
ONENAND_+1.8V
220
R8400
220R8422
47 R8419
CL8423
CL8424
M_ETTXD0_HSS
M_ETTXD1_HSS
GND_D
1608
6.3V
2.2
X6S
C8410
220R8425
CL8418
CL8407
CL8409
CL8408
CL8415
CL8416
CL8412
CL8410
CL8413
CL8421
CL8411
CL8419
TC58RYG1S8EBAIA
IC8402
A1
NC
A2
NC
A9
NC
A10
NC
B1
NC
B9
NC
B10
NC
C3
WE
C4
RESET
C5
ADQ1
C6
VSS
C7
VSS
C8
ADQ2
D3
DQ3
D4
ADQ7
D5
ADQ14
D6OE
D7ADQ6
D8VCC_CORE
E3ADQ8
E4ADQ11
E5ADQ4
E6ADQ5
E7ADQ12
E8VCC_IO
F3ADQ0
F4NC
F5ADQ15
F6NC
F7ADQ10
F8ADQ9
G3CLK
G4
CE
G5
ADQ13
G6
NC
G7
NC
G8
NC
H3
NC
H4
NC
H5
AVD
H6
NC
H7
NC
H8
NC
J3
INT
J4
NC
J5
NC
J6
NC
J7
NC
J8 NC
K3 RDY
K4 NC
K5 NC
K6 NC
K7 NC
K8 NC
L1 NC
L2 NC
L9 NC
L10 NC
M1 NC
M2 NC
M9 NC
M10NC
68
RB8400
68 RB8401
68 RB8402
100
RB8403
2 1
4 3
6 5
8 7
68 RB8404
47k
R8472
M_FIF_ADQ11
M_FIF_ADQ15
M_RDQ10
M_RDQ12
M_RDQ13
M_RDQ14
M_RDQ9
M_FIF_ADQ1
M_RDQ0
10k
R8473
M_RDQ2
M_RDQ3
MM3464A18NRE
IC8400
123
4 5
M_RDQ8
M_RDQ4
M_RDQ6
M_RDQ7
M_FIF_ADQ5
FIF
CXD4727GB
*IC9000
VDD18FIF
W21
VDD18FIF
W22
VDD18FIF
AE30
FIF_ADQ_0 AH26
FIF_ADQ_1 AJ29
FIF_ADQ_2 AH29
FIF_ADQ_3 AK28
FIF_ADQ_4 AK27
FIF_ADQ_5 AH30
FIF_ADQ_6 AJ30
FIF_ADQ_7 AJ28
FIF_ADQ_8 AJ27
FIF_ADQ_9 AG28
FIF_ADQ_10 AG29
FIF_ADQ_11 AH27
FIF_ADQ_12 AH28
FIF_ADQ_13 AG30
FIF_ADQ_14 AK29
FIF_ADQ_15 AJ26
FIF_AVD_XAE26
FIF_CE_X AF28
FIF_INT AE27
FIF_OE_XAG27
FIF_RB AD26
FIF_WR_X AF27
FIF_CKAK26
FIF_FBCK AF29
GPIO63 AF30
+3.3V_MAIN
M_RDQ0
M_RDQ3 M_RDQ1 M_RDQ4 M_RDQ5
M_RDQ15
M_RDQ8
M_R_CLK
M_RDQ2
X_M_NWEB
X_M_RAVDB
X_M_RCSB
X_M_RCSB
M_RINT M_RINT
X_U_ONAND_RST
X_M_NRBB
M_RDQ7
M_RDQ9 M_RDQ10
M_RDQ11
M_RDQ12 M_RDQ13
M_RDQ14
M_R_CLK
M_RDQ6
X_M_NOEB
X_M_NOEB
M_FIF_ADQ8
M_FIF_ADQ4
M_FIF_ADQ0
M_FIF_ADQ14
M_FIF_ADQ7
M_FIF_ADQ3
M_FIF_ADQ2
M_FIF_ADQ12
M_FIF_ADQ6
M_FIF_ADQ8
M_RDQ11
M_FIF_ADQ13
M_FIF_ADQ10
M_FIF_ADQ9
M_RDQ8
M_RDQ4
M_RDQ0
M_RDQ15
M_RDQ14
M_RDQ7
M_RDQ3
M_RDQ2
M_RDQ12
M_RDQ6
M_RDQ1
M_RDQ13
M_RDQ10
M_RDQ9
M_RDQ5
M_RDQ8M_RDQ8
X_M_NWEB
M_FIF_ADQ1
M_FIF_ADQ15
M_FIF_ADQ6
M_FIF_ADQ13
M_FIF_ADQ14
M_FIF_ADQ3
M_FIF_ADQ11
M_FIF_ADQ9
M_FIF_ADQ5
M_FIF_ADQ12
M_FIF_ADQ10
M_FIF_ADQ7
M_FIF_ADQ2
M_FIF_ADQ0
M_FIF_ADQ4
M_RDQ1
M_RDQ5
M_RDQ11
X_U_ONAND_RST
M_RDQ15
M_RINT
X_M_NOEB
X_M_NRBB
X_M_RAVDB
X_M_RCSB
M_FIF_ADQ11
M_FIF_ADQ15M_FIF_ADQ15
M_RDQ9M_RDQ9
M_RDQ10M_RDQ10
M_RDQ12M_RDQ12
M_RDQ13M_RDQ13
M_RDQ14M_RDQ14
M_FIF_ADQ1
M_RDQ0M_RDQ0
M_RDQ2M_RDQ2
M_RDQ3M_RDQ3
M_RDQ6M_RDQ6
M_RDQ7M_RDQ7
M_RDQ4M_RDQ4
M_FIF_ADQ5M_FIF_ADQ5
Portion 11
TO OneNAND
Vout
VSS
ON/OFF NC
Vin
SCT2で削除検討
BAT-V 3/12
ONE NAND
A-1816-704-B <AZ2F> BATV-P3
C
M
Y
CM
MY
CY
CMY
K
BATV-P3.pdf 1/8/2011 5:49:41 PM

KDL-32EX729/40EX729/46EX729 17
KDL-32EX729/40EX729/46EX729
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 |
27 | 28 |
A
—
B
—
C
—
D
—
E
—
F
—
G
—
H
—
I
—
J
—
K
—
L
—
M
—
N
—
O
—
P
—
BATV BOARD SCHEMATIC DIAGRAM (4 OF 12)
DDR3_+1.5V
RN-CP220
R9602 1/16W 1%
GND_D
GND_D
1005
16V
0.1
C9622
X7R
1/16W
RN-CP
1%
10k
R9600
DDR3_+1.5V
GND_D
+3.3V_MAIN
DDR3_+1.5V
GND_D
1/16W
RN-CP
1%
10k
R9601
1005
16V
0.1
C9616
X7R
GND_D
GND_D
GND_D
16V
0.1
C9671
1005
X7R
16V
0.1
C9667
1005
X7R
16V
0.1
C9650
1005
X7R 16V
0.1
C9663
1005
X7R
16V
0.1
C9657
1005
X7R16V
0.1
C9662
1005
X7R
GND_D
16V
0.1
C9649
1005
X7R 16V
0.1
C9678
1005
X7R
16V
0.1
C9670
1005
X7R
16V
C9626
1005
X7R
0.1
2012
6.3V
10
X6S
C9651
16V
0.1
C9672
1005
X7R
16V
0.1
C9653
1005
X7R
16V
0.1
C9665
1005
X7R
16V
0.1
C9664
1005
X7R
DDR3_+1.5V
GND_D
16V
0.1
C9673
1005
X7R
GND_D
16V
0.1
C9668
1005
X7R
16V
0.1
C9677
1005
X7R
16V
0.1
C9679
1005
X7R
16V
0.1
C9669
1005
X7R
16V
0.1
C9623
1005
X7R
16V
0.1
C9617
1005
X7R
16V
0.1
C9611
1005
X7R
16V
0.1
C9607
1005
X7R
16V
0.1
C9624
1005
X7R 16V
0.1
C9629
1005
X7R
16V
0.1
C9627
1005
X7R
16V
C9618
1005
X7R
0.1
2012
6.3V
10
X6S
C9613
DDR3_+1.5V
GND_D
16V
0.1
C9615
1005
X7R 16V
0.1
C9621
1005
X7R
GND_D
25V
C9602
X7R
0.01
GND_D
D+1.2V
16V
C9603
1005
X7R
0.1
25V
C9601
X7R
0.01
2012
6.3V
10
X6S
C9600
DDR3_CLK_P
DDR3_CLK_N
GND_D
DDR3_+1.5V
16V
0.1
C9625
1005
X7R 16V
0.1
C9628
1005
X7R 16V
0.1
C9638
1005
X7R 16V
0.1
C9639
1005
X7R
1/16W
RN-CP
1%
10k
R9723
GND_D
DDR3_+1.5V
1/16W
RN-CP
1%
10k
R9722
RN-CP
240
R9720
1/16W
1%
1/16W
RN-CP
1%
10k
R9724
DDR3_+1.5V
1/16W
RN-CP
1%
10k
R9725
GND_D
GND_D
16V
0.1
C9612
1005
X7R
DDR3_CLK_P
1/16W
RN-CP
1%
100
R9718
DDR3_CLK_N
DDR3_CLK_P
DDR3_CLK_N
16V
0.1
C9644
1005
X7R 16V
0.1
C9646
1005
X7R 16V
0.1
C9647
1005
X7R
16V
0.1
C9645
1005
X7R
D+1.2V
16V
0.1
C9640
1005
X7R
GND_D
2012
6.3V
10
X6S
C9643
2012
6.3V
10
X6S
C9619
1/16W
RN-CP
1%
100
R9719
RN-CP
240
R9721
1/16W
1%
GND_D
GND_D
XX
RB9610
2012
6.3V
10
X6S
C9906
0.01
C9708
1005
25V
X7R
0.01
C9712
1005
25V
X7R
0.001
C9820
1005
50V
X7R
0.001
C9819
1005
50V
X7R
DDR3_+1.5V
GND_D
EMI
FL9600
1 2
34
EMI
FL9601
1 2
34
DDR3_+1.5V
GND_D
16V
C9911
1005
X7R
0.1
GND_D
GND_D
16V
C9912
1005
X7R
0.1
DDR
CXD4727GB
*IC9000
VDD18DDR
AD8
VDD18DDR
AD9
VDD18DDR
AD22
VDD18DDR
AD23
VDD18DDR
AE7
VDD18DDR
AE8
VDD18DDR
AE23
VDD18DDR
AE24
VDD18DDR
AA13
VDD18DDR
AA15
VDD18DDR
AA16
VDD18DDR
AA18
VSS
W13
VSS
W15
VSS
W16
VSS
W18
VSS
AD7
VSS
AD11
VSS
AD14
VSS
AD17
VSS
AD18
VSS
AD24
VSS
AE6
VSS
AE9
VSS
AE10
VSS
AE11
VSS
AE12
VSS
AE13
VSS
AE14
VSS
AE17
VSS
AE18
VSS
AE19
VSS
AE20
VSS
AE21
VSS
AE22
VSS
AE25
VSS
AF5
VSS
AF11
VSS
AF12
VSS
AF13
VSS
AF18
VSS
AF19
VSS
AF26
VSS
AG11
VSS
AG12
VSS
AG19
VSS
AG20
VSS
AG26
VSS
AH5
VSS
AH6
VSS
AH7
VSS
AH8
VSS
AH9
VSS
AH10
VSS
AH11
VSS
AH20
VSS
AH21
VSS
AH22
VSS
AH23
VSS
AH24
VSS
AH25
VSS
AJ5
VSS
AJ9
VSS
AJ14
VSS
AJ17
VSS
AJ22
VSS
AJ25
VSS
AK5
VSS
AK14
VSS
AK17
VSS
AK25
DDRVDDDR0
AD10
DDRVDDDR1
AD13
DDRVDDDR2
AD19
DDRVDDDR3
AD21
DDR_VREF_0
AD12
DDR_VREF_1
AD20
DDR_EXRES
AD15
VDDC
AA12
VDDC
AA14
VDDC
AA17
VDDC
AA19
DDR_DQ_0AJ10
DDR_DQ_1AJ7
DDR_DQ_2AK11
DDR_DQ_3AK6
DDR_DQ_4AJ6
DDR_DQ_5AJ11
DDR_DQ_6AK7
DDR_DQ_7AK10
DDR_DQ_8AF9
DDR_DQ_9AG6
DDR_DQ_10 AG10
DDR_DQ_11 AF6
DDR_DQ_12 AG5
DDR_DQ_13 AF10
DDR_DQ_14 AF7
DDR_DQ_15 AG9
DDR_DQ_16 AJ23
DDR_DQ_17 AJ20
DDR_DQ_18 AK24
DDR_DQ_19 AK19
DDR_DQ_20 AJ19
DDR_DQ_21 AJ24
DDR_DQ_22 AK20
DDR_DQ_23 AK23
DDR_DQ_24 AF24
DDR_DQ_25 AG21
DDR_DQ_26 AG25
DDR_DQ_27 AF21
DDR_DQ_28 AF20
DDR_DQ_29 AF25
DDR_DQ_30 AF22
DDR_DQ_31 AG24
DDR_A_0 AF15
DDR_A_1 AG13
DDR_A_2 AH14
DDR_A_3 AK13
DDR_A_4 AG15
DDR_A_5 AH12
DDR_A_6 AH16
DDR_A_7 AK12
DDR_A_8 AH15
DDR_A_9 AJ13
DDR_A_10 AH13
DDR_A_11 AG14
DDR_A_12 AJ12
DDR_A_13 AF14
DDR_BA_0 AH18
DDR_BA_1 AG16
DDR_BA_2 AG17
DDR_DM_0 AJ8
DDR_DM_1 AG7
DDR_DM_2 AJ21
DDR_DM_3 AG22
DDR_DQSP_0 AK8
DDR_DQSM_0 AK9
DDR_DQSP_1 AG8
DDR_DQSM_1 AF8
DDR_DQSP_2 AK21
DDR_DQSM_2 AK22
DDR_DQSP_3 AG23
DDR_DQSM_3 AF23
DDR_CKP_0 AK15
DDR_CKM_0 AJ15
DDR_CKP_1 AJ16
DDR_CKM_1 AK16
DDR_CKE
AG18
DDR_ODT_0
AH19
DDR_RAS
AK18
DDR_CAS
AH17
DDR_CSN_0
AJ18
DDR_WE
AF17
DDR_RESETAF16
PLLVDDDDR1 AD16
PLLVDDDDR2 AE16
VSS AE15
*IC9600
K4B2G1646C-HCH9
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC#
N7
A13/NC
T3
A14/NC
T7
A15/NC
M7
BA0
M2
BA1
N8
BA2
M3
DMU
D3
DML
E7
DQSU
C7
DQSU#
B7
DQSL
F3
DQSL#
G3
CK
J7
CK#
K7
CKE
K9
CS#
L2
RAS#
J3
CAS#
K3
WE#
L3
ODT
K1
VSS
E1
VSS
M1
VSS
P1
VSS
T1
VSS
J2
VSS
B3
VSS
G8
VSS
J8
VSS
A9
VSS
M9
VSS
P9
VSS
T9
VSSQ
B1
VSSQ
D1
VSSQ
G1
VSSQ
E2
VSSQ
D8
VSSQ
E8
VSSQ
B9
VSSQ
F9
VSSQ
G9
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
DQU0 D7
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
RESET# T2
VREFCA M8
NC J1
NC L1
NC J9
NC L9
VREFDQ H1
ZQ L8
VDD N1
VDD R1
VDD B2
VDD K2
VDD G7
VDD K8
VDD D9
VDD N9
VDD R9
VDDQ A1
VDDQ C1
VDDQ F1
VDDQ D2
VDDQ H2
VDDQ A8
VDDQ C9
VDDQ E9
VDDQ H9
K4B2G1646C-HCH9
IC9601
A0
N3
A1
P7
A2
P3
A3
N2
A4
P8
A5
P2
A6
R8
A7
R2
A8
T8
A9
R3
A10/AP
L7
A11
R7
A12/BC#
N7
A13/NC
T3
A14/NC
T7
A15/NC
M7
BA0
M2
BA1
N8
BA2
M3
DMU
D3
DML
E7
DQSU
C7
DQSU#
B7
DQSL
F3
DQSL#
G3
CK
J7
CK#
K7
CKE
K9
CS#
L2
RAS#
J3
CAS#
K3
WE#
L3
ODT
K1
VSS
E1
VSS
M1
VSS
P1
VSS
T1
VSS
J2
VSS
B3
VSS
G8
VSS
J8
VSS
A9
VSS
M9
VSS
P9
VSS
T9
VSSQ
B1
VSSQ
D1
VSSQ
G1
VSSQ
E2
VSSQ
D8
VSSQ
E8
VSSQ
B9
VSSQ
F9
VSSQ
G9
DQL0 E3
DQL1 F7
DQL2 F2
DQL3 F8
DQL4 H3
DQL5 H8
DQL6 G2
DQL7 H7
DQU0 D7
DQU1 C3
DQU2 C8
DQU3 C2
DQU4 A7
DQU5 A2
DQU6 B8
DQU7 A3
RESET# T2
VREFCA M8
NC J1
NC L1
NC J9
NC L9
VREFDQ H1
ZQ L8
VDD N1
VDD R1
VDD B2
VDD K2
VDD G7
VDD K8
VDD D9
VDD N9
VDD R9
VDDQ A1
VDDQ C1
VDDQ F1
VDDQ D2
VDDQ H2
VDDQ A8
VDDQ C9
VDDQ E9
VDDQ H9
DDR3_RESET_HSS
DDR3_A_LDM_HSS
DDR3_CKE_HSS
DDR3_RAS_HSS
DDR3_CAS_HSS
DDR3_WE_HSS
DDR3_ODT_HSS
DDR3_RESET_HSSDDR3_BA1_HSS
DDR3_BA0_HSS
DDR3_BA2_HSS
DDR3_A_UDM_HSS
DDR3_A0_HSS
DDR3_A1_HSS
DDR3_A2_HSS
DDR3_A3_HSS
DDR3_A4_HSS
DDR3_A5_HSS
DDR3_A6_HSS
DDR3_A7_HSS
DDR3_A8_HSS
DDR3_A9_HSS
DDR3_A10_HSS
DDR3_A11_HSS
DDR3_A12_HSS
DDR3_A13_HSS
DDR3_BA0_HSS
DDR3_B_UDM_HSS
DDR3_B_LDM_HSS
DDR3_ODT_HSS
DDR3_WE_HSS
DDR3_CAS_HSS
DDR3_RAS_HSS
DDR3_CKE_HSS
DDR3_RESET_HSS
DDR3_A0_HSS
DDR3_A1_HSS
DDR3_A2_HSS
DDR3_A3_HSS
DDR3_A4_HSS
DDR3_A5_HSS
DDR3_A6_HSS
DDR3_A7_HSS
DDR3_A8_HSS
DDR3_A9_HSS
DDR3_A10_HSS
DDR3_A11_HSS
DDR3_A12_HSS
DDR3_A13_HSS
DDR3_BA2_HSS
DDR3_BA1_HSS
DDR3_BA0_HSS
DDR3_WE_HSS
DDR3_CS_HSS
DDR3_CAS_HSS
DDR3_RAS_HSS
DDR3_ODT_HSS
DDR3_CKE_HSS
DDR3_BA1_HSS
DDR3_BA2_HSS
DDR3_BA0_HSS
DDR3_CKE_HSS
DDR3_WE_HSS
DDR3_RAS_HSS
DDR3_ODT_HSS
DDR3_CAS_HSS
DDR3_CAS_HSS
DDR3_CAS_HSS
DDR3_RAS_HSS
DDR3_RAS_HSS
DDR3_A6_HSS
DDR3_A_VREF
DDR3_B_VERF
DDR3_B_DQ15_HSS
DDR3_B_DQ14_HSS
DDR3_B_DQ13_HSS
DDR3_B_DQ11_HSS
DDR3_B_DQ12_HSS
DDR3_B_DQ10_HSS
DDR3_B_DQ9_HSS
DDR3_B_DQ8_HSS
DDR3_B_DQ7_HSS
DDR3_B_DQ6_HSS
DDR3_B_DQ5_HSS
DDR3_B_DQ4_HSS
DDR3_B_DQ3_HSS
DDR3_B_DQ2_HSS
DDR3_B_DQ1_HSS
DDR3_B_DQ0_HSS
DDR3_A_DQ15_HSS
DDR3_A_DQ14_HSS
DDR3_A_DQ13_HSS
DDR3_A_DQ12_HSS
DDR3_A_DQ11_HSS
DDR3_A_DQ10_HSS
DDR3_A_DQ9_HSS
DDR3_A_DQ8_HSS
DDR3_A_DQ7_HSS
DDR3_A_DQ6_HSS
DDR3_A_DQ5_HSS
DDR3_A_DQ4_HSS
DDR3_A_DQ3_HSS
DDR3_A_DQ2_HSS
DDR3_A_DQ1_HSS
DDR3_A_DQ0_HSS
DDR3_A_UDQS_HSS_P
DDR3_B_UDQS_HSS_P
DDR3_A_LDQS_HSS_P
DDR3_A_LDQS_HSS_N
DDR3_A_UDQS_HSS_N
DDR3_B_LDQS_HSS_P
DDR3_B_LDQS_HSS_N
DDR3_B_UDQS_HSS_N
DDR3_A0_HSS
DDR3_A1_HSS
DDR3_A13_HSS
DDR3_A12_HSS
DDR3_A11_HSS
DDR3_A10_HSS
DDR3_A9_HSS
DDR3_A8_HSS
DDR3_A7_HSS
DDR3_A6_HSS
DDR3_A5_HSS
DDR3_A4_HSS
DDR3_A3_HSS
DDR3_A2_HSS
DDR3_A_DQ14_HSS
DDR3_A_DQ10_HSS
DDR3_A_DQ11_HSS
DDR3_A_DQ15_HSS
DDR3_A_DQ12_HSS
DDR3_A_DQ13_HSS
DDR3_A_DQ9_HSS
DDR3_A_DQ8_HSS
DDR3_A_DQ2_HSS
DDR3_A_DQ4_HSS
DDR3_A_DQ5_HSS
DDR3_A_DQ3_HSS
DDR3_A_DQ7_HSS
DDR3_A_DQ6_HSS
DDR3_A_DQ0_HSS
DDR3_A_DQ1_HSS
DDR3_A_UDQS_HSS_P
DDR3_A_UDQS_HSS_N
DDR3_A_LDQS_HSS_P
DDR3_A_LDQS_HSS_N
DDR3_B_UDQS_HSS_P
DDR3_B_UDQS_HSS_N
DDR3_B_LDQS_HSS_N
DDR3_B_LDQS_HSS_P
DDR3_B_DQ0_HSS
DDR3_B_DQ7_HSS
DDR3_B_DQ5_HSS
DDR3_B_DQ2_HSS
DDR3_B_DQ9_HSS
DDR3_B_DQ15_HSS
DDR3_B_DQ10_HSS
DDR3_B_DQ1_HSS
DDR3_B_DQ6_HSS
DDR3_B_DQ3_HSS
DDR3_B_DQ4_HSS
DDR3_B_DQ8_HSS
DDR3_B_DQ13_HSS
DDR3_B_DQ12_HSS
DDR3_B_DQ11_HSS
DDR3_B_DQ14_HSS
DDR3_B_UDM_HSS
DDR3_A_LDM_HSS
DDR3_A_UDM_HSS
DDR3_B_LDM_HSS
DDR3_A4_HSS
DDR3_A1_HSS
DDR3_A0_HSS
DDR3_A13_HSS
DDR3_A11_HSS
DDR3_A8_HSS
DDR3_A2_HSS
DDR3_A10_HSS
DDR3_A9_HSS
DDR3_A3_HSS
DDR3_A5_HSS
DDR3_A12_HSS
DDR3_A7_HSS
DDR3_CS_HSS
DDR3_CS_HSS
DDR3_BA2_HSS
DDR3_BA1_HSS
Portion 1
BAT-V 4/12
DDR3
A-1816-704-B <AZ2F> BATV-P4
C
M
Y
CM
MY
CY
CMY
K
BATV-P4.pdf 1/8/2011 6:03:12 PM

KDL-32EX729/40EX729/46EX729 18
KDL-32EX729/40EX729/46EX729
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 |
27 | 28 |
A
—
B
—
C
—
D
—
E
—
F
—
G
—
H
—
I
—
J
—
K
—
L
—
M
—
N
—
O
—
P
—
BATV BOARD SCHEMATIC DIAGRAM (5 OF 12)
+5.0V_MAIN
DAUO_SPDIF_HSS
DAUO_MCK_CLK
DAUO_BCK_CLK
16V
C4030
X7R
1005
0.1
DAUO_LRCK_CLK
1005
6.3V
X6S
C4013
1
*R4072 330
DAUO_DAT0_HSS
GND_D
+3.3V_AU
GND_D
GND_D
PC_RGB
1005
16V
0.1
C7049
X7R
GND_D
2012
6.3V
10
X6S
C7056
M_PC_V
1005
1/16W
RN-CP
1%
1.5k
R7027
M_SCART1_CV
1005
50V
5p
CH
C7015
1005
16V
0.1
C7030
X7R
100p
CH
C7021
1005
1/16W
RN-CP
1%
1k
R7029
1005
16V
0.1
C7051
X7R
1005
16V
0.1
C7044
X7R
1005
16V
0.1
C7045
X7R
2012
6.3V
10
X6S
C7060
M_COMP2
1005
16V
*C7054
X7R
XX
M_PC_H
GND_VADCB
1005
1/16W
1%
R7023
1k
12
GND_D
1005
16V
0.1
C7017
X7R
1005
16V
0.1
C7042
X7R
1005
16V
0.1
C7040
X7R
GND_D
+3.3V_MAIN
1
C7047
GND_D
1005
16V
0.1
C7043
X7R
1/16W
RN-CP
1%
560
R7036
1005
16V
0.1
C7046
X7R
+3.3V_MAIN
GND_VADCA 1005
16V
0.1
C7041
X7R
+3.3V_MAIN
GND_D
GND_A
GND_VADCB
GND_D
GND_VADCB
2012
6.3V
10
X6S
C7055
D+1.2V
1005
50V
1000p
C7018
GND_VADCA
1005
6.3V
X6S
C7064
1
+5.0V_MAIN
GND_A
1005
6.3V
1
X6S
C4012
1005
16V
C4027
X7R
0.1
+3.3V_HOKEN
GND_D
2012
10V
4.7
X7R
C7066
12
CL4024
CL4025
CL4026
CL4027
CL4028
CL4029
CL4030
CL7001
CL7002
12
GND_A GND_VADCA
12
GND_VADCB
1005
16V
0.1
X7R
C7079
2012
6.3V
22
X6S
C7080
GND_VADCA
GND_D
1005
16V
0.1
X7R
C7084
DAUO_DAT1_HSS
JL4005
RP130N331D-F
IC4000
123
4 5
1
*C4045
1
*C4046
CL4015
CL4014
CL4012
1005
50V
X7R
C4031
0.001
*C4044
1
1005
50V
X7R
C4041
0.001
CL4023
1
*C4043
CL4022
CL4021
AAUO_LOM
AAUO_ROM
1005
50V
X7R
C4034
0.001
1005
50V
X7R
C4039
0.001
1005
50V
X7R
C4032
0.001
CL4020
AAUO_ROP
AAUO_L5
AAUO_R5
CL4013
AAUO_LOP
1005
50V
X7R
C4033
0.001
GND_D
*C4003
1
AAUI_R4
*RB4003
100k
6.3V
1X6S
C4009
AAUO_R5
AAUI_R1
AAUI_L4
AAUI_L5 6.3V
1X6S
C4011
AAUI_L1
6.3V
1X6S
C4008
*C4002
1
AAUO_L5
AAUI_R5
6.3V
1X6S
C4001
6.3V
1X6S
C4010
100k
RB4002
2 1
4 3
6 5
8 7
6.3V
1X6S
C4000
BL_ON
CVBS_COIN_V
M_COMP1
2012
6.3V
10
X6S
C7059
1005
16V
0.1
X7R
C7083
1005
16V
0.1
X7R
C7082
2012
6.3V
22
X6S
C7085
1kohm
FB4094
1kohm
FB4095
1kohm
FB4096
1kohm
FB4097
1kohm
FB4098
1kohm
FB4099
DSC500100L
Q7001
VIDEO IN/OUT
CXD4727GB
*IC9000
AVII_CV0
A15
AVII_CV1
B15
AVII_CV2
A14
AVII_CV3
B14
AVII_CV_OUT0
C17
AVII_SOY0
A13
AVII_CMPY0
A9
AVII_PB0
B9
AVII_PR0
A8
AVII_SOY1
B13
AVII_CMPY1
B11
AVII_PB1
A10
AVII_PR1
B10
AVII_PCG
B8
AVII_PCB
A7
AVII_PCR
B7
AVII_PCH
B5
AVII_PCV
A5
AVII_SG
A12
AVII_SB
B12
AVII_SR
A11
AVII_FBA
C5
AVII_FBB
C4
AVII_VREFAIN
C14
AVII_VREFBIN
C11
AVII_VREFCIN
C12
AVII_VREFDIN
C10
AVII_P2CKIN
D16
AVII_P2FIL
E16
AVII_DAOUT2
D15
AVII_BIASDA2
E15
AVII_VBGA
E14
AVII_VBGB
E13
DAVOUTP
A17
DAVOUTM
B17
DAVVREF
E18
DAVVB
E19
DAVIREF
E17
VFE_XO A3
VFE_XI B3
VSS A2
VSS A4
VSS B4
AVDD33VPLLA A16
AVDD33VPLLA J15
AVDD33VADCA B16
AVDD33VADCA H15
AVDD33VADCB D7
AVDD33VADCB H14
AVDD33VADCB J14
AVDD12VADCA C15
AVDD12VADCA C16
AVDD12VADCA H16
AVDD12VADCA J16
AVDD12VADCB C8
AVDD12VADCB C9
AVDD12VADCB H13
AVDD12VADCB J13
AVSSVADCA C13
AVSSVADCA D13
AVSSVADCA D14
AVSSVADCA L15
AVSSVADCB A6
AVSSVADCB B6
AVSSVADCB D10
AVSSVADCB D11
AVSSVADCB D12
AVSSVADCB E10
AVSSVADCB L13
AVSSVADCB L14
AVSSVADC E7
AVSSVADC E8
AVSSVADC L12
AVDD33VDAC A18
AVDD33VDAC B18
AVDD33VDAC H17
AVDD33VDAC J17
AVSSVDAC C18
AVSSVDAC D18
AVSSVDAC L16
AUDIO IN/OUT
CXD4727GB
*IC9000
AAUI_L0
C24
AAUI_R0
D24
AAUI_L1
C25
AAUI_R1
D25
AAUI_L2
A25
AAUI_R2
B25
AAUI_L3
A26
AAUI_R3
B26
AAUI_L4
A27
AAUI_R4
B27
AAUI_L5
A28
AAUI_R5
B28
AVDD33AADC
C26
AVDD33AADC
D26
AVDD33AADC
H19
AVDD33AADC
J19
AVSSAADC
A24
AVSSAADC
B24
AVSSAADC
C23
AVSSAADC
D23
AVSSAADC
E22
AVSSAADC
E23
AVSSAADC
E24
AVSSAADC
E25
AVSSAADC
L18
AVDD33ADAC
C19
AVDD33ADAC
D19
AVDD33ADAC
H18
AVDD33ADAC
J18
AVSSADAC
C20
AVSSADAC
D20
AVSSADAC
E21
AVSSADAC
L17
AAUO_CM
E20
AAUO_L0P A20
AAUO_L0M B20
AAUO_R0P A19
AAUO_R0M B19
AAUO_L1A21
AAUO_R1B21
AAUO_L2A22
AAUO_R2B22
AAUO_L3A23
AAUO_R3B23
AAUO_L4C21
AAUO_R4D21
AAUO_L5C22
AAUO_R5D22
DAUO_SPDIF H30
DAUO_MCK K30
DAUO_LRCK K29
DAUO_BCK K28
DAUO_DAT_0 J30
DAUO_DAT_1/UARTE_TX/GPIO43 J29
DAUO_DAT_2/UARTE_RX/GPIO44 J28
GND_D
M_PC_G,M_PC_B,M_PC_R
M_COMP2_SOY
M_COMP2_Y
M_COMP2_PB
M_COMP2_PR
M_COMP1_SOY
M_COMP1_Y
M_COMP1_PB
M_COMP1_PR
M_PC_G
M_PC_B
M_PC_R
VIN
ON/X_OFF NC
VOUT
GND
AUDIO IN/OUT
HP/
HP Out
Scart1 In
PC In
Comp In
Tuner In
/CVBS In
BAT-V 5/12
VIDEO AUDIO IN/OUT
A-1816-704-B <AZ2F> BATV-P5
C
M
Y
CM
MY
CY
CMY
K
BATV-P5.pdf 1/8/2011 6:38:46 PM

KDL-32EX729/40EX729/46EX729 19
KDL-32EX729/40EX729/46EX729
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 |
27 | 28 |
A
—
B
—
C
—
D
—
E
—
F
—
G
—
H
—
I
—
J
—
K
—
L
—
M
—
N
—
O
—
P
—
BATV BOARD SCHEMATIC DIAGRAM (6 OF 12)
M_ETRXER_HSS
M_ETTXEN_HSS
GND_D
M_ETTXD0_HSS
M_ETHREF_CLK
M_ETRXD1_HSS
M_ETCRS_HSS
M_USB_DMU_N
M_USB_DPU_P
+3.3V_MAIN
GND_D
M_ETTXD1_HSS
M_ETMDIO
M_ETRXD0_HSS
M_ETMDC_CLK
47R5052
CL5032
CL5037
CL5035
CL5038
CL5040
CL5033
CL5036
CL5031
CL5034
CL5039
GND_D
CL5050
CL5051
*IC5002
1
VIN
2
GND
3
EN
4
FAULT
5
ILIM
6
VOUT
GND_D
1608
*R5066
0
M_USB_DMU_N
GND_D
WIFI_USB_DM_N
WIFI_USB_DP_P
GND_D
GND_D
GND_D
100k*R5268
GND_D
BD_USB_DM_N
GND_D
GND_D
*IC5003
1
VIN
2
GND
3
EN
4
FAULT
5
ILIM
6
VOUT
BD_VBUS
WIFI_SH_GND_D
X_SYSTEM1_RST
024:12C;002:2F;002:3C;002:4B
+5.0V_MAIN
WIFI_VBUS
0 . 1
*C5252
GND_D
M_USB_DPU_P
BD_USB_DP_P
GND_D
+3.3V_MAIN
GND_D
220R5166
220R5164
220R5165
220R5163
0
*RB5201
2 1
4 3
6 5
8 7
0 . 1
*C5023
0
*FB5004
0
*FB5003
0
*RB5202
2 1
4 3
6 5
8 7
0
*RB5203
2 1
4 3
6 5
8 7
GND_D
GND_D
GND_D
GND_D
0
*RB5207
2
1
4
3
6
5
8
7
0
*RB5205
2
1
4
3
6
5
8
7
M_USB_OVCD
M_USB_PEN
+3.3V_MAIN
EMI
*FL5000
1 2
34
GND_D
220
RB5204
2 1
4 3
6 5
8 7
1005
16V
0.1
X7R
C5265
M_ETMDC_CLK
47R5051
CL5008
CL5012
M_ETTXD1_HSS
M_ETMDIO
CL5004
M_ETRXER_HSS
GND_D
GND_D
+3.3V_MAIN
M_ETCRS_HSS
CL5009CL5005
CL5006
GND_D
CL5013
CL5014
GND_D
1.5k
R5046
CL5003
1%
2.49k
R5020
*R5027XX
M_ETRXD0_HSS
SML-310MTT86
*D5001
XX
GND_D
*R5029XX
SML-310MTT86
*D5000
XX
CL5007
CL5001
CL5016
M_ETRXD1_HSS
M_ETTXD0_HSS
M_ETTXEN_HSS
1005
16V
0.1
X7R
C5019
CL5002
X_SYSTEM1_RST
M_ETHREF_CLK
CL5011
1005
6.3V
1
X6S
C5021
CL5010
CL5015
0.01
*C5011
GND_D
0.01
*C5008
0.001
*C5201
75
*RB5200
2
1
4
3
6
5
8
7
12p
*C5263
12p
*C5262
2.2k
*R5270
10k
*RB5210
2
1
4
3
6
5
8
7
6
5
7
8
9
2
1
3
4
10
11
12
Rx
Tx
*T5200
22
*C5267
*R5269
680
1%
180
R5128
1005
1/16W
RN-CP
1%
*R5062
20k
1005
1/16W
RN-CP
1%
*R5063
20k
*C5037
22
*C5036
22
*R5065
10k
*R5064
10k
4.7k
RB5001
GND_D
10k
*RB5002
2
1
4
3
6
5
8
7
+3.3V_MAIN
10k
*RB5003
2
1
4
3
6
5
8
7
+3.3V_MAIN
GND_D
CHIP
R5012
47
1/16W
5%
47R5156
JL5000
JL5001
JL5002
JL5003
*X5000
1
2
*FB5002
0uH
RTL8201ES-VE-GR
IC5001
1
MDI+[0]
2
MDI-[0]
3
NC
4
MDI+[1]
5
MDI-[1]
6
AVDD33
7
GND
8
NC
9
NC
10
NC
11
NC
12
NC
13RXDV
14RXD[0]
15DVDD33
16RXD[1]
17RXD[2]
18RXD[3]
19RXC
20GND
21DVDD33
22TXC
23TXD[0]
24TXD[1]
25
TXD[2]
26
TXD[3]
27
TXEN
28
DVDD12
29
PHYRSTB
30
MDC
31
MDIO
32
INTB
33
GND
34
LED0/PHYAD[0]
35
LED1/PHYAD[1]
36
CRS/RPTA/CRS_DV
37 DVDD33
38 COL/SNI
39 RXER/FXEN
40 PWOUT12D
41 AVDD33
42 CLKIN
43 NC
44 NC
45 NC
46 RSET
47 GND
48 PWOUT12A
IC GL850G-MNG21
*IC5000
1
AVDD
2
AGND
3
DM0
4
DP0
5
DM1
6
DP1
7
AVDD
8
AGND
9
DM2
10
DP2
11
RREF
12
AVDD
13AGND
14X1
15X2
16AVDD
17DM3
18DP3
19AVDD
20AGND
21DM4
22DP4
23PGREEN4
24PAMBER4
25
SEL48
26
RESET#
27
TEST
28
OVCUR4#
29
PWEREN4#
30
OVCUR3#
31
PWEREN3#
32
PGREEN3#
33
PAMBER3#
34
DVDD
35
PGREEN2#
36
PAMBER2#
37 PSELF
38 DVDD
39 PGANG
40 OVCUR2#
41 PWREN2#
42 OVCUR1#
43 PWREN1#
44 SEL27
45 PGREEN1#
46 PAMBER1#
47 V5
48 V33
1234
*CN5002
1234
*CN5003
*CN5006
1
2
3
4
5
6
7
8
910 1112
ETHERNET/USB
CXD4727GB
*IC9000
ETHER_REFCLK
P30
ETHER_MDCK
P28
ETHER_MDIO
P29
ETHER_TXD_0
P27
ETHER_TXD_1
R27
ETHER_RX_ER
R29
ETHER_CRS_DV
R30
ETHER_RXD_0
N26
ETHER_RXD_1
P26
ETHER_TX_EN
R28
USB_XO AF1
USB_XI AF2
USB_DPAD1
USB_DM AD2
USB_PEN/GPIO33 AC1
USB_OVCD/GPIO34 AC2
USB_REXT AB6
USB_TEST AE2
VDD33USB U9
VDD33USB U10
USB_VSS AE1
USB_VSS AG1
USB_VSS AG2
USB_VSS AJ1
USB_VSS AJ2
10k
R5200
12
USB 2
差動インピーダンス：90Ω
USB 1
BAT-V 6/12
ETHERNET USB
A-1816-704-B <AZ2F> BATV-P6
C
M
Y
CM
MY
CY
CMY
K
BATV-P6.pdf 1/8/2011 6:43:43 PM

KDL-32EX729/40EX729/46EX729 20
KDL-32EX729/40EX729/46EX729
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 |
27 | 28 |
A
—
B
—
C
—
D
—
E
—
F
—
G
—
H
—
I
—
J
—
K
—
L
—
M
—
N
—
O
—
P
—
BATV BOARD SCHEMATIC DIAGRAM (7 OF 12)
BAT-V 7/12
POWER/GND
A-1816-704-B <AZ2F> BATV-P7
GND_DGND_D
REG+12V
GND_D
JL6004
+12.5V
6.3V
22
C6083
PANEL_VCC_SW
10uH
L6005
JL6005
JL6001
JL6003
1
GND_AU
JL6002
STBY_+3.3V
JL6006
JL6018
JL6019
BACKLIGHT_MON
MAIN_PWR
JL6016
JL6017
JL6015
JL6020
AC_MON
1
2
3
4
5
6
7
8
9
9P
*CN6002
GND
PFC_PWR
TCON_ON
HSYNC/DIMMER_DC
DIMMER
BL_ON
BL_ERR
POWERON
AC_OFF_DET
JL6021
DIMMER1
JL6022
PFC_PWR
DIMMER_DC
PANEL_PWR_JOINT
R6098
10k
+3.3V_MAIN
10V
X7R
C6104
4.7
2012
6.3V
X6S
C6072
10
16V
C6059
0.1
D+1.2V
16V
C6055
0.1
16V
C6063
0.1
2012
6.3V
22
C6080
X6S
GND_D
16V
0.1
C6084
+3.3V_MAIN
GND_D
25V
C6060
0.01
GND_D
GND_D
GND_D
GND_D
D+1.2V
16V
C6067
0.1
25V
C6062
0.0116V
C6079
0.1
16V
0.1
C6071
6.3V
C6077
10
GND_D
BACKLIGHT_ON
1.8k
R6014
1%
820
R6010
1%
1608
25V
0.1
X7R
C6033
2.2uH
L6002
1608
25V
0.1
X7R
C6043
REG+12V
1.0uH
L6001
2012
6.3V
22
C6044
X6S
DDR3_+1.5V
JL6009
GND_D
GND_D
R6012
4.7k
1%
220
R6013
1%
2012
6.3V
22
C6014
X6S
+3.3V_HOKEN
1005
X7R
C6021
3300p
10V
X7R
C60104.7
+3.3V_MAIN
R6022
0
2012
6.3V
22
C6034
X6S
3216
10V
22
C6025
X6S
4.7k
R6008
1%
JL6008
D+1.2V
R6009
22k
1%
3216
10V
X6S
C6026
22
GND_D
SYSTEM2_PWR
REG+12V
1%
2.2k
R6005
2.2uH
L6004
1%10k
R6006
2012
6.3V
X6S
C6045
22
3.9k
R6004
1%
SYSTEM2_PWR
SYSTEM2_PWR
2012
10V
2.2
X7R
C6028
REG+12V
+5.0V_MAIN
2012
6.3V
X6S
C6015
22
1608
16V
1
X7R
C6020
2012
6.3V
X6S
C6016
22
120k
R6007
1%
R6015
2.2k
1%
GND_D
JL6010
3.15A
F6001
15k
R6011
1%
1005
50V
X7R
C6011
3300p JL6007
GND_D
1608
16V
1
X7R
C6009
3.15A
F6003
SYSTEM1_PWR
3.15A
F6002
1608
25V
0.1
X7R
C6024
GND_D
1608
25V
0.1
C6012
X7R
2012
6.3V
X6S
C6035
22
1%R6100 10k
*CN6001
10P
1T-CON_VCC(12.5V/5V)
2REG+12.5V
3REG+12.5V
4REG+12.5V_GND
5REG+12.5V_GND
6AUDIO+12.5V_GND
7AUDIO+12.5V_GND
8AUDIO+12.5V
9AUDIO+12.5V
10STBY_+3.3V
25V
C6069
X7R
0.01
TPS54425PWPR
IC6002
1234567
8 9 10 11 12 13 14
15
TPS53114APWR
IC6005
12345
678
910 11 12 13 14 15 16
S1 S2 G
D1D2D3
RP1E090XNFPFTCR
Q6003
123
456
S1 S2 G
D1D2D3
RP1E070XNFPFTCR
Q6002
123
456
BD95830MUV-E2
IC6003
12345678
9
10
11
12
13
14
15
16
1718192021222324
25
26
27
28
29
30
31
32
3.3uH
L6003
2012
16V
10
X6S
C6007
2012
16V
10
X6S
C6008
2012
16V
10
X6S
C6022
2012
16V
10
X6S
C6023
2012
16V
10
X6S
C6031
2012
16V
10
X6S
C6032
2012
16V
10
X6S
C6041
2012
16V
10
X6S
C6042
GND
CXD4727GB
*IC9000
VSS
M12
VSS
M13
VSS
M14
VSS
M15
VSS
M16
VSS
M17
VSS
M18
VSS
M19
VSS
N12
VSS
N13
VSS
N14
VSS
N15
VSS
N16
VSS
N17
VSS
N18
VSS
N19
VSS
P12
VSS
P13
VSS
P14
VSS
P15
VSS
P16
VSS
P17
VSS
P18
VSS
P19
VSS
R12
VSS
R13
VSS
R14
VSS
R15
VSS
R16
VSS
R17
VSS(NC)
A1
VSS(NCAGC)
A30
VSS(NC)
AK1
VSS(NC)
AK30
VSS R18
VSS R19
VSS T12
VSS T13
VSS T14
VSS T15
VSS T16
VSS T17
VSS T18
VSS T19
VSS U12
VSS U13
VSS U14
VSS U15
VSS U16
VSS U17
VSS U18
VSS U19
VSS V12
VSS V13
VSS V14
VSS V15
VSS V16
VSS V17
VSS V18
VSS V19
VSS W12
VSS W14
VSS W17
VSS W19
CVDD/IOVDD/PLLVDD
CXD4727GB
*IC9000
VDDC
M9
VDDC
M10
VDDC
N9
VDDC
N10
VDDC
N21
VDDC
N22
VDDC
P21
VDDC
P22
VDDC
R9
VDDC
R10
VDDC
T9
VDDC
T10
VDDC
T21
VDDC
T22
VDDC
U21
VDDC
U22
VDDC
W25
VDDC
W26
VDD33 P9
VDD33 P10
VDD33 R21
VDD33 R22
VDD12PLL M21
VDD12PLL M22
VDD12PLL V9
VDD12PLL V10
1005
50V
X7R
C6101
0.001
C6102
X7R
0.001
C6103
X7R
0.001C6111
X7R
0.001
R6034 0
R6033 0
X7R
C6004
0.001
To G board
To G board
SW2
PGND1
VIN2
SW2
PGND1
VBST
PGND1
PGND2
1-460-357-11
GND
BOOT1
VIN2
GND
145773011
VCC
SW2
GND
+5.0V_MAIN
PGND
VIN2
SS
CER
SW2
VIN1
VCC
FSEL
TEST
V5FILT
DDR3_+1.5V
SW
145752611
+3.3V_MAIN
TRIP
FB1
VFB
VBST
PwPd
VIN
BOOT2
VREG5
VO
SW1
PG
VIN1
DRVH
VIN
SS
PGND2
PGND1
GND
SW1
PGND2
VIN1
VOUT2
VREG5
SW1
3.15A
EN
FB2
EN1
VREG
EN2
DRVL
VFB
D+1.2V
VOUT1
PGND2
EN
SW1
3.15A
VINS
VO
