Sony FD Trinitron Wega KV-AR34 User manual

© 2002 Sony Corporation
KV-AR34
KV-AR29
KV-AR25
4-089-670-11 (1)
M68
M64
GB
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain it
for future reference.
§ŸË¡◊Õ°“√„™Èß“π
•°ËÕπ‡√‘Ë¡°“√„™Èß“π°√ÿ≥“ÕË“π§ŸË¡◊Õπ’È‚¥¬≈–‡Õ’¬¥∑—ÈßÀ¡¥·≈–‡°Á∫√—°…“§ŸË¡◊Õ «È
”À√—∫ÕÈ“ßÕ‘ß„π‚Õ°“µËÕÊ ª
‰∑¬
Trinitron Color TV
‡§√◊ËÕß√—∫‚∑√∑—»πÏ’ Trinitron

Sony KV-AR34M64 Group R6 (GB)_4-089-670-11 (1)
2
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 220 – 240 V AC.
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
• To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.

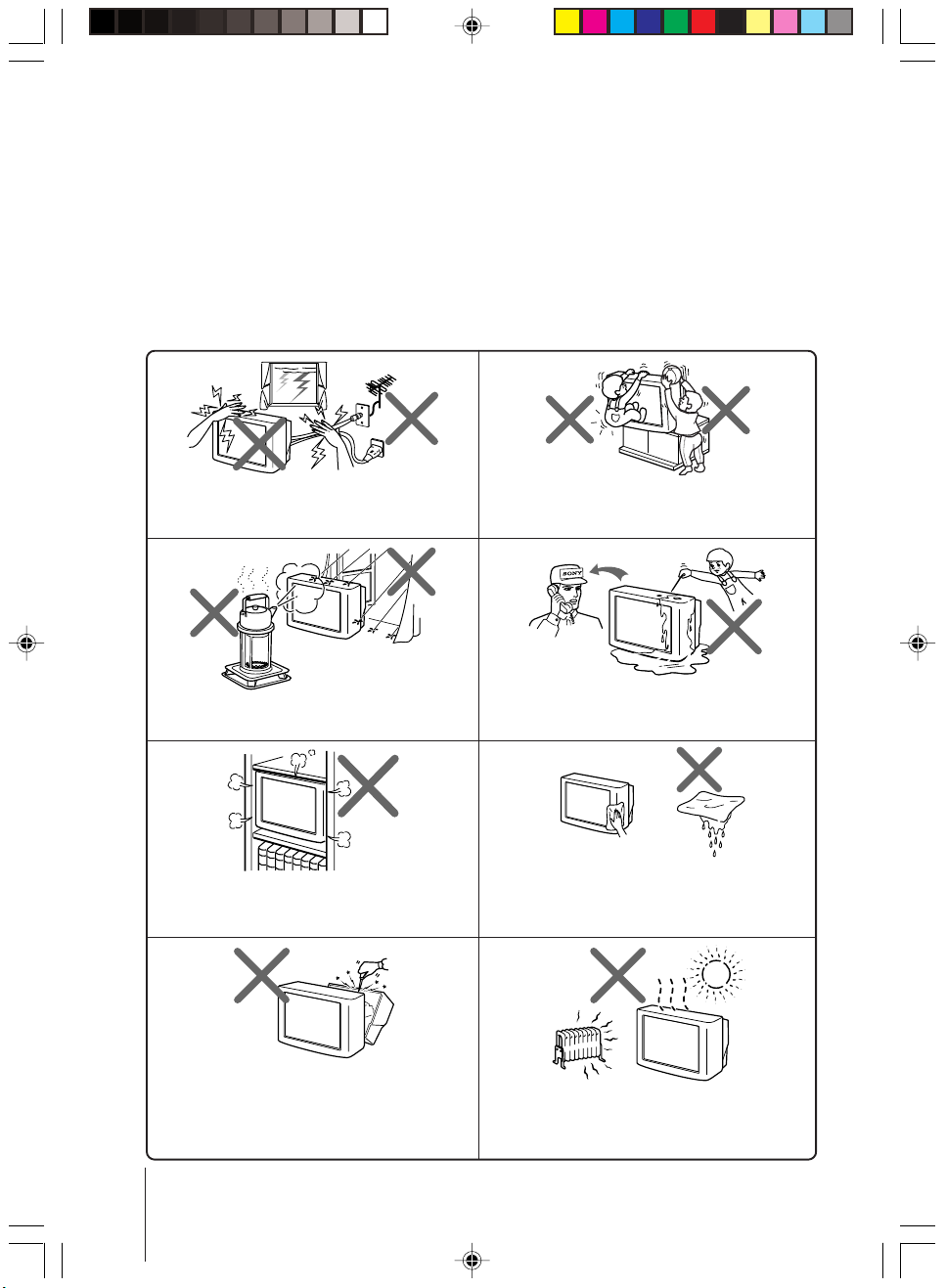

Do not open the cabinet and the rear cover of the
TV as high voltages and other hazards are present
inside the TV. Refer servicing and disposal of the
TV to qualified personnel.
Your TV is recommended for home use only.
Do not use the TV in any vehicle or where it may
be subject to excessive dust, heat, moisture or
vibrations.
To prevent fire or shock hazard, do not expose the
TV to rain or moisture.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Do not block the ventilation openings of the TV.
Do not install the TV in a confined space, such as a
bookcase or built-in cabinet.
For children’s safety, do not leave children
alone with the TV. Do not allow children to
climb onto it.
Clean the TV with a dry and soft cloth.
Do not use benzine, thinner, or any other chemicals to
clean the TV. Do not attach anything (e.g., adhesive
tape, cellophane tape, glue) on the painted cabinet of
the TV. Do not scratch the picture tube.
For your own safety, do not touch any part of the
TV, the power cord and the antenna cable during
lightning storms.
01GB02WAR-THA.p65 2/11/02, 10:11 AM2

Sony KV-AR34M64 Group R6 (GB)_4-089-670-11 (1)
3
Install the TV on a stable TV stand and floor which
can support the TV set weight. Ensure that the TV
stand surface is flat and its area is larger than the
bottom area of the TV.
Do not place any objects on the TV.
Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Pull the power cord out by the plug. Do not pull
the power cord itself. Even if your TV is turned
off, it is still connected to the AC power source
(mains) as long as the power cord is plugged in.
Unplug the TV before moving it or if you are not
going to use it for several days.
01GB02WAR-THA.p65 2/11/02, 10:11 AM3

Sony KV-AR34M64 Group R6 (GB)_4-089-670-11 (1)
4
xSecuring the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
(1) Attach each end of a cord or chain to
the provided holders at the rear of
your TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
Note
• Use only the supplied screws. Use of other screws may damage the TV.
or
or
01GB02WAR-THA.p65 2/11/02, 10:11 AM4

5
GB
Table of Contents
Installation
Getting Started ..................................... 6
Setting up your TV
(“INITIAL SETUP”) ............................. 7
Overview of Controls
TV front and rear panels ..................... 8
Remote control ..................................... 9
Advanced Operations
Selecting the picture and sound
modes .................................................. 11
Viewing the picture with DTE ......... 12
Viewing the picture in wide mode .. 12
Watching Picture-in-Picture (PIP)
(KV-AR34M64/AR29M64 only) ...... 13
Selecting a TV program using PIP
(KV-AR34M64/AR29M64 only) ...... 14
Listening with surround sound ....... 14

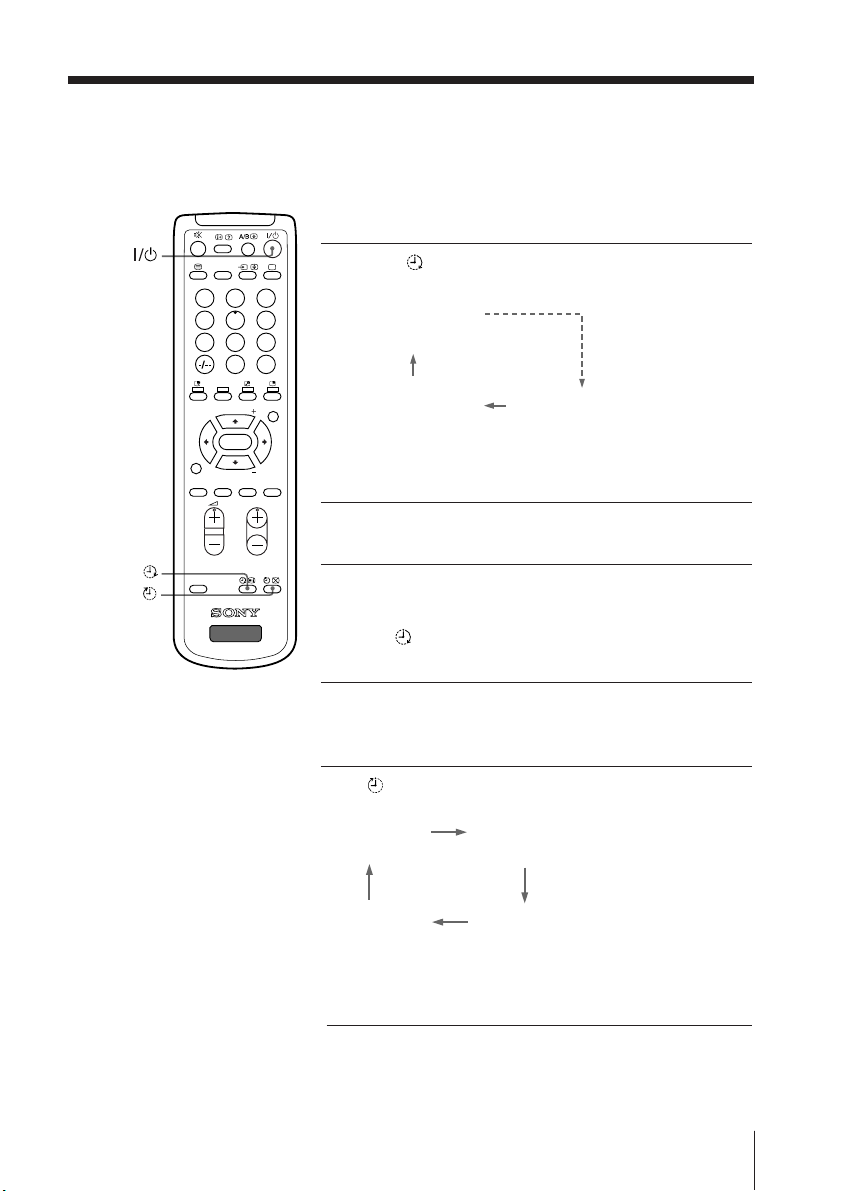

Setting the timers ............................... 15

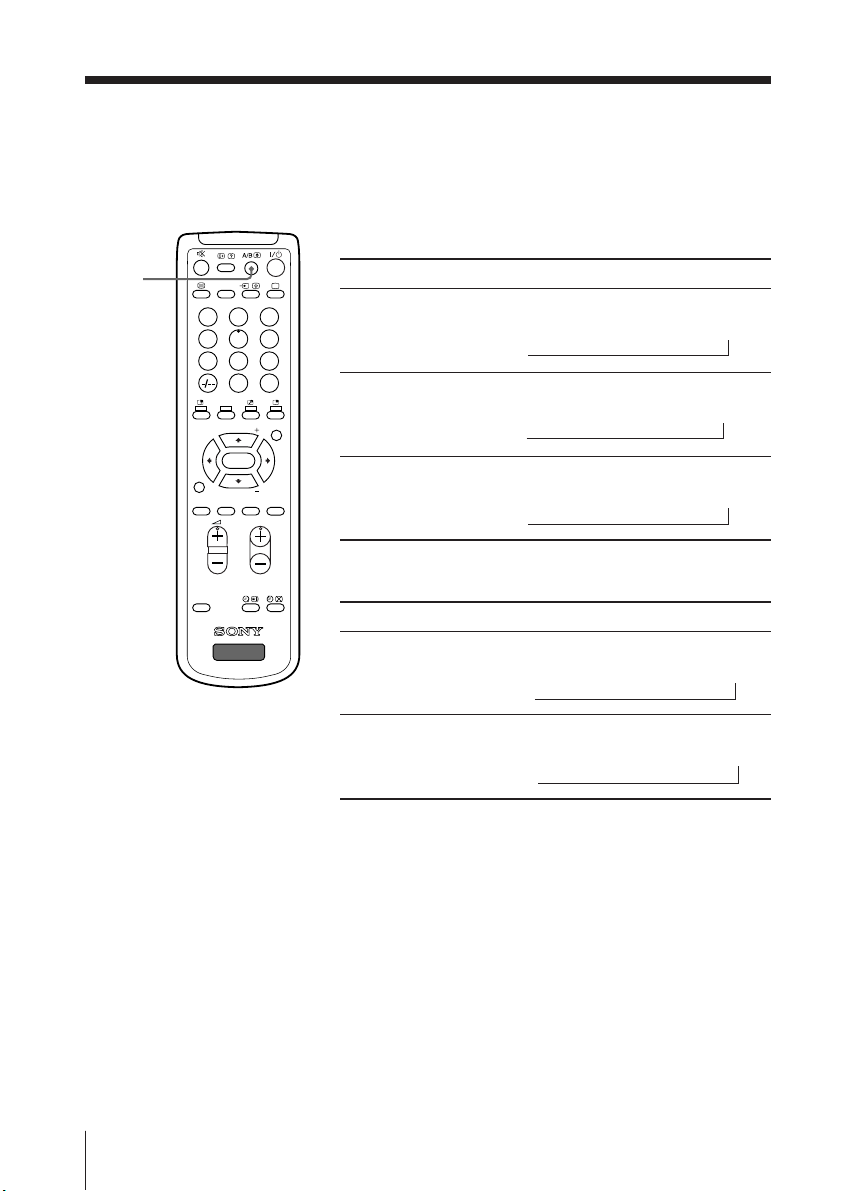

Enjoying stereo or bilingual
programs ............................................. 16
Menu Adjustment

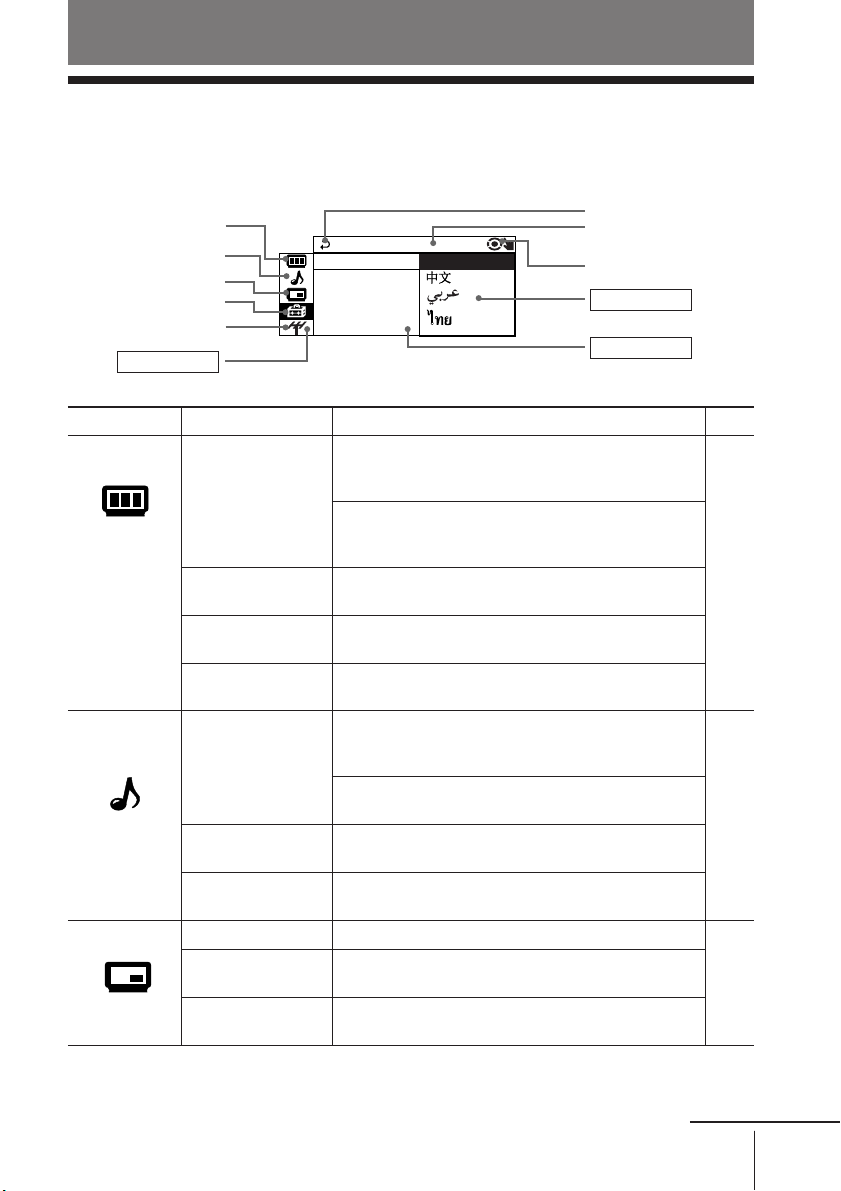

Introducing the menu system .......... 17
Changing the “PICTURE” setting ... 20
Changing the “SOUND” setting ..... 22

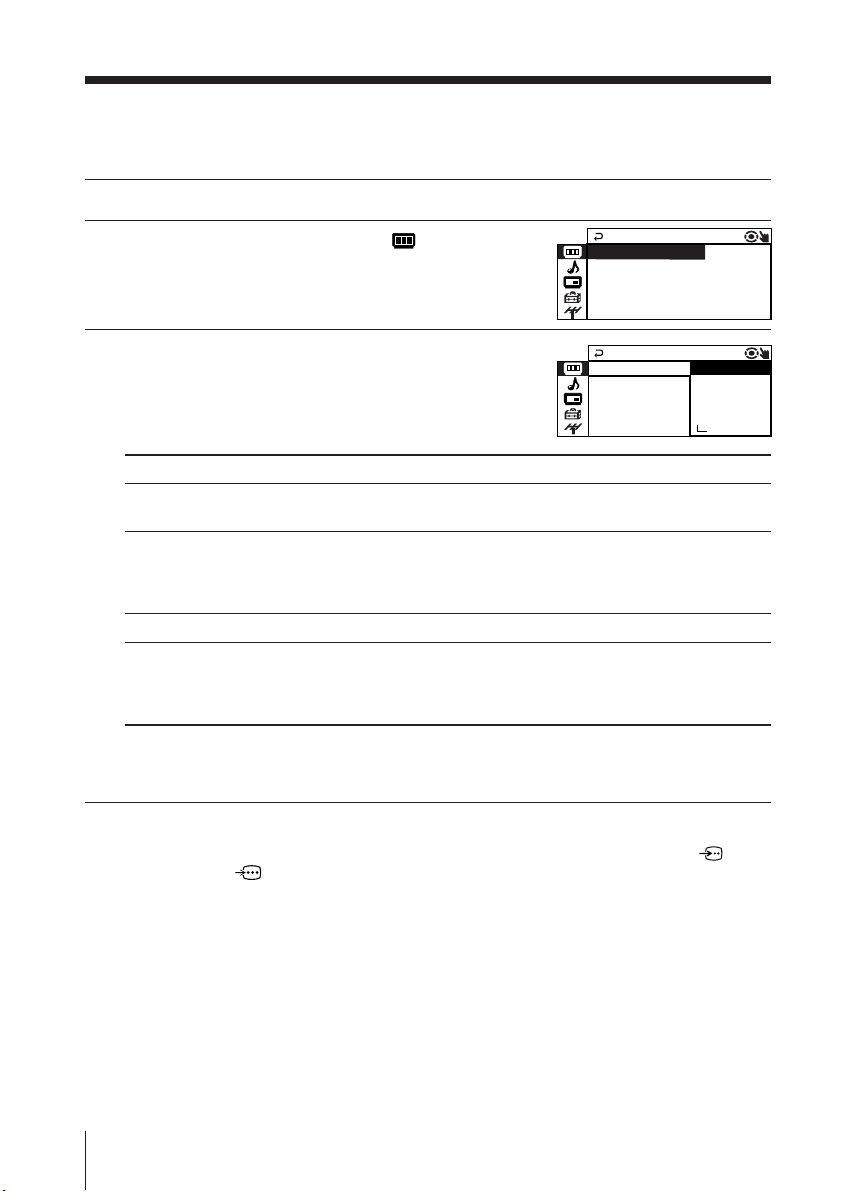

Changing the Picture-in-Picture
(“PIP”) setting
(KV-AR34M64/AR29M64 only) ...... 24
Changing the “SETUP” setting ........ 25
Changing the Channel Preset
(“CH PRESET”) setting ..................... 27
Additional Information
Connecting optional components ... 30
Troubleshooting ................................. 32
Specifications ...................... Back cover

6Installation
Installation
xGetting Started
UP
INITIAL SET
ENG ILSH
LAN UG AGE:
b
b
1
Step 1
Insert the batteries (supplied) into the remote.
Note
• Do not use old or different types of batteries together.
Step 2
Step 3
Step 4
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
Tip
• You can also connect your TV to other optional components
(see page 30).
Set up the TV by following the instructions of the
“INITIAL SETUP”menu (see page 7).
Plug in the power cord, then press !on the TV to
turn it on.

7
Installation
Installation
x Setting up your TV
(“INITIAL SETUP”)
When you turn on your TV for the first time,
the “INITIAL SETUP” menu will appear.
This menu allows you to change the menu
language, adjust the picture position and
preset the TV channels automatically.
1Press Vor vto select the desired menu
language (e.g.,”ENGLISH”), then press
ENTER.
The selected menu language appears.
2If the “PIC ROTATION” bar is
slanted, press Vor vto adjust it,
then press ENTER.
If no adjustment is necessary,
then press ENTER.
The or icon on the screen
flashes while adjusting.
3Press Vor vto select “YES”, then press
ENTER to preset the channels
automatically (see page 27).
The screen will indicate automatic presetting
is in progress.
To skip automatic channel presetting, select
“NO”, then press ENTER.
4Press Vor vto select “NO”, then press
ENTER. The “INITIAL SETUP” menu will
not appear again the next time you turn
on the TV by pressing !.
To allow this menu to appear again, select
“YES”, then press ENTER.
Tips
• You can immediately go to the end of the ”INITIAL SETUP” menu by pressing MENU.
• You can also set up your TV using the menu system (see page 17).
UP
INITIAL SET
ENG ILSH
LAN UG AGE:
UP
INITIAL SET
ES
START
NOW?
AUTO PROGRAM
Y
NO
UP
INITIAL SET
HI
S
DISPAL
NEX TTIME?
Y T EN
U
M
Y
NO
ES
UP
INITIAL SET
YS
:
PR : 09
TV AUTOS
HF
LOWV
MENU
PIC
MODE
SOUND
PIP PROGR
PIP PROGR
ENTER
DTE
V/v/ENTER
MENU
UP
INITIAL SET
PIC ROTATI ON
Rotate anti-
clockwise
Rotate
clockwise
Refer to this bar when
adjusting.

8Overview of Controls
Overview of Controls
3
L(MONO) R
PROGRMENU AUTO
PROGR
ENTER SELECT
PROGRMENU AUTO
PROGR
ENTER SELECT
1
4
0
qa
32
8756
9
123
RLY
CBCR
qf qd
3
L(MONO) R
qs
Button/Terminal Function Page
1!Turn off or turn on the TV. 6
21Standby indicator. –
2Wake Up indicator. 15
2Stereo/bilingual indicator. 16
3Remote control sensor. –
4PROGR +/– Select program number. –
52+/– Adjust volume. –
6tSelect TV or video input. –
7AUTO PROGR Preset channels automatically. –
Menu operations
5SELECT V/v Select and adjust items. 19
6ENTER Confirm selected items. 19
8MENU Display or cancel the menu. 19
9t3 Video input terminal 3. 30
0iHeadphone jack. –
qa Component video input terminal. 31
qs 8Antenna input terminal. 30
qd TMonitor output terminal. 30
qf t1, t2, t3 Video input terminal 1, 2, 3. 30
TV front panel
TV rear panel
xTV front and rear panels

9
Overview of Controls
Overview of Controls
Button Function Page
1?/1Turn off temporarily or –
turn on the TV.
3aDisplay the TV input. –
40 – 9, -Input numbers. –
5JUMP Jump to previous program –
number.
9SURROUND Select surround mode. 14
0WIDE MODE Select wide-mode (16:9). 12
qa PROGR +/– Select program number. –
qf Display on-screen information. –
qg %Mute the sound. –
qh DVD Select component video input. 31
qj t Select TV or video input. 30
wa DTE Select DTE mode. 12
ws SOUND MODE Select sound mode. 11
wd PIC MODE Select picture mode. 11
wf 2+/– Adjust volume. –
Timer operations
qs Set TV to turn off 15
automatically.
qd Set TV to turn on 15
automatically.
PIP operations (yellow label)
(KV-AR34M64/AR29M64 only)
6Display a sub screen. 13
7Swap main and sub 13
screens.
8PIP PROGR +/ Display and change 13,14
PIP PROGR – programs in the sub screen.
qk Select a video input in the 13
sub screen.
ql SOUND Swap sound between main 13
and sub screen.
w; ENTER Change sub screen to main 14
screen.
Stereo/bilingual operations
2A/B Select stereo/bilingual 16
mode.
xRemote control
231
564
897
0
JUMP
PROGR
MENU
PIC
MODE
SOUND
MODE
WIDE
MODE
SURROUND
RESET
SOUND
TV
PIP PROGR
PIP PROGR
ENTER
DVD
DTE
wf
3
4
5
6
8
0
qa
qs
qk
wa
2
qf
qh
qj
w;
7
qd
9
wd
ws
1
qg
ql
continue

10 Overview of Controls
231
564
897
0
JUMP
PROGR
MENU
PIC
MODE
SOUND
MODE
WIDE
MODE
SURROUND
RESET
SOUND
TV
PIP PROGR
PIP PROGR
ENTER
DVD
DTE
wh
wk
wj
wg
ef
ed
es
eg
eh
ej e;
ea
wl
continued
Button Function Page
Menu operations
wj MENU Display or cancel the menu. 19
wk ENTER Confirm selected items. 19
eh V, v, B , b Select and adjust items. 19
Teletext operations (green label)
wg
wh 0 – 9
wl PROGR +/–
e;
ea
es
Not function for your TV. –
ed
ef
eg (red, green,
yellow, blue)
ej RESET Set TV to factory setting. 32

11
Advanced Operations
Advanced Operations
Selecting the sound mode
Press SOUND MODE to select the desired sound
mode.
Select To
“ DYNAMIC” listen to dynamic and clear
sound that emphasizes both the
low and high tones.
“ DRAMA” listen to sound that emphasizes
voice and high tones.
“ SOFT” listen to soft sound.
“ PERSONAL” receive the last adjusted sound
setting from the “ADJUST”
option in the “SOUND” menu
(see page 23).
xSelecting the picture and sound
modes
You can select picture and sound modes and adjust the setting to your
preference in the “PERSONAL” option.
Selecting the picture mode
Press PIC MODE to select the desired picture
mode.
PIC MODE
Select To
“DYNAMIC” view high contrast pictures.
“STANDARD” view normal pictures.
“SOFT” view mild pictures.
“PERSONAL” receive the last adjusted picture
setting from the “ADJUST”
option in the “PICTURE” menu
(see page 21).
231
564
897
0
JUMP
PROGR
MENU
SOUND
MODE WIDE MODE
SURROUND
RESET
SOUND
TV
PIP PROGR
PIP PROGR
ENTER
DVD
PIC
MODE
DTE
SOUND
MODE

12 Advanced Operations
PROGR
MENU
PIC
MODE
DTE
SOUND
MODE WIDE MODE
SURROUND
SOUND
PIP PROGR
PIP PROGR
ENTER
xViewing the picture with DTE
The Digital Texture Enhancer (DTE) feature allows you to enjoy a more natural
and vivid picture by optimizing the contrast of each object in the picture.
You can use the DTE button to select “ON” or “OFF”.
Select To
“ON” enhance each object’s details and
contours with optimum contrast.
“OFF” cancel DTE.
DTE
Note
• The DTE mode is not selectable when the “GAME MODE” is turned “ON”.
The DTE logo ( ) and “DTE” are trademarks of Sony Corporation.
PROGR
DRC-MF
SOUND
MODE WIDE MODE
SURROUND
PIP PROGR
ENTER
PIC
MODE
DTE
xViewing the picture in wide mode
When receiving a wide-mode (16:9) signal, the picture will appear “squeezed”
(compressed) on your screen. Use the WIDE MODE button to view the picture
with the optimal effect.
Select To
“ON” view the picture in wide-mode
(16:9).
“OFF” cancel wide-mode (16:9).
WIDE
MODE

13
Advanced Operations
Press
.
To cancel the sub screen, press
the button again.
PIP PROGR + or
PIP PROGR –.
.
.
SOUND.
xWatching Picture-in-Picture (PIP)
BKV-AR34M64/AR29M64 only
With the PIP feature, you can display two different TV
programs or video input at the same time by using the
button.
To
Display a sub screen
Change a program number
in the sub screen
Select a video input in the
sub screen
Swap pictures between
the main and sub screens
Swap sound between the
main and sub screens
A “ ” symbol will appear
next to the program
number or video input
display to indicate which
screen you are hearing.
Note
• The picture and sound from the T (monitor output) terminals will always be from the main
screen, even when you select the sub screen sound by pressing SOUND (see page 30).
PIP PROGR +/
PIP PROGR –
/ SOUND /
/
0
JUMP
MENU
PIC
MODE
DTE
SOUND
PIP PROGR
PIP PROGR
ENTER

14 Advanced Operations
xSelecting a TV program using PIP
BKV-AR34M64/AR29M64 only
You can select your desired TV program directly from the PIP sub screen by
using PIP PROGR +/– buttons.
1Press PIP PROGR +/– until the desired program
appears in the sub screen.
2Press ENTER to change the sub screen
program to the main screen.
xListening with surround sound
You can use the SURROUND button to listen to the sound effects of a concert
hall or movie theater.
Select To
“TruSurround” listen to the surround sound that
spreads out to the rear of a room.
“SIMULATED” listen to monaural sound with a
stereo-like effect.
“OFF” cancel surround sound.
The surround of your TV is categorized as TruSurround.
TM
is a trademark of SRS Labs, Inc. SRS and the SRS symbol are
registered trademarks of SRS Labs, Inc. in the United States and selected foreign
countries. SRS and TruSurround are incorporated under license from SRS Labs, Inc.
and are protected under United States Patent Nos. 4,748,669 and 4,841,572 with
numerous additional issued and pending foreign patents.
PROGR
SOUND
MODE WIDE MODE
SURROUND
RESET
PIP PROGR
ENTER
PIC
MODE
DTE
SURROUND
PROGR
MENU
PIC
MODE
DTE
SOUND
MODE WIDE MODE
SURROUND
SOUND
PIP PROGR
ENTER
PIP PROGR
PIP PROGR +/
PIP PROGR –/
ENTER
12

15
Advanced Operations
xSetting the timers
You can set your TV to turn on and off automatically by using the WAKE UP
and SLEEP timers respectively.
Setting the Wake Up timer
1Press until the desired period of time
appears on the screen.
The Wake Up timer starts immediately after you
have set it.
2Select the program number or video input you
want to wake up to.
3Press \/1, or set the Sleep timer if you want
the TV to turn off automatically.
The indicator on the TV lights up orange
when the TV goes into standby mode.
Setting the Sleep timer
Press until the desired period of time appears on
the screen.
The Sleep timer starts immediately after you have set
it.
Notes
• You can also cancel the Wake Up and Sleep timers by pressing !on the TV to turn off the TV.
• If no buttons are pressed for more than two hours after the TV is turned on using the Wake Up
timer, the TV automatically goes into standby mode.
231
564
897
0
JUMP
PROGR
MENU
SOUND
MODE WIDE MODE
SURROUND
RESET
SOUND
TV
PIP PROGR
PIP PROGR
ENTER
DVD
PIC
MODE
DTE
WAKE UP TIMER:10M
WAKE UP TIMER:OFF WAKE UP TIMER:12H00M
(After 10 minutes)
(No Wake Up timer) (After 12 hours)
SLEEP TIMER:30M SLEEP TIMER:60M
SLEEP TIMER:OFF SLEEP TIMER:90M
(After 30 minutes)
(No Sleep timer)
(After 60 minutes)
(After 90 minutes)

16 Advanced Operations
xEnjoying stereo or bilingual
programs
You can enjoy stereo sound or bilingual programs of NICAM and A2 stereo
systems by using the A/B button.
Notes
• If the stereo sound is noisy when receiving a stereo program, select “MONO”. The sound
becomes monaural, but the noise is reduced.
• If the sound is distorted when receiving a monaural program through 8 (antenna input),
press A/B repeatedly until “MONO” appears on the screen. To cancel the monaural sound
setting, press A/B again until “AUTO” appears on the screen.
• Your TV can only receive monoural sound when you select the PIP sub screen sound by
pressing SOUND (see page 13).
When receiving a NICAM program
Broadcasting On-screen display (Selected sound)
NICAM
stereo
NICAM
bilingual
NICAM
monaural
When receiving an A2 program
Broadcasting On-screen display (Selected sound)
A2
stereo
A2
bilingual
231
564
897
0
JUMP
PROGR
MENU
PIC
MODE
DTE
SOUND
MODE WIDE MODE
SURROUND
RESET
SOUND
TV
PIP PROGR
PIP PROGR
ENTER
DVD
NICAM
(Stereo sound)
MONO
(Regular sound)
t
t
NICAM MAIN
(Main sound)
NICAM SUB
(Sub sound)
MONO
(Regular sound)
tt
t
MONO
(Regular sound)
STEREO
(Stereo sound)
t
t
MAIN
(Main sound)
SUB
(Sub sound)
t
t
NICAM MAIN
(Main sound)
MONO
(Regular sound)
t
t
A/B

17
Menu Adjustment
Menu Adjustment
Return icon
CH PRESET icon
SETUP icon
SOUND icon
Name of the current
menu
PICTURE icon
xIntroducing the menu system
The MENU button lets you open a menu and change the settings of your TV.
The following is an overview of the menu system.
Menu level 3
Menu level 2
Guide mark icon
Menu level 1
LANGUAGE :
COL OR S YS :
SETUP
PROGRAM SE
PIC ROT A T I
ENGL I SH
Page
20
22
24
continue
PIP icon
Level 1
“PICTURE”
“SOUND”
“PIP”
(KV-AR34M64/
AR29M64 only)
Level 2
“PICTURE MODE”
“ADJUST”
“DTE”
“WIDE MODE”
“GAME MODE”
“SOUND MODE”
“ADJUST”
“SURROUND”
“INTELLIGENT
VOL”
“POSITION”
“PIP”
“SWAP”
Level 3/Function
Select the picture mode:
“DYNAMIC” t“STANDARD” t“SOFT” t
“PERSONAL” t“ADJUST”
Adjust the “PERSONAL” option:
“PICTURE” t“COLOR” t“BRIGHT” t
“HUE” t“SHARP”
Optimize the picture contrast:
“ON” t“OFF”
Change the picture size:
“ON” t“OFF”
Adjust the picture settings for video games:
“ON” t“OFF”
Select the sound mode:
“DYNAMIC” t“DRAMA” t“SOFT” t
“PERSONAL” t “ADJUST”
Adjust the “PERSONAL” option:
“BASS” t“TREBLE” t“BALANCE” t“BBE”*
Select the “SURROUND” mode:
“TruSurround” t “SIMULATED” t“OFF”
Adjust volume automatically:
“ON” t“OFF”
Change the position of the sub screen.
Display a sub screen within the main picture:
“ON” t“OFF”
Exchange pictures between main screen and sub
screen.

18 Menu Adjustment
* The BBE is manufactured by Sony Corporation under license from BBE Sound, Inc. It is
covered by U.S. Patent No. 4,638,258 and No. 4,482,866. The word “BBE” and the BBE symbol
are the trademarks of BBE Sound, Inc.
Level 1
“SETUP”
“CH PRESET”
Level 2
“LANGUAGE”
“PIC ROTATION”
“PROGRAM
SETUP”
“COLOR SYS”
“AUTO
PROGRAM”
“MANUAL
PROGRAM”
“TV SYS”
Level 3/Function
Change the menu language:
“ENGLISH” t“ ”(Chinese) t
“ ”(Arabic) t “ ”(Thai)
Adjust the picture position.
Adjust each program number settings.
Select the color system:
“AUTO” t“ PAL” t“SECAM” t“NTSC3.58”
t “NTSC4.43”
Preset channels automatically.
Preset channels manually.
Select the TV system:
“B/G” t“I” t“D/K” t“M”
Page
25
27
continued

19
Menu Adjustment
How to use the menu
Press V or v(or B/b)
to select the desired
item.
Press ENTER to
confirm your
selection and go to
the next level.
Press MENU to display
the menu.
Other menu operations
Tips
• If you want to exit from Menu level 2 to Menu level 1, press Vor vuntil the return icon ( )
is highlighted, then press ENTER.
• Some of the menu items can be operated directly using the remote buttons.
• The MENU, ENTER, and SELECT
/
buttons on the TV can also be used for the operations
above.
PROGR
MENU
PIC
MODE
DTE
SOUND
MODE
WIDE
MODE
SURROUND
RESET
TV
PIP PROGR
PIP PROGR
ENTER
b
ENTER
AUTO PROGR
CHPPRESET
TVASYS : AUT
MA N U A L F
F
PRO
O
GRAM
AM
b
ENTER
AUTOTPROGR
CHPPRESET
TVASYS :AUTO
MANUA L FPROGRAM
AM
PROGRMENU
AUTO
PROGR
ENTER SELECT
Front of TV
b
MENU
NT P
IC:OFF
WI DE MODE : OFF
GAME MODE : OF F
DTE : N
O
PICTURE MO C
DE : DYNAM I
To
Adjust the setting value
Move to the next/previous menu level
Cancel the menu
Press
V, v, B or b.
B or b.
MENU.

20 Menu Adjustment
xChanging the “PICTURE” setting
The “PICTURE” menu allows you to adjust the picture settings.
1Press MENU.
2Make sure the “PICTURE” icon ( ) is
selected, then press ENTER.
3Press Vor vto select the desired item
(e.g., “PICTURE MODE”), then press ENTER.
Select To
“PICTURE MODE” choose either “DYNAMIC”, “STANDARD”, “SOFT”,
“PERSONAL”*, or “ADJUST” (see page 11).
“DTE” optimize the picture contrast.
Press Vor vto select “ON”, then press ENTER.
To cancel, select “OFF”, then press ENTER.
“WIDE MODE” choose either “ON” or “OFF” (see page 12).
“GAME MODE” adjust the picture setting that is suitable to view video games.
Press Vor vto select “ON”, then press ENTER.
To cancel, select “OFF”, then press ENTER.
* When the “PERSONAL” mode is selected, you can receive the last adjusted picture
settings from the “ADJUST” option (see page 21).
Notes
• “GAME MODE” is available only when receiving signals through t (video input),
(S video input), or (component video input).
• The DTE mode is not selectable when “GAME MODE” is turned “ON”.
DT E : ON
WI DE MODE : OF F
GAME MODE : OF F
CP I CTURE MODE : DYNAM I
WI DE MODE O:
DTE : ON
PI CTURE MOD
STANDARD
DYNAM I C
PERSONA L
SOF T
ADJ UST
GAME MODE O:
