Sony KV-SR29 User manual

Trinitron Color TV
Operating Instructions
• Before operating the unit, please read this manual thoroughly and
retain it for future reference.
KV-SR29
© 2004 Sony Corporation
2-547-872-11(2)
N63K
GB

2

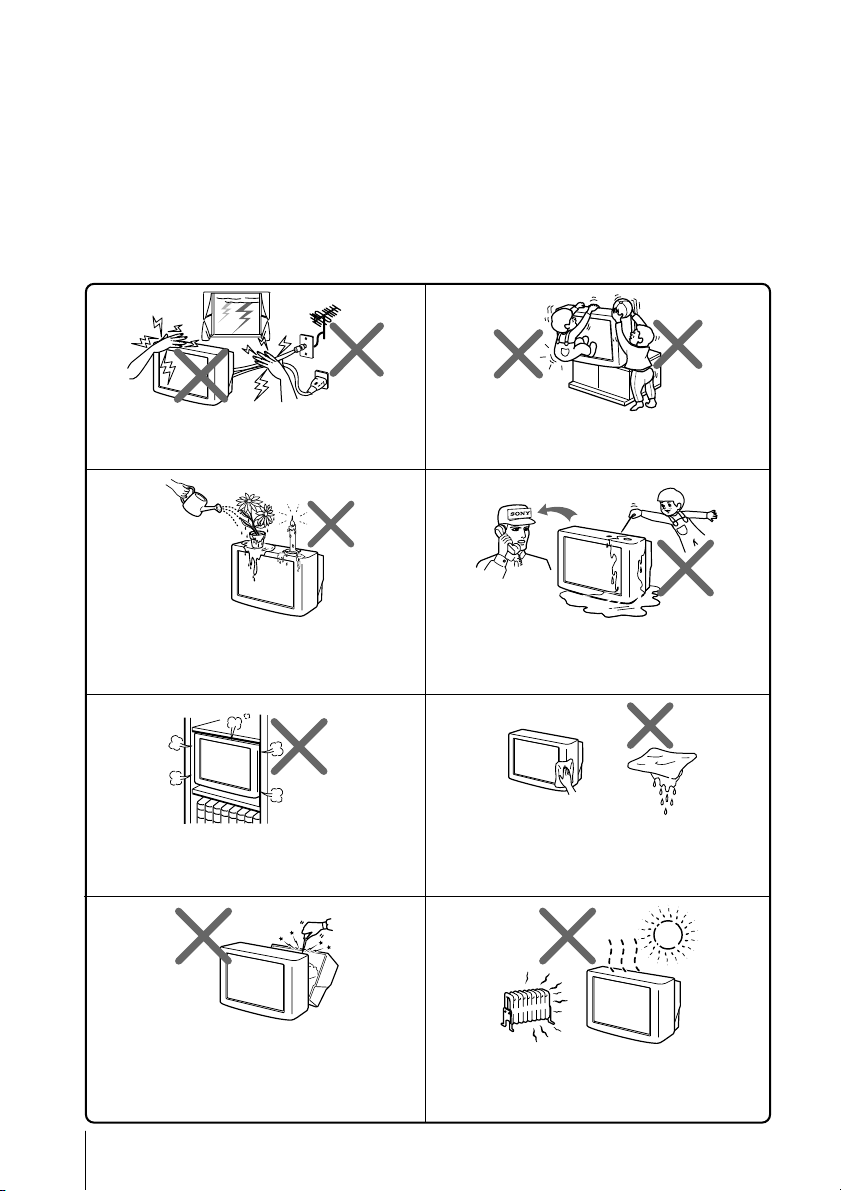

Do not place any objects on the TV. The apparatus
shall not be exposed to dripping or splashing and
that no objects filled with liquids, such as vases,
shall be placed on the apparatus.
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 110 - 240V AC.
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
• To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
Do not open the cabinet and the rear cover of the
TV as high voltages and other hazards are present
inside the TV. Refer servicing and disposal of the
TV to qualified personnel.
Your TV is recommended for home use only.
Do not use the TV in any vehicle or where it may be
subject to excessive dust, heat, moisture or
vibrations.
Do not operate the TV if any liquid or solid object
falls into it. Have it checked immediately by
qualified personnel only.
Do not block the ventilation openings of the TV.
Do not install the TV in a confined space, such as a
bookcase or built-in cabinet.
For children’s safety, do not leave children alone
with the TV. Do not allow children to climb onto it.
Clean the TV with a dry and soft cloth.
Do not use benzine, thinner, or any other chemicals to
clean the TV. Do not attach anything (e.g., adhesive
tape, cellophane tape, glue) on the painted cabinet of
the TV. Do not scratch the picture tube.
For your own safety, do not touch any part of the
TV, the power cord and the antenna cable during
lightning storms.

3

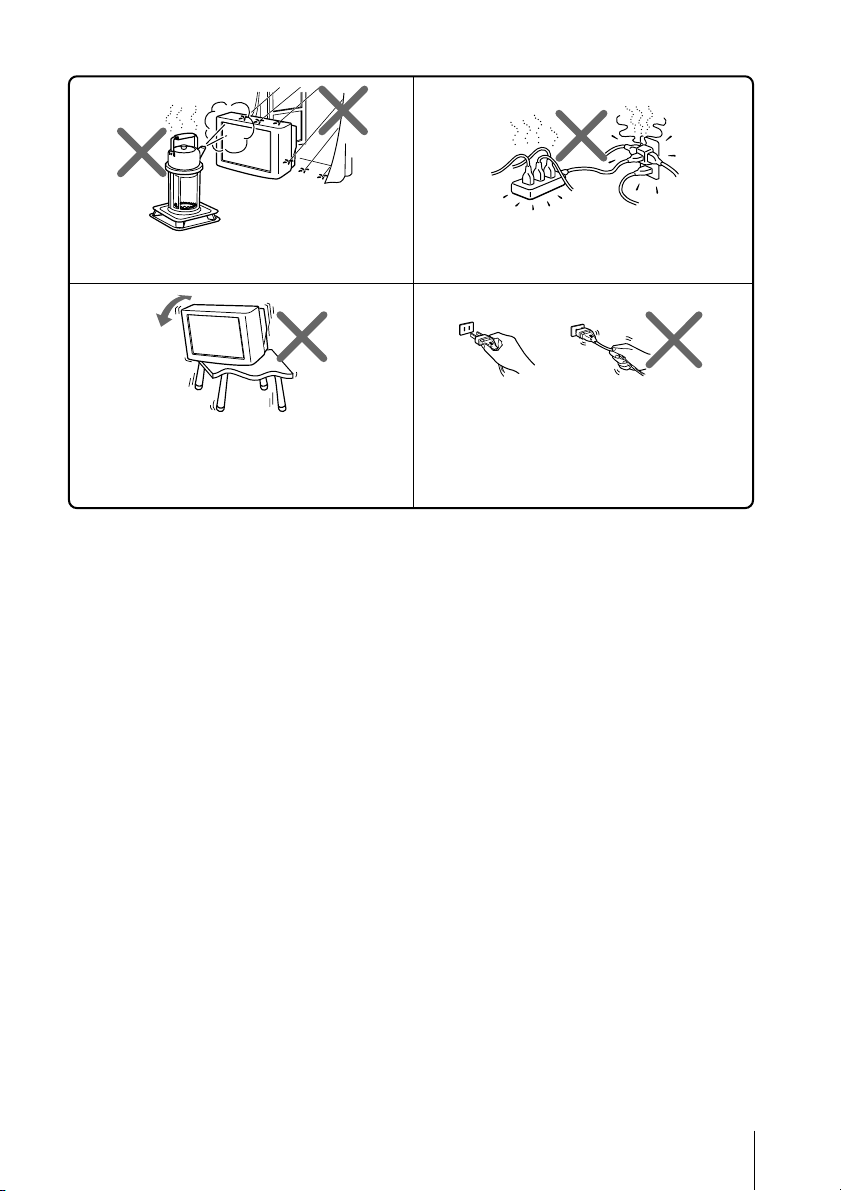

Install the TV on a stable TV stand and floor which
can support the TV set weight. Ensure that the TV
stand surface is flat and its area is larger than the
bottom area of the TV.
Do not plug in too many appliances to the same
power socket. Do not damage the power cord.
Pull the power cord out by the plug. Do not pull
the power cord itself. Even if your TV is turned off,
it is still connected to the AC power source (mains)
as long as the power cord is plugged in. Unplug
the TV before moving it or if you are not going to
use it for several days.
To prevent fire or shock hazard, do not expose the
TV to rain or moisture.

4

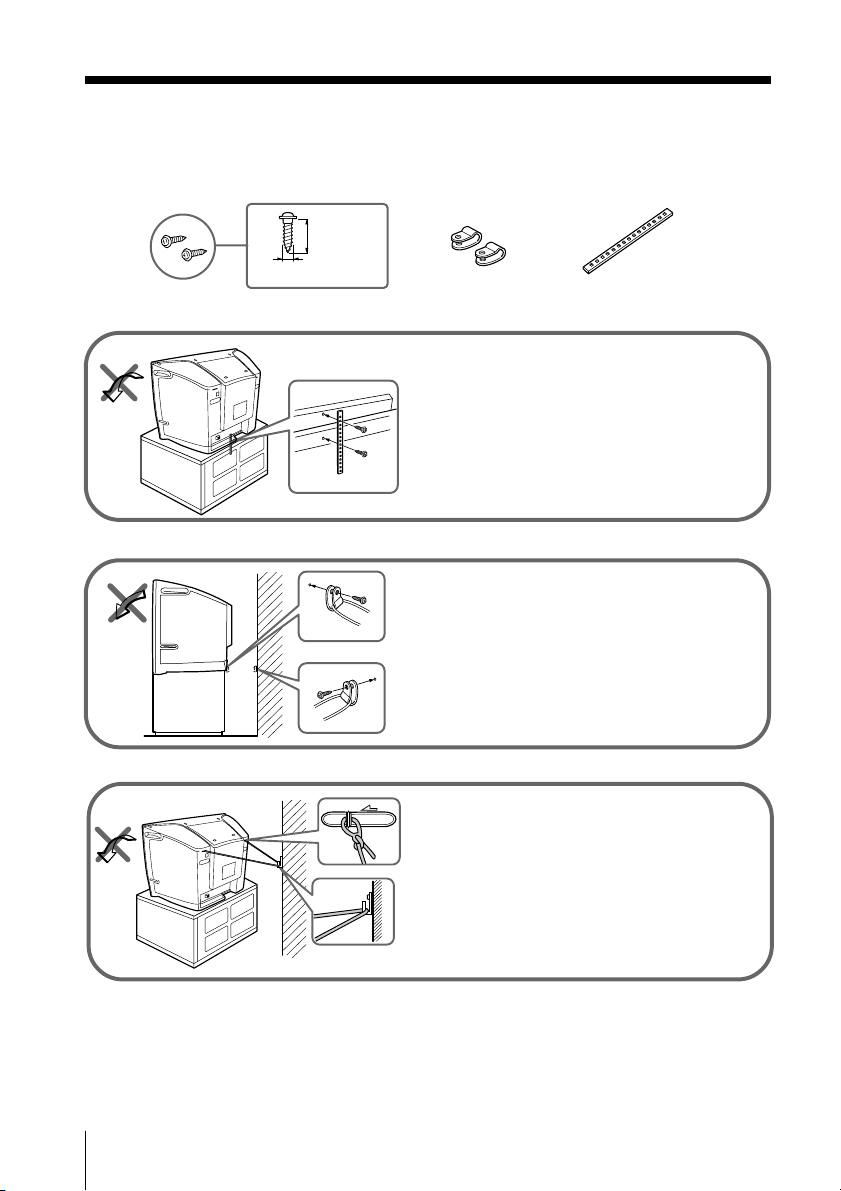

xSecuring the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
(1) Attach each end of a cord or chain to
the provided holders at the rear of your
TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
Note
• Use only the supplied screws. Use of other screws may damage the TV.
or
or

5
Menu Adjustment
Introducing the menu system .......... 16
Changing the “Video” setting .......... 19
Changing the “Audio” setting ......... 21
Changing the “Channel Setup”
setting .................................................. 23
Changing the “Timer” setting .......... 25
Changing the “Setup” setting .......... 26
Additional Information
Connecting the 3D WOOFER .......... 28
Connecting optional components ... 28
Troubleshooting ................................. 31
Specifications ...................... Back cover
GB
Table of Contents
Installation
Getting Started ..................................... 6
Setting up your TV
(“Initial Setup”) .................................... 7
Overview of Controls
TV front and rear panels ..................... 9
Using the remote control and
basic functions .................................... 10
Advanced Operations
Selecting the picture and sound
modes .................................................. 12
Enjoying the Party Mode .................. 13
Enjoying stereo or bilingual
programs ............................................. 14
Operating optional components ...... 15

6Installation
Installation

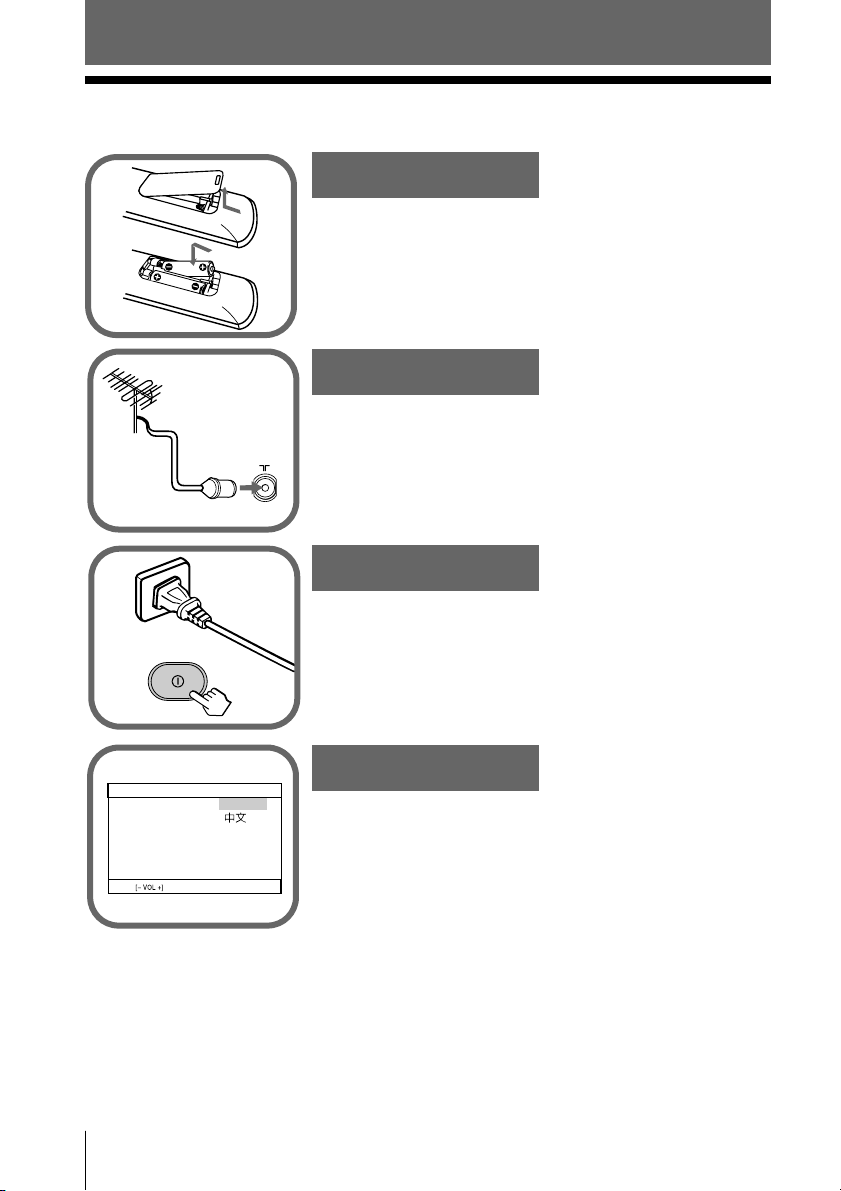

xGetting Started
Initial Setup
Language:
Move
English
Select [TV/VIDEO]
End [MENU]
b
b
1
Step 1
Insert the batteries (supplied) into the remote.
Note
• Do not use old or different types of batteries together.
Step 2
Step 3
Step 4
Set up the TV by following the instructions of the
“Initial Setup” menu (see page 7).
Plug in the power cord, then press !on the TV to
turn it on.
Note
• The STANDBY indicator flashes green for a few seconds
when turning on the TV. This does not indicate a
malfunction.
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
Tip
• You can also connect your TV to other optional components
(see page 28).

7
Installation
Installation

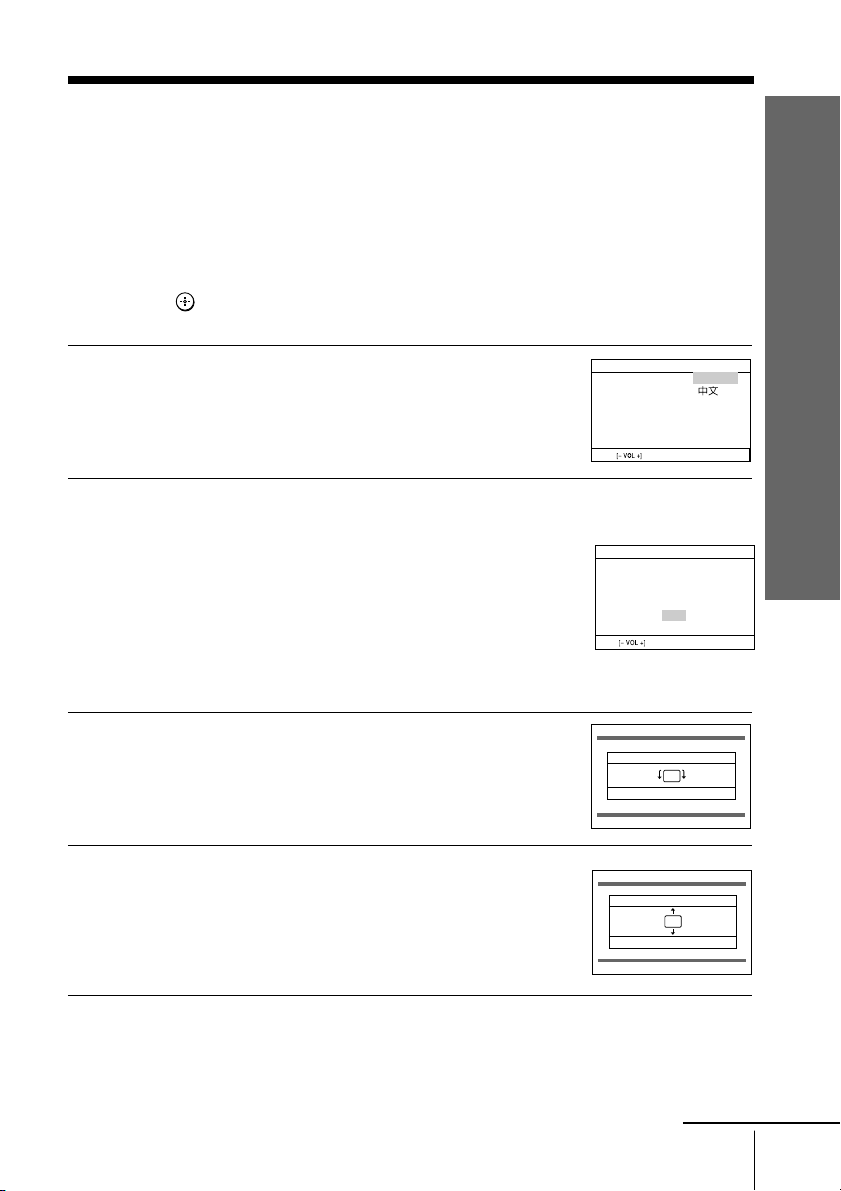

When you turn on your TV for the first time, the “Initial Setup” menu will appear.
You may change the menu language, preset the TV channels automatically and adjust
the picture position using the buttons on the TV front panel.
Tip
• The MENU, and V/v/B/b buttons on the remote control can also be used for the
operations below.
1Press VOLUME +/– to select the desired
menu language, then press TV/VIDEO.
The selected menu language appears.
2Press VOLUME +/– to select “Yes”, then
press TV/VIDEO to preset the channels
automatically or select “No” to skip
automatic channel presetting.
Once you select “Yes”, your TV will start
searching for all the available channels.
If the message “No channel found. Please
connect cable/antenna” appears, check your
TV connections, then press TV/VIDEO.
3Press VOLUME +/– to adjust the bars on
the top and bottom of the menu if they
are slanted, then press TV/VIDEO.
“Picture V-Position” menu appears.
4If the upper and lower bars are not
equally positioned to the top and
bottom of the screen, press VOLUME +/–
to adjust them, then press TV/VIDEO.
If no adjustment is necessary, then press
TV/VIDEO.
Initial Setup
Language:
Move
English
Select [TV/VIDEO] End
[MENU]
Initial Setup
First please connect cable/
antenna
Start Auto Program now?
Yes
No
Move Select
[TV/VIDEO]
End [MENU]
Picture Rotation
[ — VOL ] [ VOL + ]
Move [— VOL +]
Select [TV/VIDEO] End [MENU]
Picture V-Position
Move [—VOL +]
Select [TV/VIDEO] End [MENU]
[ —VOL ]
[ VOL + ]
x Setting up your TV
(“Initial Setup”)
continue

8Installation
5Press VOLUME +/– to select “No”, then
press TV/VIDEO. This menu will not
appear again the next time you turn on
the TV by pressing !.
To allow this menu to appear again, select
“Yes”, then press TV/VIDEO.
Tips
• You can immediately go to the end of the ”Initial Setup” menu by pressing MENU.
• You can also set up your TV by using the menu system (see page 16) or by pressing the MENU
button on the TV front panel for about five seconds to reset your TV to the factory setting.
continued
Initial Setup
Display this menu next time?
Yes
No
Move
Select [TV/VIDEO]

9
Overview of Controls
Overview of Controls
4
5
CHANNEL
SOUND
MODE VOLUME
TV/VIDEO
MENU
876321
VIDEO 4 INPUT
STANDBY/
WAKE UP
VIDEO L ( MONO )
R
AUDIO
qs
123
RLY
CBCR
qg
qh
qf qd
09
S VIDEO
MIC
qa
COMPONENT VIDEO(DVD) IN
VIDEO
IN
VIDEO
AUDIO
S VIDEO
MONITOR
OUT

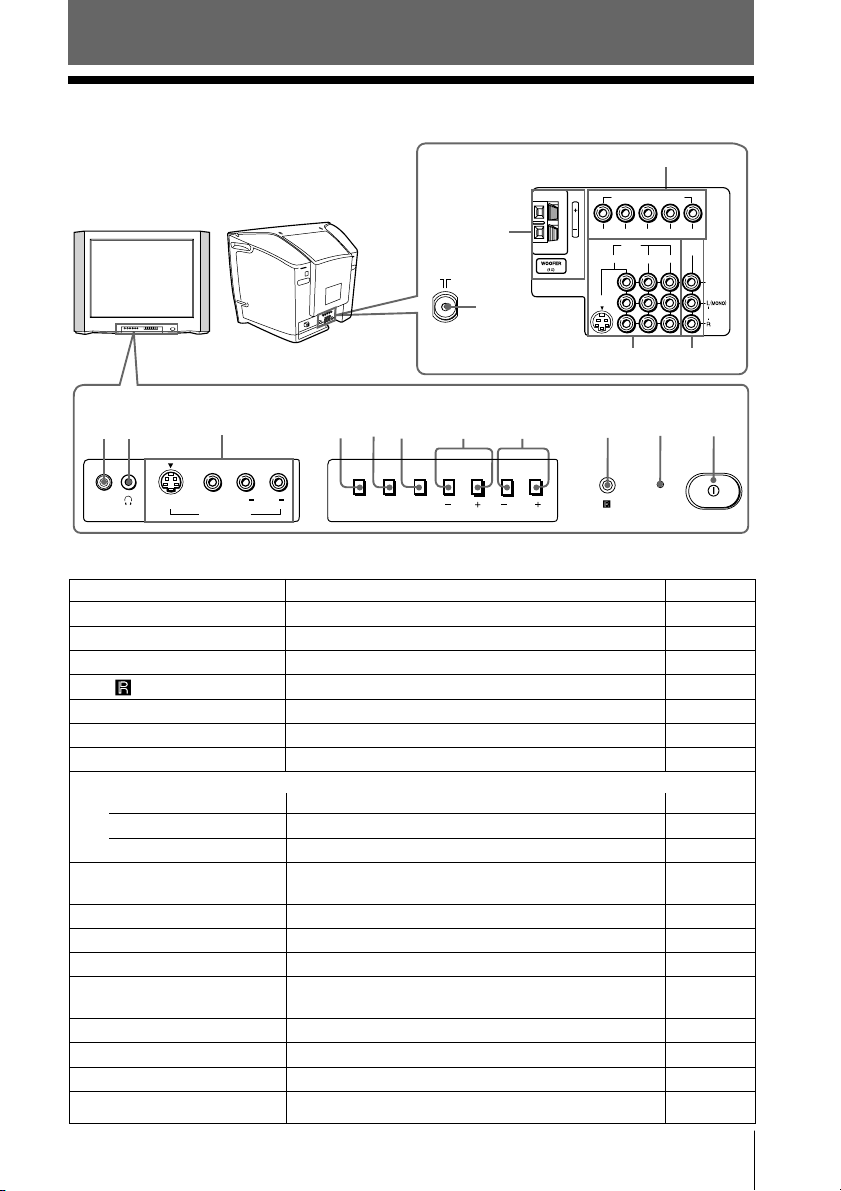

Overview of Controls
TV front panel
TV rear panel
xTV front and rear panels
Button/Terminal Function Page
1!Turn off or turn on the TV. 6
2STANDBY Standby indicator. 6
2WAKE UP Wake Up indicator. 25
3Remote control sensor. –
4CHANNEL +/– Select channel number. –
5VOLUME +/– Adjust volume. –
6TV/VIDEO Select TV or video input. 28
Menu operations
5VOLUME +/– Select and adjust items. –
6TV/VIDEO Confirm selected items. –
7MENU Display or cancel the menu. –
8SOUND MODE Select sound mode options. 12
5-Band Graphic Equalizer display will appear.
9VIDEO 4 INPUT Video input terminal 4. 28
0iHeadphone jack. –
qa MIC Microphone input terminal 13
qs COMPONENT VIDEO Component video input terminal. 30
(DVD) IN
qd MONITOR OUT Monitor output terminal. 29
qf VIDEO IN 1, 2, 3 Video input terminal 1, 2, 3. 29
qg 8Antenna input terminal. 29
qh WOOFER 3D WOOFER terminal. 28

10 Overview of Controls
xUsing the remote control and basic
functions
123
46
789
0
5
DVD TVVIDEO
MTS/SAP
MENU
TV
CH
VOL
VIDEO
POWER
DISPLAYMUTING
POWER
wd
wa
wh
wg
8
1
2
4
qf
qd
9
7
6
5
qj
q;
3
qk
qg
wj
OPTION RESET WAKE UP SLEEP
PA RT Y
MODE
qh
qa
ql
w;
wf
qs
wk
ws
MODE
SOUND
MODE
WIDE
MODE
ENT
JUMP
Button Description Page
1POWER Turn off temporarily or turn on the TV. –
3TV Display the TV channel. –
4VIDEO Select video input. 28
9WIDE Change the picture size: –
MODE “On” (16:9 wide-mode), “Off”.
qa Select audio effect mode options: –
“Effect Off”, “Simulated” (stereo-like
monaural sound), “WOW” (full,
deep bass sound), “TruSurround”
(surround sound that spreads out
to the rear of a room).
qs ENT Confirm input numbers. –
qd CH +/– Select channel number. –
qh MUTING Mute the sound. –
qj DISPLAY Display on-screen information. –
qk DVD Select component video input. 30
ql PARTY Adjust your TV for Party Mode. 13
MODE
wg PICTURE Select picture mode options. 12
MODE
wh SOUND Select sound mode options. 12
MODE 5-Band Graphic Equalizer display
will appear.
wj 0 – 9, -Input numbers. –
wk JUMP Jump to last channel number that –
has been watched for at least five
seconds.
wl VOL +/– Adjust volume. –
ea RESET Set TV to factory setting while –
adjusting items in an on-screen menu.
Menu operations
7MENU Display or cancel the menu. 18
wd V, v, B, b Select and adjust items. 18
wf Confirm selected items. 18
Stereo/bilingual operations
5MTS/SAP Select stereo/bilingual mode 14
Timer operations
qf SLEEP Set TV to turn off automatically –
according to the desired period of
time.

11
Overview of Controls
Overview of Controls
WOW, TruSurround, SRS and symbol are trademarks of SRS Labs, Inc. WOW
and TruSurround technologies are incorporated under license from SRS Labs, Inc.
Licensed by BBE Sound, Inc. under USP4638258, 4482866.
“BBE” and BBE symbol are trademarks of BBE Sound, Inc.
Button Description Page
qg WAKE UP Set TV to turn on automatically according to the –
desired period of time.
PIP operation (yellow label)
6
8PIP CH +/
PIP CH –
w;
wa
ws
wf
Optional components operations
2VIDEO POWER Power. 15
qh MUTING Mute the sound. 15
wd >Fast forward/Step forward. 15
wd .Rewind/Step backward. 15
wd xStop. 15
wd XPause. 15
wf NPlay. 15
wl VOL +/–Adjust volume. 15
e; OPTION Operate optional components. 15
Not function for your TV. –

12 Advanced Operations
Advanced Operations
Selecting the sound mode
Press SOUND MODE on the remote control (or the front panel) to select the
desired sound mode. 5-Band Graphic Equalizer display will appear.
Select To listen to
“Movie” dynamic and clear sound that emphasizes the low and
high tones.
“News” sound that emphasizes vocals.
“Soft” soft, natural and relaxing sounds.
“Standard” standard flat sounds.
xSelecting the picture and sound
modes
You can select picture and sound modes and adjust the setting to your personal
preference.
Selecting the picture mode
Press PICTURE MODE to select the desired picture
mode.
Select To view
“Vivid” contrast and sharp pictures.
“Standard” standard pictures.
“Movie” finely detailed pictures.
“Sports” bright pictures.
123
46
789
0
5
DVD TVVIDEO
MTS/SAP
MENU
VIDEO
POWER
DISPLAYMUTING
POWER
PAR T Y
MODE
MODE
SOUND
MODE
WIDE
MODE
ENT
JUMP
Movie
100 300 1k 3k 8k
100 300 1k 3k 8k
News
100 300 1k 3k 8k
Soft
100 300 1k 3k 8k
Standard
PICTURE MODE
SOUND MODE

13
Advanced Operations

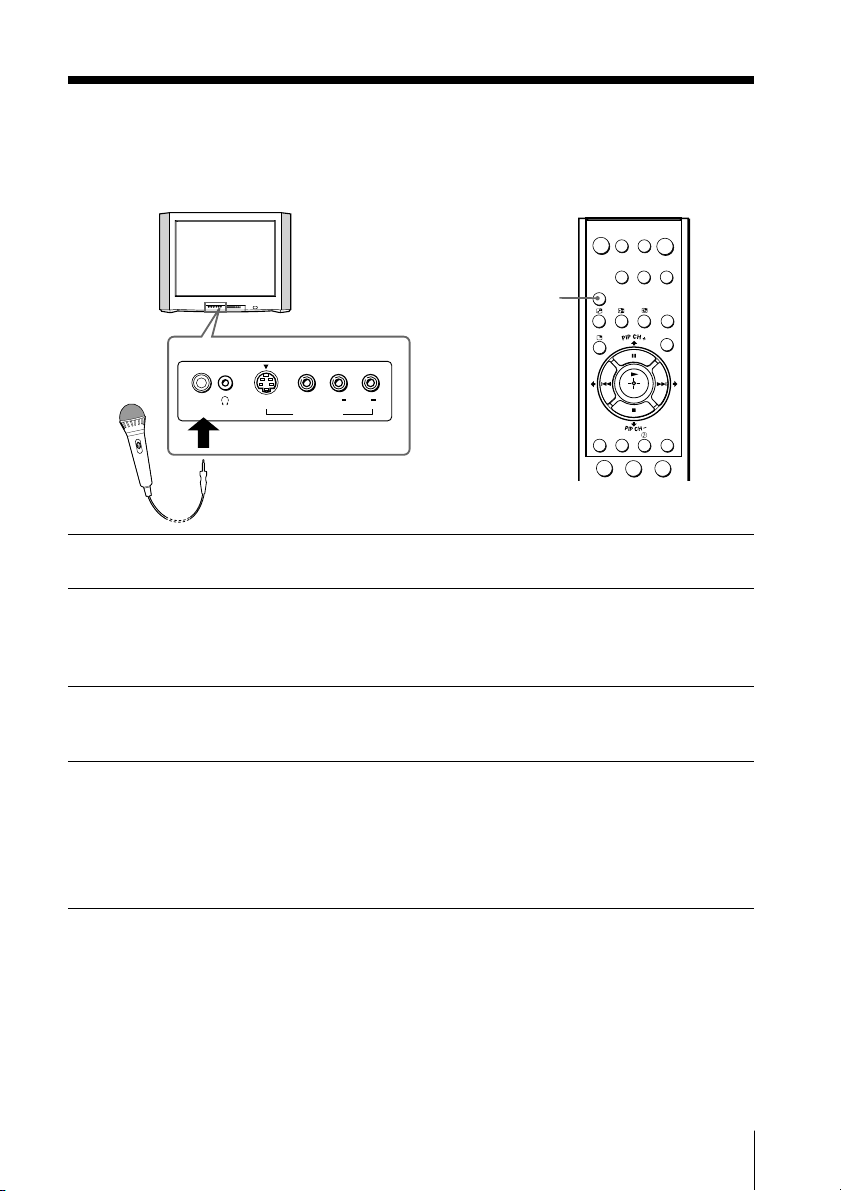

xEnjoying the Party Mode
You can sing along with any music program of TV broadcast or with any audio/
video equipment or create visual presentations (e.g. photos or video stories) with
narration and favorite background music by using the Party Mode feature.
1Select the input connected to your audio/video equipment (see pages 28 and
29).
2Connect the microphone (not supplied) to the microphone input terminal
and switch it on.
You can begin singing or speaking from the microphone at the last TV volume
setting.
3Press PARTY MODE to display the “Party Mode Setup” menu. Press Vor vto
adjust “MIC Level” (microphone volume) and “Echo Level” of the
microphone sound.
4If you want to change the sound source, select the input connected to the
audio equipment which you want to hear from “Audio Input Fix” (see page
26).
To revert to the original sound source, press PARTY MODE again to display the
“Party Mode Setup” menu and select “Off” from “Audio Input Fix”
(see page 26).
Tip
• Microphone volume will be affected by TV volume.
Notes
• Be sure to adjust the “MIC Level“ and “Echo Level” to the minimum level before plugging in
and disconnecting the microphone.
• For your own safety, do not use or plug in the microphone during lightning storms.
• Keep microphone away from the speakers and adjust its volume to avoid acoustic feedback
(howling) and distortion.
MIC
OFF
ON
VIDEO 4 INPUT
VIDEO L ( MONO )
R
AUDIO
S VIDEO
TV front panel
123
DVD TVVIDEO
MTS/SAP
MENU
VIDEO POWER
DISPLAYMUTING
POWER
PAR T Y
MODE
MODE
SOUND
MODE
WIDE
MODE
PARTY
MODE

14 Advanced Operations
Select stereo or bilingual programs
Press MTS/SAP until you receive the sound you
want.
Select To listen to
“Stereo” stereo broadcast sound.
“Auto SAP” SAP (Second Audio Program)
broadcast sound.
“Mono” monaural sound.
Notes
• When select “Auto SAP”, non-SAP program sound will be same as “Stereo” mode sound.
• If the stereo signal is very weak, the stereo broadcast sound may become noisy. To reduce the
noise select “Mono”.
xEnjoying stereo or bilingual
programs
You can enjoy stereo sound or bilingual programs of MTS (Multi-Channel TV
Sound) stereo system by using MTS/SAP button.
MTS/SAP
123
46
789
0
5
DVD TVVIDEO
MTS/SAP
MENU
TV
CH
VOL
VIDEO
POWER
DISPLAYMUTING
POWER
OPTION RESET WAKE UP SLEEP
PA RT Y
MODE
MODE
SOUND
MODE
WIDE
MODE
ENT
JUMP

15
Advanced Operations
xOperating optional components
You can use the supplied remote to operate Sony audio/video equipment.
Setting up the remote to work with other connected equipment
While keeping VIDEO POWER For example, to operate a
pressed, press the corresponding Sony 8 mm VCR:
number button for the desired
equipment (see the chart
below).
To control Hold down VIDEO POWER and press
Audio System 1, 1x, 2 or 3 0, 1, 2, or 3
DVD 1, 2 or 3 4, 5 or 6
VTR1 (Beta), VTR2 (8 mm) or VTR3 (VHS) 7, 8 or 9
Operating audio/video equipment
Press VIDEO POWER or while keeping OPTION pressed, press N, x , .,
> , X , MUTING or VOL +/– (see the chart below).
Notes
• If the equipment does not have a certain function, the corresponding button on the remote
will not operate.
• Some equipment might not respond properly to buttons on TV’s remote. In this case, use the
equipment’s own remote control.
To Press
turn on/off VIDEO POWER
play Nwhile keeping OPTION pressed.
stop xwhile keeping OPTION pressed.
fast forward/ step forward or rewind/ >or .while keeping OPTION
step backward pressed.
pause Xwhile keeping OPTION pressed.
Press again to resume normal playback.
mute the sound MUTING while keeping OPTION pressed.
(Audio System 1, 1x, 2 or 3 only)
adjust volume VOL +/– while keeping OPTION pressed.
(Audio System 1, 1x, 2 or 3 only)
+
VIDEO
POWER
8

16 Menu Adjustment
Menu Adjustment

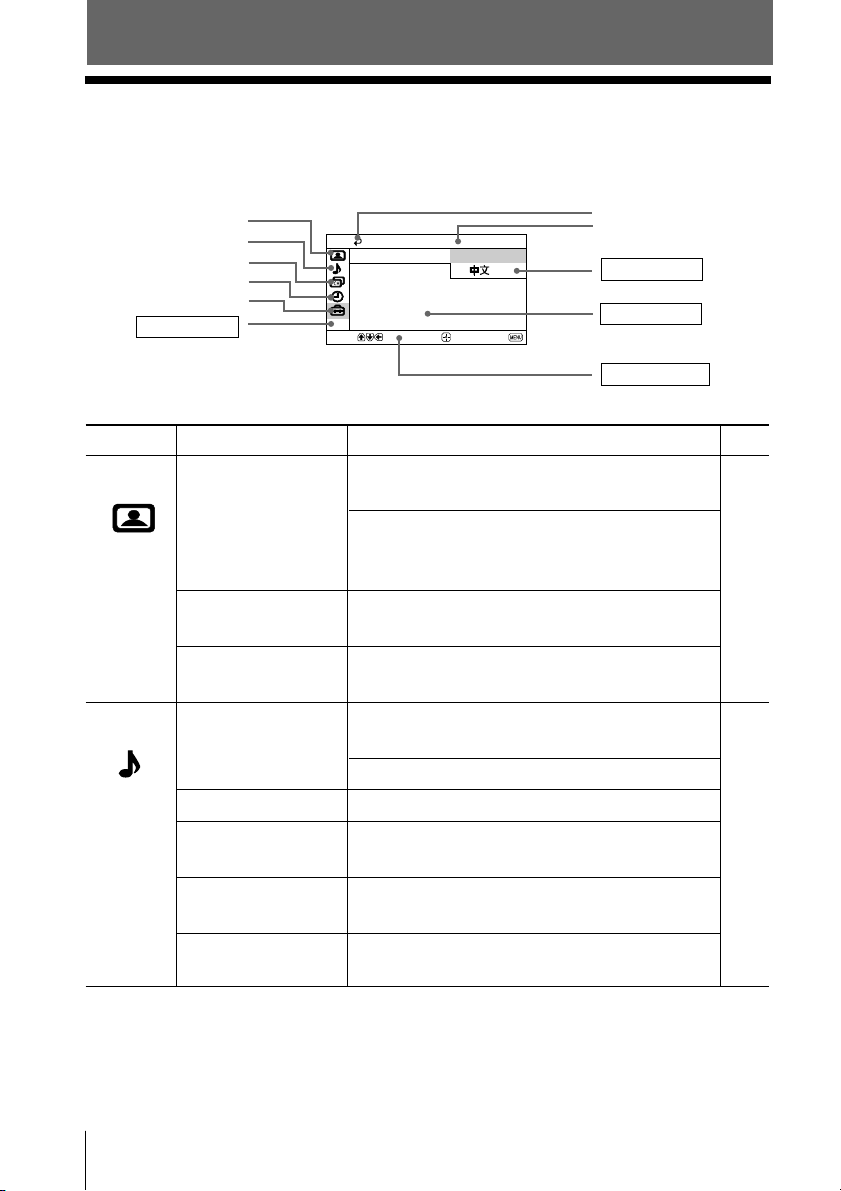

xIntroducing the menu system
The MENU button lets you open a menu and change the settings of your TV.
The following is an overview of the menu system.
Return icon
Setup icon
Channel Setup icon
Name of the current
menu
Video icon
Menu level 3
Menu level 2
User Guidance
Menu level 1
Level 1
“Video”
“Audio”
Level 2
“Mode”
“Picture Controls”
“Color Temp.”
“3D Intelligent Picture”
“Mode”
“Sound Controls”
“Balance”
“Steady Sound”
“Effect”
“MTS”
Level 3/Function
Select the picture mode:
“Vivid” t“Standard” t“Movie” t“Sports”
Adjust the picture mode option:
“Picture” t“Brightness” t“Color” t
“Hue” t“Sharpness”
Adjust white color tint:
“Cool” t“Neutral” t“Warm”
Optimize picture quality:
“On” t“Off”
Select the sound mode:
“Movie” t“News” t“Soft” t“Standard”
Adjust sound frequency settings.
Select to emphasize the left and right speakers.
Adjust volume automatically:
“On” t“Off”
Select audio effect mode:
“Off” t“Simulated” t“WOW” t“Trusurround”
Select stereo/bilingual mode:
“Stereo” t “Auto SAP” t“Mono”
Page
19
21
Select End
Setup
16:9 Enhanced:
Party Mode Setup
Picture Position
Video Label
Language: English
Color System:
Move
Audio icon
Timer icon

17

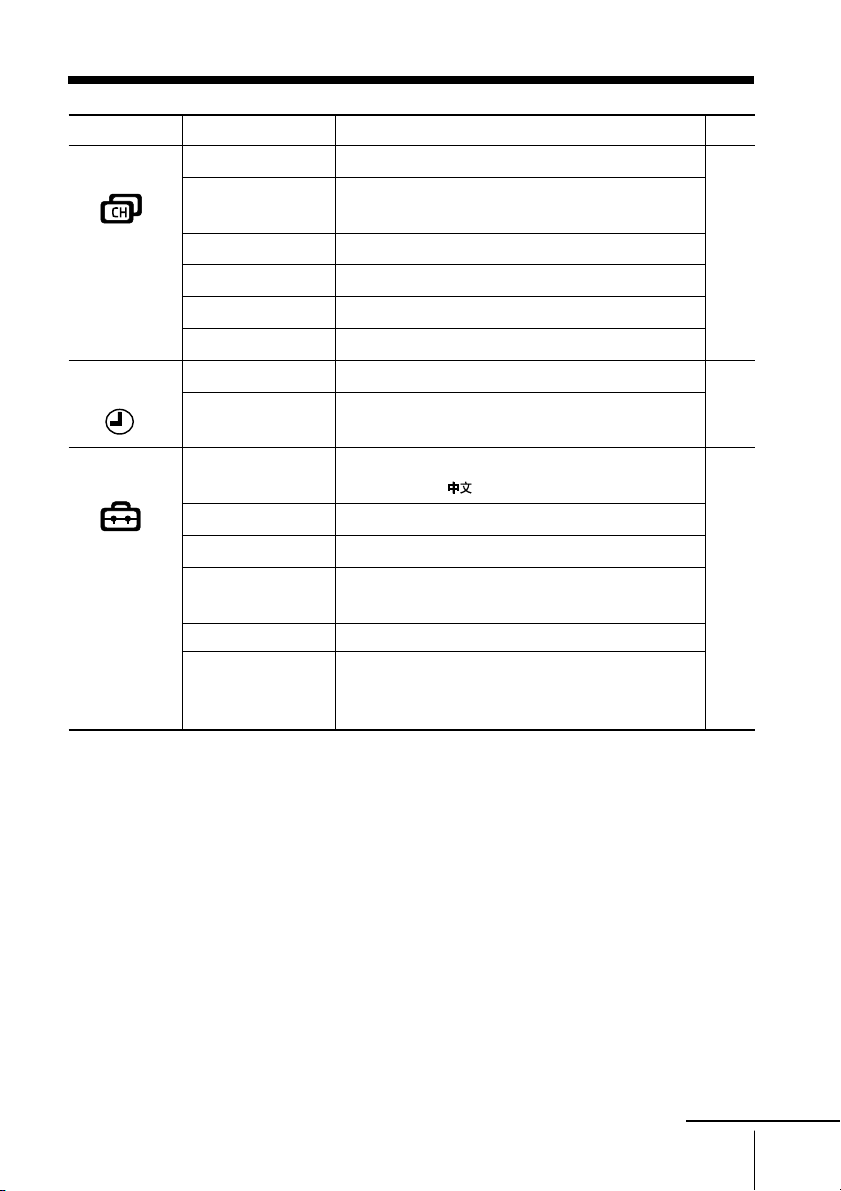

Menu Adjustment
Level 1
“Channel Setup”
“Timer”
“Setup”
Level 2
“Favorite Channels”
“Cable”
“Auto Program”
“Channel Skip/Add”
“Channel Label”
“Channel Block”
“Sleep”
“Wake Up Timer”
“Language”
“Picture Position”
“Party Mode Setup”
“16:9 Enhanced”
“Video Label”
“Color System”
Level 3/Function
Quick access to favorite channels.
Watch cable TV programs:
“On” t“Off”
Preset channels automatically.
Skip unwanted channels or add new ones.
Label the channel number.
Block unwanted channels.
Set TV to turn off automatically.
Set TV to turn on automatically.
Change the menu language:
“English” t “” (Chinese)
Adjust the picture position.
Adjust your TV for Party Mode.
Change the picture size:
“On” t “Off”
Label the connected equipment.
Select the color system (for video input only):
“Auto” t “PAL” t “SECAM” t
“NTSC 3.58” t “NTSC 4.43”
Page
23
25
26
continue

18 Menu Adjustment
123
46
789
0
5
MTS/SAP
MENU
TV
CH
VOL
OPTION RESET WAKE UP SLEEP
MODE
SOUND
MODE
WIDE
MODE
ENT
JUMP

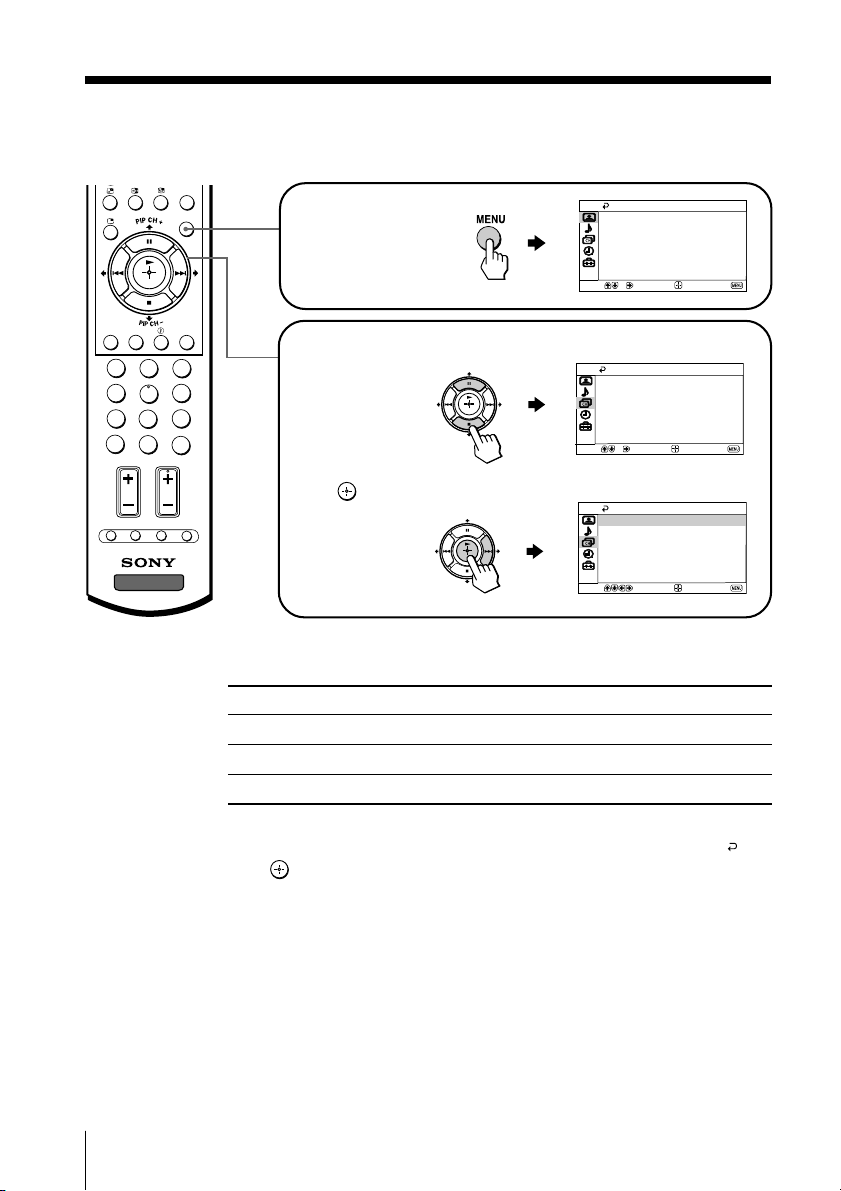

How to use the menu
Other menu operations
Tips
• If you want to exit from Menu level 2 to Menu level 1, press Vor vuntil the return icon ( ) is
highlighted, then press .
• The MENU, TV/VIDEO and VOLUME +/– buttons on the TV front panel can also be used for
the operations above (see page 9).
Note
• When a feature is dimmed in the menu, it is not selectable.
To
Adjust the setting value
Move to the next/previous menu level
Cancel the menu
Press
V, v, B or b.
B or b.
MENU.
Press V or vto select
the desired item.
Press (or b) to
confirm your
selection and
go to the next
level.
Press MENU to
display the menu.
Move End
Video
Color Temp.:
3D Intelligent Picture:
Vivid
On
Cool
Picture Controls
Select
Mode:
Move End
Channel Setup
Auto Program
Channel Skip/Add
Channel Label
Channel Block
On
Cable:
Select
Favorite Channels
Move End
Channel Setup
Auto Program
Channel Skip/Add
Channel Label
Channel Block
On
Cable:
Select
Favorite Channels
continued

19
Menu Adjustment

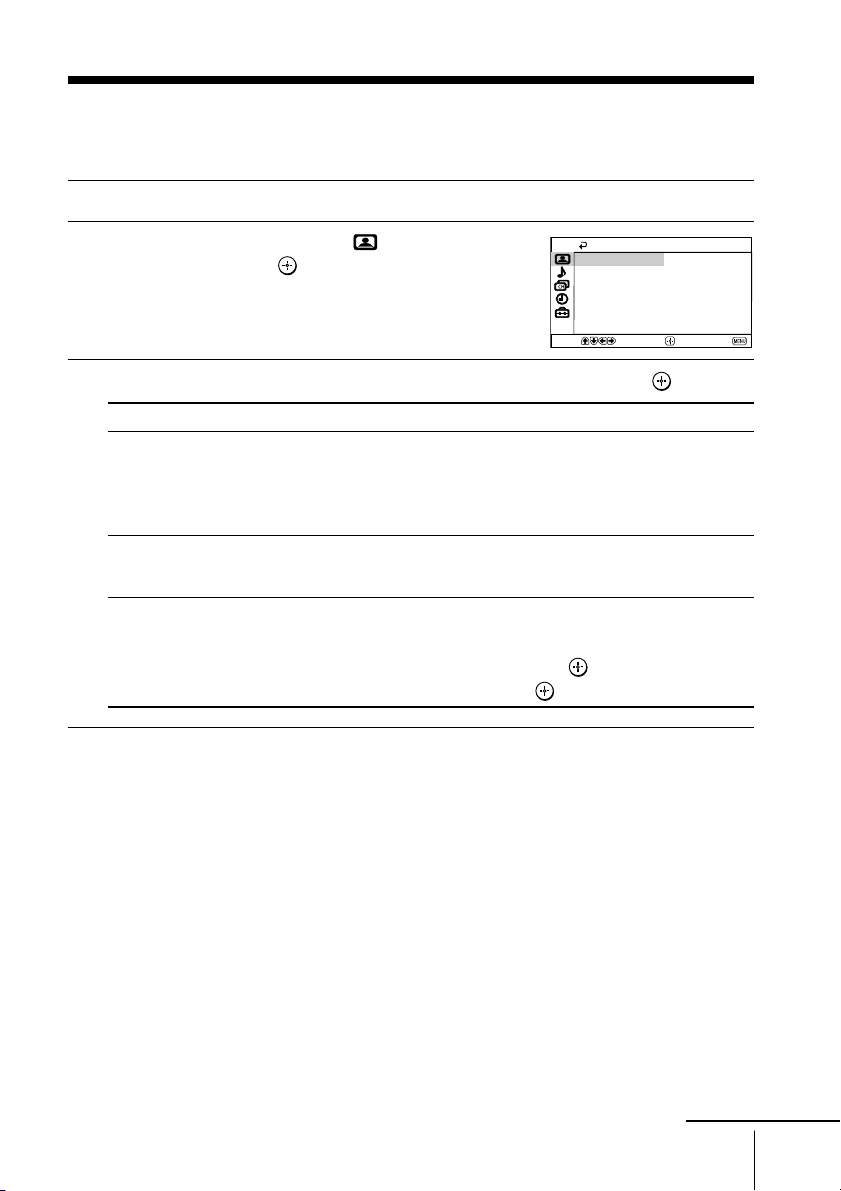

xChanging the “Video” setting
The “Video” menu allows you to adjust the picture settings.
1Press MENU.
2Make sure the “Video” icon ( ) is
selected, then press .
3Press Vor vto select the desired item (e.g., “Mode”), then press .
Select To
“Mode” choose either “Vivid”, “Standard”, “Movie” or “Sports” (see
page 12).
Tip
• You can adjust the setting to your personal preference in the
“Picture Controls” option (see page 20).
“Color Temp.” adjust white color tint.
(Color Temperature) Choose either “Cool” (blue tint), “Neutral” (neutral tint) or
“Warm” (red tint).
“3D Intelligent Picture” optimize picture quality.
Automatically, the picture will become clearer and sharper if the
signal is good and noise will be reduced if the signal is noisy.
Press Vor vto select “On”, then press .
To cancel, select “Off”, then press .
Note
• For NTSC 3.58 color system, “3D Comb Filter : On” or “3D-NR : On” display will appear
when “3D Intelligent Picture” changes from one mode to the other.
Color Temp.:
3D Intelligent Picture: On
Cool
Picture Controls
Vivid
Mode:
Video
Select End
Move
continue

20 Menu Adjustment
Adjusting the “Picture Controls” items
1Press vto select “Picture Controls”, then press .
2Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,
“Hue” (color tones) or “Sharpness”, then press .
Pressing RESET button on the remote control will set your TV to the factory
setting.
3Press V,v,B or bto adjust the setting of your selected item, then press .
4Repeat the above steps to adjust other items.
The adjusted settings will be memorized.
Note
• Reducing “Sharpness” can also reduce picture noise.
continued
