Sony TRINITRON KV-AR14M50 User manual

REVISION HISTORY BX1
MODEL
KV-AR14M50
KV-AR14M50
KV-AR14M80
KV-AR14P52
PA RT N O. : 9-872-365-02
CHASSIS
NO. SUFFIX DATE SUPP / CORR DESCRIPTION
1 -01 2003/8 -- 1st Issue
2 -02 2004/1 Supp-1 IC001 Part Number Change (Page 68)

CHASSIS
TRINITRON ® COLOR TV
SERVICE MANUAL BX1
RM-W101
MODEL COMMANDER DEST. CHASSIS NO.
KV-AR14M50 RM-W101 Malaysia SCC-U96D-A
KV-AR14M50 RM-W101 GE SCC-V04C-A
KV-AR14M80 RM-W101 ME SCC-U90D-A
KV-AR14P52 RM-W101 Thailand SCC-U94J-A
MODEL COMMANDER DEST. CHASSIS NO.

– 2 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
Note
Power requirements 110-240 V AC, 50/60 Hz
220-240 V AC, 50/60 Hz Malaysia
Power consumption (W) Indicated on the rear of the TV
Television system B/G, I, D/K, M
Color system PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43
Channel coverage
B/G VHF: E2 to E12 / UHF: E21 to E69
CATV: S01 to S03, S1 to S41
IUHF: B21 to B68
CATV: S01 to S03, S1 to S41
D/K VHF: C1 to C12, R1 to R12 / UHF: C13 to C57, R21 to R60 /
CATV: S01 to S03, S1 to S41, Z1 to Z39
MVHF: A2 to A13 / UHF: A14 to A79 /
CATV: A-8 to A-2, A to W+4, W+6 to W+84
8(Antenna) 75-ohm external terminal
Audio output (Speaker) 3W + 3W
Number of terminal
DVideo Input: 2 Output: 1 Phono jacks; 1 VP-P, 75 ohms
≥Audio Input: 2 Output: 1 Phono jacks; 500 mVrms
(S Video) Input: 1 Y: 1 Vp-p, 75 ohms,
unbalanced sync negative
C: 0.286 Vp-p, 75 ohms
(Component Input: 1 Phono jacks;
Video) Y: 1 Vp-p, 75 ohms,
sync negative
CB: 0.7 Vp-p, 75 ohms
CR: 0.7 Vp-p, 75 ohms
Audio: 500 mVrms
2(Headphone) Output: 1 Stereo minijack
Picture tube 14 in.
Tube size (cm) 37 Measured diagonally
Screen size (cm) 34 Measured diagonally
Dimension (w/h/d, mm) 414 x 352 x 410
Mass (kg) 13
Design and specifications are subject to change without notice.
SPECIFICATIONS
(KV-AR14M50/AR14M80)
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK !ON
THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
CAUTION
SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND
THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD,
OR CARBON PAINTED ON THE CRT, AFTER REMOVINGTHE
ANODE.

– 3 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
Note
Power requirements 220-240 V AC, 50/60 Hz
Power consumption (W) Indicated on the rear of the TV
Television system B/G
Color system PAL, PAL 60, NTSC3.58 (AV IN), NTSC4.43
Stereo/Bilingual system A2 Bilingual B/G
Channel coverage
B/G VHF: E2 to E12 / UHF: E21 to E69
CATV: S01 to S03, S1 to S41
8(Antenna) 75-ohm external terminal
Audio output (Speaker) 3W + 3W
Number of terminal
DVideo Input: 2 Output: 1 Phono jacks; 1 VP-P, 75 ohms
≥Audio Input: 2 Output: 1 Phono jacks; 500 mVrms
(Component Input: 1 Phono jacks;
Video) Y: 1 Vp-p, 75 ohms,
sync negative
CB: 0.7 Vp-p, 75 ohms
CR: 0.7 Vp-p, 75 ohms
Audio: 500 mVrms
2(Headphone) Output: 1 Stereo minijack
Picture tube 14 in.
Tube size (cm) 37 Measured diagonally
Screen size (cm) 34 Measured diagonally
Dimension (w/h/d, mm) 414 x 352 x 410
Mass (kg) 13
Design and specifications are subject to change without notice.
SPECIFICATIONS
(KV-AR14P52)
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK !ON
THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
CAUTION
SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND
THE ANODE CAP TO THE METAL CHASSIS, CRT SHIELD,
OR CARBON PAINTED ON THE CRT, AFTER REMOVINGTHE
ANODE.

– 4 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
TABLE OF CONTENTS
SELF DIAGNOSTIC FUNCTION ............................. 4
1. DISASSEMBLY
1-1. Rear Cover Removal ................................................. 8
1-2. Speaker Removal ...................................................... 8
1-3. Chassis Assy Removal .............................................. 8
1-4. Service Position ........................................................ 8
1-5. Terminal Bracket Removal ....................................... 8
1-6. A Board Removal ...................................................... 8
1-7. Picture Tube Removal ............................................... 9
2. SET-UP ADJUSTMENTS

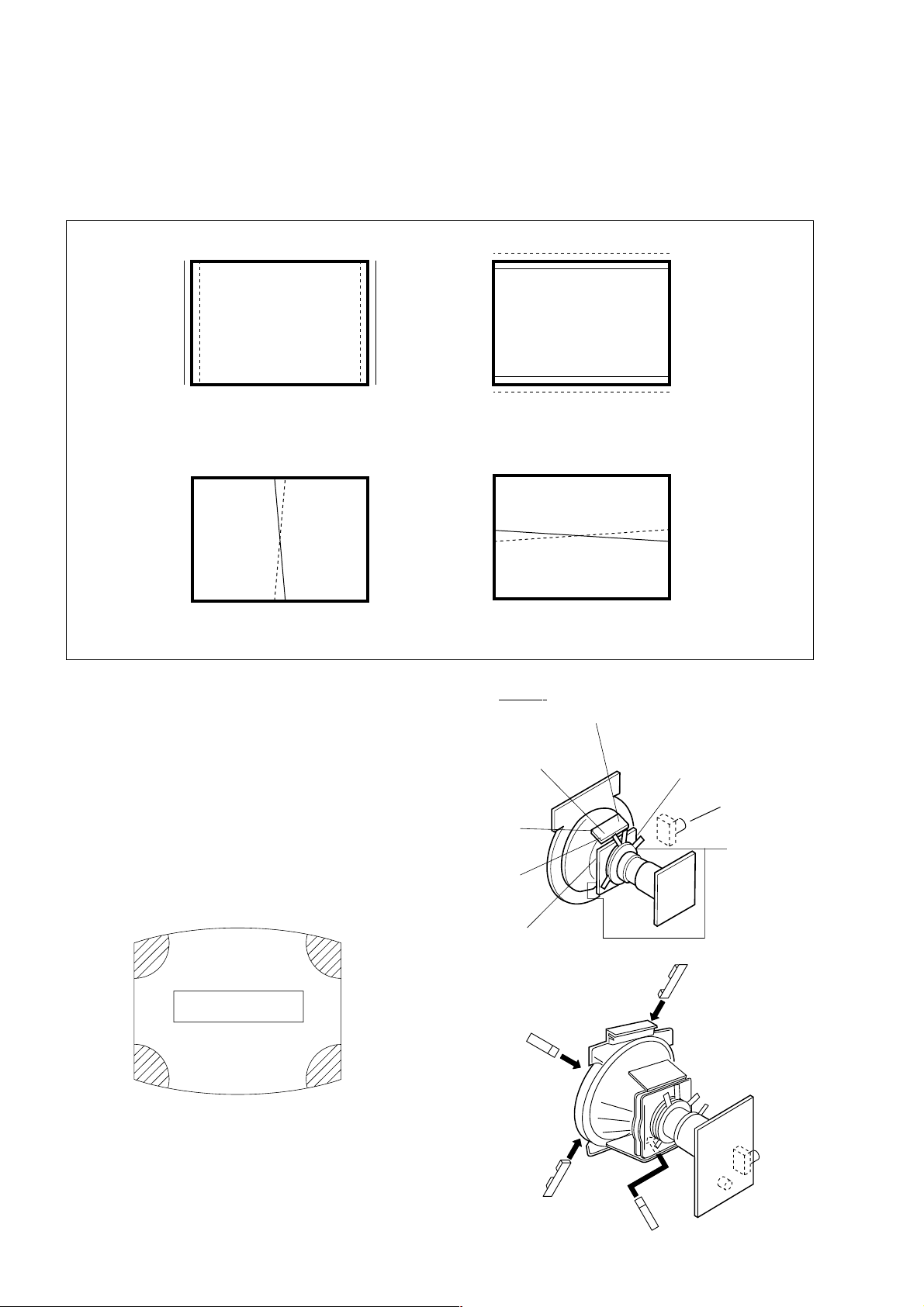

2-1. Beam Landing ......................................................... 10
2-2. Convergence ............................................................ 11
2-3. Focus Adjustment ................................................... 13
2-4. G2 (SCREEN) Adjustments ................................... 13
2-5 White Balance Adjustment ..................................... 13
2-6 Sub Bright Adjustment ........................................... 13
3. CIRCUIT ADJUSTMENTS
3-1. Adjustment With Commander ................................ 14
3-2. Adjustment Method ................................................ 15
3-3. Picture Quality Adjustment .................................... 29
3-4. Deflection Adjustment ............................................ 29
3-5. Drive Adjustment .................................................... 30
3-6. Picture Distortion Adjustment ................................ 31
Section Title Page Section Title Page
4. DIAGRAMS
4-1. Block Diagram ........................................................ 32
4-2. Circuit Boards Location .......................................... 33
4-3. Schematic Diagram ................................................. 34
4-3-1. A Board — Processor (Block A) ................. 35
4-3-2. A Board — Audio (Block B) ....................... 36
4-3-3. A Board — Power Supply (Block C) .......... 38
4-3-4. A Board — Deflection (Block D) ................ 40
4-3-5. A Board — Tuner (Block E) ........................ 42
4-3-6. A Board — Jack (Block F) .......................... 44
4-3-7. C Board Schematic Diagrams ...................... 46
4-4. Voltage Measurement and Waveforms ................... 49
4-5. Printed Wiring Boards and Parts Location ............. 52
4-6. Semiconductors ....................................................... 55
5. EXPLODED VIEWS
5-1. Chassis..................................................................... 57
6. ELECTRICAL PARTS LIST .................................... 58
INSTRUCTION MANUAL

– 5 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
The units in this manual contain a self diagnostic function. If an error occurs, the STANDBY (1) indicator will automatically
begin to flash. A description of the self-diagnosis function is explained in the instruction manual. The number of times the
STANDBY (1) indicator flashes translates to a probable source of the problem. If an error symptom cannot be reproduced,
the remote commander can be used to review the failure occurrence data stored in memory to reveal past problems and
how often these problems occur.
1. DIAGNOSTIC TEST INDICATORS
When an errors occurs, the STANDBY (1) indicator will flash a set number of times to indicate the possible cause of the
problem. If there is more than one error, the indicator will identify the first of the problem areas.
Result for all of the following diagnosis items are displayed on screen. No error has occured if the screen displays a "0".
*If a +B overcurrent is detected, stoppage of the vertical deflection is detected simultaneously. The symptom that is
diagnosed first by the mirco controller is displayed on the screen.
** Refer to Screen (G2) Adjustment in this manual.
SELF DIAGNOSTIC FUNCTION
Diagnosis
Item
Description
Power does
not turn on
+B overcurrent
(OCP)*
V-Protect
IK (AKB)
Power supply
NG (+5V) for
Video Processor
No. of timer
STANDBY (1)
indicator flashes
Does not light
2 times
4 times
5 times
8 times
Self-Diagnostic
display/
Diagnosis result
–
2:0
or
2:1 ~ 255
4:0
or
4:1 ~ 255
5:0
or
5:1 ~ 255
8:0
or
8:1 ~ 255
Probable Cause
Location
• Power cord is not plugged
in.
• Fuse is burned out (F600)
A board.
• H OUT (Q805) is shorted.
(A board)
• IC751 is shorted. (C board)
• +13V is not supplied.
(A board)
• IC804 is faulty. (A board)
• Video OUT (IC1545) is
faulty. (A board)
• IC001 is faulty. (A board)
• Screen (G2) is improperly
adjusted.**
• IC604 faulty.
• IC602 faulty.
Detected
Symptoms
• Power does not turn on.
• No power is supplied on
TV.
• AC Power supply is faulty.
• Power does not come on.
• Load on power line is
shorted.
• Has entered standby state
after horizontal raster.
• Vertical deflection pulse is
stopped.
• Power line is shorted or
power supply is shorted.
• No raster is generated.
• CRT Cathode current
detection reference pulse
output is small.
• No power supply to CRT
ANODE.
• No RASTER is generated.

– 6 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
STANDBY uindicator
2. DISPLAY OF STANDBY (1)INDICATOR
FLASH COUNT
3. STOPPING THE STANDBY (1)INDICATOR FLASH
Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY (1)
indicator from flashing.
4. SELF-DIAGNOSTIC SCREEN DISPLAY
For errors with symptoms such as "power sometimes shuts off" or "screen sometimes goes off" that cannot be confirmed,
it is possible to bring up past occurrences of failure on the screen for confirmation.
[To Bring Up Screen Test]
In standby mode, press buttons on the remote commander sequentially in rapid succession as shown below:
Display /Channel 5/Volume /Power / TV
˘
Note that this differs from entering the service mode (volume [+]).
The following screen will be displayed indicating the error count.
Diagnostic Item Flash Count*
+B overcurrent 2 times
V-Protect 4 times
IK (AKB) 5 times
Power Supply NG (+5V) 8 times
for Video processor
* One flash count is not used for self-diagnosis.
Lamp ON 300ms
Lamp OFF 3 sec.
Lamp OFF 300ms
2 times
4 times
5 times
8 times
2 : 0
3 : N/A
4 : 0
5 : 1
8 : 0
101 : N/A
SELF DIAGNOSTIC
Numeral "0" means that no fault was detected.
Numeral "1" means the number of a fault occurrence (1 ~ 255).

–7 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
5. HANDLING OF SELF-DIAGNOSTIC SCREEN DISPLAY
Since the diagnostic results displayed on the screen are not automatically cleared, always check the self-diagnostic
screen during repairs. When you have completed the repairs, clear the result display to "0".
Unless the result display is cleared to "0", the self-diagnosis function will not be able to detect subsequent faults after
completion of the repairs.
[Clearing the result display]
To clear the result display to "0", press buttons on the remote commander subsequent as shown below when the
self-diagnostic screen is being displayed.
8,-
[Quitting Self-diagnostic screen]
To quit the entire self-diagnostic screen, turn off the power switch on the remote commander or the main unit.
6. SELF-DIAGNOSTIC CIRCUIT
[+B overcurrent $OCP%] Occurs when an overcurrent on the +B(135V) line is detected by pin 32 of IC001 (A board).
If the voltage of pin 32 of IC001 (A board) is more than 4V, the unit will automatically go
to standby.
[V-PROTECT] Occurs when an absence of the vertical deflection pulse is detected by pin 13 of IC001
(A board).
[IK $AKB%] If the RGB levels* do not balance within 15 sec after the power is turned on, this error will
be detected by IC001 (A board). TV will stay on, but there will be 5 times LED blinking.
Occurs when IC001 internal HV protect detects an abnormal H-Pulse (frequency) due to
improper power supply to IC001. TV cuts off high voltage power of anode CRT. No picture
will be detected. eg: IC602, IC604 go faulty.
* (Refers to the RGB levels of the AKB detection Ref pulse that detects IK.)
A BOARD
IC001
Y/CHROMA JUNGLE
A BOARD
IC804
V.OUT
A BOARD
IC001
SYSTEM
A BOARD
IC003
MEMORY
FROM
C BOARD
IC751 PIN 5
IK
EHTO
RED LED
DISPLAY
SDA1
V.GUARD
SDA
5
F.B-PLS 3 1384
32 122
A BOARD
FROM
Q804
COLLECTOR
99
POWER SUPPLY NG (+5V)
for VIDEO PROCESSOR

– 8 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
2Terminal bracket
3One screws
(+BVTP 4 × 16)
1One screws
(+BVTP 3 × 12)
4FBT
bracket
A Board
SECTION 1
DISASSEMBLY
1-1. REAR COVER REMOVAL 1-2. SPEAKER REMOVAL
1-3. CHASSIS ASSY REMOVAL 1-4. SERVICE POSITION
1-5. TERMINAL BRACKET REMOVAL 1-6. A BOARD REMOVAL
2Rear cover
1Six screws
(+BVTP 4 × 16)
1Four screws
(Washer Head)
(+P4 × 16)
2Speaker Block Assy

–9 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
Note:
•Please make sure the TV set is not in standing position before removing necessary CRT support located on bottom
right and left.
1) Place the TV set with the CRT face down on a cushion jig.
2) Remove the rear cover.
3) Unplug all inter connecting leads from the Deflection Yoke, Degaussing Coil and CRT grounding strap.
1-7. PICTURE TUBE REMOVAL
4Anode Cap Removal
5C Board Removal
7Chassis Assy Removal
qa Spring Tension Removal
qd Nut, Special, CRT (x4)
0Degaussing Coil
6Loosen the Deflection Yoke
fixing screw and remove
8Support, CRT Removal (x2)
qs Earth Coating Assy
qf Top switch, block
• REMOVAL OF ANODE-CAP
Note:
•After removing the anode, short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT
shield or carbon paint on the CRT.
•REMOVING PROCEDURES
1Turn up one side of the rubber cap in the direction
indicated by the arrow A.
2Using a thumb pull up the rubber cap firmly in the di-
rection indicated by the arrow B.
3When one side of the rubber cap is separated from
the anode button, the anode-cap can be removed by
turning up the rubber cap and pulling it up in the
direction of the arrow C.
•HOW TO HANDLE AN ANODE-CAP
1Do not damage the surface of anode-caps with
sharp shaped objects.
2Do not press the rubber too hard so as not to
damage the inside of anode-cap.
A metal fitting called the shatter-hook terminal is
built into the rubber.
3Do not turn the foot of rubber over too hard.
The shatter-hook terminal will stick out or damage
the rubber.
a
a
b
b
c
Anode Button

– 10 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
Fig. 2-1 Fig. 2-4
Fig. 2-3
Fig. 2-2
Purity control
Red
Blue
Green
Purity control
corrects this area. Disk magnets or rotatable
disk magnets correct these
areas (a-d).
Deflection yoke positioning
corrects these areas.
a
b
b
c
c
d
d
a
•The following adjustments should be made when a
complete realignment is required or a new picture
tube is installed.
Set the controls as follows unless otherwise noted:
VIDEO model ..................................................... Standard
PICTURE control .................................................. normal
BRIGHTNESS control .......................................... normal
Perform the adjustments in the following order :
1. Beam Landing
2. Convergence
3. Focus
4. Screen(G2)
5. White Balance
Note : Test Equipment Required.
1. Pattern Generator
2. Degausser
3. DC Power Supply
4. Digital Multimeter
5. Oscilloscope
SECTION 2
SET-UP ADJUSTMENTS
Preparation :
•In order to reduce the influence of geomagnetism on
the set's picture tube, face it east or west.
•Switch on the set's power and degauss with the
degausser.
2-1. BEAM LANDING
Picture Mode: DYNAMIC
1. Input a white signal with the pattern generator.
Contrast
Brightness
2. Set the pattern generator raster signal to a green
raster.
3. Move the deflection yoke to the rear and adjust with
purity control so that the green is at the center and
the blue and the red take up equally sized areas on
each side. (See Figures 2-1 through 2-4.)
4. Move the deflection yoke forward and adjust so that
the entire screen is green. (See Figure 2-1.)
5. Switch the raster signal to blue then to red and verify
the condition.
6. When the position of the deflection yoke has been
decided fasten the deflection yoke with the screws
and DY spacers.
7. If the beam does not land correctly in all the corners,
use a magnet to adjust it. (See Figure 2-4.)
}
......................................................................................................................................................................................................................
normal

–11 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
RG B R G B R GB
RB
RG
GGB
RB
Center dot
R G B
R
G
B
H. STAT VR V. STAT
Magnet
RV750
H. STAT
C Board
BMC (Hexapole)
V.STAT
DY pocket
Purity
V.STAT
BMCPurity
R
R
G
G
B
B
AB
B
A
R
RG GB B
AB
2-2. CONVERGENCE
•Before starting this adjustment, adjust the focus,
horizontal size and vertical size.
•Receive dot/hatch signal.
•Pic mode: Soft.
(1) Horizontal and Vertical Static Convergence
1. (Moving vertically), adjust the V.STAT magnet so that
the red, green and blue dots are on top of each other
at the center of the screen.
2. (Moving horizontally), adjust the H.STAT control so
that the red, green and blue dots are on top of each
other at the center of the screen.
3. If the H.STAT variable resistor cannot bring the red,
green and blue dots together at the center of the
screen, adjust the horizontal convergence with the
H.STAT variable resistor and the V.STAT magnet in
the manner given below.
(In this case, the H.STAT variable resistor and the
V.STAT magnet influence each other, so be sure to
perform adjustments while tracking.)
Operation of V.STAT magnet
If the V.Stat magnet is moved in the “A”and “B”arrows,
the red, green and blue dots moves as shown below.
Moved RV750 H.STAT.
the red, green and blue dots move as shown below.
4. BMC (Hexapole) Magnet.
If the red, green and blue dots are not balanced or
aligned, then use the BMC magnet to adjust in the
manner described below.

–12 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
TLV
RB
YCH
R
B
XCV
B
R
TLH
B
R
Piece A (90), conv. correct
a
b
c
d
ba
cd
a-d : screen-corner
misconvergence
ON DY:
TLV
TLV
XCV
YCH
DY pocket
DY pocket
TLH Plate
XCV
(2) Convergence Rough Adjustment
Preparation:
•Before starting this adjustment, adjust the horizontal
static convergence and the vertical static
convergence
TLH Insert TLH Correction Plate to DY Pocket
(Left or Right)
YCH Insert YCH VOL on DY
TLV Rotate TLV VOL on DY
XCV Rotate XCV Adj core on DY
(3) Screen corner Convergence
1. Affix a Piece A (90), conv. correct corresponding to
the misconverged areas.
(2) Convergence Rough Adjustment
Preparation:
•Before starting this adjustment, adjust the horizontal
static convergence and the vertical static
convergence
TLH Insert TLH Correction Plate to DY Pocket
(Left or Right)
YCH Insert YCH VOL on DY
TLV Rotate TLV VOL on DY
XCV Rotate XCV Adj core on DY
(3) Screen corner Convergence
1. Affix a Piece A (90), conv. correct corresponding to
the misconverged areas.

–13 –
KV-AR14M50/AR14M80/AR14P52
RM-W101
FLYBACK TRANSFORMER (T801-21")
FLYBACK TRANSFORMER (T802-14")
SCREEN
FOCUS
2-5. WHITE BALANCE ADJUSTMENT
1. Set to Service Mode (Refer Section 3-1:
ADJUSTMENTS WITH COMMANDER)
2. Input white raster signal.
3. Set Picture to <DYNAMIC mode>
4. Select RDRV (02) with 1and 4and fixed the value
to 25 with 3and 6.
5. Adjust WHBL GDRV (03) and BDRV (04) with 1and
4and adjust the data with 3and 6for best white
balance in Highlight condition.
6. Write into the memory by pressing [MUTING] then -.
7. Adjust WHBL BKOR (00) and BKOG (01) with 1and
4and adjust the level with 3and 6for best white
balance cut-off condition.
8. Write into memory by pressing [MUTING] then -.
9. US model need to apply only for colour temperature
in Neutral.
2-6. SUB BRIGHT ADJUSTMENT
1. Set to service mode.
2. Brightness set to 50%, Picture....Minimum
3. Select WHBL SBRT (10) with 1and 4and adjust
SBRT (10) data with 3and 6so that the third stripe
from right dimly lit.
4. Write into the memory by pressing [MUTING] then -.
5. GA models C/O: 20 IRE
S/G: 30 IRE
165 ±2VDC
2-3. FOCUS ADJUSTMENT
FOCUS adjustment should be completed before the W/B
adjustment:
1. Receive digital monoscope pattern.
2. Set picture mode: DYNAMIC.
3. Adjust focus VR to obtain a just focus at the center of
the screen.
4. Change receiving signal to white pattern and blue
back.
5. Confirm MAGENTA RING is not noticeable. Incase
magenta ring is obvious, then adjust FOCUS VR to
balance magenta ring and FOCUS.
2-4. G2 (SCREEN) ADJUSTMENTS
1. Set the PICTURE & BRIGHTNESS to STANDARD.
2. Put the Video input mode signal.
3. Connect R,G,B of the C board cathode to
oscilloscope.
4. Adjust Brightness to obtain the cathode value to
value below.
5. Adjust G2 (screen) on the FBT until picture shows
the point before cut off.

– 14 –
SECTION 3
CIRCUIT ADJUSTMENTS
3-1. ADJUSTMENTS WITH COMMANDER
Service adjustments to this model can be performed using the supplied remote commander RM-W101.
a. ENTERING SERVICE MODE
With the unit on standby
This operation sequence puts the unit into service mode.
This screen display is:
b. METHOD OF CANCELLATION FROM SERVICE MODE
Set the standby condition (Press [POWER] button on the commander), then press [POWER]
button again, hereupon it becomes TV mode.
c. METHOD OF WRITE INTO MEMORY
1. Set to Service Mode.
2. Press 1(UP) and 4(DOWN), to select the adjustment item.
3. Change item by pressing 3, 6.
4. Press [MUTING] button to indicate WRITE on the screen.
5. Press -button to write into memory.
d. MEMORY WRITE CONFIRMATION METHOD
1. After adjustment, pull out the plug from AC outlet, and then plug into AC outlet again.
2. Turn the power switch ON and set to Service Mode.
t[DISPLAY] t5t[VOL $+% ] t[POWER]
item no. service data NVM field channel no./
category in decimal item name in decimal NG service command frequency video input name
GEOM 006 HSIZ 031 xSERVICE 60 S VIDEO 1
software service data reserved power on time
release ID version in binary for factory color system (decimal?)
SUS01 0.69U 0001 1111 FF FF NTSC3 65535
Status Byte Status Byte
Flash DCXO #1 SSD #2 SSD
111 11 11 1 7 11 FG xy 111 000000 000000
VDSP_C Flag
CO_LOCKED
VDSP
Detected Stereo Type (Direct Value from CZ_ Stereo_Mode)
S : for Sony
A : Aiwa
U S : US/Latin/Taiwan
E U : Europe
G A : General Area
J P : Japan
0 1 : serial no. of the M/P release
for each destination
111 Needed for Nicam DCXO aligment Purpose
xy Value of x = 0 - Unknown, 1 - BTSC, 2 - A2, 3 - NICAM,
4 - KOREAN, 5 - Japan, 6 - AV Stereo
Value of y = 0 - Mono, 1 - Stereo, 2 - Bilingual, 4 - SAP/Single
1, 4Select the adjustment item.
r
3, 6Raise/lower the data value.
r
[MUTING] Writes.
r
-Executes the writing.

– 15 –
3. Call the adjusted items again to confirm adjustments were made.
e. OTHER FUNCTION VIA REMOTE COMMANDER
7, -All the data becomes the values in memory.
8, -All user control goes to the standard state.
Display, -Service data initialization (Be sure not to use usually.)
2, 5Select Device or Category
3-2. ADJUSTMENT METHOD
Item Number 000 HPOS
This explanation uses H POSITION as an example.
1. Select "000 HPOS" with the 1and 4buttons, or 2and 5.
2. Raise/lower the data with the 3and 6buttons.
3. Select the optimum state. (The standard is IF for PAL reception.)
4. Write with the [MUTING] button. (The display changes to WRITE.)
5. Execute the writing with the -button. (The WRITE display will be changed to red color while excuting, and back to
SERVICE.)
Example on screen display :-
Use the same method for all Items. Use 1and 4to select the adjustment item, use 3and 6to adjust, write with
[MUTING], then execute the write with -.
Note : 1. In [WRITE], the data for all items are written into memory together.
2. For adjustment items that have different standard data between 50Hz or 60Hz, be sure to use the respective
input signal after adjustment.
Adjusted with [3] and [6] buttons.
GREEN
GEOM 000 HPOS 039 SERVICE 50 VIDEO 1
write with [MUTING].
GREEN
GEOM 000 HPOS 039 WRITE 50 VIDEO 1
GEOM 000 HPOS 039 WRITE 50 VIDEO 1
Write executed with [0].
RED
The WRITE display
then returns to green
SERVICE

–16 –
Adjustment Item Table
JVTytilanoitcnuF.tinIegnaRATADnoitcnuFetoN&elbaTemaNeciveD)deliateD(eulaVlaitinI/sserddAMVN
yrogetaC.oNemaNceDceD )sserddAevalS(nommoC050605w06w
MOEG000SOPH130360TSUJDA)SH(tfihSlatnoziroH )BGRNPJ+(06w/05w/06/05rossecorP-VT 24242424
100RAPH130360TSUJDAmargolellaraPlatnoziroH06w/05w/06/05)hA8( 13131313
200WOBH130360TSUJDAwoBlatnoziroH06w/05w/06/05 13131313
300NILV130360TSUJDAytiraeniLlacitreV06w/05w/06/05 13131313
400RCSV130360TSUJDAllorcSlacitreV06w/05w/06/05 13131313
500ZISH130360TSUJDA)WE(htdiWWE06w/05w/06/05 52525252
600WPWE130360TSUJDA)WP(htdiW/alobaraPWE )BGRNPJ+(06w/05w/06/05 13131313
700POCU710360TSUJDAalobaraPrenroCreppUWE06w/05w/06/05 13131313
800POCL710360TSUJDAalobaraPrenroCrewoLWE06w/05w/06/05 13131313
900ZTWE130360TSUJDAmuizeparTWE06w/05w/06/05 13131313
010PLSV130360TSUJDA)SV(epolSlacitreV06w/05w/06/05 13131313
110ZISV510360TSUJDAedutilpmAlacitreV06w/05w/06/05 51515151
210ROCS410360TSUJDA)CS(noitcerroC-S06w/05w/06/05 52525252
310SOPV130360TSUJDA)HSV(tfihSlacitreV06w/05w/06/05 13131313
410LBH000100XIFedoMgniknalBBGR06w/05w/06/05 10101010
510FBW700510XIF)FBW(gniknalBediWfognimiT06w/05w/06/05 70707070
610RBW700510XIF)RBW(gniknalBediWfognimiT06w/05w/06/05 01010101
710LBS000100XIFgniknalBecivreSenon00
810YPOC000100XIFaeraMVNzH06/05llaotatadOEGehtypoCenon00

–17 –
JVTytilanoitcnuF.tinIegnaRATADnoitcnuFetoN&elbaTemaNeciveD )deliateD(eulaVlaitinI/sserddAMVN
yrogetaC.oNemaNceDceD )sserddAevalS(nommoCpmeTloC
)rehtoHGIH(
pmeTloC
)rehtoWOL(
pmeTloC
)rehtoMRON(
pmeTloC
)VUYHGIH(
pmeTloC
)VUYWOL(
pmeTloC
)VUYLAMRON(
pmeTloC
)BGRHGIH(
pmeTloC
)BGRWOL(
pmeTloC
)BGRMRON(
srehtOBGRVUYedomciP
0
edomciP
1
edomciP
2
edomciP
3
LBHW000ROKB130360TSUJDARtesffOleveLkcalB )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetlocrossecorP-VT 131313131313131313
100GOKB130360TSUJDAGtesffOleveLkcalB )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetloc)hA8( 131313131313131313
200VRDR730360XIFRtnioPetihW )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetloc)HA8(orP-VT 737373737373737373
300VRDG730360TSUJDAGtnioPetihW )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetloc 131313131313131313
400VRDB730360TSUJDABtnioPetihW )srehtO/BGR/VU(*)lamroN/WOL/HGIH(pmetloc 131313131313131313
500GPL000100XIFteserPniaGBGR enon10
600RGP130721XIF)RGP(RniaGteserP enon **
700GGP130721XIF)GGP(GniaGteserP enon **
800BGP130721XIF)BGP(BniaGteserP enon **
900FONG000510XIFtesffOniaGteserP enonpoolCCC51
010TRBS130360TSUJDAssenthgirB-buS VUY/BGR/srehtO 131313
110ORBS000300XIF)ciPtnegilletnI(tesffOssenthgirB-buS enon00
210LGE000100XIFmetsySCCCnipooLniaGelbanE enon10
310LGS000300XIFmetsySCCCnitnerruChgiHfonoitceleS enon00
410BKA000100XIFnoitazilibatStnerruCkcalB enon00
510SBC000100XIFgnitimiLtnerruCmaeBfoecneuqeSlortnoC enon00
610BBGR000300XIFgniknalBBGR enon00
710GBLB000100XIFtuptuOneerG&eulBfogniknalB enon00
810BFO000100XIFeulBtesffOleveLkcalB enon10
910RBSN000510XIFtesffOssenthgirBdradnatSnoN enon50
020PBW000300XIF)woL:3,2,lamroN:1,hgiH:0(gnitteSpmeTroloC edoMerutciP 00102010
JVTytilanoitcnuF.tinIegnaRATADnoitcnuFetoN&elbaTemaNeciveD )deliateD(eulaVlaitinI/sserddAMVN
yrogetaC.oNemaNceDceD )sserddAevalS(nommoCVUYlap05
)VT(
lap05
)oediV(
maces05
)VT(
maces05
)oediV(
VT06oediV06VUY05VUY06BGR05BGR06edomciP
0
edomciP
1
edomciP
2
edomciP
3
ocE*cimanyD
)npJ(dts
ocE*cimanyD
)npJ(hcum
ocE*dradnatS
)npJ(dts
ocE*dradnatS
)npJ(hcum
dtsocE
)npJ(
hcumocE
)npJ(
VToediVVT
ediW
oediV
ediW
MVA
)npJ(
ediWVA
)npJ(
JDAS000XAMP360360TSUJDAmumixaMerutciP )BGRNPJ+(>ediW/lamroN</)ediW/lamroN(*)oediV/VT( rossecorP-VT 737373730000
100EUHS700510TSUJDAeuH-buS oediV/VT 7070
200PHSS510360XIFssenprahS-buS )BGRNPJ+(VUY/oediV/VT ** ******
300OHSS000300XIF)ciPtnegilletnI(tesffOssenprahS-buS enon20
400LOCS130360TSUJDAroloC-buS /)oediv(maces05/)vt(maces05/)oediv(lap05/)vt(lap05
BGR06/BGR05/VUY06/VUY05/oediv06/VT06
13131313131313131313
500OOCS000300XIF)ciPtnegilletnI(tesffOroloC-buS enon20
600CIP130721XIF;)dilavni(001>,)dilav(001-0:AG[lortnoCerutciP
])dilavni(6tiberongi;)dilav(36-0:srehtO
)ataDteseRresU=lanosreP:AG(ledoMerutciP 0010856001
700LOC130721XIF;)dilavni(001>,)dilav(001-0:AG[lortnoCroloC
])dilavni(6tiberongi;)dilav(36-0:srehtO
)ataDteseRresU=lanosreP:AG(ledoMerutciP 65050405
800TRB130721XIF,)dilav(001-0:AG[lortnoCssenthgirB
tiberongi;)dilav(36-0:srehtO;)dilavni(001>
])dilavni(6
)ataDteseRresU=lanosreP:AG(ledoMerutciP 05050605
900EUH130721XIF;)dilavni(001>,)dilav(001-0:AG[lortnoCeuH
])dilavni(6tiberongi;)dilav(36-0:srehtO
)ataDteseRresU=lanosreP:AG(ledoMerutciP 05050505
010PHS130721XIF,)dilav(001-0:AG[lortnoCssenprahS
tiberongi;)dilav(36-0:srehtO;)dilavni(001>
])dilavni(6
)ataDteseRresU=lanosreP:AG(ledoMerutciP 06050505

–18 –
JVTytilanoitcnuF.tinIegnaRATADnoitcnuFetoN&elbaTemaNeciveD )deliateD(eulaVlaitinI/sserddAMVN
yrogetaC.oNemaNceDceD )sserddAevalS(nommoCsrehtOBGRVUY)VT(LAP)VT(CSTN)VT(MACES)oediV(LAP)oediV(CSTN)oediV(MACESTUPNI-SMACESCSTNVT
CY000QRFP000300XIFyaleDdnaycneuqerFretneCgnikaeP rossecorP-VT***
100APR####300XIFtoohSrevO&erPoitaR rehto/VT 20 20
200OPR200300XIFskaePevitageN&evitisoPfooitaR rehto/VT 20 20
300YLDY210510XIFyaleD-Y TUPNI-S/VUY+)OEDIV/VT(*)MACES/CSTN/LAP( ** * * * * * *
400TAMC000300XIFxirtaM)ASU/napaJ(CSTNroMACES-LAP )BGRNPJ(0000
500LCA100100XIFgnitimiLroloCcitamotuA 10
600BC000100XIFycneuqerFretneCssapdnaBamorhC )xif0:oediV*(VThtiwylnodilav10
700OBS100300XIFtesffOkcalBMACES 00
800ESHC100300XIFytivitisneStnedICSTN/LAP 20
900OLC000100XIFretliF)lleB(ehcolCfoycneuqerFretneC 00
010PRTC000100XIFedoMparTamorhC srehto/MACES 00 10
110SPB000100XIFeniLyaleDdnab-esaBamorhCfossapyB srehto/CSTN *** ***
210OCF000100XIFnOroloCdecroF 00
310TNIT130360XIFlortnoCtniTdnaB-esaB srehto/VUY 13 13
410VUT000100XIFslangiSVUnolortnoCtniT 00
JVTytilanoitcnuF.tinIegnaRATADnoitcnuFetoN&elbaTemaNeciveD )deliateD(eulaVlaitinI/sserddAMVN
yrogetaC.oNemaNceDceD )sserddAevalS(nommoC0506srehtoVUYVToediVtxeteleTpi-VTlangisoN
CNYS000SYS000100XIFtupnICNYSYnonoitazinorhcnyS 00
100OF000300XIFtnatsnoCemiT1esahP )FR(langisoNrogninuTotuA/txeteleT/oediV/FFOPIVT/NOPIVT 3030100000
200DIV000100XIFedoMtnedIoediV 06/05 0000
300LSF000100XIFcnySlacitreVrofleveLgnicilSdecroF 00
400LSS000100XIFrotarapeScnySleveLgnicilS 06/05 0000
500DIVS100700XIFnoitacifitnedIoediVrofnoitceleSecruoS srehtO/VUY 0070
600FROF000300XIFycneuqerFdleiFdecroF 30
700KVM000100XIFgniyeKnoisiVorcaM 10
