Sony Wega Trinitron KV-27FS13 User manual

SONY@
4-081-737-21
Trinitmtf ColorTV
Operating Instructions
KV-27FS13
KW27FS17
KV-27FVl7
KV32FS13
KV-32FSI 7
0 2001 by Sony Corporation

WARNING
To reduce the risk of fire or electric shock, do not expose the TV to rain or moisture.
AlTENTION
RlSO”E DE CHOC ELECTRIOUE,
NE PAS OU”RlR
PRECAUCION
RIESGO DE CHOOVE ELEOTRlCO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERYICEABLE PARTS INSIDE.
REFER SERVlClNG TO 0”ALlFlED SERWCE PERSONNEL.
A
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
A
IThis symbol is intended to alert the user to the presence of important operating
.and maintenance (servicing) instructions in the literature accompanying the
appliance.
Note to the CATV Installer
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of
the NEC that provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building as close to the
point of cable entry as practical.
SAFETYPRECAUTIONS
0 Operate the TV only on 120 V AC.
c3 One blade of the power
into the power outlet on H
lug is wider than the other for safety
K y one way. If you are unable to insert t urposes and will fit
e plug fully into the
outlet, contact your dealer.
0 If any liquid or solid object falls into the TV, unplug it and have it checked by qualified
personnel before operating it further.
CAUTION
When using TV games, computers, and similar products with your TV, keep the brightness
and contrast functions at low settings. If a fixed (non-moving) pattern is left on the screen
for long periods of time at a high brightness or contrast setting, the image can be
permanently imprinted onto the screen. Continuously watching the same channel can cause
the imprint of station logos onto the TV screen. These types of imprints are not covered by
your warranty because they are the results of misuse.

Important Safeguards
For your protection, please read these instructions completely, and keep this manual for
future reference. Carefully observe and comply with all warnings, cautions and instructions
placed on the set, or described in the operating instructions or service manual.
WARNING
To guard against injury, the following basic safety precautions should be observed in the
installation, use, and servicing of the set
Use
Power Sources
This set should be operated only from the
type of power source indicated on the
serial/model plate. If you are not sure of
the type of electrical power supplied to
your home, consult your dealer or local
power company For those sets designed to
operate from battery power, refer to the
operating instructions.
Grounding or Polarization
This set is equipped with a polarized AC
power cord plug (a plug having one blade
wider than the other), or with a three-wire
grounding type plug (a plug having a third
pm for grounding).
Follow the instructions below:
For the set with a polarized AC power
cord plug
This plug will fit into the power outlet only
one way. This is a safety feature. If you are
unable to insert the plug fully into the
outlet, try reversing the plug. If the plug
should still fail to fit, contact your
electrician to have a suitable outlet
installed. Do not defeat the safety purpose
of the polarized plug by forcing it in.
Alternate Warning
For the set with a three-wire
grounding type AC plug
This plug will only fit into a grounding-
type power outlet. This is a safety feature.
If you are unable to insert the plug into the
outlet, contact your electrician to have a
suitable outlet installed. Do not defeat the
safety purpose of the grounding plug.

Overloading
Do not overload wall outlets, extension
cords or convenience receptacles beyond
their capacity, since this can result in fire or
electric shock. Always turn the set off
when it is not to be used. When the set is
left unattended and unused for long
periods of time, unplug it from the wall
outlet as a precaution against the
possibility of an internal malfunction that
could create a fire hazard.
Do not disconnect the antenna or the
power cord during a heavy storm.
Lightning may strike while you are
holding the cable or cord, causing serious
injury. Turn off your TV and wait for the
weather to improve.
Object and liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts
that could result in a fire or electric shock.
Never spill liquid of any kind on the set.
Attachments
Do not use attachments not recommended
by the manufacturer, as they may cause
hazards.
Do not place any objects, especially heavy
objects, on top of the set. The object may
fall from the set, causing injury
Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning
the exterior of the set.
If a snapping or popping sound from a TV
set is continuous or frequent while the TV
is operating, unplug the TV and consult
your dealer or service technician. It is
normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
installation
Always use two or more people to lift or
move the set. The set is heavy and the
bottom surface is flat. Serious injury can
result from trying to move the set by
yourself alone, or from unsteady handling.
Install the set on a stable, level surface.
Water and Moisture
Do not use power-line operated sets near
water - for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming pool,
etc.

Accessories
Do not place the set on an unstable cart,
stand, tripod, bracket, table, or shelf. The
set may fall, causing serious injury to a
child or an adult, and serious damage to
the set. Use only a cart or stand
recommended by the manufacturer for the
specific model of TV any mounting of the
product should follow the manufacturer’s
instructions, and should use a mounting
accessory recommended by the
manufacturer. An appliance and cart
combination should be moved with care.
Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart
combination to overturn.
Disconnect all cables and cords from the
set before attempting to move the set.
Do not allow children or pets to climb up
onto, or push against, the set. The set may
fall, causing serious injury.
Ventilation
The slots and openings in the cabinet and
in the back or bottom are provided for
necessary ventilation. To ensure reliable
operation of the set, and to protect it from
overheating, these slots and openings must
never be blocked or covered.
.Never cover the slots and openings
with a cloth or other materials.
Never block the slots and openings
by placing the set on a bed, sofa, rug
or other similar surface.
Never place the set in a confined
space, such as a bookcase, or built-in
cabinet, unless proper ventilation is
provided.
Do not place the set near or over a
radiator or heat register, or where it
is exposed to direct sunlight.
Power-Cord Protection
Do not allow anything to rest on or roll
over the power cord, and do not place the
set where the power cord is subject to wear
or abuse.

Grounding or Polarization
This set may be equipped with a polarized alternating current line plug (a plug having one
blade wider than other). This plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into the outlet, try reversing the
plug. If the plug should still fail to fit, contact you electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An outdoor antenna
system should not be located in the vicinity of overhead power lines or other electric light or
power circuits, or where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD
BE TAKEN TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection against voltage
surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in USA
and Section 54 of the Canadian Electrical Code in Canada provides information with respect
to proper grounding of the mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.

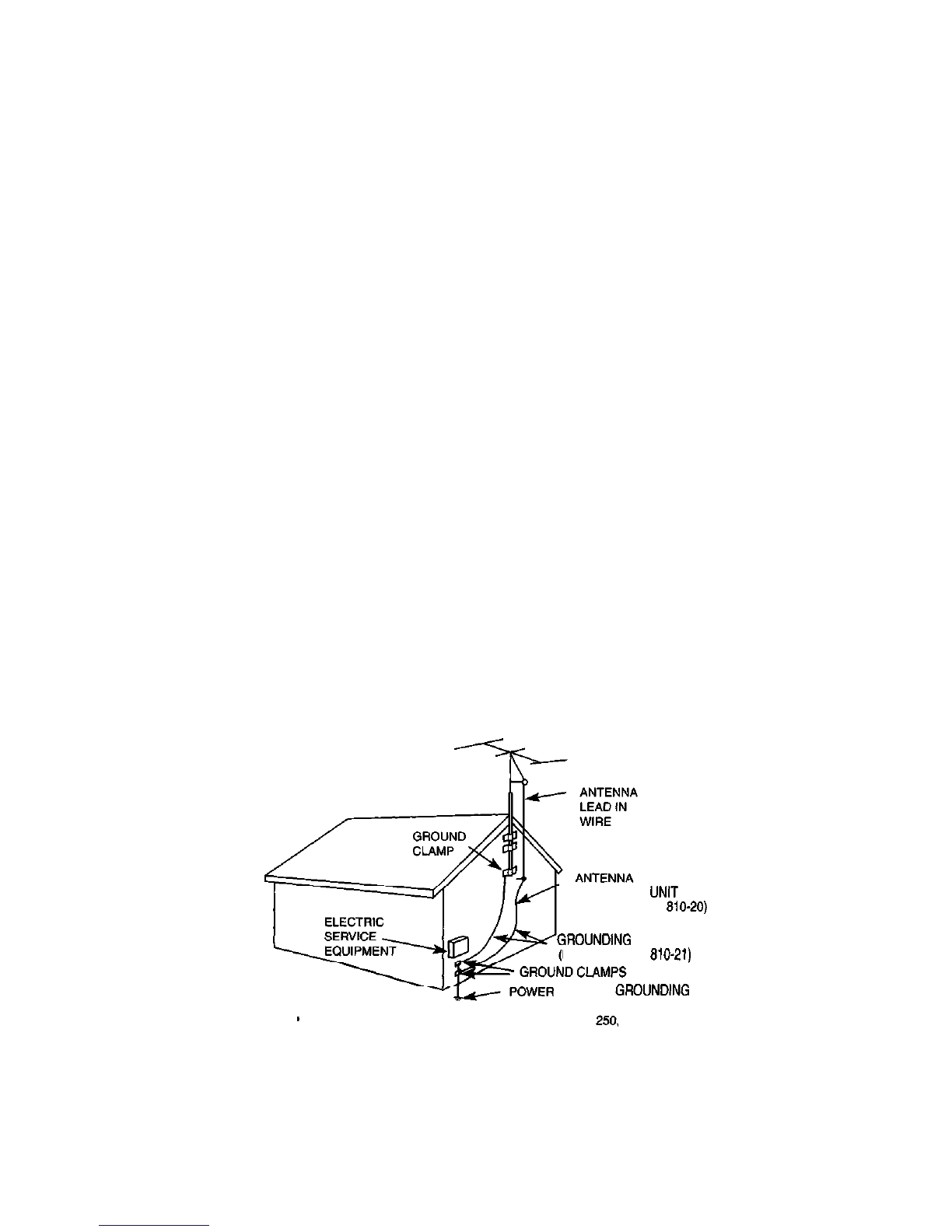

Antenna Grounding According to the NEC
Refer to section 54-300 of Canadian Electrical Code for Antenna Grounding.
DISCHARGE UNlT
(NEC SECTION 8,040)
GROUNDlNG CONDUCTORS
(NEC SECTION 810-21)
SERVICE GROUNDlNG
ELECTRODE SYSTEM
NEC - NATIONAL ELECTRIC CODE (NEC ARTICLE
250. PART H)
lightning
For added protection for this television receiver during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the receiver due to lightning and
power-line surges.

Service

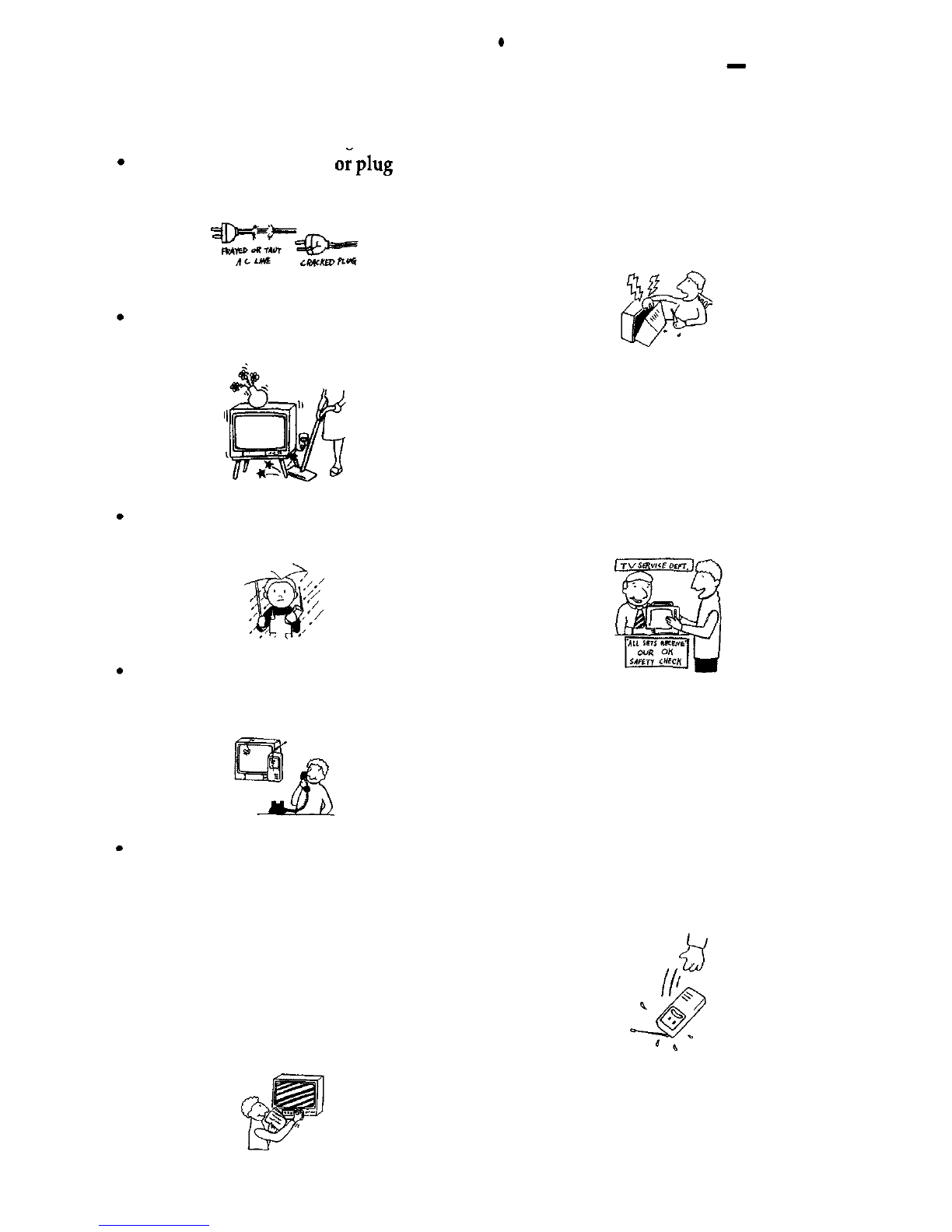

Damage Requiring Service
Unplug the set from the wall outlet and
refer servicing to qualified service
personnel under the following conditions:
When the power cord oiplug is
damaged or frayed.
If liquid has been spilled into the
set.
If the set has been exposed to rain or
water.
If the set has been subject to
excessive shock by being dropped,
or the cabinet has been damaged.
If the set does not operate normally
when following the operating
instructions. Adjust only those
controls that are specified in the
operating instructions. Improper
adjustment of other controls may
result in damage and will often
require extensive work by a
qualified technician to restore the set
to normal operation.
.
When the set exhibits a distinct
change in performance - this
indicates a need for service.
Servicing
Do not attempt to service the set yourself
since opening the cabinet may expose you
to dangerous voltage or other hazards.
Refer all servicing to qualified service
personnel.
Replacement Parts
When replacement parts are required, be
sure the service technician certifies in
writing that he has used replacement parts
specified by the manufacturer that have the
same characteristics as the original parts.
Unauthorized substitutions may result in
fire, electric shock, or other hazards.
Safety Check
Upon completion of any service or repairs
to the set, ask the service technician to
perform routine safety checks (as specified
by the manufacturer) to determine that the
set is in safe operating condition, and to so
certify. When the set reaches the end of its
useful life, improper disposal could result
in a picture tube implosion. Ask a qualified
service technician to dispose of the set.

Contents
Introduction
Trinitron@
Color TV Features . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
Batteries for the Remote Control . . . . . . . . . . . . . . . . . . . . . . . 2
About this Manual
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
ConnectingYourTV

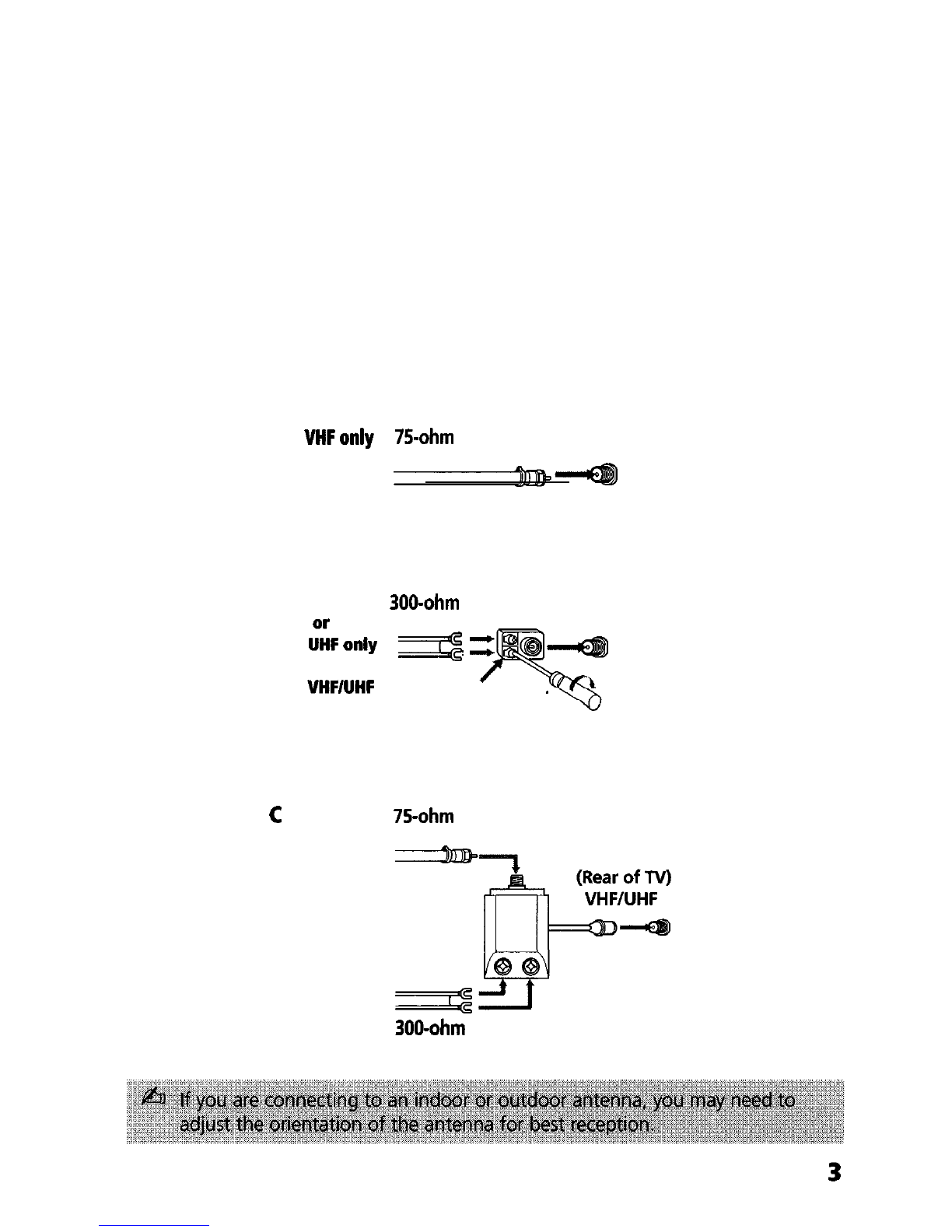

Basic Connections..
.............................................. 3

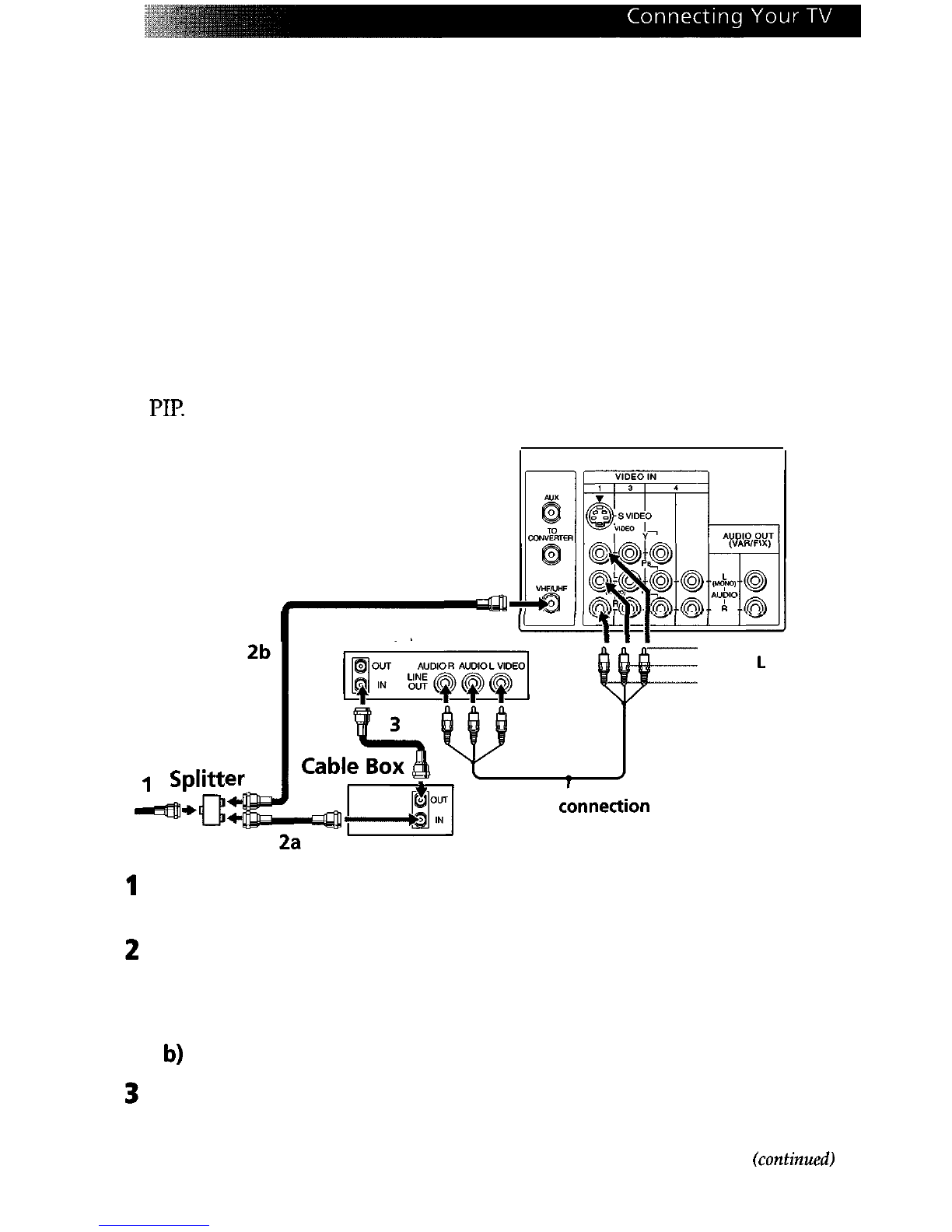

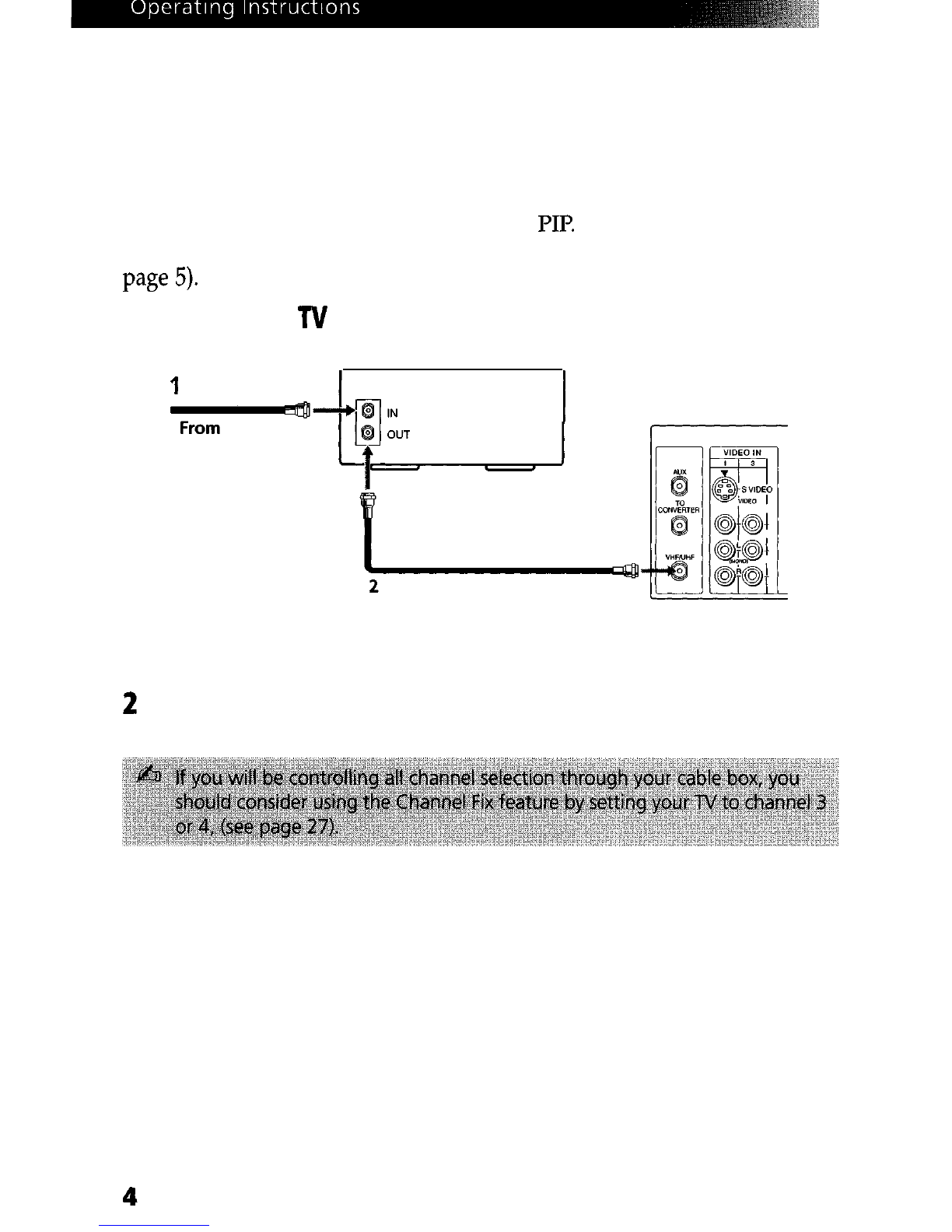

Cable Box
Connections .......................................
4
Connecting Additional Equipment
..................
6
Using the Remote Control and Basic Functions
Using the Remote Control.. .............................. 15
Setting Up the TV Automatically..
.................. 17
Using Picture in Picture (PIP).
......................... 18
Quick Start tothe Menus.. ................................
20
Using the Menus
Using the Video
m Menu.. ............................. 23
Using the Audio X@
Menu.. ............................. 24
Using the Channel Setup m
Menu.. .............. 26
Parental Control.. ............................................... 28
Using the Parental Control
& Menu.. .......... 31
Using the Timer 8 Menu
................................ 34
Using the Setup m menu
................................ 35
Using the Basic & Menu .................................
36
Other Information
Programming the Remote Control
................. 37
Troubleshooting ................................................ 41
Specifications.. ....................................................
44
Index..........................................................................
46

Introduction
Congratulations on your purchase of the Sony Trinitron@ Color TV
Before you begin using this manual, please check the model number
located on the rear of your TV or on the front cover of this manual.
Trinitron” Color TV Features
Some of the features you will enjoy include:
FLAT CRT - New technologically advanced screen for optimal
picture quality.
Parental Control - A tool for parents to help monitor what their
children watch on TV by establishing rating limits.
Favorite Channel - Instant access to your favorite channels with the
touch of a button.
Picture in Picture (PIP) - Allows you to view two channels
simultaneously (KV-27FV17, KV-27FS17, KV-32FS17 only).
Universal Remote Control - Program your remote control to operate
your connected cable box, VCR, digital satellite receiver, or DVD
player.
Energy Star@ - A recognized symbol of energy efficiency
S VIDEO - A video input that offers enhanced picture quality.
Direct MTS - Allows direct access to changing your Multi-Channel
TV Sound: Stereo, Mono, or Auto-SAP (Second Audio Program),
with the touch of a button.
Trilingual Menus - Choose between English, French, or Spanish
menus.
Front Panel Controls - Allows for access to the on-screen menus
without the use of a remote control.
Front A/V inputs - A quick connection for video games, camcorders,
or stereo/mono equipment.

Batteries for the Remote Control
Insert two AA (R6) batteries (supplied) into the remote control using the
following illustration as a guide.
About this Manual
This manual provides instructions to help you enjoy your new TV. It
shows you how to connect to an antenna or cable, cable box, VCR, DVD,
satellite receiver, stereo system or camcorder. Once you are connected,
follow the instructions and use the remote control to access the on-screen
menus.
2

Connecting Your TV
Read this chapter before setting up your TV for the first time. This section
covers basic connections in addition to any optional equipment you may
be connecting.
Basic Connections
TV with indoor or outdoor antenna, or CATV cable
Depending on the cable available in your home, choose one of the
connections below:
A VHFonly 75-ohm
(Rear of TV)
or coaxial cable
VHF/UHF
VHF/UHF
or
Cable
B VHF only 300-ohm twin (Rear of TV)
i:Fonly
lead cable
VHF/UHF
==$
or
VHF’UHF Antenna connector
c VHF
and
UHF
75-ohm
coaxial cable
EAC-66 U/V mixer
(not supplied)
300-ohm twin
lead cable

Cable Box Connections
Some cable TV systems use scrambled or encoded signals that require a
cable box to view all channels. If you subscribe to that kind of cable
service, use this connection. Scrambled signals coming in to the TV
through the cable box cannot be viewed in PII? If some of your channels
are scrambled, consider using the Cable Box and Cable connection (see
page 5).
Cable Box and TV
Cable Box
1
From
cable
Rear of TV
1 Connect the coaxial cable from your cable service to the IN jack on
your cable box.
2 Connect a coaxial cable (not supplied) from the OUT jack on your
cable box to the VHF/UHF jack on your TV

Cable Box and Cable
Use this connection if you subscribe to a cable system that scrambles
some channels (pay channels), but not all of them. This set up allows you
to use the remote control to:
a) change channels through your cable box when you are receiving a
scrambled signal, and
b) change channels through your TV
This connection also allows you to use the PIP feature when you are
viewing unscrambled channels coming directly into your TV from your
cable. Scrambled signals coming through the cable box cannot be viewed
in PIP. For more information on the PIP feature, see page 18.
Cable Box
Rear of TV
CATV cable (unscrambled Channels)
1 Connect the coaxial cable from your cable service to the VHF/UHF
jack on your TV
2 Using a coaxial cable (not supplied), connect the IN jack on your
cable box to the TO CONVERTER jack on your TV
3 Using a coaxial cable (not supplied), connect the OUT jack on your
cable box to the AUX jack on your TV
5

Connecting Additional Equipment

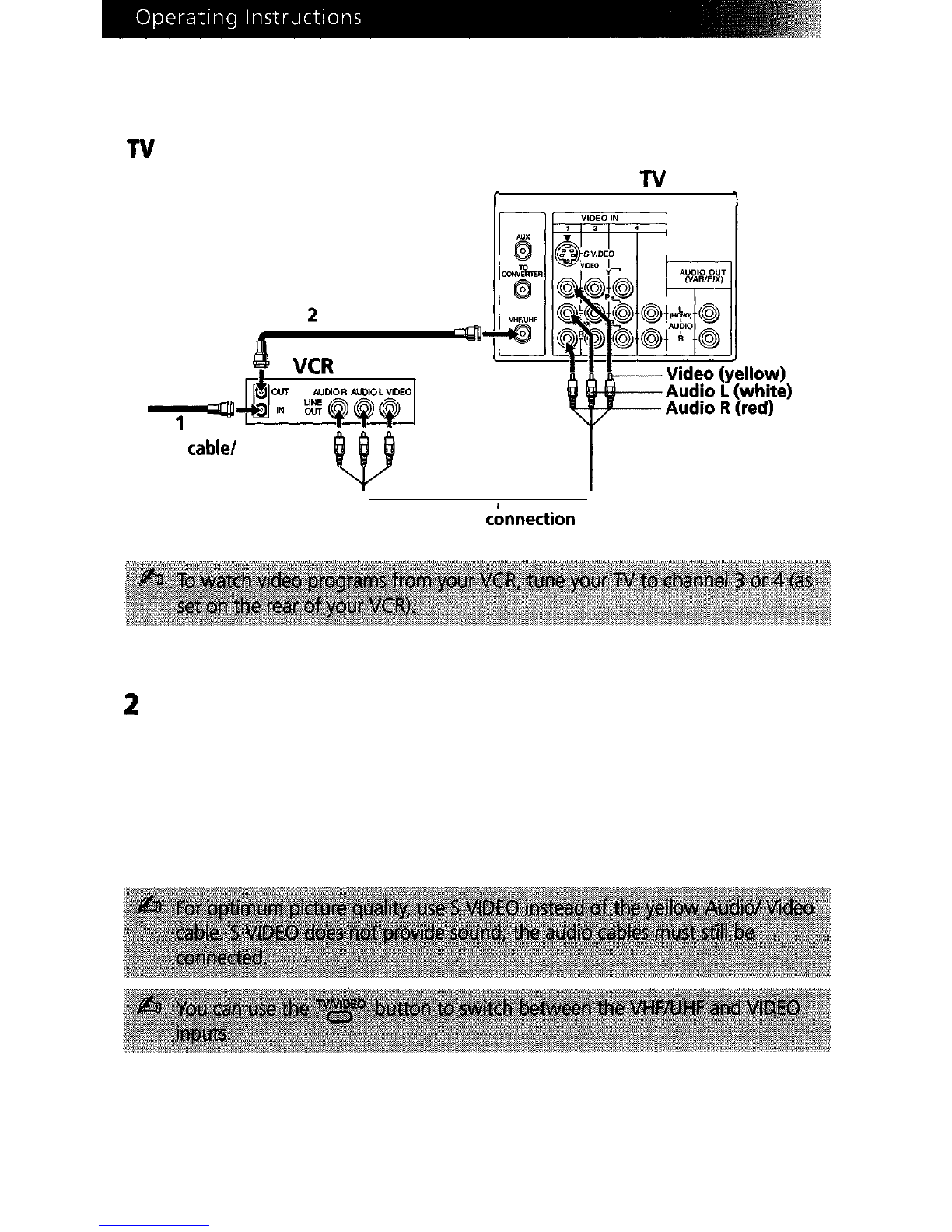

TV and VCR
Rear of TV
I
From cable/
antenna
Optional cbnnection
1 Connect the coaxial cable from your TV antenna or cable service to
the IN jack on your VCR.
2 Using a coaxial cable (not supplied), connect the OUT jack on your
VCR to the VHF/UHF jack on the TV
Optional connection
If your VCR is equipped with video outputs, you can get better picture
quality by connecting Audio/Video cables (not supplied) from AUDIO
and VIDEO OUT on your VCR to AUDIO/VIDEO IN on your TV
6

TV, VCR, and Cable Box
Use this connection if you subscribe to a cable system that scrambles
some channels (pay channels), but not all of them. This set up allows you
to use the remote control to:
a) change channels through your cable box or VCR when you are
receiving a scrambled signal, and
b) change channels through your TV
This connection also allows you to use the PIP feature when you are
viewing unscrambled channels coming directly into your TV from your
cable. Scrambled signals coming through the cable box cannot be viewed
in PIP. For more information on the PIP feature, see page 18.
Rear of TV
I
VCR
1 Splitt
-Ml
Cable
Optional
-Video (yellow)
-Audio L (white)
-Audio R (red)
Connect the single input jack of the splitter to your incoming cable
connection.
Using a coaxial cable (not supplied), connect the two output jacks of
the splitter to:
a) the IN jack on your cable box, and
b) the VHF/UHF jack on the TV
Using a coaxial cable (not supplied), connect the OUT jack on your
cable box to the IN jack on your VCR.
kontinued)
7

Optional connection
If your VCR is equipped with video outputs, you can get better picture
quality by connecting Audio/Video cables (not supplied) from AUDIO
and VIDEO OUT on your VCR to AUDIO/VIDEO IN on your TV.

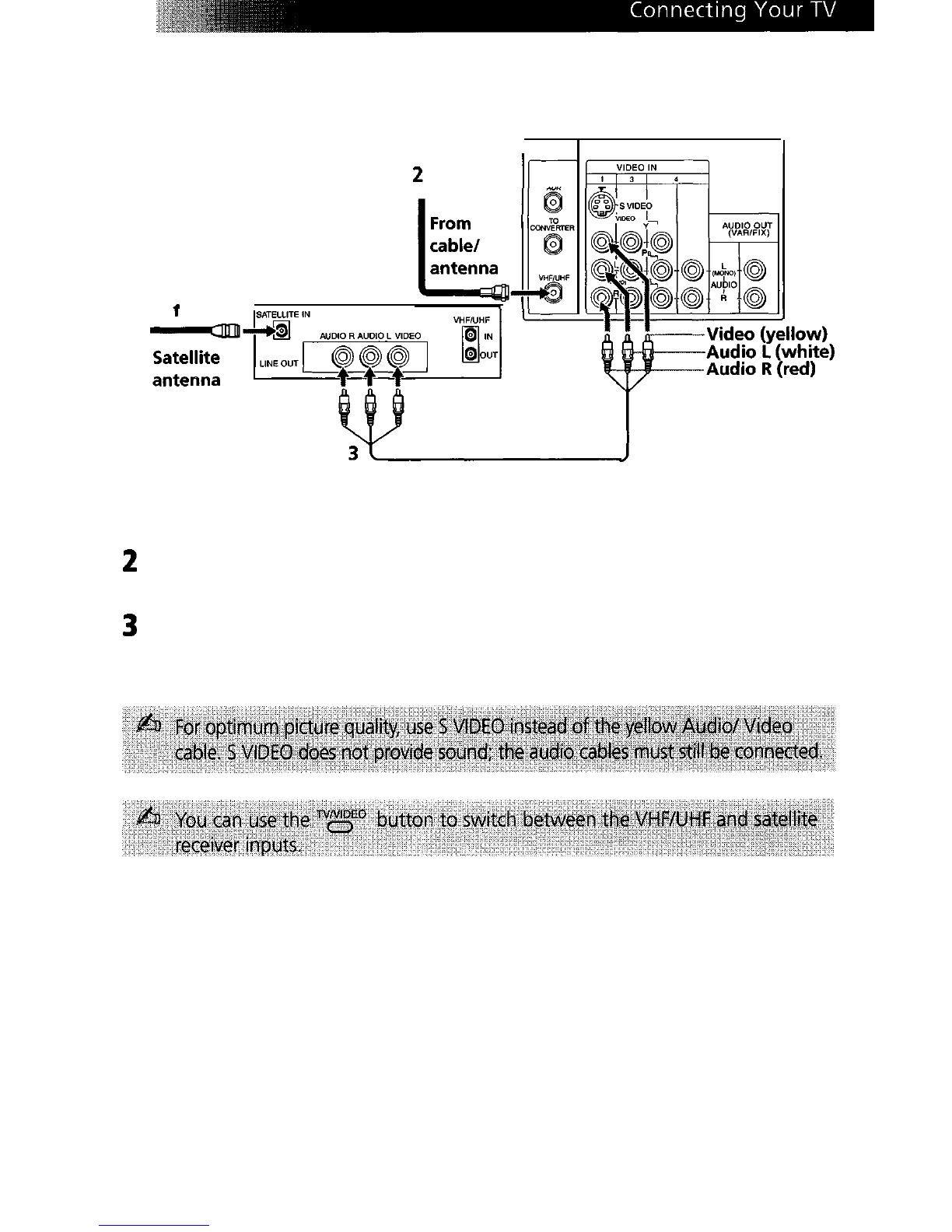

TV and Satellite Receiver
Rear of TV
Satellite Receiver
I
cable
1 Connect the cable from your satellite antenna to SATELLITE IN on
your satellite receiver.
2 Connect the coaxial cable from your cable or antenna to the
VHF/UHF jack on your TV.
3 Using Audio/Video cables (not supplied), connect AUDIO and
VIDEO OUT on your satellite receiver to AUDIO and VIDEO IN on
your TV.

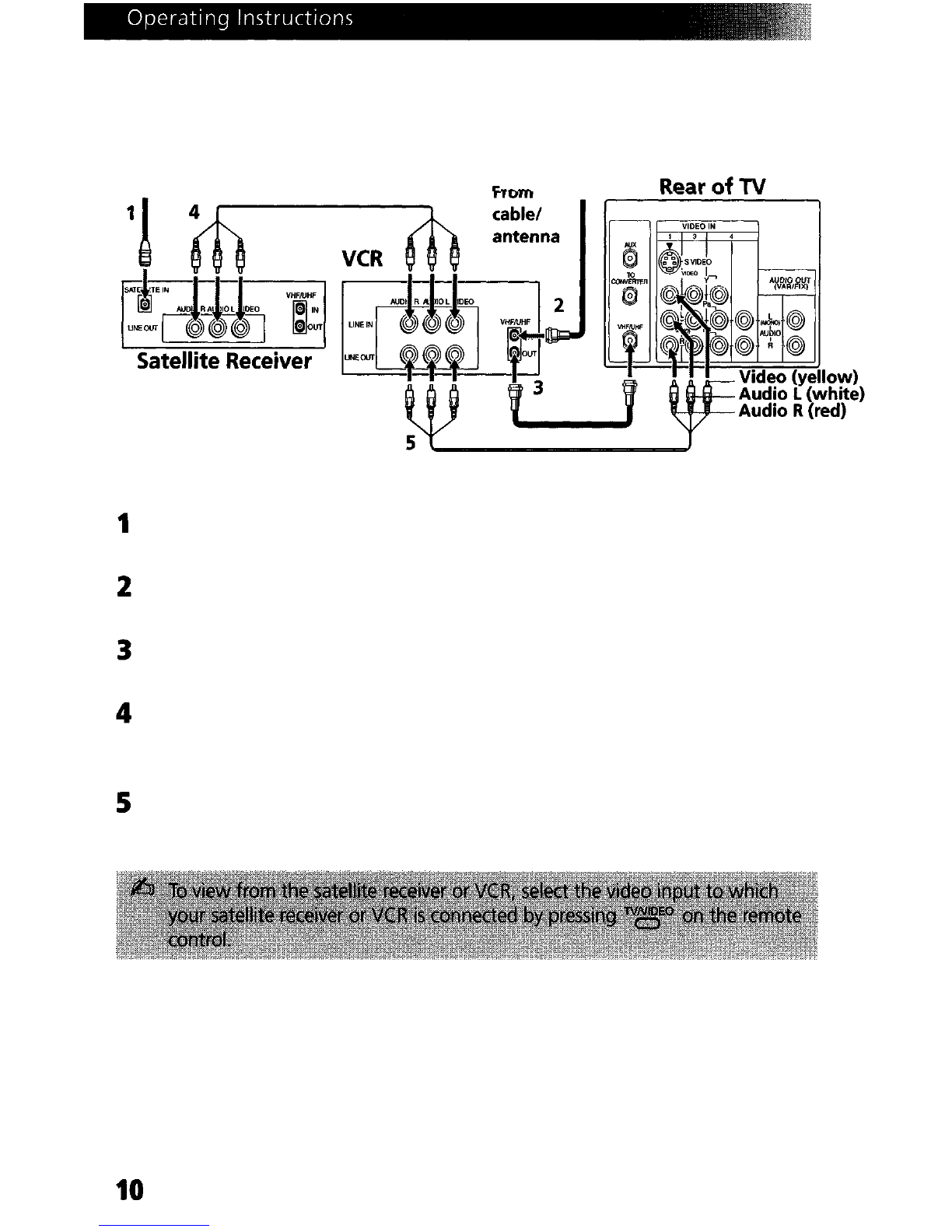

TV, Satellite Receiver, and VCRTV, Satellite Receiver, and VCR
SatelliteSatellite
antennaantenna
cablecable
Connect the cable from your satellite antenna to SATELLITE IN on
your satellite receiver.
Connect the coaxial cable from your cable or antenna to the
IN jack on your VCR.
Using a coaxial cable (not supplied), connect the OUT jack on your
VCR to the VHF/UHF jack on your TV
Using Audio/Video cables (not supplied), connect AUDIO and
VIDEO OUT on your satellite receiver to AUDIO and VIDEO IN on
your VCR.
Using Audio/Video cables (not supplied), connect AUDIO and
VIDEO OUT on your VCR to AUDIO and VIDEO IN on your TV
IO

Connecting a Camcorder
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO
OUT on your camcorder to AUDIO and VIDEO IN on your TV.
Front A/V Panel
A/V output
Connecting a DVD Player
Using Audio/Video cables (not supplied), connect AUDIO and VIDEO
OUT on your DVD player to AUDIO and VIDEO IN on your TV.
Rear of DVD player
I
Rear of TV
I
Audio L (white)
11

Connecting an Audio System
Using Audio cables (not supplied), connect AUDIO OUT on your TV to
one of the unused line inputs (e.g. TV, AUX, TAPE2) on your stereo.
Rear of TV
II
12
