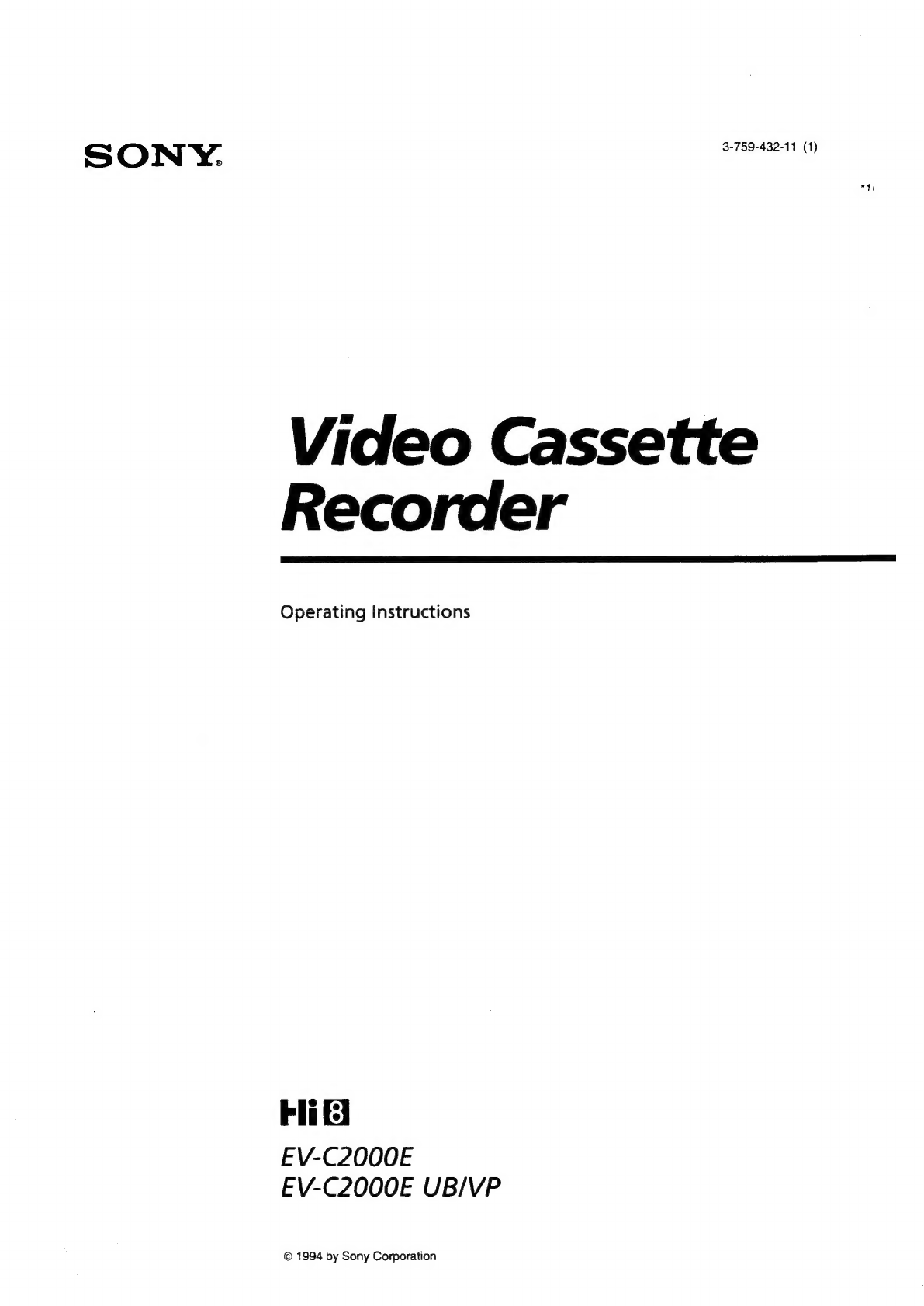

Sony Hi 8 EV-C2000E Hi 8 EV-C2000E UB User manual

SONY.
3-759-432-11 (1)
Video Cassette
Recorder
Operating Instructions
FE
EV-C2000E
EV-C2000E UB/VP
© 1994 by Sony Corporation

ST ae NL TE
WARNING
To prevent fire or shock hazard, do not expose the unit
to rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
Notice for customers in the United Kingdom
A moulded plug complying with BS 1363 is fitted to
this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be
replaced, a5 AMP fuse approved by ASTA or BSI to BS
1362, (i.e., marked with @ or Y mark) must be used.
If the plug supplied with this equipment has a
detachable fuse cover, be sure to attach the fuse cover
after you change the fuse. Never use the plug without
the fuse cover. If you should lose the fuse cover, please
contact your nearest Sony service station.
IMPORTANT
If the plug supplied is not suitable for the socket outlets
in your home, it should be cut off and an appropriate
plug fitted in accordance with the following
instructions.
The wires in this mains lead are coloured in accordance
with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black. The wire which is coloured brown
must be connected to the terminal which is marked
with the letter L or coloured red.
Do not connect either wire to the earth terminal in the
plug which is marked by the letter E or by the safety
earth symbol + or coloured green or green-and-yellow.
WARNING
To prevent shock hazard, do not insert the plug cut off
from the mains lead into a socket outlet. This plug
cannot be used and should be destroyed.
2 | Introduction
Precautions
Safety
e Check that the unit’s operating voltage is identical
with your local power supply. The EV-C2000E/
C2000E UB/C2000E VP operates on 220 ~- 240 V AC,
50 Hz.
e If anything falls into the cabinet, unplug the unit and
have it checked by qualified personnel before
operating it any further.
e The unit is not disconnected from the mains as long
as it is connected to the mains outlet, even if the unit
itself has been turned off.
e Unplug the unit from the mains outlet if you do not
intend to use it for an extended period of time. To
disconnect the cord, pull it out by the plug, never by
the cord.
Installing
e Allow adequate air circulation to prevent internal
heat buildup.
¢ Do not place the unit on surfaces (rugs, blankets,
etc.) or near materials (curtains, draperies) that may
block the ventilation slots.
¢ Do not install the unit near heat sources such as
radiators or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration or
shock.
¢ Do not install the unit in an inclined position. It is
designed to be operated in a horizontal position
only.
e Keep the unit and cassettes away from equipment
with strong magnets, such as microwave ovens or
large loudspeakers.
¢ Do not place heavy objects on the unit.
e If the unit is brought directly from a cold toa warm
location, moisture may condense inside the VCR and
cause damage to the video head and tape. When you
first install the unit, or when you move it from a cold
to a warm location, wait for about one hour before
operating the unit.
Caution
Television programmes, films, video tapes and other
materials may be copyrighted. Unauthorised recording
of such material may be contrary to the provisions of
the copyright laws. Also, use of this recorder with cable
television transmission may require authorisation from
the cable television transmitter and/or programme
owner.

ee ee ee

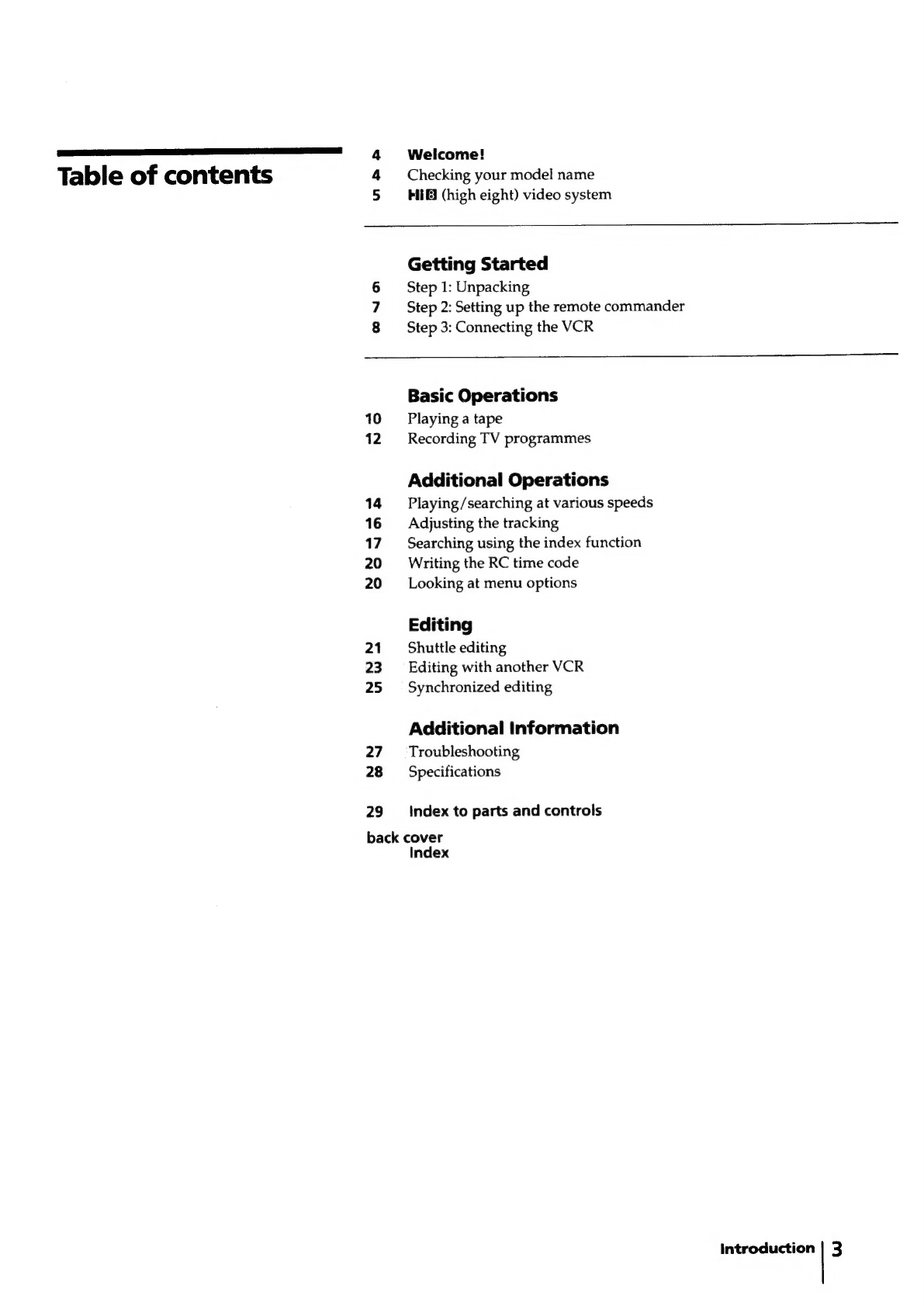

Table of contents
4 Welcome!
4 Checking your model name
5 HIE (high eight) video system
Getting Started
6 Step 1: Unpacking
7 Step 2: Setting up the remote commander
8 Step 3: Connecting the VCR
Basic Operations
10 Playing a tape

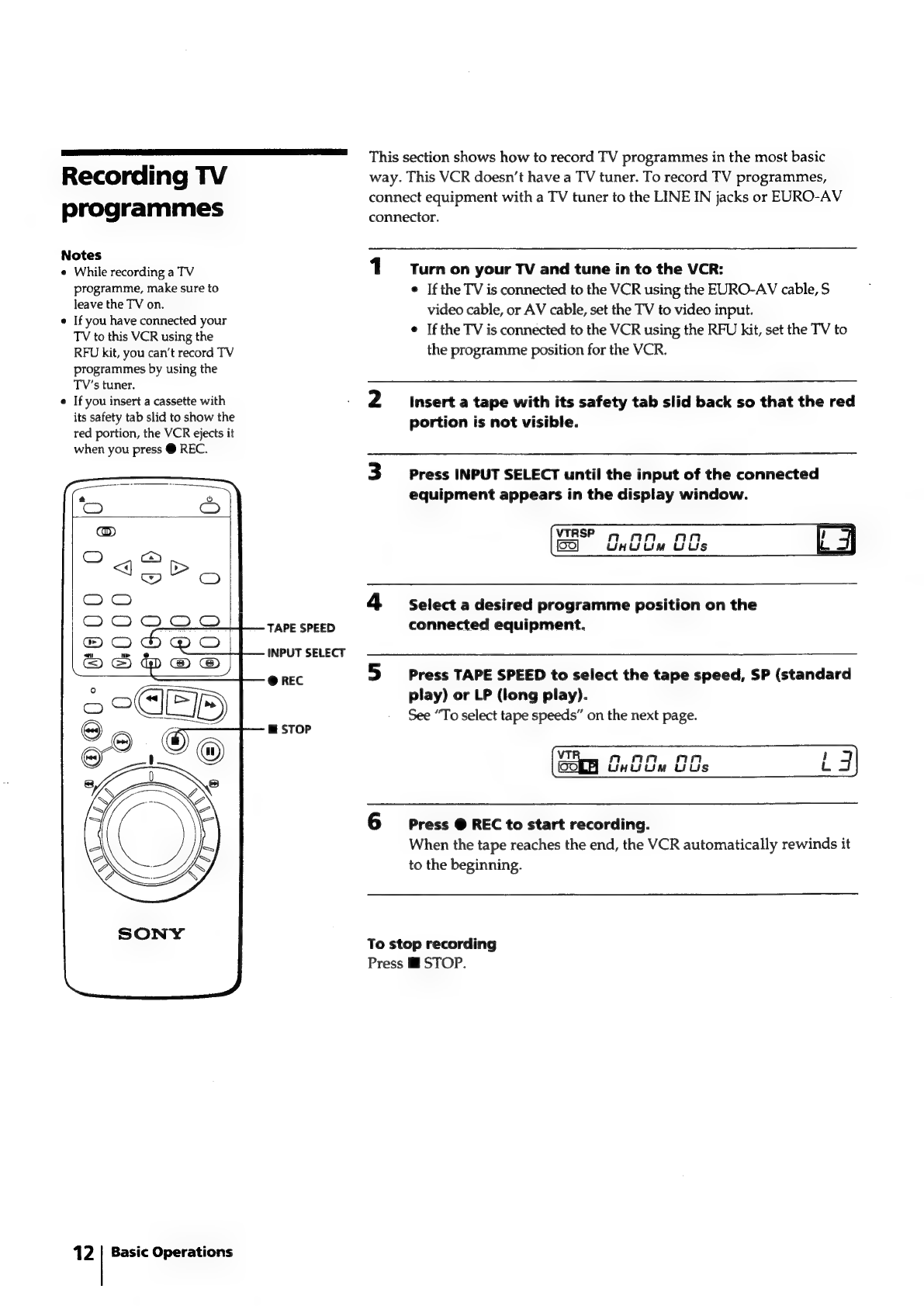

12 Recording TV programmes
Additional Operations
14 Playing/searching at various speeds
16 Adjusting the tracking

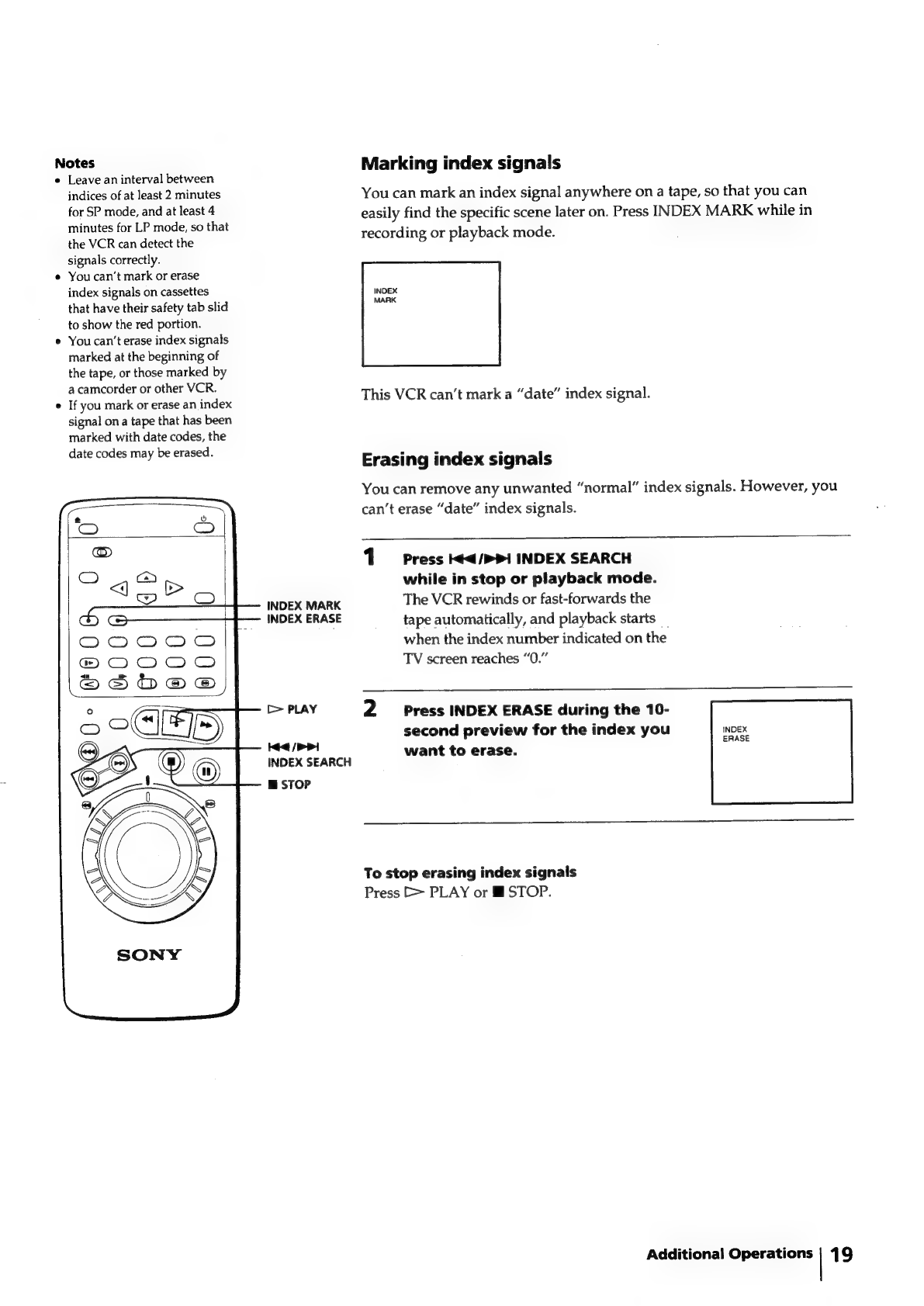

17 Searching using the index function

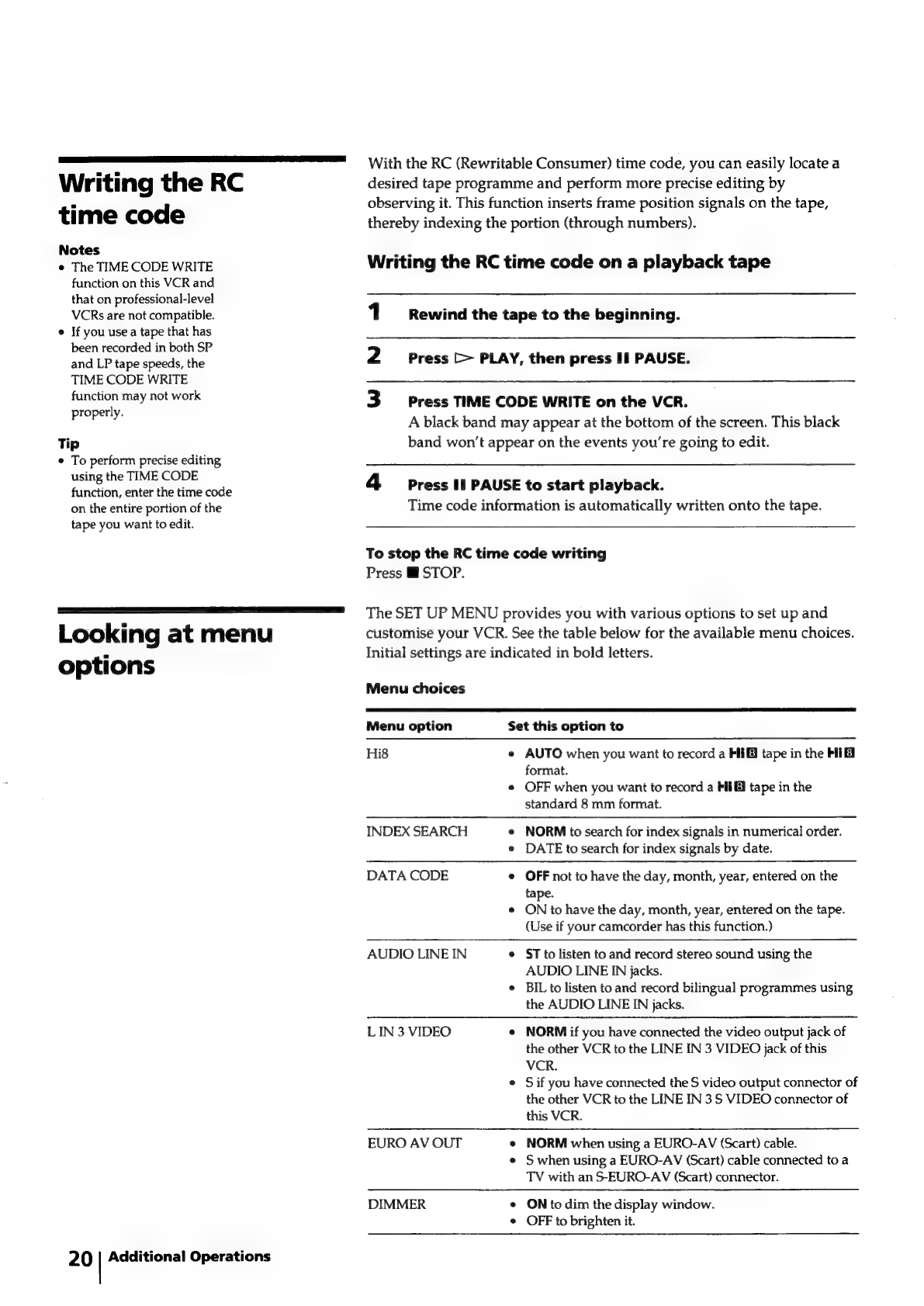

20 Writing the RC time code
20 Looking at menu options
Editing
21. ~=Shuttle editing
23 ~— Editing with another VCR
25 = Synchronized editing
Additional Information
27 ~—‘ Troubleshooting
28 Specifications
29 ‘Index to parts and controls
back cover
Index
Introduction | 3

Welcome!
Checking your model
name
4
Introduction
Thank you for purchasing the Sony Video Cassette Recorder PIIE]
(VCR). Here are some of the features you'll enjoy with your VCR:
e RC time code allows you to locate a desired tape programme easily
e JOG dial and SHUTTLE ring for easy search operations
e LANC @ jack to connect peripheral equipment such as another VCR
which can then control this VCR
Compatible colour systems
This VCR is designed to record and playback using the PAL colour
system. Recording of video sources based on other colour systems
cannot be guaranteed.
The instructions in this manual are for the EV-C2000E, EV-C2000E UB,
and EV-C2000E VP. Check your model number by looking at the rear
panel of your VCR. Any difference in operation is clearly indicated in
the text, for example, “EV-C2000E VP only.”

Fi—l (high eight)
video system
Notes
e PEI recording or playback
can only be done using a
FEN tape.
e You cannot make Fi}
format recordings on
standard EJ tapes.
Both FliEJ and standard & cassette tapes can be used with this VCR.
Refer to the charts below for the compatibility between the HEE video
system and the standard BJ system.
When playing a tape
This VCR automatically detects the type of tape being played, either
HIE) or standard &. This VCR also automatically detects the tape speed
(either SP or LP) the tape was recorded in.
|e pa SP ET SR TED
Tape type Recording format Playback mode
FUE (high eight) PUES (high eight)
MIE) tape
FJ (standard 8 mm) £] (standard 8 mm)
Standard EJ tape E] (standard 8 mm) €] (standard 8 mm)
When recording on a tape
You can set this VCR to record in either FH or standard & format. See
“Looking at menu options” on page 20.
5p SPA I A LS
Tape type Recording format SET UP MENU setting
HIE] (high eight) AUTO
PE] tape
E} (standard 8 mm) OFF
Standard 1 tape El (standard 8 mm) AUTO or OFF

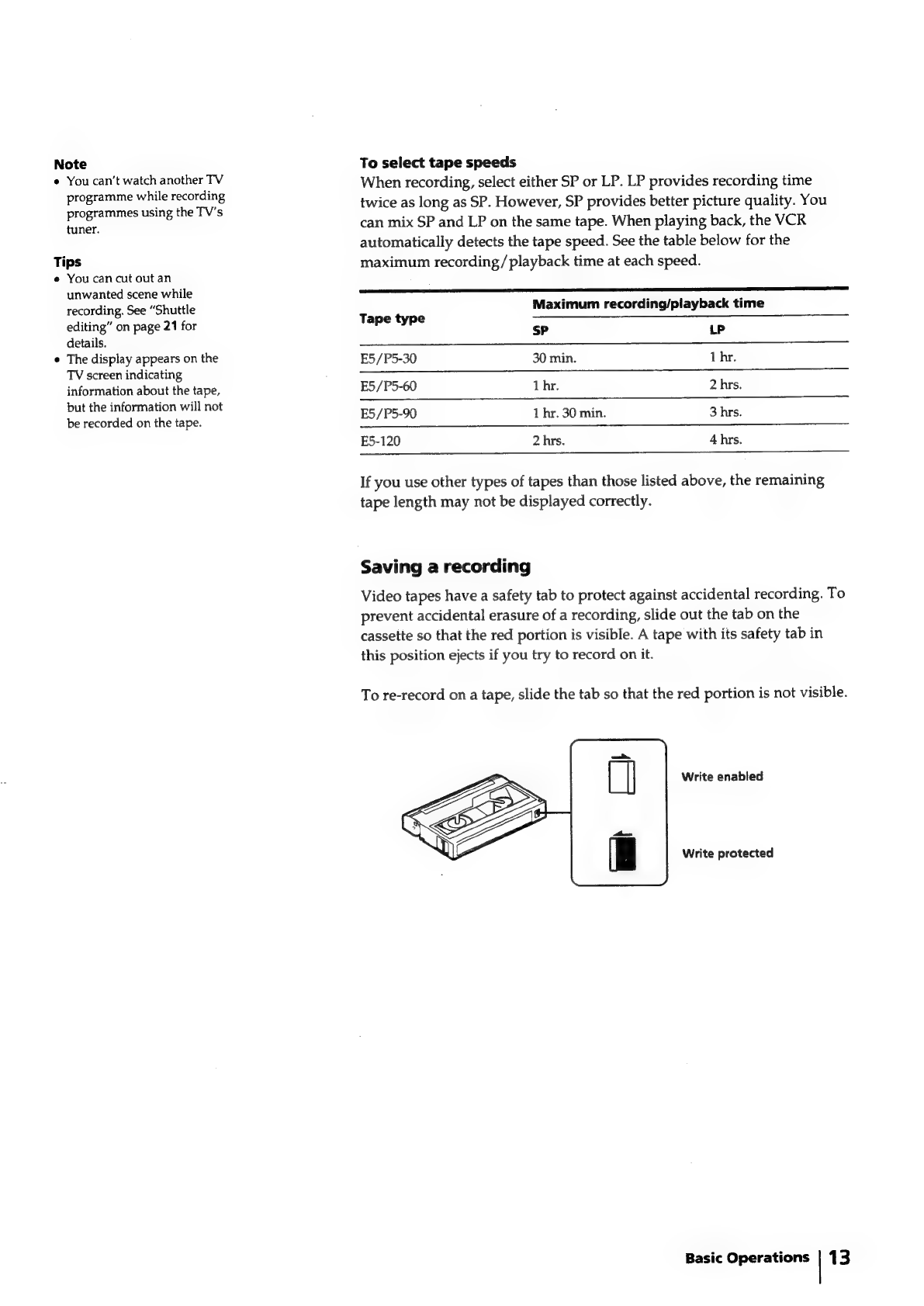

Saving a recording
Slide out the tab on the cassette so that the red colour appears.
To re-record on the cassette, slide the tab back.
Introduction | 5

ES 01 Unpacking
Check that you have the following items:
e Remote commander
e R6 (size AA) batteries
<—
e § video cable
e Mains lead (EV-C2000E/C2000E e Mains lead (EV-C2000E UB only)
VP only)
6 | Getting Started

Setting
up
the
remote
commander
Insert
two
R6
(size
AA)
batteries
by
matching
the
+
and
-
on
the
batteries
to
the
diagram
inside
the
battery
compartment.
pms Sunseo
Notes
¢
With
normal
use,
the
batteries
should
last
for
approximately
three
to
six
months.
e
If
you
do
not
use
the
remote
commander
for
an
extended
period
of
time,
remove
the
batteries
to
avoid
possible
damage
from
battery
leakage.
¢ Do not use a new battery with an old one.
¢ Do not use different types of batteries.
Setting the command mode
You
can
select
three
different
positions
for
the
command
mode
setting.
COMMAND MODE VIR 1/2/3
cma
COMMAND
MODE
_—‘
Turn
on
the
VCR,
then
set
the
COMMAND
MODE
VTR
OFF/1/2/3
selector
on
the
OFF
1 2 3
VCR
to
“VNTR
2"
If
you
set
the
selector
to
“OFF,”
the
VCR
won't
receive
signals
from
the
remote
commander.
VTR
1/2/3
2
COMMAND
MODE
|
Set
the
COMMAND
MODE
VTR
1/2/3
selector
on
the
remote
commander
to
VTR 14273
“VTR 2."
Tip
*
To
control
any
other
Sony
VCR,
set
the
COMMAND
MODE
selector
on
the
remote
commander
and
any
other
video
equipment
to
a
position other than one you have selected for this VCR.
Getting Started | 7

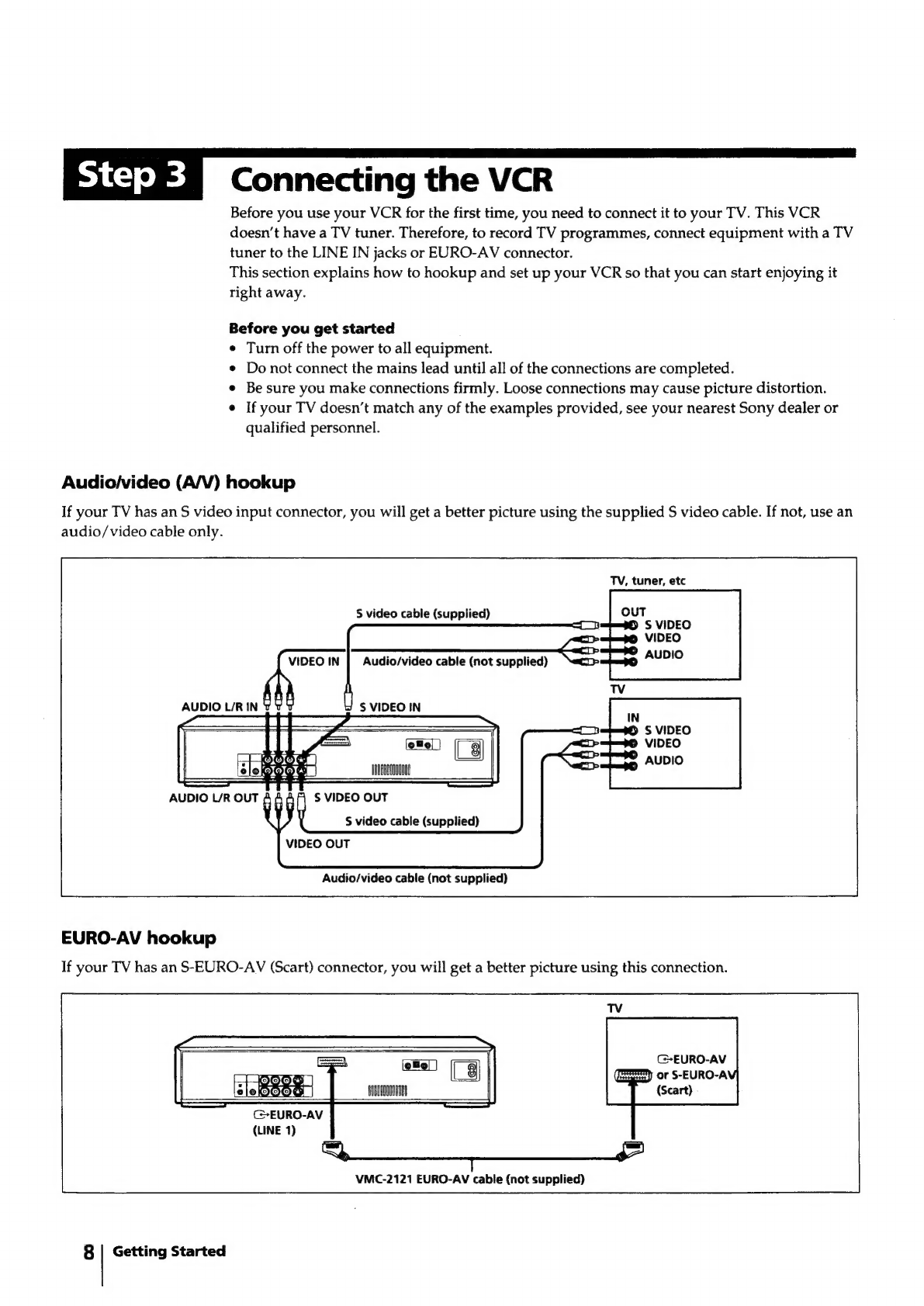

Connecting the VCR
Before you use your VCR for the first time, you need to connect it to your TV. This VCR
doesn’t have a TV tuner. Therefore, to record TV programmes, connect equipment with a TV
tuner to the LINE IN jacks or EURO-AV connector.
This section explains how to hookup and set up your VCR so that you can start enjoying it
right away.
Before you get started
¢ Turn off the power to all equipment.
¢ Do not connect the mains lead until all of the connections are completed.
e Be sure you make connections firmly. Loose connections may cause picture distortion.
e If your TV doesn’t match any of the examples provided, see your nearest Sony dealer or
qualified personnel.
Audio/video (A/V) hookup
If your TV has an S video input connector, you will get a better picture using the supplied S video cable. If not, use an
audio/video cable only.
TV, tuner, etc
5 video cable (supplied)
AUDIO L/R OUT S VIDEO OUT
S video cable (supplied)
VIDEO OUT
Audio/video cable (not supplied)
EURO-AV hookup
If your TV has an S-EURO-AV (Scart) connector, you will get a better picture using this connection.
C-EURO-AV
GER) or S-EURO-A'
(Scart)
C-EURO-AV
(LINE 1)
VMC-2121 EURO-AV cable (not supplied)
8 | Getting Started

2) Press CURSOR &/V¥ to select SET UP MENU, then press EXECUTE.
3) Press CURSOR &/V/<4/P to select EURO AV OUT and set to S.
Note
¢ If your TV has an S video/video selector, set it to the S video position.
To view the playback picture through the above hookup
Select video input for this VCR on the connected TV.
If you've connected your VCR to an S-EURO-AV connector
Set EURO AV OUT in the SET UP MENU to S.
1) Press MENU.
:
RFU DC OUT hookup
If
your
TV
doesn't
have
audio/video
(A/V)
input
jacks
or
a
EURO-AV
connector,
make
an
RFU
DC
OUT
connection
using
an
RFU
kit
(RFU-89EKA,
not
supplied).
However,
you
won't
be
able
to
record
TV
programmes
using
the
connected
TV’s
tuner.
For
this
connection,
refer
to
the
instruction
manual
of
the
RFU
kit
as
well.
RFU DC OUT
p AERIAL IN
RF unit selector OUT
Selector switch
To view the playback picture through this hookup
Set the RF unit selector of the RFU adaptor to I or G according to the TV system of your country, set the selector
switch to VTR, and select a programme position on the TV that is not used to receive a TV station.
Note
© The sound you hear will be monaural even if you play back a stereo tape.
Connecting to a stereo system
You can improve sound quality by connecting to a stereo system as shown below.
TV, Audio system, etc.
AUDIO OUT me
Audio cable (not supplied)
Getting Started | 9

Basic Operations

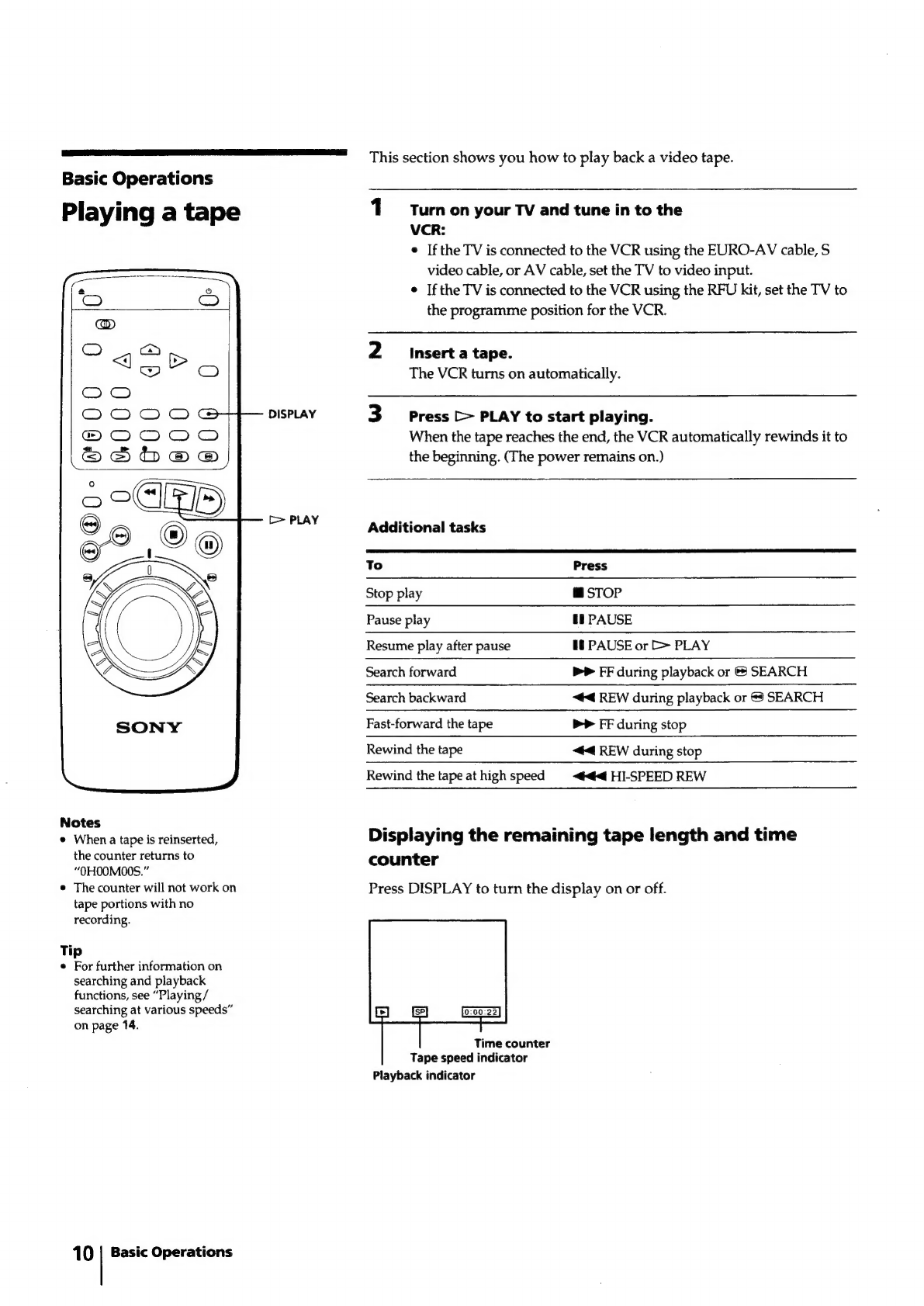

Playing a tape
DISPLAY
cC> PLAY
Notes
e When a tape is reinserted,
the counter returns to
“QHOOMO0S.”
e The counter will not work on
tape portions with no
recording.
Tip
¢ For further information on
searching and playback
functions, see “Playing /
searching at various speeds”
on page 14.
10 | Basic Operations
This section shows you how to play back a video tape.
1. Turnon your TV and tune in to the
VCR:
e Ifthe TV is connected to the VCR using the EURO-AV cable, S
video cable, or AV cable, set the TV to video input.
¢ Ifthe TV is connected to the VCR using the RFU kit, set the TV to
the programme position for the VCR.
2 Insert a tape.
The VCR turns on automatically.
3 Press > PLAY to start playing.
When the tape reaches the end, the VCR automatically rewinds it to
the beginning. (The power remains on.)
Additional tasks
To Press
Stop play @ STOP
Pause play i8 PAUSE
Resume play after pause §§ PAUSE or > PLAY
Search forward b> FF during playback or & SEARCH
Search backward <4 REW during playback or & SEARCH
Fastforward the tape = FFduringstop,
Rewind the tape <4 REW during stop
Rewind the tape at high speed <4 HI-SPEED REW
Displaying the remaining tape length and time
counter
Press DISPLAY to turn the display on or off.
Time counter
Tape speed indicator
Playback indicator

Notes
The remaining tape length
may not be displayed
correctly when using the
following types of tapes:
— pre-recorded commercial
tapes
— tapes that are not reeled
properly at the beginning
tapes that contain
unrecorded segments or
portions recorded with
different tape speeds
— poor-quality or non-
standard tapes
— cleaning cassettes
“—14~—m" appears in the
display window if the VCR
cannot detect the remaining
tape length.
The remaining tape length
counter is intended for
rough time measurement
only.
AUDIO MONTOR
COUNTER SELECT
COUNTER RESET

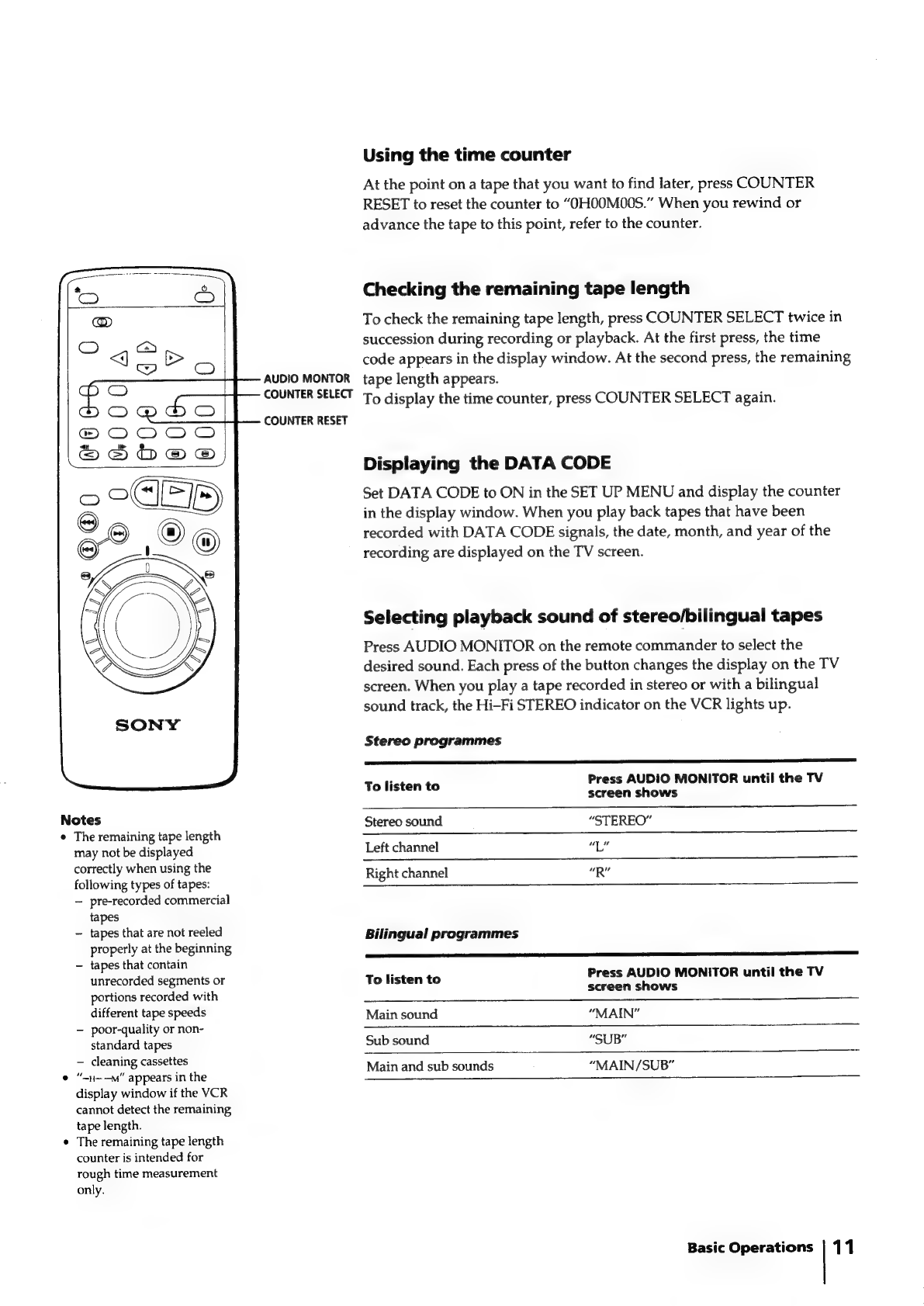

Using the time counter
At the point ona tape that you want to find later, press COUNTER
RESET to reset the counter to “OHO0MO00S.” When you rewind or
advance the tape to this point, refer to the counter.
Checking the remaining tape length
To check the remaining tape length, press COUNTER SELECT twice in
succession during recording or playback. At the first press, the time
code appears in the display window. At the second press, the remaining
tape length appears.
To display the time counter, press COUNTER SELECT again.
Displaying the DATA CODE
Set DATA CODE to ON in the SET UP MENU and display the counter
in the display window. When you play back tapes that have been
recorded with DATA CODE signals, the date, month, and year of the
recording are displayed on the TV screen.
Selecting playback sound of stereo/bilingual tapes
Press AUDIO MONITOR on the remote commander to select the
desired sound. Each press of the button changes the display on the TV
screen.
When
you
play
a
tape
recorded
in
stereo
or
with
a
bilingual
sound track, the Hi-Fi STEREO indicator on the VCR lights up.
Stereo programmes
Press AUDIO MONITOR until the TV
To
listen
to
screen
shows
Stereo sound “STEREO”
Left channel “L”
Right channel “R”
Bilingual programmes
ee
Press AUDIO MONITOR until the TV
To listen to
screen shows
Main sound “MAIN”
Sub sound “SUB”
Main and sub sounds “MAIN/SUB”
11
Basic Operations

Recording TV
programmes
Notes
e While recording a TV
programme, make sure to
leave the TV on.
If you have connected your
TV to this VCR using the
RFU kit, you can’t record TV
programmes by using the
TV's tuner.
If you insert a cassette with
its safety tab slid to show the
red portion, the VCR ejects it
when you press @ REC.
TAPE SPEED
INPUT SELECT
@ REC
@ STOP
12 | Basic Operations
This section shows how to record TV programmes in the most basic
way. This VCR doesn’t have a TV tuner. To record TV programmes,
connect equipment with a TV tuner to the LINE IN jacks or EURO-AV
connector.
1
Turn on your TV and tune in to the VCR:
e Ifthe TV is connected to the VCR using the EURO-AV cable, S
video cable, or AV cable, set the TV to video input.
e Ifthe TV is connected to the VCR using the RFU kit, set the TV to
the programme position for the VCR.
Insert a tape with its safety tab slid back so that the red
portion is not visible.
Press INPUT SELECT until the input of the connected
equipment appears in the display window.
VTRSP FA nN nn i
UHUUM UUS mt]
Select a desired programme position on the
connected equipment.
Press TAPE SPEED to select the tape speed, SP (standard
play) or LP (long play).
See “To select tape speeds” on the next page.
VTR
es ee
[CORP wHu
C3
Ey C3
C3
a
rm Ls
Press @ REC to start recording.
When the tape reaches the end, the VCR automatically rewinds it
to the beginning.
To stop recording
Press @ STOP.

Note
e You can’t watch another TV
programme while recording
programmes using the TV’s
tuner.
Tips
e You can cut out an
unwanted scene while
recording. See “Shuttle
editing” on page 21 for
details.
e The display appears on the
TV screen indicating
information about the tape,
but the information will not
be recorded on the tape.
To select tape speeds
When recording, select either SP or LP. LP provides recording time
twice as long as SP. However, SP provides better picture quality. You
can mix SP and LP on the same tape. When playing back, the VCR
automatically detects the tape speed. See the table below for the
maximum recording/ playback time at each speed.
a
Maximum recording/playback time
Tape type
sP LP
E5/P5-30 30 min. Thr.
E5/P5-60 lhr. 2 hrs.
E5/P5-90 1 hr. 30 min. 3 hrs.
E5-120 2 hrs. 4 hrs.
If you use other types of tapes than those listed above, the remaining
tape length may not be displayed correctly.
Saving a recording
Video
tapes
have
a
safety
tab
to
protect
against
accidental
recording.
To
prevent
accidental
erasure
of
a
recording,
slide
out
the tab
on
the
cassette
so
that
the
red
portion
is
visible.
A
tape
with
its
safety
tab
in
this
position
ejects
if
you
try
to
record
on
it.
To
re-record
on
a
tape,
slide
the
tab
so
that
the
red
portion
is
not
visible.
Write enabled
Write protected
Basic Operations | 13

Additional Operations
Playing/searching at
various speeds
TAPE RETURN
COUNTER RESET
b> SLOW
<4i1/11> FRAME
44 REW
[> PLAY
>> FF
DIGITAL SCAN
m STOP
JOG dial/
SHUTTLE ring
JOG/SHUTTLE
button/indicator
Notes
¢ When you are displaying the
TIME CODE or remaining
tape length on the display
window, you can’t use the
TAPE RETURN button.
When rewinding at high
speed, you will not see the
time counter. After the tape is
rewound to the beginning,
the time counter displays
“QHOOMOOS.”
Tip
* You can improve picture
quality during playback at
various speeds. See
“Adjusting the tracking” on
page 16.
14 | Additional Operations
You can play back a tape at various speeds: high-speed, slow motion,
frame by frame and so on. These options are also useful for searching
for a specific point during playback. The sound is muted during these
operations. When you use the JOG dial /SHUTTLE ring on the remote
commander, first press the JOG/SHUTTLE button, then make sure to
turn on the JOG/SHUTTLE indicator.
To resume
Playback options Operation normal
playback
Playing at various During playback, turn the Release the ring
speeds: SHUTTLE ring right or left to: and press
Normal speed 1 C> PLAY.
One-fifth the normal 1/5
speed
double the normal x2
speed
High speed © or 9
Viewing the picture During fast-forward, press Press >> PLAY.
during fast-forward or bP FF. During rewind, press
rewind 44 REW.
Locking in a high-speed Press [> PLAY.
During fast-forward or rewind,
press DIGITAL SCAN.
Locking in a slow- Press [> PLAY.
motion picture
During playback or pause, press
b> SLOW. To change direction,
press <@ll FRAME (backward)
or 11 FRAME (forward).
Playing frame by frame During pause, press Press >> PLAY.
li» FRAME to advance the
picture one frame or <@ll FRAME
to reverse the picture one frame.
Playing in reverse During playback, press Press >> PLAY.
<4) FRAME.
Replaying a scene During playback, first press
COUNTER RESET when you
come to a scene you want to
replay later. When you are ready
to replay the scene, press
@ STOP. Then press TAPE
RETURN and [> PLAY in
quick succession.
Rewinding and
restarting play
During stop, press >> PLAY
on the VCR while pressing
down <4 REW or <4 HI-
SPEED REW on the VCR.

Listening
more
easily
to
conversation
recorded
with
a
camcorder
When
you
play
a
tape
recorded
with
a
camcorder,
you
can
reduce
external
noises
(such
as
wind
and
traffic
sounds),
and
amplify
the
human
voice
portion
of
the
audio
by
using
the
VOICE
BOOST
function.
1
Press
VB
(VOICE
BOOST)
on
the
remote
commander.
The
VB
(Voice
Boost)
indicator
lights
up
on
the
VCR.
2
To
listen
to
a
tape
in
normal
audio,
press
VB
(VOICE
BOOST)
again
to
turn
it
off.
The
VB
(Voice Boost)
indicator
on
the
VCR
goes
out.
VB
(VOICE BOOST)
Note
e If you use the VOICE
BOOST function on any
tapes other than those
recorded on a camcorder,
the audio portion of the tape
will be difficult to hear.
Additional Operations | 45

z 5 This VCR automatically adjusts the tracking only during normal
Adj usting the tracking playback mode. If distortion occurs when in the VCR is performing
forward slow motion, reverse slow motion, or double speed playback,
you can manually adjust the tracking.
1 Press MENU. cn
»SET UP MENU
MENU TRACKING ADJUST
EXECUTE
CURSOR
PRESS
[EXECUTE]
A/¥/4/>
2 Press CURSOR A/¥ to move the MENU
cursor (>) to TRACKING ADJUST. SET UP MENU
»TRACKING ADJUST
PRESS [EXECUTE]
3 Press EXECUTE. TRACKING ADJUST
» SLOW
-SLOW
x2
SSS
PRESS [PLAY] THEN [SLOW]
4 Press CURSOR A/¥ to move the TRACKING ADJUST
cursor (>) to the tracking sLow
. eg: . »~SLOW
adjustment position you wish to 2
select (SLOW, - SLOW, X 2).
ee ES
¢ To adjust tracking when in forward Reeeeny mer ape
slow motion, select SLOW.
Notes ¢ To adjust tracking when in reverse slow
e If the picture flickers when motion, select -SLOW.
Bp NSHng tie Bac ane tecue e To adjust tracking when in x2 (double
the tracking bar (MM) to the ahaa 2
center position and try speed), select xe.
again.
: Leip ae nie 5 Press CURSOR </> to move the PTT
slow motion, even lf you . *
have adjusted the tracking, tracking bar (M) to adjust the . a
the picture might flicker and tracking for the mode you are in. 2
the colours might not be
—
clear.
PRESS [<< >]
Distortion may occur if the
tape were recorded poorly.
6 press EXECUTE.
16 | Additional Operations

An index signal is automatically recorded at the beginning of a scene
Sea
rching
using
the
when
you
start
recording.
You
can
find
specific
scenes
easily
using
the
marks
(index
signals).
There
two
kinds
of
index
searches
you
can
make,
index
function
ms
index
“normal”
and
“date.”
You
can
use
the
“date”
index
for
read
only.
search
How the index function works
The index works as a divider between scenes, and is not numbered. So,
Notes
when
you
specify
the
index
signal
later,
you
have
to
specify
the
relative
-
©
You
can’t
mark
an
index
position
from
the
current
position.
signal when you start
recording from recording
pause. However, while in
recording pause, you can Beginning of
mark
an
index
signal
if
the
the
programme
en
Fast-foward
input is changed.
e An index signal is a 10-
second preview of the aft
recorded
picture.
If
the
VCR
mil
—
finds an index signal other Index 9
than signal you specified number
during searching, the 10- Present position
second preview of the index
signal that the VCR just
found appears on the TV
screen.
Then
the
VCR
starts
. H
“a
”
searching
(or
the
next
index
Locating
an
index
by
number
-
“normal”
INDEX
signal. While the VCR SEARCH
searches, the last scene of the
previous
index
signal
Locate
an
index
by
indicating
how
many
index
signals
ahead
or
behind
repaint
ae
the
scene
is
from
the
tape’s
current
position.
You
can
specify
up
to
19
The
VCR
continues
to
search
:
:
i
P
;
P
:
:
oP
Bf
:
and
to
display
each
index
it
index
signals
either
ahead
or
behind
the
current
position.
See
“Looking
locates
until
the
VCR
finally
at
menu
options”
on
page
20
to
set
the
INDEX
menu
option.
finds the specified index
signal.
1 insert an indexed tape into the MENU
VCR, then press MENU. »SET UP MENU
TRACKING ADJUST
MENU
PRESS [EXECUTE]
EXECUTE
ia. 2 = s~Press CURSOR A/¥ to move the SET UP MENU
cursor (>) to SET UP MENU, then PHis AUTO OFF
INDEX SEARCH *NORM DATE
press
EXECUTE.
DATA
CODE
ON
®OFF
AUDIO LINE IN ®ST Bit
L IN 3 VIDEO @NORM S
EURO AV QUT ®NORM S
DIMMER ON OFF
PRESS [< >]
3 Press CURSOR A/V/</> to move the SET UP MENU
cursor (>) to INDEX SEARCH, then HIB AUTO OFF
PINDEX SEARCH eNORM DATE
select
NORM.
DATA
CODE
ON
OFF
AUDIO LINE IN ®ST BIL
L IN 3 VIDEO NORM S
EURO AV OUT eNORM S
DIMMER ON eOFF
PRESS [< >]
Additional Operations | 17

Searching using the index
function - index search
(continued)
MENU
EXECUTE
CURSOR
Al¥/<4/>
Ke /> Pi
INDEX
SEARCH
18 | Additional Operations
4 Press 144 />>1 INDEX SEARCH
repeatedly until the index number INDEX -2
you want appears on the TV oar
screen:
e To locate succeeding scenes, press
Pi INDEX SEARCH.
e To locate preceding scenes, press
Kd INDEX SEARCH.
The VCR starts searching and the index number on the TV screen
counts down to zero in numerical order. Playback starts
automatically from the point.
Locating an index by date - “date” INDEX SEARCH
You can locate a desired scene by date if the tape you are using was
recorded on by a camcorder that has a date code function. You can call
up to 19 index points by searching for DATA CODE signals. See
“Looking at menu options” on page 20 to set the INDEX menu option.
1 insert an indexed tape into the MENU
VCR, then press MENU. »SET UP MENU
TRACKING ADJUST
PRESS [EXECUTE)
2 Press CURSOR A/V to move the SET UP MENU
cursor (>) to SET UP MENU, then HIB *AUTO OFF
press
EXECUTE.
DATA
CODE.
ON
eOFF™
AUDIO LINE IN| @ST BIL
L IN 3 VIDEO #NORM S
EURO AV OUT eNORM S
DIMMER ON OFF
PRESS [< >}
3 Press CURSOR A/V/</> to move the Sey: UPS MENE
cursor (>) to INDEX SEARCH, then HIB *AUTO OFF
select
DATE.
“pecan
Se
er
AUDIO LINE IN @ST BIL
L IN 3 VIDEO ¢*NORM S
EURO AV OUT ®NORM S
MER ON = eOFF
DIM
PRESS [@ »]
4G Press l¢</>>1 INDEX SEARCH
repeatedly until the index number DATE -3
you want appears on the TV ais
screen:
e To locate succeeding scenes, press
Pi INDEX SEARCH.
e To locate preceding scenes, press
i444 INDEX SEARCH.
The VCR starts searching and the index number on the TV screen
counts down to zero in the order in which the indices were dated.
Playback starts automatically from that point.

Notes
e Leave an interval between
indices of at least 2 minutes
for SP mode, and at least 4
minutes for LP mode, so that
the VCR can detect the
signals correctly.
e You can’t mark or erase
index signals on cassettes
that have their safety tab slid
to show the red portion.
e You can’t erase index signals
marked at the beginning of
the tape, or those marked by
a camcorder or other VCR.
If you mark or erase an index
signal on a tape that has been
marked with date codes, the
date codes may be erased.
INDEX MARK
INDEX ERASE
[C> PLAY
Kd /> Pi
INDEX SEARCH
m@ STOP
Marking index signals
You
can
mark
an
index
signal
anywhere
on
a
tape,
so
that
you
can
easily
find
the
specific
scene
later
on.
Press
INDEX
MARK
while
in
recording
or playback
mode.
This VCR can’t mark a “date” index signal.
Erasing index signals
You
can
remove
any
unwanted
“normal”
index
signals.
However,
you
can’t erase “date” index signals.
1 Press ¢/>>1 INDEX SEARCH
while in stop or playback mode.
The VCR rewinds or fast-forwards the
tape automatically, and playback starts _
when the index number indicated on the
TV screen reaches “0.”
2 _s~Press INDEX ERASE during the 10-
second preview for the index you
want to erase.
To stop erasing index signals
Press > PLAY or @ STOP.
Additional Operations

Writing the RC
time code
Notes
e The TIME CODE WRITE
function on this VCR and
that on professional-level
VCRs are not compatible.
e If you use a tape that has
been recorded in both SP
and LP tape speeds, the
TIME CODE WRITE
function may not work
properly.
Tip
¢ To perform precise editing
using the TIME CODE
function, enter the time code
on the entire portion of the
tape you want to edit.
Looking at menu
options
20 | Additional Operations
With the RC (Rewritable Consumer) time code, you can easily locate a
desired tape programme and perform more precise editing by
observing it. This function inserts frame position signals on the tape,
thereby indexing the portion (through numbers).
Writing the RC time code on a playback tape
1 Rewind the tape to the beginning.
Press [> PLAY, then press I PAUSE.
Press TIME CODE WRITE on the VCR.
A black band may appear at the bottom of the screen. This black
band won't appear on the events you're going to edit.
4 Press I PAUSE to start playback.
Time code information is automatically written onto the tape.
To stop the RC time code writing
Press @ STOP.
The SET UP MENU provides you with various options to set up and
customise your VCR. See the table below for the available menu choices.
Initial settings are indicated in bold letters.
Menu choices
Menu option Set this option to
Hi8 e AUTO when you want to record a PIE] tape in the FEI
format.
© OFF when you want to record a PINES tape in the
standard 8 mm format.
INDEX SEARCH e NORM to search for index signals in numerical order.
e DATE to search for index signals by date.
DATA CODE © OFF not to have the day, month, year, entered on the
tape
e ON to have the day, month, year, entered on the tape.
(Use if your camcorder has this function.)
AUDIO LINE IN © ST to listen to and record stereo sound using the
AUDIO LINE IN jacks.
e BIL to listen to and record bilingual programmes using
the AUDIO LINE IN jacks.
LIN 3 VIDEO e NORM if you have connected the video output jack of
the other VCR to the LINE IN 3 VIDEO jack of this
VCR.
e Sif you have connected the S video output connector of
the other VCR to the LINE IN 3S VIDEO connector of
this VCR.
EURO AV OUT e NORM when using a EURO-AV (Scart) cable.
e S when using a EURO-AV (Scart) cable connected to a
TV with an S-EURO-AV (Scart) connector.
DIMMER e ON to dim the display window.
¢ OFF to brighten it.
