Sony SLV-757UC User manual

S O N Y. 3-750-331-21 (2)
®
Video Cassette Recorder
Operating Instructions
VHS
If
OA PO 4 texts; sees
©
dtenone
ss
ENRICH
QUALITY
eT
Me
aio
B
TO Fay
©1989 by Sony Corporation

To prevent fire or shock hazard, do not ex-
pose the unit to rain or moisture.
O7 NU ETO)
RISK OF ELECTRIC SHOCK
OO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the prod-
uct’s enclosure that may be of suffi-
cient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompa-
nying the appliance.
For the customers in the U.S.A.
INFORMATION
This equipment generates and uses radio frequency
energy and if not installed and used properly, that is,
instrict accordance with the manufacturers
instructions, may cause interference to radio and
television reception. It has been type tested and
found to comply with the limits for a Class B
computing device in accordance with the specifica-
tions in Subpart J of Part 15 of FCC Rules, which are
designed to provide reasonable protection against
such interference in a residential installation.
However, there is no guarantee that inteference will
not occur in a particular installation. If this
equipment does cause interference to radio or
television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
Reorient the receiving antenna
Relocate the equipment with respect to the
receiver
More the equipment away from the receiver
Plug the equipment into a different outlet so that
equipment and receiver are on different branch
circuits.
If necessary, the user should consult the dealer or an
experienced _radio/television technician _ for
additional suggestions. The user may find the
following booklet prepared by the Federal
Communications Commission helpful:
“How to identify and Resolve Radio-TV Interference
Problems”. This booklet is available from the US.
Government Printing Office, Washington, DC 20402,
Stock No. 004-000-00345-4.
For the customers in Canada
This apparatus complies with the Class B limits for radio
noise emissions set out in Radio Interference Regulations.
-— CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS
POLARIZED AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
Owners Record
The model number is located at the front.
The serial number is located on the top of the panel.
Record
the
serial
number
in
the
space
provided
right.
Refer
to
them
whenever
you
call
upon
your
Sony
dealer
regarding this product.
Model No.
SLV-757UC
Serial No.

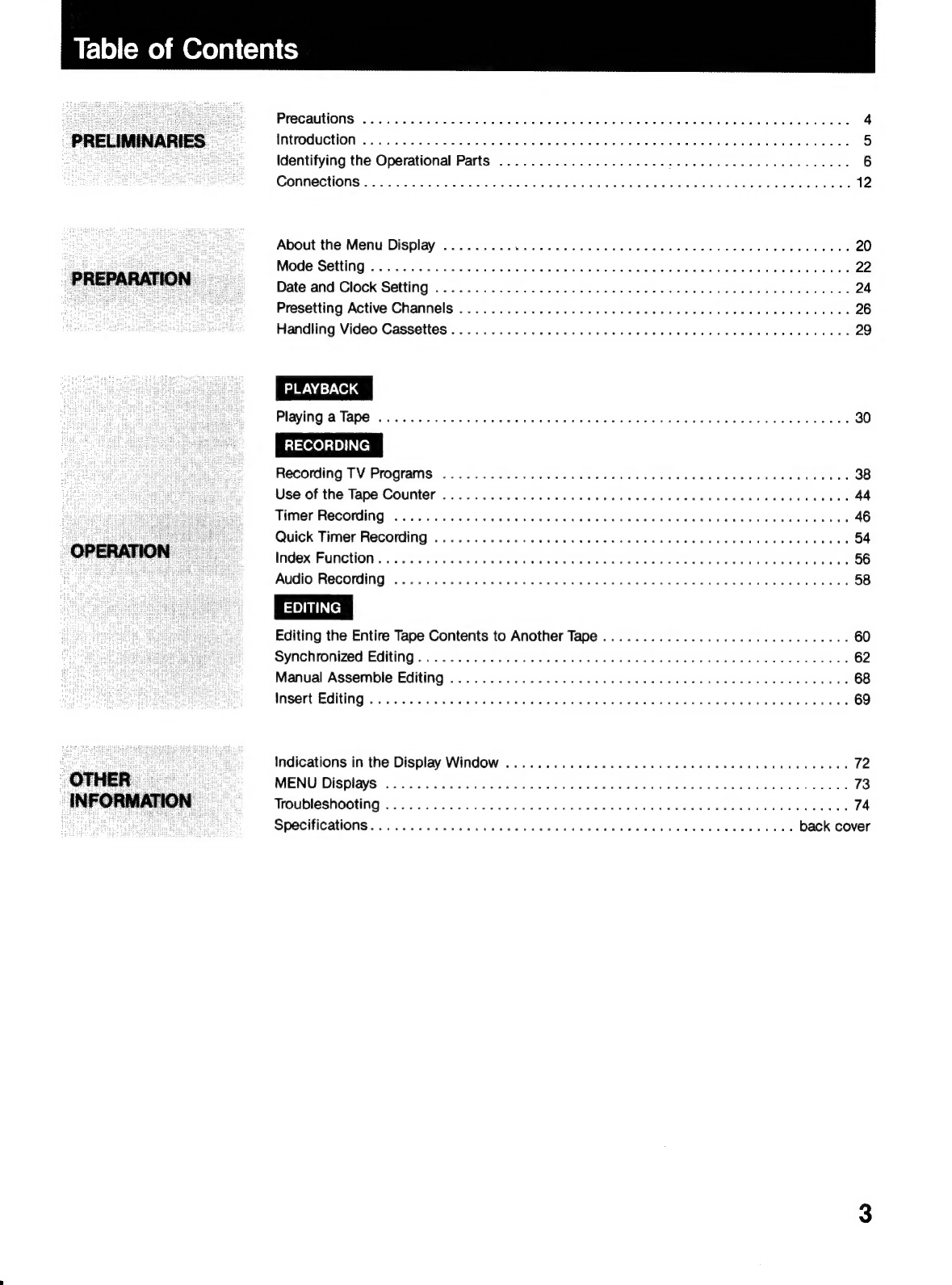

WF:)0) (=e) Mm Ore) ali=\n 1
Precautions = <:i5. . siscis a eisewe eta Shea dae te tlle ees ia aig weed behind david ak 4
Ltr MU CHI ON ei. 2 feta esc ei ry Sek Beate Be ace ie ee ed Ge ee tee a hea dee Rid ada ha 5
Identifying the Operational Parts ............. 0. cece geass, a Guanuie “ado aetacaat histo ext 6
CONnNeCHONS 63:65 cee wrote aise Pace te ae Sede tne he ete Ve ene arr 12
About the Menu Display .......... 000 c cece ec ee ence eee eevee esau 20
Mode: Setting iis sescch. vein cae ates se eS ee eae cule eee aren 22
Date and Clock Setting ......... 0... ccc cence tee eee e eee eennas 24
Presetting Active Channels ........ 0... ccc ccc cece enn eee tee nenee 26
Handling Video Cassettes... 0... ccc cee ee ee een e eee ee beeen tees 29
PLAYBACK
Playing a Tape a oseieso.3.0 8 eacddrwasid aed cbt bane Ws Ac A ge Chale On Reo dl gab eas 30
131010) 210) 1, [e)
Recording TV Programs ... 10... cece eee e een n nee 38
Use of the Tape Counter ... 2.0... ccc eee ee teen eee e teen ne nenenen 44
Timer RECOMiINng® <a. fsini anc t Ag oe eas hae wate ile aie tad alee y erase nan ese Rade etna enema 46
Quick Timer Recording ............ ccc cece cece cence eee e eee e neuen eeeneeas 54
Index: Function: cesck risking v bv BA hohe Cees SOG ee abarincs BT a eae 56
Audio ReCOrding: «2. .cs.dct hatin s ccd e eee balk d cotati wa ea ees 58
EDITING
Editing the Entire Tape Contents to Another Tape ............ 0.0: cece eee eee eee 60
Synchronized Editing... 0.0.2... cece e eee e eee enna 62
Manual Assemble Editing ......... 0... cece cece cee te ete eee teen teens 68
Insert Editing) s.e.i: ¢s26 Shes is cae e Rea heauhks eat bie dedotad tac eand Dawes 69
Indications in the Display Window ......... 0... cece eee eee e ent e een nes 72
MENU DisSplayse xi:2 css. 3:255 eas ects aes edi as wD ceiteveug wd ans (oe & Ge aca cece aceeces dade oa 73
Troubleshooting cc05. cic osen pelea gedwiaw bas ce aanaee edu dou hd a ee 74
Specifications... ..0%25 8 Sie eis Heb a SES waked Relea eleweas be wuteta ee back cover

ed csyers\ Ui ice) ats

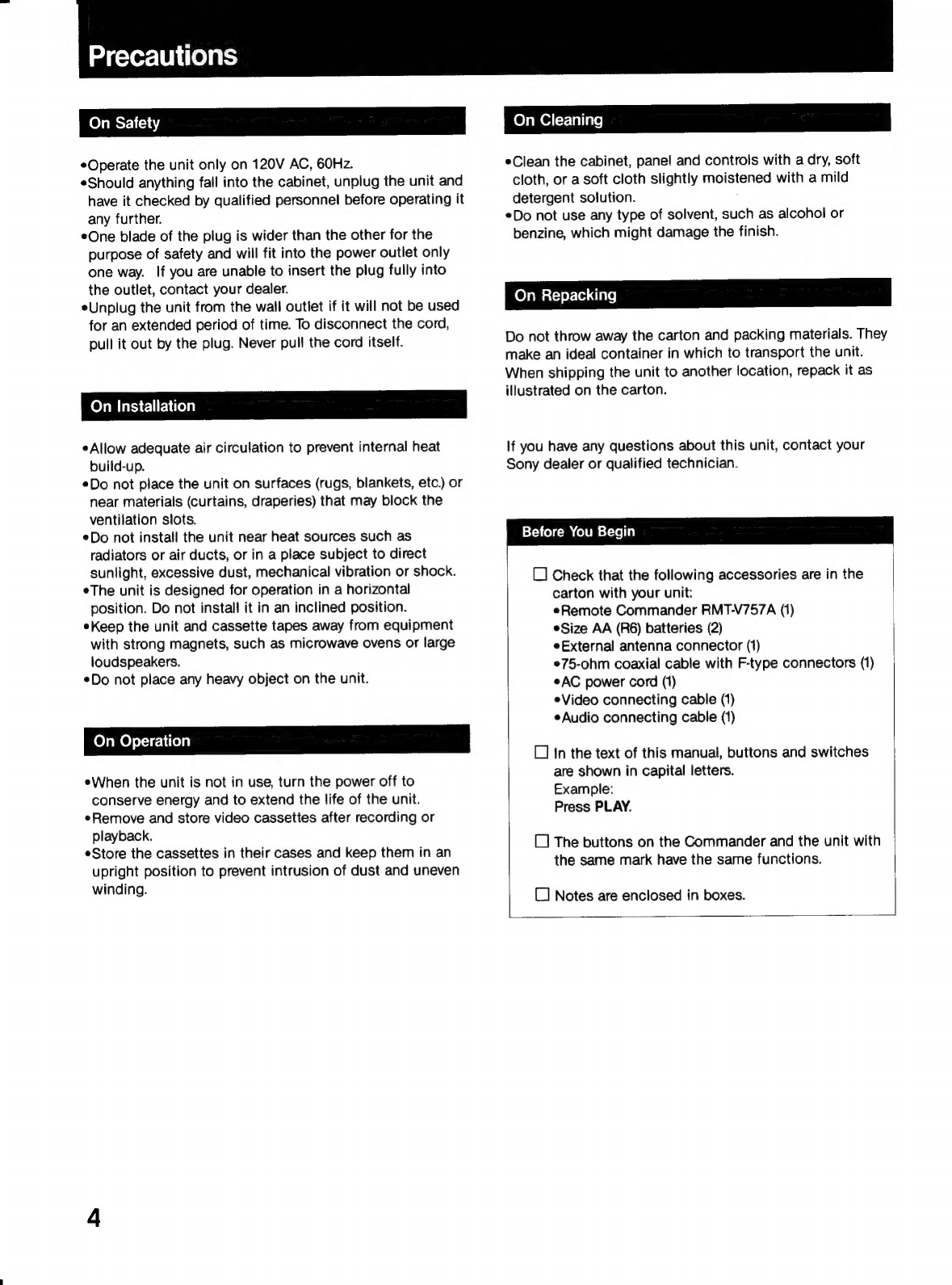

On Safety
¢Operate the unit only on 120V AC, 60Hz.
*Should anything fall into the cabinet, unplug the unit and
have it checked by qualified personnel before operating it
any further.
eOne blade of the plug is wider than the other for the
purpose of safety and will fit into the power outlet only
one way. If you are unable to insert the plug fully into
the outlet, contact your dealer.
*Unplug the unit from the wail outlet if it will not be used
for an extended period of time. To disconnect the cord,
pull it out by the plug. Never pull the cord itself.
On Installation
*Allow adequate air circulation to prevent internal heat
build-up.
¢Do not place the unit on surfaces (rugs, blankets, etc.) or
near materials (curtains, draperies) that may block the
ventilation slots.
¢Do not install the unit near heat sources such as
radiators or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration or shock.
The unit is designed for operation in a horizontal
position. Do not install it in an inclined position.
eKeep the unit and cassette tapes away from equipment
with strong magnets, such as microwave ovens or large
loudspeakers.
¢Do not place any heavy object on the unit.
On Operation
When the unit is not in use, turn the power off to
conserve energy and to extend the life of the unit.
Remove and store video cassettes after recording or
playback.
eStore the cassettes in their cases and keep them in an
upright position to prevent intrusion of dust and uneven
winding.
On Cleaning
*Clean the cabinet, panel and controls with a dry, soft
cloth, or a soft cloth slightly moistened with a mild
detergent solution.
¢Do not use any type of solvent, such as alcohol or
benzine, which might damage the finish.
On Repacking
Do
not
throw
away
the
carton
and
packing
materials.
They
make
an
ideal
container
in
which
to
transport
the
unit.
When
shipping
the
unit
to
another
location,
repack
it
as
illustrated
on
the
carton.
If you have any questions about this unit, contact your
Sony dealer or qualified technician.
Before You Begin ;
C1] Check that the following accessories are in the
carton with your unit:
eRemote Commander RMT-V757A (1)
eSize AA (R6) batteries (2)
eExternal antenna connector (1)
°75-ohm coaxial cable with F-type connectors (1)
eAC power cord (1)
*Video connecting cable (1)
eAudio connecting cable (1)
CJ In the text of this manual, buttons and switches
are shown in capital letters.
Example:
Press PLAY.
CL] The buttons on the Commander and the unit with
the same mark have the same functions.
C] Notes are enclosed in boxes.

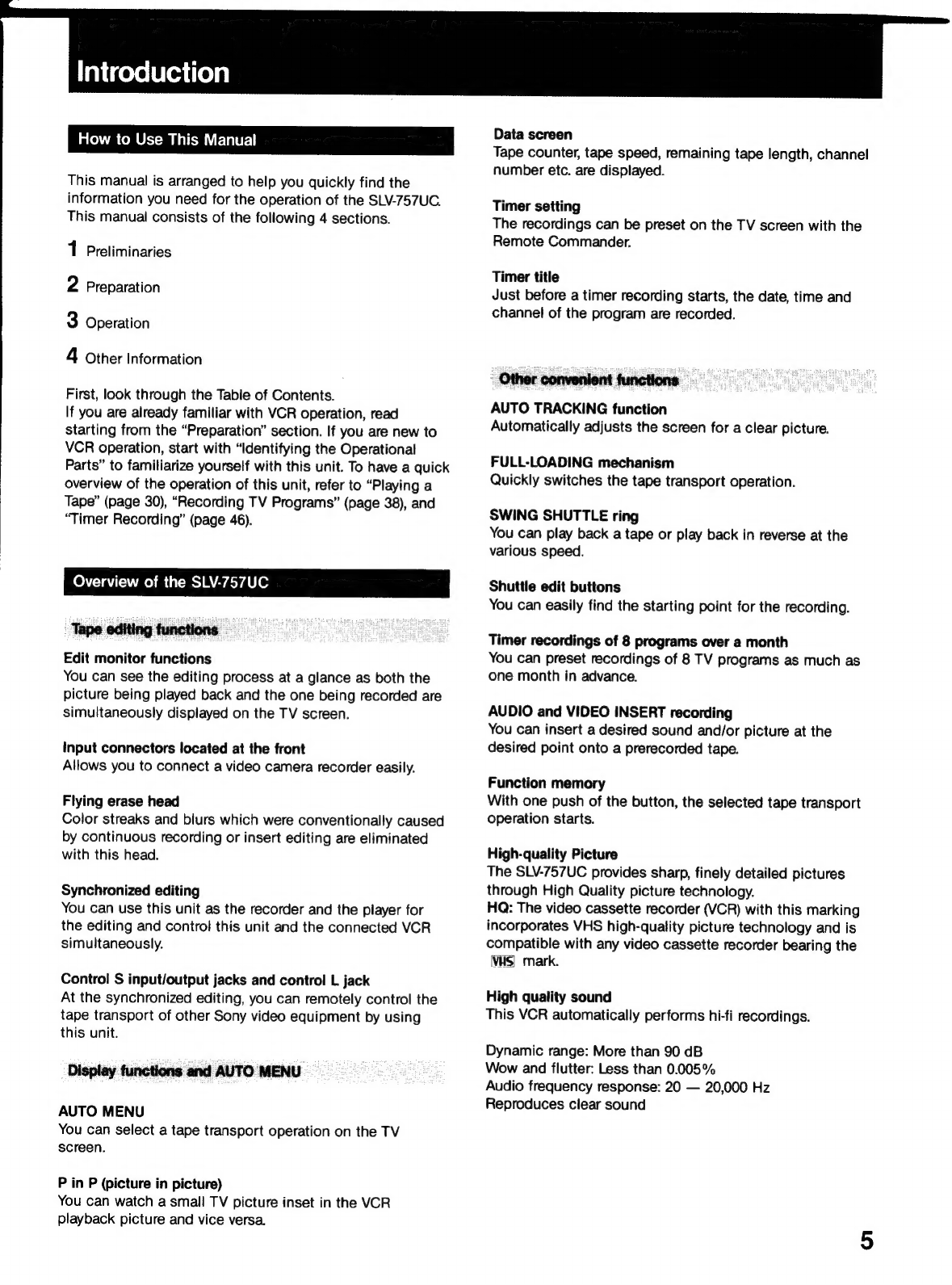

How to Use This Manual
This manual is arranged to help you quickly find the
information you need for the operation of the SLV-757UC.
This manual consists of the following 4 sections.
1 Preliminaries
2 Preparation
3 Operation
4 Other Information
First, look through the Table of Contents.
If you are already familiar with VCR operation, read
starting from the “Preparation” section. If you are new to
VCR operation, start with “Identifying the Operational
Parts” to familiarize yourself with this unit. To have a quick
overview of the operation of this unit, refer to “Playing a
Tape” (page 30), “Recording TV Programs” (page 38), and
“Timer Recording” (page 46).
Overview of the SLV-757UC
Tape editing functions
Edit monitor functions
You can see the editing process at a glance as both the
picture being played back and the one being recorded are
simultaneously displayed on the TV screen.
Input connectors located at the front
Allows you to connect a video camera recorder easily,
Flying erase head
Color streaks and blurs which were conventionally caused
by continuous recording or insert editing are eliminated
with this head.
Synchronized editing
You can use this unit as the recorder and the player for
the editing and control this unit and the connected VCR
simultaneously.
Control S input/output jacks and control L jack
At the synchronized editing, you can remotely control the
tape transport of other Sony video equipment by using
this unit.
Display functions and AUTO MENU
AUTO MENU
You can select a tape transport operation on the TV
screen.
P in P (picture in picture)
You can watch a small TV picture inset in the VCR
playback picture and vice versa.
Data screen
Tape counter, tape speed, remaining tape length, channel
number etc. are displayed.
Timer setting
The recordings can be preset on the TV screen with the
Remote Commander.
Timer title
Just before a timer recording starts, the date, time and
channel of the program are recorded.
AUTO TRACKING function
Automatically adjusts the screen for a clear picture.
FULL-LOADING mechanism
Quickly switches the tape transport operation.
SWING SHUTTLE ring
You can play back a tape or play back in reverse at the
various speed.
Shuttle edit buttons
You can easily find the starting point for the recording.
Timer recordings of 8 programs over a month
You can preset recordings of 8 TV programs as much as
one month in advance.
AUDIO and VIDEO INSERT recording
You can insert a desired sound and/or picture at the
desired point onto a prerecorded tape.
Function memory
With one push of the button, the selected tape transport
operation starts.
High-quality Picture
The SLV-757UC provides sharp, finely detailed pictures
through High Quality picture technology.
HQ: The video cassette recorder (VCR) with this marking
incorporates VHS high-quality picture technology and is
compatible with any video cassette recorder bearing the
VHS) mark.
High quality sound
This VCR automatically performs hi-fi recordings.
Dynamic range: More than 90 dB
Wow and flutter: Less than 0.005%
Audio frequency response: 20 — 20,000 Hz
Reproduces clear sound

Identifying the Operational Parts
ah Ee a a Fae
| aeeseesanemeniamsinnainimmentinuiaga=————ll
[oe :
peed) [|| See
—— ass SS Ss OC
[1] POWER switch and indicator
Press to turn on the power of the VCR. The indicator
lights when power is supplied.
[2] MIC jack (mini type)
Connect a microphone.
[3] LINE IN 2 VIDEO/AUDIO jacks (phono type)
Connect to the video/audio output of other VCR or
video camera.
[4] Cassette compartment
Insert a cassette. When the cassette is inserted, the
power will be automatically turned on.
[5| # EJECT button
Press to eject the cassette.
[6] SYNCHRO EDIT indicator
Lights when the SYNCHRO EDIT button is pressed.
AUDIO INSERT indicator
Lights when the AUDIO INSERT button is pressed.
ie
[8] VIDEO INSERT indicator
Lights when the VIDEO INSERT button is pressed.
(9)
(10)
HW)
EDIT MONITOR button
Press to display the EDIT MONITOR display.
SYNCHRO EDIT button
Press to perform synchronized editing.
COMMAND MODE switch
To remotely control the VCR with the supplied wireless
Commander, set this selector to the same position as
that on the Commander.
Usually set to VTR 3.

HEADPHONES jack (stereo mini type) and LEVEL
(headphone level) control
Connect
headphones
to
this
jack
and
adjust
the
sound
level.
[3] CONTROL L connector (5-pin DIN type)
Connect to the CONTROL L connector of other Sony
product for systematic operations such as
synchronized editing.
If you connect a Sony editing controller RM-E300, you
can perform automatic assemble editing of up to 8
programs.
About the LANC
LANC stands for Local Application Control Bus
System. The LANC connector is used for controlling
the tape transport of video equipment and
peripherals connected to it. This connector has the
same function as the connectors indicated as
CONTROL L or REMOTE.
(I4] Display window
Various displays appear.
See “Indications in the Display Window.” (page 72)
EDIT MONITOR indicator
Lights when the EDIT MONITOR button is pressed.
(I6|AUTO TRACKING indicator
Blinks while the VCR is searching for the best tracking
position.
Lights when the best position is obtained.
SWING SHUTTLE indicator
According to the tape transport, the corresponding
indicator will light.
(18] Remote sensor
Point the supplied infrared Remote Commander
RMT-V757A here.
([9] SHARPNESS control
Use to adjust the sharpness of the picture if necessary.
Normally set this control at the center indented
position.
REC LEVEL controls
Adjust the audio recording level. Normally keep these
controls at the center indented position.

Identifying the Operational Parts
Inside the Front Panel
ar
(3]
;
q
TUNER
2
(channel
number)
ANT TV/VTR button
Press so that the VTR indicator lights to watch a
program selected on the unit. To watch one TV
program while recording another, press this button
again to turn off the indicator.
INPUT SELECT button
Press so that the desired input mode indicator
appears in the display window to select the program
to be recorded. The indicator changes as follows.
UNE
REC MODE button
Press to select the recording tape speed, SP or EP.
The playback speed will be automatically detected
regardless of the setting of this button.
EDIT button
Normally keep this button at OFF (ie. the EDIT
indicator is off). When using this VCR for editing,
press this button to light the EDIT indicator.
TIMER REC ON/OFF button
When entering timer recording standby mode, press
this button.
When changing or canceling a timer recording, or
operating the unit before a timer recording starts,
press this button to go out timer recording standby
mode.
(6)
K1]02
ee ste Ce) | Cee im
QUICK TIMER button
Press to start quick timer recording and to set the
recording duration.
SWING SHUTTLE ring
Select the playback speed in playback or recording
pause mode.
@ REC button
Press to start recording.
[9] Tape transport buttons
<a REW (rewind), > PLAY, e» FF(fast-forward),
@ STOP, at /ee PAUSE/STILL,
ee HIGH SPEED REWIND
TRACKING AUTO/MANUAL button
Use to change the manual tracking mode to
automatic tracking mode.
TRACKING NORMAL/SLOW and STILL ADJUST
buttons
Press to clear streaks if they appear on the screen in
the normal and slow playback. (Tracking normal/slow)
Press to reduce picture shaking in the still mode.
(Still adjust)
CHANNEL +/- buttons
Press to select the preset channels. Press + to
advance and — to reverse.

Rear Panel
an
(2]
VHF/UHF IN and OUT connectors (F type)
CONTROL S IN/OUT jack (mini type)
IN: Connect to the CONTROL S output jack of a Sony
TV set or TV tuner to operate the VCR by remote
control through the TV or TV tuner.
OUT: Connect to the CONTROL S input jack of other
Sony product for systematic operations such as
synchronized editing.
LINE IN 1 AUDIO and VIDEO jacks (phono type)
Connect to the LINE OUT AUDIO and VIDEO jacks of
other video equipments.
LINE OUT AUDIO and VIDEO jacks (phono type)
Connect to the LINE IN AUDIO and VIDEO jacks of
other video equipments.
On-screen display cannot be output from the LINE
OUT VIDEO jack.
(5)
(6)
HI
MONITOR OUT AUDIO and VIDEO jacks (phono type)
Connect to the LINE IN jacks on a TV. The unit
displays on-screen displays on the TV or monitor
through this connection.
AC OUTLET (unswitched, max. 400W)
Supplies AC power to video or audio equipment. Do
not connect any equipment whose power
consumption is more than 400W.
AC IN
Connect the supplied AC power cord.
[8] RF UNIT selector
Use to select the channel for VCR playback or
program, 3CH or 4 CH, whichever is not active in your
area,

Identifying the Operational Parts
Remote Commander
[1] COMMAND MODE selector
To remotely control the VCR with the Commander, set
this selector to the same position as that on the VCR.
Usually set to VTR 3.
Change the position as shown below to control other
Sony VCRs.
VTR 1: For Sony Betamax VCRs
VTR 2: For Sony 8mm format VCRs
VTR 3: For Sony VHS format VCRs
INPUT SELECT button
Press to select the sources to be recorded.
The selected input mode indicator appears in the
display window.
[3] REC MODE button
Press to select the recording tape speed: SP or EP.
The playback speed will be automatically detected
regardless of the setting of this button.
[4] MENU button
Press to enter the MENU mode. Press again to get
out of the MENU mode.
[5| EXECUTE button and cursor shift buttons
Used to preset items in the MENU display.
10
(6)
el
SI
es
FUNCTION MEMORY button
Use to execute the type of tape operation selected in
the FUNCTION MEMORY menu.
TV SCAN button
Press to watch each TV channel for a few seconds in
the preset order.
ANT TV/VTR (Antenna TV/VTR) button
When connecting the VCR and a TV via the VHF
antenna terminal, press this button so that VTR
indicator lights in the display window. When you wish
to watch TV programs while the VCR is in use, press
it again so that the VTR indication is turned off.
POWER switch
TVIVTR selector
Set to TV when you use the supplied commander to
operate a TV and to VTR to operate a VCR.
DATA SCREEN button
Press to turn on and off the on-screen display.
COUNTER RESET button
Press to reset the counter number to OHOOMOOS.
EDIT MONITOR button

Channel number buttons
Press the appropriate button(s) to select the channel,
and ENTER.
(I5] TIMER CLEAR button
2 B&B
8
Use to clear the memory of the timer settings.
ENTER button
Use to enter channel numbers.
For example, to select channel 10, press 1, 0 and
ENTER or to seiect channel 4, press 4 and ENTER.
TIMER REC ON/OFF button
Press this button to enter timer recording standby
mode.
To change or cancel a timer recording, or to operate
the unit before a timer recording starts, press this
button to go out of timer recording standby mode.
To stop the tape during timer recording, press this
button, also.
AUDIO and VIDEO INSERT buttons
Use to insert a new recording onto a portion of a
recorded tape.
AUDIO: To insert sound on the normal audio track
VIDEO: To insert picture and hi-fi sound on the video
track
Tape transport buttons
a PAUSE
@ REC (press two buttons simultaneously.)
§> SLOW (+: for faster speed, —: for slower speed)
< , > DIRECTION (Press to decide the direction of
PLAY, x2 and SLOW. During still
mode, frame picture is available
with this button.)
x 2 (double speed)
@)/@ SEARCH (reverse/forward)
» PLAY
«ee REW (rewind)
ee FF (fast-forward)
m STOP
AUDIO MONITOR button
Use to select the monitor sound.
VOL (volume) +/— buttons
Press to adjust the volume of the TV.
CHANNEL +/- buttons
INDEX button
Use to enter the index function mode.
INDEX MARK/ERASE buttons
Press MARK to mark an index signal at the desired
point on a tape during recording or playback. To erase
a previously recorded index signal, locate the index
signal and press ERASE.
(25| P in P (picture in picture) buttons
P in P (for inserting the subsidiary picture in the
playback picture)
SHIFT (for changing the position of the subsidiary
picture)
DIGITAL OFF (for turning off the subsidiary picture).
(26) SHUTTLE EDIT button
Press to find the starting point easily for the
recording.
Battery insertion
1 Open the lid.
Insert two size AA (IEC designation on R6) batteries
with the polarity lined up correctly.
3 Close the lid.
Se
Notes on the handling of batteries
eWith normal operation, the batteries will fast for
elf the Commander will not be used for a long
approximately 6 months.
period of time, remove the batteries to avoid
possible damage from battery leakage.
11

Connections
In order to watch the piayback picture on the TV screen
and receive TV programs on this VCR, this VCR and the
TV must be connected properly.
The connection between the two VCRs varies depending
upon the type of TV and antenna that you have.
We will show you here some typical ways you can make
this connection with the supplied accessories.
Before operating the unit, read through this section and
make the correct connections.
Before You Begin
eTurn off the power of the VCR and the TV.
Disconnect the AC power cord of the VCR and the TV
from the wail outlet.
Do not connect the AC power cords until all of the
connections are completed.
elf your TV does not match the three examples below
Consult your nearest Sony dealer or qualified technician.
First Check Your TV .
terminal
: Check the antenna
75-ohm VHF/UHF antenna
© VHF/UHF
ih
~ Read through ‘Connecting
tormingis on your wv VHF and UHF separate antenna _ Examples.1 10.5."
terminalis :
uuF @& @©
VHF ©
eee © viPEO You can‘enjoy a’ bette quality
“If your TV has video and picture.
' White Read throu “Connecting
suelo let jacks ad AUDIO Example 6: on
Red ©
ee
ee
You
can
enjoy.a
better
aia
aoe og sound by connecti VCR
“Ifyou
have
an
stereo
to
the
audio
system.
Read
audio
system
—
soci
“Connecting
a
Caution
Connections between the recorder VHF/UHF OUT
connector and the antenna terminals of a TV receiver
should be made only as shown in the instructions.
Failure to do so may result in operation that violates
the regulations of the Federal Communications
Commission regarding the use and operation of rf
devices.
Never connect the output of the recorder to an antenna
or make simultaneous (parallel)antenna and recorder
connections at the antenna terminals of your receiver.
12

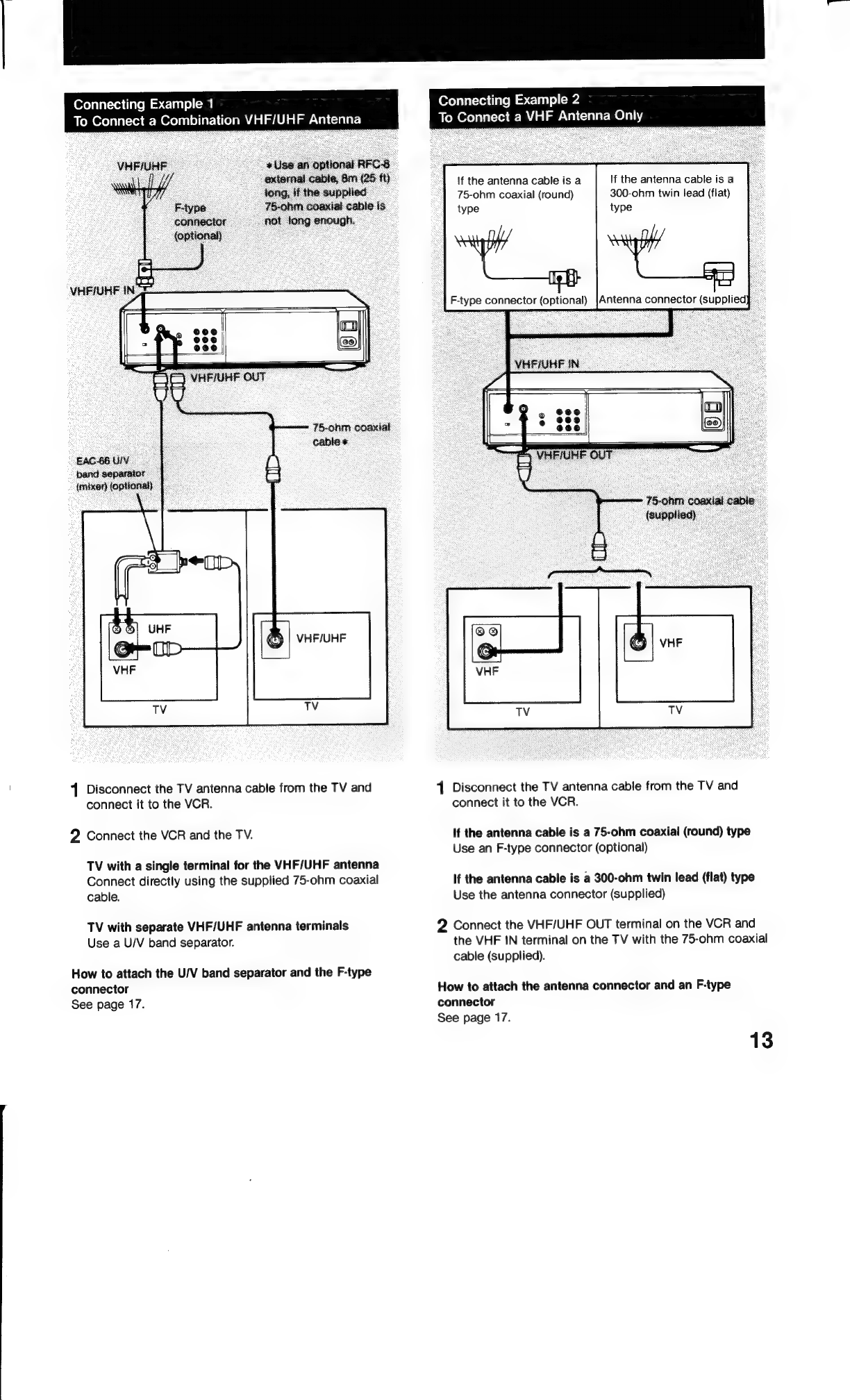

Connecting Example 1
To Connect a Combination VHF/UHF Antenna
“Fype =
connector _—_._ not
(optional) —
75-ohm coaxial
band separator — :
(mixer) (gptional) f
1 Disconnect the TV antenna cable from the TV and
connect it to the VCR.
2 Connect the VCR and the TV.
TV with a single terminal for the VHF/UHF antenna
Connect directly using the supplied 75-ohm coaxial
cable.
TV with separate VHF/UHF antenna terminals
Use a U/V band separator.
How to attach the U/V band separator and the F-type
connector
See page 17.
Connecting Example 2
To
Connect
a
VHF
Antenna
Only
!f the antenna cable is a Hf the antenna cable is a
75-ohm coaxial (round) 300-ohm twin lead (flat)
type type
F-type connector (optional) |Antenna connector (supplied
VHF/UHF IN
1 Disconnect the TV antenna cable from the TV and
connect it to the VCR.
If the antenna cable is a 75-ohm coaxial (round) type
Use an F-type connector (optional)
If the antenna cable is a 300-ohm twin lead (flat) type
Use the antenna connector (supplied)
2 Connect the VHF/UHF OUT terminal on the VCR and
the
VHF
IN
terminal
on
the
TV
with
the
75-ohm
coaxial
cable (supplied).
How to attach the antenna connector and an F-type
connector
See page 17.
13

Connections
Connecting Example 3
To Connect a UHF Antenna Only
[A! The VHF/UHF antenna terminal on the TV is
Antenna connector.
(supplied) |
VHFIUFH IN
-76-ohm coaxial
cable (supplied)
TV
4 Attach the supplied antenna connector to the cable.
2 Attach the antenna connector to VHF/UHF IN on
the VCR.
3 Connect VHF/UHF OUT on the VCR and the
VHF/UHF antenna terminal on the TV.
14
EAC-66
U/V band .
separator (mixer) (aptional)..;
75-ohm coaxial
cable (supplied)
1 Attach the supplied antenna connector to the cable.
2 Attach the antenna connector to the VHF/UHF IN
on the VCR.
3 Attach an optional EAC-66 U/V band separator to
the VHF/UHF OUT connector on the VCR.
4 Connect the separator to the VHF and UHF antenna
terminal on the TV.
How to attach the antenna connector and the U/V band
separator
See page 17.

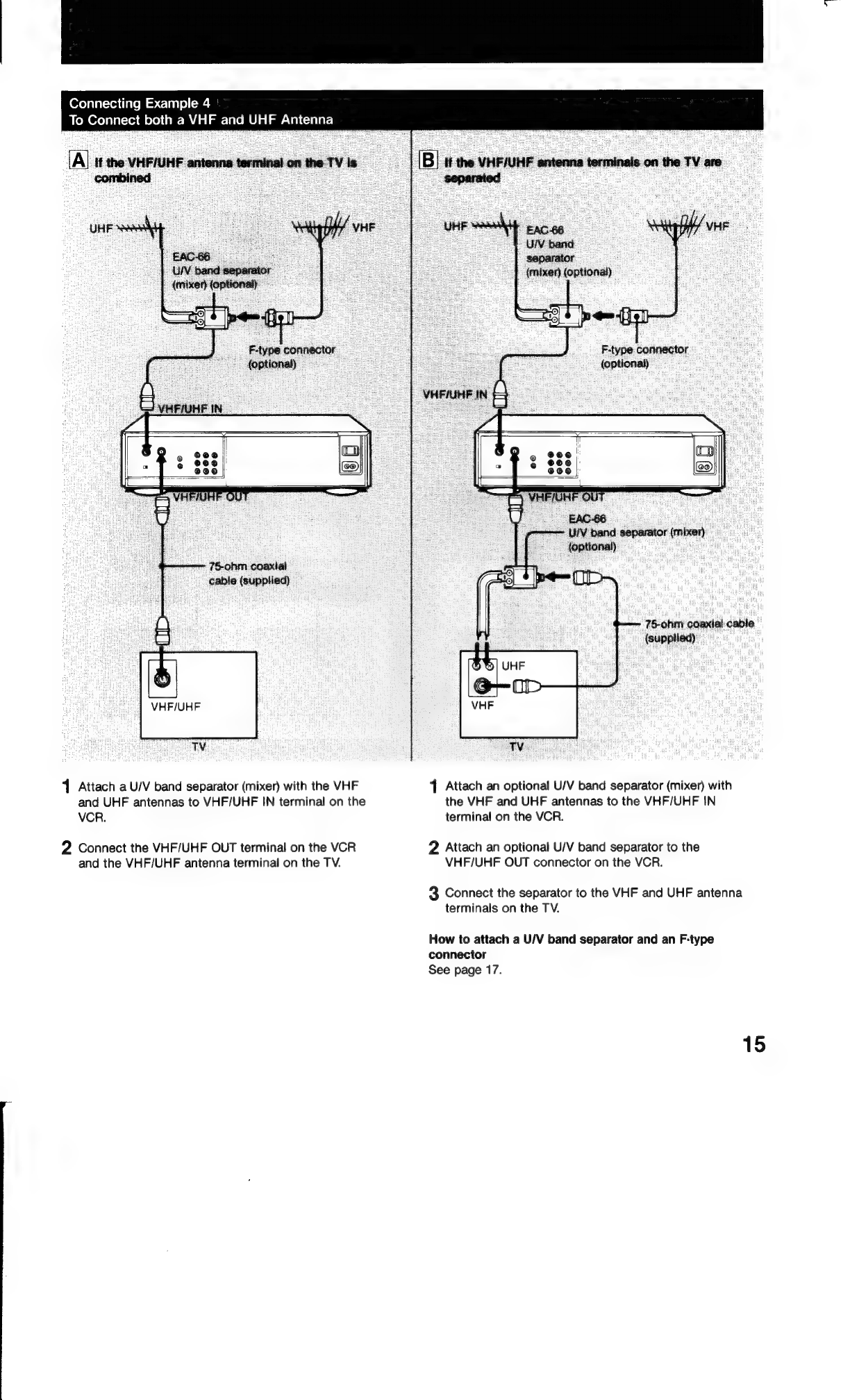

Connecting Example 4
To Connect both a VHF and UHF Antenna
78-ohm coaxial
cable (supplied)
1 Attach a U/V band separator (mixer) with the VHF
and UHF antennas to VHF/UHF IN terminal on the
VCR.
2 Connect the VHF/UHF OUT terminal on the VCR
and the VHF/UHF antenna terminal on the TV.
76-ohm coaxial cable
(supplied) — :
1 Attach an optional U/V band separator (mixer) with
the VHF and UHF antennas to the VHF/UHF IN
terminal on the VCR.
2 Attach an optional U/V band separator to the
VHF/UHF OUT connector on the VCR.
3 Connect the separator to the VHF and UHF antenna
terminals on the TV.
How to attach a U/V band separator and an F-type
connector
See page 17.
15

Connecting Example 5
To Connect a Cable-TV System
coaxial
cable
(supptied)
A connecting example is given above, but we
recommend you to consult your cable company to
make sure that the cable is properly connected.
16
——— 75-ahin coaxial
table (supplied) |
Connect the cable TV channel converter between the
TV and the VCR.
By setting the TV/VTR switch to TV, you can watch a
cable TV program while playing back or recording video
sources using the VIDEO LINE IN jack on the VCR.
Note to CATV system installer in the U.S.A
This reminder is provided to call the cable TV
system installers attention to Article 820-22 of the
NEC that provides guidelines for proper grounding
and, in particular, specifies that the cable ground
shall be connected to the grounding system of the
building, as close to the point of cable entry as
practical.

—

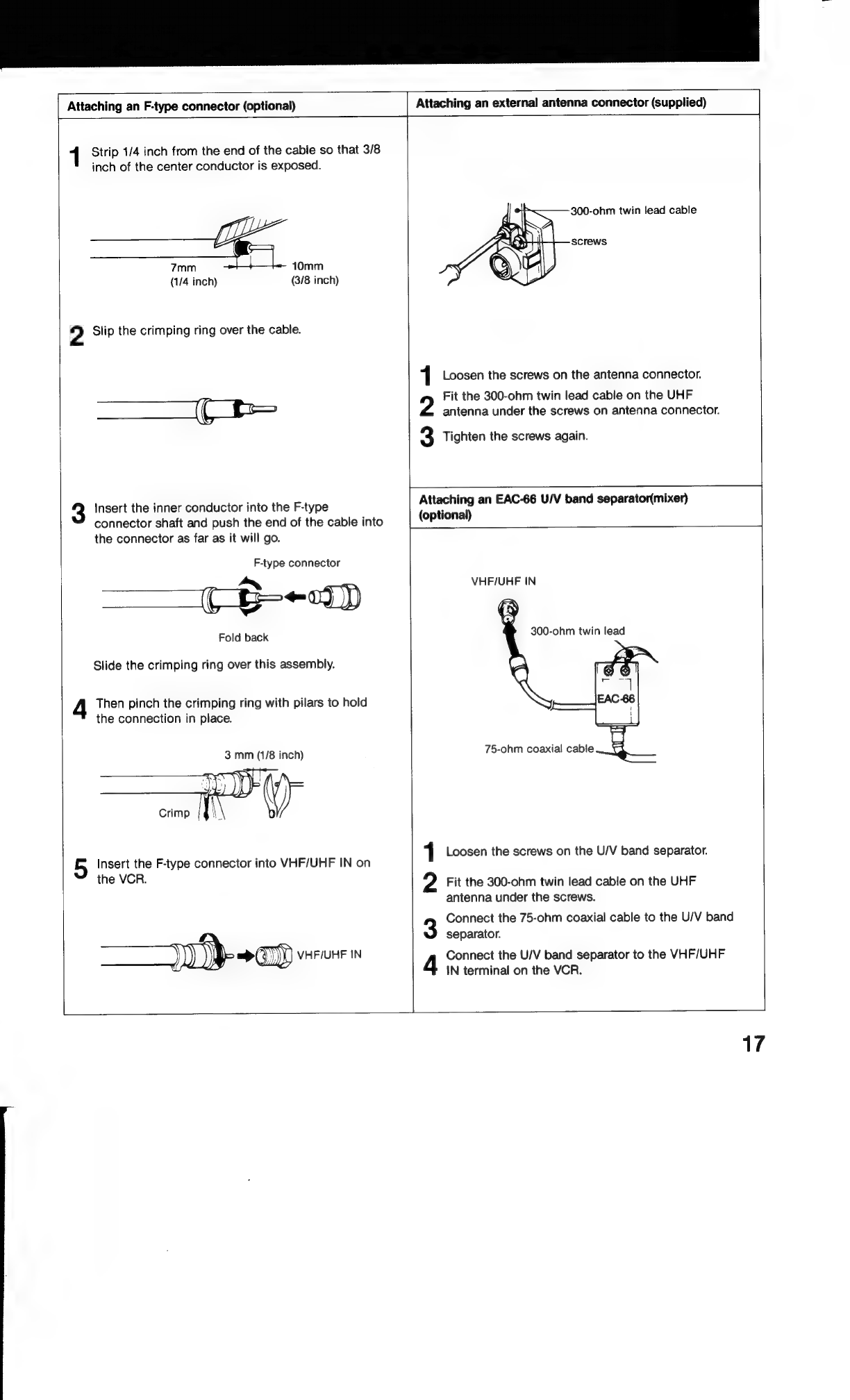

Attaching an F-type connector (optional)
1
Strip
1/4
inch
from
the
end
of
the
cabie
so
that
3/8
inch
of
the
center
conductor
is
exposed.
10mm
(3/8 inch)
7mm
(1/4 inch)
2 Slip the crimping ring over the cable.
——~( t=
Insert the inner conductor into the F-type
connector shaft and push the end of the cable into
the connector as far as it will go.
F-type connector
Fold back
Slide the crimping ring over this assembly.
4 Then pinch the crimping ring with pilars to hold
the connection in place.
3 mm (1/8 inch)
5 Insert the F-type connector into VHF/UHF IN on
the VCR.
) D) oa VHF/UHF IN
300-ohm twin lead cable
screws
1 Loosen the screws on the antenna connector.
Fit the 300-ohm twin lead cable on the UHF
antenna under the screws on antenna connector.
3 Tighten the screws again.
| Attaching an EAC-66 U/V band separator(mixer)
(optional)
VHF/UHF IN
300-ohm twin lead
75-ohm coaxial cable
Loosen the screws on the U/V band separator.
Fit the 300-ohm twin lead cable on the UHF
antenna under the screws.
Connect the 75-ohm coaxial cable to the U/V band
separator.
Connect the U/V band separator to the VHF/UHF
IN terminal on the VCR.
hm OQ DN —
—
Attaching an external antenna connector (supplied)
17

Connecting Exampie 6
To Connect a TV Equipped With Video/Audio
Input Jacks
F-type connector (optional)
7 VHF/UHF IN
Video connecting -
75-ohm coaxial — Vic ,
cable (supplied)
cable (supplied) |
Se Audio connecting
cable ( supplied)
For a high-quality picture, connect a color monitor or a
TV equipped with video/audio input jacks.
1 Connect the VHF/UHF antenna to VHF/UHF IN
terminal on the VCR.
2 Connect VHF/UHF OUT connector on the VCR and
the VHF/UHF IN terminal on the TV with the
supplied 75-ohm coaxial cable.
3 Connect MONITOR OUT jacks on the VCR and the
video/audio input jacks on the TV with the video
connecting cable and audio connecting cable.
18
Setting the RF Unit
Why the setting is necessary
Your TV receiver must receive the signal from your
recorder.
To get the proper RF signal, set the RF UNIT selector
switch on the rear panel of the VCR.
lf channel 4 is active in your area, set the switch to
channel 3, and vice versa.
if you connect a color monitor or a TV equipped with
video/audio input jacks, you do not need to make this
adjustment.
1 Set the RF UNIT at the rear to 3 CH or 4 CH,
whichever is not active in your area.
2 Press POWER.
The indicator will light.
3 Press TV/VTR so that the VTR indicator lights.
4 Check that the TUNER indicator appears in the display
window, then select an active channel in your area by
pressing CHANNEL +/-.
5 Turn on the TV and set the TV to either VHF channel
3 or 4 whichever was set on to the RF UNIT setting.
The TV program selected on the VCR will be displayed
on the TV screen.
Your TV is now tuned to the VCR. Whenever you use the
VCR, set the TV to the channel selected above.
Note
For details about TV channel adjustment see the
instruction manual of the TV.

Connecting Example 7
To Connect an Audio System
RK-C74
(optional) —
LINE OUT AUDIO
MONITOR OUT
AUDIO
Audio
coninecting
cable
(supplied)
You can enjoy tapes recorded in hi-fi stereo when the VCR
is connected to your audio system.
to auxiliary input
or tape inputs of
the amplifier
, | MONITOR OUT
Video connecting
cable (supplied)
to-recording outputs
of the amplifier
Audio system
AUDIO IN -
Color monitor
Notes
elf the VCR is installed near a tuner or a radio, noise
may be heard in AM reception. In this case, move
the VCR away from the tuner or the radio, adjust
the AM antenna for minimum noise, or connect an
external AM antenna to the tuner.
*Since a hi-fi recorded tape has a wide dynamic
range, turn down the volume on the amplifier
before playing back the tape to avoid damaging the
speakers.
Before connecting or disconnecting the power
cord of the VCR, be sure to turn off the connected
amplifier.
19

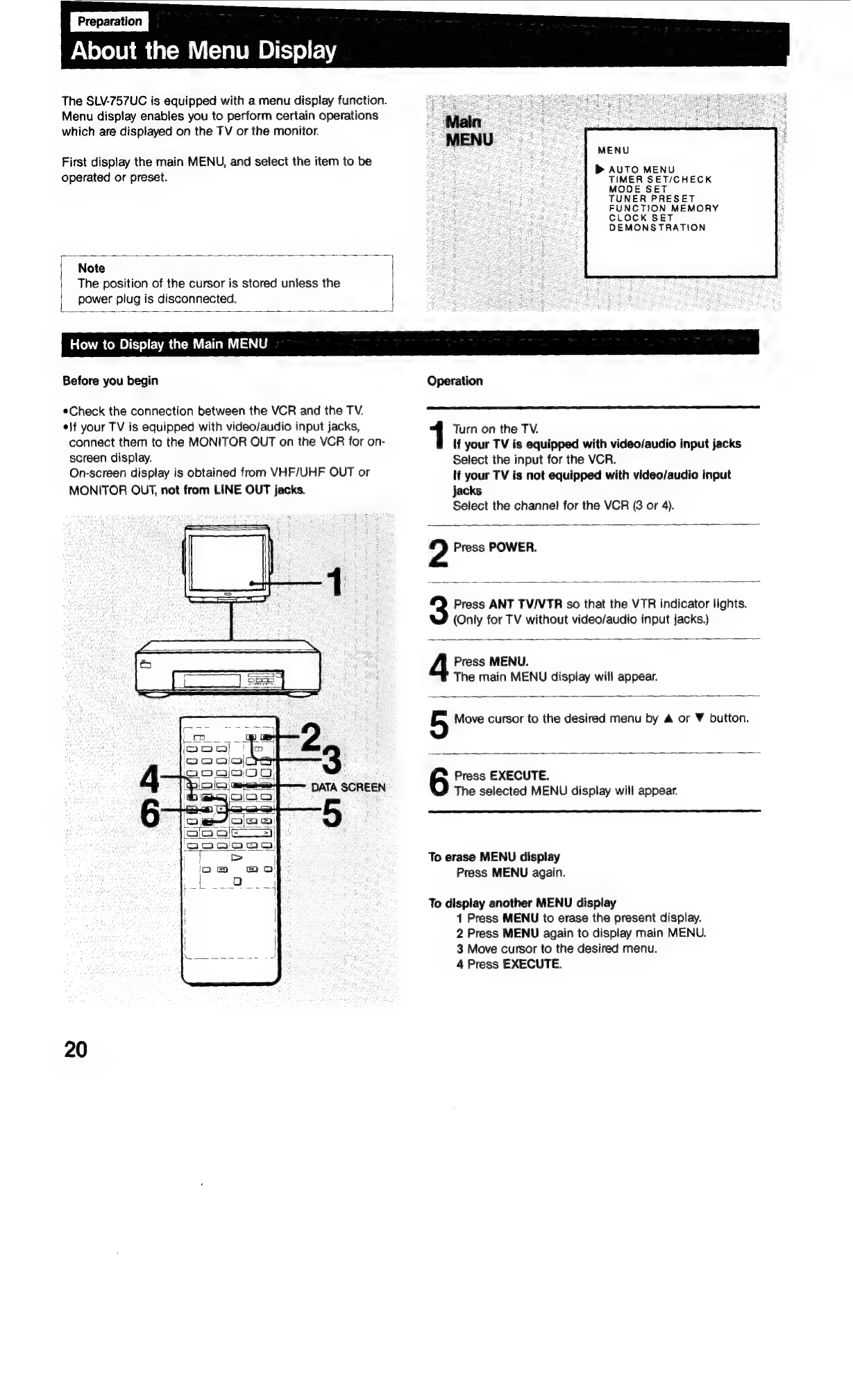

About the Menu Display
The SLV-757UC is equipped with a menu display function.
Menu display enables you to perform certain operations
which are displayed on the TV or the monitor.
MENU
Bb AUTO MENU
TIMER SET/CHECK
MODE SET
TUNER PRESET
FUNCTION MEMORY
CLOCK SET
DEMONSTRATION
First display the main MENU, and select the item to be
operated or preset.
Note
The position of the cursor is stored unless the
power plug is disconnected.
How to Display the Main MENU
Before you begin Operation
eCheck the connection between the VCR and the TV.
¢\f your TV is equipped with video/audio input jacks, Turn on the TV.
connect them to the MONITOR OUT on the VCR for on- \f your TV is equipped with video/audio input jacks
screen display. Select the input for the VCR.
On-screen display is obtained from VHF/UHF OUT or If your TV is not equipped with video/audio input
MONITOR OUT, not from LINE OUT jacks. jacks
Select the channel for the VCR (3 or 4).
2 Press POWER.
Press ANT TVIVTR so that the VTR indicator lights.
(Only for TV without video/audio input jacks.)
oe Press MENU.
a The main MENU display will appear.
5 Move cursor to the desired menu by A or V button.
Press EXECUTE.
DATA SCREE The selected MENU display will appear.
5
To erase MENU display
Press MENU again.
To display another MENU display
1 Press MENU to erase the present display.
2 Press MENU again to display main MENU.
3 Move cursor to the desired menu.
4 Press EXECUTE.
20
