SORG Boogie Fix & Swings User manual

1 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
Instructions for use
Unique people, unique solutions.
Instructions for use Boogie Fix and Swing
ENG
Boogie
Fix & Swing

2 of 28 Instructions of use Boogie Fix and Swing 2019-08-15
Imprint
SORG Rollstuhltechnik GmbH + Co. KG
Benzstrasse 3-5
68794 Oberhausen-Rheinhausen / Germany
Phone [phone]
Fax [phone]
E-Mail [email protected]
Web www.sorgrollstuhltechnik.de
Revision status
2019-08-12
Technical status
Technical changes and misprints reserved.
The pictures in this Instructions for use can
dier from the actual equipment components.
However, a corresponding conduction
is possible.
Copyright
All texts, pictures and graphics underlie
copyright protection. All rights, including
copying, publishing, editing and translating,
remain reserved. © by SORG Rollstuhltechnik
GmbH+Co. KG Benzstraße 3-5,
68794 Oberhausen-Rheinhausen / Germany.
Our terms and conditions can be found on
our order forms and at www.sorgrollstuhltechnik.de/
impressum

3 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
Table of Content
1 Standing trainer overview 4
2 General information 5
2.1 Preface 5
2.2 General information regarding usage
instructions 5
2.2.1 Explanation of symbols 6
2.2.2 Intended purpose 7
2.2.3 Indication 7
2.2.4 Contraindication 7
2.3 General safety information 8
2.3.1 Loading and transport without
occupants 10
2.3.2 Other important information 10
3 Handling 11
3.1 Handling posterior truss pad 11
3.1.1 General information regarding
posterior truss pad 11
3.1.2 Posterior truss pad with crotch pad 11
3.1.3 Posterior truss pad swivel bracket 12
3.2 Handling centre column 14
3.2.1 General information regarding
centre column 14
3.3 Handling pelvic truss pad 15
3.3.1 General information regarding
pelvic truss pad 15
3.4 Handling back truss pad 16
3.4.1 General information regarding
back truss pad 16
3.5 Handling chest pad 17
3.5.1 General information regarding
chest pad 17
3.6 Handling knee truss pad 18
3.6.1 General information regarding
knee truss pad 18
3.7 Handling footrest 19
3.7.1 General information regarding
footrest 19
3.7.2 Foot plate belt 20
3.8 Handling swivel caster 21
3.8.1 General information regarding
swivel casters 21
4 Repairs and maintenance 22
4.1 Repairs 22
4.2 Spare parts 22
4.3 Maintenance 22
4.4 Disinfection 22
4.5 Storage 22
4.6 Reuse 23
4.7 Disposal 23
4.8 Maintenance/ inspection 23
5 Technical data 25
5.1 Data and measurements 25
5.2 Meaning of labels 26
5.3 Declaration of conformity 26
6 Verication of yearly inspection 27

4 of 28 Instructions of use Boogie Fix and Swing 2019-08-15

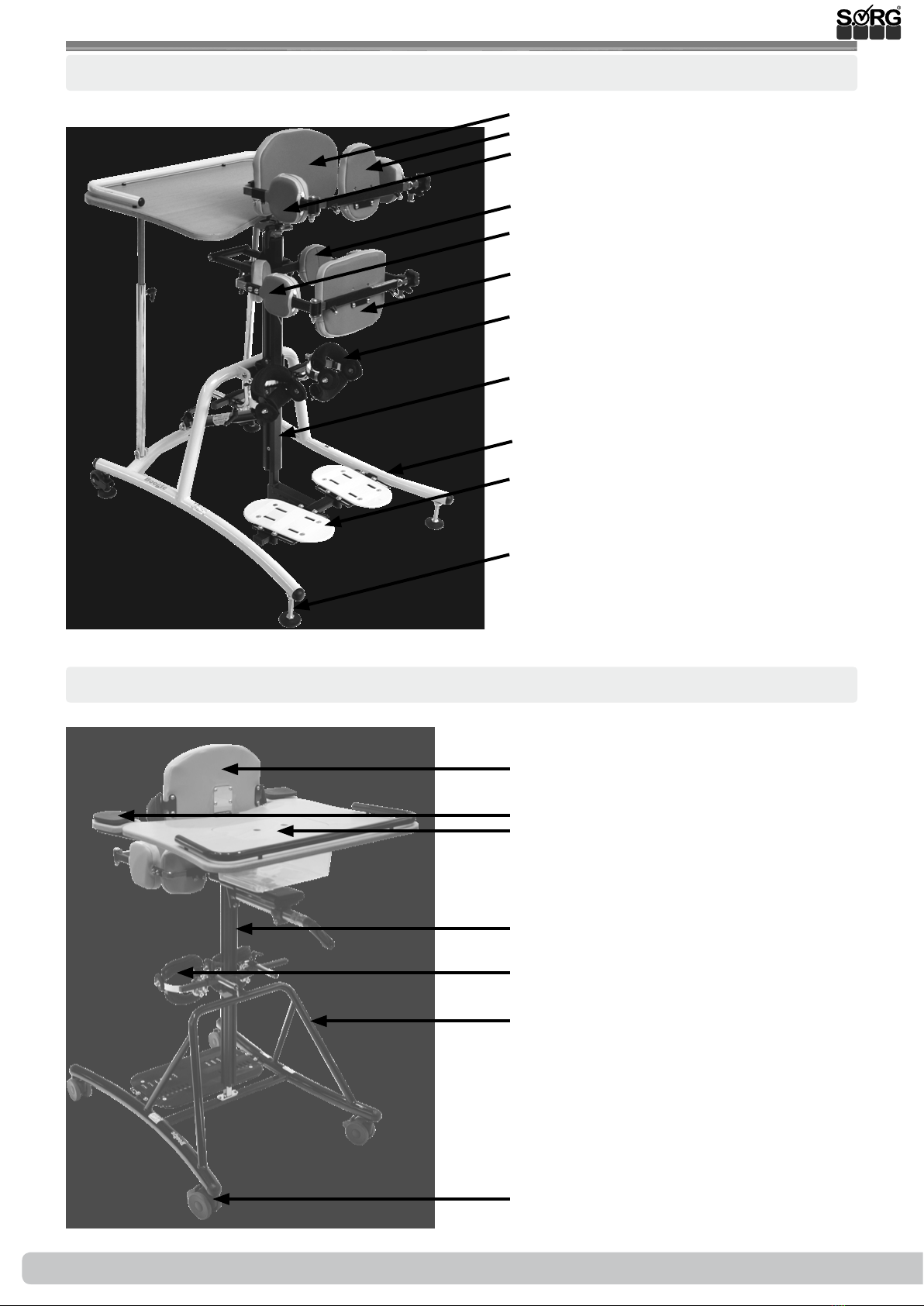

1 Standing trainer overview
Boogie Swing overview
Boogie Fix overview
1
4
2
6
7
1Chest pad
2Armrests with padding
3Therapy table
4Centre column
5Knee truss pads
6“Fix” frame
7Casters
1Chest pad
2Back truss pad
3Side chest pad
4Spine pad
5Side posterior truss pad
6Posterior truss pad
7Knee truss pads
8Centre column
9“Swing” frame
10 Footrests
11 Supporting feet
1
2
3
4
5
6
7
8
10
11
9
3
5

5 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
2 General information
2.2 General information regarding usage instructions
These usage instructions contain safety information and handling instructions that are necessary
for the correct use of the product.
All settings, adjustments and repairs beyond the scope of these usage instructions, and the an-
nual inspection, must be carried out by a qualied specialist dealer.
You can nd more information about this in our service record, which can be accessed at www.
sorgrollstuhltechnik.de
The user and specialist dealer must have read and understood these instructions before com-
missioning. These usage instructions cover all equipment variants of the product. Have your
consultant instruct you on the safe handling of the standing trainer and your individual equip-
ment variants on level ground and with the support of an accompanying person.
Those with impaired vision can nd these usage instructions on our website www.sorgrolls-
tuhltechnik.de as PDF and audio les.
Please contact your specialist dealer or our team if you have any questions or comments
([phone]).
Keep these usage instructions in a safe place. All annual inspections carried out must be docu-
mented by the specialist dealer.
2.1 Preface
A warm welcome to the SORG family – many thanks for the trust you have placed in us and for
choosing our product.
This standing trainer has been individually tailored to meet your specic require-
ments.
You will nd the usage and adjustment instructions below so that you can use the standing
trainer in everyday life without tools. Please observe these instructions and handle the standing
trainer carefully so that you can enjoy it for as long as possible.
Please do not hesitate to contact us if you have any questions about this or any other product.
We hope you enjoy using your SORG product.
Your SORG team

6 of 28 Instructions of use Boogie Fix and Swing 2019-08-15
2 General information

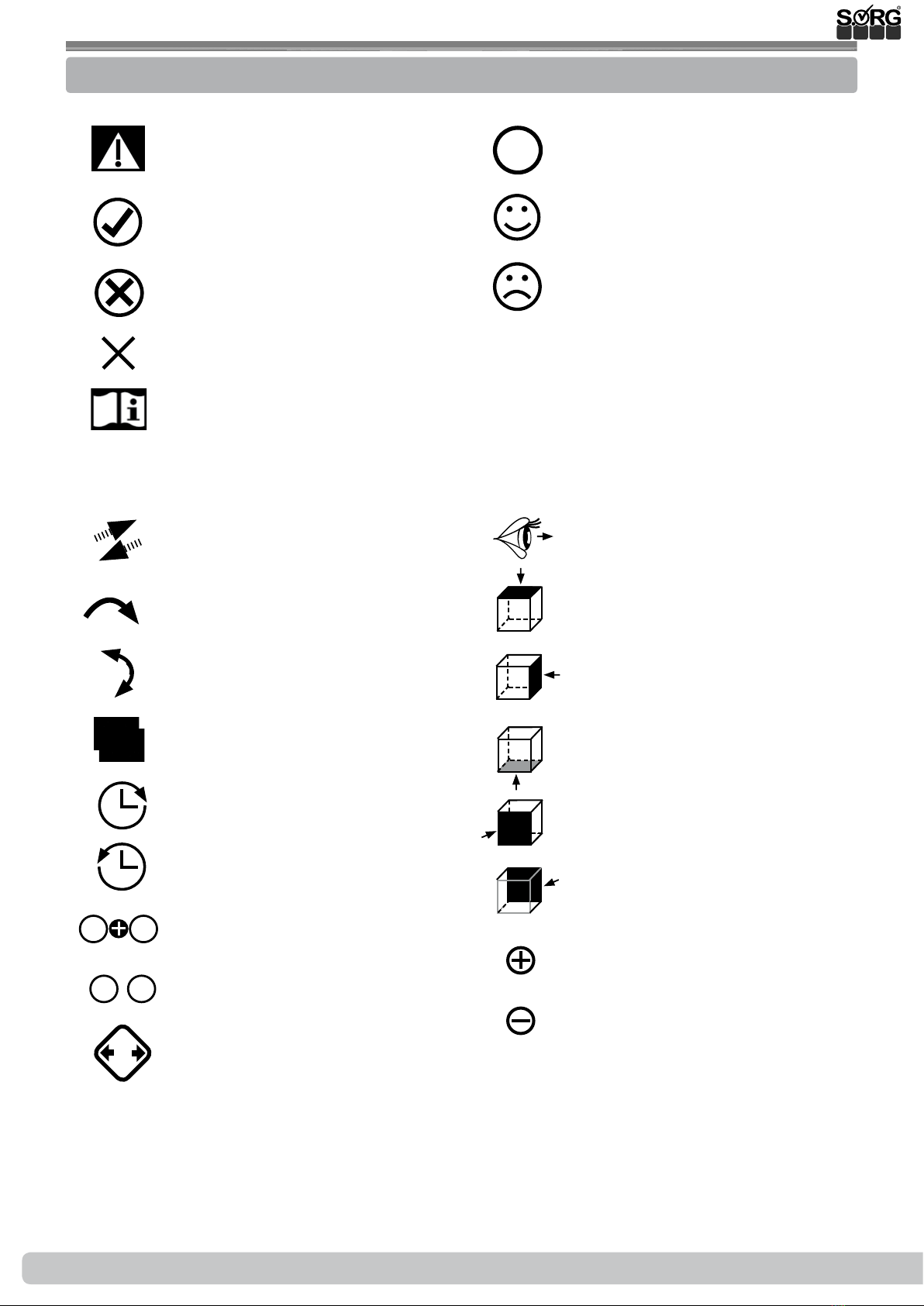

2.2.1 Signs and Symbols
ATTENTION! Warnings for
personal Safety aspects that are
of the utmost importance.
CORRECT safety adjustment/ use
WRONG adjustment /use
NOT ALLOWED
References to additional/
continuing reading.
Setting or adjusting the angle
open/close
Turn clockwise
Turn counterclockwise
steps to be done at the same
time
steps to be done after each other
steps to be done on both sides
USE
(A); (B)
1. 1.
1. 2.
;
2x
Push/ pull/ insert/ move/ remove
Push in specic direction
important detail
correct or proper use/setting
incorrect or improper use/setting
reference from text to detail
point of view
view from top
view from the side
view from the bottom
view from the front
view from the back
fasten parts
remove parts

7 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
2 General information
2.2.2 Intended purpose
The Boogie Fix and Boogie Swing are standing trainers for children and young people for indoor
use with a central centre column. This can be adjusted forwards by up to 30° on the Swing model.
The standing trainer is designed solely for the transport of the person for whom it has been spe-
cially adapted by a qualied specialist dealer.
Parents or authorised guardians must ensure that the information in the usage instructions is
followed for children or persons with impaired capacities.
The safe use of the aid to the greatest possible extent is only possible indoors on level, rm and
dry ground with the help of an accompanying person.
Any use beyond this entails taking a variety of risks for which only the user themselves can
take responsibility. This requires sucient competence in identifying and avoiding hazards and
safe handling of the aid by the user!
Only use the standing trainer for its intended purpose. Any improper use of the product
involves considerable risks and will invalidate product liability.
The large variety of combinations means that settings can be made that are outside the
safety and application range.
2.2.3 Indication
Use is suitable for the following functional impairments, among others:
• Inability to take up and maintain a standing position by oneself, in particular due to:
• Paraplegia
• Multiple sclerosis at an advanced stage
• Cerebral palsy
• Muscular dystrophy
2.2.4 Contraindication
Use is unsuitable for:
• Serious perception and balance disorders,
• Loss of limbs of the lower extremities,
• Joint contractures/joint damage to the arms and/or legs,
We accept no liability for damage to persons or objects resulting from the circumstances
described above.
The aid is designed exclusively for tem-
porary use in accordance with therapeutic
specications.

8 of 28 Instructions of use Boogie Fix and Swing 2019-08-15
2 General information
-10 to + 41°C
30 - 70%
2.3 General safety information
Before each use, check:
• that all truss pads are rmly in place,
• the frame, add-on parts and accessories for visible damage, bending, cracks or missing
or loose screws,
• the wheels and quick-release axles for tightness,
• that the ination pressure and tyre tread are sucient,
• that the brakes are working properly,
• that the locking mechanisms (springs, quick-release axles, eccentric clamps, etc.) are
tight,
• that all previously dismantled components have been reconnected and rmly locked.
There is a risk of injury (e.g. due to crushing) from all rotating, swivelling or foldable com-
ponents, even during adjustment and repair work and during transport.
Structural modications may only be carried out with our explicit approval and only by the
specialist dealer. These must be documented.
The occupant must not be left in the aid unattended.
The standing trainer must only be used if all components are correctly tted and adjusted.
If the standing trainer is used in an area without thresholds, the wheels should be adjusted in
such a way that each wheel maintains ground contact. In the case of frequent crossing of e.g.
door thresholds or the like, the front wheel should not be in contact with the ground.

9 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
Danger of tipping over and overturning
There is a danger of tipping over and overturning with all types of ledges, thresholds, in-
clined planes and steps as well as when leaning out of the standing trainer. The occupant must
remain stable in the standing trainer, be well harnessed and all lockable truss pads must be
rmly secured.
To cross a threshold:
• The accompanying person must move the standing trainer slowly and at a right angle to
just before the threshold, before
• slowly crossing the threshold.
2 General information
Getting in and out
An accompanying person must always provide assistance when the occupant gets into or
out of the standing trainer.
Occupants must only get in and out of the trainer on level, horizontal and firm ground
and with the parking brake applied and the wheel locks on the rear casters on.
Only experienced and strong occupants should get into the trainer independently and
only in the presence of an accompanying person, since this requires a lot of strength and skill.

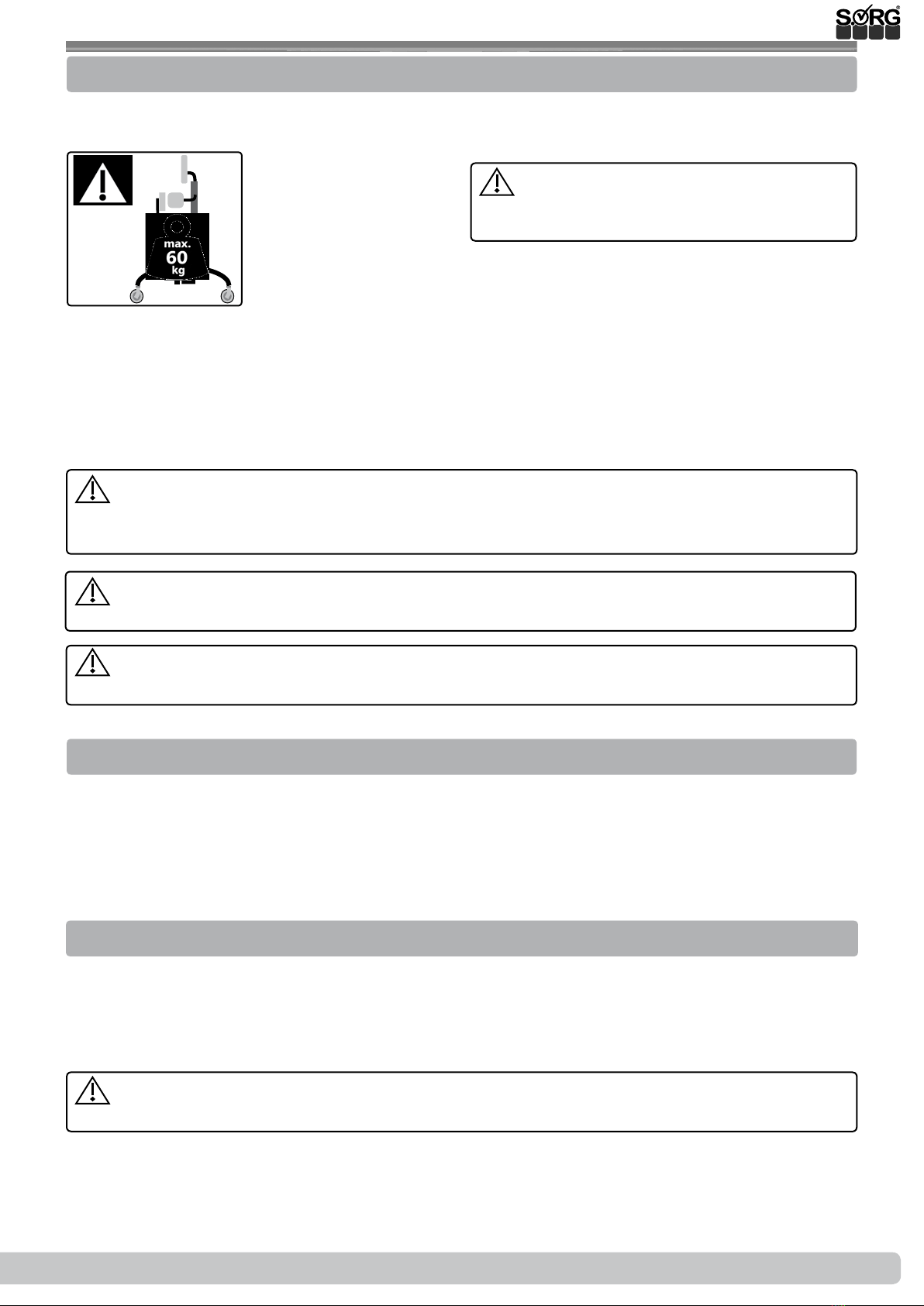

10 of 28 Instructions of use Boogie Fix and Swing 2019-08-15
2 General information
2.3.1 Loading and transport without occupants
Make sure that the packing size you require is suitable and secure the standing trainer and all
dismantled components with sucient load securing. Inform yourself about suitable load secur-
ing precautions before transport.
Carrying points:
• Frame tubes
• But not on the leg supports or truss pads
> 42°C
°C
Corrosion protection
The product has been designed with corrosion protection in mind when selecting the materials
(e.g. plastic, aluminium, stainless steel). All materials prone to corrosion are surface-treated and
are therefore protected.
The standing trainer must be dried thoroughly if it becomes wet.
2.3.2 Other important information
The standing trainer’s textile materials have been tested and veried for re resistance in
compliance with the applicable standards. Nevertheless, there is a risk of ignition of the ame-
retardant textile components. Keep any sources of ignition away from the standing trainer.
The standing trainer must neither be exposed to excessive moisture nor come into con-
tact with salt water.
Please contact your specialist dealer or us as the manufacturer if you experience any issues with
the standing trainer. Product recalls etc. will be published on our website www.sorgrollstuhltech-
nik.de. You can also nd the respective contact persons there.

11 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
3.1 Handling posterior truss pad
3.1.2 Posterior truss pad with crotch pad
Removal (to insert, proceed accordingly in reverse order):
3.1.1 General information regarding posterior truss pad
(1)
1.
90°
2.
(2a)
(3) (4)
Set depth:
(1)
(2b)
(2a) (2b)
The star grip must be tightened. The latch alone is not sucient for stabilisation! The
standing trainer is not ready for use without the star grip rmly secured!

12 of 28 Instructions of use Boogie Fix and Swing 2019-08-15
Set height:
3.1 Handling posterior truss pad
3.1.3 Posterior truss pad swivel bracket
1.
2.
(1) (2)
Set height of step pad:
1.
2.
(1) (2)
Set height of posterior truss pad:
1.
2.
(1) (2)

13 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
3.1 Handling posterior truss pad
(1) (2)
90°
(3) (4)
Set depth on posterior truss pad with swivel bracket and crank:
(1)
1.
2.
Open (to close, proceed accordingly in reverse order):

14 of 28 Instructions of use Boogie Fix and Swing 2019-08-15
3.2 Handling centre column
In order to adjust the angle with the gas pressure spring, the occupant and/or the centre
column must be held using both hands while the tripping lever is actuated, since otherwise
the occupant could tilt forwards abruptly and injure themselves.
The angle must only be adjusted when the trainer is stationary and with the wheel locks
activated (drum brake and rear caster brake).
Boogie Swing angle adjustment:
3.2.1 General information regarding centre column
(1)
1. 1.
(3)
1.
90°
2.
(3)

15 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
3.3 Handling pelvic truss pad
3.3.1 General information regarding pelvic truss pad
The truss pads can be optionally equipped with setscrews or clamp levers.
Set height:
(2)
(1)
Set width:
1.
2.
(1) (2)
(3)
Set depth:
(1)
2x
(2) (3)
2x 2x

16 of 28 Instructions of use Boogie Fix and Swing 2019-08-15
3.4 Handling back truss pad
Open (to close, proceed accordingly in reverse order):
3.4.1 General information regarding back truss pad
(2)
90°
1.
2.
(1)
(3) (4)

17 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
3.5 Handling chest pad
Set inclination:
3.5.1 General information regarding chest pad
(2)
(1)
1.
2.

18 of 28 Instructions of use Boogie Fix and Swing 2019-08-15
3.6 Handling Knee truss pad
3.6.1 General information regarding knee truss pad
The width of the knee truss pads must be set to the individual dimensions of the occupant
before use. Only ne adjustments may then be made.
Set height:
(1) (2)
(3)
Set depth/ distance:
(1) (2)
1.
2.

19 of 28
2019-08-15 Instructions of use Boogie Fix and Swing
3.7 Handling footrest
3.7.1 General information regarding footrest
3D footrest angle adjustment:
(1) (2)
(3)
There must be nobody in the standing trainer while adjustment work on the footrests is
being carried out.
Firmly close the clamp lever and check
the xed position of the footrest.

20 of 28 Instructions of use Boogie Fix and Swing 2019-08-15

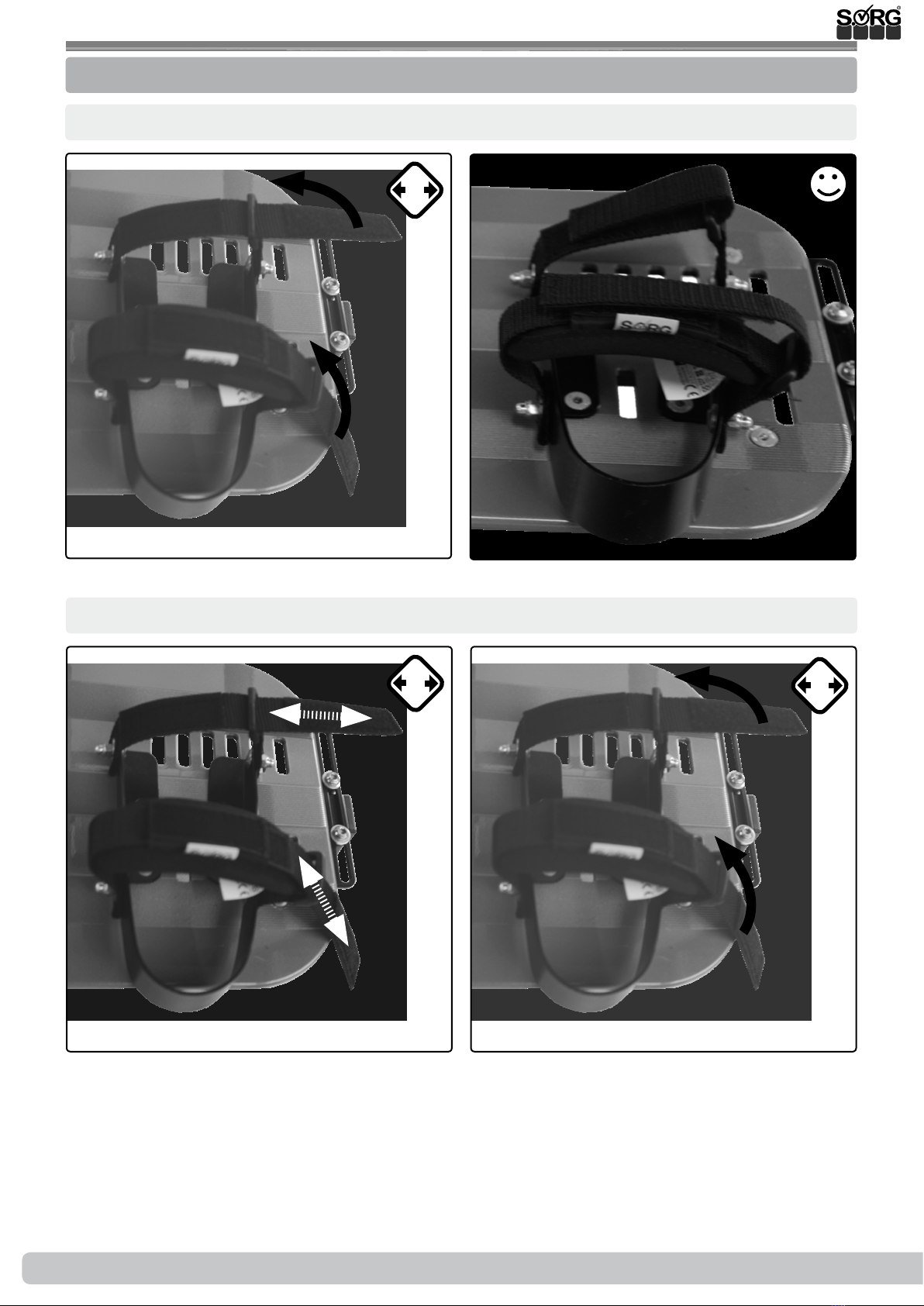

Tensioning/slackening:
(1)
2x (2)
2x
3.7 Handling footrest
Close (to open, proceed accordingly in reverse order):
(2)
(1)
2x
3.7.2 Foot plate belt
