OPERATION MANUAL
SA1502P INFRARED RECEIVER
SOUND ASSOCIATES, INC.
424 West 45th Street, New York, NY 10036
Tel: [phone] Fax: [phone]
Toll free: 888-772-7686
Home page: www.soundassociates.com

TABLE OF CONTENTS
INTRODUCTION ...........................................................................................................2
HEADSET VS. NECK INDUCTION LOOP.....................................................................2
UNPACKING THE UNIT ................................................................................................2
FEATURES…................................................................................................................2
OPERATION
Using the Receiver...................................................................................................3
Location and Use of Controls...................................................................................3
TROUBLESHOOTING...................................................................................................4
SERVICE OR REPAIRS................................................................................................4
TECHNICAL SPECIFICATIONS....................................................................................5
ACCESSORIES.............................................................................................................5
WARRANTY ...............................................................................................................5

- 2 -
INTRODUCTION
The Sound Associates SA1502P is an infrared receiver that allowsthe user to receive wireless,
clarified sound in most facilities equipped with an infrared listening system. The receiver
conformsto standards set by the Americans with Disabilities Act (ADA) for the hard of hearing
and usesthe latest in infrared technology.
The Sound Associates SA1502P is a two-channel stereo infrared pendant receiver operating on
2.3 MHZ (channel 1), 2.8 MHZ (channel 2) or stereo (2.3 MHZ - left, 2.8 MHZ - right), requiring
the use of an additional ear piece such as neck induction loop, headphones or ear bud.
The following instructions should be read completely before attempting to use your receiver to
ensure proper set up and use of the equipment. If you require further assistance, please call our
Customer Service Department Monday-Friday 10:00 am -5:30 pm at (888) 772-SOUND (7686).
HEADSET VS. NECK INDUCTION LOOP
The neck induction loop, used in conjunction with the SA1502P body pack receiver is designed
for the individual with a more extensive hearing loss. It is used to enhance the amplification of
the user’s hearing aid. Note: The hearing aid must be equipped with a “T” switch or have a
telecoil setting to use a neck induction loop. The combination of the two devices is likely to
give the user more volume and intelligibility than with the hearing aid or headset alone.
UNPACKING THE UNIT
As soon as the shipment is received, inspect the unit and all components for damage incurred
by shipping. If the unit is damaged due to shipping, please keep all packing material and
contact the shipping company as soon as possible. Only the consignee may institute a claim
against a carrier if damage has occurred in shipping, however, Sound Associates will assist the
client in any such event.
Equipment enclosed:
1 Infrared Receiver (SA1502P)
1 SA505 rechargeable battery
1 Instruction Manual
FEATURES
·Two selectable channels for multi-language interpretation or stereo audio enhancement.
·Two receiving diodes for a wider scope of coverage and greater sensitivity.
·Uses lanyard or pocket spring clip on back to wear in a variety of ways.
·Rechargeable battery that charges in a 115 volt AC outlet with adapter.
·Recommended for use with Sound Associates SA650NIL Neck Induction Loop.
·Unit automatically turns “on” when 3.5 mm jack is inserted, causing LED to illuminate.
·Slide volume and channel selection for simpleoperation.
·Full one-year warranty.

- 3 -
OPERATION
Using the Receiver
The receiver is worn either around the neck (pendant style) using the lanyard or attached to a
pocket using the clip on back of the receiver. The unit should be worn at least chest high with
the dual photo-cell lens facing away from the body. The SA505 rechargeable battery must be
inserted firmly into the bottom of the receiver for use. The battery can be plugged in either
direction.
The SA1502P requires a separate earpiece (such as neck induction loop, headset or ear bud)
with a 3.5 mm (miniplug) jack. The receiver’s “on/off” switch is located internally which turns the
unit on automatically when miniplug is inserted and shuts off once the earpiece is removed.A
red indicator light onthe top of the unit will illuminate once the earpiece has been connected
properly to show the unit is on.
Note: remember to disconnect the piece when not in use to avoid unnecessary drain on the
battery.
The use of a neck induction loop with the SA1502P receiver requires the user to adjust their
hearing aid to the “T” switch or telecoil setting, usually the middle position on a 3-position on/off
switch. (If you are unsure if your hearing aid is equipped with a telecoil setting, check with your
audiologist.)
The volume is adjusted by the slide control located on the unit face.
Location and Use of Controls

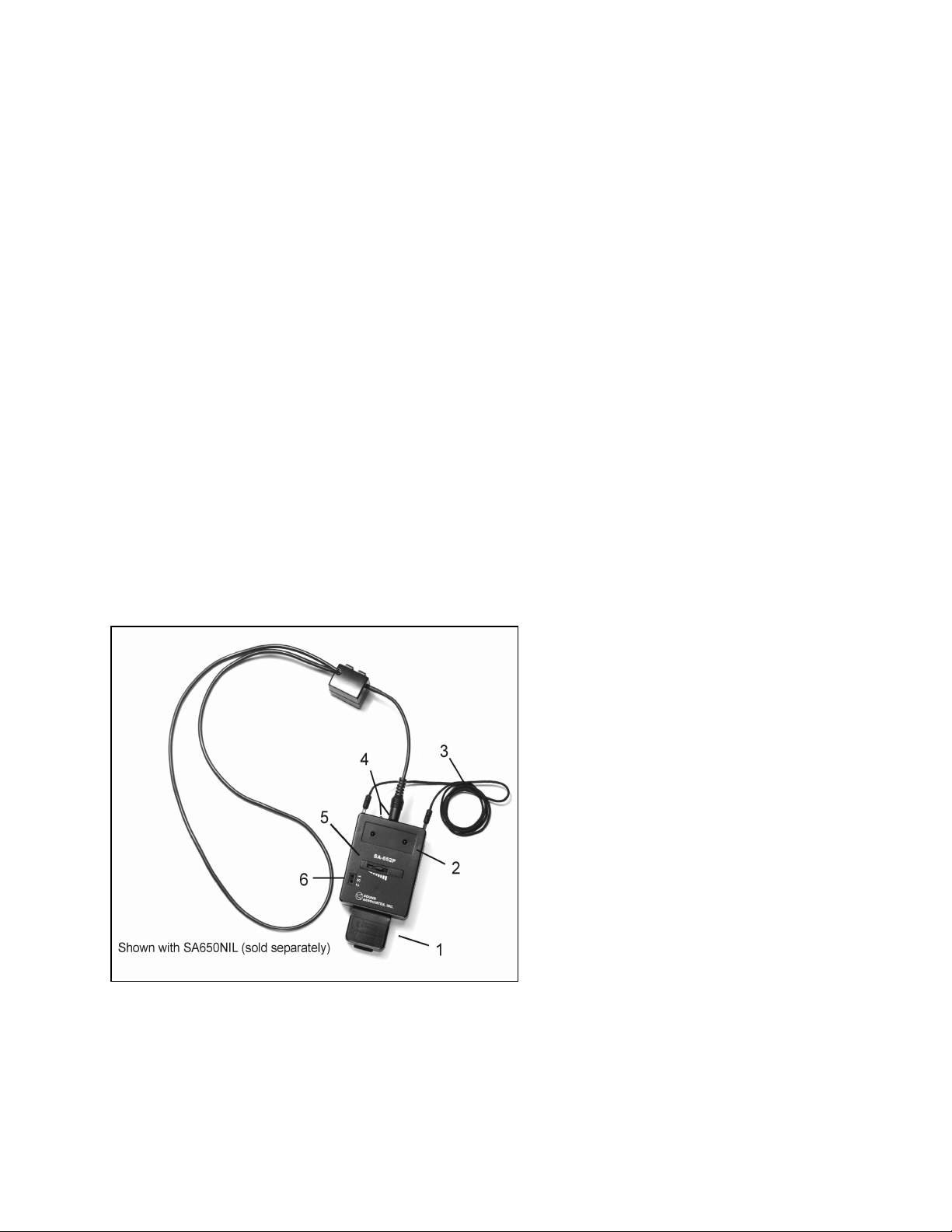

1 -Rechargeable Battery: (Model
SA505) 2.4 volt that will run
approximately eight hours without
recharging. It can be recharged with an
adapter in any 110 volt outlet. The
battery can be plugged into the bottom
of the receiver in either direction.
2 - Dual Photo-Cell Receiving Diodes:
The diodes receive the infrared light and
convert it into sound. They must not be
blocked or covered during operation, as
this would interrupt sound reproduction.
3 - Neck Lanyard: Instead of using the
built in clip on back of unit, the lanyard
is worn around the neck. This helps
keep the receiver elevated and in line of
sight of the emitter.
4 - Input Jack/Indicator Light: The pendant receiver requires an earpiece (such as the neck
induction loop, shown) with a 3.5mm plug (miniplug). Once the plug is inserted in the jack, the
receiver is operational. The red indicator light will illuminate to show the receiver is powered on.

- 4 -
5 - Volume Control: A slide control adjusts the volume for the receiver. With the photo cell on
the front of the receiver facing away from you, slide the control to the left to increase the
volume.
6 - Channel Selector: The recessed selector button toggles to one of three positions: 1 for 2.3
MHZ, 2 for 2.8 MHZ, or S for Stereo. Note: Do not use Channel S for monaural earpieces and
neck induction loops. In the stereo setting, the plug is wired with the tip (left positive), ring (right
positive) and sleeve (ground).
TROUBLESHOOTING
Symptom Cause/Remedy
Only white noise or static is heard in the
receiver Receiver is not receiving the infrared transmission
Make sure...
…the photo cell on the receiver is in direct view of
the emitter panel
...power supply is powered (the red LED on the
emitter panel should light when transmitter is OFF)
...transmitter is powered (the red LED should flicker
out and the green LED on the emitter panel should
light)
...cable is not interrupted or crossed
No static and no audio in the receiver The receiver is not powered or the infrared light is
being received with no audio signal “on its back”
Make sure...
…the volume on the receiver is turned up
…the receiver battery is charged and secured firmly
in place
...the audio input is plugged into the transmitter and
functioning properly
...the volume on the transmitter is turned up
Signal is received but with some static in the
receiver The infrared signal is too weak or high levels of infrared light are interfering with the transmission
Make sure...
...emitter is in direct view of the receiver
…sunlight or intense light is not shining on the photo
cell of the receiver
…energy saving fluorescent or neon light is being
used
Signal is intermittent or the sound begins to
fade The battery is no longer holding an adequate charge
Make sure…
…the battery is charged or use a new battery
SERVICE OR REPAIRS
Contact Sound Associates’ Customer Service Department at 888-772-SOUND (7686) 10:00-
5:30 Monday through Friday for any service or repairs.

- 5 -
TECHNICAL SPECIFICATIONS
Modulation: 2.3 MHZ (channel 1)
2.8 MHZ (channel 2)
Stereo (left ear ch.1, right ear ch.2)
Infrared Wave Length: 880 –1200 nm
Output: Approx. 0.6V
Frequency Response: 100 Hz to 15 kHz
Operating Time: Approx. 8 hours
Battery Recharge Time: 14 hours
Power Supply: 2.4V rechargeable NiMh battery
Dimensions: 2.75” x 2.25” x 1.25” deep
Weight: 1.8 oz. (2.5 with battery)
Power Indicator: Red LED on top of unit
ACCESSORIES
Battery Chargers Carrying Cases/Storage
BC1 –Battery charging adapter CC1 –Personal carrying case
BC10 –10 position battery charger CC10 –10 position carrying case
BC25 –25 position battery charger DC24T –24 position distribution cabinet
BC50 –50 position battery charger DC50T –50 position distribution cabinet
Earpieces
SA650NIL –Neck induction loop
SA500E –Single ear bud earpiece
WARRANTY
The SA1502P receiver and the SA505 rechargeable battery are covered by a full one year
warranty, from the date of original purchase, against defects in workmanship or materials. If
either component fails due to defects in craftsmanship or materials we will repair or replace that
component without charge. The factory warranty does not cover malfunctions due to abuse or
operation other than specified.
