SoundCraft DPS-2 User manual

Soundcraft DDPS-22PPower SSupply

DPS-2 Power Supply i
Soundcraft DDPS-22PPower SSupply
Contents
Contents i
Safety Symbol Guide ii
Approvals and Notice iii
Warranty iv
Important Safety Instructions - Cautions v
Warnings vi
Connecting up vii
Dimensions viii
Pin Outs of DC Output Connector ix

ii DPS-2 Power Supply
CAUTIONS
Must be followed carefully to avoid bodily injury.
WARNINGS
Must be observed to avoid damage to your equipment.
NOTES
Contains important information and useful tips on the
operation of your equipment.
SAFETY SSYMBOL GGUIDE
For your own safety and to avoid invalidation of the warranty all
text marked with these Symbols should be read carefully.

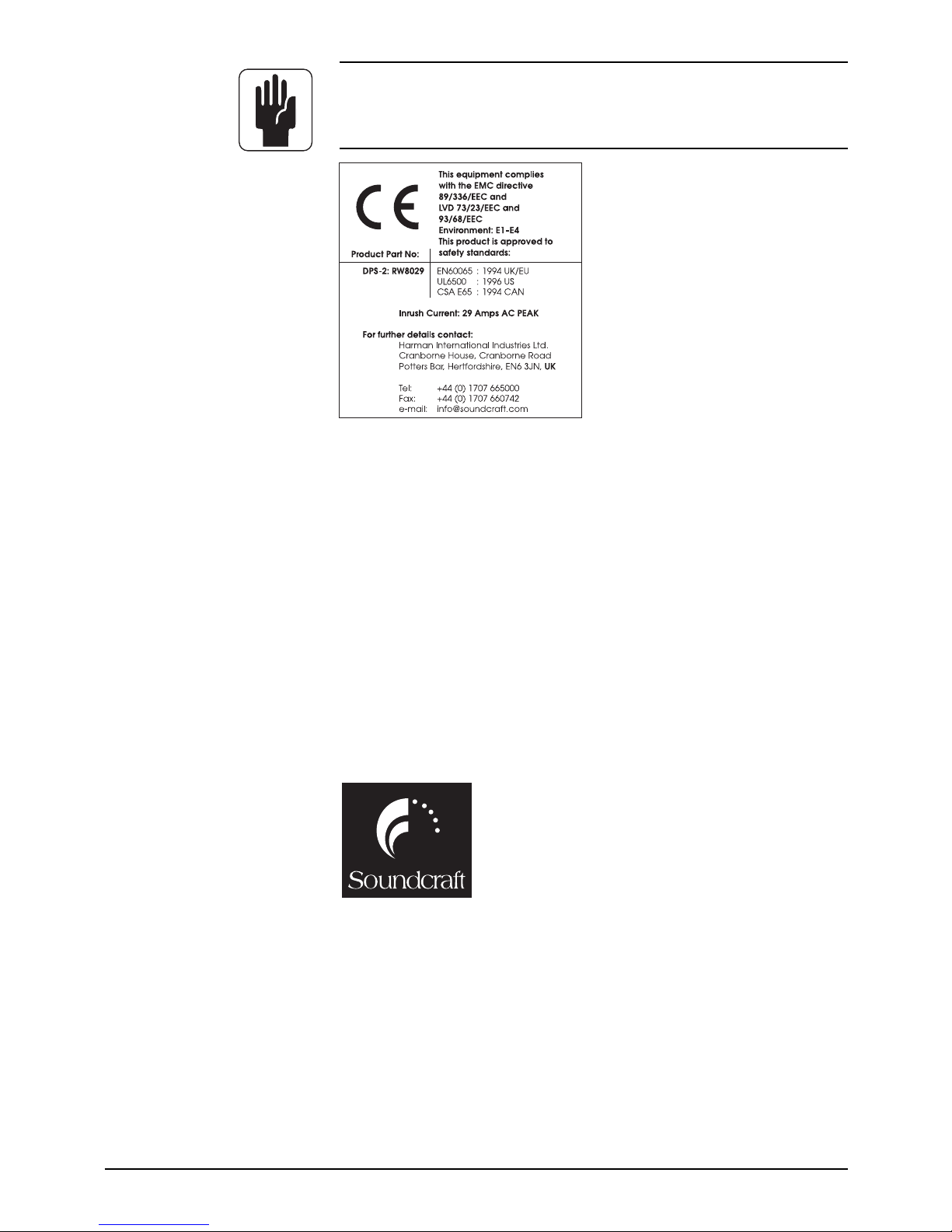

DPS-2 Power Supply iii
© Harman International Industries Ltd. 2002
All rights reserved
Parts of the design of this product may be protected by worldwide patents.
Part No. ZM0267
Issue 1
Soundcraft is a trading division of Harman International Industries Ltd. Information in
this manual is subject to change without notice and does not represent a
commitment on the part of the vendor. Soundcraft shall not be liable for loss or dam-
age whatsoever arising from the use of information or any error contained in this
manual.
No part of this manual may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, electrical, mechanical,
optical, chemical, including photocopying and recording, for any purpose without the
express written permission of Soundcraft.
Harman International Industries Limited.
Cranborne House,
Cranborne Road,
Potters Bar,
Hertfordshire,
EN6 3JN
UK.
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: http://www.soundcraft.com
IMPORTANT
Please read this manual carefully before connecting your DPS-2 Power
Supply Unit to the mains for the first time.

iv DPS-2 Power Supply
WARRANTY
1Soundcraft is a trading division of Harman International Industries Ltd .
End User means the person who first puts the equipment into regular
operation.
Dealer means the person other than Soundcraft (if any) from whom the
End User purchased the Equipment, provided such a person is authorised
for this purpose by Soundcraft or its accredited Distributor.
Equipment means the equipment supplied with this manual.
2 If within the period of twelve months from the date of delivery of the
Equipment to the End User it shall prove defective by reason only of faulty
materials and/or workmanship to such an extent that the effectiveness
and/or usability thereof is materially affected the Equipment or the defec-
tive component should be returned to the Dealer or to Soundcraft and
subject to the following conditions the Dealer or Soundcraft will repair or
replace the defective components. Any components replaced will become
the property of Soundcraft.
3 Any Equipment or component returned will be at the risk of the End User
whilst in transit (both to and from the Dealer or Soundcraft) and postage
must be prepaid.
4 This warranty shall only be valid if:
a) the Equipment has been properly installed in accordance with instruc-
tions contained in Soundcraft’s manual; and
b) the End User has notified Soundcraft or the Dealer within 14 days of
the defect appearing; and
c) no persons other than authorised representatives of Soundcraft or the
Dealer have effected any replacement of parts maintenance adjustments or
repairs to the Equipment; and
d) the End User has used the Equipment only for such purposes as
Soundcraft recommends, with only such operating supplies as meet
Soundcraft’s specifications and otherwise in all respects in accordance
Soundcraft’s recommendations.
5 Defects arising as a result of the following are not covered by this
Warranty: faulty or negligent handling, chemical or electro-chemical or
electrical influences, accidental damage, Acts of God, neglect, deficiency in
electrical power, air-conditioning or humidity control.
6 The benefit of this Warranty may not be assigned by the End User.
7 End Users who are consumers should note their rights under this Warranty
are in addition to and do not affect any other rights to which they may be
entitled against the seller of the Equipment.

DPS-2 Power Supply v
IMPORTANT SSAFETY IINSTRUCTIONS
CAUTlON
To avoid the risk of fire, replace the mains fuse only with the correct type
and value fuse, as marked on the rear panel.
lAVIS: - AFIN DE REDUIRE LE RISQUE DE FEU REMPLACER SEULEMENT AVEC
FUSIBLE DE MEME TYPE.
lREPLACING MAINS FUSE
Switch the ON/OFF switch to the OFF position. Remove the mains lead from the connec-
tor. Use a small screwdriver to prise the fuse carrier from its location in the connector.
Check the fuse and replace if necessary; also check that the voltage selection is correct for
the mains supply level before switching the unit ON again.
If the mains fuse fails repeatedly this may be because an electrical safety hazard exists. The
unit must be taken out of service and referred to the Soundcraft dealer from where the
equipment was purchased.
lTHIS UNIT MUST BE EARTHED
Under no circumstances should the mains earth be disconnected from the mains
lead.
lAVIS: - CET APPAREIL DOIT ETRE BRANCHE A LA TERRE.
lThe wires in the mains lead are coloured in accordance with the following code:
Replacement Part No: FJ8016 (UK) : FJ8017 (EU) : FJ8018 (US & CAN)
UK & EU US & CAN
Earth: Green and Yellow Green/Yellow
Neutral: Blue White
Live: Brown Black
As the colours of the wires in the mains lead may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured Green and / or Yellow must be connected to the ter-
minal in the plug which is marked with the letter E or by the earth symbol.
The wire which is coloured Blue or White must be connected to the terminal in
the plug which is marked with the letter N.
The wire which is coloured Brown or Black must be connected to the terminal in
the plug which is marked with the letter L.
Ensure that these colour codings are followed carefully in the event of the plug being
changed.
lDo not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety.
when the provided plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
lThis unit is capable of operating over a range of mains voltages as marked on the rear panel.
It is important to ensure that the correct mains fuse is fitted before switching on the unit.
lDo not install near any heat sources such as radiators, heat resistors, stoves, or other appa-
ratus (including amplifiers) that produce heat.
lDo not use this apparatus near water.
lProtect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles and the point where they exit from the apparatus.
lOnly use attachments/accessories specified by the manufacturer.
lUnplug this apparatus during lightning storms or when unused for long periods of time.

vi DPS-2 Power Supply
lRefer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way such as power-supply cord or plug is damaged., liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally or has been dropped.
lIt is recommended that all maintenance and service on the product should be
carried out by Soundcraft or its authorised agents. Soundcraft cannot accept any liability
whatsoever for any loss or damage caused by service, maintenance or repair by unautho-
rised personnel.
lUse only with a cart, stand, hood, bracket or table specified by the manufacturer or sold
with the apparatus. When a cart is used, use caution when moving the cart apparatus com-
bination to avoid injury from tip-over.
WARNINGS
lRead these instructions.
lKeep these instructions.
lHeed all warnings.
lFollow all instructions.
lThis unit contains no user serviceable parts. Refer all servicing to a qualified ser-
vice engineer, through the appropriate Soundcraft dealer.
lClean only with a dry cloth.
lDo not block any of the ventilation openings. Install in accordance with the manu-
facturers instructions.
RM1d Console
Ensure that only the DPS-2 Power Supply Unit is connected to the RM1d
console.

DPS-2 Power Supply vii
CONNECTING UUP
Before you start
Ensure the DPS-2 power supply is NOT connected to the Mains and is turned OFF.
The Power supply can be positioned anywhere within reach of the RM1d and an available power socket, but is best rack-
mounted in a position where airflow through the vents is not obstructed and where the power switch or cables cannot be
accidentally knocked. Although not essential to the correct operation of the RM1d, a maintained power feed is desirable to
protect the station output in case of mains failure. However, if a UPS is to be shared with other items of equipment, ensure
that the total load does not exceed the rated specification of the UPS. Connect the multi-way power cable between the
DPS-2 External Power Supply and the RM1d Power connector. Screw the connector locking ring clockwise on both units to
secure the cable. The locking ring should be firm, but not tight. Connect an IEC type mains cable with the plug fused at 3
AMPS, to the mains input socket on the DPS-2. Connect the other end to the nearest plug socket and switch on the power
to the DPS-2.
The RM1d should take around 40 seconds to boot up. Please be patient!
For further information, please refer to the RM1-d User Guide, part number ZM0235.

viii DPS-2 Power Supply

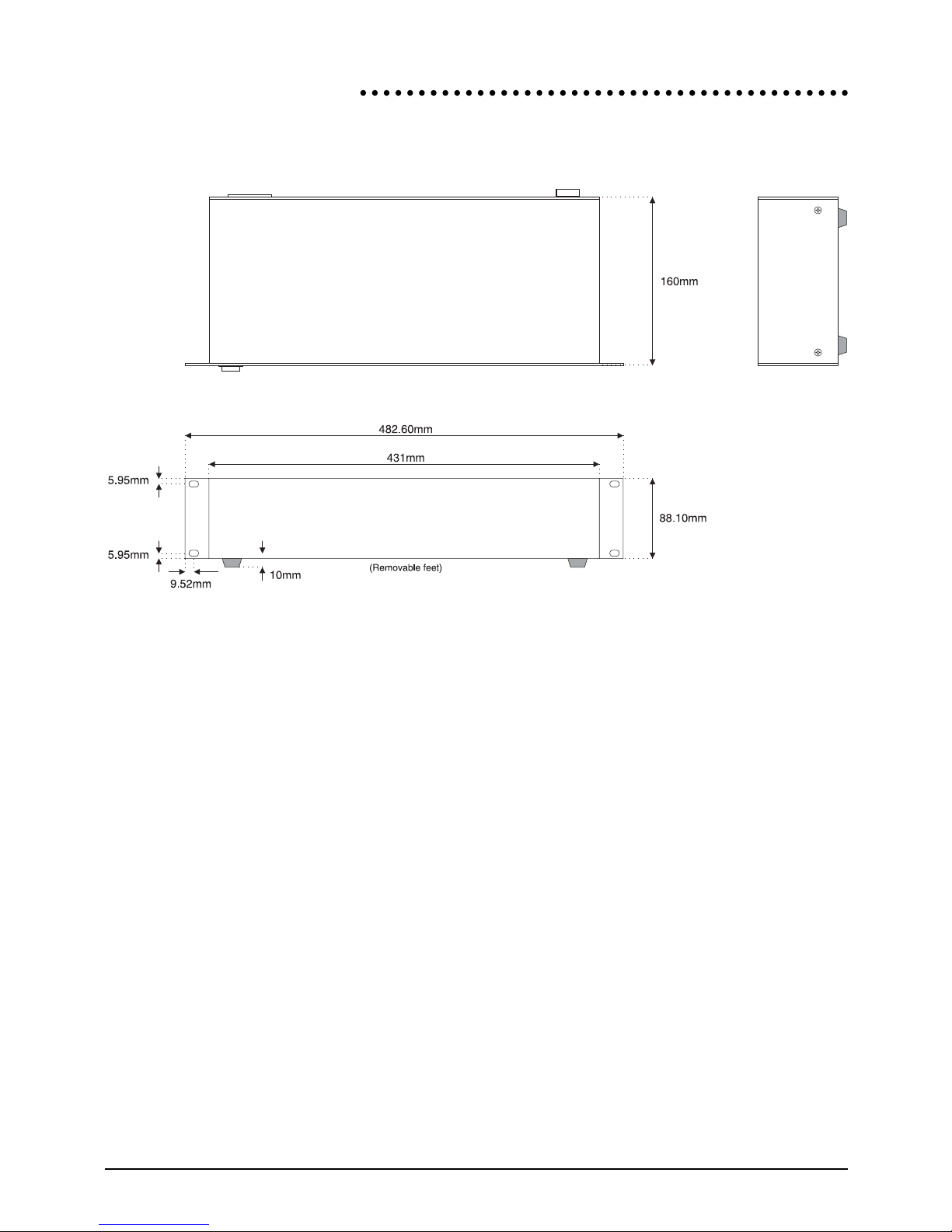

DIMENSIONS

DPS-2 Power Supply ix

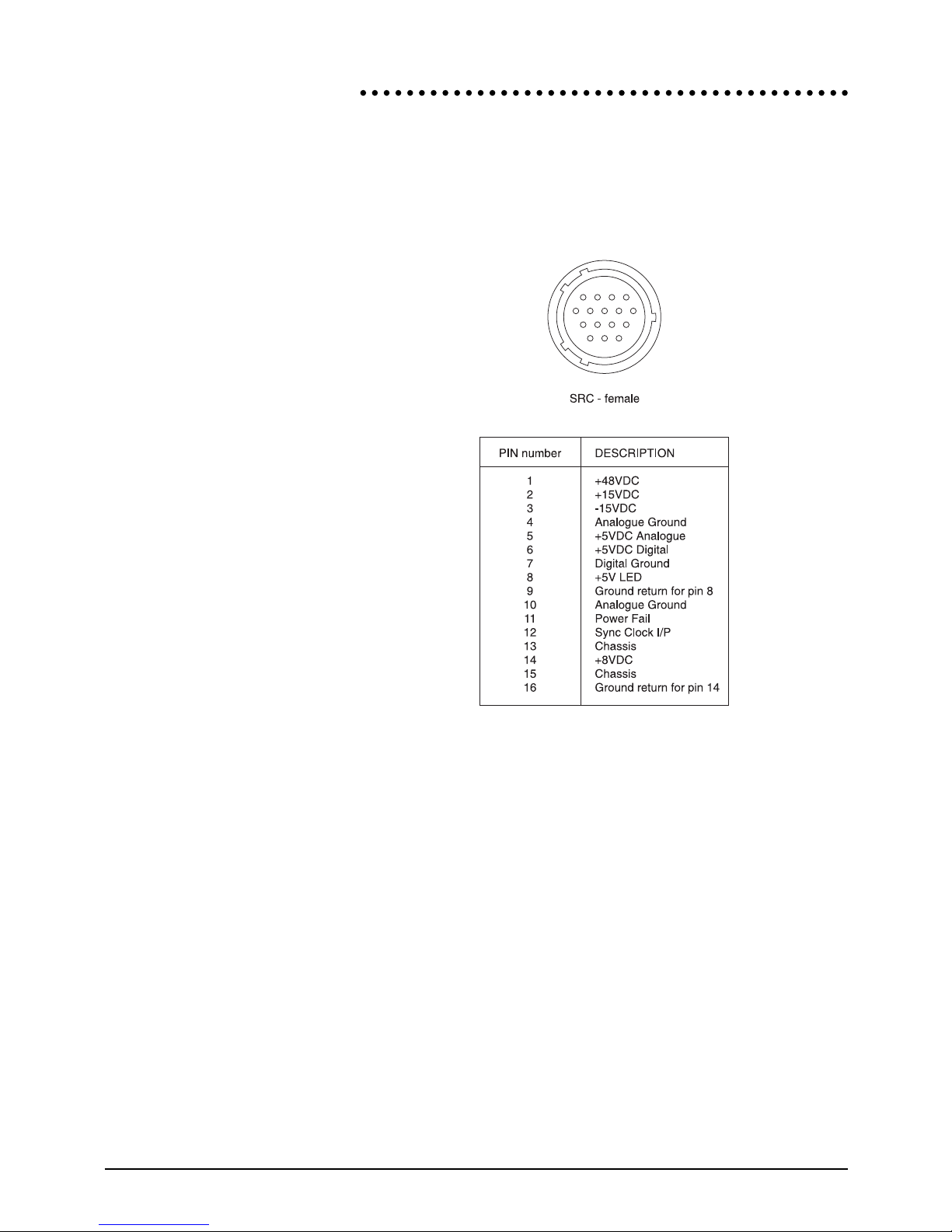

PIN-OOUTS OOFDDCOOUTPUT CCONNECTOR
