SoundCraft DPS-3 User manual

1
Soundcraft DDPS-33PPower SSupply
USER GUIDE
and
TECHNICAL MANUAL

2
© Harman International Industries Ltd. 2004
All rights reserved
Parts of the design of this product may be protected by worldwide patents.
Part No. ZM0317-01
Soundcraft is a trading division of Harman International Industries Ltd. Information in
this manual is subject to change without notice and does not represent a
commitment on the part of the vendor. Soundcraft shall not be liable for loss or dam-
age whatsoever arising from the use of information or any error contained in this
manual.
No part of this manual may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, electrical, mechanical,
optical, chemical, including photocopying and recording, for any purpose without the
express written permission of Soundcraft.
Harman International Industries Limited.
Cranborne House,
Cranborne Road,
Potters Bar,
Hertfordshire,
EN6 3JN
UK.
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.soundcraft.com
IMPORTANT
Please read this manual carefully before
connecting your DPS-3 Power Supply
Unit to the mains for the first time.
Part No. ZM0317-02

3
Contents
Safety Symbol Guide ..............................................................................................................4
Important Safety Instructions ................................................................................................5
Fitting The Feet Or Rackmounting ..........................................................................................7
Connecting Up.......................................................................................................................8
Pin-outs Of DC Output Connector ...........................................................................................8
Circuit Diagram .....................................................................................................................9
PCB Layout ..........................................................................................................................10
Parts List.............................................................................................................................11
Dimensions .........................................................................................................................14
Warranty..............................................................................................................................15

4
CAUTIONS
Must be followed carefully to avoid bodily injury.
WARNINGS
Must be observed to avoid damage to your equipment.
NOTES
Contains important information and useful tips on the
operation of your equipment.
SAFETY SSYMBOL GGUIDE
For your own safety and to avoid invalidation of the warranty all
text marked with these Symbols should be read carefully.

5
IMPORTANT SSAFETY IINSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Ventilation should not be impeded by covering
the ventilation openings with items such as newspapers, table cloths, curtains etc.
Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of a polarised or grounding type plug. A polarised
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet, consult an electri-
cian for replacement of the obsolete outlet
Protect the power cord from being walked on or pinched particularly at plugs, conve-
nience receptacles and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of
time.
Refer all servicing to qualified service personnel. It is recommended that all mainte-
nance and service on the product should be carried out by Soundcraft or its autho-
rised agents. Soundcraft cannot accept any liability whatsoever for any loss or damage
caused by service, maintenance or repair by unauthorised personnel. Servicing is
required when the apparatus has been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled or objects fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus
to rain or moisture. Do not expose the apparatus to dripping or splashing and do not
place objects filled with liquids, such as vases, on the apparatus.

6
THIS APPARATUS MUST BE EARTHED. Under no circumstances should the safety
earth be disconnected from the mains lead.
The mains supply disconnect device is the mains plug. It must remain accessible so as
to be readily operable when the apparatus is in use.
If any part of the mains cord set is damaged, the complete cord set should be
replaced. The following information is for reference only.
The wires in the mains lead are coloured in accordance with the following code:
Earth (Ground): Green and Yellow (US - Green/Yellow)
Neutral: Blue (US - White)
Live (Hot): Brown (US - Black)
As the colours of the wires in the mains lead may not correspond with the coloured mark-
ings identifying the terminals in your plug, proceed as follows:
The wire which is coloured Green and Yellow must be connected to the terminal in the
plug which is marked with the letter E or by the earth symbol.
The wire which is coloured Blue must be connected to the terminal in the plug which is
marked with the letter N
The wire which is coloured Brown must be connected to the terminal in the plug which is
marked with the letter L
Ensure that these colour codes are followed carefully in the event of the plug being changed
This unit is capable of operating over a range of mains voltages as marked on the rear
panel. It is important to ensure that the correct mains fuse is fitted before switching
on the unit.

7
FITTING TTHE FFEET OORRRACKMOUNTING

8
CONNECTING UUP
Before you start
Ensure the DPS-3 power supply is NOT connected to the Mains and is turned OFF.
The Power supply can be positioned anywhere within reach of the console and an available power socket, but is best rack-
mounted in a position where airflow through the vents is not obstructed and where the power switch or cables cannot be
accidentally knocked. Connect the multi-way power cable between the DPS-3 External Power Supply and the console’s con-
nector. Screw the connector locking ring clockwise on both units to secure the cable. The locking ring should be firm, but
not tight. Connect an IEC type mains cable with the plug fused at 3 AMPS, to the mains input socket on the DPS-3. Connect
the other end to the nearest plug socket and switch on the power to the DPS-3.
PIN-OOUTS OOFDDCOOUTPUT CCONNECTOR

9
Circuit Diagram

10

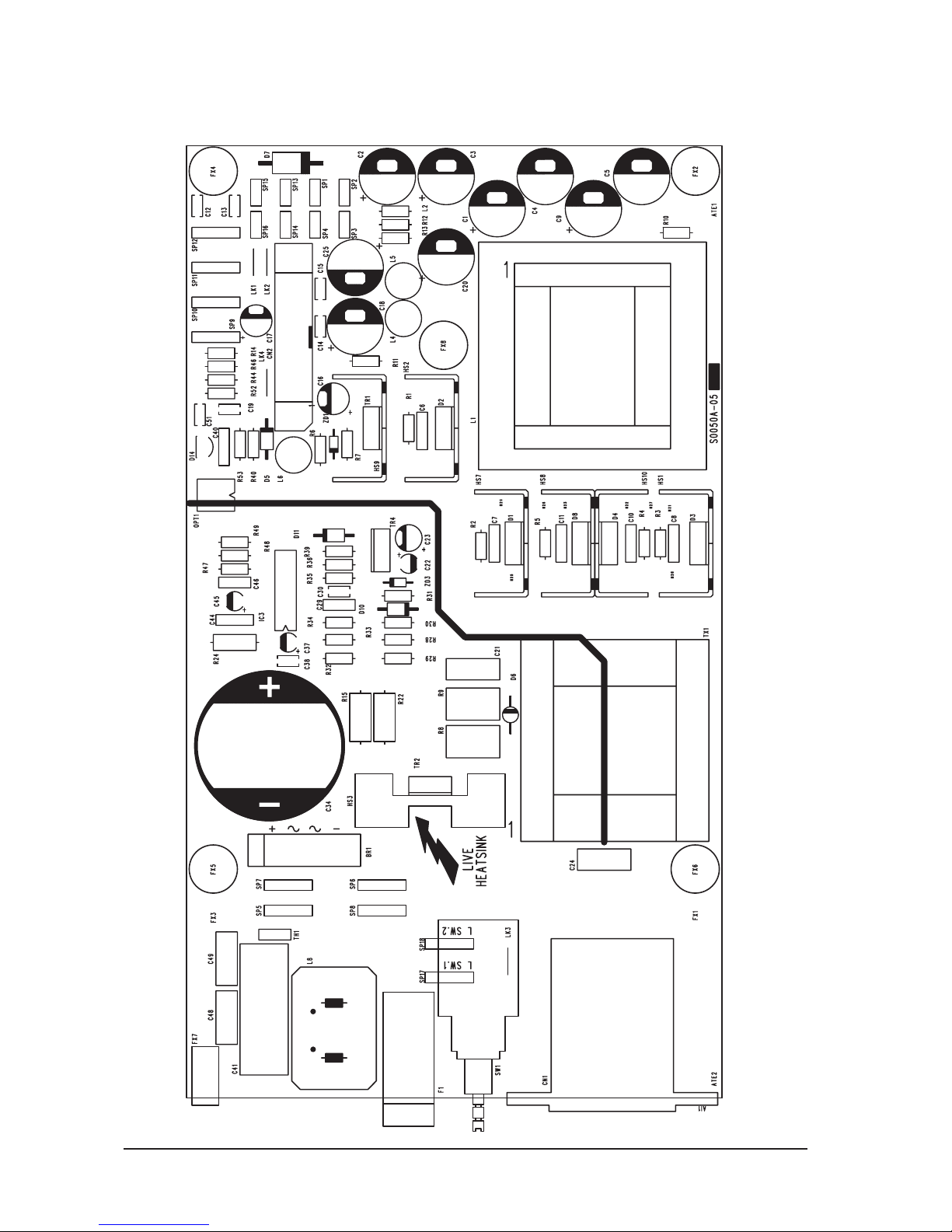

PCB Layout

11
PARTS LIST
GB4 PSU ASSY R0050A-04-AF
Ident Description Part Number
— GB4 PCB PSU BOARD S0050A-04
— HEATSINK THERMALOY 7121D XV05- PN10004
— POWER STN MIXER PSU HEATSINK PN1240
— DRIVER MOUNTING CLIP ZC0231
— (Safety Critical Part)!
FUSE 5X20MM T 2A 250V ZD8002
BR1 BDG RECT KBU6K SIL 6A 800V BC0222
C1 CAP ELEC VERT 1000UF 25V ESR 1 CE0512
C2 CAP ELEC VERT 1000UF 25V ESR 1 CE0512
C3 CAP ELEC VERT 1000UF 25V ESR 1 CE0512
C4 CAP ELEC VERT 1000UF 25V ESR 1 CE0512
C5 CAP ELEC VERT 1000UF 25V ESR 1 CE0512
C6 CAP CER 1NF 1KV 5MM PITCH CA0055
C7 CAP CER 1NF 1KV 5MM PITCH CA0055
C8 CAP CER 1NF 1KV 5MM PITCH CA0055
C9 CAP ELEC VERT 100UF 100V CE10046
C10 CAP CER 220PF 1KV DISC CA-CP CA10018
C11 CAP CER 220PF 1KV DISC CA-CP CA10018
C12 CAP CER ML 0.1UF 50V 5MM CA0026
C13 CAP CER ML 0.1UF 50V 5MM CA0026
C14 CAP CER ML 0.1UF 50V 5MM CA0026
C15 CAP CER ML 0.1UF 50V 5MM CA0026
C16 CAP ELEC VERT 47UF 63V SKP 0.2 CE0402
C17 CAP ELEC VERT 47UF 63V WGP ESR CE0466
C19 MICRO-BOX 5MM 5% 100V 220N CC0251
C20 CAP ELEC VERT 100UF 100V CE10046
C21 CAP 100N 250V POLY DIP 10MM CC10026
C22 CAP ELEC 10UF 100V VERT 105DEG CE0535
C23 CAP ELEC 330UF 25V VERT 105DEG CE0536
C24 (Safety Critical Part)!
CAP CER 4N7 250V Y1 RATED CC10088
C29 MICRO-BOX 5MM 5% 63V 1N CC0238
C30 CAP CER ML 1000PF 100V 5% 5MM CA0015
C34 CAP ELEC RAD 560UF 400V 35X35 CE10049
C37 CAP ELEC VERT 1UF 63V SSP 4D 7 CE0485
C38 CAP CER ML 0.1UF 50V 5MM CA0026
C40 CAP CER 150PF 100V TPD 0.2" CA0045R
C41 (Safety Critical Part)!
CAP 1UF 275VAC RFI CLASS X2 CX10000
C44 MICRO-BOX 5MM 5% 470NF 63/100V CC0267
C45 CAP ELEC VERT 1UF 63V SSP 4D 7 CE0485
C46 MICRO-BOX 5MM 5% 63V 2N2 CC0240
C51 CAP CER ML 0.1UF 50V 5MM CA0026
CN1 (Safety Critical Part)!
IEC FILTER 3A PCB MTG. FJ8046
CN2 20WY G80 VERT ML HDR LATCH FA0085
D1 RECTIFIER MUR1640CT TO-220 BC10003
D2 RECTIFIER MUR1640CT TO-220 BC10003
D3 RECTIFIER MUR1640CT TO-220 BC10003
D4 DIODE RECTIFIER 8ETX06 600V 8A BC0226
D5 DIODE FAST TYPE EGP10G 400V 1A BA10014
D6 DIODE SF1600 1A FAST SOD-57 BA10008
D7 DIODE 1N5402 200V 3A PRFMD .6" BA0009
D8 DIODE RECTIFIER 8ETX06 600V 8A BC0226
D10 DIODE FAST TYPE EGP10G 400V 1A BA10014

12
D11 DIODE FAST TYPE EGP10G 400V 1A BA10014
D14 TL431 SHUNT REGULATOR TO92 BE0503
F1 (Safety Critical Part)!
FUSE HOLDER 6.3A PCB MTG ZD8023
IC3 VOLTAGE MODE PWM DIP-14 BE10032
L1 INDUCTOR-OUTPUT -GB4/RENO P0009-01
L2 FERRITE BEAD AX 5X3.5MM TAPED HC0021
L4 INDUCTOR 10UH TOKO A823LY-100K HC0028
L5 INDUCTOR 10UH TOKO A823LY-100K HC0028
L6 INDUCTOR 10UH TOKO A823LY-100K HC0028
L8 DIGI 328 LINE FILTER CHOKE HC0037
OPT1 (Safety Critical Part)!
OPTO TRANSISTR H11AV1AVM BD0396
R1 MF 1W RES 5% 4R7 PRO1 AE0047
R2 MF 1W RES 5% 4R7 PRO1 AE0047
R3 MF 1W RES 5% 4R7 PRO1 AE0047
R4 MF 1W RES 5% 4R7 PRO1 AE0047
R5 MF 1W RES 5% 4R7 PRO1 AE0047
R6 AP 0.25W RES 1% 1K BL AP1349
R7 AP 0.25W RES 1% 1K BL AP1349
R8 RES 22K 5% 5W WW TYP.SQM5 AG10015
R9 RES 22K 5% 5W WW TYP.SQM5 AG10015
R10 AP 0.25W RES 1% 1K BL AP1349
R11 RES 4K7 5% 1W MF PRO1 AE10021
R12 AP 0.25W RES 1% 1K BL AP1349
R13 AP 0.25W RES 1% 1K BL AP1349
R14 MF 0.25W RES 1% 20K BL AP1380
R15 RES 0R47 5% 2W MF PF02 AE10036
R22 RES 0R47 5% 2W MF PF02 AE10036
R24 MF 2W RES 5% 150K PRO2 AE2154
R28 MF 1W RES 5% 10R PRO1 AE0100
R29 MF 0.25W RES 1% 3K6 BL AP1362
R30 MF 1W RES 5% 10R PRO1 AE0100
R31 RES 4K7 5% 1W MF PRO1 AE10021
R32 MF 0.25W RES 1% 680K BL AP1417
R33 MF 0.25W RES 1% 1M BL AP1421
R34 AP 0.25W RES 1% 1K BL AP1349
R35 MF 0.25W RES 1% 470K BL AP1413
R36 MF 0.25W RES 1% 10K BL AP1373
R39 MF 0.25W RES 1% 22K BL AP1381
R40 AP 0.25W RES 1% 1K BL AP1349
R44 MF 0.25W RES 1% 12K BL AP1375
R46 AP 0.25W RES 1% 1K BL AP1349
R47 AP 0.25W RES 1% 1K BL AP1349
R48 MF 0.25W RES 1% 6K8 BL AP1369
R49 MF 0.25W RES 1% 220R BL AP1333
R52 MF 0.25W RES 1% 1K1 BL AP1350
R53 MF 0.25W RES 1% 10K BL AP1373
SP1 SPADE TAB VERT PC 0.125C FF10022
SP2 SPADE TAB VERT PC 0.125C FF10022
SP3 SPADE TAB VERT PC 0.125C FF10022
SP4 SPADE TAB VERT PC 0.125C FF10022
SP5 1/4" PC MNTNG BLADE VERT FF0676
SP6 1/4" PC MNTNG BLADE VERT FF0676
SP7 1/4" PC MNTNG BLADE VERT FF0676
SP8 1/4" PC MNTNG BLADE VERT FF0676
SP9 1/4" PC MNTNG BLADE VERT FF0676
SP10 1/4" PC MNTNG BLADE VERT FF0676
SP11 1/4" PC MNTNG BLADE VERT FF0676
SP12 1/4" PC MNTNG BLADE VERT FF0676

13
SP13 SPADE TAB VERT PC 0.125C FF10022
SP14 SPADE TAB VERT PC 0.125C FF10022
SP15 SPADE TAB VERT PC 0.125C FF10022
SP16 SPADE TAB VERT PC 0.125C FF10022
SW1 (Safety Critical Part)!
PANASONIC DPST HOR MAINS SWT DJ8002
TX1 TRANSFORMER SMPS.GB4/RENO P0008-01
TH1 (Safety Critical Part)!
THERMISTER 3A INRUSH LIMITER AZ2279
TR1 TRANS TIP122 TO220 XE01- BD10026
TR2 MOSFET PWR.STP13NK60Z/FP BD10051
TR4 TRANS TIP122 TO220 XE01- BD10026
ZD1 ZENER DIODE 1.3W 51V BB0131
ZD3 ZENER DIODE 250MW 13V BB10025
DPS3 LED PCB ASSY. AF R0105A-01-AF
Ident Description Part Number
LED1 LED 3MM ULTRA RED ROUND JA10025
R1 SM0805 RES 2K4 1% 0.1W T200 AS0242R-0805F
DPS3 SRC PCB ASSY AF R0099A-02-AF
Ident Description Part Number
— PCB DPS3 SRC BOARD S0099-02
C1 CAP CER 100NF 10% 50V X7R CS7104R-0805K
C2 CAP CER 100NF 10% 50V X7R CS7104R-0805K
C3 CAP CER 100NF 10% 50V X7R CS7104R-0805K
C4 CAP CER 100NF 10% 50V X7R CS7104R-0805K
C5 CAP CER 100NF 10% 50V X7R CS7104R-0805K
C6 CAP CER 15NF 10% 100V CS7153R-0805K1

14
DIMENSIONS

15
WARRANTY
1Soundcraft is a trading division of Harman International Industries Ltd .
End User means the person who first puts the equipment into regular
operation.
Dealer means the person other than Soundcraft (if any) from whom the
End User purchased the Equipment, provided such a person is authorised
for this purpose by Soundcraft or its accredited Distributor.
Equipment means the equipment supplied with this manual.
2 If within the period of twelve months from the date of delivery of the
Equipment to the End User it shall prove defective by reason only of faulty
materials and/or workmanship to such an extent that the effectiveness
and/or usability thereof is materially affected the Equipment or the defec-
tive component should be returned to the Dealer or to Soundcraft and
subject to the following conditions the Dealer or Soundcraft will repair or
replace the defective components. Any components replaced will become
the property of Soundcraft.
3 Any Equipment or component returned will be at the risk of the End User
whilst in transit (both to and from the Dealer or Soundcraft) and postage
must be prepaid.
4 This warranty shall only be valid if:
a) the Equipment has been properly installed in accordance with instruc-
tions contained in Soundcraft’s manual; and
b) the End User has notified Soundcraft or the Dealer within 14 days of
the defect appearing; and
c) no persons other than authorised representatives of Soundcraft or the
Dealer have effected any replacement of parts maintenance adjustments or
repairs to the Equipment; and
d) the End User has used the Equipment only for such purposes as
Soundcraft recommends, with only such operating supplies as meet
Soundcraft’s specifications and otherwise in all respects in accordance
Soundcraft’s recommendations.
5 Defects arising as a result of the following are not covered by this
Warranty: faulty or negligent handling, chemical or electro-chemical or
electrical influences, accidental damage, Acts of God, neglect, deficiency in
electrical power, air-conditioning or humidity control.
6 The benefit of this Warranty may not be assigned by the End User.
7 End Users who are consumers should note their rights under this Warranty
are in addition to and do not affect any other rights to which they may be
entitled against the seller of the Equipment.

16
© Harman International Industries Ltd. 2004
All rights reserved
Parts of the design of this product may be protected by worldwide patents.
Part No. ZM0317-01
Soundcraft is a trading division of Harman International Industries Ltd. Information in
this manual is subject to change without notice and does not represent a
commitment on the part of the vendor. Soundcraft shall not be liable for loss or dam-
age whatsoever arising from the use of information or any error contained in this
manual.
No part of this manual may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, electrical, mechanical,
optical, chemical, including photocopying and recording, for any purpose without the
express written permission of Soundcraft.
Harman International Industries Limited.
Cranborne House,
Cranborne Road,
Potters Bar,
Hertfordshire,
EN6 3JN
UK.
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.soundcraft.com
IMPORTANT
Please read this manual carefully before
connecting your DPS-3 Power Supply
Unit to the mains for the first time.
