OWNER´S MANUAL
3000.1

2
Introduction
Package contents ......................................................................................................
Safety instructions ......................................................................................................
Technologies
Dynamic Thermal Management (DTM)...................................
Vibration Absorption Device..........................................................
Reduced Size......................................................................................
Full Range .............................................................................................
Assembling and Disassembling the plastic cover...................................
Panels description
Audio inputs and controls...........................................................
Power inputs and audio autputs..............................................
Electrical Dimensioning..........................................................................................
RCA input and High Level Input......................................................................
Installation sequence................................................................................................
SD RLC and Gain Setting.......................................................................................
Bass Boost set up......................................................................................................
Crossovers set up.......................................................................................................
Wiring Diagram..............................................................................................................
Technical specs
Parameters.........................................................................................
Dimensional data............................................................................
3
3
4
5
5
5
5
6
7
8
9
9
10
11
12
12
13
14
14
...................................................................................................................

3
DEAR CUSTOMER,
You have just purchased a SounDigital product of the highest technology
and quality, so we thank you for your confidence.
On this manual you will learn about the product, its features and
characteristics, in order to obtain the best result and to be able to enjoy your
music with SounDigital quality and power.
PACKAGE CONTENTS
CONGRATULATIONS ON ACQUIRING A PRODUCT WITH THE HIGHEST
QUALITY AND TECHNOLOGY!
To better understand and take advantage of all the functions of the product
and use it safely, read this manual carefully and if you have any questions,
consult our support by email [e-mail].
SounDigital products are made with raw materials of the highest quality
standards, and the most modern processes, equipment and technology are
used in their production.
- 1 Allen wrench 2.0mm
- 1 Allen wrench 3.0mm
- 1 Installation quick guide with warranty card
- 1 EVOX2 Amplifier
- 1 Allen wrench 2.5mm
- 1 Promotional sticker
INTRODUCTION

4
SAFETY INSTRUCTIONS
THIS "WARNING" SIGN ALERTS THE USER OF IMPORTANT INFO. NOT FOLLOWING
THIS INSTRUCTIONS MAY CAUSE INJURIES TO THE USER OR DAMAGE TO THE
EQUIPMENT.
Warning!
Clean the amplifier periodically with brush or dry cloth to assure the thermal
efficiency of the heatsink.
This product may reach temperatures over 60°C/140°F. Make sure it is cold
before touching it;
If you are insecure about the installation of this equipment, get in touch with
our tech support or with a professional specialized in car audio installation;
Use your sound system safely. The continuous exposure to sound pressures
over 85dB may cause irreversible hearing damage;
Before proceeding with the installation of any electric equipment on your
vehicle, unplug the negative (-) terminal of the battery to avoid fires, injuries or
damages;
Do not install the amplifier in places exposed to water, dirt or humidity;
This equipment is for use in automotive DC voltage batteries between 12.6
and 14.4 volts. Before installing the equipment, check voltage of the batteries;
Choose a ventilated place to install the amplifier and avoid blocking the side
ventilation windows;
To prevent injuries to the user or damage to the amplifier, read all safety
instructions written on this manual;
Mount the amplifier in a secure way. Avoid mounting it on metallic parts of the
vehicle, because it may cause ground looping (noise);
Make sure that the location chosen for the amplifier installation does not effect
the operation of the vehicle;
When passing cables through metallic walls, use rubber O-rings to avoid
cable cutting and short-circuits.
Make sure the cables are properly secured throughout the installation;
Wear gloves, safety glasses and and all necessary PPE during the installation
of SounDigital amplifiers.
Be careful when making holes in the vehicle. Make sure you are not making
holes in the fuel tank, brake lines or electrical cables of the vehicle

5

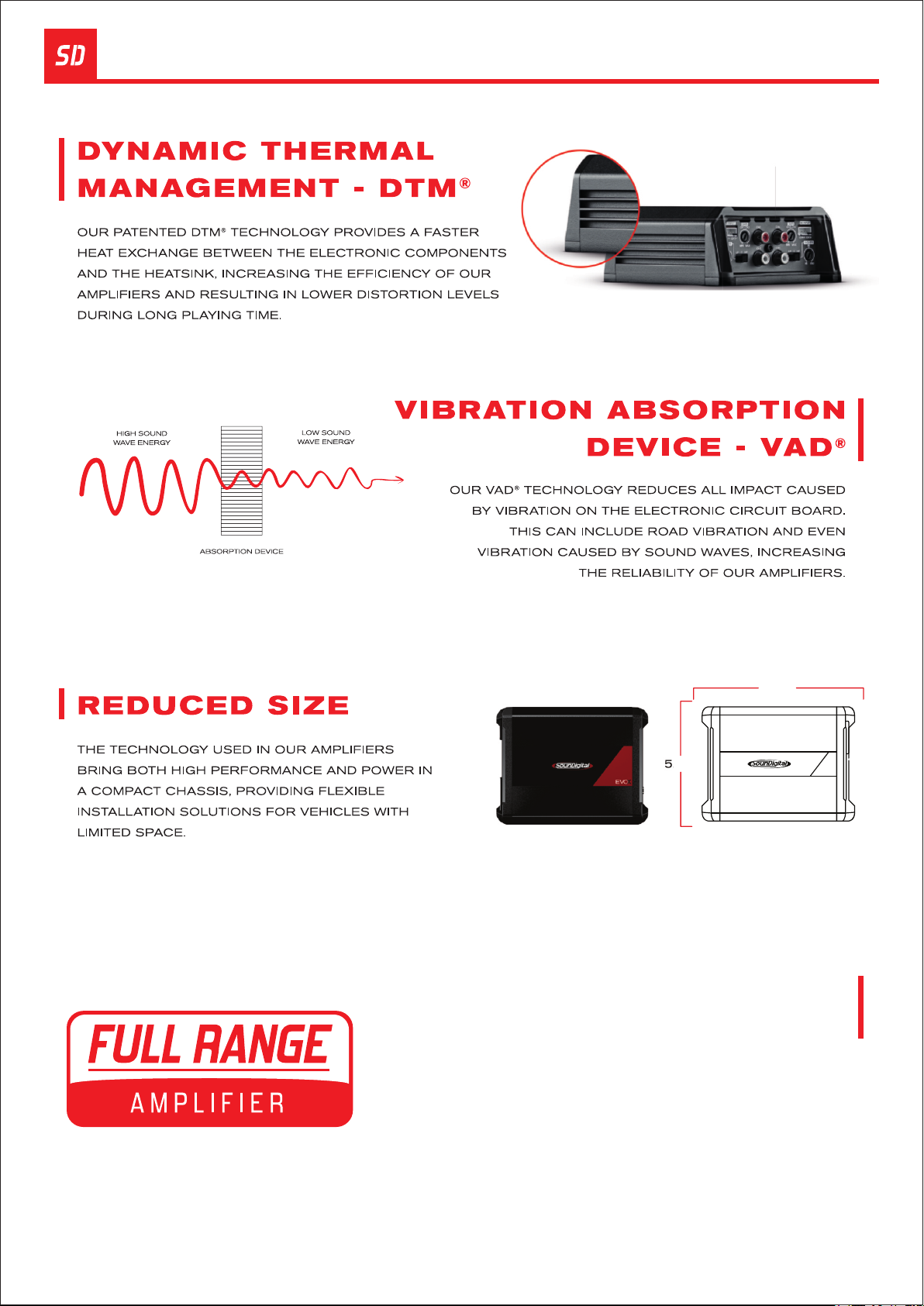

TECHNOLOGIES
VERSATILE PRODUCTS THAT COVER THE ENTIRE AUDIBLE
FREQUENCY RANGE, ANY TYPE OF LOUDSPEAKER OR MUSIC
PROGRAM.
FULL
RANGE
5.3 in
8.9 in

6
1 2
21
A
B
DISASSEMBLING OF THE PLASTIC COVER
ASSEMBLING THE PLASTIC COVER
The plastic covers have the function of finishing and hiding the amplifier fixing
screws. To disassembling and assembling them, follow the instructions below.
1. Carefully pull out the top of plastic cover to release the upside latches, as shown in the picture 1.
2. Slide up the plastic cover in a continuous movement to remove it.
1. To fit the plastic cover back, carefully insert the point A of the plastic cover into point B of the
amplifier, slowly sliding it down.
2. Gently press the sides of the top of the plastic cover towards the bottom of the amplifier until
you hear a clicking noise.
EN
ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER

7
PANELS DESCRIPTION
"Power ON" LED indicator
"Clip" LED indicator
"Protection" LED indicator
Variable Bass Boost Control 50Hz (0dB ~ +12dB)
Variable Low Pass filter control (50Hz ~ 500Hz)
Variable Subsonic filter control (5Hz ~ 30Hz)
Variable Gain control
Low Pass filter on/off switch key
Audio input - RCA connector
2
4
6
8
11
12
10
1
3
5
7
9
Red
Blue
Left Channel
Left Channel
-
-
-
-
-
Right Channel
Right Channel
Yellow
-Remote level control connector
12 11 1 2 3
810 4 9 7 6 5
High Level audio input
(To connect to the speaker output of the headunit)

8

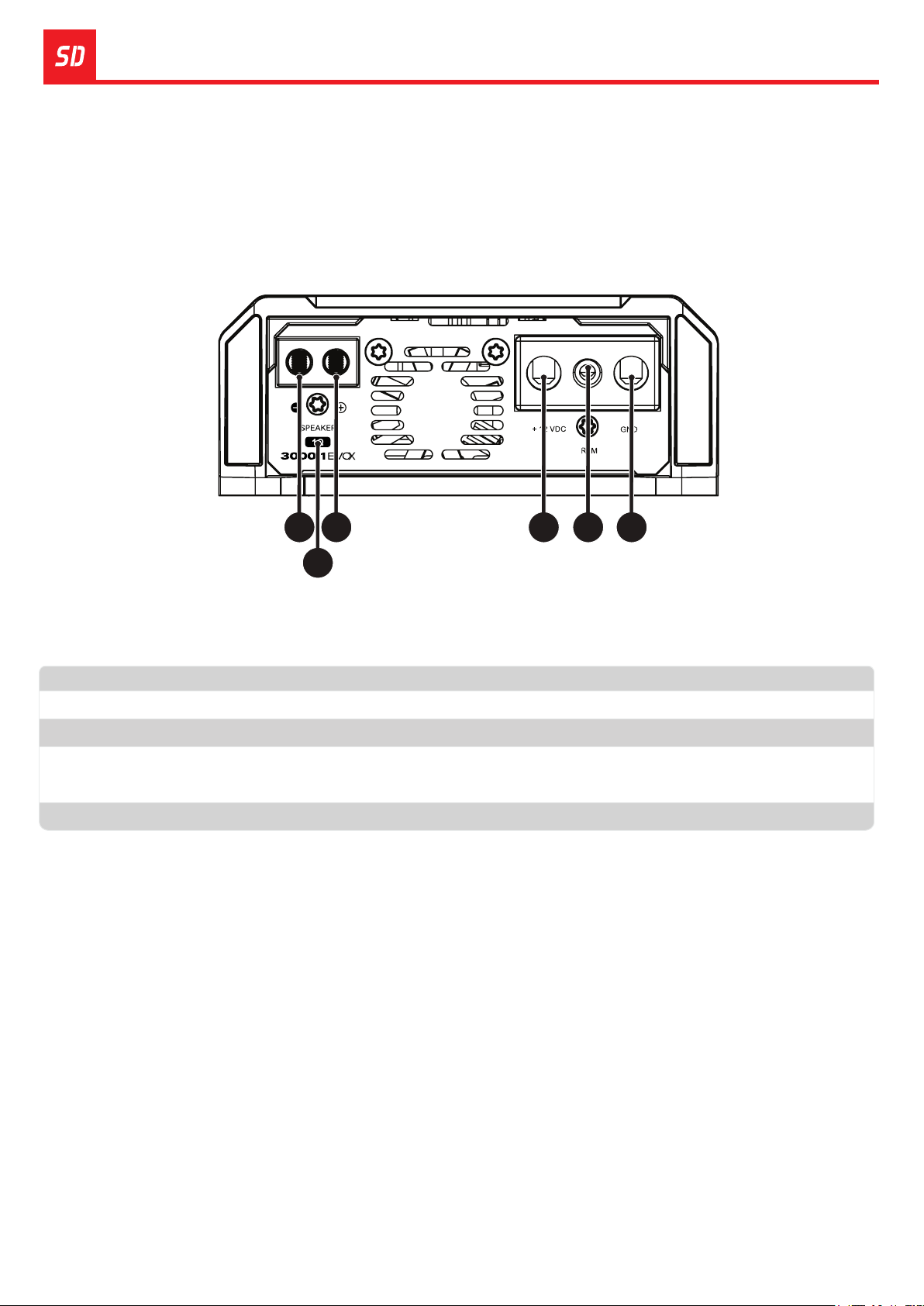

PANELS DESCRIPTION
Negative power supply connector (GND)
Remote power supply connector (REM)
Positive power supply connector (+12VDC)
Positive speaker connector
Negative speaker connector
Minimum speaker load allowed (impedance)
14
15
16
17
18
13 -
-
-
-
13141517 16
18
Speaker Output
Connector

9
ELECTRICAL DIMENSIONING AND AUDIO INPUTS
ELECTRICAL DIMENSIONING
For proper operation of your SounDigital amplifier, you need the proper
dimensioning of the electrical system and the cables used.
The table below shows the minimum section of GND cables, +12VDC cables
and speaker output cables according to the power generated by the amplifier.
POWER CABLE
GROUND CABLE
SPEAKER CABLE
3000
WRMS
35mm² - 2 AWG
2 x 1.5mm² - 15 AWG
High Level Input
All high level input must be connected for
the channel work.

10
ØMount the amplifier in such a way you have access to the connectors;
ØInstall the power cables in the vehicle properly, starting from the battery to the fuse
holder or circuit breaker, use the cable with the appropriate size. Make all
connections, install fuse holders or circuit breakers, but without placing the fuses
or with the circuit breakers in the "Off" position.
ØConnect the power cables in to the amplifier, observing the polarity. Connect all the
positive cables from the fuse holder or circuit breaker to the positive conector of
the amplifier and all the negative power cables from the batteries to the negative
connector of the amplifier;
ØThe ground cable must be as short as possible and must be connected to the
vehicle chassis and the battery negative;
ØTurn on the main unit and the amplifier will turn on the "On" LED indicating that it is
in operation.
ØConnect the RCA or the high signal input cables to the head unit and amplifiers;
ØCheck if the headunit is turned off and then place the fuses in the fuse holders or
switch the circuit breakers on;
Ø;Reconnect the ground of the batteries
ØBefore powering the system, verify all the connections and make sure there are no
mistakes or short-circuits on the power and ground cables;
ØInstall the audio output cables with the appropriate section , distant from the power
and audio input cables;
ØInstall the signal input cables in a proper way, distant from the power cables;
ØConnect the audio output cables to the amplifier and speakers respecting the
positive (+) and negative (-) polarities;
ØInstall the remote cable with the power cables, using 1.5mm² (15 AWG) cable or
thicker;
ØConnect the remote power cable to the amplifier's "REM" terminal at the main unit's
remote power output (when not using the high level signal inputs);
INSTALLATION SEQUENCE
Warning!
Warning!
Remove the paint between
the terminal and chassis

11
SD RLC / GAIN SETING
Set up procedure
ØDigital AC voltmeter;
Necessary equipament:
ØMedia with sine wave test tone 60Hz
recorded at 0db;
ØScrewdriver 1/8" ( for gain set)
ØDisconnect the output cables from
the amplifier outputs;
ØTurn off all processing (bass, treble,
loudness, EQ, etc.);
ØSet the source unit volume to 3/4 of
full volume.
ØSet the source unit's fader control to
center position;
ØSet the variable "LOW" crossover in
500Hz and the "SUBSONIC" in 5Hz;
Ø Use a 60 Hz sine wave
ØIncrease the gain control until the
"CLIP" LED starts blinking;
ØReturn the gain to the limit where
the "CLIP" LED stops blinking and
remains off;
Turn the gain control all the way
Ødown.
Download the tracks for set up in
https://soundigitalusa.com/tracks-for-
set-up/
ØOnc e you have adj usted the
amplifier to its correct voltage
output, turn off the source unit and
reconnect the speaker(s)
Gain setting
POWER CLIP
LEVEL
SD REMOTE
LEVEL CONTROL*
External Level Control - SD RLC (not included)
In SD RLC, you can adjust the amplifier level
without having to lean over and adjust the gain
setting on the amplifier and can monitor the
“CLIP” LED which is also available on the
accessory.
The SD RLC is an easy-to-install external level
control accessory that allows you to tune the
level of SOUNDIGITAL amplifiers that have
remote level control.

12
CROSSOVER AND BASS BOOST SET UP
To set the "SUBSONIC" variable control between 5Hz and 40Hz ("A") where
you want to perform the subsonic cut filter ;
-3dB
c/2
ƒ
High
Pass
c
ƒ
High
Pass
A
0dB
-15dB
dB
Hz
Set in the "LOW" variable control between 50Hz and 500Hz ("B") where you
want to perform the low pass cut filter and select the "LP" key in position "ON";
-3dB
0dB
-15dB
Low
Pass
B
c
ƒc*2 ƒ
Low
Pass
dB
Hz
Using Bass Boost
The Amplifier Bass Boost setting enables the user to boost the sound intensity
at low frequencies of the sound system, where boost intensity can be adjusted.
This is a semi-parametric equalizer type circuit with ''Q'' value for the fixed filter,
with an intensity boost adjustment from 0 to + 12dB (16 times), and a central
frequency adjustment of the filter in 50Hz, making it versatile for several types
of sound systems.
Bass Boost Chart
12dB
dB
Hz
0dB
3dB
0
9dB
6dB
50Hz
Bass Boost Level
How to Adjust Bass Boost
How to Adjust the Crossovers
Reproduce your favorite song and set the boost intensity between 0dB and
+12dB at the variable control level according your preference.
For full range application, select the LP key in the "OFF" position and the
"SUBSONIC" variable control at 5Hz. All frequencies will be reproduced
according to figure bellow;
0dB
-12dB
dB
Hz

13

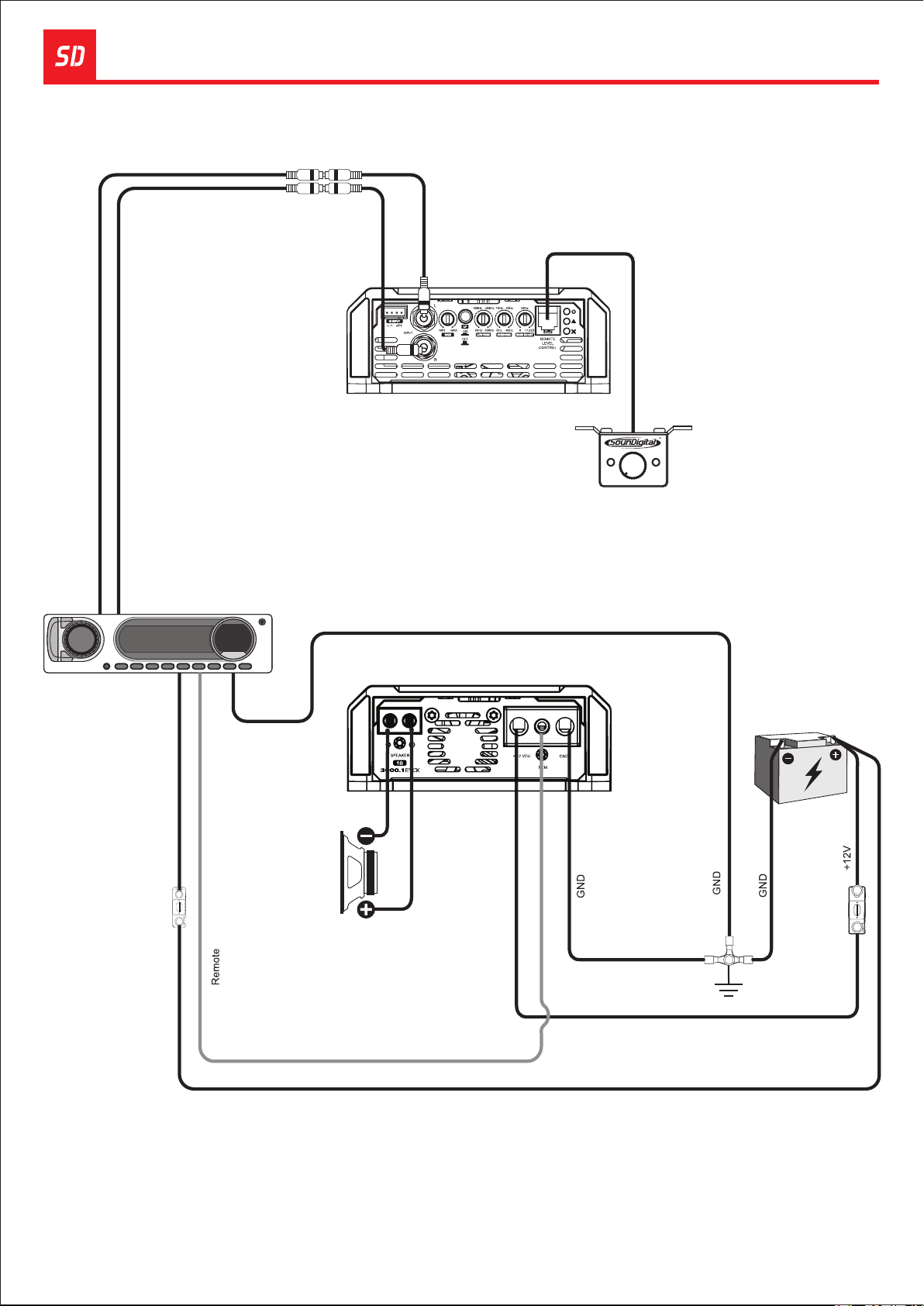

WIRING DIAGRAM
All RCA Inputs must be connected for
the channel to work properly.
POWER CLIP
LEVEL
SD REMOTE
LEVEL CONTROL*
* Sold separately

14
TECHNICAL SPECS
DIMENSIONAL DATA
PARAMETER
RMS Power @ 4Ω
RMS Power @ 2Ω
RMS Power @ 1Ω
Frequency response
3000.1 - 1Ω
130a7W
1980W
3000W
5Hz ~ 25kHz
1980W
3000W
N/A
5Hz ~ 25kHz
Operating voltage
SNR
Input sensitivity
Current draw (music)
Current draw (Max)
Total efficiency
Damping factor
Power cable
Speaker cable
Recomended Fuse (music)*
Recommended battery
Low pass filter
5Hz ~ 40Hz
8V ~ 16V
90dB
0.2V ~ 4V
121A
242A
86%
>2000
35mm² (2AWG)
2 x 1.5 mm² 2 x 1.5 mm²
15 AWG 15WG
140A
140Ah
50Hz ~ 500Hz
5Hz ~ 40Hz
8V ~ 16V
90dB
0.2V ~ 4V
121A
242A
86%
>2000
35mm² (2AWG)
140A
140Ah
50Hz ~ 500Hz
Subsonic
228mm (8.9")
208mm (8.1")
136mm (5.3") 121mm (4.7")
2 2
Net Weight: 3.5lb (1.6Kg)
Gross Weight: 4.1lb (1.9Kg)
*It is mandatory to install the fuse at a maximum distance of 12 inches from the battery.
3000.1 - 2Ω

15
