English - 1
1. FUNCTION SWITCH
AUX/CD/OFF/RADIO
2. BAND SWITCH
3. FM ANTENNA
4. CD DOOR
5. TUNING KNOB
6. BASS BOOST BUTTON
7. CD SKIP/SEARCH FORWARD
BUTTON
8. CD SKIP/SEARCH BACKWARD
BUTTON
9. CD PROGRAM BUTTON
10. CD MODE BUTTON
11. CD STOP BUTTON
12. CD PLAY/PAUSE BUTTON
13. LCD DISPLAY
14. STEREO HEADPHONE JACK
15. VOLUME CONTROL KNOB
16. AC SOCKET
17. BATTERY DOOR
18. AUX IN JACK
19. SPEAKER LEFT
20. SPEAKER RIGHT
21. FOLDER BUTTON
22. CD/USB BUTTON
23. USB PORT

English - 2
AC OPERATION
Before operation please be sure that the voltage on the set corresponds to
the voltage of your local area. Unravel the AC Line Cord, insert one end into
the AC jack on the set, and the other end into a standard AC outlet.
Remarks : 1) In case of malfunction due to electrostatic discharge (ESD), reset the unit
by reconnecting the AC cord again to resume to normal operation.
2) When not in use – Unplug the AC power cord completely from the AC
power socket.
BATTERY OPERATION
Disconnect the AC Cord Set completely. Open the BATTERY DOOR and insert
UM-2/ “C” size x 8 batteries (not supplied) making sure that the indicated
battery polarity is observed.
When not in use – Remove all the batteries if the unit will not be used for
several months or more.
RADIO OPERATION
Slide the FUNCTION SWITCH to the “RADIO” position. Slide the BAND
SWITCH to the desired waveband. Turn the TUNING KNOB to your desired
radio station. Adjust the sound level by rotating the VOLUME CONTROL KNOB.
To turn off the radio, simply slide the FUNCTION SWITCH to “OFF” position.
Note: Radio frequency is shown on the LCD DISPLAY.

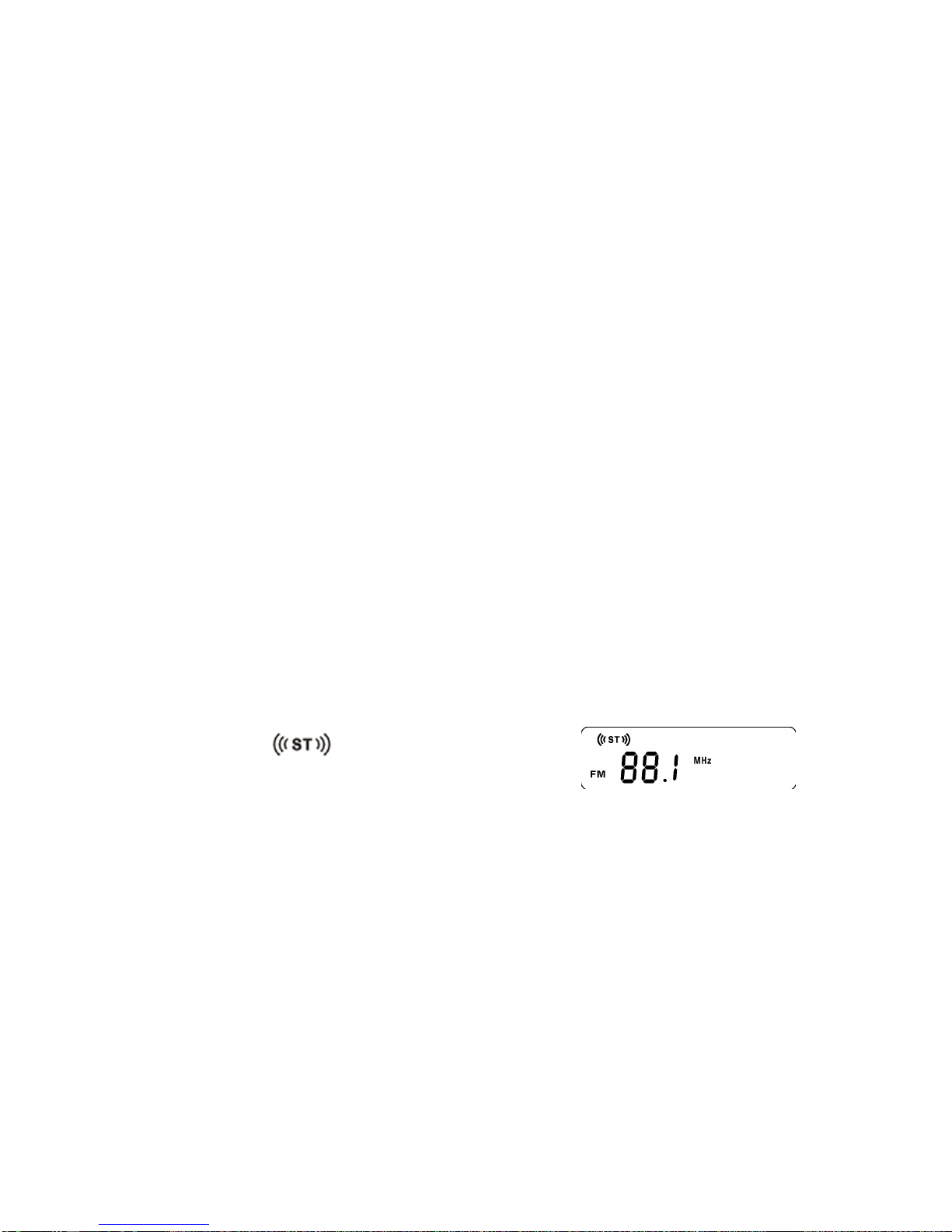

FM STEREO INDICATOR
When tuned to a FM Stereo broadcast the FM
stereo indicator will light up. In weak
signal areas the FM Stereo signal may not be
strong enough and can cause excessive
background noise. In this case, slide the BAND SWITCH to “FM” position.
ANTENNAS
For best reception, fully extend the FM ANTENNA to receive FM stations. For
AM reception, the unit has a built-in antenna, turn the whole unit for best
reception.
BASS BOOST
For increased bass at all volume levels, push the BASS BOOST BUTTON to
“ON” position to boost the low frequency tone for an emphasized bass sound.
To release the super bass, simply push the button again.

English - 3
AUXILIARY (AUX) MODE
1. Slide the FUNCTION SWITCH to the “AUX” position.
2. Connect the earphone socket from the Auxiliary unit (e.g. MP3 player or
MD player) into AUX-IN jack on the rear of this product via an Audio Line
Cord (3.5mm plug on both ends; not supplied).
3. Play the Auxiliary unit. Music from the Auxiliary unit can be listened
through the speaker of this product.
STEREO HEADPHONE JACK
For private listening, insert the plug of a Stereo Headphone into the STEREO
HEADPHONE JACK and adjust the VOLUME CONTROL KNOB accordingly.
During the use of a headphone, the Speakers are automatically disconnected.
CD OPERATION
PLAYING COMPACT DISC (CD-R/RW PLAYBACK COMPATIBLE)
Getting Started
Note: Should skipping of tracks occur during CD playing try reduce the
volume.
When CD is playing do not open the CD DOOR.
1. Open the CD DOOR by pulling up the CD DOOR. Put a CD disc into the
CD Compartment and close the CD DOOR. Set the FUNCTION SWITCH to
“CD” position.
Note : Ensure the CD DOOR is closed properly and locked in place.

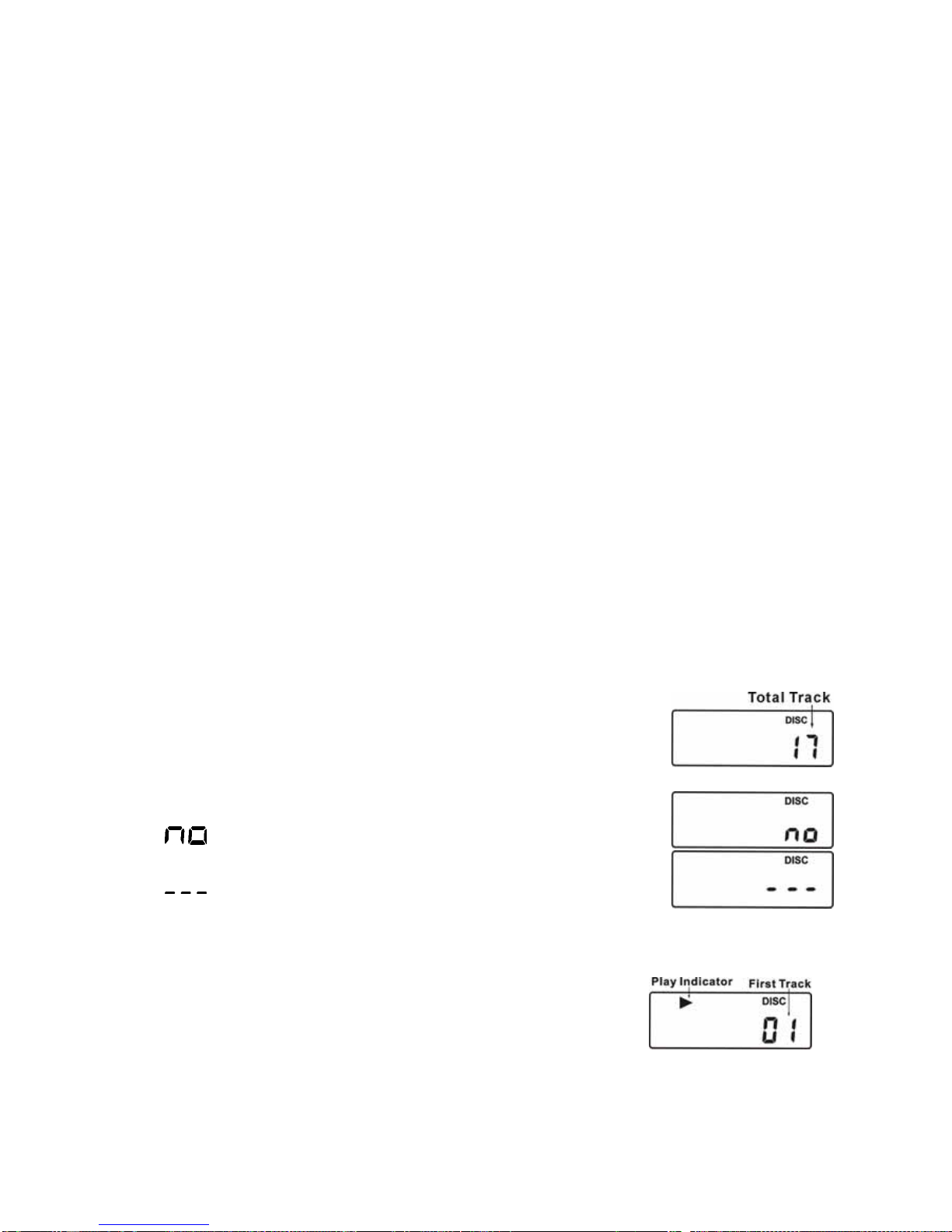

2. When the CD DOOR is closed with a CD inside, total
number of the tracks in the disc will be shown on the
CD LCD DISPLAY and will go to stop mode. (ex. Total
17 tracks inside the disc). The “DISC” indicator will
always be shown on the LCD DISPLAY.
3. If there is no disc inside, the LCD DISPLAY will show
“” and go to stop mode.
4. If the CD DOOR is not closed, the DISPLAY will show
“”.
Play/Pause Mode
1. When the PLAY/PAUSE BUTTON is pressed during CD stop mode, the first
track will be played. The Play Indicator “” will be
shown on the LCD DISPLAY. The CD LCD DISPLAY
will show the specific number of track being played.

English - 4
2. For interruption while the CD is playing, press the CD PLAY/PAUSE
BUTTON once. The Play Indicator “” will blink continuously on the LCD
DISPLAY.
3. Though the sound stops, the disc will continue to
spin. To re-start playing, press the CD PLAY/PAUSE
BUTTON once again. The music will start from the
exact position where it was interrupted.
4. To stop the CD, press the CD STOP BUTTON once whether the CD is in
Play or Pause mode. The LCD DISPLAY will show the total number of
tracks of the disc again.
5. To turn off the unit, slide the FUNCTION SWITCH to “OFF” position.
Skip and Search Mode
1. During play or pause mode, when CD SKIP/SEARCH or CD
SKIP/SEARCH BUTTON is pressed once, it will go to the next track or
go back to the beginning of the track.
2. During play mode, when CD SKIP/SEARCH or CD SKIP/SEARCH 
BUTTON is pressed and held, it will search the track with audible high-
speed forward or backward playback.

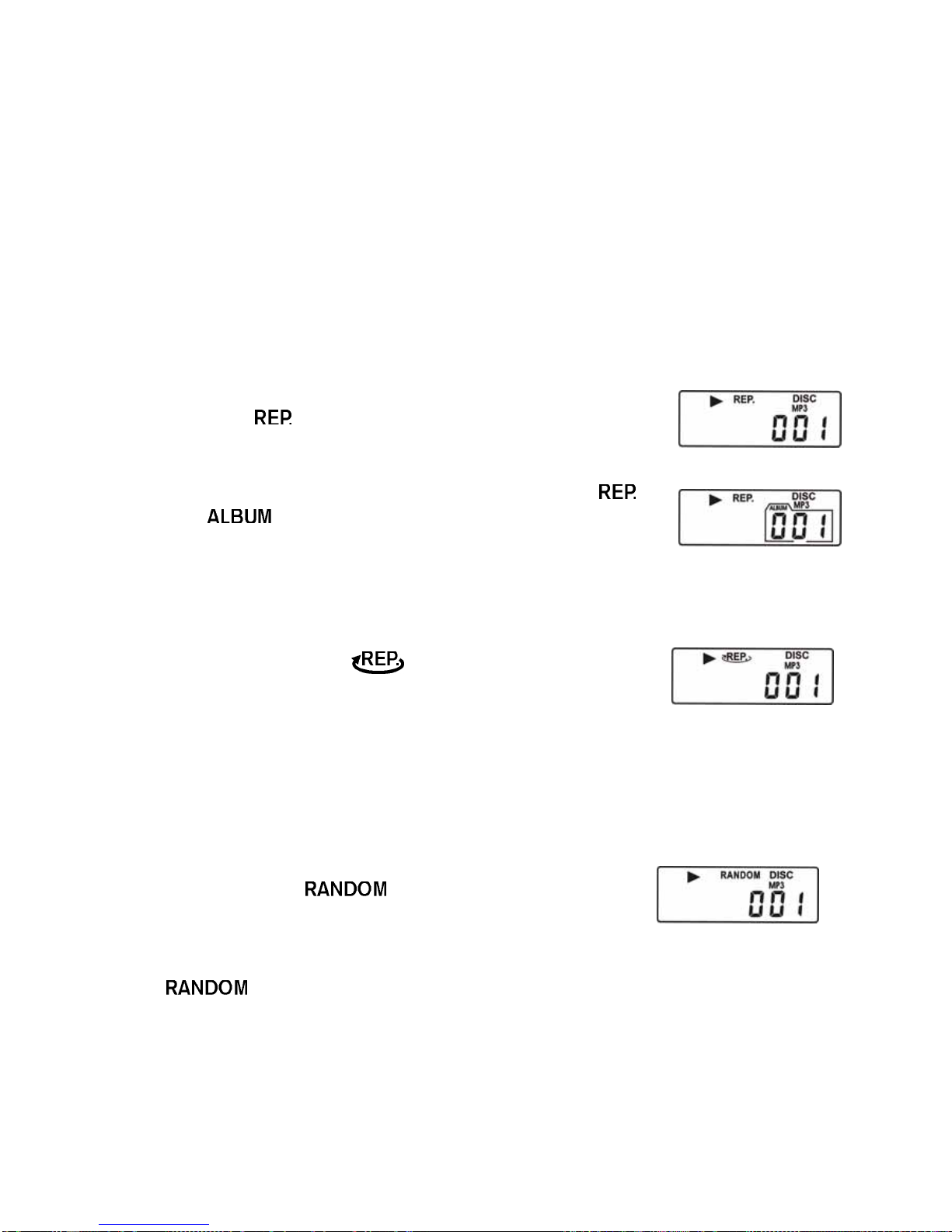

Repeat Mode
1. Repeat 1 :
When the MODE BUTTON is pressed once, the
Repeat Indicator “ ” will be shown on the LCD
DISPLAY. This single track of music will be repeated.
2. Repeat All:
When the MODE BUTTON is pressed twice, the
Repeat All Indicator “ ” will be shown on the LCD
DISPLAY. The whole disc can be played continuously.
3. To cancel the Repeat Function
Press the MODE BUTTON repeatedly until the Repeat Indicator disappears
from the LCD DISPLAY.
Random Play Mode
This feature allows the track on the disc to be played in a random order.
1. During the CD stop mode, press the MODE BUTTON
three times, the “ ” indicator will be shown on
the LCD DISPLAY and all music will be played in
random order automatically.
2. To cancel the random play function, press the MODE BUTTON again,
“” Indicator will disappear from the LCD DISPLAY.

English - 5
Program Mode

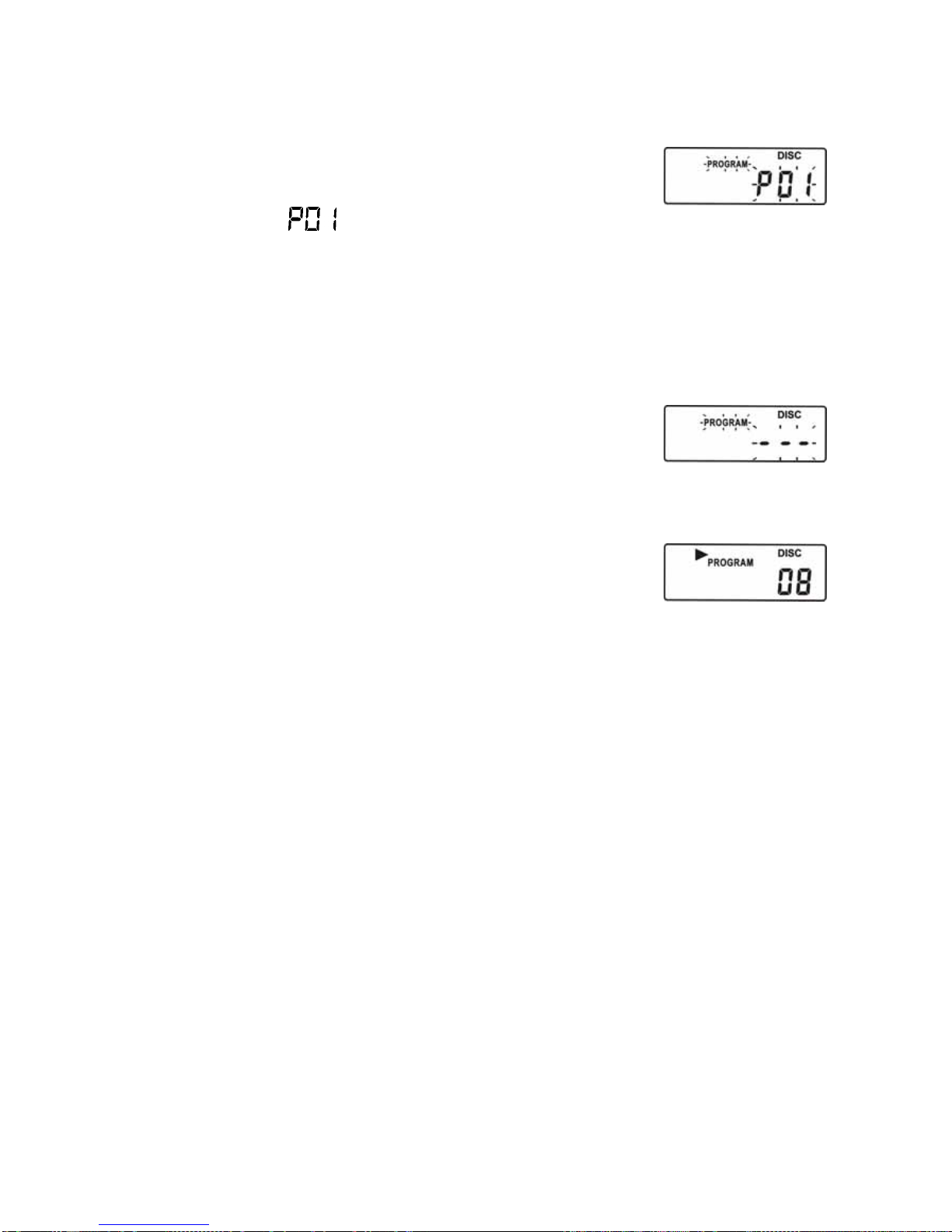

1. During the CD stop mode, press the PROGRAM
BUTTON once. The “PROGRAM” indicator and the
number of Program to be memorized starts from the
first program “ ” will light up and blink continuously.
Press the CD SKIP/SEARCH or SKIP/SEARCH BUTTON to your
desired musical track, the LCD DISPLAY will show the appropriate track
number. Press the PROGRAM BUTTON to store this track in memory.
2. Repeat above procedure until all desired tracks have been programmed.
A total of 20 tracks can be stored in memory.
Remarks :
Whenever CD SKIP/SEARCH FORWARD or
BACKWARD BUTTON is pressed, it will always show
the last programmed track first to recall your memory.
After complete programming, LCD DISPLAY will show
“PROGRAM_ _ _” and flash continuously.
3. Press the CD PLAY/PAUSE BUTTON once to start the program playback
and the CD Play Indicator “” will light up.
4. To check the program you have stored after complete
programming, press the PROGRAM BUTTON once
during CD stop mode, then press the CD SKIP/SEARCH FORWARD
BUTTON once, the LCD DISPLAY will show the first programmed track
number. Repeat above procedure to read all the programmed memory.
5. To cancel the programmed memory :
¾During the CD stop mode, press the CD STOP BUTTON once.
OR
¾Open the CD DOOR during the CD stop mode.
The Program Indicator will disappear from the LCD DISPLAY.
PLAYING MP3 DISC
Getting Started
Note: Should skipping of tracks occur during MP3 Disc playing try reduce
the volume.
When MP3 disc is playing, do not open the CD DOOR.
1. Open the CD DOOR by pulling up the CD DOOR. Put a MP3 disc into the
CD compartment and close the CD DOOR. Set the FUNCTION SWITCH to
“CD” position.
Note : Ensure the CD DOOR is closed properly and locked in place.

English - 6
2. When the CD DOOR is closed with a MP3 disc inside, total number of the
tracks in the disc will be shown on the LCD DISPLAY and go to stop mode.
The “DISC” indicator will always be shown on the LCD
DISPLAY.
3. If there is no disc inside, the DISPLAY will show
“” and go to stop mode.
4. If the CD DOOR is not closed, the DISPLAY will show “ ”.
Play/Pause Mode
1. When the PLAY/PAUSE BUTTON is pressed during CD stop mode, the first
track will be played. The Play Indicator “”will be
lighted. The “ ” Indicator will be shown as well to
indicate MP3 Disc is being played. The LCD DISPLAY
will show the specific track number being played.
2. To select the specific musical tracks inside the MP3 Disc.
MP3 music can be stored into CD Disc with or without folders according to
your “MP3 burning method”.
a. If the MP3 disc is downloaded
without dividing into folder,
all track number will be
shown directly in the LCD
DISPLAY. The Album number will only show after pressing the
FOLDER BUTTON.
b. If the music is stored into different folders, then you’ve to select the
specific Album number first by pressing the FOLDER BUTTON ;
afterwards press the CD SKIP/SEARCH FORWARD or BACKWARD
BUTTON to select the specific Track number music inside this Album.
Example : To select Album # 4, track # 3.
STEP – 1 : Press the FOLDER BUTTON to select
the Album # 4.
STEP – 2 : Press the CD SKIP/SEARCH
FORWARD or BACKWARD BUTTON to
select the Track # 3 inside this Album
# 4.

English - 7
3. For interruption while MP3 disc is playing, press the CD PLAY/PAUSE
BUTTON once. The Play Indicator “” will blink continuously on the LCD
DISPLAY.
4. Though the sound stops, the disc will continue to spin. To re-start playing,
press the CD PLAY/PAUSE BUTTON once again. The music will start from
the exact position where it was interrupted.
5. To stop the MP3 disc, press the CD STOP BUTTON once whether the MP3
disc is in Play or Pause mode.
6. To turn off the unit, slide the FUNCTION SWITCH to “OFF” position.
Repeat Mode
1. Repeat 1 :
When the MODE BUTTON is pressed once, the Repeat
Indicator “ ” will light. This single track of music will
be repeated.
2. Repeat Folder :
When the MODE BUTTON is pressed twice, the “ ”
and “ ” indicators will be shown. This specific
folder will be played repeatedly.
Remarks : The folder number and the track number will be shown every
2 seconds alternatively.
3. Repeat All :
When the MODE BUTTON is pressed three times, the
Repeat All Indicator “ ” will be shown. The whole
disc can be played continuously.
4. To cancel the Repeat Function
Press the MODE BUTTON repeatedly until the Repeat Indicator
disappears from the LCD DISPLAY.
Random Play Mode
This feature allows the tracks on the disc to be played in a random order.
1. During the CD Stop mode, press the MODE BUTTON
four times, the “ ” Indicator will show on the
LCD DISPLAY and all music will be played in random
order automatically.
2. To cancel the Random Play function, press the MODE BUTTON again,
“” Indicator will disappear from the LCD DISPLAY.

English - 8
Skip and Search
1. During play or pause mode, when CD SKIP/SEARCH or CD
SKIP/SEARCH BUTTON is pressed once, it will go to the next track or
go back to the beginning of the track.
2. During play mode, when CD SKIP/SEARCH or CD SKIP/SEARCH 
BUTTON is pressed once and held, it will search the track with audible
high speed forward or backward playback.
Program Mode
1. During the CD stop mode, press the PROGRAM
BUTTON once. The “PROGRAM” indicator and the
number of Program to be memorized starts from the
first program “ ” will light up and blink
continuously. Press the FOLDER BUTTON, then press CD SKIP/SEARCH
FORWARD or BACKWARD BUTTON to select your desired musical track,
CD LCD DISPLAY will show the track number of this specific Album to be
programmed. Press the PROGRAM BUTTON to store this track in memory.
2. Repeat above procedure until all desired tracks have been programmed.
Remarks : Whenever the FOLDER BUTTON is pressed, it will always
show the last programmed Album number first to recall
your memory.
A total of 20 tracks can be stored in memory. After complete
programming, LCD DISPLAY will show “PROGRAM _ _ _” and blink
continuously.
3. To start the Programmed playback, press the CD PLAY/PAUSE BUTTON
once and the CD Play Indicator “”, “PROGRAM” and the track number
of the specific Album will light up.
Example : Album # 3, Track # 2.
4. To check the program you have stored after complete programming,
press the PROGRAM BUTTON once during the CD Stop mode. The LCD
DISPLAY will show “ ” and blink continuously. Press the FOLDER
BUTTON to read the Album number, then press the CD SKIP/SEARCH
FORWARD or BACKWARD BUTTON to read the specific track number of
said Album. Press the PROGRAM BUTTON again, LCD DISPLAY will show

English - 9
“” and blink continuously. Repeat above procedure to check all
programs being stored.
5. To cancel the programmed memory :
¾During the CD stop mode, press the CD STOP BUTTON once.
OR
¾Open the CD Door during the CD stop mode.
The “PROGRAM” Indicator will disappear from the LCD DISPLAY.
USB OPERATION
IMPORTANT NOTE :
This unit supports most of the common MP3 interface but not 100% because
there are too many different formats keep on changing in the market.
1. Slide the FUNCTION SWITCH to “CD” position.
2. Press the CD/USB BUTTON once, LCD DISPLAY will show “USB” indicator.
Remarks : When there has no MP3 Player or Flash
drive connecting to the USB PORT, LCD
DISPLAY will show “no”.
3. Insert the USB plug of an Auxiliary unit (e.g.: Portable
MP3 Player or Flash Drive) into the USB PORT in this unit, total number of
music will be shown on the LCD DISPLAY.
4. Press the CD PLAY/PAUSE BUTTON to start playing the
music.
5. Operate all the CD control buttons as mentioned in
above section “PLAYING MP3 DISC”, they have all the
same function and operation method.
6. To exit from the USB playback mode, press the CD/USB BUTTON again. It
will go back to CD DISC mode again.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE APPLIANCE TO RAIN
OR MOISTURE. DO NOT REMOVE COVER, PILOT LAMPS SOLDERED IN PLACE. NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

English - 10

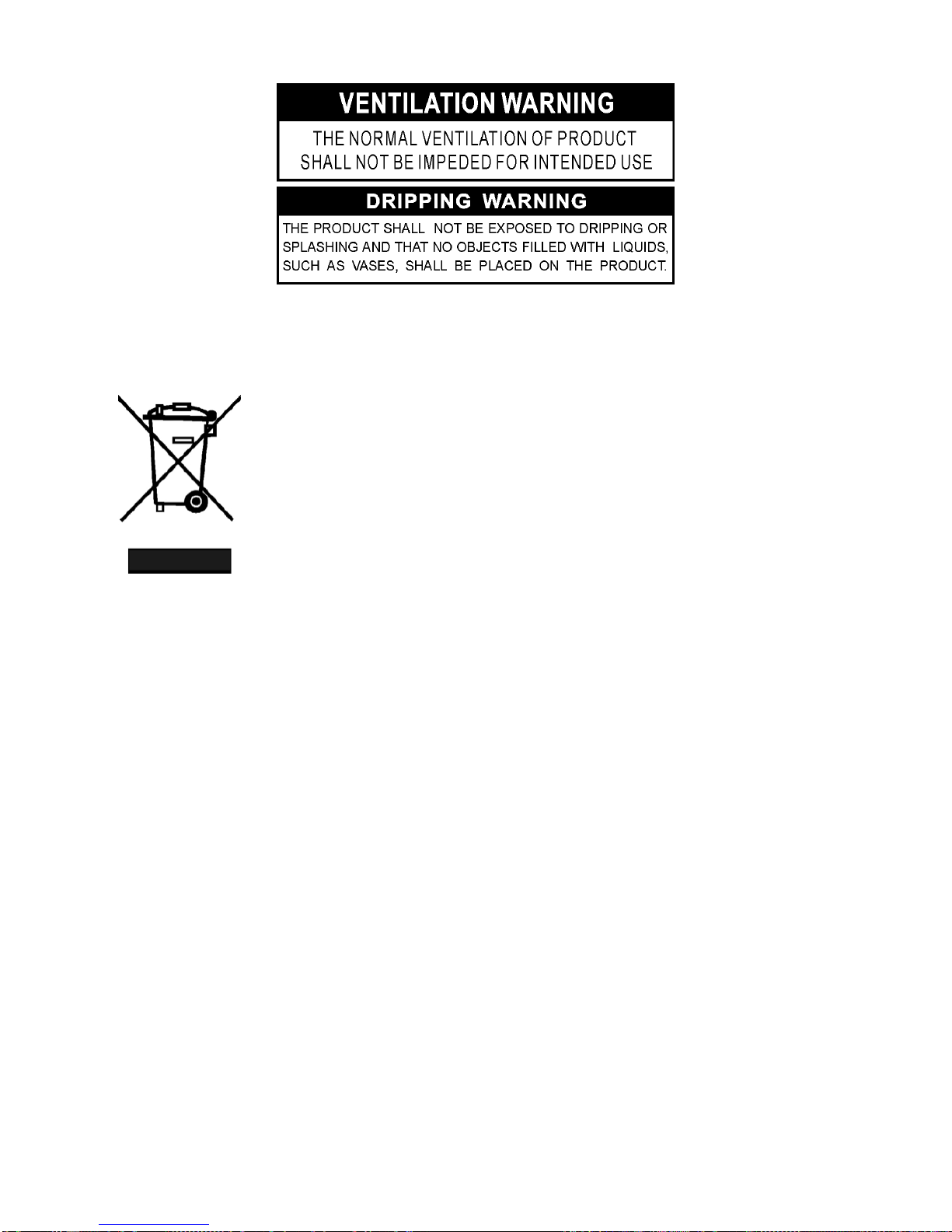

Instructions on environment protection
Do not dispose of this product in the usual household garbage
at the end of its lifecycle; hand it over at a collection point for
the recycling of electrical and electronic appliances. The
symbol on the product, the instructions for use or the packing
will inform about the methods for disposal.
The materials are recyclable as mentioned in this marking. By
recycling, material recycling or other forms of re-utilization of
old appliances, you are making an important contribution to
protect our environment.
Please inquire at the community administration for the authorized disposal
location.
