South GNSS BOX S660 User manual
User Guide for GNSS BOX
----------- S650/S660
1
1．SAFETY PRECAUTIONS....................................................................................................................................................2
2. HIGH PRECISION GNSS BOX S650.....................................................................................................................................3
2.1 PROFILE...........................................................................................................................................................................................3
2.2 SPECIFICATIONS...............................................................................................................................................................................4
2.3 STANDARD LIST...............................................................................................................................................................................5
2.4PRINCIPLE OF HIGH PRECISION GNSS S650.....................................................................................................................................5
2.4.1. Positioning principle..............................................................................................................................................................5
2.4.2 Advantages of GNSS BOX S650/S660.....................................................................................................................................6
3. OPERATION (TAKE S650 FOR AN EXAMPLE)..................................................................................................................7
3.1 CHARGE...........................................................................................................................................................................................7
3.2 POWER ON/OFF..............................................................................................................................................................................8
3.3 BLUETOOTH CONNECTION...............................................................................................................................................................8
3.4 SATELLITE SIGNALS.........................................................................................................................................................................9
3.5 DATA C O M M U N I C AT I O N ....................................................................................................................................................................9
4. SAFETY WARNINGS AND ATTENTIONS..........................................................................................................................10
4.1 SAFETY WARNINGS........................................................................................................................................................................10
4.2 ATTENTIONS...................................................................................................................................................................................10
2
1．Safety precautions
In order to use the product correctly and safely, please read the safety instructions below carefully before use.
Please turn off the product where
ban to use the product, or use the
product may cause interference or
danger.
Please do not place the product or
accessories in appliance with strong
electromagnetic field.
Do not use the product when driving
a car in order to avoid interfering
with safe driving.
Please keep the product far away
from the magnetic equipment;
otherwise the radiation of the product
may erase the information stored on
the magnetic equipment.
In the medical place, please comply
with the relevant provisions or
regulations.
Near the medical equipment, please
turn off the product.
Please don’t use the product close to
high temperature place, or near
flammable gases( such as gas
stations)
Please close the product when
boarding the plane, lest the wireless
signal interfering plane control
signals.
Please place the product and
accessories where children can't
touch, avoid the children using the
product without supervise.
Close to high precision electronic
equipment, please shut down the
product, otherwise it may lead to
electronic equipment failure.
Please use the specified batteries and
chargers, otherwise, may cause
explosion.
Without authorization, please don’t
disassemble the product or the
accessories, only authorized
technician can repair the product.
When using the product, please
comply with the relevant laws and
regulations, and respect others'
privacy and legal rights.
3
2. High precision GNSS BOX S650
2.1 Profile
Fig.1-S650 mainframe
Fig.2 Power key
Fig.3-Indicators
Fig.4-miniUSB port
4
2.2 Specifications
Configuration Parameters Options
Support PDA
Windows Mobile /CE √
Android √
WIN7\WIN8 √
IOS Development pending
GNSS
GPS L1，L2，with carrier phase
smoothing √
GLONASS L1、L2 √
Compass B1、B2、B3（optional）√
support data format NMEA-0183，TSIP √
I/O protocol RTCM3、RTCA、CMR and so
on √
Data updating rate 1Hz √
recapture time <1s √
Cold start <30s √
Positioning accuracy point positioning 2m √
External source
accuracy 5cm √
SBAS 1m √
Static accuracy 3mm+1ppm √
Data
communication
Data interface MicroUSB √
Bluetooth Bluetooth V2.1 Class 2 support
EDR √
Power supply
Battery
3.6V,6200mAh √
removable 5400mAh lithium
battery，3.6V √
Working time More than 10 hours typically √
Environment
characteristic
Operating temperature -20℃— +25℃√
Storage temperature -30℃— +25℃√
Quick-proof 1.5m natural fall to the ground √
IP IP67 √
Physics Measurement（cm）10×10×3.5 √
Weight 305 g √
5
2.3 Standard list
Item No Name model name Quantity
1 S660/S650 receiver 1
2 MicroUSB data cable USB-2 1
3 S660/S650 holder TP-S650 1
4 S660/S650 Adapter PSAI10R-050Q 1
5 Packaging box 1
2.4 Principle of High precision GNSS S650
2.4.1. Positioning principle
High-precision GNSS box S650 is integrated with high-precision GNSS motherboard, professional and high
sensitive satellite antenna, general bidirectional communication Bluetooth, high frequency power board, power
and intelligent control system hardware and firmware, real-time positioning accuracy can achieve highest
centimeter level (static post-processing precision can reach millimeter). In addition to high positioning accuracy,
the biggest advantage is the split type design, which can meet the needs of different industries such as
surveying and mapping, GIS and so on.
Fig.5 Appearance
6
Fig.6 positioning principle
Let’s learn about the principle in brief:
Firstly, use the Bluetooth of the PDA (such as Android Phone with industrial defense) connects with high
precision GNSS box S650/S660,the high precision antenna in the box machines receive GPS + GLONASS +
Beidou satellite signal, and transmit the satellite data to the main board; PDA acquire the differential data from
the CORS stations using the built-in GPRS network module or Wi-Fi module, and then send the differential
data to the main board of the high-precision GNSS box via Bluetooth; then the main board of the
High-precision GNSS box figure out the high precision coordinate data based on the satellite data and
differential data, and give the high precision coordinate data back to PDA via built-in Bluetooth, which allows
the software on the PDA to call for the high accuracy coordinates.
2.4.2 Advantages of GNSS BOX S650/S660
zSplit type design, avoid the electromagnetic interference from PDA to high precision GNSS motherboard
as much as possible, and make satellite search more stable and positioning accuracy more reliable as well;
zSplit type design, make the PDA separated from the GNSS host, communicating via Bluetooth, a wider
range of application, operation more flexible, able to fix the GNSS host on the top of a bus with a magnet
base, then realize to control PDA (Android phone or tablet PC, laptop or other Bluetooth devices) in the
vehicle (or download, upload data from PDA), make the surveying job more simple, and comfortable,
maximum convenient for users.
7
zSplit type design makes the high precision GNSS smaller, more convenient to carry, for high precision
positioning device, such a small device can realize cm-level real-time positioning, is a revolutionary
progress, this equipment will greatly reduce the weight and volume of the carrying equipment field for
personnel.
zSplit type design, make the equipment to use the power supply for high precision GNSS itself, which
greatly saves the power, and make the equipment work longer hours, to realize more than 10hours work
continuously.
zUse Android tablet or mobile phone to control high precision GNSS BOX, greatly reduces the equipment
operation difficulty, more easy to use, make high-tech, high-precision positioning instrument more civilian
and simplification.
zMagnesium aluminum alloy shell, durable, IP67, dust-proof waterproof, shock-proof, meet the field severe
environment.
zThis product is a portable product, beautiful, perfect combination of
fashionable design and industrial aesthetics.
3. Operation (take S650 for an example)
3.1 Charge
S650 adopts 6800mAH built-in large capacity battery or 5700mAH removable large capacity battery, it can
work10 hours typically. Equipped with a specified charging socket and charger, it can charge when connect
with a computer via a USB cable.
Before use, need to recharge equipment first. Make sure the charging time reach to 8 to 10 hours at the first
several times, and fully discharged, in order to maximize the battery capacity, at the same time extend battery
life.
8
Fig.7-S650
3.2 Power ON/OFF
Power on the BOX receiver by holding on POWER key for 3seconds, the POWER light is lit up. To
Power OFF, hold on power key for several seconds in boot status.
Fig.8-Power indicator
3.3 Bluetooth connection
Pair high precision GNSS box with other GPS equipment via Bluetooth module.
Fig.9-Bluetooth indicator
9

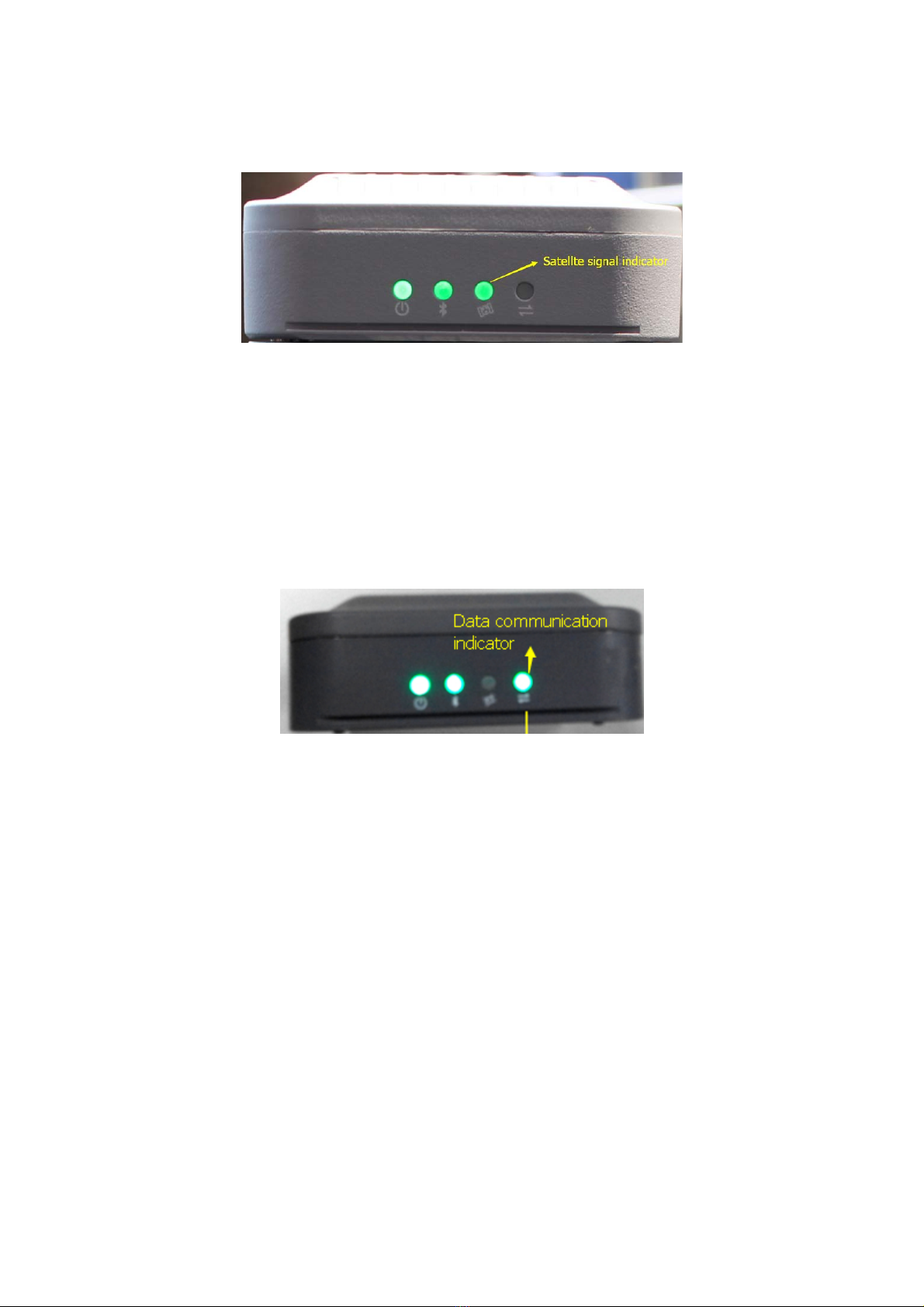

3.4 Satellite signals
The satellite light lit up, showing high precision GNSS box begin searching satellites (indicator light flashing
once after a while).
Fig.10-Satellite signal indicator
3.5 Data communication
When the data transmission light flashing, indicates that the connected GPS data acquisition equipment and
analysis management devices can receive satellite data, and a new project (engineering) is beginning.
Fig.11-Data communication indicator
10
4. Safety Warnings and Attentions
4.1 Safety Warnings
●Near high precision control electronic equipment, please shut down the product, otherwise it may lead to
electronic equipment failure.
●The equipments may be effected by the product: hearing- AIDS, pacemakers, fire alarm, automatic doors and
other automatic control equipment. Electronic medical auxiliary equipment users shall confirm with the
equipment service center about the influence the radio waves may affect on the device.
●Pacemaker manufacturers recommend keeping this product at least 15cm far away from the heart pacemaker,
to avoid potential interference on the pacemaker. When carrying the product, please don’t put it in the bag near
breast;
●Do not take the product to the operating room, intensive care unit (ICU) or coronary care unit (CCU).
●In medical areas where ban to use the product, please abide the directives and regulations.
●Please pay attention to the use and placement of the product, so as not to affect heart disease patients.
●In the flammable and explosive region, please power off the product, and don’t remove or install the battery,
charge the battery or use the product, to avoid fire or explosion.
4.2 Attentions
●Please place the product far away from the magnetic equipment; the radiation may erase storage on the
magnetic equipment.
●Do not use this product, batteries and chargers in an appliance with strong electromagnetic field, such as
electromagnetic oven and microwave oven, otherwise it may cause electrical failure, fire or explosion.
11
●Please do not use the product (battery and charger) in the area of high temperature, or low temperature region,
otherwise it may lead to the products, battery and charger failure, fire or explosion.
●Please charge the battery in a safe environment (not inflammable and explosive places, dangerous situations),
should try to hold the battery temperature at between 0℃and 45℃. Battery storage environment temperature
between -20℃and 60℃. If put the battery in too hot or too cold area, may reduce the battery capacity and
service life. When the temperature is lower than 0℃, the performance of the battery is particularly restricted.
●When the product close to ears, please don’t boot or shutdown, lest affect the body health.
●The product's interference may affect neighboring television, radio or computer.
●Please abide by the provisions of the radio frequency radiation international norms, use the company specified
accessories.
●When using the product, please comply with the relevant laws and regulations, and respect others' privacy and
legal rights.
●Please shut down the box prior to cleaning and maintenance, if still connected to the charger, you will need to
unplug the charger from the power socket, disconnect the charger with the product at the same time, lest
produce an electric shock, or short circuit of the battery or charger.
●Please do not disassemble the product and accessories without authorization, only authorized institution can
repair it.
