Southbend KSLG-20 User manual

Job Item#
www.yatesgd.com www.yatesgraphicdesign.com
Form KSLG Rev 1 (November/2010)

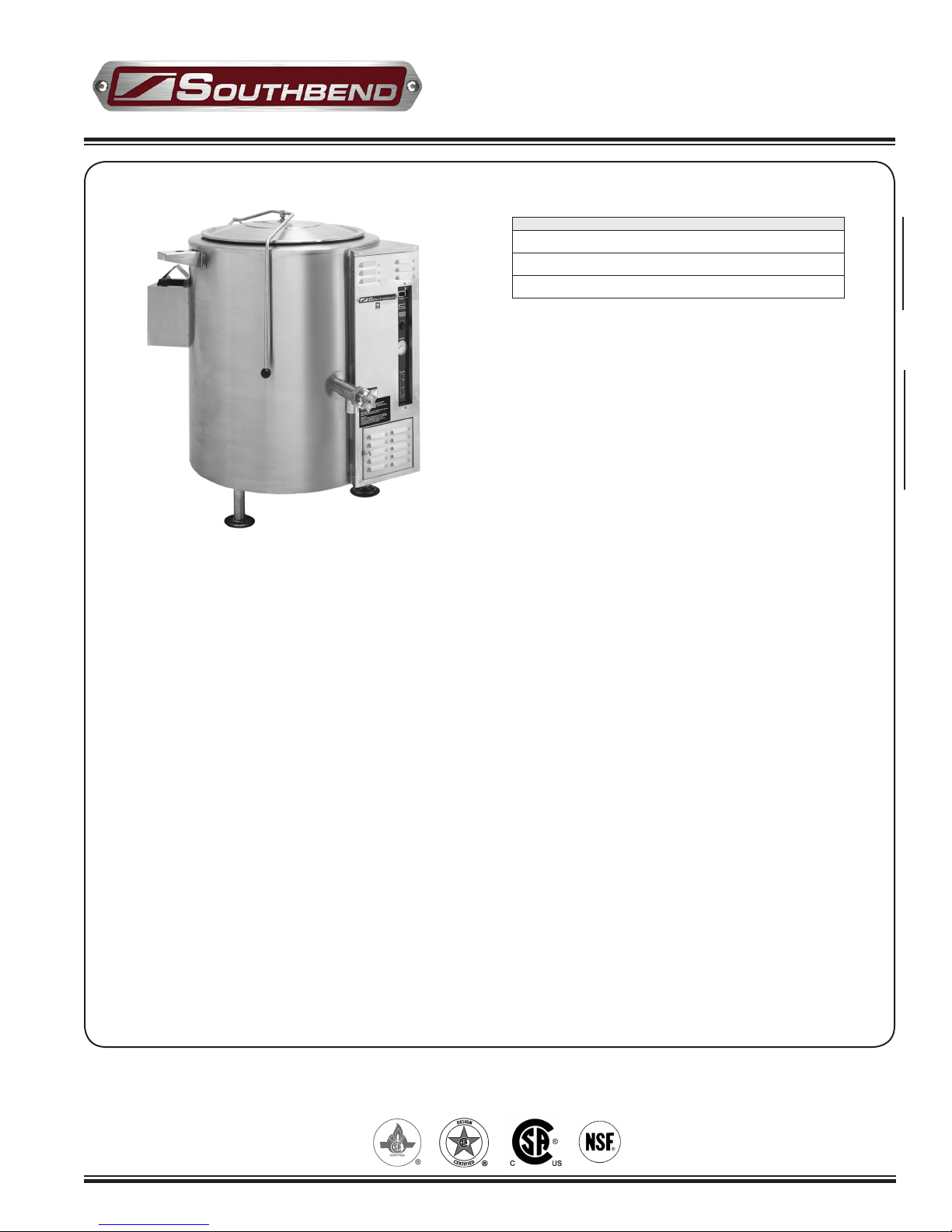

Gas stationary
steam Kettle
SPECIFICATIONS:
Shall be a Southbend Model _____________________________,
gas red, self-contained steam jacketed kettle, AGA and CGA
design certied, NSF approved. The unit comes standard with
electronic ignition and a hinged stainless steel cover. The 60
gallon kettle comes standard with a spring assisted cover.
The kettle shall be constructed with an exterior of type 304
stainless steel, #4 sanitary nish and 6” (152mm) stainless steel
adjustable legs. The interior kettle liner shall be a one piece
welded construction made with type 316 stainless steel for 20
and 40 gallon kettles and type 304 stainless for 60 gallon kettles
with #4 sanitary nish, 2/3 jacketed and shall be furnished with
a 2” (50 mm) tangent draw off valve as standard. The recessed
control panel shall be located on the front side of the unit in full
view of the operator and easy to use. Standard controls include
a direct immersion thermostat, water sight glass, cooking light,
pressure gauge and low water indicator light. Safety features
shall include a low water cut off, pressure relief valve, pressure
switch and a 100% safety gas shutoff valve.
OPERATION SHALL BE BY:
 Natural Gas
 L.P. Gas
For operation on 115 VAC, 1 phase 50/60 Hz, A.S.M.E.
code stamped for operation up to 50 psi (345kPa). The
steam kettle temperature ranges shall be between 165°F
to 275°F (74°C to 135°). Burners shall be serviceable,
high efciency stainless steel with no shutter adjustment.
OPTIONAL ITEMS AT EXTRA COST:
 220 VAC, 1 phase, 50/60 Hz.
 316 stainless steel liner for interior (for KSLG-60)
 3” (76 mm) draw-off valve (TVT-3)
 2” (50 mm) dairy valve (DDO-2T)
 3” (76 mm) dairy valve (DDO-3T)
 Etched gallon markings (GM-)
 Etched liter markings (LM-)
 Spring assist for 20 + 40 gallon (SA-)
 Casters
 Correctional Package
ACCESSORIES:
 Stainless steel tri basket, (TBA-1)
 Graduated measuring strip (CMS-)
 Strainer hook (SH-)
 Perforated strainer for draw-off valve (TPS-)
 Solid disc for draw-off valve (TSS-)
 Single pantry faucet with swing spout, SF-12
 Double pantry faucet with swing spout, DF-12
Model CapaCity
KSLG-20 20 Gallon 76 Liter
KSLG-40 40 Gallon 152 Liter
KSLG-60 60 Gallon 227 Liter

1100 Old Honeycutt Road, Fuquay-Varina, NC 27526
[phone] www.southbendnc.com
Models:
Form KSLG Rev 1 (November/2010)
 KSLG-20  KSLG-40  KSLG-60
INTENDED FOR COMMERCIAL USE ONLY.
NOT FOR HOUSEHOLD USE.
SERVICE CONNECTIONS
– Supply gas through 3/4” pipe. A gas shut-off valve must be installed in supply piping convenient and adjacent to appliance
– Unless other wise specied, Field Wire Electrical Connection to be 120 Volts, 60 Hertz, single phase with grounding wire. Unit furnished
with 6’ cord and 3 prong plug. Total maximum amps 4.0.
Model CapaCity Units a B C d e F G H J K l
KSLG-20 20 gallons
(76 liters)
in
(mm)
20”
(508)
31.25”
(794)
40”
(1016)
32”
(813)
3”
(76)
19”
(483)
64”
(1626)
24”
(610)
30.5”
(775)
6”
(152)
18.25”
(464)
KSLG-40 40 gallons
(152 liters)
in
(mm)
26”
(660)
35.5”
(902)
44”
(1118)
38.5”
(978)
2”
(51)
19”
(483)
72”
(1829)
29”
(737)
35”
(889)
6”
(152)
22”
(559)
KSLG-60 60 gallons
(227 liters)
in
(mm)
30”
(762)
40”
(1016)
49.5”
(1257)
42”
(1016)
2.5”
(63)
21.5”
(546)
85”
(2159)
35”
(889)
39”
(991)
8”
(203)
24.62”
(625)
DIMENSIONS
Model
Gas sUpply MiniMUM ClearanCe *
BtU/Hr. kW/HR. sUpply pipe pressUre (W.C.)
KSLG-20/40 100,000 29.3 Natural
6”-14” (152-356 mm)
Propane
11”-14” (279-356 mm)
Sides 6” [152 mm]
KSLG-60 130,000 38.1 Back 2” [51 mm]
Model sHippinG WeiGHt
KSLG-20 440 lbs. [200 kg]
KSLG-40 600 lbs. [272 kg]
KSLG-60 720 lbs. [327 kg]
* For use on non-combustible oors only.
