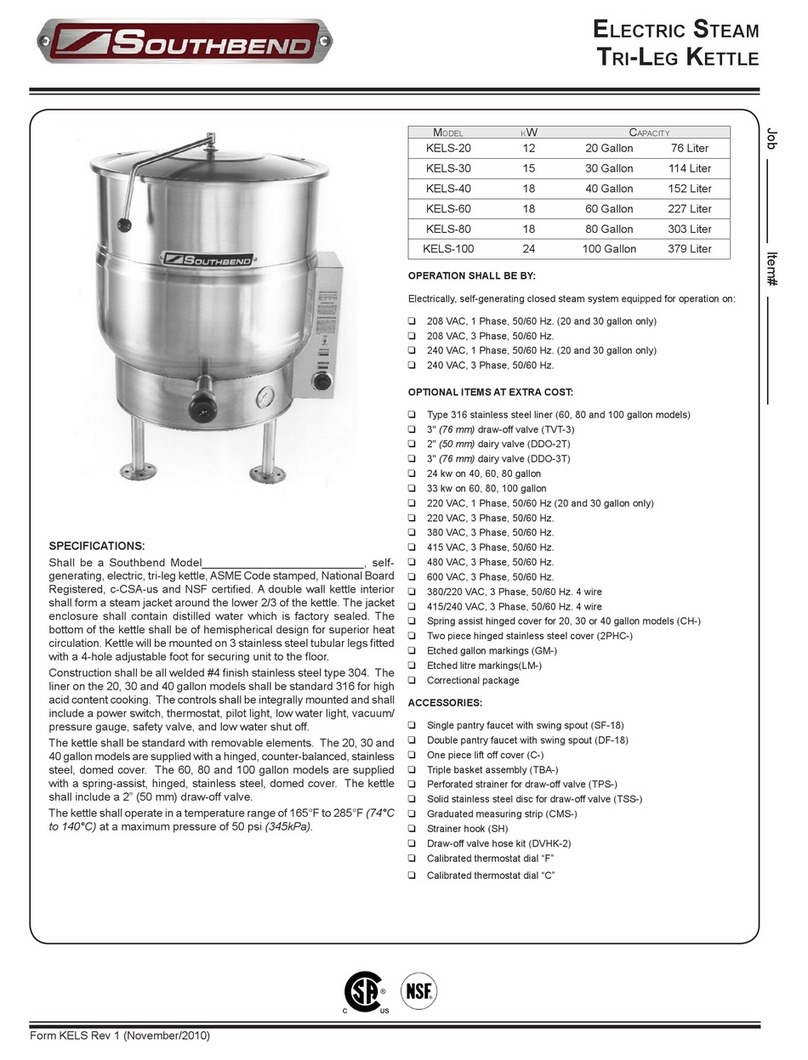

ELECTRIC STEAM
TRI-LEG KETTLE
Printed in USA
Form KELS Rev 0 (01/07)
SPECIFICATIONS:
Shall be a Model____________________________________,
self-generating, electric, tri-leg kettle. A double wall kettle interior
shall form a steam jacket around the lower 2/3 of the kettle.
The jacket enclosure shall contain distilled water which is factory
sealed. The bottom of the kettle shall be of hemispherical design
for superior heat circulation. Kettle will be mounted on 3
stainless steel tubular legs fitted with a 4-hole adjustable foot
for securing unit to the floor.
Construction shall be all welded #4 finish stainless steel type
304.
The controls shall include a power switch, thermostat, pilot light,
low water light, vacuum/pressure gauge, safety valve, and low
water shut off.
All kettles shall be standard with removable elements.
The kettle shall operate in a temperature range of 100°F to
290°F (38°C to 144°C) at a maximum pressure of 50 psi
(345kPa).
Convenience features shall include a counterbalanced hinged
stainless steel cover and a 2" (50mm) sanitary draw off valve.
OPERATION SHALL BE BY:
Electrically, self-generating closed steam system equipped for
operation on:
❑208 VAC, 3 Phase, 50/60 Hz
❑208 VAC, 1 Phase, 50/60 Hz*
❑240 VAC, 3 Phase, 50/60 Hz
❑240 VAC, 1 Phase, 50/60 Hz*
OPTIONAL ITEMS AT EXTRA COST:
❑Type 316 stainless steel liner for high acid content products
❑3" (76mm) draw off valve
❑2" (50mm) dairy valve
❑3" (76mm) dairy valve
❑24 kw on 40, 60, 80 gallon
❑33 kw on 60, 80, 100 gallon
❑220 VAC, 1 Phase, 50/60 Hz*
❑220 VAC, 3 Phase, 50/60 Hz
❑380 VAC, 3 Phase, 50/60 Hz
❑415 VAC, 3 Phase, 50/60 Hz
❑480 VAC, 3 Phase, 50/60 Hz
❑220/380 VAC, 3 Phase, 4 wire
❑240/415 VAC, 3 Phase, 4 wire
❑Two piece hinged stainless steel cover
❑Etched gallon markings
❑Etched litre markings
❑Double pantry faucet with swing spout
❑Single pantry faucet with swing spout
❑Spring assist hinged cover
❑Correctional package
*20 and 30 gallon only
ACCESSORIES:
❑Triple basket assembly
❑Perforated strainer for draw off valve
❑Solid stainless steel disc for draw off valve
❑Graduated measuring strip
❑Strainer hook
❑Calibrated thermostat dial “C”
❑Calibrated thermostat dial “F”
MODEL CAPACITY
KELS-20 20 Gallon 76 Liter
KELS-30 30 Gallon 114 Liter
KELS-40 40 Gallon 152 Liter
KELS-60 60 Gallon 227 Liter
KELS-80 80 Gallon 303 Liter
KELS-100 100 Gallon 379 Liter

1100 Old Honeycutt Road, Fuquay-Varina, NC 27526
[phone] www.southbendnc.com
Models:
www.yatesgd.com www.yatesgraphicdesign.com
 KELS-20  KELS-30  KELS-40  KELS-60  KELS-80  KELS-100
INTENDED FOR COMMERCIAL USE ONLY.
NOT FOR HOUSEHOLD USE.
Form KELS Rev 0 (01/07)
MODEL CAPACITY UNITS A B C D E F(2") F(3") G(2") G(3") H J K L
KELS-20 20 gallons
(76 liters)
in
(mm)
21"
(533)
18"
(457)
38"
(965)
23.75"
(629)
18.5"
(470)
15.5"
(394)
15.5"
(394)
18"
(457)
17.5"
(445)
14"
(356)
21"
(533)
60.5"
(1537)
16.75"
(425)
KELS-30 30 gallons
(114 liters)
in
(mm)
24"
(610)
20"
(508)
38"
(965)
27.75"
(705)
20"
(508)
16.5"
(419)
16.5"
(419)
15.75"
(400)
15.25"
(387)
12.5"
(318)
19"
(483)
63.5"
(1613)
18.312"
(465)
KELS-40 40 gallons
(152 liters)
in
(mm)
26"
(660)
22.5"
(572)
38"
(965)
29.75"
(756)
21"
(533)
18"
(457)
18"
(457)
13.5"
(343)
13"
(330)
9"
(229)
17"
(432)
65"
(1651)
19.938"
(506)
KELS-60 60 gallons
(227 liters)
in
(mm)
29.5"
(749)
26"
(660)
42"
(1067)
33.75"
(857)
19"
(483)
19.25"
(489)
19.25"
(489)
14"
(356)
13.5"
(343)
11"
(280)
17.25"
(438)
75"
(1905)
23.125"
(587)
KELS-80 80 gallons
(303 liters)
in
(mm)
33"
(838)
28"
(711)
45"
(1143)
36.75"
(933)
20.5"
(521)
20.5"
(521)
20.5"
(521)
15"
(381)
14.5"
(368)
12.75"
(324)
18"
(458)
81"
(2058)
26.25"
(667)
KELS-100 100 gallons
(379 liters)
in
(mm)
35.5"
(902)
30"
(762)
48"
(1219)
40"
(1016)
22"
(559)
22.5"
(572)
22.5"
(572)
15"
(381)
14.5"
(368)
13"
(330)
20.5"
(521)
87"
(2210)
29.438"
(748)
MODEL PHASE
208V 230V 240V 380V 415V 480V
KW AMPS KW AMPS KW AMPS KW AMPS KW AMPS KW AMPS
KELS-20 3 12 33.4 12 31.5 12 28.9 12 18.3 12 16.7 12 14.5
KELS-30 3 15 41.7 15 39.4 15 36.1 15 22.8 15 20.8 15 18.0
KELS-40
KELS-60
KELS-80
3 18 50.0 18 47.2 18 43.4 18 27.4 18 25 18 21.7
KELS-100 3 24 66.6 24 63.0 24 57.7 24 36.5 24 33.3 24 28.9
SERVICE CONNCETIONS
– ELECTRICAL CONNECTION : to be specified on dataplate
ELECTRICAL CHARACTERISTICS
DIMENSIONS
