Sowa WA32 User manual

WA32
Baby stroller
INSTRUCTION MANUAL

1
WARNING:Don't carry additional children, bags, goods or accessories in the stroller
except those recommended by the manufacture.
WARNING:To avoid injury ensure that your child is kept away when unfolding
and folding this product.
WARNING:Never leave your child unattended.
WARNING:Do not let your child to play with this product.
WARNING:Before making adjustments to the stroller, ensure that the child's body is
clear of any moving parts.
WARNING:Always use the restraint system.
WARNING:Child may slip into leg openings and strangle. Never use in reclined
carriage positions.
WARNING:Do not allow the child to stand up on the seat.
WARNING:This stroller is designed for one child only.
WARNING:Any load attached to the handle and/ or on the back of the backrest and/
or on the sides of the vehicle will affect the stability of the vehicle.
WARNING:Do not use on escalators or stairs. Fold the stroller and carry it by hands.
WARNING:Check that the pram body or seat unit or car seat attachment
devices are correctly engaged before use.
WARNING:This product is not suitable for running or skating.
WARNING:Always activate the brakes when stop the stroller, put or take off any
accessories.
WARNING:Ensure that all the locking devices are engaged before use.
WARNING:Any goods carried in the basket should not exceed 3 kg;
WARNING:Do not overload as the stroller may become unstable. Maximum weight
must not exceed 22kg in the seat unit.
WARNING:Do not add additional mattress thicker than 20mm.
WARNING:This product is suitable for children from birth to 36 months.
Maximum weight of the child :22kg.
WARNING:Use a harness as soon as your child sit unaided..
WARNING:Do not use the stroller near open fire, exposed flame, barbecue or heater.
WARNING:Do not use the stroller if any screws, nuts, bolts, etc. are missing or any
component is damaged.
WARNING:Do not lift the stroller by the bumper bar it may disengage.
WARNING:Note that the fabric patterns and stroller accessories in this instruction
may vary from the one you have purchased.
WARNING:Only replacement parts supplied or recommended by the
manufacturer/ distributor shall be used.
WARNING:Always apply the brakes when the pushchair is stationary,and when
placing and removing children.
WARNING:When the vehicle is suitable for new born baby, the restraint system is not
used and covered with mattress.
WARNING:This product is suitable for a child who cannot sit up unaided, roll over and
cannot pull itself up on its hands and knees. Maximum weight of the child :9KG
WARNING:The chassis is suitable for 0 month seat unit, 6 month seat unit, 2in1 seat
unit, car seat and carry cot.
Important:Keep these instructions for future reference.
This product complies with EN 1888-2:2018.

2
1.Handle grip
2.Adjustable handle button
3.Folding lever button
4.Handle tube
5.Main connector
6.Auto lock
7.Brake and release pedal
8.Rear wheel
9.Wheel cap
10.Rear leg tube
11.Front leg tube
12.Front wheel quick
release button
13.Front wheel
14.Directional lock
15.Front wheel socket
16.Folding lever
17.Rear wheel quick
release button
18.Stabilizing tube
19.Brake line tube
Stroller frame parts
Instructions

Seat unit parts
22
20.Front canopy frame
21.Back canopy frame
22.Canopy faucet
23.Canopy button
24.Safety bar button
25.Seat unit release catch
26.Seat unit base
27. Footrest adjustment buttons
28.Seat unit bottom
9 Backrest adjustment lever2.
. 30 Safety bar
3. 1 Backrest adjustable belt
3. 2 Backrest lever
3. 3 Backrest regulating part
23
24
25
27
28
29
30
32
31
33
22
24
23
25
26
26
3
Instructions
33

4
To open the stroller frame
1.The status when it’s folded.2.Release the folding hook as the picture
shows.
3.Hold the handles and lift upwards
until the chassis is fully expanded.
4.The status when it’s unfolded.
Instructions

5
Front wheel assembly
Insert the front wheels into the front legs until you hear a click sound.
Push in the upper part of the direction lock to lock the front wheel (as A shows),
push up the button to achieve 360 degree rotation (as B shows).
The front wheel orientation
Instructions

6

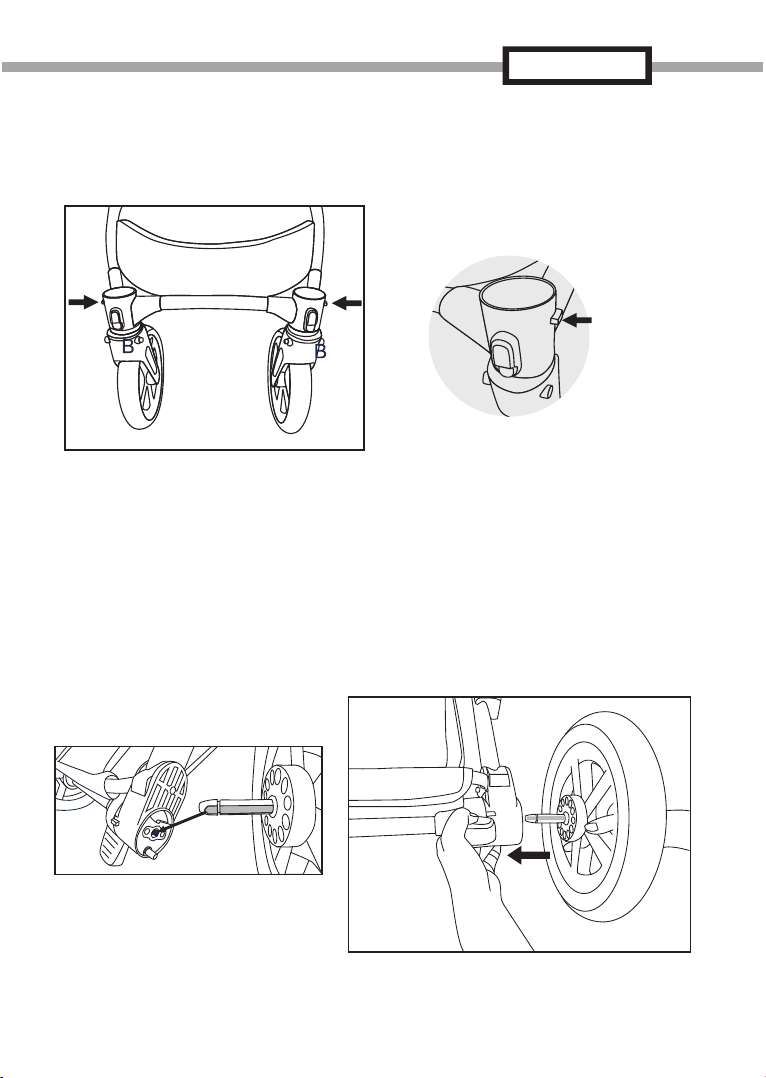

If you press the quick release button on both sides of the front wheels , it can
automatically remove the wheel.
Adjust the direction of the rear axle, make sure you have correctly lined up the flat
edge on the axle with the flat edge of the hole. Then push the rear axle into the
whole, until you hear a click sound. Ensure that it is engaged before use.
Rear wheel assembly
Front wheel release
Instructions

AB
Press the rear wheel quick release button to unlock the rear wheels
(as the pictures shows).
Rear wheel release
To use the brake
1.Step down the brake pedal until you hear a click sound to engage brake
mechanism(A).
2.Step up the brake pedal to unlock the brakes(B).
7
Instructions

8
A
B
To install the seat unit
WARNING: This stroller is suitable for child from birth to 36 months.
Maximum weight must not exceed 22kg in the seat unit.
Match the connector (A) of both sides of the seat unit in to the basement (B)
on the stroller until you hear a click sound to make sure it is installed correctly.
Important:Seat unit can be forward or parent-facing.
Instructions

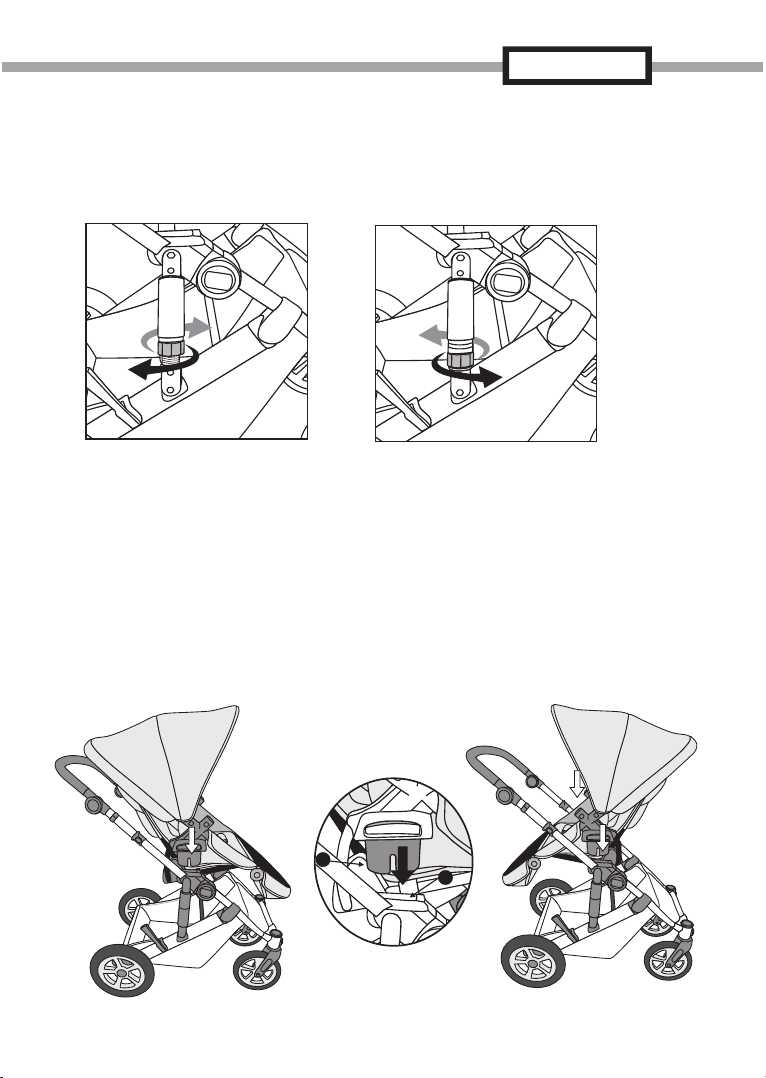

1.Rotate clockwise downward，reduce spring stiffness.(A)
2.Counterclockwise upward rotation,increase spring hardness.(B)
Maintain the same height on both sides of the knob follow as the scale.
Shock absorber spring adjustment
AB

9
Canopy assembly
WARNING: Install the canopy before using this stroller.
Press the buttons on the canopy frame both sides, insert it into the matched
faucet until you hear a click to make sure that it is installed correctly.
Canopy disassembly
Press the canopy buttons both sides, pull out the canopy frame as the picture
shows to disassembly the canopy.
Instructions
Seat unit release
Press in the release catches on each side of the seat unit and pull up the seat
unit to release it.

To use safety belts
Lock:Open:
10
Instructions
To use safety bar
WARNING: Install the safety bar before using.
Installing the bar: Slide the bar tips into the relative opening till hearing click
sound.
Releasing the safety bar:Push two buttons of each side of the bar while
pulling it out.

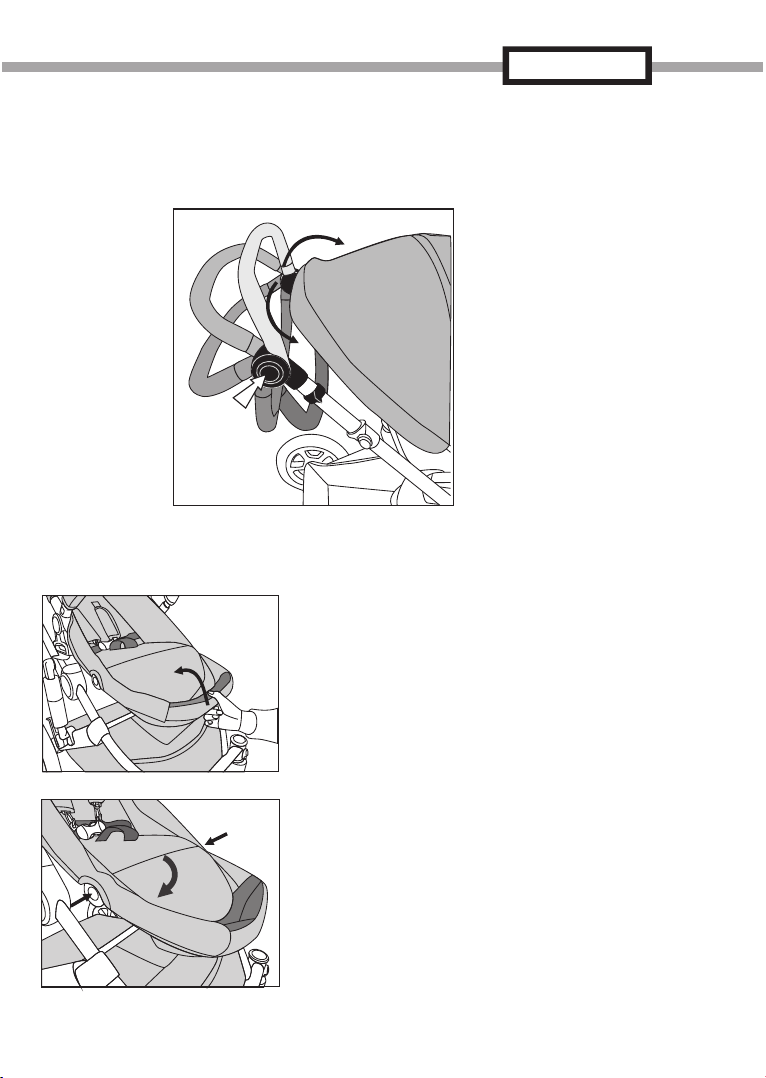

Adjust the handle
Pressing the adjustable handle button at the same time to operate different height
of the handle(seven sections).
11
Instructions
1.Adujst the leg rest by pushing it up.
2.Pressing the adjustable button both sides
at the same time to pushing it down.
Leg rest adjustment

Instructions
Backrest adjustment
1.Hold the regulating part on the backrest,pull it down to make the
backrest down.(A)
2.Pull up the regulating part to make the backrest up.(B)
AB
P1
P2
Important: For children aged 0-6 months, the backrest should be adjusted
to the lowest position and the footrest should be raised to the same height
as the seat unit. Then unfasten the safety harness on the front seat, and the
shoulder strap rotary buckle fix to the the D-buckle (P1) on the side of the
seat unit, and the mattress (P2) should be put on.
12

2
1
1
2

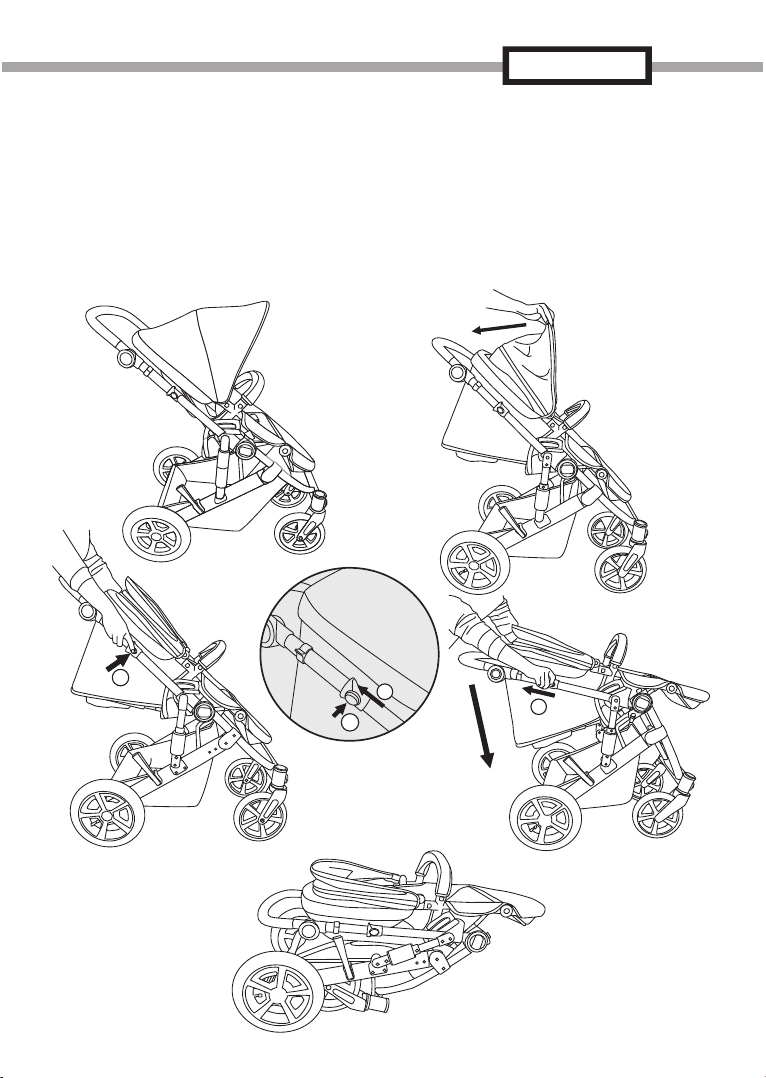

To fold the stroller:
1.Make sure that the seat unit is forward facing(opposite to Mama) before folding.
2.Fold the canopy.
3.Press the button on the right handle ,pull up the folding lever at the same
time, fold it down until it is completely folded, attach the auto lock.
WARNING:To avoid injury ensure that your child is kept away
when unfolding and folding this stroller.
13
Instructions

A
Collect and put stroller
1)To minimize the volume of the folded stroller, make the adjustable handle into
smallest section before folding.(show as A).
Care and maintenance
1.Fabric:sponge clean only with a mixture of water and mild detergent.
Do not iron. Do not bleach.
2.Periodically check for loose and broken parts.
3.Exposing the stroller to direct sunlight for long periods may cause fading.
4.If the stroller becomes wet, dry the metal parts and store it at cool and ventilate.
5.Check if the air pressure of the wheels is normal or not before using
(the standards air pressure is 35 Psi or 241.325Kpa).
14
Instructions
