Leggero REACH User manual

REACH
USER MANUAL
CHAIR PROVIDER: THIS MANUAL MUST BE GIVEN TO THE USER OF
THIS DEPENDENT MOBILITY BASE
USER: READ THIS MANUAL BEFORE USING THIS DEPENDENT
MOBILITY BASE AND SAVE FOR FUTURE REFERENCE
Product delivered may vary from the one described and pictured in this manual.
Revision 15-0729

REACH User Manual
Page 2
You have made a great choice for your child by choosing a Leggero chair. We
believe that every child should be able to function to the best of their ability. We
welcome questions and comments about our products and services. Please
contact us or an authorized provider using the information below.
Provider Name
Address
Phone
Email
Website
Authorized Leggero Provider:
Leggero

REACH User Manual
Page 3
Table of Contents
Section 1: Introduction & Features Page
1.1 Introduction 4
1.2 Intended Reach User 4
1.3 Intended Reach Attendant 4
1.4 Terms of Warranty 4
1.5 Service & Repairs 4
1.6 Features 5
1.7 Seating & Positioning Components 6
1.8 Adjustability & Specications 7
Section 2: Warnings 8
Section 3: Unpacking Your Reach Chair 11
Section 4: Operation and Adjustment 12
4.1 Wheel Locks 12
4.2 Handlebar Angle Adjustment 13
4.3 Knee Angle Adjustment 13
4.4 Seat Tilt Angle Adjustment 13
4.5 Hip Angle Adjustment 14
4.6 Folding 14
4.7 Footbed Height Adjustment 15
4.8 Back Height Adjustment 17
4.9 Seat Depth Adjustment 17
4.10 Armrest Adjustment 19
4.11 Positioning Tray 19
4.12 Using the Reach as a Chair in a Motor Vehicle 20
Section 5: Limited Warranty 21
Section 6: Maintenance and Maintenance Record 22

REACH User Manual
Page 4
1.1 Introduction
Thank you for selecting the Reach chair. This manual explains how to operate, adjust, and
maintain your Reach chair. The product as described is subject to technical alterations without
notice.
We are sorry that we cannot offer this user information in a format, appropriate for use by
visually impaired people. The visually Impaired must contact an authorized Leggero provider to
obtain information and instruction in the form of verbal communication and hands on training if
necessary.
1.2 Intended Reach User
Rehab pushchairs and pediatric positioning systems are appropriate for children who are limited
to a seated position and require mobility and positioning assistance. Individuals who need such
assistance can have a wide variety of diagnosis limiting their ability to achieve mobility without
such a system. For maximum occupancy rating and additional specications, reference section
1.7 of this manual.
1.3 Intended Reach Attendant
Attendants who operate the chair must be visually, mentally, and physically capable of safely
operating the chair under all circumstances. Attendants must read and follow all instructions
provided in this manual.
1.4 Terms of Warranty
Warranty applies only when the product is used in concordance with the manufacturer’s
recommendations and for the intended purposes and specied conditions of the product.
1.5 Service and Repairs
Service and repair of the Reach chair should be performed only by Leggero authorized
providers. Should any problems arise, please contact the provider that supplied the chair.
Authorized providers only replace and install original Leggero spare parts.
Section 1: Introduction, Warnings, & Features

REACH User Manual
Page 5
1.6 Features
Handlebar Angle
Adjustment
Quick Release
Rear Wheels
Wheel Lock Lever
Adjustable Height Back
Adjustable Height
Footbed
Serial Number Label
Adjustable Depth Seat
Sun & Weather Shade
Armrests/Tray Receivers
Folding
Handle

REACH User Manual
Page 6

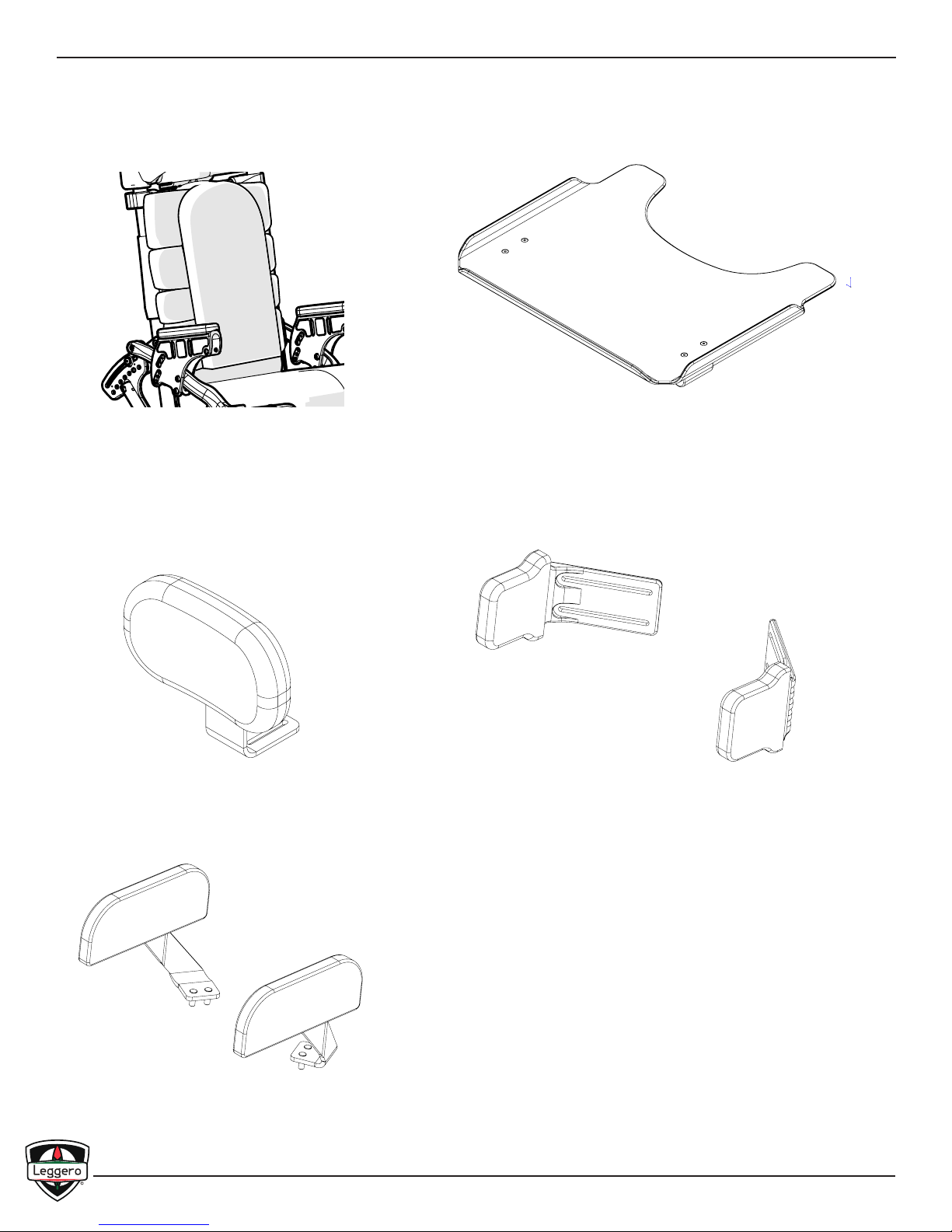

1.7 Seating & Positioning Components
LT Back Cushion
Headrest Options Lateral Thoracic Supports
Lateral Pelvic Supports
Therapeutic Positioning Tray

REACH User Manual
Page 7
1.8 Adjustability and Specications
Adjustability
Reach 12 Reach 14 Reach 16
Seat Depth 8-13” (20-33cm) 11-16” (28-40cm) 13-18” (33-46cm)
Seat Width 12” (30cm) 14” (35cm) 16” (40cm)
Seat to Fooplate 8-13” (20-33cm) 11-16” (28-40cm) 13-18” (33-46cm)
Max Back Height 18” (46cm) 21” (53cm) 24” (61cm)
Hip Angle Adjustment 85-115° 85-105° 85-95°
Seat Angle 10°, 20°, or 30° 10°, 20°, or 30° 10°, 20°, or 30°
Specications
Reach 12 Reach 14 Reach 16
Maximum User Weight 80lb (36kg) 110lb (50kg) 150lb (68kg)
Mobility Base Weight 27lb (12kg) 29lb (13kg) 31lb (14kg)
Overall Width 21.5” (55cm) 23.5” (60cm) 25.5” (65cm)
Front Tire Diameter 7” (18cm) 7” (18cm) 7” (18cm)
Rear Tire Diameter 16” (40cm) 16” (40cm) 16” (40cm)
Folded Dimensions 31 x 21.5 x 18”
(79 x 55 x 46cm) 31 x 23.5 x 18” (79 x 60 x 46cm) 33 x 25.5 x 18” (84 x 65 x 46cm)
Maximum Safe Slope 5° 5° 5°

REACH User Manual
Page 8
Section 2: Warnings
Read this Manual Completely Before Using
All caregivers and/or attendants must read this user manual prior to operating the Reach chair.
Familiarize yourself with the handling and functions of the product prior to actual use. If there is
any information in this manual that you do not understand, please contact your authorized Leggero
provider for assistance.
Failure to follow instructions or comply with warnings within this manual could result in
personal injury and/or damage to the Reach chair, potentially voiding the warranty.
WARNING!
The word “WARNING” or this symbol indicate practices that are unsafe or
dangerous and could result in serious injury to the occupant and/or caregiver.
Symbols Used on Product Warning Labels and in User Manual
WARNING! READ INSTRUCTION MANUAL
Choose The Right Chair & Safety Options
In the mobility industry, there are several options available to meet the needs of children. Make
sure that your (and your provider’s) choice of chair and other options takes into account your child’s
comfort, positioning, physical limitations, and hazards that may be encountered during daily use.

REACH User Manual
Page 9
WARNING! All caregivers and/or attendants must read this user manual prior to operating the Reach
chair. Familiarize yourself with handling and functions of the product prior to actual use. If there is
any information in this manual that you do not understand, please contact your authorized Leggero
provider for assistance.
WARNING! Non-conventional use and/or handling of the product can be dangerous. The pushchair
is not safely suitable for skating or similar high speed activities. Swiveling front wheels can wobble
at higher speed and can cause a sudden stop and tip over of the chair. For maximum safety use the
pushchair only at regular walking speed. Under no circumstance should you let go of the handlebar
while pushing. Do not ever push the chair away.
WARNING! The initial set up of this pushchair must be performed by a qualied technician.
WARNING! Procedures other than those described in this manual must be performed by a qualied
technician.
WARNING! The weight carried by the Reach chair must not exceed the total weight limit of 80lb/36kg
for 12” chairs, 110lb/50kg for 14” chairs, or 150lb/68kg for 16” chairs (Maximum occupant weight plus
weight of accessories and/or items carried.)
WARNING! Adjustments made to the chair may affect stability, increasing the risk of tipping.
Adjustments must be made by your authorized Leggero provider.
WARNING! Avoid getting the chair wet or storing the chair in damp environments. Excess moisture
can cause rust or corrosion, which can result in component failure. If the chair is exposed to moisture,
dry thoroughly.
WARNING! Do not leave the chair or child in the sun or near other heat sources since the surfaces on
the chair may reach temperatures capable of burning the child. Do not leave the chair or child outside
in cold temperatures because contact with a chair in temperatures below freezing could result in injury.
Damage to the chair may also result from exposure to extreme hot or cold temperatures.
WARNING! The chair should only be used on solid and level ground. Do not attempt to push
the chair over or into obstacles. Always remove the child from the chair when lifting chair to clear
obstacles.
WARNING! Do not use the chair on slopes steeper than 5 degrees. Do not leave the chair parked on
a slope or an incline. Pay particular attention when on slopes and inclines to prevent the child from
falling out of the chair, the chair from tipping over, or the chair from rolling away.
WARNING! Before leaving the chair and before getting into and out of it, always engage the wheel
locks. Do not use the wheel locks to stop the chair while moving.
Warnings: Failure to Follow These Warnings Could Result in
Serious Injury or Death

REACH User Manual
Page 10
WARNING! Never leave your child unattended in the chair even if they are strapped in and the wheel
locks are engaged.
WARNING! If the chair occupant reaches for objects in front, to the side, or behind the chair, be sure
that they do not lean too far. The shift in the center of gravity might cause the chair to tip over.
WARNING! Do not stand on the footplate when transferring into or out of the chair.
WARNING! When folding the chair, be aware that there is a risk of injury through ngers becoming
crushed or trapped. Reference section 4.6 of this manual for further information.
WARNING! Straps from chest harnesses or lap belts can become trapped in the folding lock bracket.
Please trim all straps as shortly as possible. Always ensure that frame is locked into upright position
prior to resuming use. When unfolding, you will hear a “click” when the frame locks.
WARNING! The chair is only intended to carry one child at a time. Do not carry more than one child
at a time.
WARNING! Only lift the chair by parts that are solidly attached. The chair should be lifted by the side
frame members whenever possible. If folded, hold the chair by the lower side frame tubes. Always
use two people for lifting to prevent injury and damage to the chair.
WARNING! Please keep packaging material away from children. Discard all plastic packaging
material immediately after unpacking.
WARNING! If your chair is not equipped with the transit option, do not use it as a seat in a motor
vehicle. Transfer the child from the chair to an approved motor vehicle seat. If your chair is equipped
with the transit option, refer to the section 4.12 in this manual.
WARNING! The chair must be inspected and maintained per the chart in Section 6: Maintenance.
Problems detected must be repaired prior to resuming use of the chair.
WARNING! Many of the fasteners used to construct the Reach chair consist of a bolt with a nut that
contains a nylon lock ring. These connections must be maintained and secured with the original
equipment fasteners and properly adjusted. For proper adjustment of pivot points, consult your
authorized service provider.

REACH User Manual
Page 11

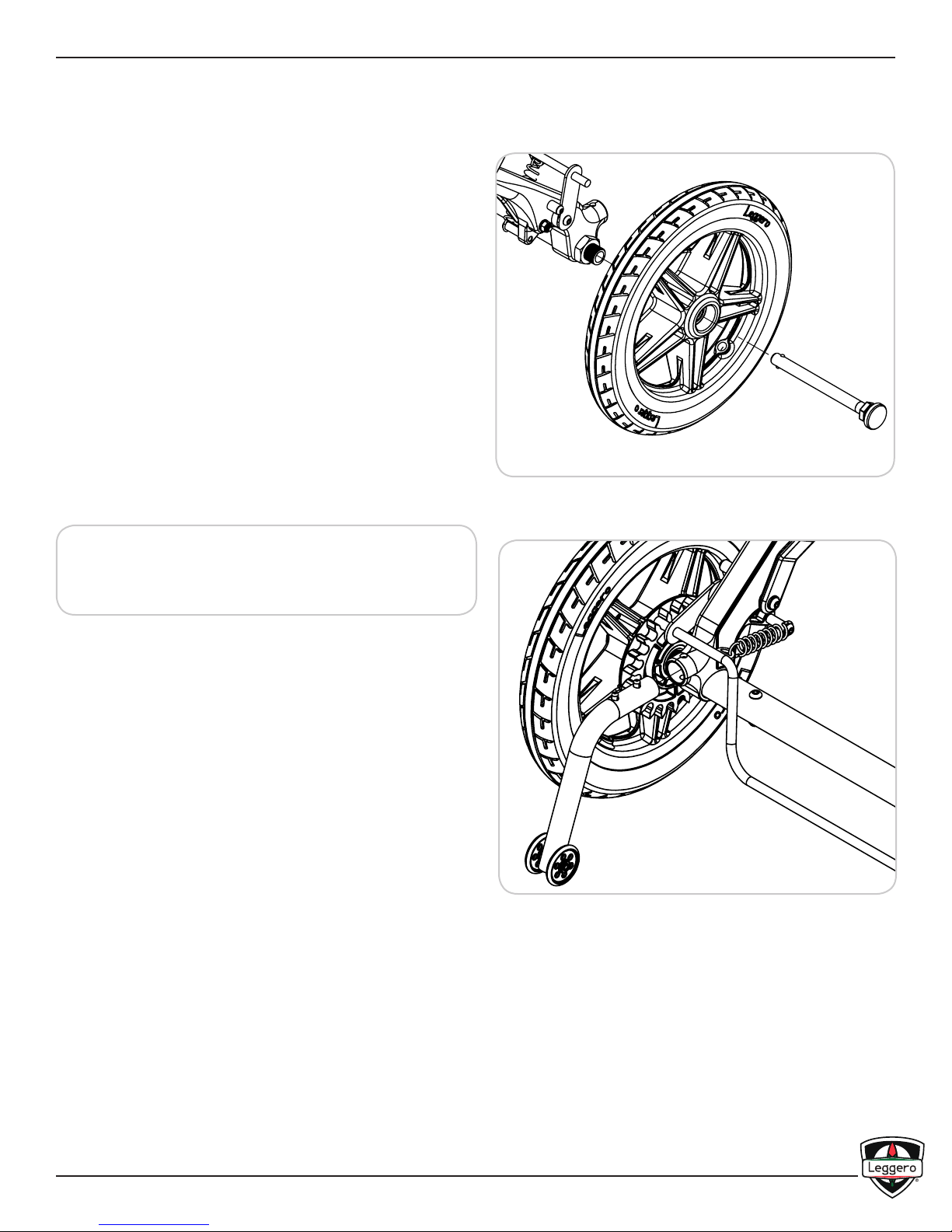

Section 3: Unpacking the Reach Chair
1. Remove chair from packaging.
2. Discard all plastic packaging materials.
3. Unfold frame and seat back, reference Section
4.6 of this manual.
4. Install rear wheels, reference Figure 1.
5. Check for proper adjustment of quick release
axles by pulling outward on wheel. Wheel
should hold in place.
6. Engage wheel locks, reference section 4.1 of
this manual.
7. Install anti-tips, reference Figure 2
Figure 1
WARNING! Please keep packaging material
away from children. Discard all plastic packaging
material immediately after unpacking.
Figure 2

REACH User Manual
Page 12
Section 4: Operation and Adjustment
Tools Required:
4mm Hex Wrench 13mm Wrench
4.1 Wheel Lock Operation
1. To engage wheel locks, push crossbar
down with foot. Reference Figure 3.
2. Verify wheel locks are engaged on each
side by trying to move chair front to back.
3. To disengage wheel locks, pull crossbar
up with foot. Reference Figure 4.
Figure 3
5mm Hex Wrench
Push DownTo
Engage Wheel
Lock
Pull Up To
Disengage
Figure 4

REACH User Manual
Page 13

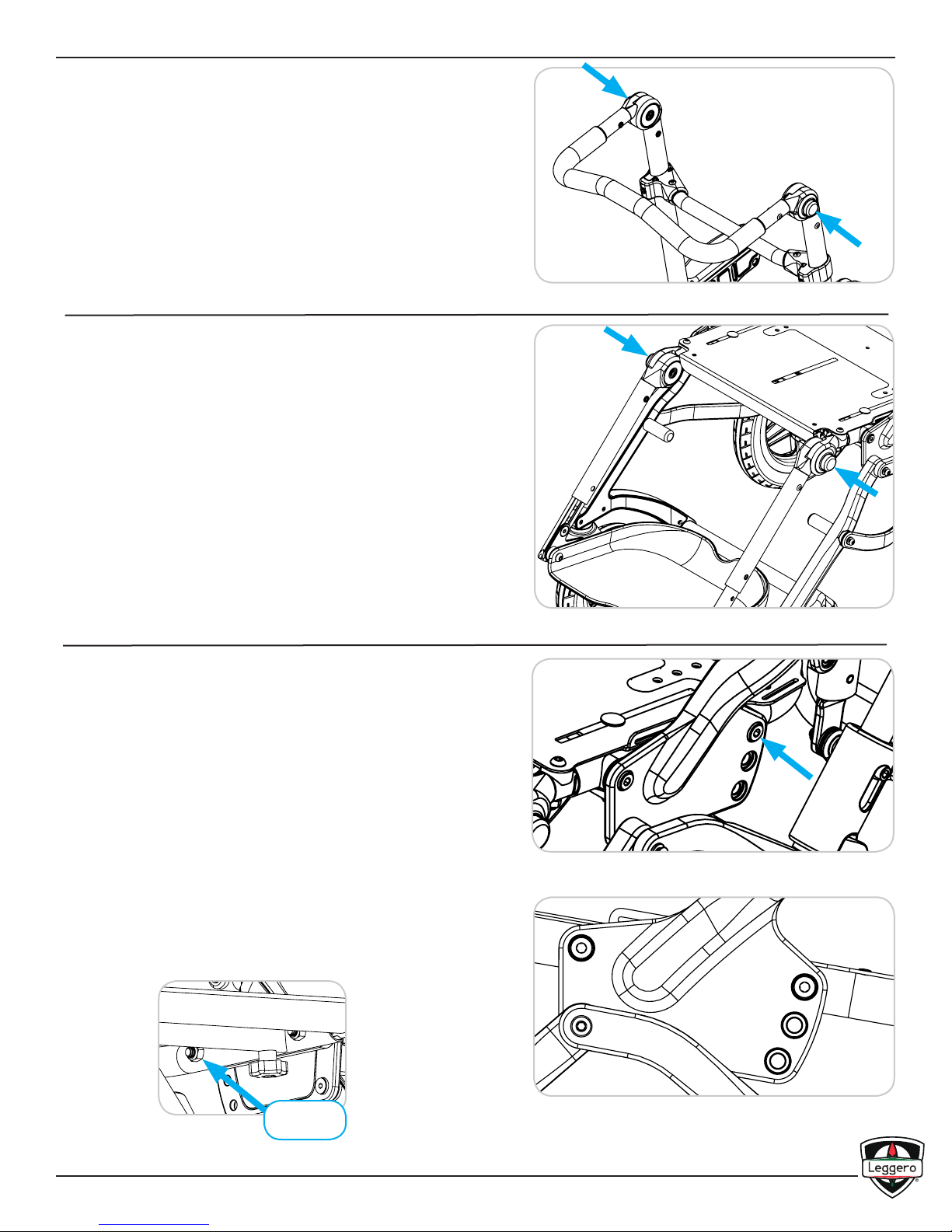

4.2 Handlebar Angle Adjustment
1. Press and hold buttons on outside of each
adjustment ratchet, reference Figure 5.
2. Adjust handlebar to desired angle.
3. Release buttons.
Figure 5
4.3 Knee Angle Adjustment
1. Press and hold buttons on outside of each adjustment
ratchet, reference Figure 6.
2. Adjust knees to desired angle.
3. Release buttons.
Figure 7
4.4 Seat Tilt Angle Adjusment
1. Engage Wheel Locks.
2. Remove bolt and nut from left and right sides,
reference Figure 7. 5mm hex wrench and 13mm
wrench required.
3. Adjust seat to desired angle, reference Figure 8.
4. Install bolts and nuts, tighten. Do not over-torque,
this could result in damage to the seat tube.
5. Adjust hip angle to desired angle, reference
section 4.5.
Figure 6
Nut Figure 8
10°
30°
20°

REACH User Manual
Page 14
4.5 Hip Angle Adjustment
1. Engage wheel locks.
2. Place one hand on handlebar.
3. Rotate handle in either direction to unlock hip
angle.
4. Adjust to despired position.
5. Release handle to lock into position.
6. To verify hip angle is locked, check alignment of
handle assembly. Linkages should be parallel to
tube as shown in Figure 9.
Figure 9, Locked
4.6 Folding & Unfolding
Folding
1. Engage wheel locks.
2. If chair has 20° or 30° seat angle, adjust hip angle to
furthest forward postion.
3. If chair has 10° seat angle, adjust hip angle one
position back from furthest forward.
4. Place one hand on handlebar, with other hand pull
folding handle upward. Reference Figure 11.
5. Push forward on handlebar and chair will fold.
6. Adjust handlebar inward.
7. Flip footbed upward.
8. Adjust knee angle as far inward as possible.
Unfolding
1. Adjust handlebar outward.
2. Flip Footbed down.
3. Swing knee ratchets outward.
4. Pull back on handlebar until locking mechanism locks
Figure 11
Figure 10, Unlocked
Figure 12
Folding Handle
Locked Unlocked

REACH User Manual
Page 15

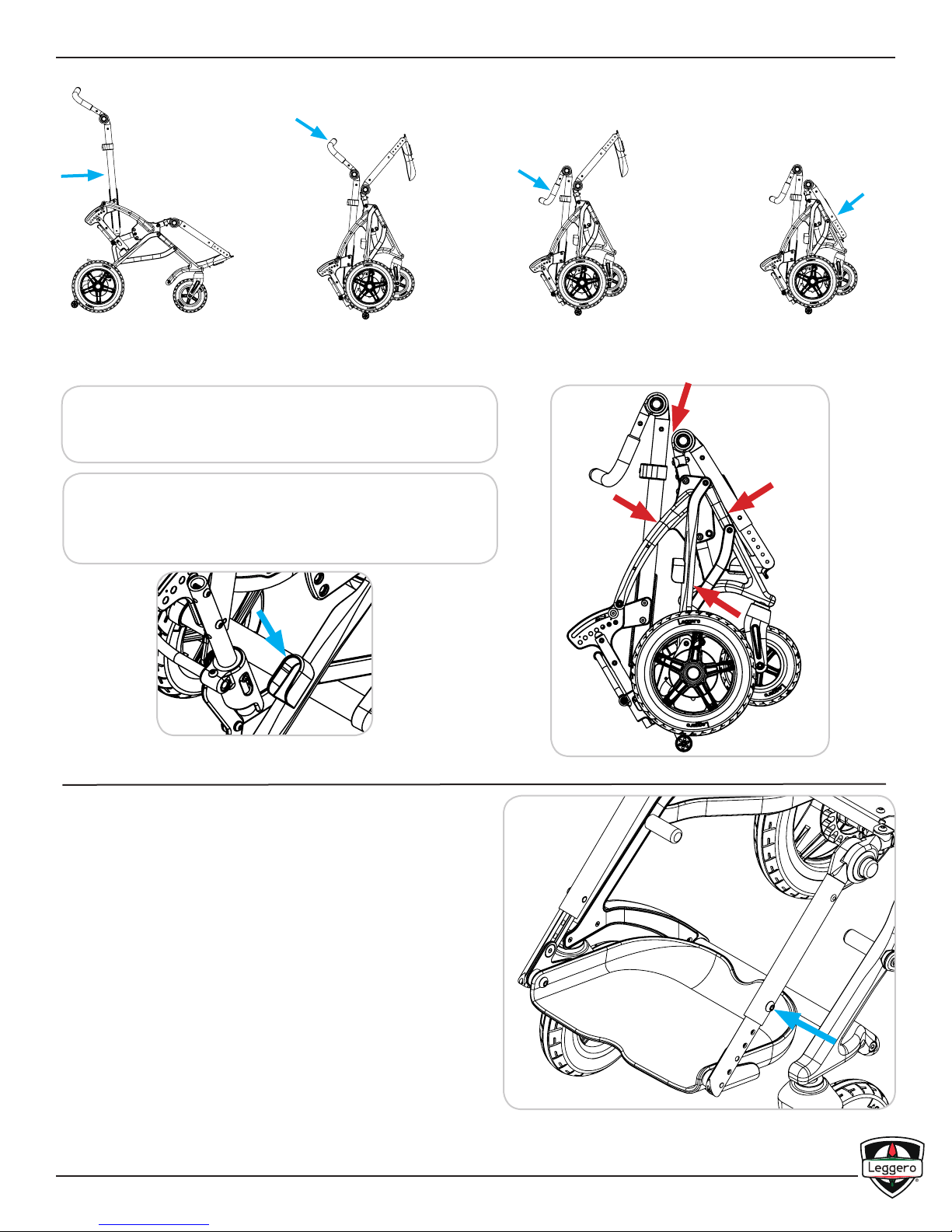

WARNING! When folding or unfolding, keep arms,
hands, and feet clear of moving components to avoid injury.
Reference Figure 13, arrows indicate potential pinch points.
Figure 14
Adjust Hip Angle Forward Pull Handle & Fold Adjust Handlebar In Flip Up Footplate &
Adjust Knees In
Figure 13
4.7 Footbed Height Adjustment
1. Remove left and right button head bolts,
reference Figure 14. 5mm hex wrench required.
2. Adjust footrest assembly to desired height.
3. Reinstall bolts.
WARNING! Straps from chest harnesses or lap belts
can become trapped in the folding lock bracket. Please trim
all straps as shortly as possible & attach lap belt buckles
prior to folding.
Straps Here Can Prevent
Frame from Locking

REACH User Manual
Page 16
1. Remove bolts as described in previous
section.
2. Remove footbed assembly from chair.
3. Remove at head and button head
bolts from left and right sides, reference
Figure 16. 5mm Hex wrench required.
4. Reinstall bolts in lowest position on
footbed extensions as shown in Figure
17.
5. Reinstall footbed assembly and adjust
to desired height.
Figure 15
Figure 17Figure 16
4.7 Footbed Height Adjustment Cont.
If your footbed is currently congured as shown in Figure
14, it may be necessary to adjust the footbed assembly
downward on the footrest extensions (12” & 14” chairs only).
For 12” units, it will be necessary to change the
footbed extensions to obtain leg drops beyond
11in./28cm. Longer extensions were supplied
with your chair, but if you do not have them please
contact your authorized provider.
1. Remove bolts as described in previous section.
Reference Figure 18.
2. Install longer extensions as shown in Figure 19.
For the next leg drop position beyond what was
achievable with shorter extensions, install at
head bolts through 7th hole from top of footbed
extensions.
3. Install footbed assembly in chair and adjust to
desired height
Figure 18
Figure 19
7th Hole
Long Extensions
Short Extensions

REACH User Manual
Page 17

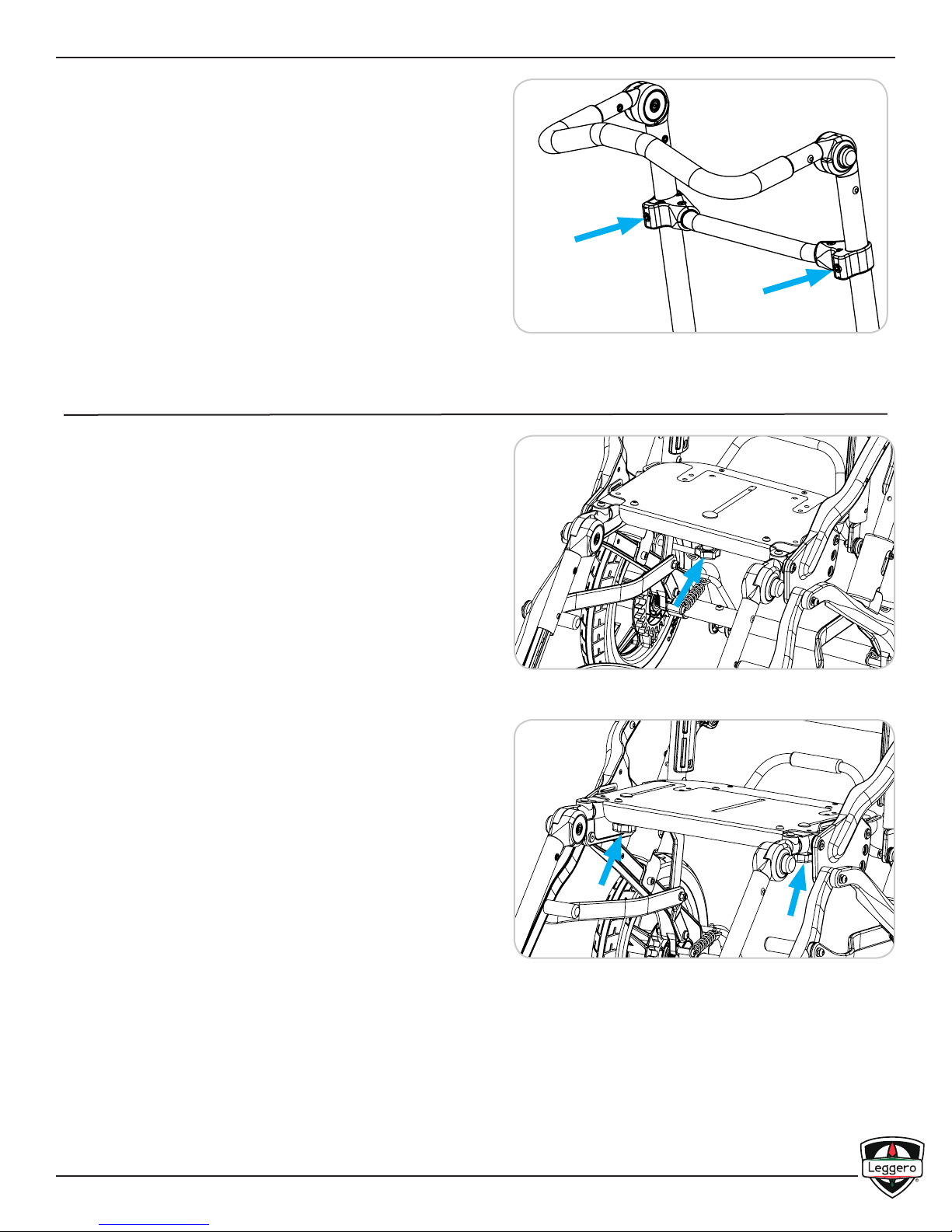

4.8 Back Height Adjustment
1. Loosen bolts at locations shown in Figure 20.
5mm hex wrench required.
2. Adjust back to desired height.
3. Tighten bolts.
Figure 20
4.9 Seat Depth Adjustment
1. Loosen seat cushion straps.
2. Loosen knob(s) under seat plate. Reference
Figure 21 or 22.
3. Adjust front seat assembly to desired depth.
4. Tighten knob.
5. Tighten seat cushions straps.
Figure 22, 2 knobs 14” & 16” Chair
Figure 21, Single Knob 12” Chair

REACH User Manual
Page 18

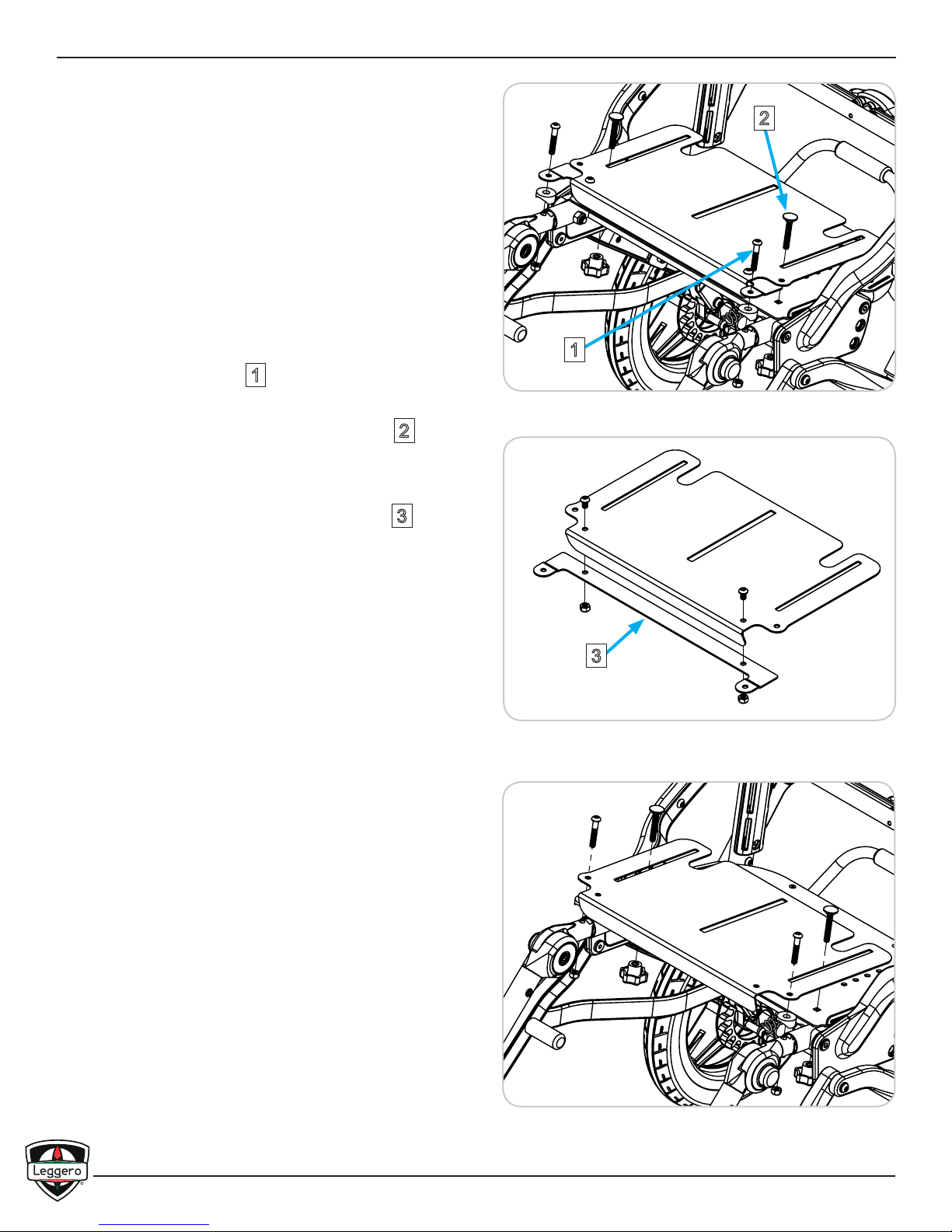

4.9 Seat Depth Adjustment Cont.
For 12” and 14” chairs, it may be necessary to
remove the seat adjustment plate to extend seat
depth to desired position. With 12” chairs, the plate
will need to be removed to achieve 11”-13” seat
depths. With 14” chairs, the plate will need to be
removed to achieve 14”-16” seat depths.
1. Remove seat cushion.
2. Remove front bolts using 4mm hex wrench
and 10mm wrench.
3. Remove seat depth adjustment bolts and
knobs.
4. Remove seat plate assembly from chair.
5. Remove seat depth adjustment plate from
seat plate using 4mm hex wrench and 10mm
wrench.
6. Reinstall seat plate as shown in Figure 24.
7. Reinstall front bolts, seat depth adjustment bolts,
and knobs.
8. Adjust seat to desired depth.
9. Reinstall seat cushion.
Figure 23
Figure 25
Figure 24
11
2
2
3
3

REACH User Manual
Page 19
4.10 Armrest Adjustment
To Adjust Height:
1. Remove button head bolts (4). 4mm hex wrench
required. Reference Figure 26.
2. Adjust to desired height.
3. Reinstall bolts.
To Adjust Angle:
1. Remove rear button head bolts (2). 4mm hex wrench
required.
2. Adjust to desired angle.
3. Reinstall bolts.
Figure 26
Height
Angle
Figure 27
Figure 29
Figure 28
4.11 Positioning Tray
1. To insert tray, swing left and right tray cam locks
downward. Reference Figure 28.
2. Slide Tray into receivers and adjust to desired depth.
3. Swing left and right tray cams upward to lock in place.
Reference Figure 29.

REACH User Manual
Page 20

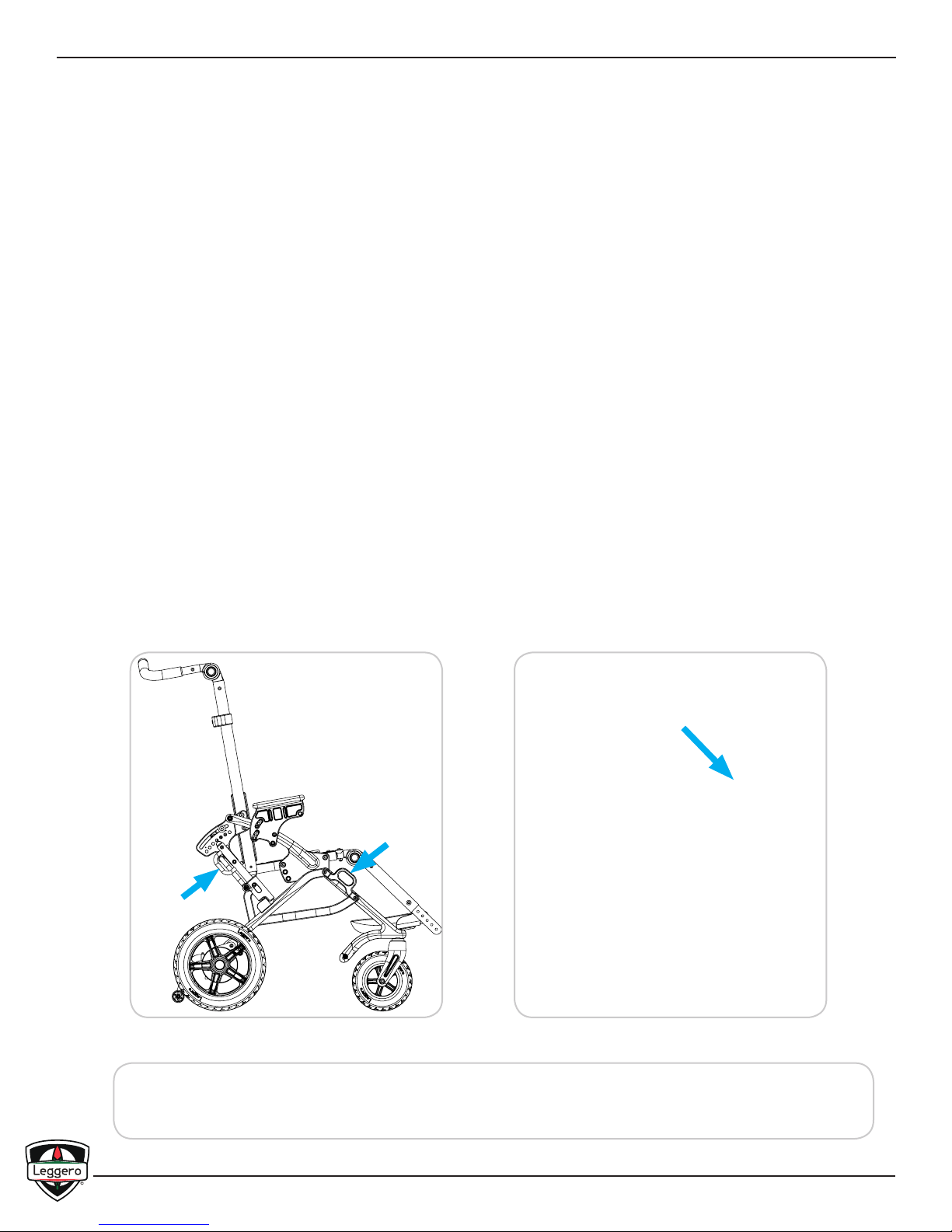

4.12 Using The Reach Chair As A Seat In A Motor Vehicle
The Reach Chair is approved for transporting children in motor vehicles when it is equipped with the OPTIONAL
transit feature and used in accordance with these instructions. The chair must be secured in a forward-facing position
with a Wheelchair Tie-down and Occupant Restraint System (WTORS) which meets the requirements of SAE J2249
Recommended Practice—Wheelchair Tie-down and Occupant Restraint Systems For Use in Motor Vehicles.
IMPORTANT INFORMATION:
This chair conforms to and has been dynamically tested in compliance with ANSI/RESNA WC/Vol. 1 – Section 19.5.3.
Please contact Leggero or your authorized Leggero provider if you have any questions regarding use of the chair for
seating in a motor vehicle. Contact information can be found on page 2 of this manual.
WARNINGS & INSTRUCTIONS:
• The Reach chair must be used as indicated in these instructions and the instructions supplied by the vehicle mounted
tie-down manufacturer.
• Chair occupant should be transferred to the vehicle seat and use the vehicle restraint system whenever possible.
• Do not exceed maximum occupant weight ratings. Reference Section 1.8 of this manual.
• The Reach Chair must be placed in a forward-facing position when used as a seat in a motor vehicle. Use an
approved 4-point strap-type tie-down system for the chair. Use an approved 3-point belt for occupants over
50lb/23kg. For occupants under 50lb/23kg, a 5-point transit harness is required.
• For approved transit tie-down locations and location of belt/harness attachment pin, see Figures 30 and 31.
• Restraints must not be held away from the child’s body by chair components or accessories.
• Belt or harness straps should be adjusted until they are snug and do not have slack. If you can pinch the webbing of
the belt straps between your ngers, then it is too loose.
• Only belt restraints that comply with the provisions of ANSI/RESNA WC/Vol. 1 – Section 19 4.9.2-4.9.5 and 5.2 that
have been dynamically tested in accordance with Annex A & 5.3 of the same, should be used on the chair for use as a
restraint in a motor vehicle.
Figure 30 Figure 31, Belt/Harness Attachment
WARNING! If your chair is not equipped with the transit option, do not use it as a seat in
a motor vehicle. Transfer the child from the chair to an approved motor vehicle seat.
