SOYO SY-6BE User manual

SY-6BE
Mainboard
Quick Start Guide
For Assembly Version 1.0
Hardware
Installation
Quick BIOS
Setup
Introduction

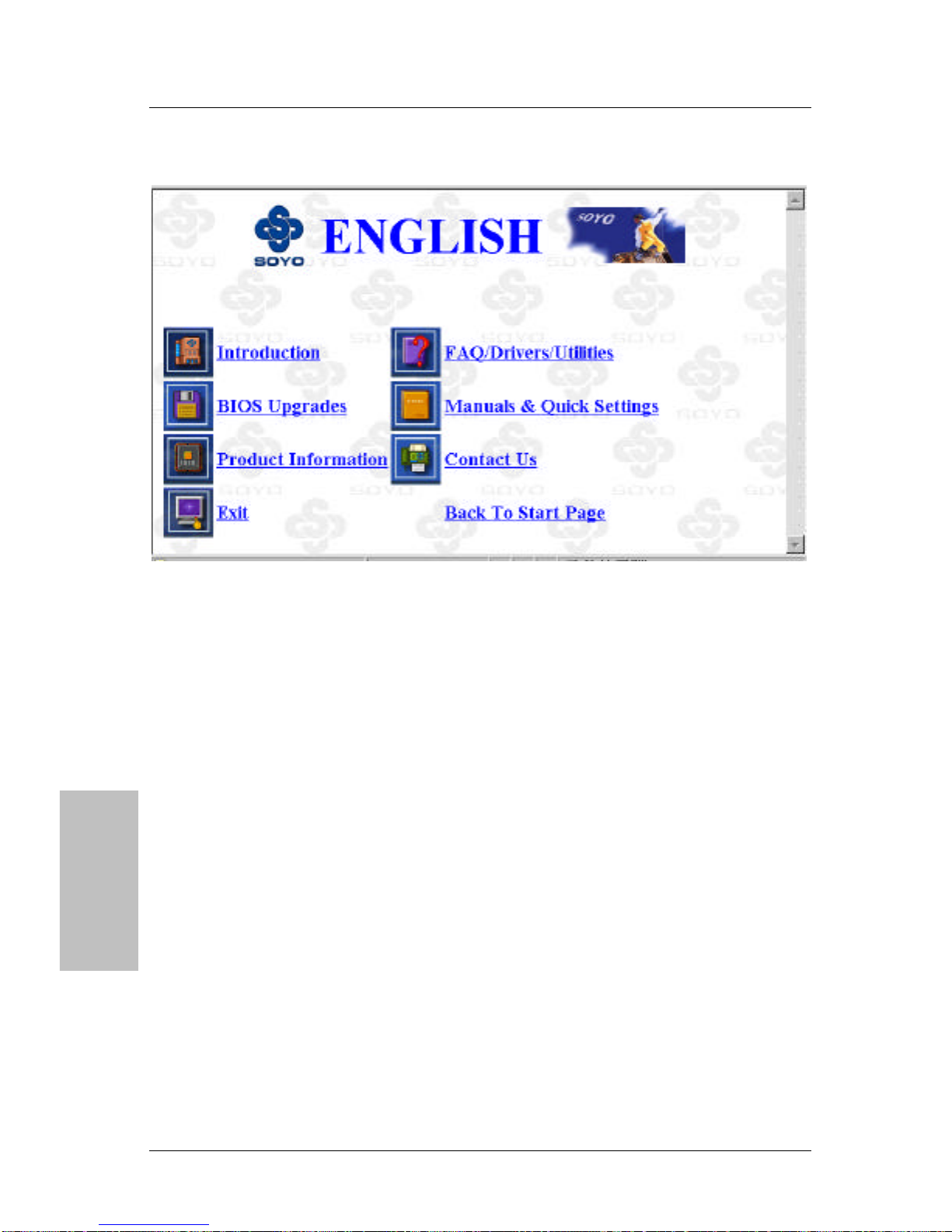

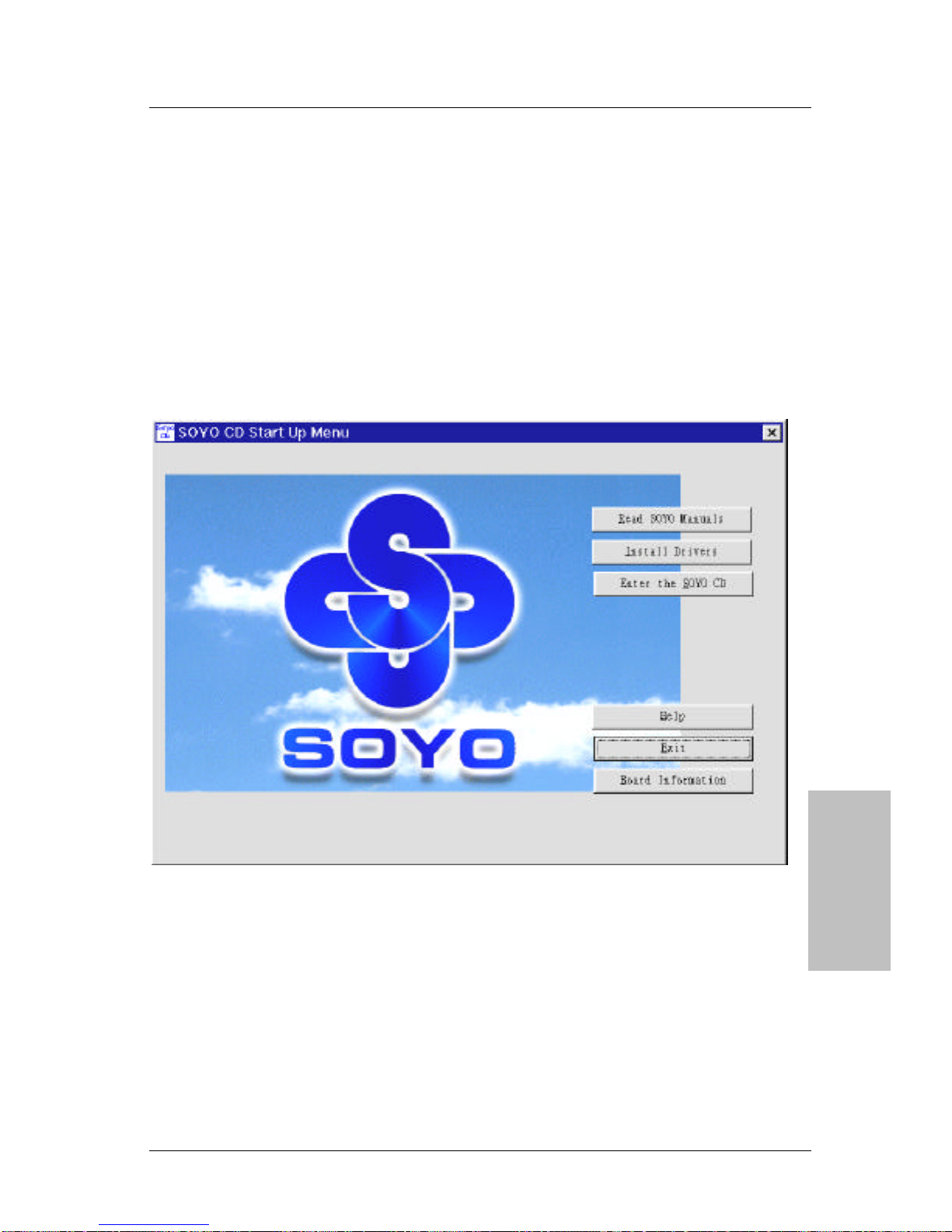

The SOYO CD

SOYO™
2
SY-6BE Mainboard
Pentium
®
II processor
82440 BX AGP/PCI Mainboard
66&100MHz Front Side Bus supported
ATX Form Factor
Copyright © 1998 by Soyo Computer Inc.
Trademarks:
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property of their
owners.
Product Rights:
Product and corporate names mentioned in this publication are used for identification purposes
only and may be registered trademarks or copyrights of their respective companies.
Copyright Notice:
All rights reserved. This manual is copyrighted by Soyo Computer Inc. You may not reproduce,
transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.
Disclaimer:
Soyo Computer Inc. makes no representations or warranties regarding the contents of this
manual. We reserve the right to revise the manual or make changes in the specifications of the
product described within it at any time without notice and without obligation to notify any
person of such revision or change. The information contained in this manual is provided for
general use by our customers. Our customers should be aware that the personal computer field is
the subject of many patents. Our customers should ensure that their use of our products does not
infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights
of third parties and not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend:
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at
252.277-7013.
About This Guide:
This Quick Start Guide is for assisting system manufacturers and end users in setting up and
installing the mainboard. Information in this guide has been carefully checked for reliability;
however, no guarantee is given as to the correctness of the contents. The information in this
document is subject to change without notice.
If you need any further information, please visit our Web Site on the Internet. The address is
"http://www.soyo.com.tw".
6BE Serial - Version 1.0 - Edition: August 1998
*Thesespecificationsaresubjecttochangewithoutnotice

SY-6BE Quick Start Guide
3
Introduction
1 1 Introduction
Congratulationsonyourpurchaseofthe SY-6BE Mainboard.ThisQuickStartGuide
describesthestepsforinstallingandsettingupyournewmainboard.
Thisguideisdesignedforalluserstoprovidethebasicstepsofmainboardsettingand
operation.Forfurtherinformation, pleasereferto SY-6BEMainboardUser'sGuideand
TechnicalReferenceonlinemanualincludedontheCD-ROMpackedwithyourmainboard.
Unpacking
*Ifyourboardcomeswithadriverdiscandapapermanual,theQuickStartGuideandtheCD-ROMarenotincludedinthepackage.

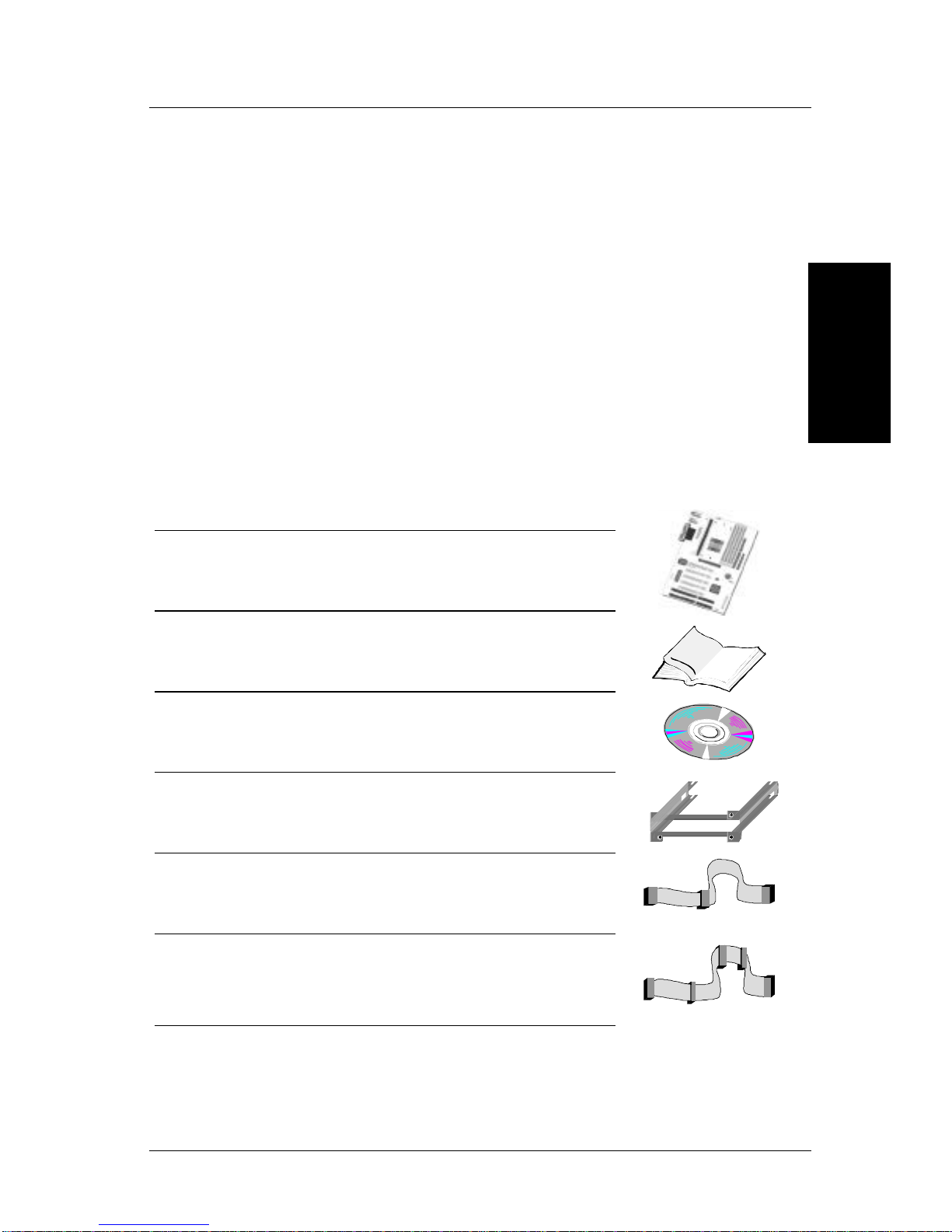

Whenunpackingthemainboard,checkforthefollowingitems:
u TheSY-6BE82440BXAGP/PCI Mainboard
u ThisQuickStartGuide
u TheInstallation CD-ROM
u TheCPURetentionSet
u OneIDEDeviceFlat Cable
u OneFloppyDiskDriveFlatCable

SY-6BE Quick Start Guide
4
Introduction
SY-6BE Mainboard Layout
Key Features
Ø SupportsIntelPentium
®
IIprocessor
(233-550MHz)
Ø Auto-detectCPUvoltage
Ø PC97,ACPI,UltraDMA/33MHz
Ø Power-onbymodemoralarm
Ø SupportsWake-On-LAN(WOL)
Ø Supportsonboardhardware
monitoringandincludesHardware
Doctor™utility
Ø SupportsCreativeSB-LINK™for
PCIaudiocard
Ø 1x32-bitAGPslot
Ø 4x32-bitbusmasteringPCIslots
Ø 2xUSBportsonboard
Ø 1xIrDAport
Ø Supportsmultiple-bootfunction
Ø DMIutility
COM 1
COM 2
PRT
USB 1USB 2
PS/2 KB
Connector
PS/2 Mouse
Connector JP10
PCI Slot #1
PCI Slot #2
PCI Slot #3
PCI Slot #4
ISA Slot #2
ISA Slot #1
ISA Slot #3
JP5
JP44
1
3
Intel
82371 EB
SB-LINK
Intel
82443 BX
IR1
15
1
CPUFAN
Ultra
I/O Chipset
CHAFAN
1
IDE 1
IDE 2
11
1
FDC
Slot 1 for
PentiumIIProcessor
1
3
AGP Slot
ATX
Power
DIMM 1
DIMM 2
DIMM 3
Speaker
Keylock
Power
LED
Reset
PWRBT
Turbo
LED
HDD LED
_
+
_
+
_
+
_
+
3
1
BIOS Flash
SW1
Wake on
LAN
TM

SY-6BE Quick Start Guide
5
Hardware
Installation
2 2 Installation
Toavoiddamagetoyourmainboard,followthesesimpleruleswhile
handlingthisequipment:
l Beforehandlingthemainboard,groundyourselfbygraspinganunpaintedportionof
thesystem'smetalchassis.
l Removethemainboardfromitsanti-staticpackaging.Holditbytheedgesandavoid
touchingitscomponents.
l Checkthemainboardfordamage.Ifanychipappearsloose,presscarefullytoseatit
firmlyinitssocket.
Followthedirectionsinthissectiondesignedtoguideyouthroughaquickandcorrect
installationofyournew SY-6BE Mainboard.Fordetailedinformation,pleaserefer to SY-6BE
MainboardUser'sguideandTechnical Reference onlinemanualincludedontheCD-ROM
packedwithyourmainboard.
PREPARATIONS
Gatherandprepareallthenecessaryhardwareequipmenttocompletetheinstallation
successfully:
u Pentium
®
II processorwithbuilt-inCPUcoolingfan(boxedtype)
u SDRAMmodule
u Computercaseandchassiswithadequatepowersupplyunit
u Monitor
u PS/2Keyboard
u PointingDevice(PS/2mouse)
u VGACard
u SoundCard(optional)
u Speaker(s)(optional)
u DiskDrives:HDD,CD-ROM,Floppydrive…
u ExternalPeripherals:Printer,Plotter,andModem-(optional)
u InternalPeripherals:ModemandLANcards(optional)

SY-6BE Quick Start Guide
6
Hardware
Installation
Install the Mainboard
Followthestepsbelowinordertoperformtheinstallationofyournew SY-6BE Mainboard.
Step 1. Install the CPU
Mark your CPU Frequency: RecordtheworkingfrequencyofyourCPU
thatshouldbeclearlymarkedontheCPUcover.
233MHz(66 x3.5) 300MHz(66 x4.5) 350MHz (100 x 3.5) 450MHz (100x 4.5)
266MHz(66 x4.0) 333MHz(66 x5.0) 400MHz (100 x 4.0) 500MHz (100x 5.0)
550MHz(100 x5.5)
CPU Mount Procedure: TomountthePentium
®
IIprocessorthatyouhave
purchasedseparately,followthese instructions.
1
Unpack the Retention Kit 2
Position the Mainboard 3
Insert the Screws
4
Install the Supporting Base
5
Install the Retention Clip 6
Install the CPU
7
Install the Support Clip 8
Insert the Latches 9
Remember to connect the CPU
Cooling Fan to the CPUFAN
power connector on the
mainboard.
Supporting Base
Support Clip
Screws (x2)
Retention Clip
Latches (x2)
ATX Power
Heat Sink
Slot 1
CPUFAN Power Larger Pinhole

SY-6BE Quick Start Guide
7
Hardware
Installation
Step 2. Make Connections to the Mainboard
Thissectiontellshowtoconnectinternalperipheralsandpowersupplytothemainboard.
InternalperipheralsincludeIDEdevices(HDD,CD-ROM),FloppyDiskDrive,Chassis Fan,
FrontPanelDevices(TurboLED,InternalSpeaker,ResetButton,IDELED,and KeyLock
Switch.),Wake-On-LANcard,VGAcard,SoundCard,andotherdevices.
FormoredetailsonhowtoconnectinternalandexternalperipheralstoyournewSY-6BE
Mainboard,pleasereferto SY-6BE MainboardUser'sGuideandTechnical Reference online
manualonCD-ROM.
Connectors and Plug-ins
PCI Audio Card Header: SB-Link™Wake-On-LAN Header: JP44
Connect the SB-Link™cable from your
creative sound blaster PCI audio card to
this header.
Connect the WOL cable from your LAN
card to JP44.
CPU Cooling Fan: CPUFAN Chassis Fan: CHAFAN
Connect the CPU cooling fan cable to the
CPUFAN power connector. Connect the case cooling fan cable to the CHAFAN power connector.
USB TB LED SPK
Plug your USB devices
to this connector.
Connect your Turbo LED
cable to this header.
Connect the speaker cable to
this header.
RESET IDE LED KB-LOCK
Connect the reset button
to this heder.
Connect the IDE device
LED to this header.
Connect the Power LED and the
KB Lock switch to this header.
IrDA (Infrared Device
Header): IR1 ATX Power On/Off: PWRBT ATX Power Supply: ATX PW
Connect the cable from
your IrDA device to this
header.
Connect your power switch to this
header (momentary switch type).
To turn off the system, please
press this switch and hold down
for longer than 4 seconds.
Attach the ATX Power
cable to this connector.

SY-6BE Quick Start Guide
8
Hardware
Installation
Step 3. Configure Memory
YourboardcomeswithfourDIMMsockets,providingsupportforupto768MBofmain
memoryusingDIMMmodulesfrom8MBto256MB.For66MHzfrontsidebusCPUsuse
12nsorfastermemory;for100MHzfrontsidebusCPUsuse8ns(100MHz,PC100
compliant)memory.
Memory Configuration Table
Number of
Memory Modules DIMM 1 DIMM 2 DIMM 3
11st
22nd 1st
33rd 2nd 1st
RAM Type SDRAM
Memory Module
Size (MB) 8/16/32/64/128/256 Mbytes
Note:(1) 256 MB memory modules only available on PC registered DIMM.
(2) Always install memory modules in the order prescribed in this table.
(3) Do not install unbuffered and registered memory modules together.
Important: ItisofprimeimportancethatyouinstallDIMMmodulesasoutlinedinthetable
aboveinordertopreservesignalintegrityon100MHzfrontsidebussystems.
Step 4. Set SW1 for AGP bus clock
SW1isusedtosettheAGPbusclockfrequency.ThedefaultsettingforSW1isopen.
SW1hastobeclosedbyajumpercapwhenyousettheCPUHost(FSB)clockto66,68or
75MHz.
SW1
CPUFSBClock AGP Clock
66 66
68 68
SW1
AGPClock =
CPUFSBCLK ÷ 1
75 75
83 55.3
100 66.6
103 68.6
112 74.6
SW1
AGPClock =
CPUFSBCLK ÷ 1.5
133 88.6
Note: The specification of maximum AGP bus clock frequency is 66.6MHz.

SY-6BE Quick Start Guide
9
Hardware
Installation
Step 5. Set the CPU Frequency
ThismainboarddoesnotuseanyjumperstosettheCPUfrequency,CPUsettingare
changedthroughtheBIOS[ChipsetFeaturesSetup].RefertoChapter3 “QuickBIOS
Setup”fordetailsonhowtosetthePentium

IIprocessorfrequency.
Enable/Disable Power-On by Keyboard (JP10)
YoucanchoosetoenablethePower-OnbyKeyboardfunctionbyshortingpin1-2onjumper
JP10,otherwise,shortpin2-3todisablethisfunction.
Power-On by
Keyboard Enable Disable* (*Default)
JP10 Setting Short pin 1-2 to enable the
Power-On by Keyboard function. Short pin 2-3 to disable the Power-On by Keyboard function.
Important: When using the Power-On by Keyboard function, please make sure the
ATX power supply can take at least 700mAmp load on the 5V Standby lead (5VSB) to
meet the standard ATX specification.
Clear CMOS Data (JP5)
CleartheCMOSmemorybymomentarilyshortingpin2-3onjumperJP5foratleast5
seconds,andthenbyshortingpin1-2toretainnewsettings. Thisjumpercanbeeasily
identifiedbyitswhitecoloredcap.
CMOS Clearing Clear CMOS Data Retain CMOS Data (Default)
JP5 Setting Short pin 2-3 for at least 5 seconds
to clear the CMOS.
Short pin 1-2
to retain the
new settings.
Note: You must unplug the ATX power cable from the ATX power connector when
performing the CMOS Clear operation.
3
2
1
3
2
1
3
2
1
3
2
1

SY-6BE Quick Start Guide
10
Quick BIOS
Setup
3 3 Quick BIOS Setup
Afterthehardwareinstallationiscomplete,turnthepowerswitchon,thenpressthe <DEL>
keyduringthesystemdiagnosticcheckstoentertheAwardBIOSSetupprogram.The
CMOSSETUPUTILITYwilldisplayonscreen.OK,followthesestepstocompletethequick
BIOSsetup.
Step 1. Select [LOAD SETUP DEFAULT]
Selectthe“LOADSETUPDEFAULT”menuandtype “Y”attheprompttoloadtheBIOS
optimalsetup.
Step 2. Select [STANDARD CMOS SETUP]
Set[Date/Time]and[Floppydrivetype],thenset[Hard DiskType]to “Auto”.
Step 3. Select [CHIPSET FEATURES SETUP]
Movethecursortothe [CPUFrequency] fieldtosettheCPUfrequency.
Available[CPUFrequency]settingsonyourSY-6BE Mainboardaredetailedinthefollowing
table.Ifyousetthisfieldto[Manual],youarethenrequiredtofillinthenexttwoconsecutive
fields:(1)theCPUHostClockSelect,and(2)theCPURatio.
CPU Frequency
233MHz (66 x 3.5) 400MHz (100 x 4.0)
266MHz (66 x 4.0) 450MHz (100 x 4.5)
300MHz (66 x 4.5) 500MHz (100 x 5.0)
333MHz (66 x 5.0) 550MHz (100 x 5.0)
350MHz (100 x 3.5)
Select the working frequency of
your Pentium® II processor among
these preset values.
Note: Mark the checkbox that
corresponds to the working
frequency of your Pentium® II
processor in case the CMOS
configuration should be lost.
Step 1. Select [SAVE & EXIT SETUP]
Press <Enter> tosavethenewconfigurationtotheCMOSmemory,andcontinuetheboot
sequence.

SY-6BE Quick Start Guide
11
The SOYO CD
4 4 The SOYO CD
YourSY-6BEMainboardcomeswithaCD-ROMlabeled"SOYOCD."TheSOYOCD
containstheuser'smanualfileforyournewmainboard,the driverssoftwareavailablefor
installation,andadatabaseinHTMLformatwithinformationonSOYO mainboardsand
otherproducts.
Step 1. Insert the SOYO CD into the CD-ROM drive
TheSOYOCDwillauto-run,andtheSOYOCDStartUpMenuwilldisplayasshownbelow.
(SOYOCD Start UpProgram Menu)
TheSOYOCDStartUpProgramautomaticallydetectswhichSOYOmainboardyouown
anddisplaysthecorrespondingmodelname.
Step 2. Read SOYO [model name] Manual
Clickthe Read Manual buttontoopentheuser'smanualfileofyourmainboard.

SY-6BE Quick Start Guide
12
The SOYO CD
PleasenotethatiftheStartUpprogramwasunabletodeterminewhichSOYOmainboard
youown,themanualselectionmenuwillpopup,asshownbelow.Thenselecttheuser's
manualfilethatcorrespondstoyourmainboardmodelnameandclick OK.
(ManualSelection Menu)
Theuser'smanualfilesincludedontheSOYOCDcanbereadinPDF(Postscript
Document)format.InordertoreadaPDFfile,theappropriateAcrobatReadersoftware
mustbeinstalledinyoursystem.
Note: TheStartUpprogramautomaticallydetectsiftheAcrobatReaderutilityisalready
presentinyoursystem,andotherwisepromptsyouonwhetherornotyouwanttoinstallit.
YoumustinstalltheAcrobatReaderutilitytobeabletoreadtheuser'smanualfile.Follow
theinstructionsonyourscreenduringinstallation,thenoncetheinstallationiscompleted,
restartyoursystemandre-runtheSOYOCD.
Step 3. Install Drivers
Clickthe Install Drivers buttontodisplaythelistof driverssoftwarethatcanbeinstalledwith
yourmainboard.TheStartUpprogramdisplaysthedriversavailablefortheparticularmodel
ofmainboardyouown.Werecommendthatyouonlyinstallthosedrivers.
However,todisplaythe listofall driverssoftwareavailable withSOYO mainboards,clickthe
DisplayalldriversontheSOYOCD button.Pleasemakesuretoinstallonlythedrivers
adaptedtoyoursystem,orotherwisethiscausesystemmalfunctions.
Please select your manual In the box below
and click OK.
SOYO CD Manuals
6BE OK Back

SY-6BE Quick Start Guide
13
The SOYO CD
(DriverInstallation Menu)
Selectwhichdriveryouwanttoinstallandclick OK, orclick Cancel toabortthedriver
installationandreturntothemainmenu.
Note: Onceyouhaveselectedadriver,thesystemwillautomaticallyexittheSOYOCDto
beginthedriverinstallationprogram.Whentheinstallationiscomplete,mostdriversrequire
torestartyoursystembeforetheycanbecomeactive.
Step 4. Enter the SOYO CD
Clickthe EnterSOYO CD buttontoentertheSOYOHTMLdatabase.TheStartUp
programwillactivatethedefaultHTMLbrowserinstalledonyoursystem(forexample,
InternetExplorerorNetscape)tovisualizethecontentsoftheSOYOCD.
TheSOYOCDcontainsusefulinformationaboutyourmainboardandotherSOYOproducts
availableinasmanyaselevendifferentlanguages.Foryourconvenience,thisinformationis
availableinHTMLformat,similartotheformatwidelyusedontheInternet.
Please select the driver you want to install and click OK, You will have to
restart your system after installation. Only the drivers that are relevant
to your board are displayed initially.
Intel Southbridge Drivers
Intel BusMaster Drivers for Win95
Intel Bus Master Drivers for Win NT
Intel BusMaster Drivers for OS/2
Cancel Display drivers for
the 6BE board OK
Driver Installation

SY-6BE Quick Start Guide
14
The SOYO CD
(SOYOCD HTMLDatabase inEnglish*)
(*Thelistofmenuoptionsmayvarybetweenlanguages)
Note: IfnoHTMLbrowserisinstalledonyoursystem,theStartUpprogramwillpromptyou
onwhetherornotyouwouldliketoinstalltheInternetExplorer*browser.ClickYEStoinstall
theHTMLbrowser.Aftertheinstallationiscomplete,pleaserestartyoursystem.Thenre-run
theSOYOCDandyouwillbeabletobrowsetheSOYOHTMLdatabase.
(*InternetExplorerisaMicrosoftTrademark)

Edition: August 1998
Version 1.0
6BE SERIAL
International Headquarters
SoyoComputerInc.,(Taiwan)
Tel:[phone]
Fax:[phone]
WebSite:http://www.soyo.com.tw
E-mail:[email protected]
USA Branch Office
SoyoTekInc.,(USA)
Tel:[phone]
Fax:[phone]
WebSite:http://www.soyousa.com
E-mail:[email protected]
SOYO Europe
SoyoEuropeB.V.,(Holland)
Tel:[phone]
Fax:[phone]
WebSite:http://www.soyo-europe.com
http://www.soyo.nl
E-mail:[email protected]
Germany Branch Office
SAATTechnologyGmbH,(Germany)
Tel:[phone]
Fax:[phone]
WebSites:http://www.saat.de
http://www.soyo-saat.de
http://www.soyo-saat.com
Email:[email protected]
UK Branch Office
Soyo(U.K.) Ltd.
Tel:[phone]
Fax:[phone]
WebSite:http://www.soyo.nl
E-mail:[email protected]
Japan Branch Office
SoyoComputer(Japan)
Tel:[phone]
Fax:[phone]
WebSite:http://www.soyo.co.jp
E-mail:[email protected]
Hong Kong Branch Office
SoyoHongKongLtd.(H.K.)
Tel:[phone]
Fax:[phone]
WebSite:http://www.soyo.com.hk
E-mail:[email protected]
