The SY-7SBB AGP/PCI Motherboard is a high-performance Socket 370
Baby AT form-factor system board. SY-7SBB uses the SIS600 Chipset
technology and supports Socket 370 processors. This Motherboard is fully
compatible with industry standards and adds many technical
enhancements.
1-2 KEY FEATURES
ØSupports Intel Celeronprocessors (300A-500MHz)
ØAuto-detect CPU voltage
ØPC98, ACPI, Ultra DMA/33
ØSupports system memory up to 768MBytes
ØSOYO COMBO Setup
ØPower-on by modem or alarm
ØSupports Wake-On-LAN (WOL)
ØSupports onboard hardware monitoring and includes Hardware
monitor utility
ØSupports Keyboard Power On/Off.
Ø1 x 32-bit AGP slot
Ø3 x 32-bit bus mastering PCI slots
Ø2 x 16-bit ISA slot
Ø2 x USB ports onboard
Ø1 x IrDA port
ØSupports multiple-boot function
ØAT & ATX power connectors
ØY2K Compliant

Motherboard Description SY-7SBB
2
1-3 HANDLING THE MOTHERBOARD
To avoid damage to your Motherboard, follow these simple rules while
unpacking:
ØBefore handling the Motherboard, ground yourself by touching an
unpainted portion of the system's metal chassis.
ØRemove the Motherboard from its anti-static packaging. Hold the
Motherboard by the edges and avoid touching its components.
ØCheck the Motherboard for damage. If any chip appears loose, press
carefully to seat it firmly in its socket.
Warning: Do not apply power if the Motherboard appears
damaged. If there is damage to the board, contact your dealer
immediately.
1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS
Make sure to ground yourself before handling the Motherboard or other
system components. Electrostatic discharge can easily damage the
components. Note that you must take special precautions when handling
the Motherboard in a dry or air-conditioned environment.
To protect your equipment from electrostatic discharge, take the following
precautions:
ØDo not remove the anti-static packaging until you are ready to install.
ØGround yourself before removing any system component from its
protective anti-static packaging. (To ground yourself, touch the expansion
slot covers or other unpainted portions of the computer chassis.)
ØFrequently ground yourself while working or use a grounding strap.
ØHandle the Motherboard by its edges and avoid touching its
components.

Motherboard Description SY-7SBB
3
1-5 SY-7SBB MOTHERBOARD LAYOUT
SY-7SBB Platform
Flash BIOS
AGP Slot
PRT 1
KB
Connector
PS/2 Mouse
Connector
ATX Power
AT Power
1
COM 2
1
1
FDC
1
IDE 1
1
IDE 2
1
3V
Lithium
Battery
COM 1
1
SiS
8661
CHAFAN
PCI Slot #2
PCI Slot #1
PCI Slot #3
2
1
10
USB1
*
Socket 370
2
DIMM 2 DIMM 1 DIMM 3
2
5595
600
ISA Slot #1
ISA Slot #2
CPU FAN
1
JP44
1
3
(PC-PCI)
SB-LINK
TM
SiS
ITE
Speaker
Keylock
Power
LED
ACPI
LED HDD
LED
_
+
_
+
_
+
_
+
Reset
PWRBT
JP5
13
CMOS Clear
IR1
1
5

Motherboard Description SY-7SBB
4
1-6 SY-7SBB MOTHERBOARD COMPONENTS
2
2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
W
U
V
X
Y
Z

Motherboard Description SY-7SBB
5
A16-bit ISA Slot
BUSB Connector
CSerial Infrared Device Header
DWake-On-LAN (WOL) Header
EITE 8661 I/O Controller
FCOM1/COM2 Connectors
GPrinter Connector
HPS/2 mouse Connector
IKeyboard Connector
JATX Power Supply Connector
KCPU Cooling Fan Connector
LAT Power Supply Connector
M370-Pin PGA Socket
NDIMM Socket
OSiS 600 Chipset
PBus Mastering IDE/ATAPI Ports
QFloppy Disk Drive (FDD) Port
R32-bit AGP Slot
S3V Lithium Battery
T32-bit PCI Mastering Slots
UCMOS Clear Jumper
VChassis Cooling Fan
WFront panel connectors
XPCI Audio Card Header
YFlash ROM
ZSiS 5595 Chip

Hardware Installation SY-7SBB
6
Chapter 2
HARDWARE INSTALLATION
Congratulations on your purchase of the SY-7SBB Motherboard. This
chapter will help you install and connect your new Motherboard.
Note: Do not unpack the Motherboard from its protective anti-
static packaging until you have made the following preparations.
2-1 PREPARATIONS
Gather and prepare all the following hardware equipment to complete the
installation successfully:
1. Celeron processor with CPU cooling fan.
2. DIMM memory module
3. Computer case and chassis with adequate power supply unit
4. Monitor
5. Keyboard
6. Pointing Device (mouse)
7. Speaker(s) (optional)
8. Disk Drives: HDD, CD-ROM, Floppy drive…
9. External Peripherals: Printer, Plotter, and Modem (optional)
10. Internal Peripherals: Modem and LAN cards (optional)

Hardware Installation SY-7SBB
7
2-2 UNPACKING THE MOTHERBOARD
When unpacking the Motherboard, check for the following items:
uThe SY-7SBB SiS 600 AGP/PCI Motherboard
uThe User’s Manual
uThe Installation CD-ROM
uOne IDE Device Flat Cable
uOne Floppy Disk Drive Flat Cable
uOne 9-pin serial prot connector with 9-pin flat cable
and 6-pin PS/2 mouse connector with 6-pin cable
uOne 25-pin parallel port connector with 25-pin flat
cable and 9-pin serial port connector with 9-pin flat
cable
Warning: Do not unpack the Motherboard from its anti-static packaging
until you are ready to install it.
Like most electronic equipment, your Motherboard may be damaged by
electrostatic discharge. To avoid permanent damage to components ground
yourself while working by using a grounding strap. Otherwise, ground
yourself frequently by touching the unpainted portion of the computer
chassis to drain the static charges.
Handle the Motherboard carefully, holding it by the edges. You are now
ready to start the installation.

Hardware Installation SY-7SBB
8
2-3 INSTALLATION GUIDE
We will now begin the installation of the Motherboard. Please follow the
step-by-step procedure designed to lead you to a complete and correct
installation.
Warning: Turn off the power to the Motherboard, system
chassis, and peripheral devices before performing any work on
the Motherboard or system.
BEGIN THE INSTALLATION

Hardware Installation SY-7SBB
9

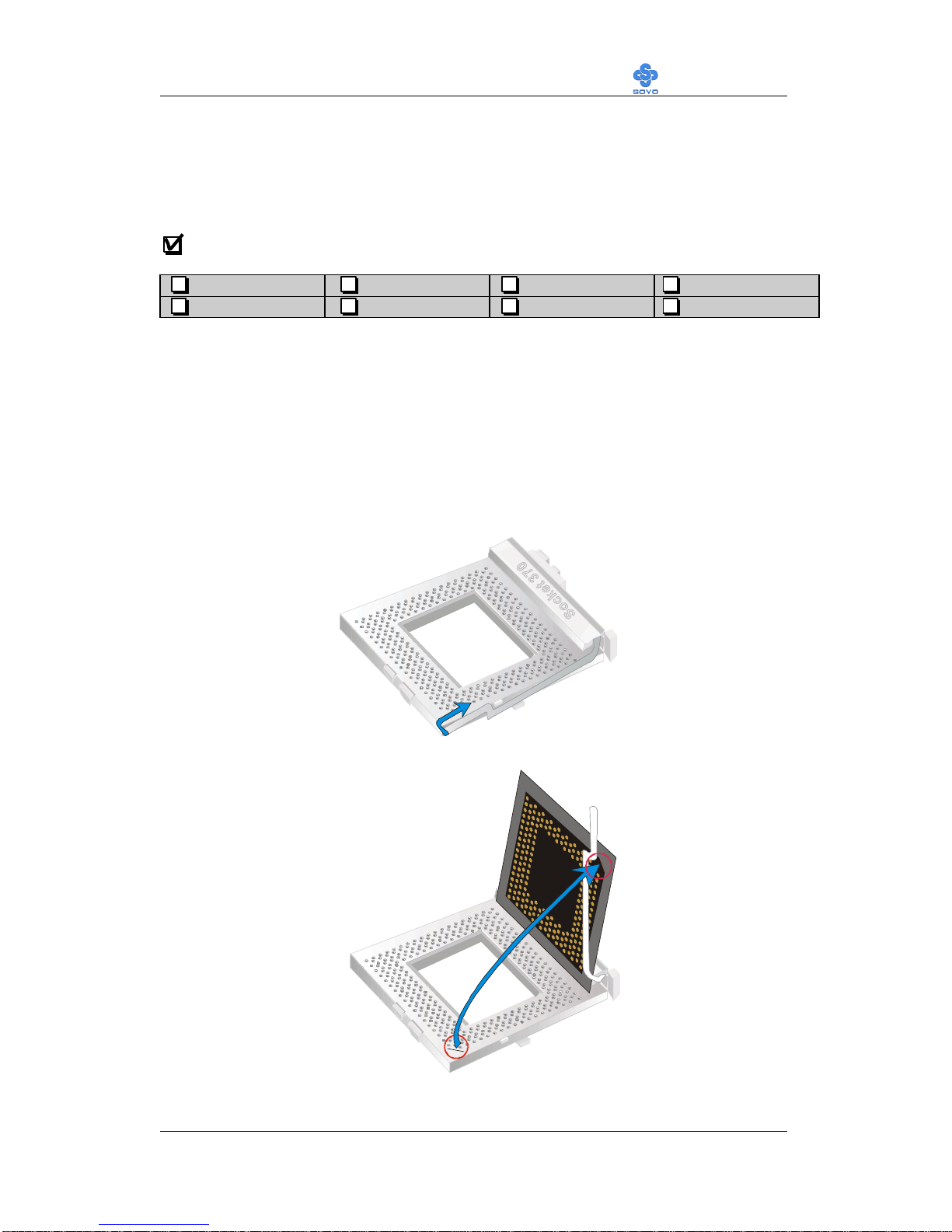

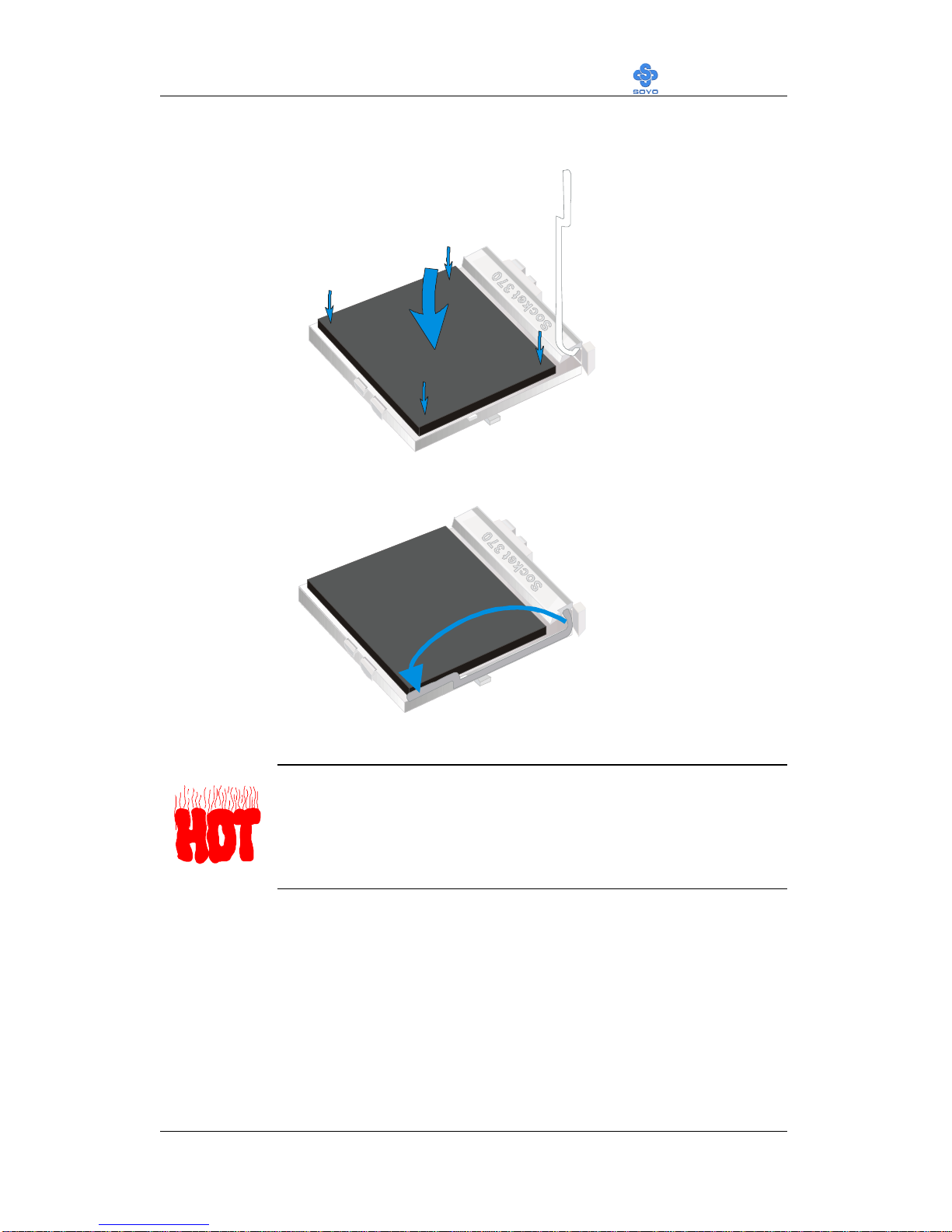

2-3.1 CPU Installation
Follow the steps below in order to perform the installation of your new
SY-7SBB Motherboard.
Mark your CPU Frequency: Record the working frequency of
your CPU that should be clearly marked on the CPU cover.
300MHz(66x4.5) 333MHz(66x5.0) 366MHz(66x5.5) 400MHz(66x6.0)
433MHz(66x6.5) 466MHz(66x7..0) 500MHz(66x7.5)
This Motherboard is designed to be able to support processors with 100MHz
FSB. However, Socket 370 processors with 100MHz FSB are not available yet
at this moment for testing.
CPU Mount Procedure: To mount the Celeron
TM
processor that you
have purchased separately, follow these instructions.
1. Lift the socket handle up to a vertical position.
2. Align the blunt edge of the CPU with the matching pinhole on the
socket.

Hardware Installation SY-7SBB
10
3. Seat the processor in the socket completely and without forcing.
4. Then close the socket handle to secure the CPU in place.
Remember to connect the CPU Cooling Fan to the
appropriate power connector on the Motherboard. The fan is
a key component that will ensure system stability. The fan
prevents overheating, therefore prolonging the life of your
CPU.

Hardware Installation SY-7SBB
11
2-3.2 SDRAM Memory Module Installation
This Motherboard features 3 x DIMM Banks for 168-pin 3.3V unbuffered
DIMM modules. Your board comes with three DIMM sockets, providing
support for up to 768MB of main memory using DIMM modules from
8MB to 256MB. For 66MHz front side bus CPUs use 12ns or faster
memory; for 100MHz front side bus CPUs use 8ns (100MHz, PC100
compliant) memory.
1
*
2
2
184
1
84
DIMM 1 DIMM 2 DIMM 3

Hardware Installation SY-7SBB
12
DIMM Banks
MEMORY
CONFIGURATION DIMM 1 DIMM 2 DIMM 3
RAM Type EDO/SDRAM EDO/SDRAM EDO/SDRAM
RAM Module Size
(MB) 8/16/32/64/128/
256 8/16/32/64/128/ 256 8/16/32/64/128/ 256
Note : 1. There are two types of DIMM module with different
operating voltages: 3.3V and 5.0V. Please note that only 3.3V
EDO DIMM modules can be used on this Motherboard.
2. This motherboard does not support registered SDRAM DIMM
Modules.

Hardware Installation SY-7SBB
13
2-3.3 Motherboard Connector
2-3.3.1 IDE Device Installation (HDD, CD-ROM)
This Motherboard offers a primary and secondary IDE device connector
(IDE1, IDE2). It can support up to four high-speed HDD or CD-ROM.
Connect one side of the 40-pin flat cable to the IDE device (HDD or CD-
ROM) and plug the other end to the primary (IDE1) or secondary (IDE2)
IDE connector on the Motherboard.
1
*
2
2
1
1
39
39
IDE 2
IDE 1
Pin -1
Secondary
IDE
Primary
IDE

Hardware Installation SY-7SBB
14
2-3.3.2 Floppy Drive Installation
The system supports 5 possible floppy drive types: 720 KB, 1.2 MB,
1.44 MB, 2.88 MB, and LS-120. In addition, this Motherboard supports a
3-mode (720KB/1.2MB/1.44MB) floppy commonly used in Japan.
Connect one side of the 34-pin flat cable to the floppy drive and plug the
other end to the floppy drive connector on the Motherboard.
This Motherboard can support up to 2 floppy drives.
1
*
2
2
1
1
33
33
FDC
Pin -1
Floppy Drive
Connector

Hardware Installation SY-7SBB
15
2-3.3.3 Front Panel Connections
Plug the computer case's front panel devices to the corresponding headers
on the Motherboard.
1. Power LED & KeyLock
Plug the Power LED cable into the 5-pin Keylock header.
Some systems may feature a KeyLock function with a front panel switch
for enabling or disabling the keyboard. Connect the KeyLock switch to the
5-pin Keylock header on the Motherboard.
Please install according to the following pin assignment: pin 1,3 are for
Power LED and pin 4,5 are for Keylock.
1
*
2
2
Power LED
Pin Assignment
+5V+5V
GND
+_
NCNC
Key Lock
Pin Assignment
Control Pin
GND
1
Power LED
Key Lock
Speaker
Reset
PWRBT
ACPI LED
HDD LED
++
+
+
_
_
_
_
1
1
1

Hardware Installation SY-7SBB
16
2. Reset
Plug the Reset push-button cable into the 2-pin Reset header on the
Motherboard. Pushing the Reset button on the front panel will cause the
system to restart the boot-up sequence.
3. Speaker
Attach the 4-pin PC speaker cable from the case to the Speaker header on
the Motherboard.
4. ACPI LED
Connecting the 2-pin ACPI LED cable to the corresponding ACPI LED
header will cause the LED to light whenever the system is in ACPI mode.
The manufacturer has permanently set this Motherboard in ACPI mode
due to most hardware and software compliance to ACPI mode.
Reset Pin Assignment
Power Good
GND
1
Speaker Pin Assignment
+_
+5V
Speaker out
NC NC
ACPI LED Pin Assignment
+
_
LED Anode
LED Cathode
