SOYO SY-D6IGA Use and care manual

SY-D6IGA
Motherboard
***************************************************
Single or Dual Xeon™ processor supported
(Pentium® II Xeon™ & Pentium® III Xeon™ )
82440 GX AGP/PCI Motherboard
100MHz Front Side Bus supported
Custom ATX Form Factor
LAN Chip onboard (10/100 Mbps)
Ultra2 SCSI onboard
***************************************************
User's Guide
&
Technical Reference

SOYO™SY-D6IGA
ii
About This Guide
This User's Guide is for assisting system manufacturers and end users in setting up
and installing the motherboard. Information in this guide has been carefully checked
for reliability; however, no guarantee is given as to the correctness of the contents.
The information in this document is subject to change without notice.
Copyright Notice
Copyright 1999, Soyo Computer Inc. All rights reserved. This manual is copyrighted
by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a
retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.
Trademarks
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property
of their owners.
Disclaimer
Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to revise the manual or make changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or change. The information contained
in this manual is provided for general use by our customers. Our customers should be
aware that the personal computer field is the subject of many patents. Our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and
not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at 252.277-7013.
Product Rights
Products mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies.
If you need any further information, please come to our home page on the Internet.
The address is "http://www.soyo.com.tw".
Edition: April 1999
Version 1.0
D6IGA SERIAL
FC
CTested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
POST CONSUMER
RECYCLED PAPER
100%

Table of Contents SY-D6IGA
iii
Table of Contents
THE SY-D6IGA MOTHERBOARD.................................................1
SY-D6IGA MOTHERBOARD LAYOUT..........................................2
CHAPTER 1 INTRODUCTION ......................................................3
1-1 KEY FEATURES.......................................................3
1-2 HANDLING THE MOTHERBOARD...........................6
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS.....6
CHAPTER 2 HARDWARE SETUP................................................7
2-1 PREPARATIONS......................................................7
2-2 UNPACKING THE MOTHERBOARD........................8
2-3 INSTALLATION GUIDE.............................................9
CHAPTER 3 BIOS SETUP UTILITY............................................33
3-1 SOYO COMBO SETUP..........................................35
3-2 STANDARD CMOS SETUP....................................40
3-3 BIOS FEATURES SETUP.......................................43
3-4 CHIPSET FEATURES SETUP................................48
3-5 POWER MANAGEMENT SETUP ...........................51
3-6 PNP/PCI CONFIGURATION SETUP.......................55
3-7 LOAD SETUP DEFAULTS......................................58
3-8 INTEGRATED PERIPHERALS ...............................59
3-9 SUPERVISOR PASSWORD...................................64
3-10 USER PASSWORD ................................................65
3-11 IDE HDD AUTO DETECTION.................................66
CHAPTER 4 DRIVERS INSTALLATION......................................67

Table of Contents SY-D6IGA
iv
CHAPTER 5 PRO/100+™ LAN ADAPTER INSTALLATION.........73
5-1 PRO/100+™ - MICROSOFT
INSTALLATION NOTES..........................................73
5-2 PRO/100+™ - ALL NETWARE PRODUCTS
INSTALLATION NOTES..........................................88
5-3 PRO/100+™ - UNIX INSTALLATION NOTES.........107
CHAPTER 6 ULTRA2 SCSI I/O SUBSYSTEM ..........................112
6-1 INTRODUCTION TO ULTRA2 SCSI .....................112
6-2 INSTALLING SCSI DEVICES................................113
6-3 CONNECTING INTERNAL SCSI DEVICES..........114

The SY-D6IGA Motherboard SY-D6IGA
1
THE SY-D6IGA MOTHERBOARD

Motherboard Layout SY-D6IGA
2

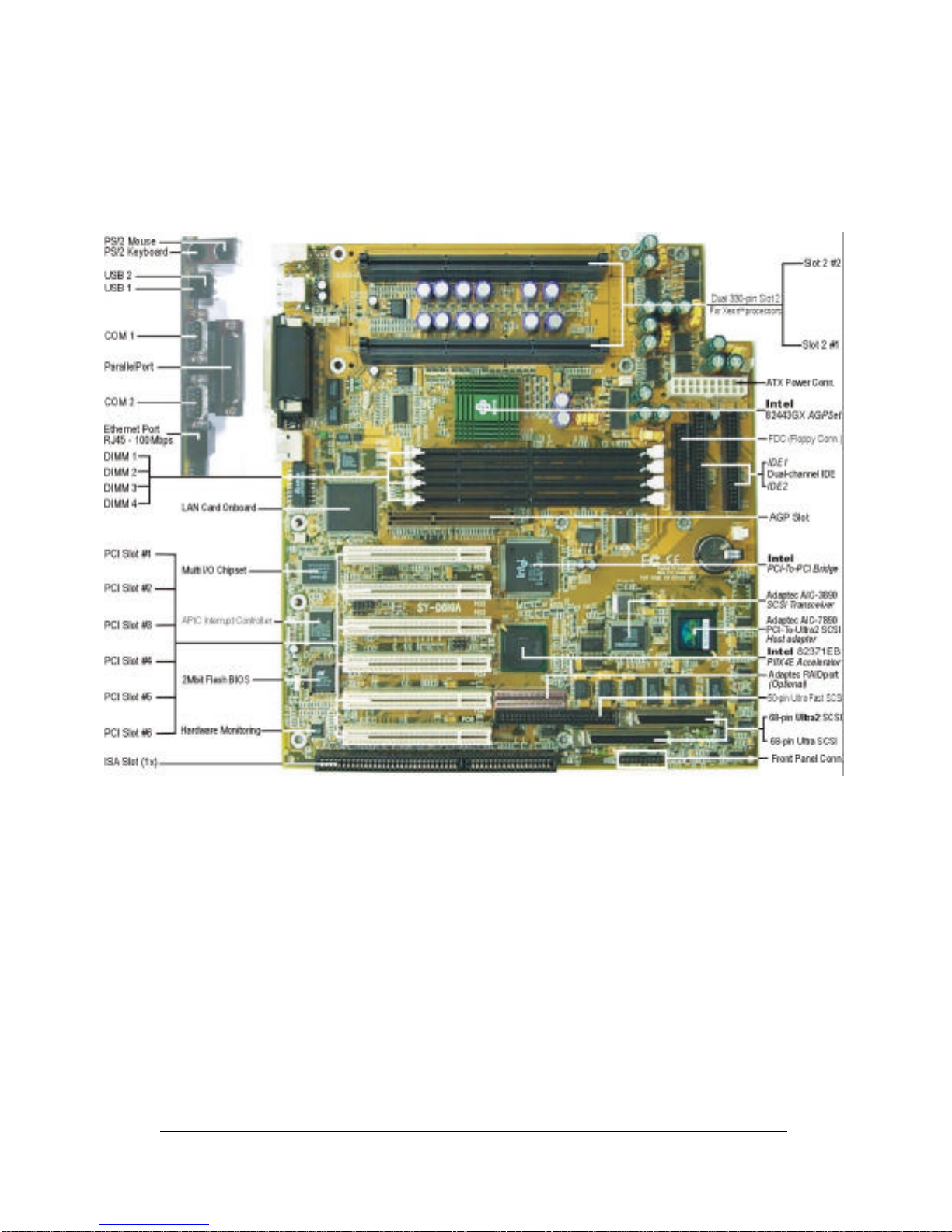

SY-D6IGA MOTHERBOARD LAYOUT
Back Panel SY-D6IGA Platform
COM 1
COM 2
USB 1
PRT
USB 2
PS/2 KB
Connector
PS/2 Mouse
Connector
Ethernet
RJ-45
Intel®
82371 EB
AGP Slot
1
FDC IDE 2
1
DIMM 1
DIMM 2
DIMM 3
DIMM 4
SB-LINK™
(PC-PCI)
Wide SCSI (68-pin)
Narrow SCSI (50-pin)
1
1
1
IDE 1
PCI Slot #1
PCI Slot #2
PCI Slot #3
PCI Slot #4
W83781D
828AC
HardwareMonitoring
3V
Lithium
Battery
PCI Slot #5
PCI Slot #6
ISA Slot
1
Power LED
_
+
+
SpeakerKeylock
PWRBT
HDD LED
Turbo
LED
JP44
WOL
Header
3
1
I/O
83977AW
WINBOND
Intel®
82443GX
JP10
3 1
JP5
CMOS Clear
Jumper
31
15
82093A
APIC
PCI-to-PCI
Bridge
Intel®
82558
LAN Controller
adaptec
AIC – 3860Q
adaptec
AIC – 7890AB
Ultra2 SCSI
Wide SCSI (68-pin)
ATX Power
SLOT2 #2 for Second Xeon™
Processor
or Termination Card
SLOT2 #1 for First Xeon™
Processor
1
CHAFAN1
1
DRMFAN2
1
DRMFAN1
1
1
CHAFAN2CPUFAN
SCSI II
IR
15
JP11
31

Introduction SY-D6IGA
3
Chapter 1
INTRODUCTION
The SY-D6IGA AGP/PCI motherboard is a high-performance,
Single or Dual Pentium® II Xeon™ & Pentium® III Xeon™
processor supported, custom ATX form-factor system board.
SY-D6IGA uses the 82440 GX Chipset technology and supports
most Xeon™ class processors. This motherboard is fully compatible
with industry standards and adds many technical enhancements.
1-1 KEY FEATURES
Supports Single or Dual Xeon™processor supported
ØPentium® II Xeon™ processor (400/450 MHz)
ØPentium® III Xeon™ processor (500/550 MHz)
Auto-detect CPU voltage
Soft CPU settings in BIOS with the “SOYO COMBO Setup”
Ultra2 SCSI adapter and SCSI port onboard
PC98, APM, ACPI, Ultra DMA/33
Supports system memory up to 2GB
Power-on by modem or alarm
Supports Wake-On-LAN (WOL)
Supports Power-On by PS/2 keyboard
Supports Creative SB-LINK™ (PC-PCI) for PCI audio
Supports onboard hardware monitoring
and includes Hardware Doctor™ utility
LAN chip onboard supports dual mode 10BASE-T/100BASE-TX
1 x 32-bit AGP slot
6 x 32-bit bus mastering PCI slots
2 x USB ports onboard
1 x IrDA port
Supports multiple-boot function
Y2K compliant
ATX power connector
Power failure resume

Introduction SY-D6IGA
4
SY-D6IGA PLATFORM FEATURES
Board Size 6-layer PCB, 28x30.5cm (11”x 12”),
Custom ATX Form Factor
Slot2 2 x Slot2 for Xeon™ processors
ØSupports Single or Dual Xeon™ processor
ØSupports the following processors
with 100MHz FSB:
Pentium® II Xeon™ 400/450 MHz
Pentium® III Xeon™ 500/550 MHz
ØSupports both boxed and non-boxed type of CPUs
ØIncludes one FSB Termination Card

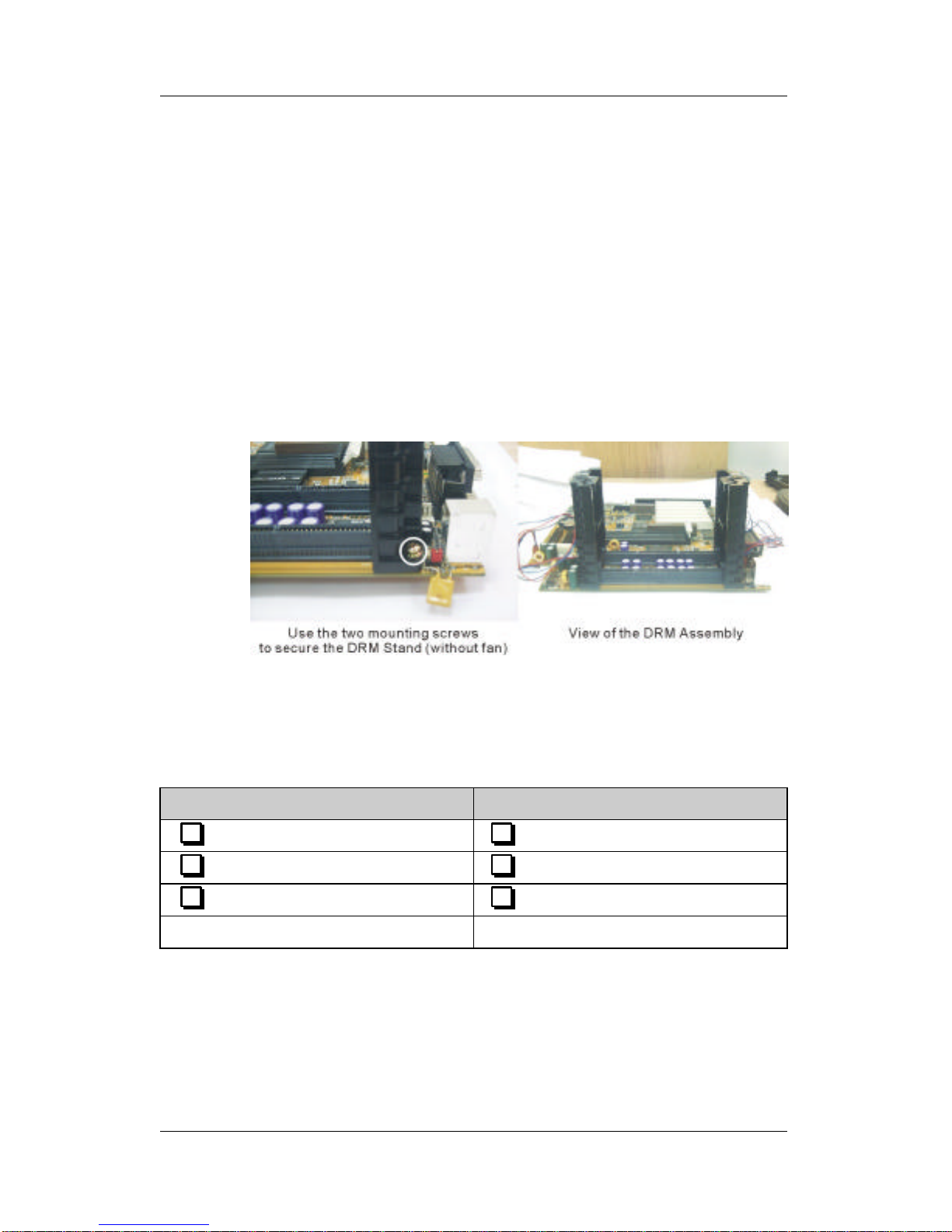

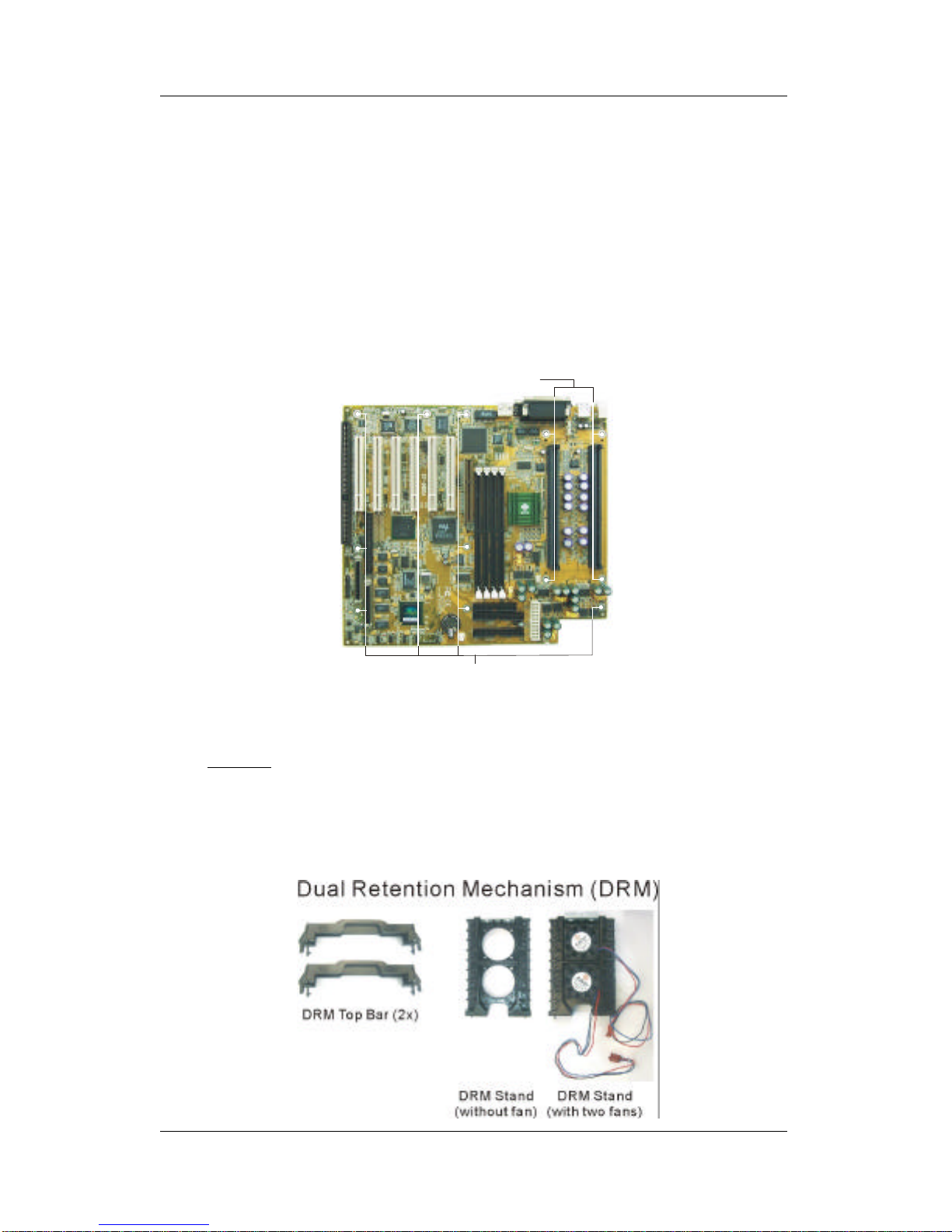

ØIncludes one DRM (Dual Retention Mechanism )
assembly
ØAlso includes one CPU Heat-Sink & Fan assembly
ØFeatures Auto-detection of CPU voltage
Chipset 82440 GX AGP/PCI Set
ATX Power 20-pin Male Connector
CPUFAN Slot2 #1 CPU: 3-pin CPU Cooling Fan Connector
DRMFA1,2 DRM Assembly Cooling Fan Connectors (2x)
CHAFA1,2 Chassis Cooling Fan Connectors (2x)
Memory DIMM Bank (DIMM1~4)
ØFour strips of 168-pin Unbuffered and Registered
SDRAM DIMM
ØSupports 8/16/32/64/128/256/512MB
DIMM modules in each bank
ØProvides up to 2 Gbytes of main memory
ØSupports ECC configuration
BIOS System BIOS built-in, Award BIOS
ØAPM, ACPI and "Plug-and-Play" functions
ØSupports multiple-boot function
ØOnboard FLASH memory for easy upgrade
ØDMI utility
Bus Controller Compliant with v2.1 PCI specifications

Introduction SY-D6IGA
5
PCI Slots 6 x 32-bit Bus Mastering PCI Slots
AGP Slot 1 x 32-bit AGP Slot
ISA Slot 1 x 16-bit ISA Slot
IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports
ØIDE1: Primary IDE Device Connector
ØIDE2: Secondary IDE Device Connector
ØSupports Ultra DMA/33
FDC 1 Floppy Disk Drive (FDD) Port
(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)
IR 5-pin Serial Infrared Device Header
Keylock 5-pin KeyLock Header
Reset 2-pin Reset Switch Header
Speaker 4-pin PC Speaker Header
TB_LED 2-pin Turbo LED Header
HDD_LED 2-pin IDE Device LED Header
PWRBT ATX Power On/Off Switch 2-pin Header
JP5 CMOS Clear Jumper
JP10 Power-On by PS/2 Keyboard Jumper
JP11 Power Button Enable Jumper
JP44 WOL (Wake-On-LAN) 3-pin Header
SBLINK™PCI Audio Card Header, (PC-PCI)
Ultra2 SCSI 68-pin SCSI II Connector onboard
Wide SCSI 68-pin Wide SCSI Connector onboard
Narrow SCSI 50-pin Narrow SCSI Connector onboard
SY-D6IGA BACK-PANEL FEATURES
PRT 1 x Onboard 25-pin Female Parallel Printer Port
ØECP/EPP/SPP multi-mode parallel printer port
COM1, COM2 2 x Onboard RS-232 Serial Ports
ØFeature 2 x high-speed UARTs (with 16550 FIFO)
PS/2 KB 1 x Onboard PS/2 Keyboard Connector
PS/2 Mouse 1 x Onboard PS/2 Mouse Connector
USB1, USB2 2 x Onboard USB (Universal Serial Bus) Connectors
RJ-45 Direct Ethernet connection with 10/100 Mbps indicator

Introduction SY-D6IGA
6
1-2 HANDLING THE MOTHERBOARD
To avoid damage to your motherboard, follow these simple rules
while unpacking:
ØBefore handling the motherboard, ground yourself by grasping
an unpainted portion of the system's metal chassis.
ØRemove the motherboard from its anti-static packaging. Hold the
motherboard by the edges and avoid touching its components.
ØCheck the motherboard for damage. If any chip appears loose,
press carefully to seat it firmly in its socket.
Warning: Do not apply power if the motherboard appears
damaged. If there is damage to the board, contact your
dealer immediately.
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS
Make sure to ground yourself before handling the motherboard or
other system components. Electrostatic discharge can easily
damage the components. Note that you must take special
precautions when handling the motherboard in dry or air-conditioned
environment.
To protect your equipment from electrostatic discharge, take the
following precautions:
ØDo not remove the anti-static packaging until you are ready to
install.
ØGround yourself before removing any system component from
its protective anti-static packaging. (To ground yourself, grasp
the expansion slot covers or other unpainted portions of the
computer chassis.)
ØFrequently ground yourself while working or use a grounding
strap.
ØHandle the motherboard by its edges and avoid touching its
components.

Hardware Setup SY-D6IGA
7
Chapter 2
HARDWARE SETUP
Congratulations on your purchase of SY-D6IGA Motherboard. You
are about to install and connect your new motherboard.
Note: Do not unpack the motherboard from its protective anti-
static packaging until you have made the following preparations.
2-1 PREPARATIONS
Gather and prepare all the following hardware equipment to
complete the installation successfully:
1. Single or Dual Pentium® II Xeon™& Pentium® III Xeon™
processor with or without built-in CPU cooling fan.
Note: Preferably use the CPU cooling fan & heat sink
assembly included with this motherboard.
2. DIMM memory module
3. Computer case and chassis with adequate power supply unit
4. Monitor
5. PS/2 Keyboard
6. Pointing Device (PS/2 mouse)
7. Speaker(s) (optional)
8. Disk Drives: HDD, CD-ROM, Floppy drive…
9. External Peripherals: Printer, Plotter, and Modem (optional)
10. Internal Peripherals: Modem and LAN cards (optional)
11. Internal SCSI Devices: Hard/Floppy/CD-ROM Drives,
Tape Drives, Removable Media Drives, etc. (optional)

Hardware Setup SY-D6IGA
8
2-2 UNPACKING THE MOTHERBOARD
When unpacking the motherboard, check for the following items:
ØThe SY-D6IGA 82440 GX AGP/PCI Motherboard
ØThe Quick Start Guide *
ØThe Installation CD-ROM *
ØThree SCSI Driver Installation Diskettes
labeled “7800 Family Manager Set V3.02”
ØOne DRM (Dual Retention Mechanism) Assembly
ØOne IDE Device Flat Cable
ØOne Floppy Disk Drive Flat Cable
ØOne 50-pin Narrow SCSI Cable
ØOne 68-pin Wide SCSI Cable
ØOne 68-pin Ultra2 SCSI Cable with Terminator
* If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.
Warning: Do not unpack the motherboard from its anti-
static packaging until you are ready to install it.
Like most electronic equipment, your motherboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise, ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the motherboard carefully, holding it by the edges.
You are now ready to start the installation.

Hardware Setup SY-D6IGA
9
2-3 INSTALLATION GUIDE
We will now begin the installation of the motherboard. Please follow
the step-by-step procedure designed to lead you to a complete and
correct installation.
Warning: Turn off the power to the motherboard, system
chassis, and peripheral devices before performing any
work on the motherboard or system.
Step 1. Single or Dual CPU Installation
Notice 1 (Dual processor): When installing two processors
(Dual CPU), please make sure the front side bus, working
frequency, and the specification number are identical for both
processors.
Notice 2 (Single processor): If you are using a single
processor, preferably install the processor in Slot2 #1, then
insert the FSB Termination Card in the available Slot2 #2.
Your SY-D6IGA motherboard comes with a DRM (Dual Retention
Mechanism) Assembly. The DRM Assembly is used to hold both
Single or Dual Pentium® II Xeon™& Pentium® III Xeon™
processors attached to the Slot2 #1 or Slot2 #2 slot connectors on
the motherboard.
Follow these instructions to install your Xeon™processor correctly.

Hardware Setup SY-D6IGA
10
1. Mount the Motherboard on the Computer Chassis
You must first install the SY-D6IGA motherboard on the computer
chassis. The motherboard should be bare (without DRM and CPU)
and disconnected from any power source.
Position the motherboard with its mounting holes facing the
corresponding attachment holes on the chassis and tighten the
motherboard mounting screws.
2. Check the Parts Required for CPU Installation
qPart 1: DRM (Dual Retention Mechanism)
This motherboard is shipped with a DRM (Dual Retention
Mechanism) assembly to hold the single or dual Xeon™
processor in Slot2 #1 and Slot2 #2.
DRM Mounting Holes
Chassis Mounting Holes

Hardware Setup SY-D6IGA
11
FSB Termination Card
(To be inserted in Slot2 #2)
qPart 2: CPU Heat Sink & Fan
SOYO has also included a heavy-
duty Heat Sink & Fan assembly for
better heat dissipation of the CPU.
We recommend that you use this
instead of the heat sink that comes
with your CPU.
qPart 3: FSB Termination Card
The FSB (Front Side Bus)
Termination Card must be
inserted in the unoccupied Slot2
connector #2 in a Single processor
configuration. If you install only one
processor, fit it in Slot2 #1, and
insert the FSB Termination Card in
the available Slot2 #2.
3. Mount the CPU Heat Sink & Fan Assembly
The CPU Heat Sink & Fan assembly provided by SOYO provides
better heat dissipation capability. Remove the original heat sink at
the back of the CPU SEC cartridge and affix SOYO’s Heat Sink &
Fan assembly by securing the four mounting screws to the CPU’s
thermal plate.

Hardware Setup SY-D6IGA
12
4. Install the DRM Assembly
4(a) Locate Slot2 #1 & Slot2 #2 connectors and the DRM
mounting holes on the motherboard. Note that Slot2 #1 is
located closer to the middle of the motherboard while Slot2
#2 is situated near the edge of the board.
4(b) Attach the two fan cables of the DRM Stand (the one
equipped with 2 fans) to the fan power connectors labeled
DRMFAN 1 & 2 on the motherboard.
4(c) Affix this DRM Stand (the one equipped with 2 fans) to the
motherboard and then fix the DRM Stand by securing two
DRM mounting screws at the base of the DRM Stand to
the chassis.

Hardware Setup SY-D6IGA
13
4(d) Mount the second DRM Stand (the one without fans)
opposite from the DRM fans (between the back panel
connectors and Slot2 sockets) and use two DRM mounting
screws to secure its base to the motherboard.
Note:If your system is using two chassis cooling fans, plug
the second fan cable to the chassis fan power connector
labeled CHAFAN 2, now. Once the second DRM Stand is
mounted, it will block the CHAFAN 2 connector, providing
insufficient clearance to either attach or remove the fan
power connector cable.
5. Install the First Processor in Slot2 #1
Record the working frequency and specification number of your
CPU that should be clearly marked on the CPU cover.
Pentium® II Xeon™Processor Pentium® III Xeon™Processor
400 MHz (100 x 4.0) 500 MHz (100 x 5.0)
450 MHz (100 x 4.5) 550 MHz (100 x 5.5)
S/N: S/N:

Hardware Setup SY-D6IGA
14
5(a) Clip the DRM Top onto the processor with the DRM Top
mounting holes facing away from the processor’s heat sink
assembly.
5(b) Slide-in the processor into the DRM Assembly and insert it
in Slot2 #1, while making sure that the heat sink assembly
is facing towards the center of the motherboard.
Important: The Slot2 connector is directionally keyed, and
the processor will not go in unless it is properly oriented,
as shown in the figure.
5(c) Secure the DRM Top bar to both DRM stands by using two
mounting screws.
5(d) Connect the processor cooling fan cable to the CPU fan
power connector labeled CPUFAN on the motherboard.

Hardware Setup SY-D6IGA
15
6. (Dual Processor Configuration)
Install the Second Processor in Slot2 #2
If you are installing a second processor in Slot2 #2, apply the same
procedure as in step 5. However, in step 5(a), clip the DRM Top onto
the processor with the mounting holes facing towards the heat sink.
Notice 1: When installing two processors, make sure the front side
bus and working frequency are identical for both processors. Do
NOT install different types of CPU at the same time, for example,
Pentium® II Xeon™(400/450 MHz) and Pentium® III Xeon™
(500/550 MHz) processors may not work properly when installed
together in a dual configuration. We strongly recommend using two
processors with the same specification number in dual processor
configuration.
Notice 2: If two processors are installed in the DRM assembly, then
the clearance between processors will be insufficient and not allow
the use of a heat sink & fan assembly on the second processor (the
one installed in Slot2 #2). Cooling of the second processors will be
provided by the two DRM fans. If you install a heat sink on the
second processor, only use a narrow gage heat sink so as not to
obstruct the flow of air between the two processors.
7. (Single Processor Configuration)
Install the Termination Card in Slot2 #2
If only one processor is installed in your system, you are required to
insert the FSB Termination Card in the available Slot2 #2.
Note: If you are using a single processor, you must install the
processor in Slot 2 #1, then insert the Termination Card in Slot 2
#2, in this order.

Hardware Setup SY-D6IGA
16
7(a) Insert the termination card in Slot2 #2, while making sure
that the two notches at the base of the card align perfectly
with the keys in Slot2 #2 connector.
Important: The Slot2 connector is directionally keyed, and
the termination card will not go in unless it is properly
oriented, as shown in the figure.
