SP EP-4 User manual

EP-4 Manual
V. 00

1
PRODUCT CONTENT
TECHNICAL DATA
EP-4 INSTALLATION
GENERAL INFORMATION
FORWORD
2
4
5
8
15
INDEX

-TECHNOLOGY GIVES YOU A SAFER AND MORE COMFORTABLE RIDE-
With the help of e-bikes, cyclists can ride faster and further. Higher speed reduces reaction times when
facing rapidly changing road conditions and unexpected road events. The average speed of e-bikes is
much faster than ordinary bicycles meaning increased lighting is required to maintain safety. Sufficient
lighting allows cyclists to see further and more clearly. To maintain safety, e-bike headlights play a
more important role in comparison to ordinary bicycles.
Among the leaders in high-end bicycle products, SP strives to use advanced technology to provide
quality products that are safer, more comfortable and more convenient for cyclists.
2
FORWORD

-SEVEN BRIGHT MODES FOR MAXIMUM SAFETY-
The low beam mode of EP-4 meets the exacting requirements of the German regulation standard
for bicycle headlamps. The EP-4 projects high brightness and a razor sharp cut-off line. Brightness
below the cut-off line is intense while very little light strays above the horizontal cut-off line. The
EP-4 illuminates the road ahead while avoiding dangerous glare vis-à-vis oncoming cars or
pedestrians. It also provides a remarkable, wide-angle beam function allowing riders to increase
breadth of vision and heightened awareness of environment on demand. In addition, its high beam
function provides incredibly bright illumination for you.
With an EP-4, you can choose from a variety of lighting modes to suit different riding conditions,
thus providing for safer and more comfortable riding. We seek only to provide you with higher
quality, more convenient and safer products.
3
FORWORD

4
PRODUCT CONTENT
The EP-4 box has a length, width and height of 9 x 9 x 8.5 cm.
When you receive your EP-4, you will also receive the following
accessories.
4
5
1
2
3
4
3
6
5
7
8
8
76
1 x Front Headlight
1 x Control Button (with cable)
1 x Power Cable
1 x Bracket for Handlebar
2 x Screws for the Handlebar Bracket
1 x Bracket for Folk
1 x Nut and Bolt Set for Folk Bracket
2 x Ty-Rap Ties
2
1

5
-WIDER LIGHTING GIVES YOU A SAFER RIDE-
For Mode 1 to 6, please press the power switch to cycle through the modes of operation.
For Mode 7, please press the high beam button.
Power comsumption
(Add Mode 7/ high beam)
290lm
390lm
510lm
1090lm
1290lm
1530lm
990lm
1090lm
1210lm
1790lm
1990lm
2230lm
Brightness Brightness
(Add Mode 7/ high beam)
Low beam (low)
Low beam (medium)
Low beam (high)
Low beam (high) + Wide beam (low)
Low beam (high) + Wide beam (medium)
Low beam (high) + Wide beam (high)
Mode 1
Mode 2
Mode 3
Mode 4
Mode 5
Mode 6
2W
3W
4W
8W
10W
12W
8W
9W
10W
14W
16W
18W
Mode Light performance Power comsumption
TECHNICAL DATA
Brightness
(Add Mode 7/ high beam)

LOW BEAM
WATTAGE OF LOW BEAM
MODE
HIGH BEAM
WATTAGE OF HIGH BEAM
DAYTIME RUNNING LIGHT
WATTAGE OF DAYTIME LIGHTING
INPUT VOLTAGE
L x W x H
WEIGHT
COLOR
HOUSING MATERIAL
290 - 1530lm*
2-12 W
1-6, 7
700 lm*
6 W
6 Power LEDs
0.96 W
12 V DC
50 x 45 x 42 mm
83g
Black
Aluminum
SPECIFICATION DETAILS:
Brightness
6
TECHNICAL DATA

L x W x H
CABLE LENGTH
WEIGHT
COLOR
HOUSING MATERIAL
45 x 27 x 8 mm
220 mm
14.3g
Black
Aluminum
L x W x H
CABLE LENGTH
WEIGHT
COLOR
HOUSING MATERIAL
50 x 17 x 9 mm
1020 mm
20g
Black
Plastic
7
CONTROL BUTTON (WITH CABLE)
POWER CABLE
TECHNICAL DATA

8
INSTALLATION
step1
step2
step4
step3
step5
step6
Please follow the step 1 to 6 to install your EP-4.
Please read the pages 9 to14 for installation details.

9
INSTALLATION Step 1 : Install EP-4 light body on handlebar
5 m
1/2
Pictures of the included components appear on the left.
Your stem should appear as in picture 1.
1. Remove the bolts from the stem.
2. Install on the headlight bracket. (Picture 2)
3. Fasten all stem bolts to 6 Nm. (Picture 3)
4. Install the headlight and fasten the nuts and bolts.
(Picture 4)
Please install the EP-4 and adjust the beam to project
toward a wall on a level surface at a distance of 5 meters.
Then adjust/aim the cut-off line at a level that is half way
between height at which the headlamp is mounted and
ground level.
1 2
3 4

10
INSTALLATION Step 1 (option): Install EP-4 light body on folk crown
Before you install the EP-4, assess whether your fork
appears like the one in Picture 1. Since not the same
on all bikes accept the same fork crown bolt, the
components you receive in the box does not include
an extra one. However, such bolts should be readily
available from any quality hardware store.
1. Mount the bracket on your fork crown.
2. Install the headlight. (Picture 2)
3. Fasten all bolts to 6 Nm.
Please aim the headlamp as per the instructions
above for best results.
5 m 1/2
1
2

11

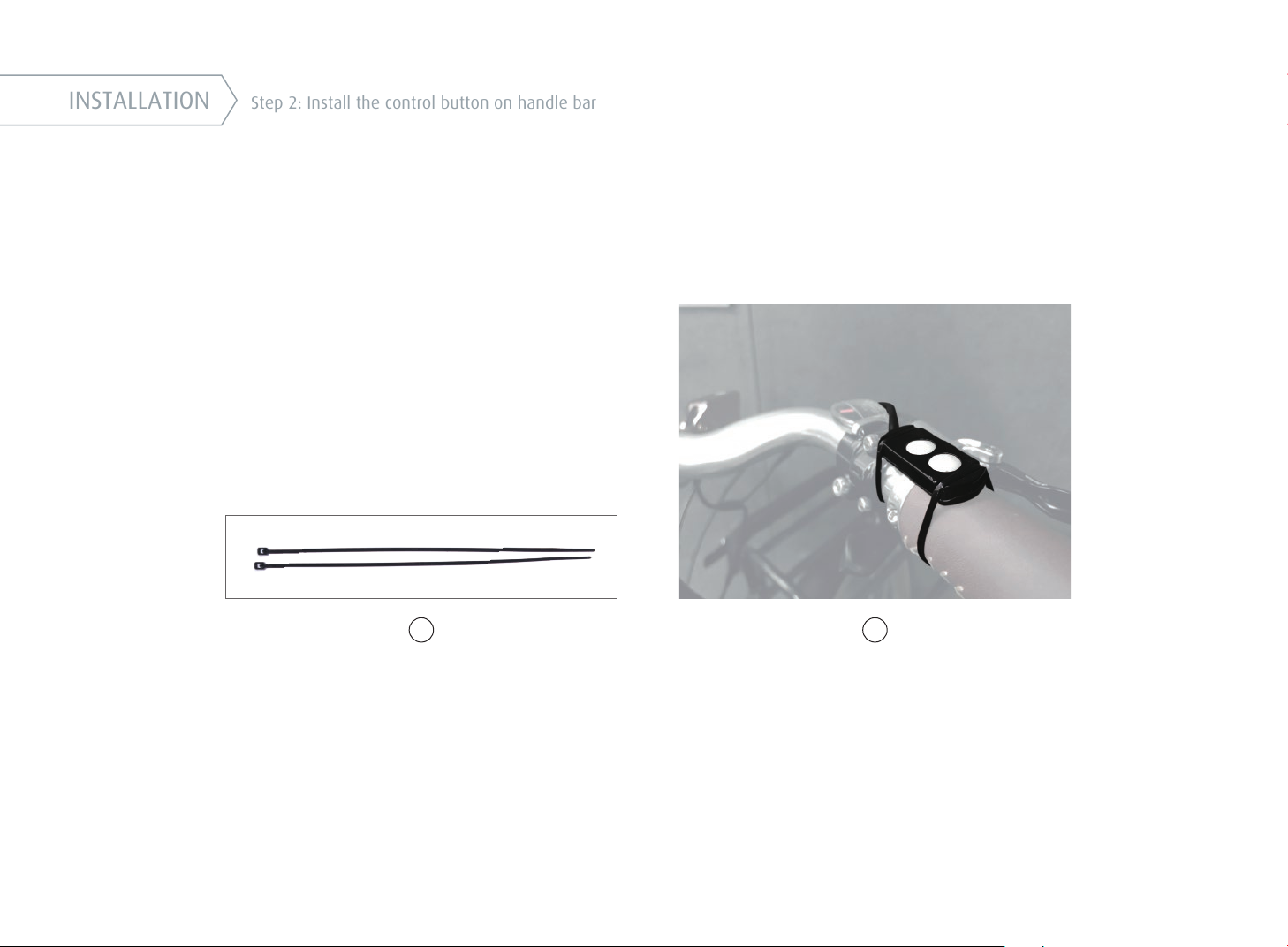

INSTALLATION Step 2: Install the control button on handle bar
You will find two Ty-Rap cable ties in the box.
(Picture 1)
1.
2.
3.
Install the button on the holder.
Use the two Ty-Rap cable ties to secure the
button. (Picture 2)
Cut the unnecessary length of the ties once
installed.
1 2

Step 3: Link the power cable
Step 4: Link the control button cable
12
INSTALLATION

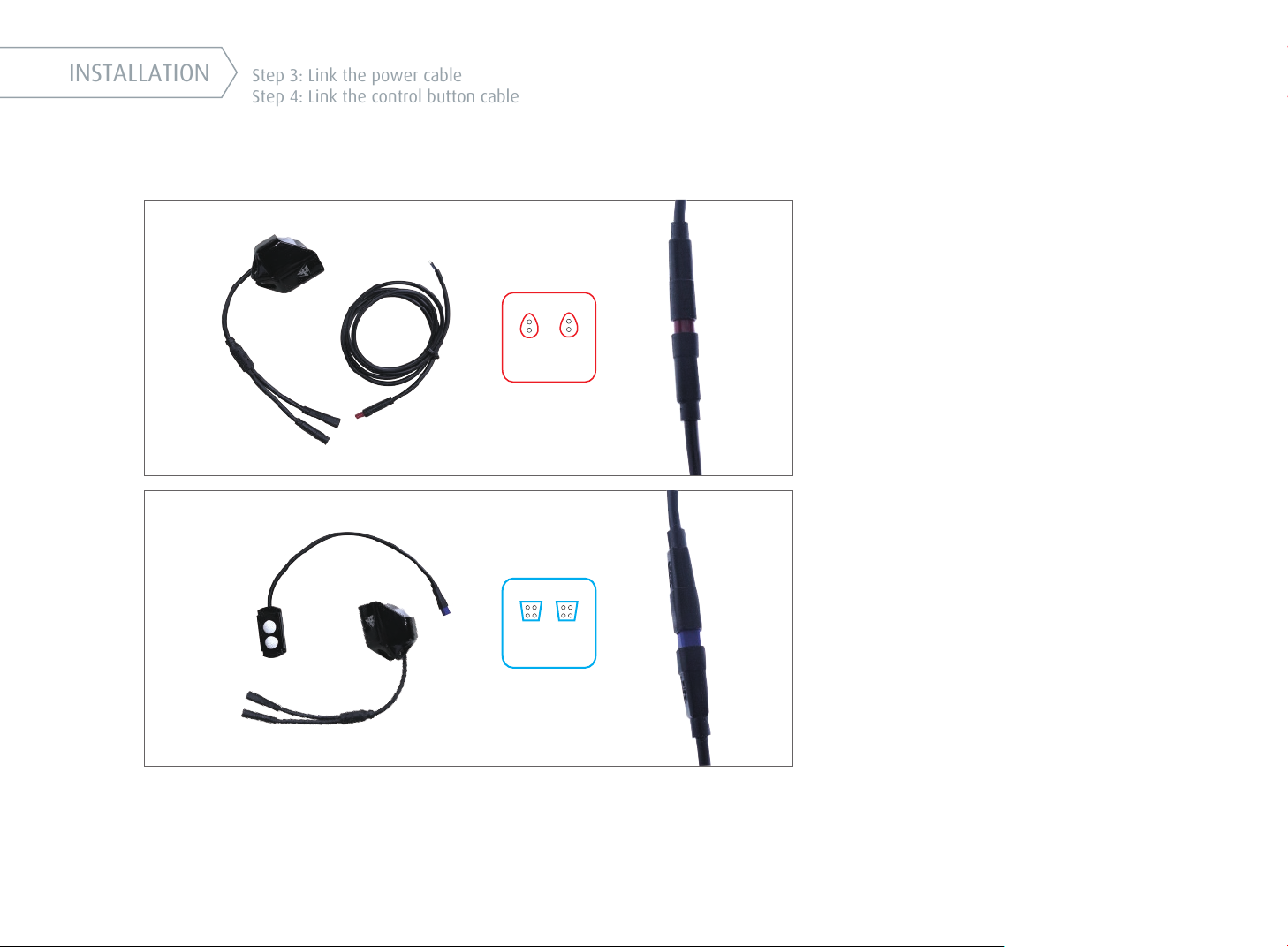

Step 3: Link the power cable
There are 2 cables from the light body.
Connect the cable with red connector
plug from the light body and the power
cable with red connector plug.
Step 4: Link the control button cable
There are 2 cables from the light body.
Connect the cable with blue connector
plug from the light body and the control
button cable with blue connector plug.
Fool-Proof Design
Ơ
Ơ
Fool-Proof Design

Step 5: Link Bosch front light connection cable with EP-4 power cable
Step 6: Insert Bosch blue connector into front light port
13
INSTALLATION
Bosch front light connection cable
Step 5: Link Bosch front light connection
cable with EP-4 power cable
Check the cable color carefully. Link the
black cable from Bosch connection cable
and black cable from EP-4. They are both
negative electrode.
Link the red cable from Bosch
connection cable and blue cable from
EP-4. They are both positive electrode.
Step 6: Insert Bosch blue connector into
front light port
EP-4
cable
Bosch
cable
-
+

INSTALLATION
INSTALLATION
14

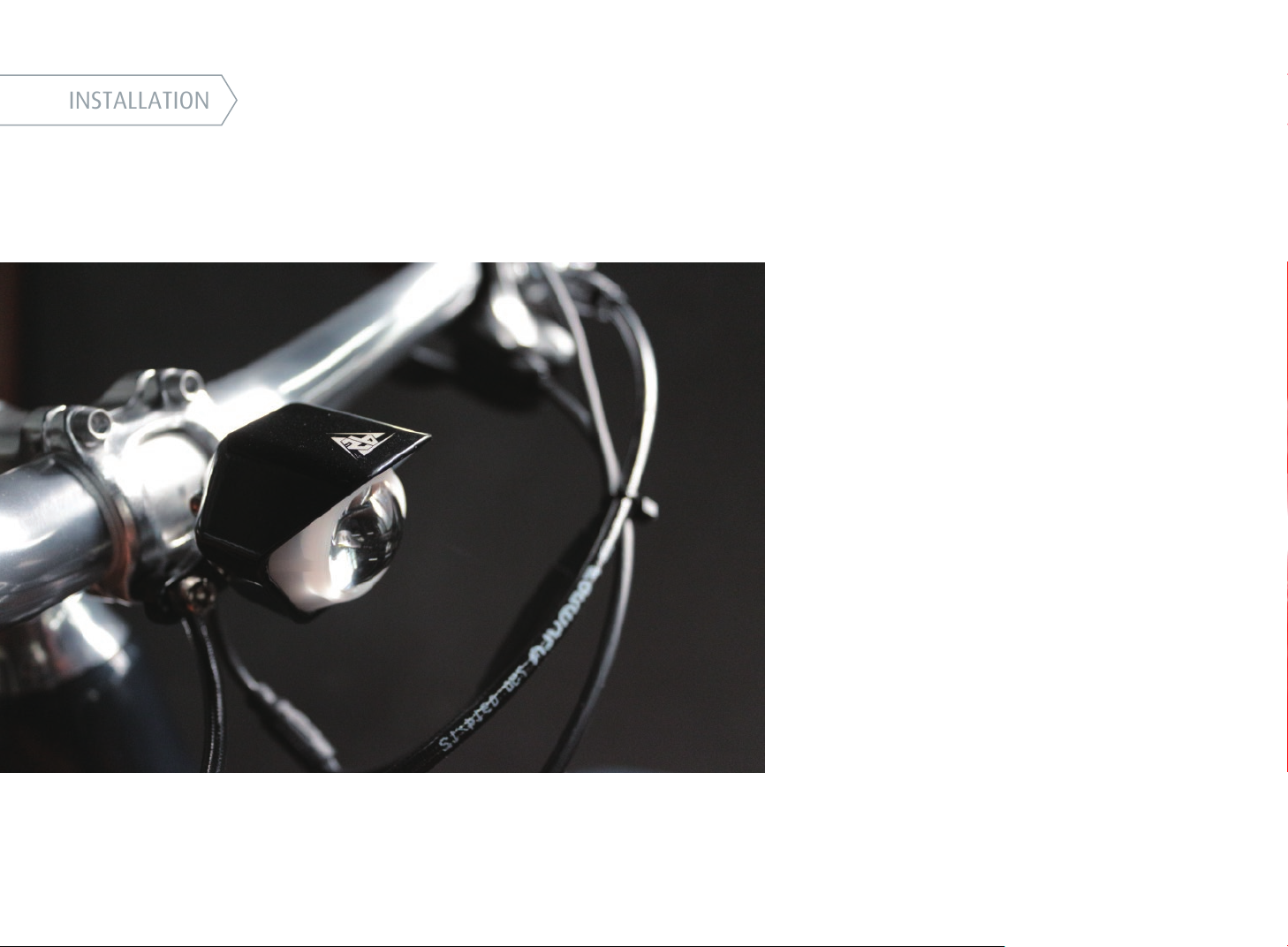

Please install the headlight in accordance with
the instructions and photos provided.
A correct EP-4 installation appears in the provided
pictures.
SP offers different kinds of products to join you on
the road. The EP-4 is small, but powerful
headlight to be with you on your entire journey!
Enjoy your rides with Shutter Precision!
INSTALLATION

GENERAL INFORMATION
15
CARE INSTRUCTIONS
1.
2.
3.
4.
WARRANTY & SERVICE
2-year warranty: SP products are covered under warranty for 2-years from
the date of purchase.
Never use a high-pressure hose or alcohol-containing fluids to clean the
headlight or its accessories.
Clean the front optic with water and a soft clean cloth when necessary.
Do not use aggressive cleaning agents and do not use alcohol based
cleaning agents!
Check the mounting bolts from time to time.
GENERAL INFORMATION

Copy right © 2019 Shutter Precision Co., Ltd. All rights reserved.
