Spacetronik SPE-226 User manual

Ax4
F
4x4
Dx8
F
4x4
1
2
3
4
6
5
2
F
D
61
3 1 4 1
71
1 2 2 2
52
C
F
2
Cx8
F
4x4
7
D
4
5
F
A
A
5
4
1
Model: SPE-226
Installation guide
A
1
C
D
4
B
E
4
F
16
12
8
Accessory list
No. Image Spec Qty
Attention: The drawings below are for guidance only and they may differ
slightly from the product and fittings received. Please contact our customer
service department should you have any queries.
Allen Key
4x4mm
M6
St4.2
M6
M6
M6
125KG
600-1250mm
1100-1900mm
3
Technical data
Column Stage
Max. Weight Capacity
Height Range
Width Range
Component list
No. Part Qty No. Part Qty
No. Part Qty No. Part Qty
No. Part Qty
No. Part Qty
Feet Lifting Column
Supporting Beam
(Control Box included)
Cable Management Tray
Side Bracket
Hand Switch
(Option)
Power Plug
STEP 1
STEP 2
STEP 3
Install the Side Brackets
Install the Lifting Columns
Install the Feet
Attach the side brackets(5) to the ends of the supporting beam (4) using
screws(A) as show with the Allen Key(F).
Insert the lifting columns (2) into the ends of the supporting beam(4).
Fix the lifting columns using screws(D) with the Allen Key(F).
Place the feet(1) on the bottom of the lifting column(2).
Fix the feet using screws(C) with Allen Key(F).

Ex12
F
4x4
2
1
E
6
E
A C
HS
M1M2
7
DC

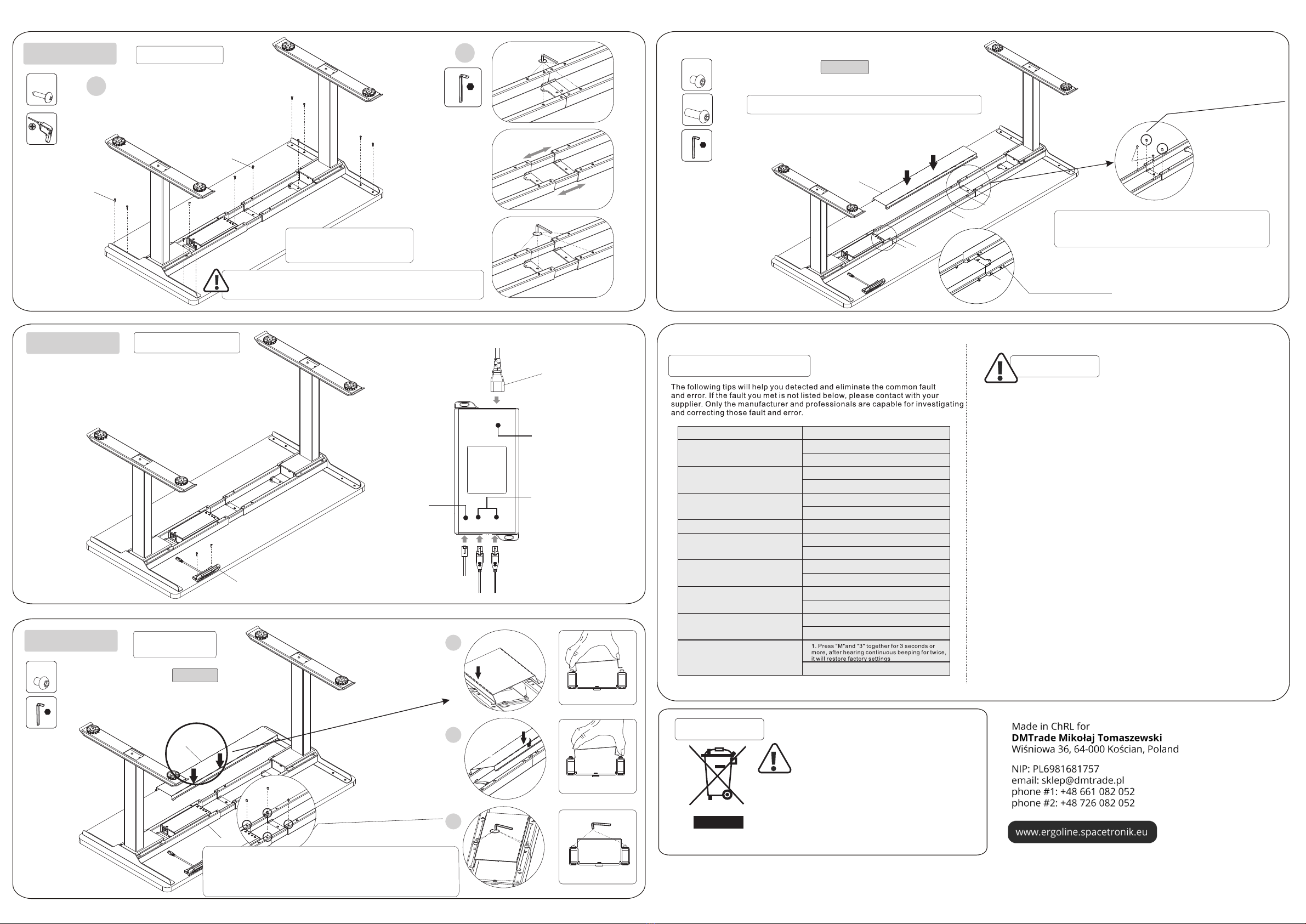

STEP 4 Install the Tabletop
STEP 5 Install the Control Panel
Loosen
Adjust
Tighten
The expansion distance of the
supporting beam can be adjusted
according to the actual use.
Attention: When the supporting beam is greater than 1720mm,
the installation method is as follows: Method 2 in Step 6.
Port for
hand switch
Power port
Port for cable
connected to the
lifting column
Common fault treatment
Fault phenomenon Method
No response while long pressing
down arrow after connected with
a power supply
1.Check if all the cables be connected well
1.Check if all the cables be connected well
2.Contact your supplier or dealer
2.Contact your supplier or dealer
No response while pressing up
arrow/ down arrow after
connected with a power supply
Rising in a low speed
1.Check if overloaded, max loading: 125kg;
1.Check if overloaded, max loading: 125kg;
1.Check if overloaded, max loading: 125kg;
2.Contact your supplier or dealer
2.Contact your supplier or dealer
2.Contact your supplier or dealer
The motor not move as instructed 1. Contact your supplier or dealer
1.Reposition
2.Contact your supplier or dealer
Go down but not go up
Downward sliding
Frequently Reposition
Overwork
（Duty cycle:Max 2min on/18min OFF）
1.Restart after suspend for 18mins while
connecting with power;
2.Contact your supplier or dealer;
Not enough up&down height
2.Contact your supplier or dealer
Attention
1. Power supply: AC100V-240V,50/60Hz
2. Service Environment: 0-40℃
3. Unplug the power plug before cleaning, wipe the dust on surface with slight wet
dishcloth when cleaning, be careful not to let the drops into the internal parts, not loose
the connector.
4. The electric box contains electronic components, metals, plastics, wires etc., so
dispose of it in accordance with each country's environmental legislation, not the
general household waste.
5. Check carefully to ensure correct and complete assembly before using.
6. Be familiar with all functions and program settings of the product before first use.
7. Children are forbidden to play on the product because of unforeseen action when
playing, so any dangerous consequences caused by this improper action will not be on
8. Slight noise caused by the V-ribbed belt or brake system due to structure will not
have any effect on the use of the equipment.
9. Corrosive or abrasive materials are forbidden to clean the equipment. Must ensure
that the cleaner used will not pollute the environment.
10. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance.
11. Cleaning and user maintenance shall not be made by children without supervision.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or a similarly qualified person in order to avoid a hazard.
13. Please make sure there is no hazard sources in your operating environment. e.g.,
do not litter the tools around. Always be careful to treat the packaging materials in order
to avoid any possible danger, e.g. plastic bag may lead to choking hazard to children.
14. Keep the original package of the equipment if necessary in case of the future use in
transportation.
Waste disposal This marking indicates that this product should
not be disposed with other household wastes.
To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection
systems or contact the retailer where the
product was purchased. They can take this
product for environmental safe recycling.
3
4
Bx4
F
4x4
2
3
1
B
STEP 6 Install the Cable
Management Tray
Method 1
Step 2: Buckle in the baffle
Step 1: The screws are not fully tightened
One-sided
embedding
Press the
other
side
Tighten
Bx4
F
4x4
3
4
B
B
D
Dx4
D
B
D
B
Method 2
Install the cable management tray as Method 1, Step 6.
Step 2: Buckle in the baffle
Step 1: The screws are not fully tightened
When the supporting beam stretches over 1720 mm,
the cable management tray needs to be mounted on
the middle of the supporting beam.
Do not stretch the support
beam beyond this hole
Tighten
First screw the screw (B) into the supporting beam (4) with a
wrench (F), and not tighten it completely; Then buckle one side
of the Cable Management Tray (3) into the screw (B); press the
other side into the screw (B);Finally, tighten the screw (B) with
a wrench (F).
DMTrade Mikolaj Tomaszewski declares that the devcie complies with the directives EMC (2014/30/EU),
LVD (2014/35/EU), RoHS (2011/65/EU + 2015/864/EU).
