Spansion S6SAL211A31SA2001 User manual

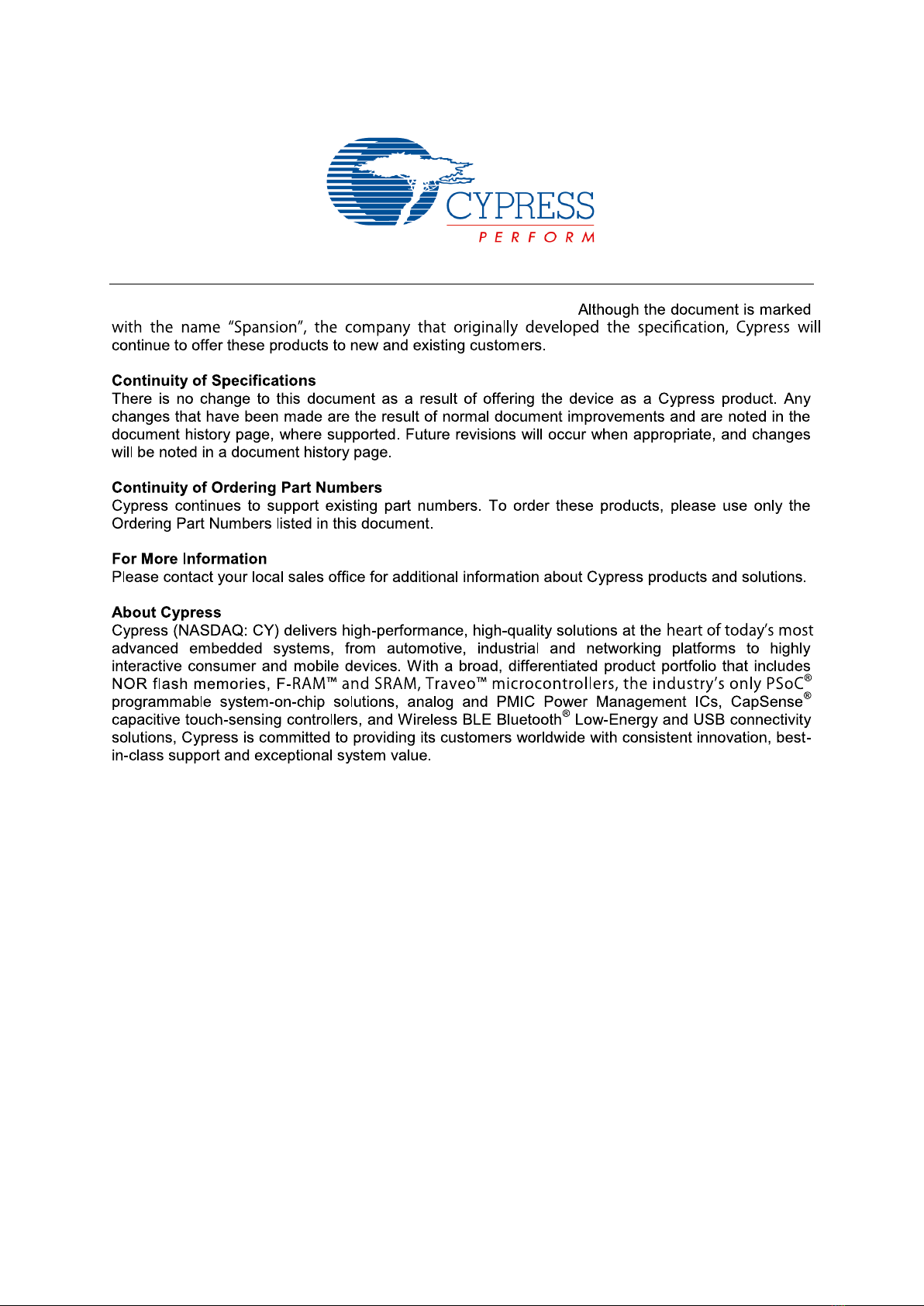

The following document contains information on Cypress products.

S6SAL211A31SA2001
S6SAL211A31SA3001
Intelligent LED Lighting Starter Kit for DALI System
4ch 72W LED Driver Board and Communication Board
Operation Manual
Publication Number S6SAL211A31SA3001_SS405-00003 Revision 1.0 Issue Date March 31, 2015
CONFIDENTIAL v1.1

O P E R A T I O N M A N U A L
2 S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015
CONFIDENTIAL v1.1
Preface
This manual explains how to use the evaluation board. Be sure to read this manual before using the product.
For this product, please consult with sales representatives or support representatives.
Handling and Use
Handling and use of this product and notes regarding its safe use are described in the manuals.
Follow the instructions in the manuals to use this product.
Keep this manual at hand so that you can refer to it anytime during use of this product.
Notice on this Document
All information included in this document is current as of the date it is issued. Such information is subject to
change without any prior notice.
Please confirm the latest relevant information with the sales representatives.

O P E R A T I O N M A N U A L
March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E 3
CONFIDENTIAL V1.1
Caution of the Products Described in this Document
The following precautions apply to the product described in this manual.
WARNING
Indicates a potentially hazardous situation which could result in death or serious injury and/or a
fault in the user’s system if the product is not used correctly.
WARNING
Do not look directly at LED. There is a possibility that your eye is hurt.
Electric shock,
Damage
Before performing any operation described in this manual, turn off all the power supplies to the
system.
Performing such an operation with the power on may cause an electric shock or device fault.
Electric shock,
Damage
Once the product has been turned on, do not touch any metal part of it.
Doing so may cause an electric shock or device fault.
CAUTION
Indicates the presence of a hazard that may cause a minor or moderate injury, damages to this
product or devices connected to it, or may cause to loose software resources and other
properties such as data, if the device is not used appropriately.
Cuts, Damage
Before moving the product, be sure to turn off all the power supplies and unplug the cables.
Watch your step when carrying the product. Do not use the product in an unstable location such
as a place exposed to strong vibration or a sloping surface. Doing so may cause the product to
fall, resulting in an injury or fault.
Cuts
The product contains sharp edges that are left unavoidably exposed, such as jumper plugs.
Handle the product with due care not to get injured with such pointed parts.
Damage
Do not place anything on the product or expose the product to physical shocks. Do not carry the
product after the power has been turned on.
Doing so may cause a malfunction due to overloading or shock.
Damage
Since the product contains many electronic components, keep it away from direct sunlight, high
temperature, and high humidity to prevent condensation. Do not use or store the product where
it is exposed to much dust or a strong magnetic or electric field for an extended period of time.
Inappropriate operating or storage environments may cause a fault.
Damage
Use the product within the ranges given in the specifications.
Operation over the specified ranges may cause a fault.
Damage
To prevent electrostatic breakdown, do not let your finger or other object come into contact with
the metal parts of any of the connectors. Before handling the product, touch a metal object
(such as a door knob) to discharge any static electricity from your body.
Damage
When turning the power on or off, follow the relevant procedure as described in this document.
Before turning the power on, in particular, be sure to finish making all the required connections.
Furthermore, be sure to configure and use the product by following the instructions given in this
document. Using the product incorrectly or inappropriately may cause a fault.
Damage
Because the product has no casing, it is recommended that it be stored in the original
packaging. Transporting the product may cause a damage or fault. Therefore, keep the
packaging materials and use them when re-shipping the product.

O P E R A T I O N M A N U A L
4 S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015
CONFIDENTIAL v1.1
Table of Contents
1. Description ..................................................................................................................................... 7
2. S6SAL211A31-DALI-SA2 Board Specification ............................................................................... 8
3. PIN Descriptions ............................................................................................................................. 8
3.1 Input/Output Connecter Descriptions .................................................................................. 8
3.2 Switch Descriptions ............................................................................................................. 8
4. Setup and Verification .................................................................................................................... 9
4.1 Contents in a Package ........................................................................................................ 9
4.2 Evaluation with DALI Communication for S6SAL211A31SA3001 ..................................... 10
4.2.1 PC Setup for S6SATU03 .................................................................................. 10

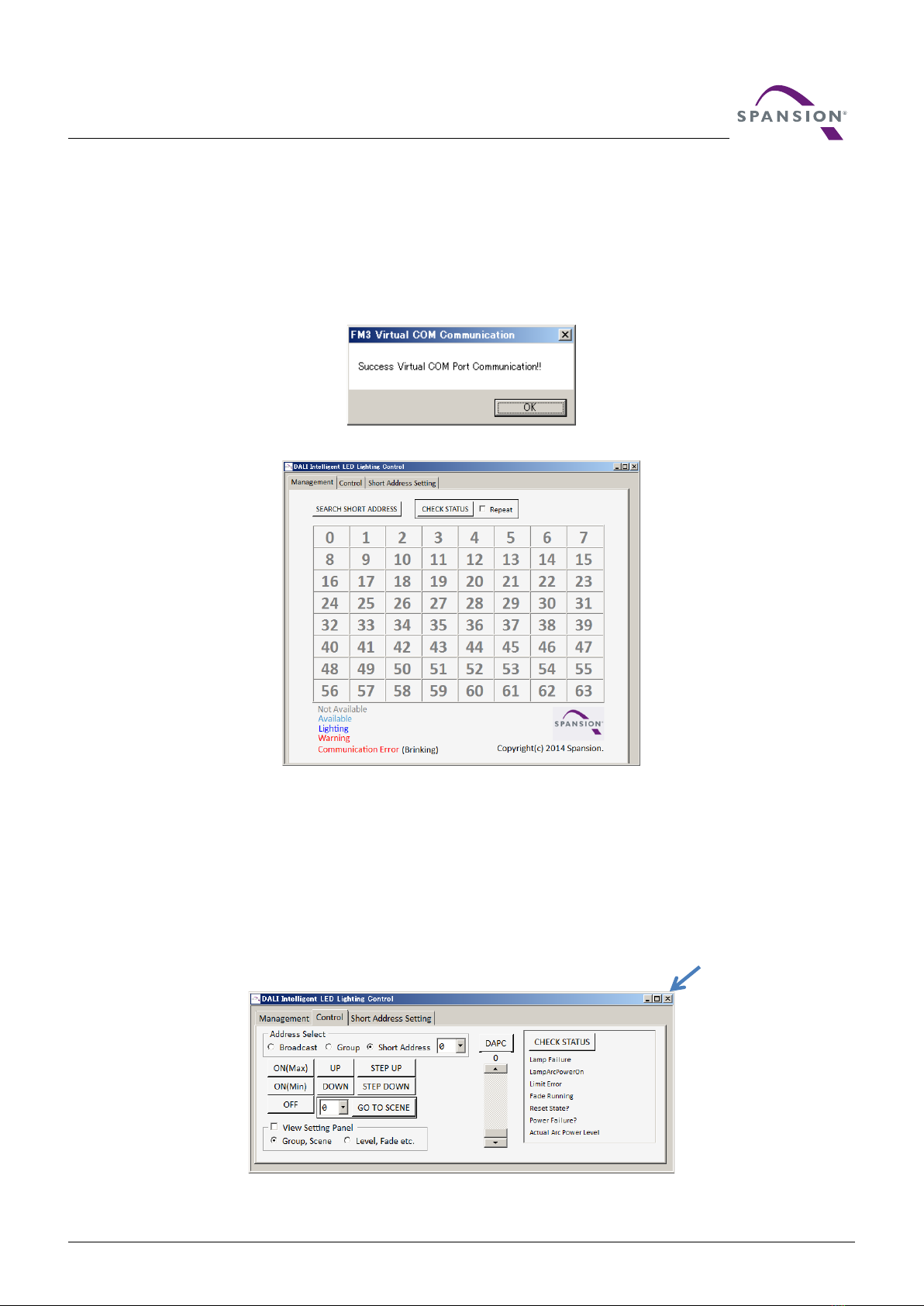

4.2.2 Operation Check When Using S6SATU03 ........................................................ 11

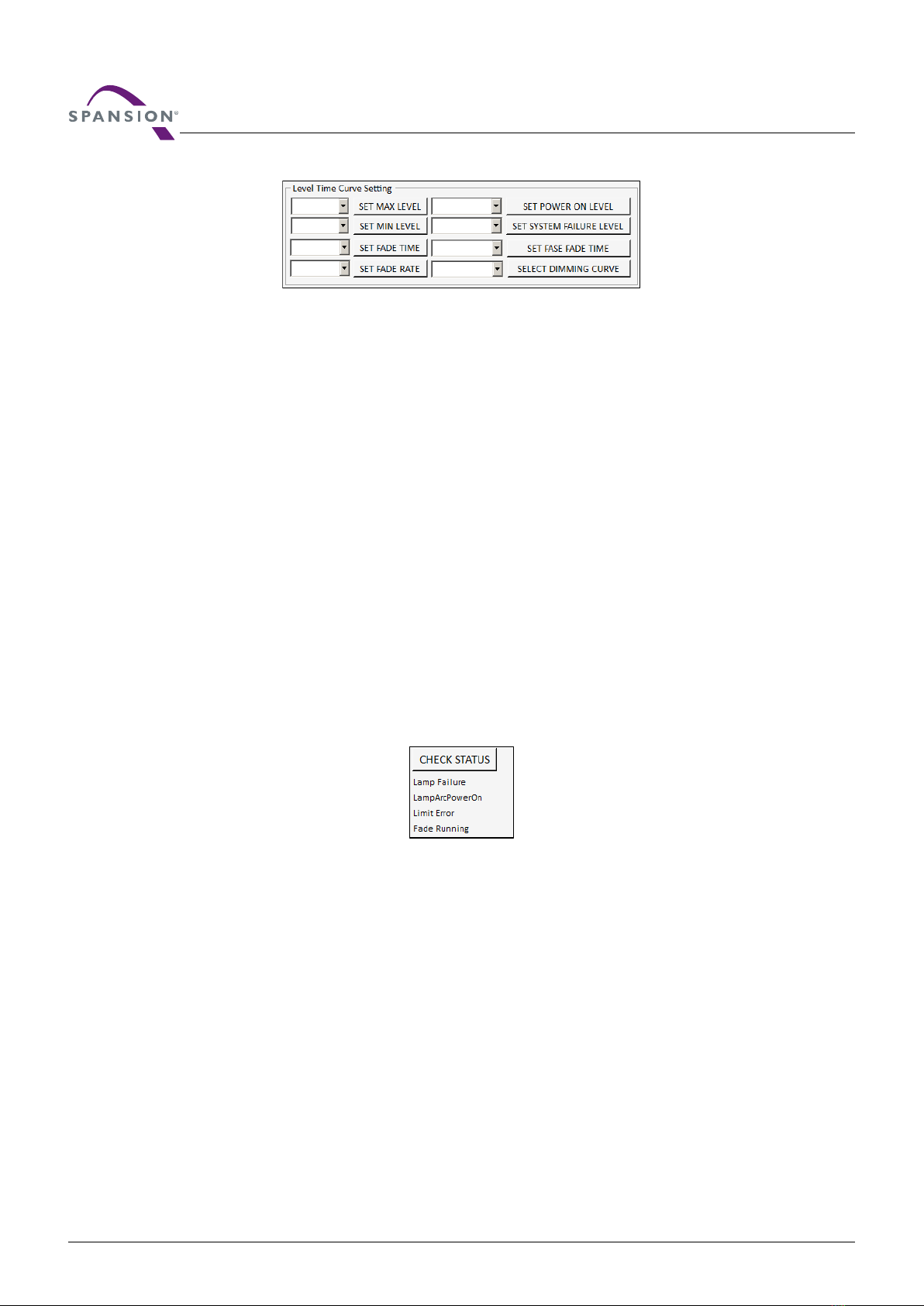

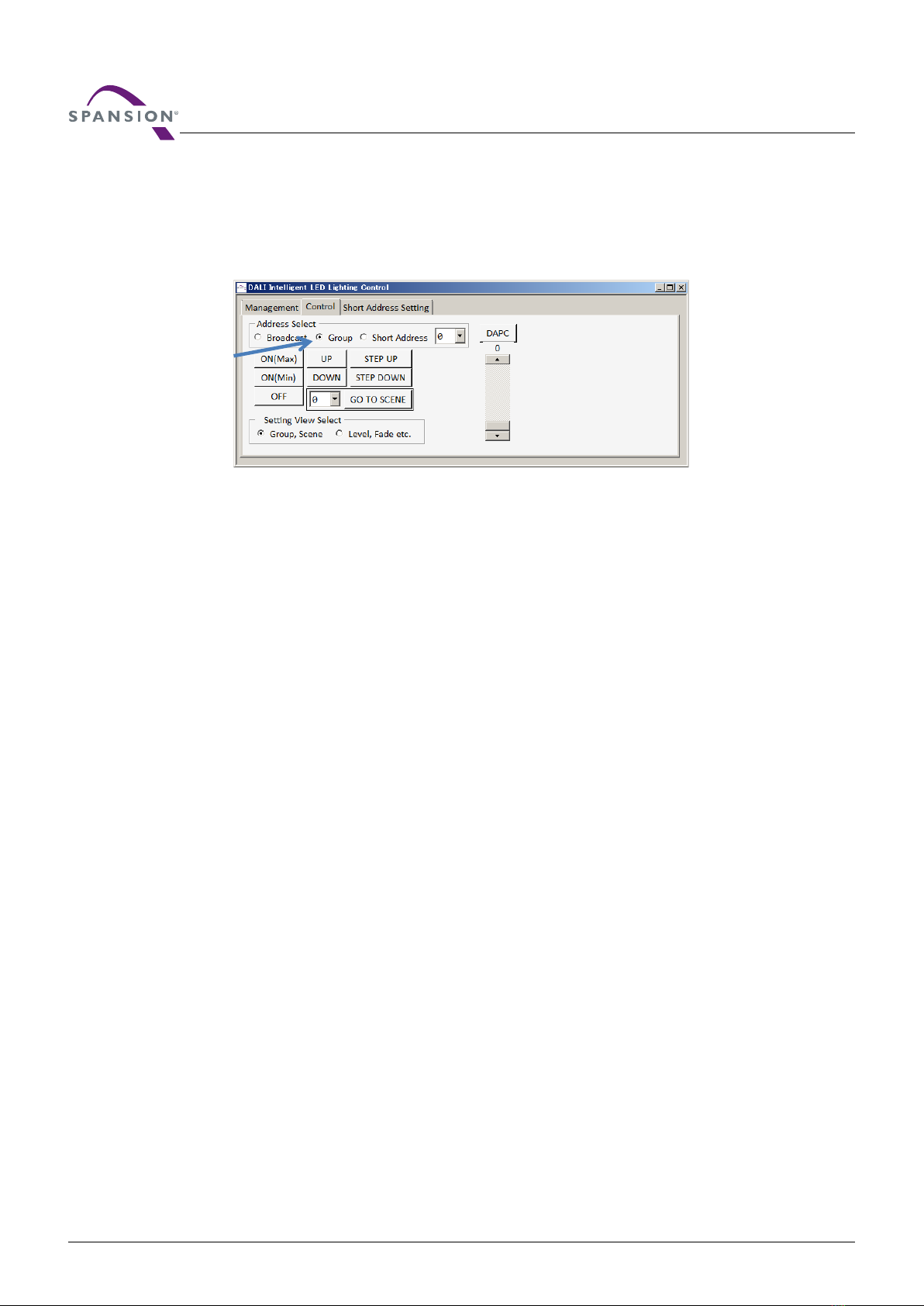

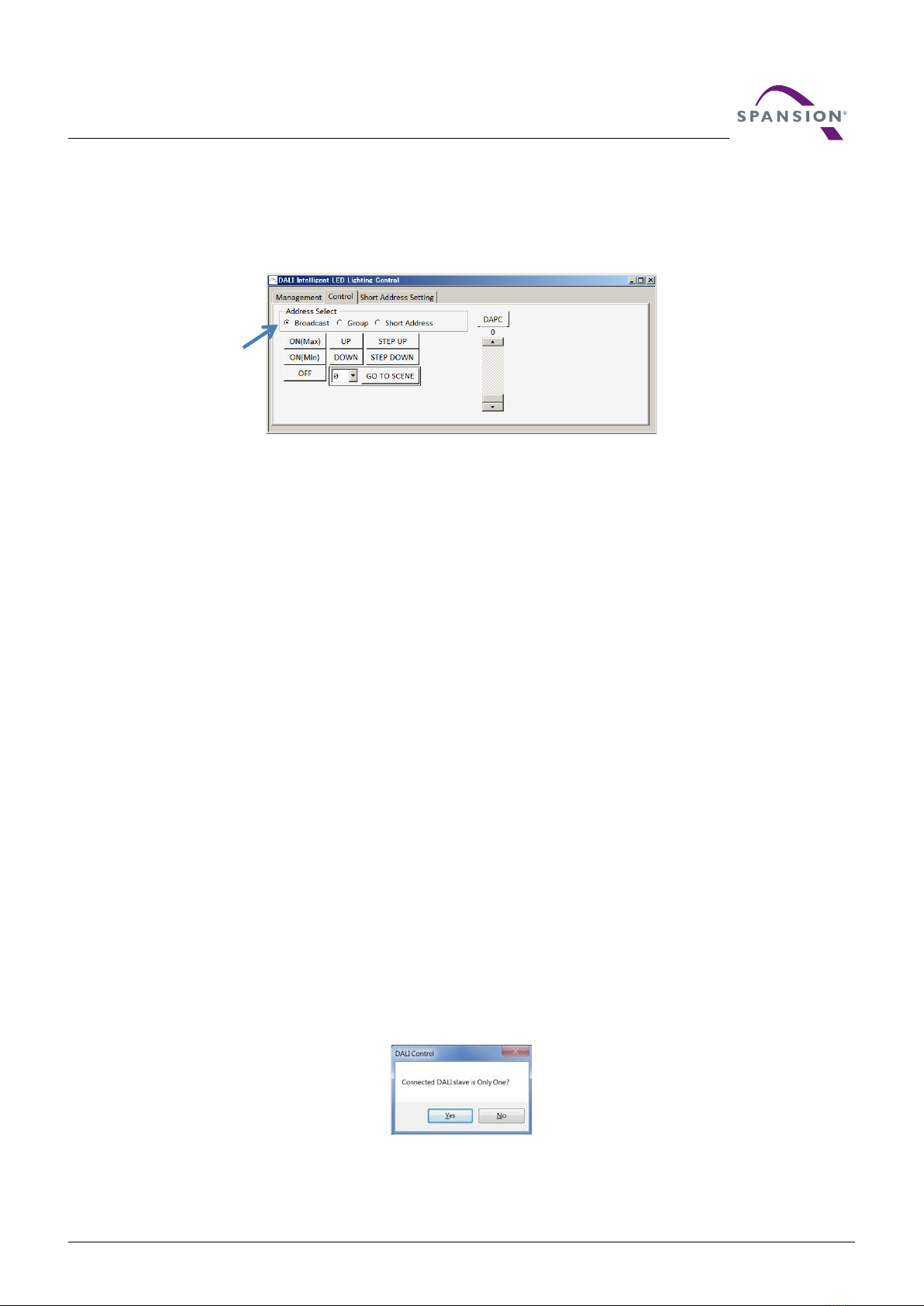

4.2.3 GUI Control Function When Using S6SATU03 ................................................. 13
5. Layout ........................................................................................................................................... 21
5.1 S6SAL211A31-DALI-SA2 Component Layout .................................................................. 21
5.2 S6SAL211A31-DALI-SA2 Wiring Layout ........................................................................... 22
5.3 S6SATU03 Component Layout ......................................................................................... 24
6. Circuit Schematic.......................................................................................................................... 25
6.1 S6SAL211A31-DALI-SA2 Schematic ................................................................................ 25
6.2 S6SATU03 Schematic ....................................................................................................... 29
7. Component List ............................................................................................................................ 30
7.1 S6SAL211A31-DALI-SA2 Components List ...................................................................... 30
7.2 S6SATU03 Components List ............................................................................................ 32
8. S6SAL211A31-DALI-SA2 Property Data ...................................................................................... 33
9. Board Picture ................................................................................................................................ 34
9.1 S6SAL211A31-DALI-SA2 Board Picture ........................................................................... 34
9.2 S6SATU03 Board Picture .................................................................................................. 35
10. Ordering Information ..................................................................................................................... 36
11. Major Changes ............................................................................................................................. 36
Figures
Figure 1-1 DALI System Outline ................................................................................................................. 7
Figure 2-1 S6SAL211A31-DALI-SA2 Board Specification .......................................................................... 8
Figure 4-1 Contents Picture ....................................................................................................................... 9
Figure 4-2 Board Connection .................................................................................................................... 11
Figure 4-3 Connection of 6SAL211A31-DALI-SA2 and LED .................................................................... 12
Figure 5-1 S6SAL211A31-DALI-SA2 Component Layout ........................................................................ 21
Figure 5-2 S6SAL211A31-DALI-SA2 Wiring Layout (Layer 1, Layer 2) .................................................... 22
Figure 5-3 S6SAL211A31-DALI-SA2 Wiring Layout (Layer 3, Layer 4) .................................................... 23
Figure 5-4 S6SATU03 Component Layout ............................................................................................... 24
Figure 6-1 S6SAL211A31-DALI-SA2 Circuit Schematic ........................................................................... 25
Figure 6-2 S6SAL211A31-DALI-SA2 Circuit Schematic ........................................................................... 26
Figure 6-3 S6SAL211A31-DALI-SA2 Circuit Schematic ........................................................................... 27
Figure 6-4 S6SAL211A31-DALI-SA2 Circuit Schematic ........................................................................... 28
Figure 6-5 S6SATU03 DALI Communication Circuit ................................................................................ 29
Figure 8-1 Switching Waveform ............................................................................................................... 33
Figure 9-1 S6SAL211A31-DALI-SA2 Board Picture ................................................................................. 34
Figure 9-2 S6SATU03 Board Picture ........................................................................................................ 35

O P E R A T I O N M A N U A L
March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E 5
CONFIDENTIAL V1.1
Tables
Table 3-1 S6SAL211A31-DALI-SA2 Input/Output Pin Descriptions ............................................................ 8
Table 3-2 S6SATU03 Input/Output Pin Descriptions .................................................................................. 8
Table 3-3 S6SAL211A31-DALI-SA2 Switch Descriptions ........................................................................... 8
Table 3-4 S6SATU03 Switch Descriptions .................................................................................................. 8
Table 4-1 S6SAL211A31SA3001 Contents List .......................................................................................... 9
Table 4-2 S6SAL211A31SA2001 Contents List .......................................................................................... 9
Table 7-1 S6SAL211A31-DALI-SA2 Components List ............................................................................. 30
Table 7-2 S6SATU03 DALI Communication Components List ................................................................. 32
Table 10-1 Ordering Information ............................................................................................................... 36
Table 11-1 Major Changes........................................................................................................................ 36

O P E R A T I O N M A N U A L
6 S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015
CONFIDENTIAL v1.1

S6SAL211A31SA2001
S6SAL211A31SA3001
Intelligent LED Lighting Starter Kit for DALI System
4ch 72W LED Driver Board and Communication Board
Operation Manual
March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E 7
CONFIDENTIAL V1.1
1. Description
S6SAL211A31SA2001 and S6SAL211A31SA3001 are starter kit tool for DALI communication system.
A master board (S6SATU03) and a slave board (S6SAL211A31-DALI-SA2) are included in
S6SAL211A31SA3001.
A slave board (S6SAL211A31-DALI-SA2) is included in S6SAL211A31SA2001.
Master board implements the communication circuits for DALI.
Slave board is LED control board of 4CH 72W for intelligent LED lighting driver IC S6AL211A31.
It is necessary to prepare a PC, 24V power supply, software, LED module and connection cable.
When using S6SAL211A31SA2001, please prepare DALI Master additionally.

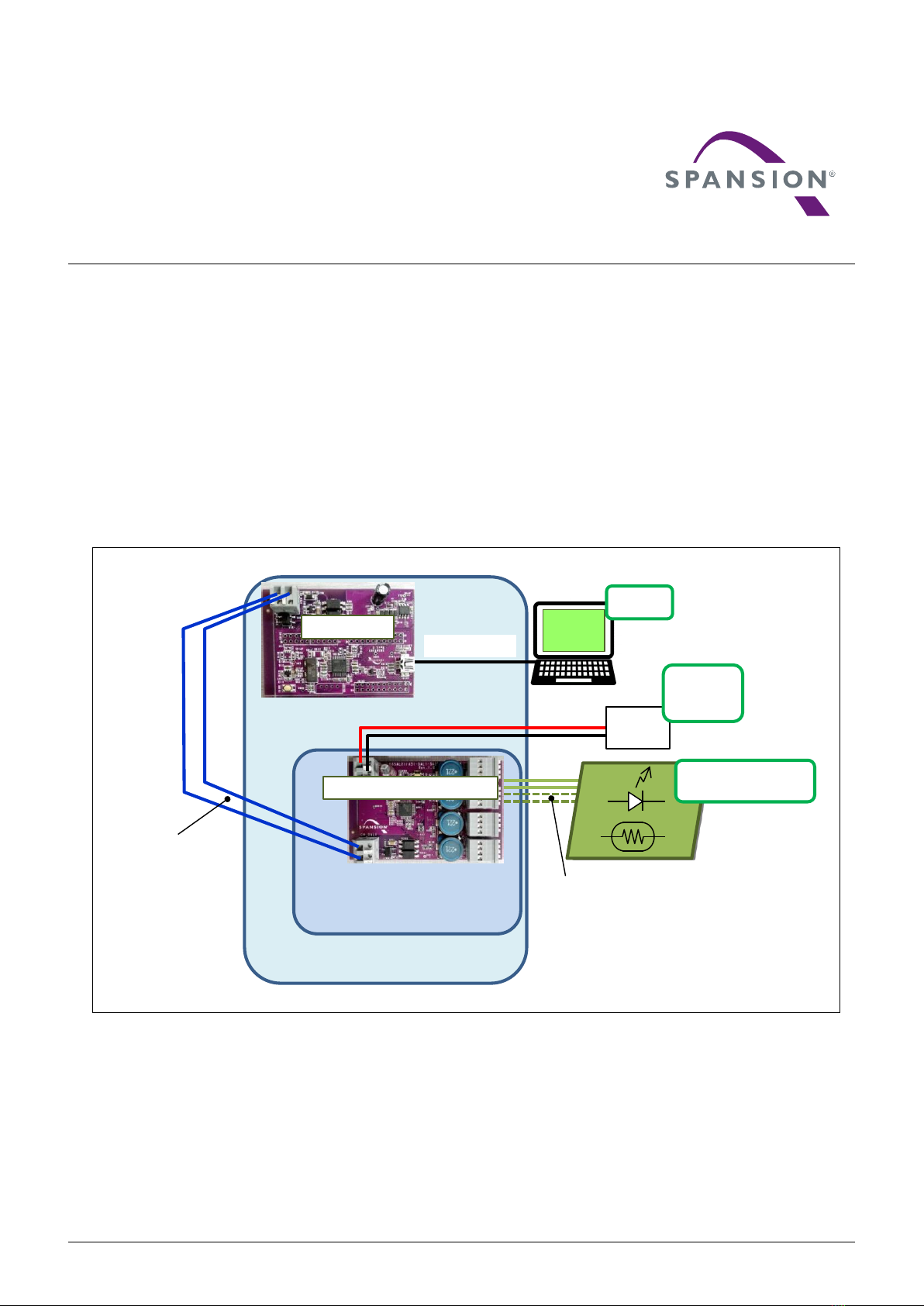

Figure 1-1 DALI System Outline
S6SAL211A31SA2001
DALI
communication
cable
GUI
S6SATU03
S6SAL211A31-DALI-SA2
PC
LED,Thermistor
USB cable
LED,Thermistor cable ×4ch
Master
Slave
S6SAL211A31SA3001
24Vdc
Power
supply

O P E R A T I O N M A N U A L
8 S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015
CONFIDENTIAL v1.1
2. S6SAL211A31-DALI-SA2 Board Specification
Figure 2-1 S6SAL211A31-DALI-SA2 Board Specification
Item
Symbol
Min.
Typ.
Max.
Unit
Input voltage
VIN
22
24
26
V
Input current
(VIN = 24V, ACTUAL LEVEL = 254 (max.))
IIN
-
3.1
-
A
Input current
(VIN = 24V, LED OFF, Include LED001 indicator current (1.7 mA))
IINoff
-
3
-
mA
Output LED voltage
VLEDout
0
18
VIN
V
Output LED current
(Each channel, ACTUAL LEVEL = 254 (max.))
ILEDout
-
1000
-
mA
Efficiency
(VIN = 24V, ACTUAL LEVEL = 254 (max.))
η
-
95.8
-
%
The board size: 53 mm × 71.5 mm
POWE ON LEVEL: 0.4% (*1)
SYSTEM FAILRE LEVEL: 31% (*1)
*1: The specification of DALI is 100%, but it's changed because it's safe.
3. PIN Descriptions
3.1 Input/Output Connecter Descriptions
Table 3-1 S6SAL211A31-DALI-SA2 Input/Output Pin Descriptions
Connecter Symbol
I/O
Function Description
CN_VIN
I
24Vdc power supply terminal
CN101,CN201,CN301,CN401
I/O
CH1 -CH4 LED , thermistor terminal
CN_DALI
I/O
DALI communication terminal
Table 3-2 S6SATU03 Input/Output Pin Descriptions
Connecter Symbol
I/O
Function Description
CN101
I/O
Mini USB connector
CN_DALI
I/O
DALI communication terminal
3.2 Switch Descriptions
Table 3-3 S6SAL211A31-DALI-SA2 Switch Descriptions
Switch
Description
Initial Setting
SW081
DALI short address physical selection
Push in physical selection
-
Table 3-4 S6SATU03 Switch Descriptions
Switch
Description
Initial Setting
SW101
Reset push switch for MCU
-

O P E R A T I O N M A N U A L
March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E 9
CONFIDENTIAL V1.1
4. Setup and Verification
4.1 Contents in a Package
Table 4-1 S6SAL211A31SA3001 Contents List
Table 4-2 S6SAL211A31SA2001 Contents List

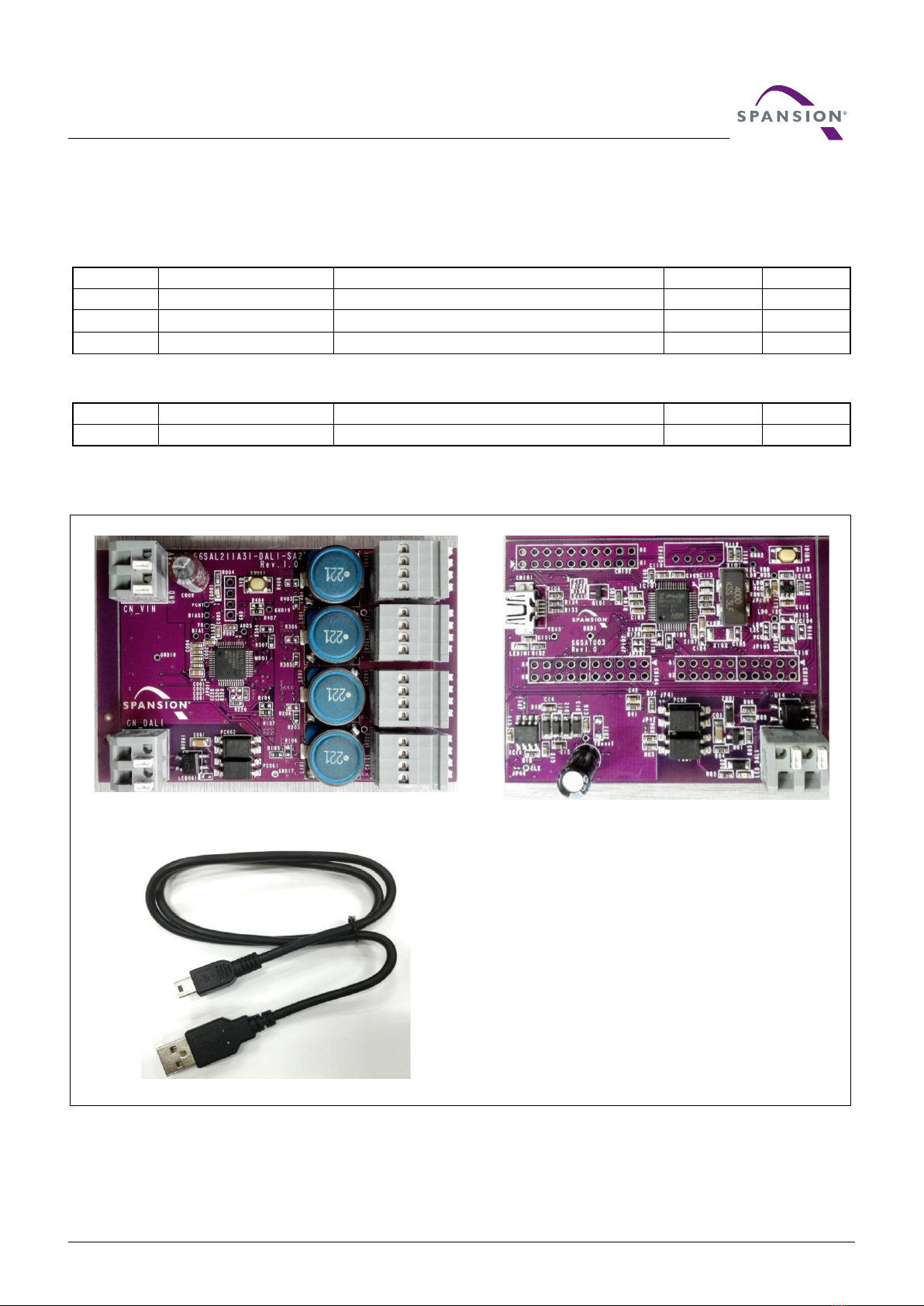

Figure 4-1 Contents Picture
1
2
3
No.
Contents
Description
Quantity
Notes
1
S6SAL211A31-DALI-SA2
LED control board of 4CH 72W with S6AL211A31
1
-
2
S6SATU03
DALI and USB communication board with FM3
1
-
3
USB cable
USB to USB mini B cable
1
-
No.
Contents
Description
Quantity
Notes
1
S6SAL211A31-DALI-SA2
LED control board of 4CH 72W with S6AL211A31
1
-

O P E R A T I O N M A N U A L
10 S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015
CONFIDENTIAL v1.1
4.2 Evaluation with DALI Communicationfor S6SAL211A31SA3001
Using Items for Evaluation with I2C Control
 S6SAL211A31-DALI-SA2 1pic (*1)
 S6SATU03 1pic (*1)
 USB cable 1pic (*1)
 PC installed Windows7 or later OS 1pic (*2)
 Driver file 1pic (*3)
 DALI communication software 1pic (*3)
 24V power supply 1pic (*2)
 LED module(IF ≥ 1A, VF ≈ 3.2V, 5 series × 4ch) 1set (*2)
 Connection cable 1set (*2)
*1: Included in a package.
*2: Please prepare.
*3: Please download it from our device home page,
S6AL211A31: Driver file install.bat in S6AL211_DALI_drivers.cab
DALI communication software S6AL211_DALI_GUI.exe in S6AL211_DALI_GUI.cab
4.2.1 PC Setup for S6SATU03
1. Unpack the driver file to a folder of PC running Windows 7 or later version OS, and run install.bat file.
2. Connect S6SATU03 to PC using USB cable.
3. After installed a device, open the device manager and confirm the new COM port.
Start menu → Control panel → Device manager
4. PC Setup is success if you can see "SIL Virtual Communication Port(COMx)" in Ports(COM & LPT).

O P E R A T I O N M A N U A L
March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E 11
CONFIDENTIAL V1.1
4.2.2 Operation Check When Using S6SATU03
WARNING
Do not look directly at LED. There is a possibility that your eye is hurt.
1. Connect CN_101,201,301,401 of S6SAL211A31-DALI-SA2 and LED by connection cable. *1
2. Connect CN_DALI of S6SATU03 and CN_DALI of S6SAL211A31-DALI-SA2 by DALI cable. *2
3. Connect CN101 of S6SATU03 and PC by USB cable.
( LED101 near CN101 of S6SATU03 on board will shine in red. )
4. Run DALI communication software.
5. 24Vdc is applied to CN_VIN of S6SAL211A31-DALI-SA2.
6. LED of all channel are lighting. (Bright level is set POWER ON LEVEL of DALI command)
7. Send DALI command DAPC to BROADCAST ADDRESS from S6SATU03. You can control LED
brightness. (Look at "Control Lighting by the broadcast")
Figure 4-2 Board Connection
GUI
S6SATU03
S6SAL211A31-DALI-SA2
PC (*3)
LED,
Thermistor (*1)
24Vdc
Power
supply
USB cable
DALI
communication
line (*2)
(No Polarity)
LED,Thermistor cable ×4ch
CN101
CN DALI
CN DALI
CN_VIN
CN_101
CN_201
CN_301
CN_401
S6SAL211A31-DALI-SA2 (*4)
Maximum DALI LIghting module (slave) number is 64.
CN DALI
CN_VIN
CN_101
CN_201
CN_301
CN_401
24Vdc

O P E R A T I O N M A N U A L
12 S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015
CONFIDENTIAL v1.1
*1: Connect LED to all CH from CN_101 to CN_401. Refer to Figure 4-3.
*2: S6SATU03 can provide power to DALI communication lines from CN_DALI. This current limit is
50 mA (Supply voltage = 12V-20V).We must consider this current when determining the number
of connected DALI Slave. We have to select the cable in consideration of the rated current and
then rated voltage
*3: Beforehand, make a setup of PC and install software.
*4: A board of S6SAL211A31-DALI-SA2 is possible to buy as single item.
(Part Number: S6SAL211A31SA2001)
Figure 4-3 Connection of 6SAL211A31-DALI-SA2 and LED
*1: Connect LED to all CH from CN_101 to CN_401. LED module(IF ≥ 1A, VF ≈ 3.2V, 5- series )
Be careful about polarity.
*2: Thermistor (THp,THm) is an option. Even if that isn't connected, a board operates.
THm
THp
LEDm
LEDp
CN_101
S6SAL211A31-DALI-SA2
CN_401
LED,Thermistor
(*1)
(*2)
THm
THp
LEDm
LEDp
THm
THp
LEDm
LEDp
THm
THp
LEDm
LEDp (*1)
(*2)
CN_201
CN_301

O P E R A T I O N M A N U A L
March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E 13
CONFIDENTIAL V1.1
4.2.3 GUI Control Function When Using S6SATU03
4.2.3.1 Preparing the Control GUI
Run DALI communication software (S6AL211_DALI_GUI.exe) after connecting the USB cable.
Show the message box below if the connecting GUI and DALI controller is success.
Otherwise, check USB cable connection or installation of the device driver.
Later a few second, GUI shows the dialog box.
Complete preparation.
Note: Don't disconnect the USB cable while this GUI is running. Because it breaks down.
4.2.3.2 Exiting the Control GUI
Crick "×" mark in the upper right.

O P E R A T I O N M A N U A L
14 S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015
CONFIDENTIAL v1.1

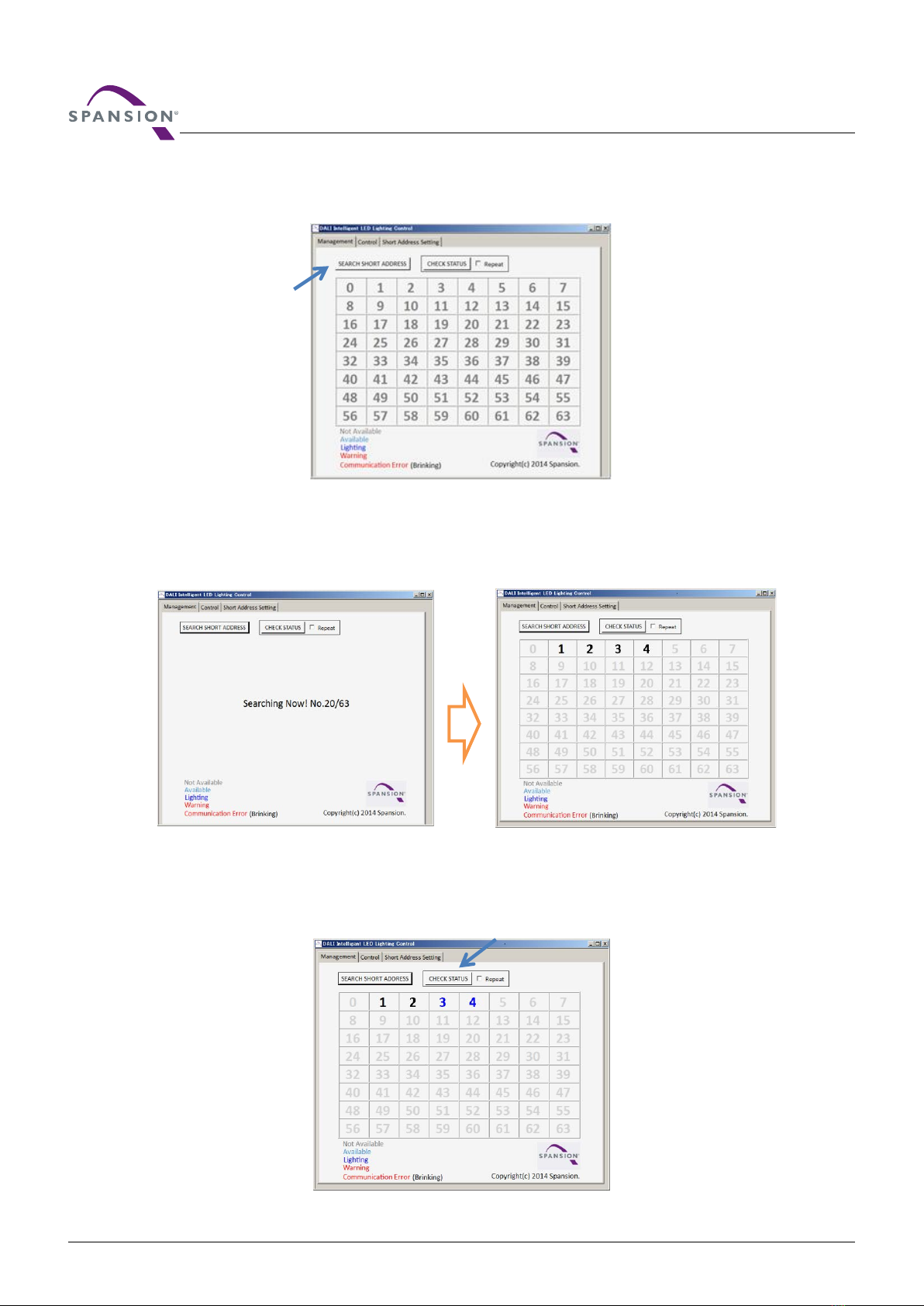

4.2.3.3 Checking State of the DALI Slave
You can check the state of connecting DALI slaves in "Management" tab.
Crick "SEARCH SHORT ADDRESS" button, then GUI will search some connected DALI slave.
If you see no highlighted number, Please refer to 4.2.3.6 Control Lighting by the Short Address.
And set the address.
GUI found 4 DALI slaves above picture.
Crick "CHECK STATUS" button, then GUI will show some connected DALI slave.
If you crick "CHECK STATUS" button after checking "Repeat" check box, this GUI will update status of DALI
slaves every second.
GUI shows you that 2 DALI slaves are bright above picture.

O P E R A T I O N M A N U A L
March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E 15
CONFIDENTIAL V1.1
4.2.3.4 Control Lighting by the Broadcast
DALI MASTER send to all connected DALI SLAVE by the broadcast in "control" tab.
(Selected "BroadCast" Radio button in "Address Select" Group)
Click Some Button and you can control lighting.
ON(Max) button:
Lighting starts at maximum level(default level 254).
ON(Min) button:
Lighting starts at minimum level(default level 1).
OFF button:
turn off lighting.
UP:
Increase lighting level at some pitch with fade.
DOWN:
reduce at some pitch with fade.
STEP UP:
One step up the lighting level.
STEP DOWN:
One step down the lighting level.
DAPC:
Direct Arc Power Control. Push this button after choosing the number (0-254) of the vertical
scrollbar.
Lighting level will set on the chosen number.
GO TO SCENE:
Set the lighting level to some scene after choosing number (0-15) of the drop box at left this button.
Show later for "SCENE".
Show below message box by selecting "Broadcast" radio button in "Address Select" group.
If you select "Yes", you can use "CHECK STATUS" button and "SCENE".
*Later mention: "CHECK STATUS", "SCENE". These functions by broadcast address can work correctly in
the case of connecting only one DALI slave

O P E R A T I O N M A N U A L
16 S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015
CONFIDENTIAL v1.1
4.2.3.5 Control Lighting by the Group
DALI MASTER sends to each DALI group in "control" tab.
(Selected "Group" Radio button in "Address Select" Group)
Click Some Button and you can control lighting.
The operations of each button (ON, OFF, (STEP) UP, (STEP) DOWN, DAPC, SCENE function) are same in
broadcast.
Group setting method is shown in "For the Group" of "Control Lighting by the short address".

O P E R A T I O N M A N U A L
March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E 17
CONFIDENTIAL V1.1
4.2.3.6 Control Lighting by the Short Address
DALI MASTER send to the particular DALI SLAVE by the short address.
DALI SLAVE needs to choose short address number.
Crick "Short Address Setting" tab.
Push "SET SHORT ADDRESS" button after choosing from the drop box of left button.
Short address selection is completed.
Show blow window after choosing "Short Address" Radio button in "Address Select" Group
Choose the short address the drop box in "Address Select" group, and you can control he lighting that have
same short address.
CHECK STATUS: Show the status of DALI slave.
View Setting Panel: You can set SCENE, GROUP and each item by checking this check box. GUI will show
the dialog box below

O P E R A T I O N M A N U A L
18 S6SAL211A31SA3001_SS405-00003-1v0-E, March 31, 2015
CONFIDENTIAL v1.1
Setting Panel Level, Fade, etc.
For the LEVEL
You can set each level from 1 to 254. (MAX LEVEL, MIN LEVEL, POWER ON LEVEL, SYSTEM FAILURE
LEVEL).
The fade time affects DAPC and SCENE. The fade rate affects UP and DOWN.
For the FADE
You can set the fade time and the fade rate.
The fade time affects DAPC and SCENE. The fade rate affects UP and DOWN.
Setting the FADE TIME
1. Select the fade time number (No fade-90.5sec) by drop box at left "SET FADE TIME" button.
2. Push "SET FADE TIME" button.
You can confirm in running the fade function as pushing "CHECK STATUS" button.
If DALI slave is in the fade function, "Fade Running" indicates "Running".
Setting the FAST FADE TIME
1. Select the fast fade time number (<25ms - 675msec) by drop box at left "SET FAST FADE TIME"
button with choosing No fade by SET FADE TIME.
2. Push "SET FAST FADE TIME" button.
Setting the FADE RATE
1. Select the fade time number (1-15) by drop box at left "SET FADE RATE" button.
2. Push "SET FADE RATE" button.
Select DIMMING CURVE
You can select dimming curve, Logarithm or linear
For the SCENE
You can set lighting level as scene from 0 to 15.

O P E R A T I O N M A N U A L
March 31, 2015, S6SAL211A31SA3001_SS405-00003-1v0-E 19
CONFIDENTIAL V1.1
You can select lighting level in 1 action as choosing the scene number without using UP, DOWN, DPAC and
etc.
Using the SCENE
You can set 16 scenes lighting level by below window.
Example: Setting 125 in SCENE 2
1. Set Lighting level (0-254) to 125 by No. 2 Vscroll bar.
2. Select "2" scene number by drop box at left "STORE SCENE" button.
3. Push "STORE SCENE" button.
4. Select "2" scene number by drop box at left "GOTO SCENE" button.
5. Push "GO TO SCENE" button, then the lighting level will be set to 125.
3
1
2
4
5
