Spark SS-36-N User manual

If you smell gas:
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from
the appliance and immediately call
your gas supplier or fire department.
DANGER
Models: SS-36, 48, 60, 72 -(N/P)
OWNER’S OPERATION AND INSTALLATION MANUAL
We recommend that our products be installed
and serviced by professionals who are certified
in the U.S. by NFI (National Fireplace Institute).
Complies with
WARNING
WARNING
DANGER
CARBON MONOXIDE
HAZARD
WARNING: For Outdoor Use Only
Report # 401-O-06-5
STAINLESS STEEL OUTDOOR FIREPLACE
with electronic ignition system
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
2. An LP-cylinder not connected for
useshall not be stored in the vicinity of
thisor any other aplliance.
1. Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other aplliance.
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Read the instalation, ope-
rating and maintenance instructions thoroughly
before installing or servicing this equipment.
This appliance can produce
carbon monoxide which
has
no odor. Using it in an
enclosed space can kill you.
Never use this appliance in
an enclosed space as a
camper, tent, car or home
ANS I Z21.97 - CSA 2.41-2012 "Outdoor Decorative Gas Appliances",
C GA 2.17-M91(R2009) "Gas Fired Appliances for Use at High Altitudes"
Version française de ce manuel est disponible à partir du site WEB : www.woodbridgefp.com
French version of this Owners Manual is available at www.woodbridgefp.com
SPARK MODERN FIRES

TABLE OF CONTENTS
Safety Information
2
............................................. 3
Local Codes ........................................................ 4
Fireplace Specifications....................................... 5
Installation............................................................. 7
Clearance to Combustibles ........................... 9, 14
Framing .......................... . ............ ... .................... 10
Electrical Wiring ....... ....... .............................. ...... 14
Gas Connection .................................................. 1 5
Checking Gas Pressure ....................................... 16
Placing Glass Panel and Media Tray .................. 18
Lighting Instructions ........................................... 19
Operating Instructions ........................................ 2 0
To Turn Off Gas to Appliance .......................... 2 1
Inspecting Burners ............................................. 2 2
Cleaning and Maintenance ................................ 2 3
Troubleshooting .................................................. 2 4
Proflame Control Wiring Diagram ...................... 28
Illustrated Parts Breakdow, Parts List.................. 29
Warranty Information .............................Back Cover

SAFETY INFORMATION
WARNING: This product con-
tains and/or generates chemicals
known to the state of California
to cause cancer or birth defects
or other reproductive harm.
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble,
operate or service this heater.
Improper use of this heater can
cause serious injury or death
from burns, fire, explosion,
electrical shock and carbon
monoxide poisoning.
DANGER: Carbon monoxide
poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning resemble the flu, with
headaches, dizziness or nausea. If you have these
signs, the heater may not be working properly. Get
fresh air at once! Have heater serviced. Some
people are more affected by carbon monoxide than
others. These include pregnant women, people with
heart or lung disease or anemia, those under the
influence of alcohol and those at high altitudes.
Natural and Propane/LP Gas: Natural and pro-
pane/LP gases are odorless. An odor-making agent
is added to the gas. The odor helps you detect a gas
leak. However, the odor added to the gas can fade.
Gas may be present even though no odor exists.
Make certain you read and understand all warnings.
Keep this manual for reference. It is your guide to
safe and proper operation of this heater.
WARNING: Any change to
this heater or its controls can
be dangerous.
WARNING: Do not use a
blower insert, heat exchanger
insert or other accessory not ap-
proved for use with this heater.
WARNING: Do not allow fans
to blow directly into the fireplace.
Avoid any drafts that alter burner
flame patterns. Ceiling fans can
create drafts that alter burner
flame patterns. Altered burner
patterns can cause sooting.
Due to high temperatures, the
appliance should be located out
of traffic and away from furniture
and draperies.
Do not place clothing or other
flammable material on or near
the appliance. Never place any
objects on the heater.
Fireplace front becomes very
hot when running fireplace.
Keep children and adults away
from hot surfaces to avoid
burns or clothing ignition. Fire-
place will remain hot for a time
after shutdown. Allow surfaces
to cool before touching.
Carefully supervise young chil-
dren when they are in the room
with fireplace. When using the
optional hand-held remote ac-
cessory, keep selector switch
inside firebox in the OFF posi-
tion to prevent children from tur-
ning on burners with remote.
Keep the appliance area clear
and free from combustible ma-
terials, gasoline and other flam-
mable vapors and liquids.
3

4
1. This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases.
2. Do not place propane/LP supply tank(s) in-
side any structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use
any phone in your building
• immediately call your gas supplier from a
neighborʼs phone. Follow the gas supplierʼs
instructions
• if you cannot reach your gas supplier, call
the fire department
6. To prevent the creation of soot, follow the
instructions in Cleaning and Maintenance
section.
7.Before using furniture polish, wax, carpet
cleaner or similar products, turn heater off. If
heated, the vapors from these products may
create a white powder residue within burner
box or on adjacent walls or furniture.
8.This fireplace needs fresh air ventilation to run
properly. This fireplace has an Oxygen Deple-
tion Sensing (ODS) safety shutoff system. The
ODS shuts down the fireplace if enough fresh
air is not available. See Air for Combustion
and Ventilation, page 6. If fireplace keeps
shutting off, see Troubleshooting, page 21.
9. Do not run fireplace
• where flammable liquids or vapors are used
or stored
• under dusty conditions
10. Do not use this fireplace to cook food or burn
paper or other objects.
SAFETY INFORMATION
Continued
11.Do not use fireplace if any part has been
exposed to or under water. Immediately call
a qualified service technician to inspect the
fireplace and to replace any part of the control
system and any gas control which has been
under water.
12.Turn fireplace off and let cool before servicing.
Only a qualified service person should service
and repair fireplace.
13. Operating fireplace above elevations of 4,500
feet could cause pilot outage.
14.
To prevent performance problems in propane/LP
units, do not use propane/LP fuel tanks of less
than 100 lbs. capacity (propane/LP units only).
15. Provide adequate clearances around air
openings.
LOCAL CODES
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
State of Massachusetts: The installa-
tion must be made by a licensed plumber
or gas fitter in the Commonwealth of
Massachusetts.
Sellers of unvented propane or natural
gas-fired supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
WARNING: Do not allow fans
toblowdirectly into the fireplace.
Avoid any drafts thatalter burner
flame patterns. Ceiling fans can
create drafts that alter burner
flame patterns. Altered burner
patterns can cause sooting.
Install and use fireplace with care. When an
appliance is for connection to a fixed piping
system, the installation must conform with local
codes, or in the absence of local codes, with The
National Fuel Gas Code ANSI Z223.1/NFPA 54*,
International Fuel Gas Code, Natural Gas and
Propane Installation Code, CSA B149.1, or Propane
Storage and Handling Code, B149.2, as applicable.
4. This fireplace shall not be installed in a bed-
room or bathroom. Do not use this fireplace
as a wood-burning fireplace.
5. Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burns or clothing
ignition.
Keep the appliance area clear
and free from combustible
materials, gasoline and other
flammable vapors and liquids.

5
RIGHT SIDE VIEW
8.15"
FRONT VIEW
TOP VIEW
GAS LINE ACCESS, BOTH SIDES
18"
A
B C
D
ECB
FIREPLACE SPECIFICATIONS
DIMENSIONS
SS-36 SS-48 SS-60 SS-72
A 48" 60" 72" 84"
C 29.75" 25.75" 25.75" 25.75"
D 36" 48" 60" 72"
E 17.31" 13.75" 13.75" 13.75"
B 33.75" 29.75" 31.75" 31.75"

6
SPECIFICA TIONS
Parameter / Model SS-36-N SS-48-N SS-60-N SS-72-N
Parameter / Model SS-36-P SS-48-P SS-60-P SS-72-P
Gas Type Propane Propane Propane Propane
S.I.T. Control Valve Model 880.002 880.002 880.002 880.002
Ignition Electronic Electronic Electronic Electronic
Manifold Pressure 10.0" w.c. 10.0" w.c. 10.0" w.c. 10.0" w.c.
Inlet Gas Pressure, MAX 13.0" w.c. 13.0" w.c. 13.0" w.c. 13.0" w.c.
Inlet Gas Pressure, MIN 11.0" w.c. 11.0" w.c. 11.0" w.c. 11.0" w.c.
Orifice Size ( Q-ty per unit) #49 (1) #41 (1) #48 (2) #44 (2)
Heat Output, Btu/h 38,000 56,000 75,000 90,000
Shipping Weight, Lbs 135 155 175 195
Gas Type Natural Natural Natural Natural
S.I.T. Control Valve Model 880.001 880.001 880.001 880.001
Ignition Electronic Electronic Electronic Electronic
Manifold Pressure 3.5" w.c. 3.5" w.c. 3.5" w.c. 3.5" w.c.
Inlet Gas Pressure, MAX 10.5" w.c. 10.5" w.c. 10.5" w.c. 10.5"
w.c. Inlet Gas Pressure, MIN 5.0" w.c. 5.0" w.c. 5.0" w.c. 5.0" w.c.
Orifice Size ( Q-ty per unit) #34 (1) #21 (1) #30 (2) #25(2)
Heat Output, Btu/h 40,000 60,000 75,000 90,000
Shipping Weight, Lbs 135 155 175 195

INSTALLATION
NOTICE: Surface temperatures
of adjacent walls and mantels be-
come hot during operation. Walls
and mantels above the firebox
may become hot to the touch.
If installed properly, these tem-
peratures meet the requirement
of the national product standard.
Follow all minimum clearances
shown in this manual.
WARNING: This appliance
requires a 1/2" NPT (National
Pipe Thread) inlet connection to
the pressure regulator.
WARNING: A
qualified
service
person must connect fireplace
to gas supply. Follow all local
codes.
CAUTION:
Never
connect
pro-
pane/LP fireplace directly to the
propane/LP supply. This fireplace
requires an external regulator
(not
supplied).
Install
the
external
regulator between the fireplace
and propane/LP supply.
I MPORTANT: Allow for a mini-
m
um space of 1/2" x 26" for air
f low to the front louvers of the
f ireplace from below when co-
v
ering the face.
7
I NSTALLING GAS PIPING TO F
IREPLACE LOCATION

INSTALLATION
1) When selecting a location for your fi replace, ensure that the clearances are met.
2) This appliance must be installed in an open-air situation with natural ventilation, without
stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind
and natural convection.
3) Certain materials or items, when placed under or near the appliance, will be subjected to radiant
heat and could become damaged.

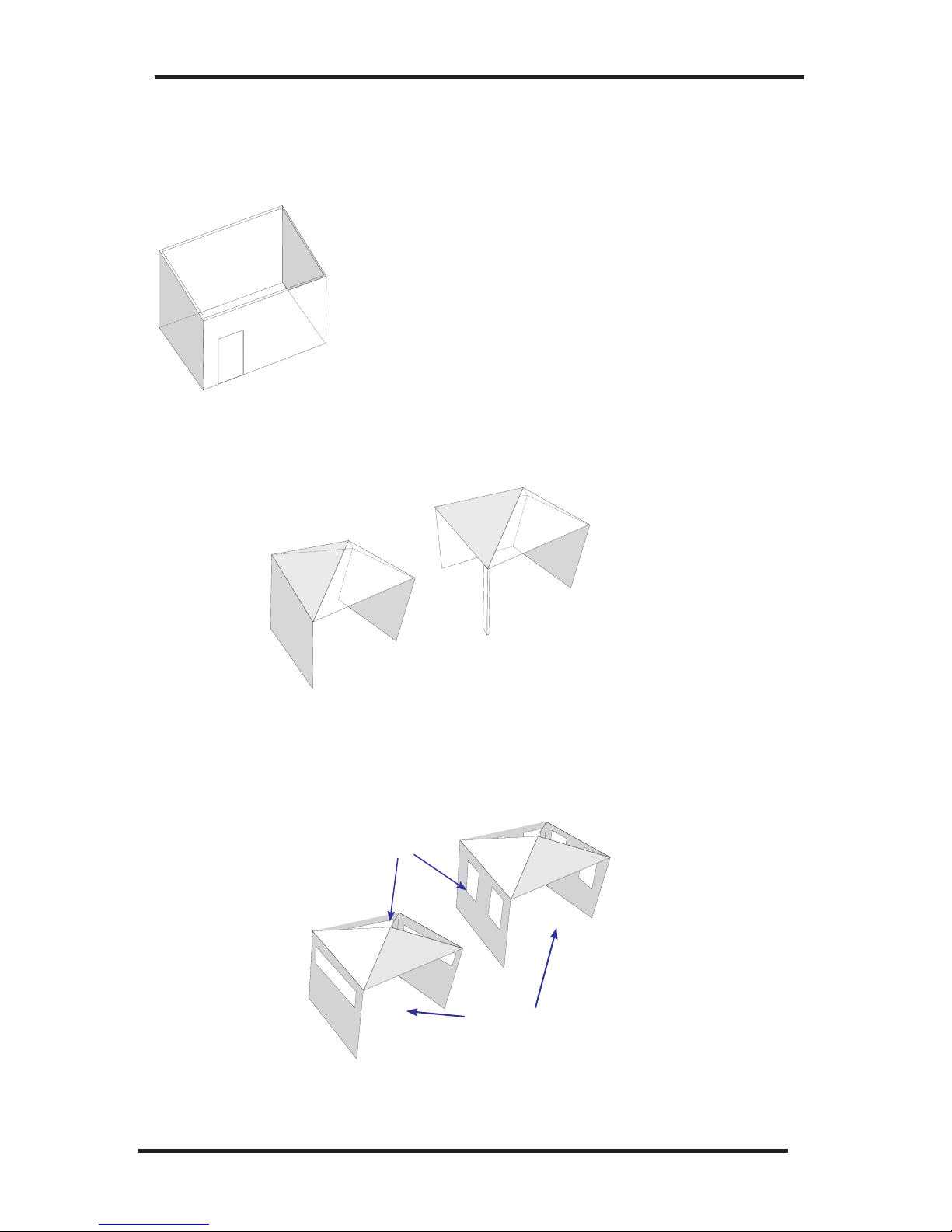

4) Typically an outdoor space is not enclosed but, any enclosure in which the appliance is used
shall comply with one of the following:
An enclosure with walls on all sides, but at least one permanent opening at ground level and
no overhead cover.
Within a partial enclosure that includes an overhead cover and more than two walls, the following
shall apply:
• At least 25% of the total wall area is completely open, and
• At least 30% of the remaining wall area is open and unrestricted
30% or more in total of the remaining wall
area is open and unrestricted.
Open side at least 25% of total wall area
LOCATING YOUR OUTDOOR GAS FIREPLACE
Within a partial enclosure that includes an overhead cover and no more that two walls.
INSTALLATION
8

CLEARANCES TO COMBUSTIBLES
MANTEL CLEARANCES
NOTE: The combustible area above the facing must not protrude more than
3
Follow these instructions carefully to ensure safe installation. Failure to follow instructions
exactly can create a fire hazard.
WARNING
any non-combustible ma-
6
6
6
6
6
6
12"
maximum
depth
COMBUSTIBLE MANTEL
Combustibles
Clearance to
INSTALLATION
9
Minimum 16"
from both side
walls
90" minimum
ceiling height
Standoff 0" (0 mm)
terial (refer to pages 10-18).
*) IMPORTANT:
Floor must be non-combustible . Otherwise a minimum 1" thick
cement board must be placed under the fireplace .
The fireplace face may be
completely covered with Sides 0" (0 mm)
Floor *)
Back 0.5" (13 mm)
H minimum **)
**) H = 20" for Models SS-36 (N,P) and SS-48 (N,P)
H = 30" for Models SS-60 (N,P) and SS-72 (N,P)
/ 4 " from the facing. If it does, it
is considered a mantel and must meet the mantel requirements listed in this manual.

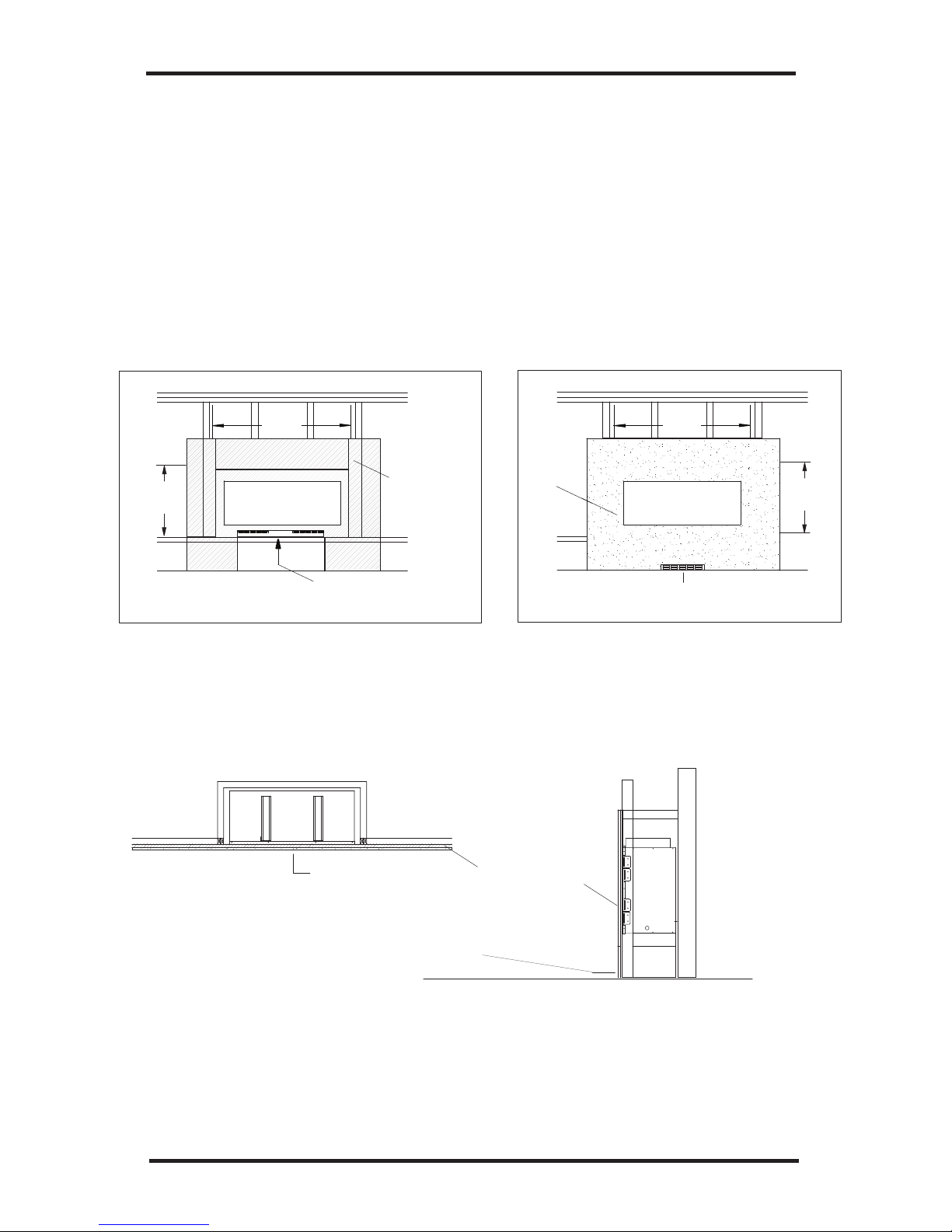

INSIDE CHASE INSTALLATION
RECESSED INSTALLATION
18.5"
0.50"
0.50"
FRAMING DIMENSIONS
FACING DIMENSIONS
MINIMUM NON COMBUSTIBLE MATERIAL
AREA
E
S
U
N
I
S
B
A
T
G
N
I
N
E
T
S
A
F
COMBUSTIBLE
MATERIAL
NON COMBUSTIBLE
MATERIAL AREA
INSTALLATION
Continued
PLEASE NOTE: Framing may need to be recessed from 3/4" to 1-1/2"
depending on layers and type of facing material used during installation.
0.5" 0.625"
10
18.5 "
F
H
G
F
G
F
min. F
min. K
i
min.
L

IE: DUROCK, CEMENT BOARD, GRANITE, MARBLE, STONE
OF NON-COMBUSTIBLE
MATERIAL
OPTION 1
NON COMBUSTIBLE MATERIAL
FACING WITH ONE LAYER
THREE WAYS TO ALLOW AIR FLOW
TO FRONT AIR VENT
LEAVE MINIMUM 1/2" X 26" SLOT
CLEAR FOR THE LOUVER AREA
ON BOTH FACES
Figure 1.1 - Installation of facing materials ( Case #1)
11
NON COMBUSTIBLE MATERIAL
minimum
INSTALLATION Continued
min. F
min. H
"F" wide x"H" high
Parameter / Model
L10" 10" 18" 18"
SS-36-N,P SS-48-N,P SS-60-N,P SS-72-N,P
F 49" 61" 73" 85"
G48" 60" 72" 84"
H34" 30" 3 2 " 3 2 "
K 34" 30" 38" 38"

TOP VIEW
ALLOW AIRFLOW
SIDE VIEW
ALLOW AIRFLOW
OF NON-COMBUSTIBLE
MARBLE, STONE
OPTION 2
NON COMBUSTIBLE MATERIAL
FACING WITH TWO LAYERS
MATERIALS
IE: DUROCK, CEMENT BOARD, GRANITE,
NON COMBUSTIBLE MATERIAL
ALLOW FOR MINIMUM 13 SQUARE INCHES OF AIR FLOW. ALLOW FOR MINIMUM 13 SQUARE INCHES OF AIR FLOW.
COVER WITH SECOND LAYER OF FACE MATERIAL.
SECOND LAYER
LEAVE THE LOUVER AREA CLEAR WITH FIRST LAYER OF FACE MATERIAL
FIRST LAYER
Figure 1.2 - Installation of facing materials ( Case #2)
12
INSTALLATION Continued
min. F m in. F
min. H
minimum "F" wide x "H" high
min. H

SIDE VIEW
AIRFLOW FROM BEHIND
SURROUND INTO AIR VENT
SIDE VIEW
NON COMBUSTIBLE
NON COMBUSTIBLE
Figure 1.3 - Installation of facing materials ( Case #3)
VIEW FROM BACK OF SURROUND
13
Leave the louver area clear,
allow for minimum 13 sq. inches
of air flow
Leave the louver area clear,
allow for minimum 13 sq. inches
of air flow
INSTALLATION Continued
OPTION 3
FACING WITH THICK LAYER OF NON-COMBUSTIBLE
ALLOWING AIR FLOW FROM BEHIND SURROUND

13
SIDE VIEW
ELECTRICAL WIRING
WARNING
Label all wires before disconnecting when
servicing controls. Wiring errors can cause
improper and dangerous operation.
CAUTION
Electrical connections should only be performed by a qualified, licensed electrician.
Main power must be off when connecting to main electrical power supply or performing
service. All wiring shall be in compliance with all local, city, and state codes. The
appliance, when installed, must be electrically grounded in accordance with local
codes, or in the absence of local codes, with the National Electrical Code ANSI/ NFPA
70 (latest edition) and Canadian Electrical Code, CSA C22.1.
INSTALLATION
Continued
Please, call manufacturer for directions how to find additional DC terminals inside of the fireplace.
*) IMPORTANT:
Floor must be non-combustible
. Otherwise a minimum
1" thick cement board must be placed under the fireplace
.
Clearance to
Combustibles
Sides...............0"
Bottom.............*)
Side Wall ......16"
Standoffs.........0"
Back ...............0"
14
This fireplace requires 110V
AC electrical supply for normal operation in order to
power up supplied
7V AC/DC adapter which is required to operate Remote Control.
However, during power outage situation, its electronic system (DFC board) can be
temporary powered with 9V DC batery and main valve can be operated manually
using ON/OFF position of the remote control (or optional
Manual Switch if installed).

INSTALLATION
Continued
WARNING: Never connect
natural gas fireplace to private
(non-utility) gas wells. This
gas is commonly known as
wellhead gas.
Installation Items Needed
Before installing fireplace, make sure you have
the items listed below.
• external regulator for propane/LP unit only
(supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap (optional)
• tee joint
• pipe wrench
• approved flexible gas line with gas connector
(if allowed by local codes) (not provided)
For propane/LP units, the installer must supply
an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce
incoming gas pressure to between 11 and 14 inches
of water. If you do not reduce incoming gas pres-
sure, heater regulator damage could occur. Install
external regulator with the vent pointing down
as shown in Figure 5. Pointing the vent down
protects it from freezing rain or sleet.
* Purchase the optional CSA design-certified
equipment shutoff valve from your dealer.
** Minimum inlet pressure for purpose of input
adjustment.
Sediment Trap
CSA Design-Certified
Equipment Shutoff Valve
With 1/8" NPT Tap*
3" Minimum
Cap Pipe Tee
Nipple Joint
Natural Gas
From Gas Meter
(5" W.C.** to 10.5"
W.C. Pressure)
Propane/LP
From External
Regulator
(11" W.C.** to 14"
W.C. Pressure)
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally-tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe of
1/2" diameter or greater to allow
proper gas volume to fireplace.
If pipe is too small, undue loss
of volume will occur.
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up.
NPT tap must be upstream from fireplace.
IMPORTANT:
Install equipment shutoffvalv
e
in an accessible location. The equipment shutoff
valve is for turning on or shutting offthe gas to
the appliance.
Check your building codesfor any special re-
quirements for locating equipment shutoffvalve
to fireplaces.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could result
in clogged fireplace valves. Never use sealant on
flare threads.
Propane/LP
Supply Tank
External
Regulator
Vent
Pointing
Down
SHUTOFF VALVE
A CSA design-certified equipment shutoff valve
with 1/8" NPT tap is an acceptable alternative to
test gauge connection. Purchase the optional CSA
design-certified equipment shutoff valve from your
dealer.
F
igure 3 - External Regulator With Vent
P
ointing Down
Figure 4 - Gas Connection
15

NOTICE: Most building codes
do not permit concealed gas
connections. A flexible gas line
is provided to allow
shutoff
valve should be accessible.
INSTALLATION
Continued
Flexible Gas Line
from Fireplace
Gas Regulator
To Fireplace
Gas Regulator
Equipment
Shutoff Valve
Provided by
Installer
Propane/LP
To External
Regulator
Natural Gas
To Gas Meter
WARNING: Use pipe joint
sealant that is resistant to liquid
petroleum (LP) gas.
sediment trap where it is within reach for clean-
ing. Install in piping system between fuel supply
and fireplace. Locate sediment trap where trapped
matter is not likely to freeze. A sediment trap traps
moisture and contaminants. This keeps them from
going into fireplace gas controls. If sediment trap
is not installed or is installed wrong, fireplace may
not run properly.
CONNECTING FIREPLACE TO GAS
SUPPLY
1. Remove access panel.
2. Route gas line (provided by installer) from
equipment shutoff valve to fireplace. Route
flexible gas supply line through one of the
access holes.
3.Attach the flexible gas line to gas supply as
CHECKING GAS PRESSURE
1. Check gas type. The gas supply must be the same as
stated on the appliance’s rating decal. If the gas supply
is different from the replace, STOP! Do not install the
appliance. Contact your dealer immediately.
2. To ease installation, a 30" (mm) ex line with manual
shut-off valve has been provided with on this appliance.
Install and attach
1
/ 2 " gas line onto shut-off valve.
Outlet Pressure Tap
Pilot Adjustment
Inlet Pressure Tap
4.
Do not use open flame to check for gas leaks.
WARNING
3. After completing gas line connection, purge air from
gas line and test all gas joints from the gas meter to the
replace for leaks. Use a solution of 50/50 water and
soap or a gas sniffer.
T
o check gas pressures at the valve, turn captured
screw counter clockwise 2 or 3 turns and then place
tubing to pressure gauge over test point.
Turn unit to high. After taking pressure reading,
be sure and turn captured screw clockwise
firmly to reaseal. Do not overtorque. Check
test points for gas leaks!
Figure 5 - Attaching Flexible Gas Lines
Together
per Figure 5. Check tightness of flexible gas
line attached to gas regulator of fireplace and
check all gas connections for leaks ( see
accessibility
from the fireplace (see Figure 5). The
flexible gas supply line con-
nection to the equipment
Checking Gas Connections, page 21).
We recommend that you install a sediment trap in
supply line as shown in Figure 4, page 19. Locate
16

CHECKING GAS CONNECTIONS
WARNING: Test all gas pip-
ing and connections, internal
and external to unit, for leaks
after installing or servicing. Cor-
rect all leaks at once.
WARNING: Never use an
open flame to check for a leak.
Apply a noncorrosive leak
detection fluid to all joints.
Bubbles forming show a leak.
Correct all leaks at once.
CAUTION: Make sure exter-
nal regulator has been installed
between propane/LP supply and
fireplace. See guidelines under
Connecting Fireplace to Gas
Supply.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect fireplace with its main gas valve
(control valve) and equipment shutoff valve
from gas supply piping system. Pressures
in excess of 1/2 psig will damage fireplace
regulator.
2. Cap off open end of gas pipe where equipment
shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection fluid to all
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect fireplace and equipment shutoff
valve to gas supply. Check reconnected fittings
for leaks.
INSTALLATION
Continued
Open
Closed
Equipment
Shutoff Valve
2. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
3. Check all joints from gas meter to equipment
shutoff valve for natural gas or propane/LP
supply to equipment shutoff valve for propane/
2. Open main gas valve located on or near gas
meter for natural gas or open propane/LP
supply tank valve.
3. Make sure control knob of fireplace is in the
OFF position.
7. Turn off fireplace (see To Turn Off Gas to
Appliance).
Figure 6 - Equipment Shutoff Valve
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 6).
PRESSURE TESTING FIREPLACE GAS
CONNECTIONS
1. Open equipment shut off valve (see Figure 6).
5
. Correct all leaks at once.
6
. Light fireplace (see Operating Fireplace, page
4
.Checkalljointsfromequipmentshutoff
valve
t
ogascontrolvalve. Applynon-
corrosive leak detection fluidtoalljoints.
Bubblesforming detects leak.
17
19
. Check all other internal joints for leaks.
LP.Apply noncorrosive leak detection fluidto
alljoints.Bubbles forming shows a leak.

Continued
INSTALLATION
MEDIA AND GLASS PANEL PLACEMENT
1.Fill the burner
tray completely with
the supplied clear
glass media.
2. Locate the glass wind shield
panel and slide down into the
support brackets. Assure the
panel is centered in the fireplace
and the support brackets are
fastened securely.
3.Fill the tray with
media supplied. Do not
place media on burner or
block air flow between
burner and tray.
4.
Your fireplace is
ready for operation.
18
NOTE: Verify burner and remote control operation prior to installing the glass panel and media!

A.This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light
the pilot by hand.
B. BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the oor because
some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electric switch; do not use any phone in your building.
•Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
•If you cannot reach your gas supplier, call the fire department.
C. Main gas valve in this appliance is not serviceable and does not have any control knobs or switches to operate.
Do not remove heat shieldscovering the valve and electronic devices; do not try to repairor modify the valve
as it may result in a fire or explosion. Call a qualified service technician if you have any safety concerns.
D. Do not use this appliance if any part of it has been under water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of the control system and any gas control that has been under
water.
LIGHTING INSTRUCTION
FOR YOUR SAFETY READ BEFORE OPERATING
LIGHTING FOR THE FIRST TIME
INITIAL LIGHTING
Purge air from the supply line as follows:
• Open main shutoff valve.
• Unscrew main pressure test point.
• Leave inlet test screw open until gas comes in.
• When gas is owing, tighten inlet screw immediately.
LEAK TESTING
1. Follow the pipe from the gas supply line connection to the gas valve. Check connection for leaks with soap
and water mixture.
2. Next check for gas leaks at the burner with soap and water mixture.
3. Check the pilot for gas leaks with soap and water mixture.
If you do not follow these instruction exactly,
a fire or explosion may result causing property
damage, personal injury or loss of life.
WARNING
Never use an open flame to check for gas leak.
DANGER
19

Continued
APPROVED LEAK TESTING METHOD
You may check for gas leaks with the following methods only:
• Soap and water solution
• An approved leak testing spray
• Electronic sniffer
NOTE: Remove any excessive pipe compound from
the connections. Excessive pipe compound can set
off electronic sniffers.
"INSTALLATION AND OPERATING INSTRUCTIONS FOR SKYTECH MODEL: 1001 T/LCD-A"".
OPERATING INSTRUCTIONS
Check for gas leaks in each of the following locations:
•Pipe from the gas supply line connection to the gas valve
•Burner connections, pilot •Field made joints / gas shutoff valve
•All joints on valve and control body •Factory made joints, each joint and connection
WA
If using a soap and water solution to test
for leaks, DO NOT spray solution onto
electronic parts.
WARNING
Never use an open flame to check for gas leak.
DANGER
1. STOP! Read the safety information on previous page.
2. Turn off all electric power to the appliance.
3. Do not attempt to light the pilot by hand.
If you don't smell gas, go to the next step.
WARNING
7. Turn the gas control manual valve to the ON position.
8. Plug supplied 7V DC adapter into 110V power outlet.
LIGHTING FOR THE FIRST TIME
5. Turn the gas control manual valve to the full OFF position.
6. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor.
If you smell gas, STOP! Follow "B" in the safety information (see page 7).
9. Connect the wire to the DC input plug at the unit.
11. Locate Remote Receiver inside of the unit (see Illustrated Parts List, page 13). Make sure that the slider switch
13. Read and follow instructions in how to set up and to use remote control described in supplied
14. If the appliance will not operate, follow the instructions "To Turn Off Gas To Appliance" and call
your service technician or gas supplier.
of the Receiver is in "REMOTE" (middle) position.
10. Lift and remove Heat Shield covering electronic components inside of the unit (see Illustrated Parts List, page 13).
12. Replace Heat Shield and then replace Front Tray.
4. Remove
Optional Media Tray (or Floor Panel) from the appliance (see Illustrated Parts List, page 14).
20
