Spartan JOH-2000R User manual

INSTRUCTION MANUAL
2000W Infrared Heater
Model: JOH-2000R
Safety warnings
READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS UNIT. KEEP THE ASSEMBLY
INSTRUCTIONS FOR FUTURE REFERENCE. KEEP THE ASSEMBLY INSTRUCTIONS FOR FUTURE REFERENCE.
KEEP THE ORIGINAL PACKAGING FOR USE WHEN STORING THE HEATER DURING EXTENDED PERIODS OF
NON-USE.

-Read all instructions before using this unit.
-Do not leave this unit unattended when in use.
-This heater will get hot when in use. Do not touch hot surfaces.
-Caution: Some parts of this product can become very hot and cause burns.
Particular attention has to be given when children and vulnerable people are present.
-Do not move the unit when in use. Wait until the heater is completely cool before moving and check that it
has been unplugged from the power supply.
-Position the unit at least 1m away from highly combustible materials such as furniture, trees, leaves, dry
grass and bushes.
-The heater must be a minimum of 1.8m away from the ground and a minimum of 0.5m away from the
ceiling of a building or overhanging items.
-The heater must not face with the heating element pointing upwards towards a ceiling. The heater element
must be facing the area it is to heat.
-Warning: In order to avoid overheating do not cover the heater. It is not for drying clothes.
-Keep children and pets at a safe distance from the unit.
-This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved.
-Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
-Do not operate the heater if any signs of damage or malfunction manifest themselves.
-Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not
contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs.
Attempting to repair the unit yourself will void your warranty.
-If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
-Do not handle the element with bare hands. If it is inadvertently touched, remove finger marks with a soft
cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature
heater failure.
-Do not replace or attempt to replace the element in this product.
-This product is suitable for indoor and outdoor use. Do not use this heater in the immediate surroundings
of a bath, shower or swimming pool.
-This product must not be left outdoors exposed to the elements for long periods of time.
-Do not touch the plug with wet or damp hands.
-Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar
coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.
-Do not wind the power cable around the unit.
-Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in
electric shock, fire, or damage to the heater.
-To prevent a possible fire, do not block the air vents.
-A heater has hot and arcing or sparking parts inside. Do not use in areas where petrol, paint, explosive
and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
-Where possible, avoid the use of an extension cable as this may overheat and cause a fire. However, if you
have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and

preferably has an RCD device fitted or attached.
-Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.
-To disconnect heater, turn controls to OFF, then remove plug from socket. Do not unplug by pulling on the
power cable.
-Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.
-This heater is intended for domestic use only and should not be used commercially for contract purposes.
Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury to
persons.
-The use of attachments on the heater is not recommended.
-Warning: This heater is not equipped with a device to control the room temperature. Do not use this heater
in small rooms when occupied by persons not capable of leaving a room on their own, unless constant
supervision is provided.
-Check exterior walls for areas of damage before installing the heater.
-Always use on a dry, suitably strong, stable, flat and level surface.
-Check exterior walls for communication and electrical cables and pipelines. Should any service lines be
present in the immediate vicinity do not install your heater, find an alternative location to install this product.
-Do not position directly above or below an electrical socket.
-Do not remove any of the warning stickers or signs from the product.
Installation
Before the installation, these matters need to attention
1.Products should be put down gently
2.Acid and alkali environment installation is not recommended.
3.The product must be grounding
4.The products are required to check the product brand mark on the voltage and the local voltage whether
conform.
5. Ensure the power rating should have sufficient current carrying capacity.
Wall mounting installation:
1. Ensure the production's installation site
For the safe use of the product, the product installation position should guarantee the bottom minimum
height of 1.8 m from the ground, ceiling, roof, or other coverings minimum distance is 0.5 m, minimum
distance with both sides wall is 0.5 m (as shown in figure 1)

2.Installation steps
I. According to the product II. Insert the two plastic wall anchors to the
installation location, use percussion two holes
drilling to make two diameter 8 mm
round holes. Distance for the 2 holes
will be 60mm
III. Install the metal rack onto the heater IV. Install the heater to the wall like showing below

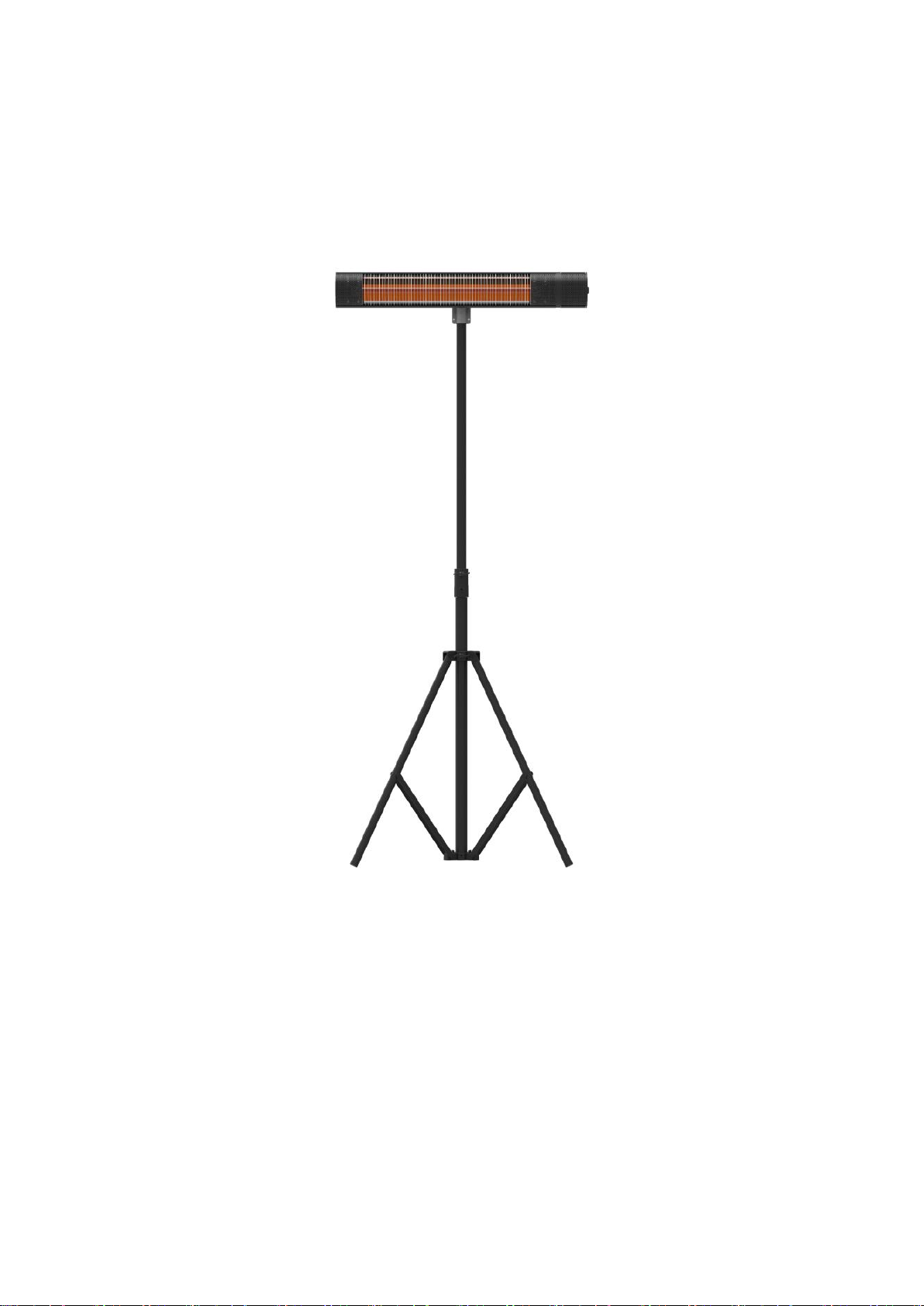

Free standing installation: steps:
I. Fit the metal part showing as below to the back II. Fix the heater to the top of tripod with another
of heater metal part showing as below

Operating Instructions
The rocker power switch on right side Remote Control
to control power on/off 1. Power on switch
2. Power off switch
3. Timer switches (1/2/4/8 Hours)
4. Timer cancel switch
Packing list:
-Heater x 1pc
-User’s manual x 1 pc
-Remote control x 1 pc
Installation accessories for wall mounting:
-Metal rack for wall mounting x 1pc
-Screw set for install the heater: M4 nut x 1pc, M5 washer x 1 pc, M4*14 screw x 1 pc, M5 anti-slip washer
x 1 pc, M5*12 screw x 1 pc,
-Screw set for wall mounting: Plastic anchoring x 2pcs, ST4*30 screw x 2 pcs
Installation accessories for free standing:
-Metal rack for wall mounting x 1 set (2pcs)
-Screw set for install the heater: M4 nut x 1pc, M5 washer x 1 pc, M4*14 screw x 1 pc, M5 anti-slip washer
x 1 pc, M5*12 screw x 1 pc, Plastic anchoring x 2pcs, ST4*30 screw x 2 pcs

-Screw set for standing: M5 nut x 4pcs, M6 nut x 4 pcs, M5*25 screw x 4 pcs
Maintenance and Cleaning
Maintenance
Attention! Careful and regular maintenance of Infrared Heater is required to attain a long and efficient
operation of your appliance.
1- Check the cleanliness of the Reflector and IR-Filament at least once a month. If necessary, apply cleaning
and maintenance instructions.
2- The number of checks may be increased considering the amount of the dust in the environment.
3- Check the deformation of the Reflector, Wire and Frame visually while cleaning the appliance. In case of
any deformation, consult a qualified technician.
4- Check the power cable and plug visually while cleaning the appliance. In case of any deformation, consult
a qualified technician.
5- It is recommended to change the reflector every 2 years for more efficient operation.
Cleaning
Attention! Regular and careful cleaning helps your heater operate for longer years and more efficiently.
1- Unplug your power cable for your safety before cleaning your appliance.
2- Take out the front grid wire through the inlets on the frame using a slotted screwdriver.
3- Make sure that the power is off for your safety. Power cable plug must be unplugged.
4- The reflector and filament must be cleaned with a soft cloth, a smooth brush or cool or dry air. The cloth
may be damp but never too wet and the cleaner should not include any chemical.
5- Refrain from using cleaning material likely to damage the reflector (cleanser etc.).
6- Insert the wire grid using a slotted screwdriver.
Specifications
Model: JOH-2000R
Voltage: AC230V
Frequency: 50Hz
Power: 2000W

The symbol on the product or in the instructions means that your electrical and
electronic equipment should be disposed at the end of its life separately from your household waste. There
are separate collection systems for recycling in the EU. For more information, please contact the local
authority or your retailer where you purchased the product.
