INSTRUCTION MANUAL
Wall Mounted Infrared Heater JMC-OEH-1500
Model:HB-1500

Thank you for purchasing your new heater.
These operating instructions will help you use it properly and safely.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
Safety warnings
READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS
UNIT. KEEP THE ASSEMBLY INSTRUCTIONS FOR FUTURE REFERENCE.
KEEP THE ASSEMBLY INSTRUCTIONS FOR FUTURE REFERENCE. KEEP
THE ORIGINAL PACKAGING FOR USE WHEN STORING THE HEATER
DURING EXTENDED PERIODS OF NON-USE.
-Read all instructions before using this unit.
-Do not leave this unit unattended when in use.
-This heater will get hot when in use. Do not touch hot surfaces.
-Caution: Some parts of this product can become very hot and cause burns.
Particular attention has to be given when children and vulnerable people are
present.
-Do not move the unit when in use. Wait until the heater is completely cool
before moving and check that it has been unplugged from the power supply.
-Position the unit at least 1m away from highly combustible materials such as
furniture, trees, leaves, dry grass and bushes.
-The heater must be a minimum of 1.8m away from the ground and a minimum
of 0.5m away from the ceiling of a building or overhanging items.
-The heater must not face with the heating element pointing upwards towards
a ceiling. The heater element must be facing the area it is to heat.
-Warning: In order to avoid overheating do not cover the heater. It is not for
drying clothes.
-Keep children and pets at a safe distance from the unit.
-This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
-Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
-Do not operate the heater if any signs of damage or malfunction manifest
themselves.
-Do not attempt to repair or adjust any electrical or mechanical functions on this
unit. The unit does not contain any user serviceable parts. Only a qualified

electrician should perform servicing or repairs. Attempting to repair the unit
yourself will void your warranty.
-If the power cable is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
-Do not handle the element with bare hands. If it is inadvertently touched,
remove finger marks with a soft cloth and methylated spirits or alcohol,
otherwise the marks will burn into the element causing premature heater failure.
-Do not replace or attempt to replace the element in this product.
-This product is suitable for indoor and outdoor use. Do not use this heater in
the immediate surroundings of a bath, shower or swimming pool.
-This product must not be left outdoors exposed to the elements for long periods
of time.
-Do not touch the plug with wet or damp hands.
-Do not run the power cable under carpeting. Do not cover the power cable with
rugs, runner, or similar coverings. Arrange the power cable away from foot
traffic and where it will not be tripped over.
-Do not wind the power cable around the unit.
-Do not insert or allow foreign objects to enter any ventilation or opening on the
heater, as this may result in electric shock, fire, or damage to the heater.
-To prevent a possible fire, do not block the air vents.
-A heater has hot and arcing or sparking parts inside. Do not use in areas where
petrol, paint, explosive and/or flammable liquids are used or stored. Keep unit
away from heated surfaces and open flames.
-Where possible, avoid the use of an extension cable as this may overheat and
cause a fire. However, if you have to use an extension cable, ensure it is
suitable for the purpose, has been tested for outdoor use and preferably has an
RCD device fitted or attached.
-Always ensure the heater is plugged into a suitable socket, one that is tested
for outdoor use.
-To disconnect heater, turn controls to OFF, then remove plug from socket. Do
not unplug by pulling on the power cable.
-Always unplug the unit and ensure the unit is completely cold before moving,
cleaning or storing.
-This heater is intended for domestic use only and should not be used
commercially for contract purposes. Any alternative use, not recommended by
the manufacturer, may result in fire, electric shock, or injury to persons.
-The use of attachments on the heater is not recommended.
-Warning: This heater is not equipped with a device to control the room
temperature. Do not use this heater in small rooms when occupied by persons
not capable of leaving a room on their own, unless constant supervision is
provided.
-Check exterior walls for areas of damage before installing the heater.
-Always use on a dry, suitably strong, stable, flat and level surface.
-Check exterior walls for communication and electrical cables and pipelines.

Should any service lines be present in the immediate vicinity do not install your
heater, find an alternative location to install this product.
-Do not position directly above or below an electrical socket.
-Do not remove any of the warning stickers or signs from the product.
Installation
1.Before the installation, these matters need to attention
1.Products should be put down gently
2.Acid and alkali environment installation is not recommended.
3.The product must be grounding
4.The products are required to check the product brand mark on the voltage
and the local voltage whether conform.
5. Ensure the power rating should have sufficient current carrying capacity.
2.Ensure the production's installation site
For the safe use of the product, the product installation position should
guarantee the bottom minimum height of 1.8 m from the ground, ceiling, roof,
or other coverings minimum distance is 0.5 m, minimum distance with both
sides wall is 0.5 m (as shown in figure 1)
3.Installation steps

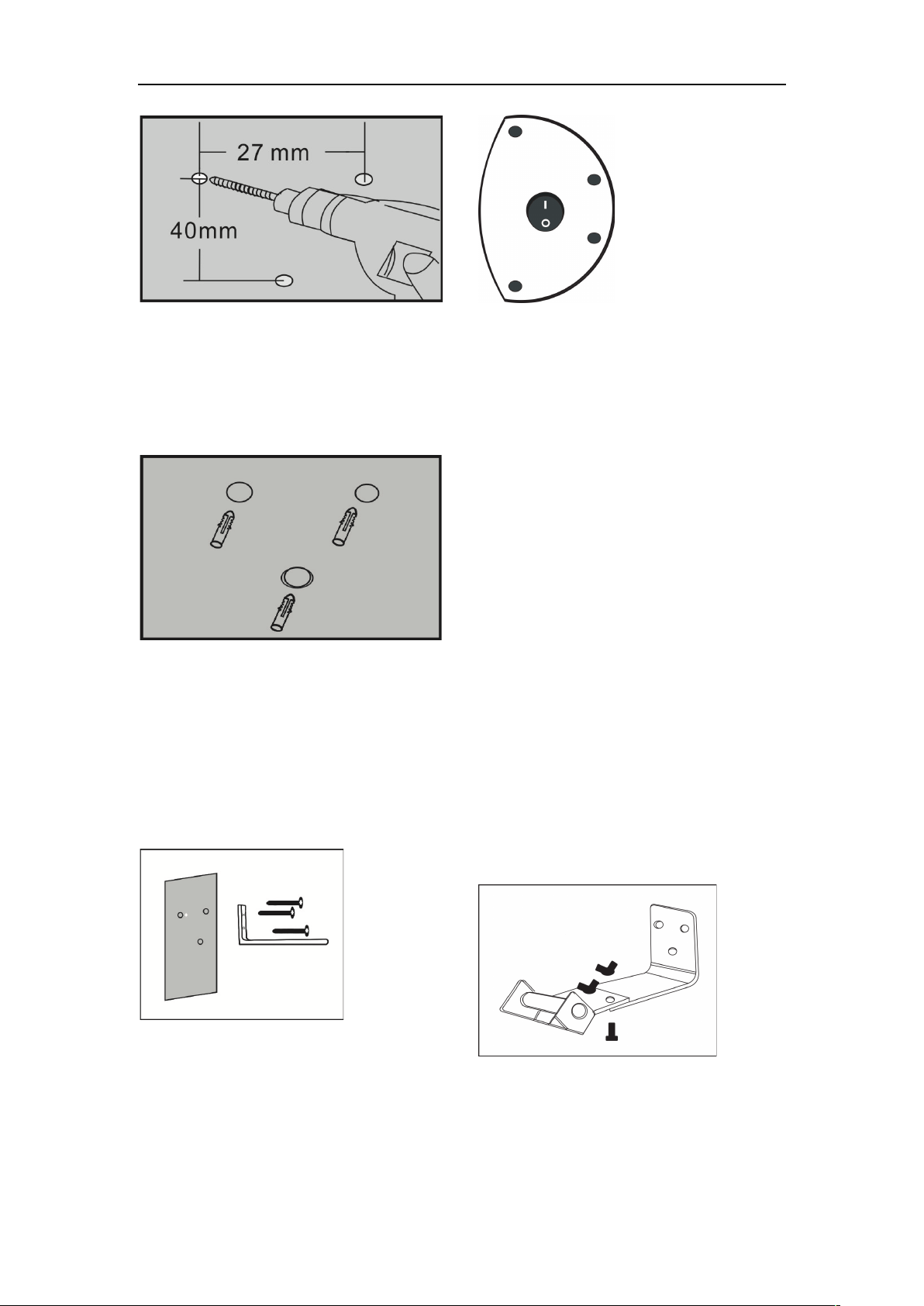

Ⅰ.According to the product
installation location, use percussion
drilling to make three diameter 8 mm
round holes

Ⅱ.Insert the three plastic wall
anchors to the three holes
Ⅲ. Fixed the bracket by three ST4*35
screws and make sure the installation
points fixed securely
Operating Instructions
The rocker power switch on right side
to control power on/off
Ⅳ.Before fixed the heater,make sure
the rocker power switch on the right
side and then fixed the bracket and
heater by two M6*14 screws and
butterfly nuts

Maintenance and Cleaning
Maintenance
Attention! Careful and regular
maintenance of Infrared Heater is
required to attain a long and efficient
operation of your appliance.
1- Check the cleanliness of the
Reflector and IR-Filament at least
once a month. If necessary, apply
cleaning and maintenance
instructions.
2- The number of checks may be
increased considering the amount
of the dust in the environment.
3- Check the deformation of the
Reflector, Wire and Frame
visually while cleaning the
appliance. In case of any
deformation, consult a qualified
technician.
4- Check the power cable and plug
visually while cleaning the
appliance. In case of any
deformation, consult a qualified
technician.
5- It is recommended to change the
reflector every 2 years for more
efficient operation.
Cleaning
Attention! Regular and careful
cleaning helps your heater operate
for longer years and more efficiently.
1- Unplug your power cable for your
safety before cleaning your
appliance.
2- Take out the front grid wire
through the inlets on the frame
using a slotted screwdriver.
3- Make sure that the power is off for
your safety. Power cable plug
must be unplugged.
4- The reflector and filament must be
cleaned with a soft cloth, a
smooth brush or cool or dry air.
The cloth may be damp but never
too wet and the cleaner should not
include any chemical.
5- Refrain from using cleaning
material likely to damage the
reflector (cleanser etc.).
6- Insert the wire grid using a slotted
screwdriver.
Specifications
Model:HB-1500
The symbol on the product
or in the instructions means
that your electrical and
electronic equipment
should be disposed at the
end of its life separately
from your household waste.
There are separate
collection systems for
recycling in the EU.
For more information,
please contact the local
authority or your retailer
where you purchased the
Voltage
AC120V
Frequency
60Hz
Electric Power
1500W

product.
