Special mobility Caddy e-Move User manual

ssdfsdfffedfVerV
E vwve
1
Users manuel
Caddy e-Move
Version 01.05

Users manuel Caddy e-Move Version 01.05
English

Users manuel Caddy e-Move Version 01.05
© 2015 Special Mobility bv
All rights reserved.
The information may not be reproduced and / or published in any form, by any means,
without the prior written consent of Special Mobility bv.
The information provided is based on general data concerning the time of publication
structures. Special Mobility bv, has a policy of continuous product improvement, changes
are therefore reserved. The information provided is valid for the product in standard
version.
Special Mobility BV can therefore not be held liable for any damage arising from
specifications that deviate from the standard version of the product. The available
information has been compiled with all possible care, but Special Mobility bv cannot be
held liable for any errors in the information or for the consequences thereof.
Special Mobility BV cannot be held liable for damages resulting from work carried out by
third parties.
The by Special Mobility used user names, trade names, trademarks, etc. may not be
considered free under the law on the protection of trademarks.

Users manuel Caddy e-Move Version 01.05
General introduction
Before you start using the Caddy e-Move please, please read these instructions carefully.
You should examine all possibilities and limitations of your Caddy e-Move.
Dear User,
The Caddy e-Move is a product of Special Mobility. Special Mobility products have
undoubtedly proven themselves over the years. You have chosen a quality product. This
manual will help you get acquainted with your transport means. Please read the
instructions completely before you start using this Transport Unit.
Among other here described the base frame and accessories and the operation and some
notes to take to heart. The safety instructions in this guide are general guidelines that
must be seen as broad guidelines.
You will find in this manual includes a detailed description of all the features of your
Caddy e-Move. Repairs require the knowledge of an expert. We advise you to repairs and
maintenance, conducted by an expert.
Fill in the details of your authorized dealer:
Company: .................................................................................
Address: .................................................................................
.................................................................................
Phone: .................................................................................
Fax number: .................................................................................
Email: .................................................................................
Website: ……………………………………………………….................................

Users manuel Caddy e-Move Version 01.05
Table of content:
Page
General Description 1
1.1 Structure and Description 1
1.2 Main components 2-3-4
1.3 Indications on the Caddy e-Move 5-6
1.4 Service and technical support 6
1.5 CE Declaration 6
1.6 Declaration of Conformity 7
1.7 Used Caddy e-Move and the environment 8
2 Safety
2.1 General safety instructions 8
2.2 Warnings for safe use 8
3 Use Instruction
3.1 Checking before driving 9
3.2 Driving 9
3.3 Transfer 9
3.4 Safety while driving 10
3.5 Linking to Caddy³ 10-11
3.6 Ramps 12
3.7 Maneuvering in tight spaces 12
3.8 Noise emission 13
3.9 Freewheel 13
3.10 Charging Batteries
3.11 Training / qualification 14
4 Maintenance
4.1 cleaning the Caddy e-Move 14
4.2 Maintenance Interval 14
5 Technical Specifications 15
6 Warranty 16-17
7 Liability Provisions 17
8 Application 18

Users manuel Caddy e-Move Version 01.05
1
1. GENERAL DESCRIPTION
1.1 Structure and description
The Caddy e-Move has several components and parts shown in the illustration below. It
may be that your wheelchair is equipped with options and accessories that are not shown
on the sample drawing. However, this comes naturally to you while reading this manual.
The Caddy e-Move is not suitable for the transport of persons with a pressure condition.
The materials which come into contact with the coated skin are not curative or
preventative. Driving behavior and speed of the Caddy e-Move software are set by the
manufacturer. Changes in the operating software may only be performed by the
manufacturer. The Caddy e-Move has an automatic brake. This brake is activated when
the control stick is released.
The Caddy e-Move is designed for:
Persons weighing up to 150 kg.
Short-term transport of persons (max 2 hours)
Use on flat and paved surface
Taking forward speed max. 8 km/h
Use in backward maneuvering of max. 2 Km / h
Transportation max. 2 persons (excl. Driver) and one linked Caddy³
Special Mobility assumes no responsibility for any damage or injury resulting from any
use other than that for which the wheelchair was developed and designed.
You should well be aware of this manual before the Caddy e-Move is taken
into use.

Users manuel Caddy e-Move Version 01.05
2
1.2 Main components
Omschrijving
Omschrijving
1
Front wheels
8
Lugage rack
2
Rear wheels
9
Footboard (foldable)
3
Seat
10
Handlebar
4
Backrest
11
Electric propulsion module
5
Footplate (foldable)
12
Connecting ridge
6
Armrest (foldable)
13
Seat belt
7
Beacon
1
2
3
4
5
6
7
8
figure 1
9
10
11
12
13

Users manuel Caddy e-Move Version 01.05
3

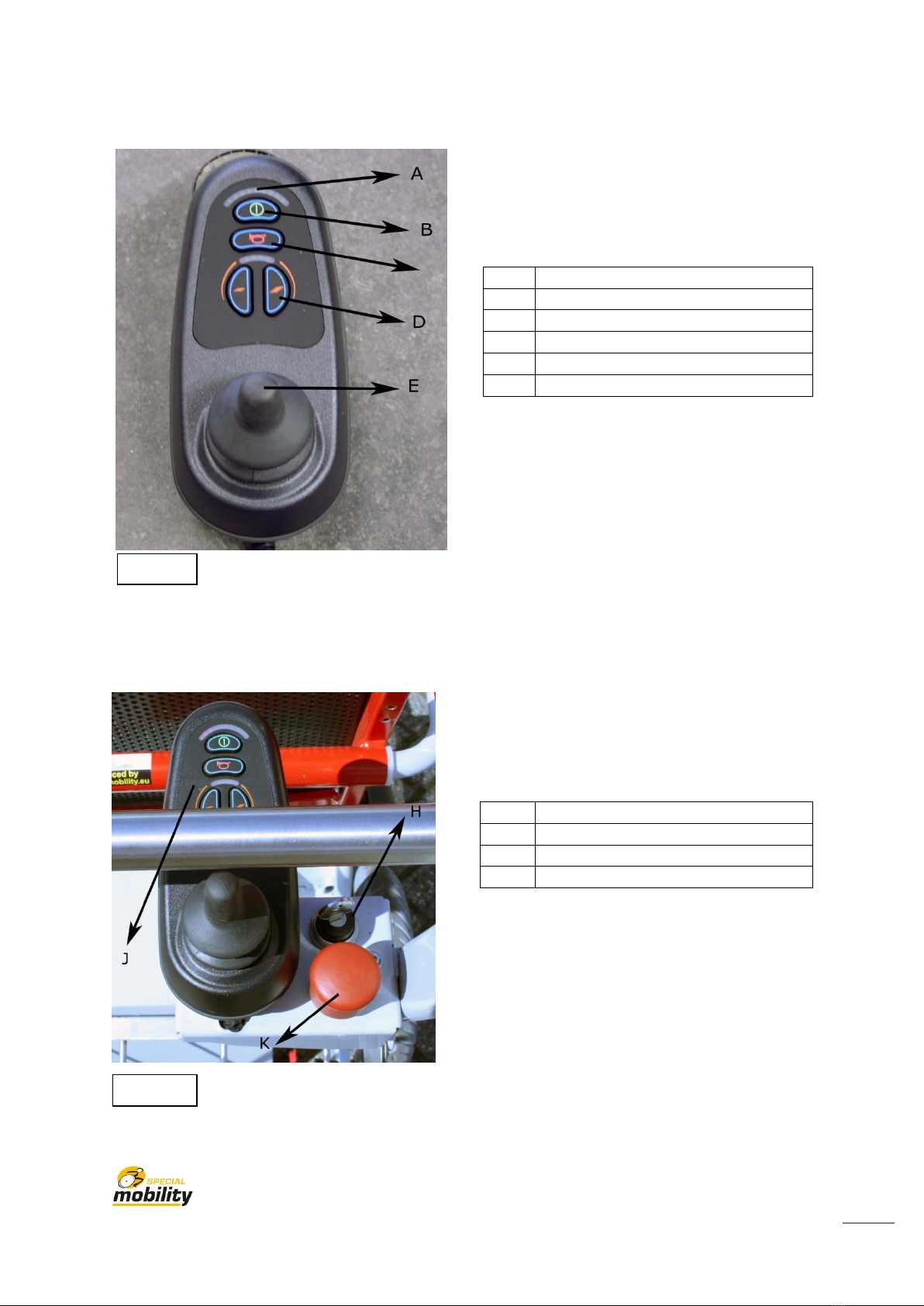

Control component:
Dashboard:
Description
A
Battery indicator
B
On / off button
C
Warning signal
D
Speed setting
E
Control Stick
Description
J
Control unit
H
Key switch
K
Emergency button
Figure 2
Figure 3

Users manuel Caddy e-Move Version 01.05
4
Main switch:

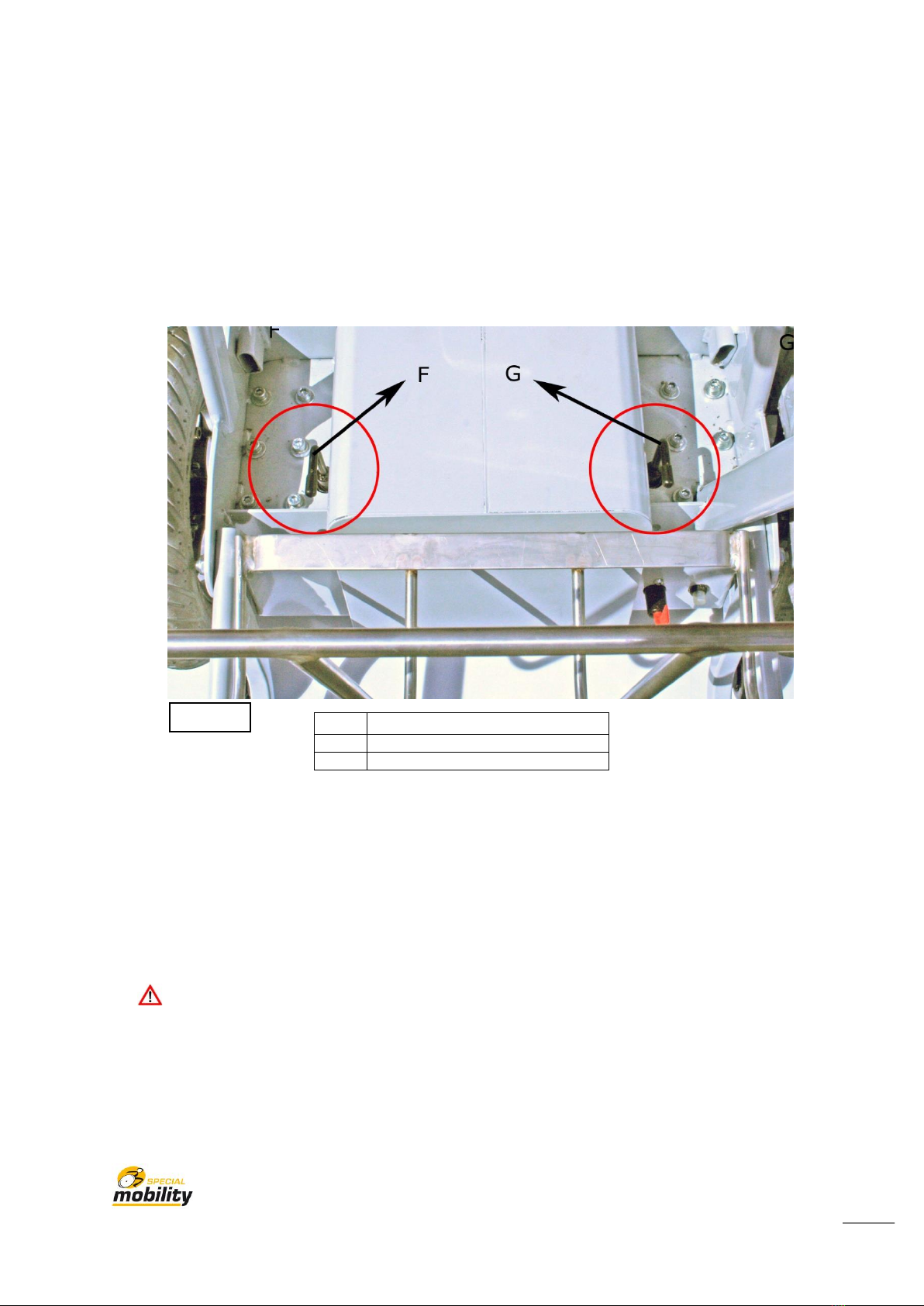

Controlling Freewheel mode
Anti-tip wheels
Description
R
Thermal fuse
S
Main switch
Description
F
Control freewheel
left motor
G
Control freewheel
right motor

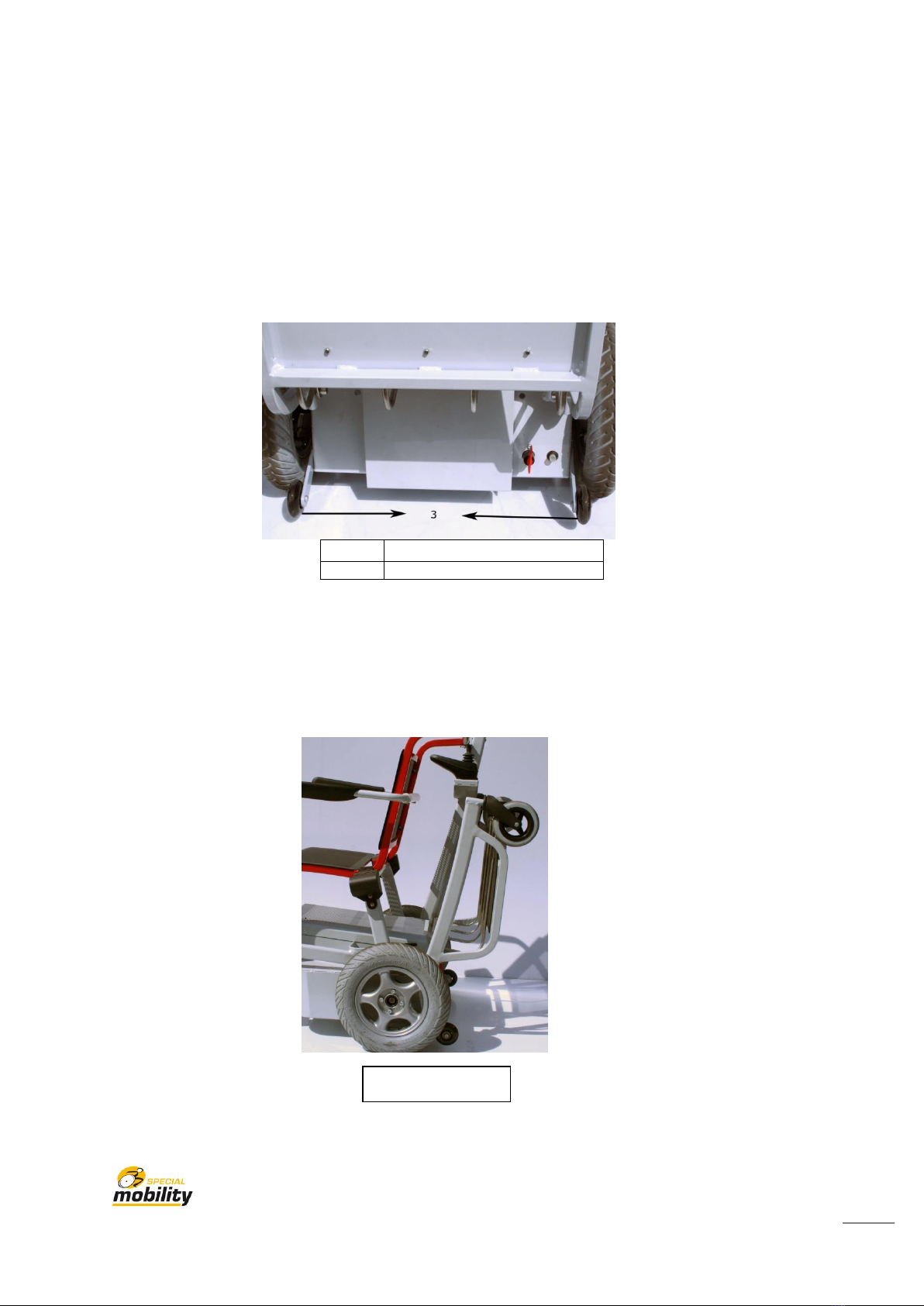

Description
3
Anti-tip wheels
Figure 4
Figure 5
Figure 6

Users manuel Caddy e-Move Version 01.05
5
1.3 Indications on the Caddye-Move
Identification label on the wheelchair.
The Caddy e-Move wheelchair is equipped with an identification sticker and various safety
stickers, identification sticker is located on the back of the electric drive module. There,
you can find all kind of stickers concerning the Caddy e-Move.
Below is an example of an identification sticker.
Other important safety stickers:

Users manuel Caddy e-Move Version 01.05
6
The markings, symbols and instructions are part of the safety
provisions. They may not be covered or removed. They must
remain throughout the life of the Caddy and be clearly legible.
replace or repair immediately become illegible or damaged signs,
symbols and instructions.
You should be well aware of the contents of this manual before you start
using the Caddy e-Move.
1.4 Service and technical support
Contact your dealer for information concerning specific settings, maintenance or repair.
Please refer to the type, year of manufacture and identification number found on the
nameplate. For the dealer is a service manual available
Contact your dealer for information regarding specific maintenance or repair. If the
delivery was made directly by Special Mobility please contact:
Special Mobility
Handelsweg 10
7041 GX 's-Heerenberg
Netherlands.
Tel: [phone]
Email: [e-mail]
Always quote the type, year of manufacture and identification number found on the
nameplate of the Caddy e-Move.
1.5 CE declaration
The product manufactured under our own management as well as the inputted
components meet the
1) DIRECTIVE 2006/42 / EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
of 17 May 2006 on machinery and the
2) DIRECTIVE 2013/35 / EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
OF 26 JUNE concerning the minimum health and safety requirements regarding
the exposure of workers to the risks arising from physical agents (electromagnetic
fields) (twentieth individual Directive within the meaning of Article 16, paragraph
1 of Directive 89/391 / EEC) and repealing Directive 2004/40 / EC. Official Journal
of the European Union L 179 / 1-21, June 29 and on amending Directive 95/16 /
EC and therefore bears the CE mark.

Users manuel Caddy e-Move Version 01.05
7
1.6 Declaration of conformity of machinery

Users manuel Caddy e-Move Version 01.05
8
1.7 Used Caddy e-Move and the environment
If your Caddy is superfluous or needs to be replaced, it can usually be taken back by the
manufacturer. If this is not possible, ask your local authority about the possibilities for
reuse or environment friendly processing of the materials used. For the production of the
wheelchair is made use of various types of plastics, metals, batteries, and electronic
components.
2. SAFETY
2.1 General Safety
Special Mobility bv imposes no liability for injury or damage caused by failure to strictly
adhere to the safety or by carelessness during the use and cleaning of the Caddy e-Move
and possible accessories. The Caddy e-Move is if the instructions for use as described in
this manual are followed, highly reliable and stable.
Contact the manufacturer directly if you observe a potential danger during the use of the
Caddy e-Move.
The user of the wheelchair is at all times fully responsible for compliance with
local safety regulations and guidelines.
Modification of the wheelchair is not allowed.
The technical specifications may not be changed.
The Caddy e-Move may only be operated by persons who are trained and
certified.
2.2 Warnings for safe use
Do not use the Caddy e-Move on streets or highways.
Do not use your wheelchair on the sand, rugged terrain, wet and slippery surfaces
or surfaces with low grip.
The unmanned transporting your Caddy e-Move in all vehicles specially adapted
and / or developed for the transport of the Caddy e-Move at your own risk. We
accept no liability for this.
The Caddy e-Move can not be used as a seat in a motor vehicle.
Surface temperatures can rise when the Caddy e-Move is exposed to external
heat such as sunlight.

Users manuel Caddy e-Move Version 01.05
9
3 OPERATING INSTRUCTIONS
3.1 Checking before driving.
Ensure that the charger cord is disconnected.
Switch must be turned on (Figure 4 S).
Emergency button should be in the extended position (Figure 3 K).
3.2 Driving
The key switch must be in position 1 (Figure 3 H) The beacon light is working.
The On / Off button must be activated. (Figure 2B) The battery indicator lights up
(Figure 2A)
Select one of five speeds (Figure 2 D) Choose a speed at which the movement of
the Caddy E-move allows controlling. The settings are depending on the type of
transport being carried out.
Step on the footboard. (Figure 1 9)
Move the control stick (Figure 2E) in the direction you want to move the
Caddy e-Move.
The Caddy e-Move is equipped with a thermal security. If the engines are
overloaded than the thermal protection will enable the engines.
When reversing maneuver is activated automatically the software will activate the
"creep speed".
Stay with reversing maneuver always on the footboard to prevent
entrapment
3.3 Transfer
For the transfer of the person being transported, the key switch must be put to 0
(Figure 3 H), the flashing light is not working. The
Caddy e_Move can not now during the transfer inadvertently be put in motion.
Enter the transfer of the person to be transported in accordance with the safety
instructions and use Caddy³.
Attach the belt.
Place the hand luggage in the luggage rack (Figure 1 8)
Follow 3.2 Riding.

Users manuel Caddy e-Move Version 01.05
10
3.4 Safety while driving
Keep well distance to persons int the surrounding of the Caddy e-Move.
Adjust your speed to the conditions.
Make sure to keep the passengers limbs within the contours of the Caddy e-Move.
Always check the safety belt is properly fitted.

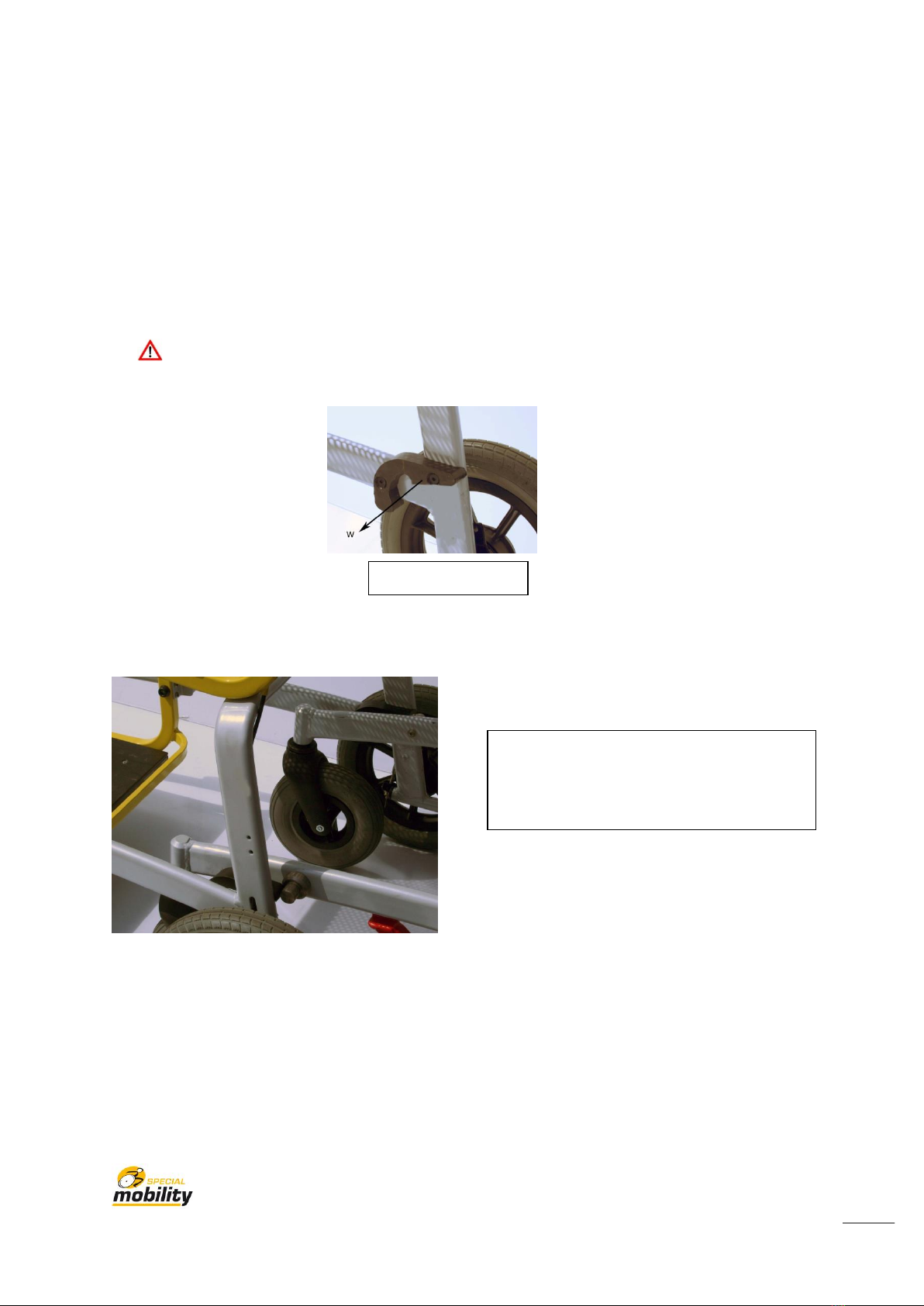

3.5 Linking Caddy³
The Caddy e-Move is equipped with locking clamps (Figure 1 12). These clamps are
intended to link a Caddy³. 2 persons can then be transported simultaneously.
Watch out. Only a Caddy³ with special clamps can be linked.
Special Mobility accepts no responsibility if other than clamps and
ridges produced and installed by Special Mobility are used
Step 1
Patented clamp
Apply the clamp Caddy³ until just
before the coupling ridge of the
Caddy e-Move

Users manuel Caddy e-Move Version 01.05
11
Step 2
Stap 3
Enter the transfer of the 2nd person to be transported in accordance with the
safety instructions and use Caddy³.
Lift the Caddy³ at the back and slide
the clamp over the ridge of the Caddy
e-Move until it locks on both sides.
The rear wheels of the Caddy³ are
now separated from the bottom.
The Caddy e-Move and Caddy³
are now linked.

Users manuel Caddy e-Move Version 01.05
12
3.6 Ramps
The Caddy e-Move Can be used at angles of up to 12,5%
It may be that when driving up a ramp to the front wheels of the Caddy
e_Move will light up. This, however, will depend on the weight that is being
transported. The Caddy e-Move is always controllable.
To prevent tilting backwards, the Caddy e-Move is equipped with anti-tip
wheels.
Always ride a slope right (angled) upwards or downwards
Description
3
Anti-tip wheels
3.7 Maneuvering in tight spaces
When maneuvering in tight spaces should take into account the maximum
turning radius. (see technical specifications)
The footboard can be folded if desired
Folded footboard

Users manuel Caddy e-Move Version 01.05
13
3.8 Noise emission
The Caddy e-Move is fitted with electric motors that have a sound emission
of <63 dB at 50 cm distance
3.9 Freewheel
If failure occurres, or the batteries are discharged. It may be necessary
that the Caddy e-Move must be moved manually. For this purpose the
motors need to be unlocked.
To unlock the left motor, the left handle (Figure 7 F) must be turned a quarter of
a turn clockwise.
To unlock the right engine, the right handle (Figure 7 G) must be turned a quarter
of a turn anti-clockwise.
(Figure 7 F) at the hands of the clock in a quarter of a turn to be rotated.
Locking is done in reverse order.
Warning: When the motors are unlocked, the Caddy e-Move has no
brakes
Description
F
Left release handle
G
Right release handle
Figure 7

Users manuel Caddy e-Move Version 01.05
14
3:10 Charging batteries
The Caddy e-Move features an integrated charger
To load the batteries, the Caddy e-Move must be connected with a standard plug
on 220/230 volts of electricity.
The main switch (Figure 4 S) should be on.
The caddy e-Move is protected against driving off without the power cord is
disconnected.
on the driving compartment (Figure 1, 11) is an LED indicator light disposed. If
the LED is green then the batteries are fully charged.
See, for a description of the charging process, the Annex AGM Battery Charger.
Please note that it does not complete a full course of the charging cycle has the
effect that the battery pack suffers damage. The life of the battery pack is thus
greatly reduced.
3:11 Education / Qualification
The Caddy e-Move may only be operated by trained and certified employees.
Special Mobility organizes a training and certification of staff training other
employees.
4 Maintenance
4.1 Cleaning the Caddy e-Move
Decrease dry dirt
Clean the upholstery, metal parts and frame parts with a soft dry cloth.
Mud and other wet dirt decrease
First clean the dirty parts with a wet sponge. Then rub the parts with a dry soft
cloth.
4.2 Maintenance Interval
The maintenance interval depends on the deployed hours.
There will be individually agreed what is the right frequency.

Users manuel Caddy e-Move Version 01.05
15
5 Technical specifications
Description
Producer
Special Mobility bv
Product
Electric powered transportchair
Type
Caddy e-Move
Type front tyre
200 x 50 PU tyre
Type rear tyre
3.00-8 PU filled tyre
Maximum user weight
150 Kg
Maximum user weight
Footboard
120 Kg
Footboard
Foldable
Total length footboard folded
1250 mm
Total length footboard unfolded
1450 mm
Overall width
670 mm
Total empty weight
150 Kg
Effective seat depth
380 mm
Effective seat width
470 mm
Height armrest
260 mm
Front armrest to backrest
400 mm
Minimum turning circel
footboard unfolded
1450 mm
Minimum turning circel
footboard folded
1250 mm
Minimum turning circel
footboard unfolded linked to
Caddy³
2400 mm
Maximum slope
12,50%
Ground clearance
65 mm
Noise level
< 63 dBA on 50 cm distance
Battery
2 x 90 AH 12V
Integrated battery loader
SONEIL model 2440SR24
Joy stick
PG Drives Technology VR2 joy stick module
Controller
PG Drives Technology VR2
power module D50679.01
Motor and gearbox
2 x Shilin Electric & Enigineering company
24 Volt DC 600 watt
Brake system
electrically operated integrated in motor
Freewheel
Operated on gearbox
Place serialnumber
On the rear of the motor unit
Warning signal
Manuel operated, automatic maneuvering
during reverse
Beacon
Beacon is on in use, height is 1900 mm
