Rifton R820 User manual

Rifton Activity Chair
R820, R830, R840, R850, R860 & R870
Product Manual
Hi/Lo Base
®
Standard Base
R820, R830, R840, R850, R860 & R870

2© 2010 by Community Products, LLC
Contents
Check your order 4
Warnings and important information 5
Recommended use 6
User and item dimensions 6
Basic chair components 9
Backrest 9
Pads 9
Seatbelt 10
Arm supports 11
Seat depth 13
Tilt-in-space 13
Spring options 14
Seat quick-connect 17
Standard base 19
Adjustable legs 19
Seat height 19
Footboard 19
Hi/Lo base 20
Seat height 20
Caster brakes 21
Swivel lock 21
Footboard 22

3
Contents continued. . .
Accessories 23
Headrests 23
Whitmyer adapter plate 24
Lateral supports 25
Chest strap 26
Butterfly harnesses 27
Thigh belt 28
Pelvic harness 29
Hip guides 30
Abductor 31
Adductors 31
Leg prompts 32
Ankle straps 32
Sandals and wedges 33
Lumbar and seat support kit 34
Backrest filler pad 34
Push handles 35
Tray 35
Handhold 36
Mini kit 36
Maintenance 38
Cleaning 38
Materials 39
User modifications 39

4
Check your order
Your Rifton chair has been shipped according to your specifications.
It will require some tool-free assembly. Follow these instructions to insure
that your chair is put together and used correctly. This product manual is
comprehensive and may discuss features not included in your chair.
If your shipment is incomplete or in any way damaged on
arrival, please call Customer Service, 800.571.8198.
Key for EU users
Use this key to determine which sections of this Product Manual
apply to you.
Technical users For professionals who order and set up
Rifton products.
Home users For care-givers who use Rifton products on
a regular basis.
Maintenance personnel For anyone who is responsible
for service or re-ordering of Rifton products and parts.

5
WARNINGS
• Thoroughly read and understand the information in this guide before
attempting to use this product. If the procedures and instructions in
this guide are not followed, serious injury could occur.
• A qualified professional must assess the appropriateness and safety of
all equipment for each user.
• Correct use of this product requires the prior approval and ongoing
guidance of a qualified therapist or physician.
• This product is intended for use by children of immature judgment.
Adult supervision is required at all times.
• Do not use this product on rough and uneven terrain, around
swimming pools, or near stairways.
• All mobility equipment may become unstable when used improperly.
• Straps and supports are provided for the safety of the user and must
be carefully adjusted for comfort and security. The use of straps and
supports must be supervised at all times.
• Restraints – Using straps, trays or supports to restrict a child’s
movement is considered behavioral restraint, which may raise ethical
and legal issues for your facility. Rifton Equipment is not intended for
this use.
• Butterfly harness, chest straps, and tray are not intended to hold user
in chair. ALWAYS use seatbelt or pelvic harness when tray is in use.
• To avoid pinch points on chairs with the spring option, keep hands
above the seat when the spring is in use.
• Keep children away from under the seat of the chair; there are parts
that move when the seat height or seat angle are adjusted.
IMPORTANT
• Please save this Product manual. Additional copies are available
at www.rifton.com
• Please refer to the Rifton product catalog for our full warranty, or
visit www.rifton.com

6
Recommended use
The Rifton Activity Chair is intended to provide comfortable seating with
adjustable support for children and adolescents with disabilities in the classroom
or at home. The chair allows for growth, multiple users, and is available with
various accessories that are easily removable as the client gains independence.
Small user and item dimensions
User dimensions – inches (cm) R820 Standard base R830 Hi/Lo base
Height
with mini kit
32–48 (81-122)
28–38 (71-97)
32–48 (81-122)
28–38 (71-97)
Item dimensions – inches (cm) R820 small
Standard base
R830 small
Hi/Lo base
Frame width short legs: 21 (53) 25 (63)
long legs: 23 (58)
short legs w/ wheels: 22½ (57)
long legs w/ wheels: 23½ (60)
Seat height above floor short legs: 9½–12½ (24-32) 10–25 (25-64)
long legs: 18½–21½ (47-55)
short legs w/ wheels: 13½–16½
(34-42)
long legs w/ wheels: 18½–21½ (47-55)
Seat angle (tilt-in-space)
- degrees
15° forward, 15° back 15° forward, 25° back
Backrest angle
- degrees
5° forward, 20° back 5° forward, 20° back
Seat height above footboard
with mini kit
9–12 (23-30)
6–9 (15-23)
9–12 (23–30)
6–9 (15–23)
Seat width with hip guides
(without hip guides)
7–9 (18-23)
12 (30)
7–9 (18–23)
12 (30)
Seat depth
with mini kit
8–12 (20-30)
7–11 (18-28)
8–12 (20–30)
7–11 (18–28)
Armrest height above seat 5–7½ (13-19) 5–7½ (13–19)
Trunk support width 5½–11½ (14-29) 5½–11½ (14–29)
Backrest height 12½–15½ (32-39) 12½–15½
Headrest height above seat 14½–21 (37–53) 14½–21 (37–53)
Max. working load – lbs. (kg) 75 (34) 75 (34)
Key user dimension: height
The user’s overall height is a general guide to help you select the appropriate chair.
Choose the model that allows for growth.
Important: Make sure that seat width, depth, and height are adequate for each individual
user, and that the user’s weight does not exceed the maximum weight recommended.

7
Medium user and item dimensions
User dimensions – inches (cm) R840 Standard base R850 Hi/Lo base
Height 40–56 (102–142) 40–56 (102–142)
Item dimensions – inches (cm) R840 medium
Standard base
R850 medium
Hi/Lo base
Frame width short legs: 23¼ (59) 27½ (70)
long legs: 24½ (62)
short legs w/ wheels: 24½ (62)
long legs w/ wheels: 25½ (65)
Seat height above floor short legs:12½–16½ (32–42) 12–23 (30–58)
long legs: 19–23 (48–58)
short legs w/ wheels: 16–20 (41–51)
long legs w/ wheels: 19–23 (48–58)
Seat angle (tilt-in-space)
- degrees
15° forward, 15° back 15° forward, 25° back
Backrest angle
- degrees
5° forward, 20° back 5° forward, 20° back
Seat height above footboard
with footboard lift
12–16½ (30–41)
8–12½
12–16½ (30–41)
8–12½
Seat width with hip guides
(without hip guides)
8½–11½ (22–29)
14 (36)
8½–11½ (22–29)
14 (36)
Seat depth 11–16 (28–41) 11–16 (28–41)
Armrest height above seat 7–10½ (18–27) 7–10½ (18–27)
Trunk support width 6½–12 (17–30) 6½–12 (17–30)
Backrest height 15½–19 (39–48) 15½–19 (39–48)
Headrest height above seat 17½–24½ (44–62) 17½–24½ (44–62)
Max. working load – lbs. (kg) 150 (68) 150 (68)
Key user dimension: height
The user’s overall height is a general guide to help you select the appropriate chair.
Choose the model that allows for growth.
Important: Make sure that seat width, depth, and height are adequate for each
individual user, and that the user’s weight does not exceed the maximum weight
recommended.

8
Large user and item dimensions
Key user dimension: height
The user’s overall height is a general guide to help you select the appropriate chair.
Choose the model that allows for growth.
Important: Make sure that seat width, depth, and height are adequate for each
individual user, and that the user’s weight does not exceed the maximum weight
recommended.
User dimensions – inches (cm) R860 Standard base R870 Hi/Lo base
Height 50–74 (127–188) 50–74 (127–188)
Item dimensions – inches (cm) R860 large
Standard base
R870 large
Hi/Lo base
Frame width short legs: 26¼ (66) 29¾ (75)
long legs: 26¼ (66)
short legs w/ wheels: 27¾ (71)
long legs w/ wheels: 27¾ (71)
Seat height above floor short legs:16½–20½ (42–52) 16–24 (41–61)
long legs: 20–24 (51–61)
short legs w/ wheels: 16½–20½ (42–52)
long legs w/ wheels: 20–24 (51–61 )
Seat angle (tilt-in-space)
- degrees
15° forward, 15° back 15° forward, 25° back
Backrest angle
- degrees
5° forward, 20° back 5° forward, 20° back
.
Seat height above footboard
with footboard lift
15–20 (38–51)
11–16
15–20 (38–51)
11–16
Seat width with hip guides
(without hip guides)
11–14 (28–36)
17 (43)
11–14 (28–36)
17 (43)
Seat depth 15–20 (38–51) 15–20 (38–51)
Armrest height above seat 7–10½ (18–27) 7–10½ (18–27)
Trunk support width 9½–14 (24–36) 9½–14 (24–36)
Backrest height 19–24 (48–61) 19–24 (48–61)
Headrest height above seat 19½–29½ (50–75) 19½–29½ (50–75)
Max. working load – lbs. (kg) 225 (102) 225 (102)

9
Basic chair components
A Quick Reference Guide for your chair is located behind the backrest pad.

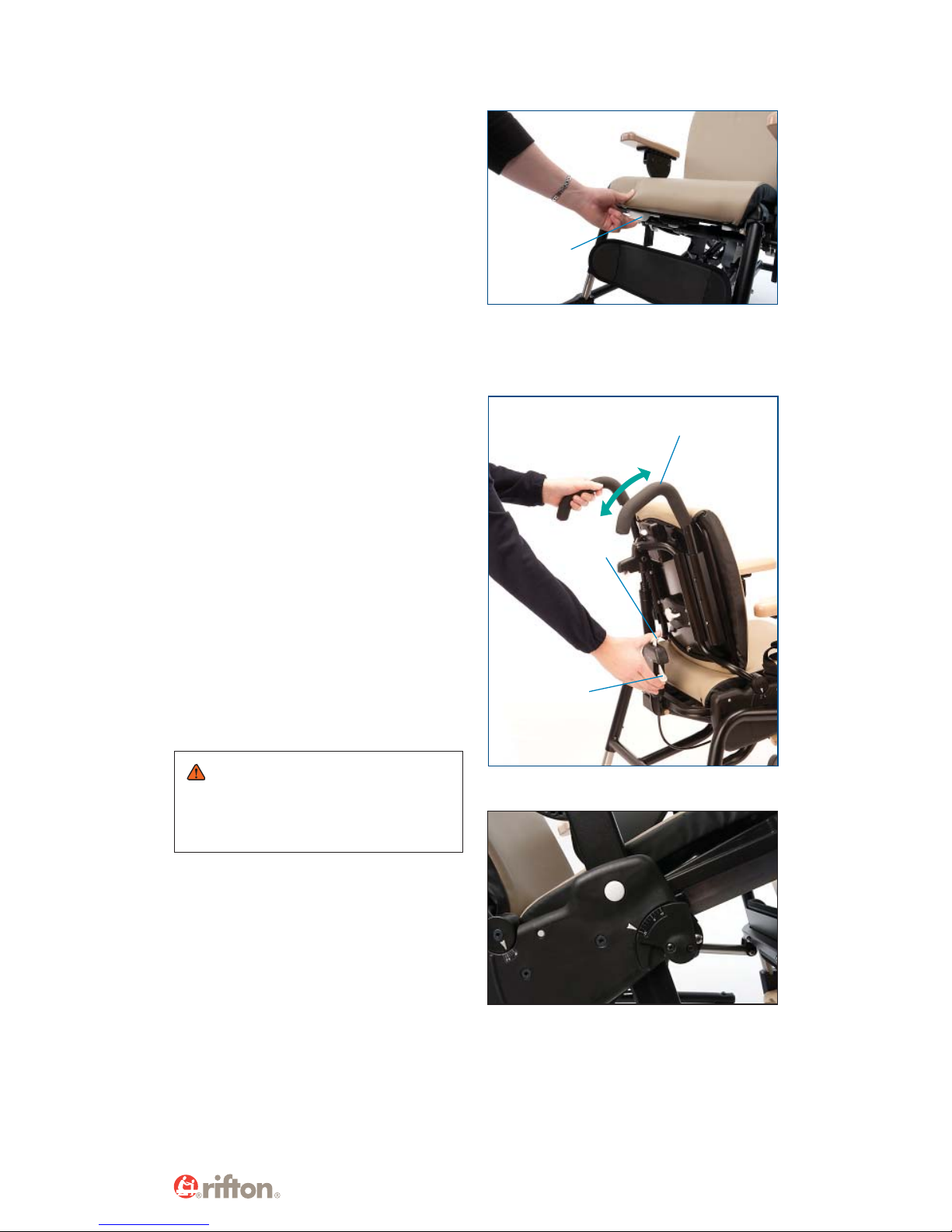

Backrest
Backrest angle and height adjust
with one-hand levers.
To adjust backrest angle, squeeze white
backrest angle lever and move backrest
forward or backward to desired angle, then
release lever (see Figure 9a).
To adjust backrest height, depress backrest
height lever to raise or lower backrest to
desired position, then release lever. Click
backrest into position (see Figure 9a).
Pads
Backrest and seat pads are snapped
into position.
Backrest pad has a cloth tag marked Rifton
(see Figure 9b) and is snapped onto studs
(A) located behind top and bottom edge of
backrest (see Figure 9c).
Seat pad has no tag and is snapped onto
studs (B) located under front and back
edge of seat (see Figure 9c).
Note: Every white lever and button
indicates a point of adjustment.
Backrest pad
Seat pad
Backrest
angle lever
Backrest
height lever
Rifton tag
A
B
Figure 9a
Figure 9b
Figure 9c

10
Seatbelt
To attach seatbelt, use pen to depress
small white button (C) just below one of
the slots (B) at either side of seat. While
keeping button depressed, insert L-shaped
metal clip (A) at end of seatbelt strap into
slot with back of L-shape towards front of
seat. Press clip firmly into slot and release
button, making sure clip locks into place
and holds when pulled. Repeat on other
side of seat.
To remove seatbelt, use pen to depress
small white button (C) just below clip slot
on side of seat, and pull belt upwards to
disengage clip. Repeat on other side of seat
(see Figure 10a).
Note: Seatbelt can be clipped into
either set of small slots at sides of chair.
WARNING
ALWAYS use a seatbelt or pelvic
harness. Absence of a seatbelt or pelvic
harness may result in falls and may
pose a strangulation hazard to user
when a chest strap, butterfly harness or
tray is in use.
A
A
B
B
C
C
Figure 10a

11

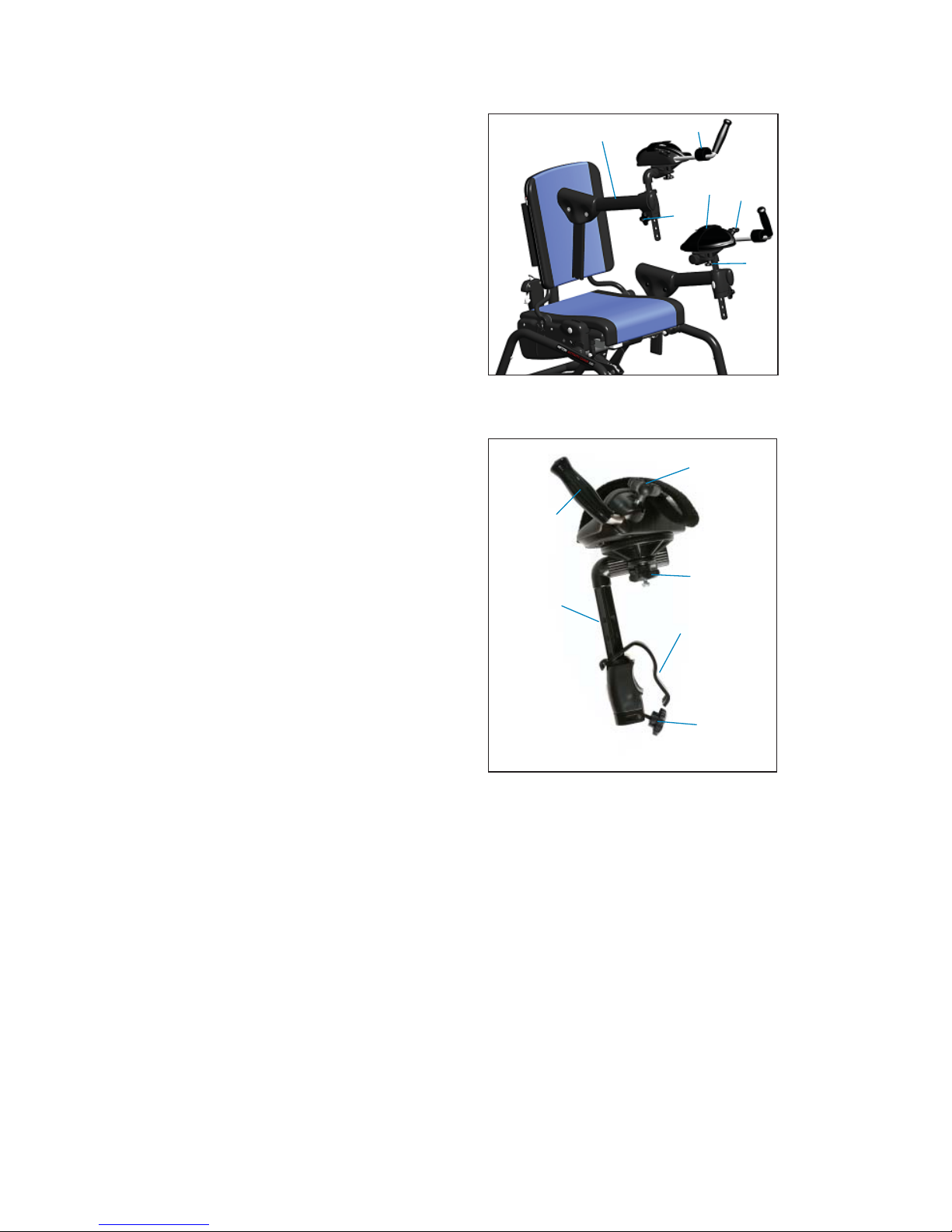

Arm supports
A pair of arm supports, either
armrests or forearm prompts, were
selected with purchase of chair.
Both types of arm supports come in left
and right pairs and insert into large slots at
either side of seat.
Both types of arm supports can be removed
for side transfers.
To insert arm support and to adjust its
height, depress white button (A) just below
arm support slot at side of seat, insert arm
support, move it up or down to required
height, release button and make sure
support clicks into place (see Figure 11a).
To remove arm support, depress white
button just below arm support slot at side
of seat and pull upwards on arm support.
Armrests can be set at a wide range
of angles to backrest and seat.
To set angle of wooden armrest, lift white
tab (B) below outer edge of armrest (see
Figure 11a) and rotate armrest to desired
angle. Release tab and make sure armrest
clicks into place.
B
B
A
A
Note: Cut-outs on wooden armrests
should be toward back of chair.
Figure 11a (Armrests)

12
Arm supports continued. . .
Forearm prompts adjust fully to
facilitate trunk and head control
while sitting. Forearm prompt pads,
clamps and posts are identical to arm
prompts used on the Rifton Pacer
and the Rifton Dynamic Stander.
Forearm prompts are attached using a
clamp and post system (see Figure 12b).
The clamp attaches with a screw knob (F)
to any position on the bar. The clamp can
be mounted on the inside or outside of the
bar (G) (see Figure 12a).
The post fits into the clamp and provides
up/down and rotational adjustment.
Arm prompt can be attached to the post
in several positions by sliding or rotating
to achieve the best position for the user.
Loosen the single knob (A) underneath to
make adjustments (see Figure 12b).
Adjust the forearm prompts to the best
position for user’s comfort and function.
Slide or rotate the handgrip (see Figure
12b), by loosening, then tightening knob
(C) on the side. Adjust straps (D and E) (see
Figure 12a) and secure with hook and loop
fasteners (hooks away from the user’s arm).
Clamp
Post
Handgrip
A
A
C
C
D
D
E
E
F
F
G
G
C
C
A
A
F
F
Figure 12a ( Forearm prompts)
Figure 12b

13
Seat depth
To adjust seat depth, pull white handle
located below seat (see Figure 13a).
Move seat forward or back to desired
position and release handle. Make sure
seat clicks into place.
Tilt-in-space
Tilt-in-space moves entire seat and
backrest from a rest position to
active sitting and vice versa.
To adjust tilt-in-space angle, place one
hand on push handle or top of backrest
and with other hand simultaneously
squeeze tilt lever and safety lock (see
Figure 13b). Push forward or pull backward
on push handle or backrest until desired
angle is reached, then release levers to lock
seat and backrest into desired position.
Use angle indicator (see Figure 13c) on side
of chair for consistent positioning.
Seat handle
Safety lock
Tilt lever
Push handle
WARNING
Keep hands and limbs away from
moving parts when adjusting chair.
Figure 13a
Figure 13b
Figure 13c

14
Back and seat springs
Spring option allows for user-
initiated movement and allows chair
to “bounce.”
The Standard base with spring option
has spring in backrest and seat (see
Figure 14c).
The Hi/Lo base with spring option
has spring in backrest only.
There are two locked (non-dynamic)
positions on the backrest gas spring.
When locked, each position provides 15˚ of
angle adjustment using the backrest angle
lever. The seat spring also has two locked,
(non-dynamic) positions, each providing 15˚
of adjustment using the tilt-in-space lever.
Figure 14b
Lock
Unlock
Twist-lock
collar
Movement
Figure 14c
Back
spring
Seat
spring
Figure 14a

15
Twist-
lock
collars
Activity mode:
Rotate to lock
Activity mode:
Adjust back
angle
Note: Spring option enables about
10° range of movement. Thus, angle
adjustment of backrest or seat will be
more limited when spring option has
been ordered with your chair
(see Figure 15b).
Figure 15a
Figure 15b
Figure 15c
Note: When locking the backrest
spring option, it may be necessary to
move backrest forward or back
to enable twist-lock collar to slip
into position.
Activity mode (-10˚ to +5˚):
To lock the backrest in the upright position
for activities, turn the twist-lock collar to
the right until it locks (see Figure 15b).
With the angle lever adjust the backrest
angle forward or back 15˚ (see Figure 15c)

16
Relax mode:
Push backrest
down into
gas spring,
rotate to lock
Relax mode:
Adjust back
angle
Groove
around gas
cylinder
Extra seat recline
(on standard base models only):
If the seat has a gas spring (located under
the seat) it will also have the two locked
(non-dynamic) positions allowing an extra
15˚ of recline from the tilt-in-space. To
unlock the seat spring, rotate the twist-lock
collar under the seat counter-clockwise.
Turn it clock-wise to lock it and then
use the tilt-in-space lever to make final
adjustments.
Figure 16b
Figure 16a
Relax mode (-20˚ to -5˚):
To position and lock the backrest for
reclined resting, unlock the white twist-lock
collar (see Figure 14b). Push down and
back on the top of the backrest (not on
the headrest) until the groove around the
movable gas cylinder almost retracts into
the outside cylinder. While still holding the
backrest down, turn the white twist-lock
collar to the right until it locks. This
function is easier to perform with your
client in the chair. Once locked, adjust the
angle of the backrest forward or back 15˚
using the angle lever (see Figures 16a and
16b).

17
Seat quick-connect
Every Rifton Activity Chair seat
and backrest unit can be detached
from its base and re-attached to
any other Rifton Activity Chair base
of the same size. Thus, a Rifton
Activity Chair Standard base can be
converted to a Hi/Lo base and vice
versa, by ordering the base required.
To detach seat and backrest unit from base,
first disconnect footboard angle adjuster, if
footboard is present (see Figure 17a). Also
lock casters, if casters are present, and
remove arm supports from chair.
With footboard angle adjuster
disconnected, casters locked and arm
supports removed, find two white levers
(A) located directly beneath the chair seat
(see Figure 17b). Place one hand under
front edge of seat and lift it upwards. At
the same time, with the other hand, pull
one of the two levers (A) towards front of
chair. Still lifting front edge of seat, pull
second lever (A) towards front of chair to
completely disengage bottom of seat from
crossbar (B) beneath it.
Once front of seat is disengaged, pull entire
seat and backrest unit towards front of
chair and away from base until seat hoop
(C) completely disengages from metal
prongs (D) (see Figure 17c).
Footboard angle
adjuster
Tube
latch
Figure 17a
Figure 17b
Figure 17c
C
C
A
A
B
B
D
D
Note: To disconnect footboard angle
adjuster, reach beneath seat, depress
white tube latch and pull footboard up
and away from seat until tubing drops
out of housing (see Figure 17a).
Housing

18
If the seat is being installed on a Hi/Lo
base, raise the base to its full height first.
To attach seat and backrest unit to base,
slide seat hoop (C) under prongs (D) on
base, centering backrest column between
prongs (see Figure 17c). Then lower seat
onto crossbar (B) (see Figure 17b), pushing
firmly down on front edge until it snaps
into place.
Reconnect footboard adjustment tubing to
its housing by holding housing and tubing
in straight line to one another, depressing
tube latch, inserting tubing into housing
and making sure it clicks into place at
desired setting (see Figure 17a).
Note: The process of detaching
seat from base and re-attaching it
to another base works best when
performed with two people, one on
either side of chair.
WARNING
Make sure seat is firmly attached, front
and back, before use.
Seat quick-connect continued. . .

19
Standard base
Note: When connecting legs with
casters, be sure that the caster with
swivel lock function is inserted into
right rear leg of base frame
(see Figure 19b).
Adjustable legs
Either a set of four long legs, or four
short legs, or four long legs with casters,
or four short legs with casters has been
selected by purchasing the standard base.
Additional sets of legs may be purchased
as an accessory.
To connect leg to chair, depress snap
button and insert leg into housing. Release
snap button and make sure leg clicks into
place (see Figure 19a).
To disconnect leg from chair, depress snap
button and pull leg out of housing.
Note: For more information on caster
function, see sections titled Caster
brakes and Swivel lock under hi/lo
base heading.
Snap button
Holes
Leg
CAUTION: Always ensure that
the four legs of a set are used
together on one chair. Do not
connect legs of varying length
and with varying features to the
same chair.
Figure 19a
Seat height
The selection of long or short legs, with
or without casters will impact seat height.
To adjust seat height, depress snap button
on each adjustable leg, push or pull leg to
desired setting, release snap button and
make sure it clicks into place
(see Figure 19a).
Note: To lower seat to desired
level, footboard height may need
to be adjusted.
WARNING
Adjust all legs to same height
for stability.
Footboard
Footboard is an accessory with standard
base. For information on footboard and its
adjustments, see section titled Footboard
under hi/lo base heading.
Figure 19b

20
Hi/Lo base
Note: To lower seat to desired
level, footboard height may need
to be adjusted.
WARNING
Keep hands and limbs away from
moving parts when adjusting chair.
Large & medium chair seat
height (R850 & R870)
To adjust seat height, use foot pedal
located at rear of chair. To raise seat, pump
downward repeatedly on foot pedal until
desired height is achieved (see Figure 20a).
To lower seat, lift red safety lock and
foot pedal up until seat descends to
desired height.
Small chair seat height
(R830)
To adjust seat height, use handle behind
backrest. Squeeze and hold both triggers
while pulling up or pushing down
(see Figure 20b).
Foot pedal Safety lock
Figure 20a
Figure 20b
Triggers
Handle
