Spectrum F101-P137-BD Series User manual

SPECTRUM F101-P137X-BD Series
F101-P1375-BD
F101-P1377-BD
F101-P1378-BD

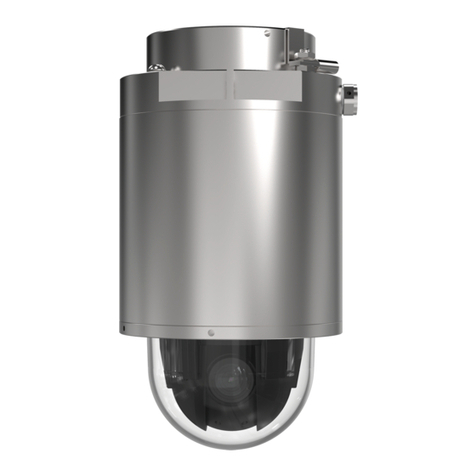

Explosion Proof Network Camera
Installation Manual
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
1

Information in this document is subject to change without notice. All terms
mentioned in this manual that are known to be trademarks have been
appropriately capitalized. Spectrum Camera Solutions LLC acknowledges all
trademark(s) and the rights of the trademark(s) owned by the company
referred to herein.
Release Date: 02/05/2020
Document Name F101-P137(5,7,8)-BD INSTALLATIONMANUAL
© Copyright 2020 by Spectrum Camera Solutions LLC All rights reserved
Revision Record
Rev. Description Date
0Initial Release 02/05/2020
1coc 02/18/2020
2Update Parameters 5/14/2020
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
2

Table of Contents
Legal Notices and Revision History Inside frontcover
Page
LEGAL NOTICES & DESCRIPTION 4
LABELS 5
STANDARDS AND CERTIFICATIONS 6
DOCUMENT SYMBOLS 7
HOW TO USE THIS MANUAL 8
GENERAL SAFETY AND OPERATING INFORMATION 9
SPECIFICATIONS 12
UNBOXING/HARDWARE 14
WIRING ENTRIES 16
INSTALLATION 17
DISMANTLING AND MAINTENANCE 21
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
3

Copyright Notice:
This document contains information proprietary to Spectrum Camera Solutions LLC
with all rights reserved worldwide. Any reproduction or disclosure of this publication,
or any part thereof, to persons other than Spectrum Camera Solutions LLC
personnel or customers is strictly prohibited, except by written permission of
Spectrum Camera Solutions LLC. Unauthorized use, disclosure, reproduction, or
translation of this publication will result in Spectrum Camera Solutions LLC
exercising maximum possible legal action against all persons and / or organizations
involved.
Disclaimer:
Spectrum Camera Solutions LLC makes no representations or warranties with
respect to the contents hereof. Further, Spectrum Camera Solutions LLC reserves
the right to revise this publication and to make changes in the content hereof, without
obligation to notify any person or organization of such revision or changes.
Trademark Information:
Spectrum Camera Solutions LLC and its logo(s) are trademark(s) of Spectrum
Camera Solutions LLC.
Description:
The F1xx series includes a full range of powder-coated aluminum camera stations
specifically designed for hazardous area applications. Spectrum’s F1xx series utilize
the most robust and advanced camera technologies available.
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
4

Labels
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
5

STANDARDS &CERTIFICATIONS
STANDARDS-
The equipment is manufactured in accordance with the IECEX scheme, the ATEX Directive 2014/34/EU and
with the following standards :
IEC 60079-0:2011
IEC 60079-1:2014
IEC 60079-31:2013
IEC 60529:2013
EN 60079-0:2012 + A11:2013
EN 60079-1:2014
EN 60079-31:2014
EN 60529:1991 + A1:2000 + A2:2013
ANSI/ISA 60079-0:2013
ANSI/UL 60079-1:2015
ANSI/ISA 60079-31:2015
ANSI/IEC 60529:2004
CAN/CSA-C22.2 No. 60079-0:2015
CAN/CSA-C22.2 No. 60079-1:2016
CAN/CSA-C22.2 No. 60079-31:2015
CAN/CSA-C22.2 No. 60529:2016TR CU 012/2011
GOST 31610.0-2014 (IEC60079-0:2011)
GOST IEC 60079-1-2011
GOST IEC 60079-31-2013
Specific Conditions of Use:
-The flameproof joints of the equipment are not intended to be repaired. Consult the manufacturer if dimensional
information on the flameproof joints is necessary.
-Follow the manufacturer’s instructions to reduce the potential of an electrostatic charging hazard on the surface
of the equipment in Group II and III environments.
NOTE: Use a clean cloth dampened with pure water for cleaning.
CERTIFICATIONS-
CERT NO. FM18US0262X &FM18CA0126X
US: Class I Division 1 Groups BCD T5 Ta= -40°C to +55°C, Type 4X, IP66 Class
II/III Division 1 Groups EFG Ta= -40°C to +55°C, Type 4X, IP66
Canada:Class IDivision 1Groups BCD T5 Ta= -50°C to +55°C, Type 4X, IP66 Class
II/III Division 1Groups EFG Ta= -50°C to +55°C, Type 4X, IP66
Class I, Zone 1, AEx/Ex db IIB+H2T5Gb Ta = -50°C to +55°C, Type 4X, IP66 Zone
21,AEx/Ex tb IIIC T85°C Db Ta = -50°C to +55°C, Type 4X, IP66
CERT NO.FM18ATEX0073X & IECEx FMG 18.0029XII 2
GEx db IIB+H2T5Gb Ta = -50°C to +55°C, IP66 II 2 D Ex
tb IIIC T85°C Db Ta = -50°C to +55°C, IP66
CERT NO.RU 0690907
1Ex d IIВ+Н2 T5 Gb X Ta = -50°C to +55°C, IP66
Ех tb IIIСT85 ºСDb ХTa = -50°C to +55°C, IP66
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
6

The following symbols are used throughout this manual to alert users to potential
hazards or important information.Failure to heed the warnings and cautions listed
herein can lead to injury and equipment damage.
Symbol Label Description
WARNING:
Consists of conditions, practices, or procedures that
must be observed to prevent personal injury and/or
equipment damage.
CAUTION:
Risk of electric shock or high temperature parts may
result in injury if proper precautions are not taken.
NOTE: Emphasizes important or essential information.
Locating Information:
NOTE:In the interest of completeness, manuals and drawings included with
the system may provide information pertaining to options not included with
your equipment.Information in application notes supersedes general
information in these documents.Information can be located in this manual
using any of the following aids.
DOCUMENT SYMBOLS
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
7

How to use this Manual
General Manual:
This manual is intended to be used in conjunction with installed equipment manual
from internal equipment manufacturer.
Note:In the event of aconflict between the requirements of this general installation
manual and the internal equipment manual, the safety and installation procedures
described in this manual shall takeprecedence.
Safety Considerations:
This information that must be read and understood by all persons installing, using, or
maintaining this equipment. This manual is designed to aid personnel in the correct
and safe installation, operation, and maintenance of the systems described.
Personnel must consider all actions and procedures for potential hazards or
conditions that may not have been anticipated in the written procedures. If a
procedure cannot be performed safely, it must not be performed until appropriate
actions can be taken to ensure the safety of equipment and personnel. The
procedures in this manual are not designed to replace or supersede required or
common-sense safety practices. All safety warnings listed in any documents
applicable to equipment and parts used in or with the system described in this
manual must be read and heeded before commencing work on any part of the
system.
NOTE: Refer to all ATEX, CSA, IECEx, NEC, NFPA, EAC Ex and FM
certificates for any Special Conditions of Use. If the sign “X” is
placed after the certificate number, it indicates that the equipment
or protective system is subject to special conditions for safe use
specified in the schedule of thecertificate.
NOTE: Review all material and safety information in this manual and
install in accordance with this document and all other applicable
ATEX, CSA, IECEx, NEC,, EAC Ex, NFPA70 Installation Methods
and FM and National standards.
Warning-Failure to follow appropriate safety procedures or
appropriate use of the equipment described in this manual can lead
to injury of personnel or equipmentdamage.
Warning –Explosion Hazard–Do not open equipment unlesspower
has been removed or the area is known to be non-hazardous.
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
8

General safety and operating information applicable to electrical equipment installed within
hazardous locations. This information must be understood by all persons installing, using, or
maintaining the electrical equipment. This information is designed to aid personnel in safe
installation, operation, and maintenance of the “F" Series equipment. It is not designed to replace or
limit appropriate safety measures applicable to work performed by personnel. Any additional safety
and operating measures that are required must be determined by and followed by personnel
performing work on the electrical equipment.
WARNING: Deviation from the specified instructions or procedure steps can
result in injury to personnel, equipment malfunction or equipment damage.
WARNING: Return unit to factory for any repairs or replacement of parts,
customer not permitted to repair. This will void all warranties and hazardous area
certification(s) if unauthorized repairoccurs.
General Precautions:
Slip resistant gloves and protective eyewear (glasses with side shields or goggles as appropriate)
should be worn when installing and servicing any part of electrical equipment. Hot components
should be allowed to cool before servicing if possible. Other appropriate equipment or clothing must
be used as required by the type of work performed. All applicable regulations and procedures must
be followed for the work performed. Before beginning any work on the equipment, carefully consider
all the potential hazards and ensure that appropriate measures are taken to prevent injury to
personnel or equipment damage.
CAUTION: Failure to allow adequate cooling of electrical equipment components with
hot surfaces before opening the enclosure can lead to injury of personnel or equipment
damage.
CAUTION: Electrical equipment components may be hot even when power is not
applied. Take appropriate precautions to prevent injury from contact with hot items.
General Safety and Operating Information:
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
9

Electrical Power:
The “F1XX" Series IP cameras operate from a variety of power options including IEEE compliant POE
devices.
The power supply used with this product shall fulfill the requirements for Safety Extra Low Voltage (SELV)
and Limited Power Source (LPS) according to IEC/EN/UL 62368-1 or IEC/EN/UL 60950-1 or Listed Class II
Power Source Equipment. The product shall be grounded either through a shielded network cable (STP) or
other appropriate method.
Camera Location:
The “F1XX" Series IP camera must be installed in a suitable location away from impacts, heavy vibration
and extreme heat. The “F1XX" Series camera must not be installed in an area classification for which it is
not rated. The “F1XX" Series camera must be attached securely and appropriately to a wall or supporting
structure.
CAUTION:The electrical cover should never be removed unless power
is removed (for at least 5minutes) from the unit or the area is known not
to contain hazardous gases.
NOTE:
•The product shall be installed by a trained professional.
•The product shall be used in compliance with local laws and regulations.
•Store the product in a dry and ventilated environment.
•Avoid exposing the product to shocks or heavy pressure.
•Do not install the product on unstable brackets, surfaces or walls.
•Use only applicable tools when installing the product. Using excessive force with power tools could
cause damage to the product.
•Do not use chemicals, caustic agents, or aerosol cleaners.
•Use a clean cloth dampened with pure water for cleaning.
•Use only accessories that comply with the technical specification of the product. These can be provided
by Spectrum or a third party.
General Safety and Operating Information:
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
10

Installation:
The installation must be realized in accordance with IEC/EN 60079-14, GOST IEC 60079-
14, and/or in accordance with the national requirements. This equipment must be installed
and used only by qualified personnel, having knowledge concerning electrical equipment for
use in potentially explosive areas containing gas and/or dust. Qualified personnel must have
knowledge regarding the types of explosion protection. This equipment is intended to be
used in zone 1, 2, 21 and 22 for groups IIB+H2 and IIIC with temperature class T5 or T85°C,
it is necessary to verify if this equipment is in accordance with the atmosphere where it is
installed.
Connections:
Electric parameters power control unit Maximum supply voltage:
POE+ IEEE 802.3at/af, and AC/DC 12-24 Volts 25W
The terminals are suitable for solid and stranded wires.-*See wiring Diagram Page
Cable Entries:
The cable entry must be made in order not to alter the specific properties of terminal housing
compartment. The connection to the external circuits must be realized by cable glands or
pipe fittings covered by a separate certificate(s). If a cable gland is not used, or an entry is
open, the entry must be closed by a stopping plug covered by a separate certificate. The
thread diameter of the cable entry is ¾ inch NPT.
This equipment can be used with different voltage and power, the nominal parameters are
specified in the manual.
Cable: cable must be tested and certified for temperatures of 80°C or higher.
Fiber Cable: Use a suitably certified optical fiber cable and internal connections shall
comply with requirements of IEC/EN 60079-15 and or, GOST IEC 60079-15
**The F101-P1377-BD does not accept optical fiber**
Equipment Modifications:
This equipment must be installed and used in strict accordance with the instructions given in
the user documentation. This equipment contains no user-serviceable components.
Unauthorized equipment changes or modifications will invalidate all applicable regulatory
certifications and approvals.
General Safety and Operating Information:
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
11

SPECIFICATIONS
Environmental Conditions
(Equipment must be powered)
OPERATIONONAL
CONDITIONS
USE
For Indoor and Outdoor Use
CERTIFICATIONS of Model-F101-P137x-BD
FM18US0262X &FM18CA0126X
US: Class I Division 1 Groups BCD T5 Ta= -40°C to +55°C, Type 4X, IP66
Class II/III Division 1 Groups EFG Ta= -40°C to +55°C, Type 4X, IP66
Canada:Class IDivision 1Groups BCD T5 Ta= -50°C to +55°C, Type 4X, IP66
Class II/III Division 1Groups EFG Ta= -50°C to +55°C, Type 4X, IP66
Class I, Zone 1, AEx/Ex db IIB+H2 T5 Gb Ta = -50°C to +55°C, Type 4X, IP66
Zone 21,AEx/Ex tb IIIC T85°C Db Ta = -50°C to +55°C, Type 4X,IP66
II 2 G Ex db IIB+H2 T5 Gb Ta = -50°C to +55°C, IP66
II 2 D Ex tb IIIC T85°C Db Ta = -50°C to +55°C, IP66
CERT NO.FM18ATEX0073X & IECEx FMG 18.0029X
CERT NO.RU 0690907
1Ex d IIВ+Н2 T5 Gb X
Ta = -50°C to +55°C, IP66
Ех tb IIIС T85 ºС Db Х
Ta = -50°C to +55°C, IP66
ELECTRICAL REQUIREMENTS of Model-F101-P1377-BD
POWER
INPUT/CONSUMPTION
Camera: IEEE 802.3af/802.3at Type 1 Class 3
10.7W Heating: ; 12-24vdc/vac,25W
ELECTRICAL REQUIREMENTS of Model-F101-P1375-BD
POWER
INPUT/CONSUMPTION
Camera: IEEE 802.3af/802.3at Type 1 Class 3
9.6W Heating: ; 12-24vdc/vac,25W
ELECTRICAL REQUIREMENTS of Model-F101-P1378-BD
POWER
INPUT/CONSUMPTION
Camera: IEEE 802.3af/802.3at Type 1 Class 3
10.7W Heating: ; 12-24vdc/vac,25W
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
12

F1XX Series Casing Material Specifications
ALUMINUM 15lbs
NOTE: Spectrum Camera Solutions, LLC is NOT responsible for any
misuse or improper installation of product, assumes no liability for special
or consequential damages caused by use or misuse or improper
installation of its products sold and assumes no liability for injury from use
or misuse or improper installation of its products or attached products.
SPECIFICATIONS
Power Source Specification For F101-P1377-BD &F101-P1375-BD &F101-P1378-BD
The power supply used with this product shall have a rated output voltage within voltage
range of 12-24 VAC/VDC. The power supply shall also fulfill one of the following
requirements: • Safety Extra Low Voltage (SELV) according to clause 2.2 of IEC/EN/UL
60950-1 and Limited Power Source (LPS) according to clause 2.5 of IEC/EN/UL 60950-1
or CEC/NEC Class 2 source of supply as defined in the Canadian Electrical Code, CSA
C22.1 and National Electrical Code, ANSI/NFPA 70 • Class 1 electrical energy source
(ES1) and Class 2 power source (PS2) rated output power limited to ≤100 W according to
IEC/EN/UL 62368-1. When used with Power over Ethernet (PoE) the Power sourcing
equipment (PSE) shall comply with IEEE 802.3af/802.3at and Limited Power Source (LPS)
according to clause 2.5 of IEC/EN/UL 60950-1 or annex Q of IEC/EN/UL 62368-1.
Grounding Specification For F1XX
For U.S zones, the internal grounding connection must be used, and the external
grounding connection shall be a supplemental grounding connection. The product shall be
grounded either through a shielded network cable (STP) or other appropriate method.
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
13

UNBOXING
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
14

1(QTY 1) F1XX-CAMERA ASSEMBLY
2(QTY 1) SUN SHIELD
3(1 SET) .250-20 HEX SCREW
4(1 SET) SPLIT LOCK WASHER
5F1XX-WM (WALL MOUNT NOT INCLUDED)
6(QTY 2) SUN SHIELD STOP
7. ( 1 SET) .3125-18 PAN HEAD SCREW
8. (1 SET) LOCK WASHER
9. (QTY 1) CMP 781DT25 BREATHER DRAIN
10. (QTY 1) R1.3/4.20.N ¾”NPT to M20 EX reducer**NOT PICTURED**
1
5
8
6
7
3
4
2
9
HARDWARE
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
15

WIRING ENTRIES
Conduit Entries are ¾ inch NPT Use appropriate adapter
to keep ingress protection
CAUTION: Ensure power is disconnected prior to connecting
¾” NPT PORT ¾” NPT PORT
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
16

Figure 2.1
INSTALLATION
2. Loosen the set screw on the housing and remove ¼-20 hex
screws from the sunshield and then lift the sunshield from the
camera housing.Tabletop Figure 2.1
¼-20 hex
screws
Figure 2.2
Set
screw
-If wall mounted, remove sunshield stop.
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
17

INSTALLATION
Figure 4.
4. Push release on terminal block and insert positive 12-24
VDC/VAC connection into terminal block (+A) , release to
secure. Do the same for negative dc connection into terminal
block (-B).
-B
+A
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
18

INSTALLATION
5.The product shall be grounded either through a shielded network cable (STP) or other
appropriate method.
1.Crimp RJ-45 using T568B color code then plug Cat6 POE into the RJ-45 Port
located on the back of the Camera.
2. Internal grounding screw 5850-6 SLBHUC 10-24x ¼ ZS ZGR
.
Figure 5.1
Shielded RJ-45 Plug for
STP cable Figure 5.2
6. To connect the external ground, for U.S zones, the internal grounding connection must/shall
be used, and the external grounding connection shall be a supplemental grounding connection.
The external ground wire connection is suitable for wire up to 3.25 mm (#8AWG)
Figure 6
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
19

7. Ensure threads and gaskets are free of dirt and debris.
8. Reinstall F1XX end cap by hand, tighten by turning clockwise until hand tight and the gasket is seated
Figure 8.
9. Tighten both set screws on the end cap and the lens cap of the housing.
Figure 9. Set Screw (same on lens cap)
INSTALLATION
10. Install the F1XX-WM wall mount.
11.Remove the protective film after installation. If the protective film is not removed in a timely manor
damage to lens is likely to occur with UV exposure
12.Apply power. For internal equipment startup procedures, setting changes, and troubleshooting
guides reference the camera manufacturer’s manual included with the “F1XX" Series Cameras. If the
included copy is lost, please contact [email protected] for a PDF copy.
Figure 10.
F101-P137(5,7,8)-BD REV 2 114309212018 F1XX
SERIES INSTALLATION REV-2A
20
